2-2Keys and doors
Keys

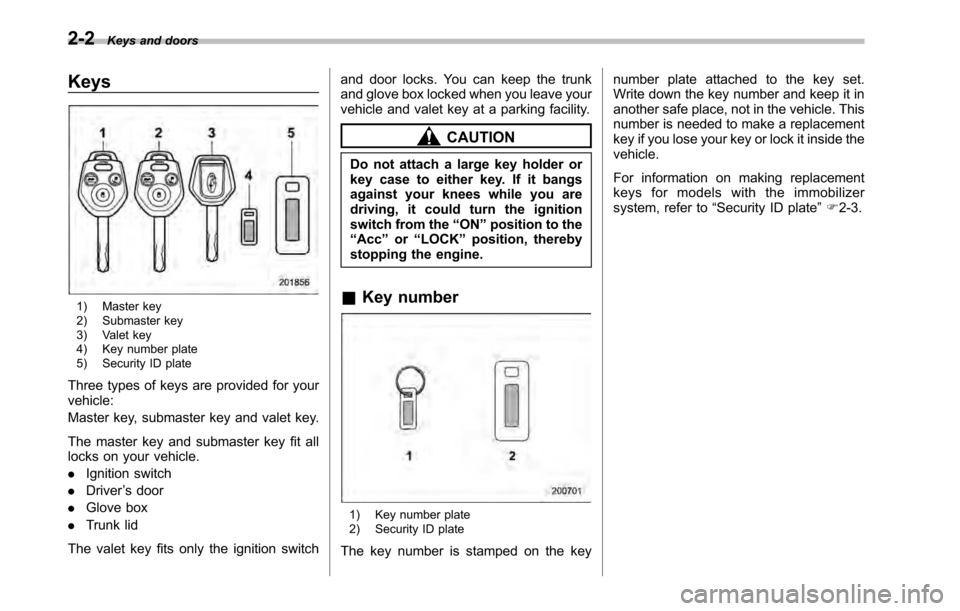

1) Master key
2) Submaster key
3) Valet key
4) Key number plate
5) Security ID plate
Three types of keys are provided for your vehicle:
Master key, submaster key and valet key.
The master key and submaster key fit all
locks on your vehicle. . Ignition switch
. Driver ’s door
. Glove box
. Trunk lid
The valet key fits only the ignition switch and door locks. You can keep the trunk
and glove box locked when you leave your
vehicle and valet key at a parking facility.
CAUTION
Do not attach a large key holder or
key case to either key. If it bangs
against your knees while you are
driving, it could turn the ignition
switch from the “ON ”position to the
“ Acc ”or “LOCK ”position, thereby
stopping the engine.
& Key number
1) Key number plate
2) Security ID plate
The key number is stamped on the key number plate attached to the key set.
Write down the key number and keep it in
another safe place, not in the vehicle. This
number is needed to make a replacement
key if you lose your key or lock it inside thevehicle.
For information on making replacement
keys for models with the immobilizer
system, refer to
“Security ID plate ”F 2-3.

Immobilizer
The immobilizer system is designed to
prevent an unauthorized person from
starting the engine. Only keys registered
with your vehicle’s immobilizer system can
be used to operate your vehicle. Even if
an unregistered key fits into the ignition
switch and can be turned to the “START ”
position, the engine will automatically stop
after several seconds.
Each immobilizer key contains a trans-
ponder in which the key ’s ID code is
stored. When a key is inserted into the
ignition switch and turned to the “ON ”
position, the transponder transmits thekey ’s ID code to the immobilizer system ’s
receiver. If the transmitted ID code
matches the ID code registered in the
immobilizer system, the system allows the
engine to be started. Since the ID code is
transmitted and acted upon almost in-
stantly, the immobilizer system does not
impede normal starting of the engine.
If the engine does not start, pull out the
key once before trying again. Refer to“ Ignition switch ”F 3-3.
This device complies with Part 15 of
the FCC Rules and with RSS-210 of
Industry Canada. Operation is subject
to the following two conditions: (1) This device may not cause harmful inter-
ference, and (2) this device must
accept any interference received, in-
cluding interference that may cause
undesired operation.
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void theuser
’s authority to operate the equip-
ment.
NOTE
To protect your vehicle from theft,
please pay close attention to the fol-
lowing security precautions: . Never leave your vehicle unattended
with its keys inside. . Before leaving your vehicle, close all
windows and lock the doors (all mod-
els) and rear gate (Outback).. Do not leave spare keys or any
record of your key number in thevehicle.
CAUTION
. Do not place the key under direct
sunlight or anywhere it may
become hot. .
Do not get the key wet. If the key
gets wet, wipe it dry with a cloth
immediately.
& Security ID plate
1) Key number plate
2) Security ID plate
The security ID is stamped on the security
ID plate attached to the key set. Write
down the security ID and keep it in
another safe place, not in the vehicle.
This number is needed to make a replace-
ment key if you lose your key or lock it
inside the vehicle.
This number is also needed for replace-
ment or repair of the engine control unit,
integrated unit, combination meter (all
models) and security control unit Keys and doors
2-3
– CONTINUED –

2-4Keys and doors
(Canada-spec. models). & Security indicator light
The security indicator light deters potential
thieves by indicating that the vehicle is
equipped with an immobilizer system. It
begins flashing approximately 60 seconds
after the ignition switch is turned from the“ON ”position to the “Acc ”or “LOCK ”
position or immediately after the key is
pulled out.
If the security indicator light does not flash,
the immobilizer system may be malfunc-
tioning. If this occurs, contact your
SUBARU dealer as soon as possible.
In case an unauthorized key is used (e.g.
an imitation key), the security indicator
light illuminates. NOTE
Even if the security indicator light
flashes irregularly or its fuse blows
(the light does not flash if its fuse is
blown), the immobilizer system will
function normally. &
Key replacement
Your key number plate and security ID
plate will be required if you ever need a
replacement key made. Any new key must
be registered for use with your vehicle ’s
immobilizer system before it can be used.
Up to four keys can be registered for use
with one vehicle.
For security, all the keys registered with
your vehicle ’s immobilizer system will
have their ID codes erased and re-
registered when a new key is made.
Therefore, all of your vehicle ’s keys must
be presented when a new key is regis-
tered. Any key that is not re-registered
when a new key is made cannot be used
after the other keys are re-registered. For
information on replacement keys and on
the registration of keys with your immo-
bilizer system, contact your SUBARU
dealer. NOTE
A vehicle that is equipped with the
remote engine start system as a dealer
option can register up to four keys for
use with one vehicle.

3-4Instruments and controls
&Acc
In this position the electrical accessories
(radio, accessory power outlet, etc.) can
be used. & ON
This is the normal operating position after
the engine is started. & START
CAUTION
Do not turn the ignition switch to the “ START ”position while the engine
is running.
The engine is started in this position. The
starter cranks the engine to start it. When
the key is released (after the engine has
started), the key automatically returns tothe “ON ”position.
If the engine does not start with your
registered key, pull out the key once (at
this time, the security indicator light will
blink), wait for at least 10 seconds,
reinsert the key in the ignition switch and
then try to start the engine again.
NOTE
The engine may not start in the follow-
ing cases:. The key grip is touching another key
or a metallic key holder.
. The key is near another key that
contains an immobilizer transponder. . The key is near or touching another
transmitter. &
Key reminder chime
The reminder chime sounds when thedriver ’s door opens and the key is in the
“ LOCK ”or “Acc ”positions. The chime
stops when the ignition switch is turned
to the “ON ”position or the key is removed
from the ignition switch.
& Ignition switch light
For easy access to the ignition switch in
the dark, the ignition switch light illumi-
nates when driver ’s door is opened or
when the driver ’s door is unlocked using
the remote keyless entry transmitter.
The light remains illuminated for approxi-
mately 30 seconds and gradually turns off
under the following conditions. . When the driver ’s door is closed
. When the doors are unlocked using the
remote keyless entry transmitter
The light gradually turns off under the
following conditions. . When the ignition switch is turned to
the “ON ”position
. When the doors are locked using the
remote keyless entry transmitter

3-22Instruments and controls
The Vehicle Dynamics Control system is
probably malfunctioning under any of the
following conditions. Have your vehicle
checked at a SUBARU dealer immedi-
ately. . The light does not illuminate when the
ignition switch is turned to the “ON ”
position.. The light does not turn off even after a
period of approximately 2 seconds after
the ignition switch has been turned to the“ ON ”position.
& Security indicator light
This indicator light shows the status of the
alarm system. It also indicates operation
of the immobilizer system. !Alarm system
It blinks to show the driver the operational
status of the alarm system. For detailed
information, refer to “Alarm system ”F 2-
16. ! Immobilizer system
This light blinks approximately 60 seconds
after the ignition switch is turned from“ ON ”position to the “Acc ”or “LOCK ”
position or immediately after the key is
pulled out. Refer to “Immobilizer ”F 2-3.
If the indicator light does not flash, it may
indicate that immobilizer system may be faulty. Contact your nearest SUBARU
dealer immediately.
In the event that an unauthorized key (for
example, an unauthorized duplicate) is
used, the security indicator light illumi- nates.
& Select lever/gear position in- dicator
This indicator shows the position of the
shift lever (MT models) or select lever (AT
and CVT models). ! AT and CVT models
When the manual mode is selected, the
gear position indicator (which shows the
current gear selection) and the upshift/
downshift indicator light up. Refer to “
Automatic transmission/Continuously
variable transmission ”F 7-18.
! MT models
The shift-up indicator light illuminates and
informs the driver about the upshift timing
for fuel-efficient driving.
The gear position indicator light and the
shift-up indicator can be activated or
deactivated by performing the followingprocedure.
1. Turn the ignition switch to the “LOCK ”
position.
2. Press the trip knob to show “
”or
“” on the trip meter display.
The display can be switched as shown in
the following illustration by pressing the
trip knob.
*1: “” or “”and “”or “”cannot
be displayed when the ignition switch is
in the “ON ”position.
*
2: MT models only

14-6Index
Front seat ............................................................... 1-5
Rear seat .............................................................. 1-10
Headlight ......................................................... 3-27, 11-50
Flasher ................................................................. 3-28
Indicator light ......................................................... 3-23
Heater operation (manual climate control system) .. .......... 4-6
High beam indicator light ............................................ 3-23
High/low beam change (dimmer) .................................. 3-28
Hill Holder ................................................................. 7-35
Indicator light ................................................. 3-19, 7-36
Switch .................................................................. 7-35
Hook Coat ..................................................................... 6-13
Convenient tie-down ............................................... 6-17
Shopping bag ........................................................ 6-14
Towing and tie-down ............................................... 9-13
Horn ......................................................................... 3-39
Hose and connections ............................................... 11-17
I
Ignition switch .............................................................. 3-3
Light ....................................................................... 3-4
Illumination brightness control ...................................... 3-30
Immobilizer. ................................................................. 2-3
Indicator light (security indicator light) ................. 2-4, 3-22
Indicator light Coolant temperature low ......................................... 3-13
Cruise control ................................................ 3-23, 7-41
Cruise control set ........................................... 3-23, 7-41
Door open ............................................................. 3-20
Front fog light ........................................................ 3-23 Headlight
............................................................... 3-23
High beam ............................................................. 3-23
Security .......................................................... 2-4, 3-22
Select lever/Gear position ........................................ 3-22
Turn signal ............................................................ 3-23
Vehicle Dynamics Control OFF ......................... 3-21, 7-31
Vehicle Dynamics Control operation .. ................ 3-21, 7-30
Inside mirror .............................................................. 3-36
Interior lights ............................................................... 6-2
Internal trunk lid release handle .................................... 2-25
J
Jack-up point .............................................................. 9-6
Jump starting ............................................................. 9-10
K
Key............................................................................ 2-2 Number .................................................................. 2-2
Reminder chime ...................................................... 3-4
Replacement. .......................................................... 2-4
Keyless entry system ................................................... 2-8
L
Leather seat materials ................................................. 10-5
License plate light ..................................................... 11-57
Light Back-up (Legacy) ................................................. 11-54
Brake (Outback) ................................................... 11-55
Brake/Tail and rear side marker (Legacy). ................ 11-54
Cargo area .................................................... 6-3, 11-60
Control switch ........................................................ 3-27

Headlight............................................................. 11-50
License plate light ................................................. 11-57
Map light .............................................................. 11-59
Rear combination light ........................................... 11-54
Tail and rear side marker light (Outback) .................. 11-55
Tail/Back-up light (Outback) .................................... 11-56
Trunk light ............................................................ 11-60
Vanity mirror light .................................................. 11-59
Rocking the vehicle .................................................... 8-11
Roof rails with integrated cross bars ............................. 8-14
S Safety Precautions when driving ............................................. 4
Symbol ...................................................................... 2
Warnings ................................................................... 2
Seat
Fabric ................................................................... 10-5
Front ...................................................................... 1-2
Heater .................................................................... 1-6
Height adjustment .................................................... 1-4
Rear ....................................................................... 1-7
Seatbelt ................................................................. 4, 1-12
Fastening .............................................................. 1-15
Maintenance .......................................................... 1-22
Pretensioners ........................................................ 1-22
Safety tips ............................................................. 1-12
Warning light and chime ................................. 1-14, 3-10
Security Alarm system ........................................................ 2-16
ID plate ................................................................... 2-3 Immobilizer
............................................................. 2-3
Indicator light .................................................. 2-4, 3-22
Shock sensors ....................................................... 2-19
Select lever ............................................................... 7-19
Position indicator .................................................... 3-22
Shift lock function ................................................... 7-20
Shock sensors ........................................................... 2-19
Shopping bag hook ..................................................... 6-14
Snow tires ....................................................... 8-10, 11-35
Snowy and icy roads ................................................... 8-9
Sounding a panic alarm .............................................. 2-10
Spark plugs ............................................................. 11-22
Specifications ............................................................. 12-2
Speedometer .............................................................. 3-6
SRS Curtain airbag ........................................................ 1-53
Frontal airbag ......................................................... 1-43
Side airbag ............................................................ 1-53
SRS airbag (Supplemental Restraint System airbag)... 4, 1-38
SRS airbag system Monitors ................................................................ 1-62
Servicing ............................................................... 1-63
Warning light .......................................................... 3-11
Starting the engine ...................................................... 7-8
State emission testing (U.S. only) .................................. 7-6
Steering wheel Power ................................................................... 7-23
Tilt/telescopic ......................................................... 3-38
Stopping the engine .................................................... 7-10
Storage compartment ................................................... 6-5
Sun shade ................................................................. 2-30 Index
14-9
