SUBARU OUTBACK 2017 6.G Multimedia System Manual

MEDIA OPERATION
79
AUDIO
3

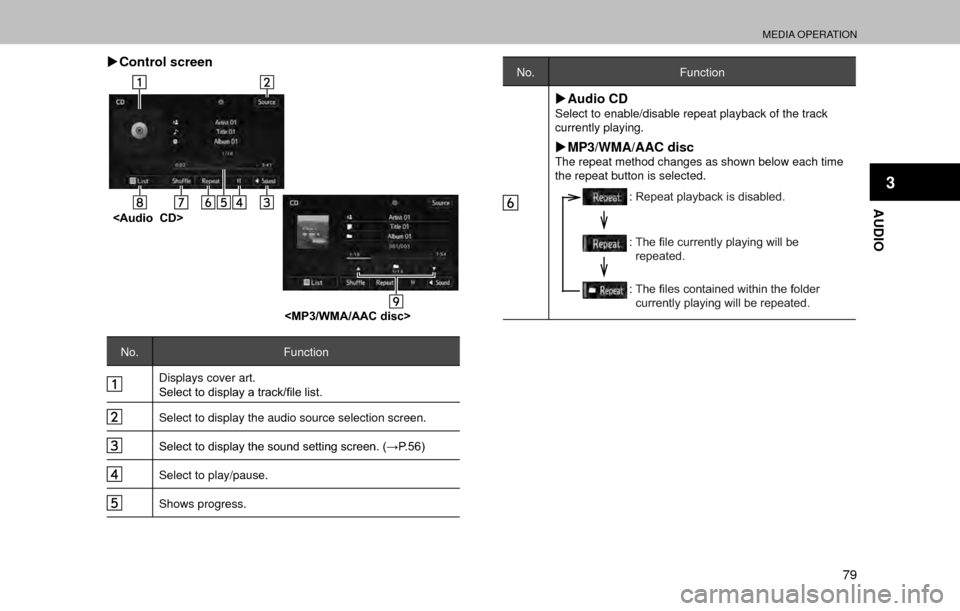

XControl screen

MEDIA OPERATION
80

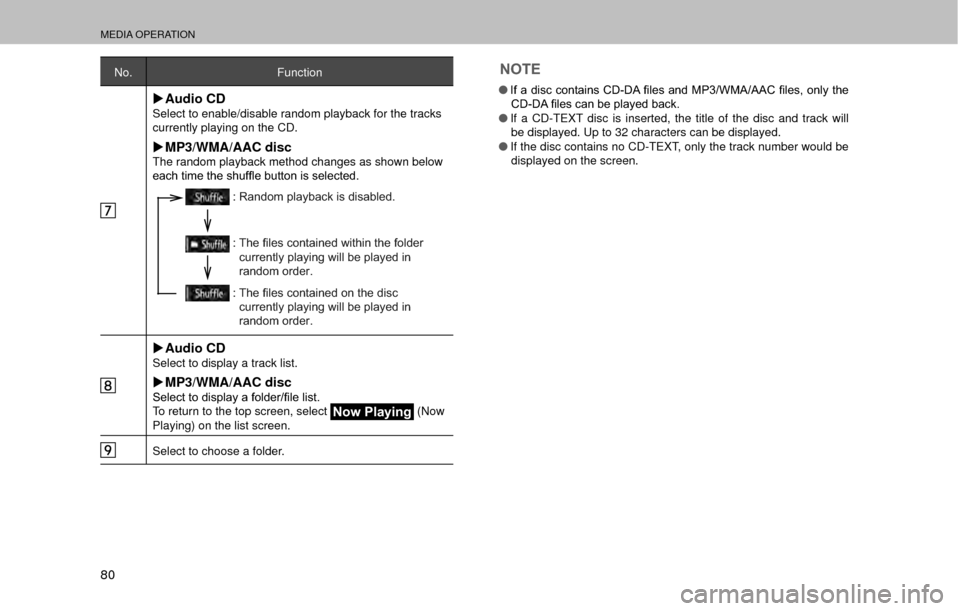

No.Function
XAudio CDSelect to enable/disable random playback for the tracks
currently playing on the CD.
XMP3/WMA/AAC discThe random playback method changes as shown below
HDFKWLPHWKHVKXIÀHEXWWRQLVVHOHFWHG
: The files contained within the folder
currently playing will be played in
random order.
: The files contained on the disc currently playing will be played in
random order.
: Random playback is disabled.
X Audio CDSelect to display a track list.
XMP3/WMA/AAC disc6HOHFWWRGLVSOD\DIROGHU¿OHOLVW
To return to the top screen, select Now Playing (Now
Playing) on the list screen.
Select to choose a folder.
NOTE
O ,IDGLVFFRQWDLQV&''$

MEDIA OPERATION
81
AUDIO
3

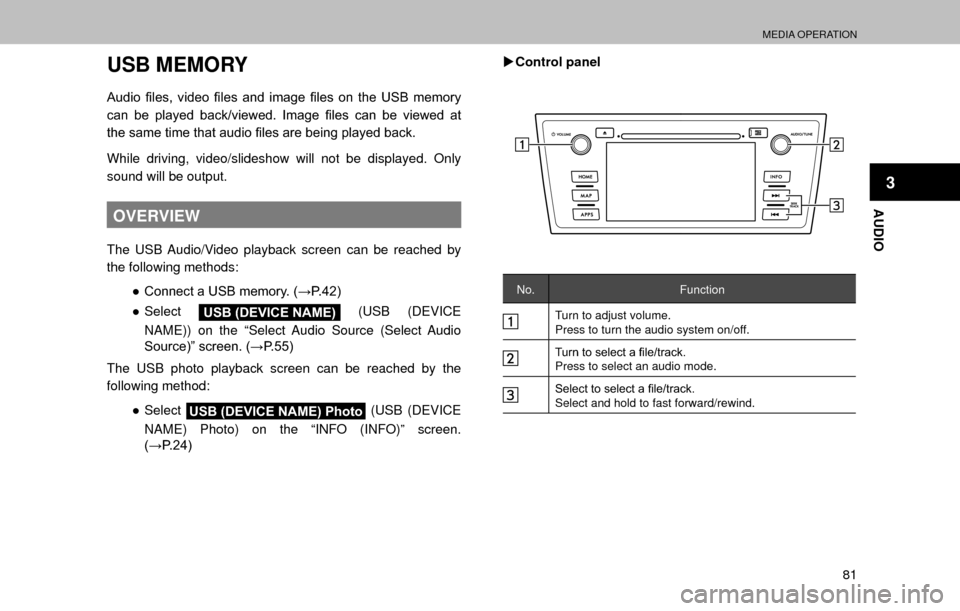

USB MEMORY
$XGLR

MEDIA OPERATION

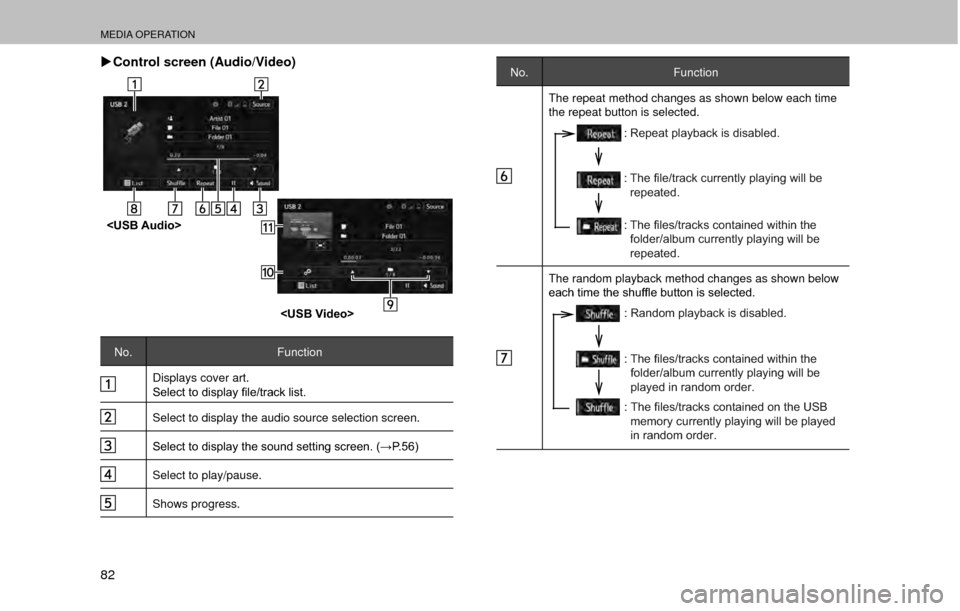

82 XControl screen (Audio/Video)


No.Function
Displays cover art.
6HOHFWWRGLVSOD\¿OHWUDFNOLVW
Select to display the audio source selection screen.
6HOHFWWRGLVSOD\WKHVRXQGVHWWLQJVFUHHQ
:3
Select to play/pause.
Shows progress.
No.Function
The repeat method changes as shown below each time
the repeat button is selected.
: Repeat playback is disabled.
: The file/track currently playing will be
repeated.
: The files/tracks contained within the folder/album currently playing will be repeated.
The random playback method changes as shown below
HDFKWLPHWKHVKXIÀHEXWWRQLVVHOHFWHG
: Random playback is disabled.
: The files/tracks contained on the USB memory currently playing will be played
in random order.
: The files/tracks contained within the folder/album currently playing will be
played in random order.

MEDIA OPERATION
83
AUDIO
3

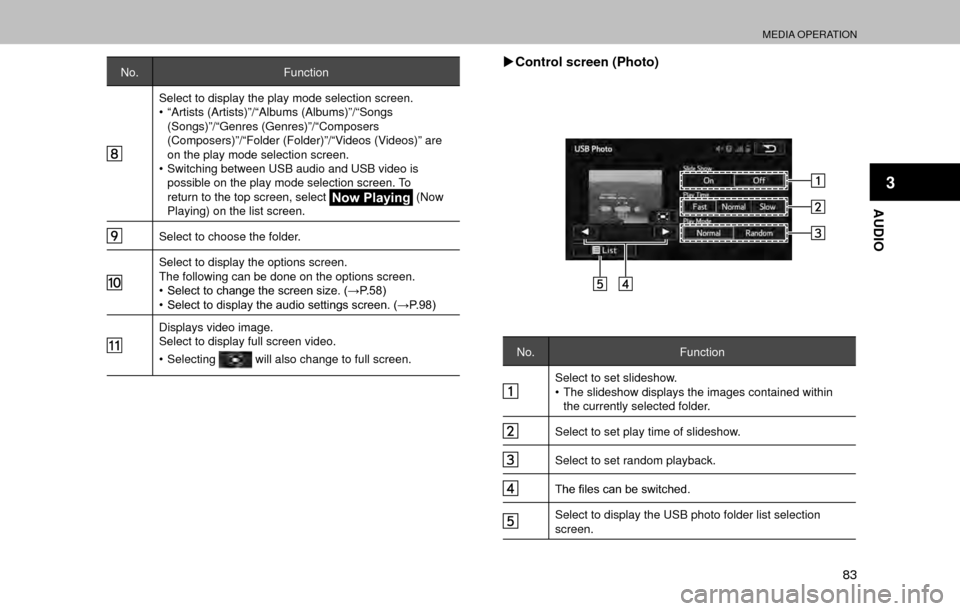

No.Function
Select to display the play mode selection screen.
‡“Artists (Artists)”/“Albums (Albums)”/“Songs
(Songs)”/“Genres (Genres)”/“Composers
(Composers)”/“Folder (Folder)”/“Videos (Videos)” are
on the play mode selection screen.
‡ Switching between USB audio and USB video is
possible on the play mode selection screen. To
return to the top screen, select
Now Playing (Now
Playing) on the list screen.
Select to choose the folder.
Select to display the options screen.
The following can be done on the options screen.

MEDIA OPERATION
84

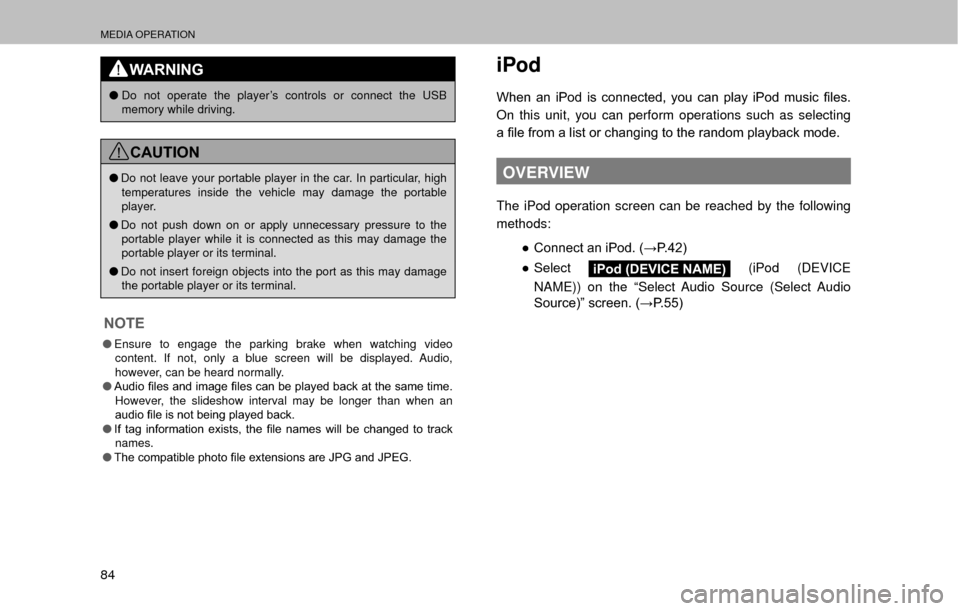

WARNING
ODo not operate the player’s controls or connect the USB
memory while driving.
CAUTION
ODo not leave your portable player in the car. In particular, high
temperatures inside the vehicle may damage the portable
player.
O Do not push down on or apply unnecessary pressure to the
portable player while it is connected as this may damage the
portable player or its terminal.
O Do not insert foreign objects into the port as this may damage
the portable player or its terminal.
NOTE
O Ensure to engage the parking brake when watching video
content. If not, only a blue screen will be displayed. Audio,
however, can be heard normally.
O $XGLR

MEDIA OPERATION
85
AUDIO
3

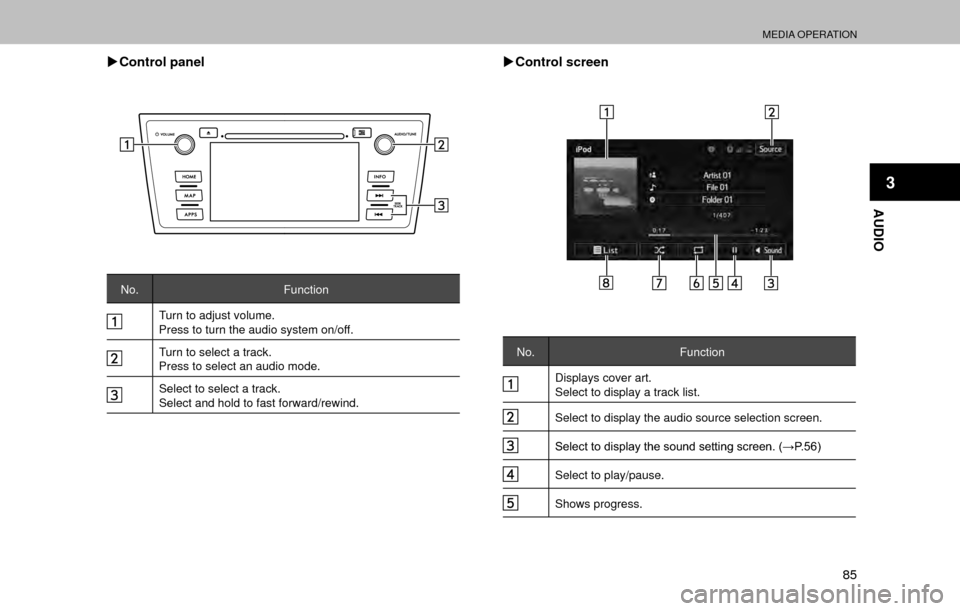

XControl panel
No. Function
Turn to adjust volume.
Press to turn the audio system on/off.
Turn to select a track.
Press to select an audio mode.
Select to select a track.
Select and hold to fast forward/rewind.
XControl screen
No. Function
Displays cover art.
Select to display a track list.
Select to display the audio source selection screen.
6HOHFWWRGLVSOD\WKHVRXQGVHWWLQJVFUHHQ
:3
Select to play/pause.
Shows progress.

MEDIA OPERATION
86

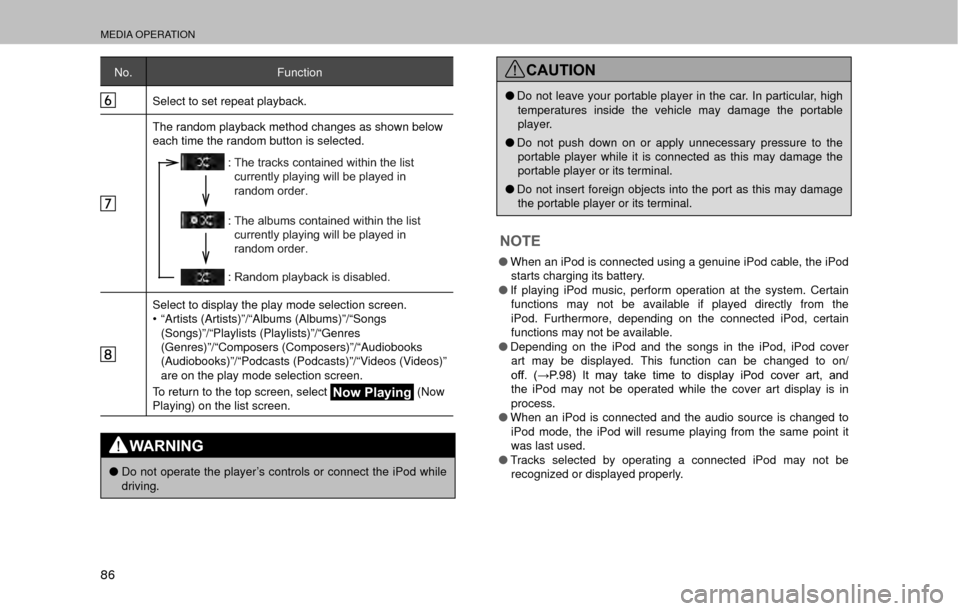

No.Function
Select to set repeat playback.
The random playback method changes as shown below
each time the random button is selected.
: The tracks contained within the list currently playing will be played in
random order.
: The albums contained within the list currently playing will be played in
random order.
: Random playback is disabled.

Select to display the play mode selection screen.
‡ “Artists (Artists)”/“Albums (Albums)”/“Songs
(Songs)”/“Playlists (Playlists)”/“Genres
(Genres)”/“Composers (Composers)”/“Audiobooks
(Audiobooks)”/“Podcasts (Podcasts)”/“Videos (Videos)”
are on the play mode selection screen.
To return to the top screen, select
Now Playing (Now
Playing) on the list screen.
WARNING
O Do not operate the player’s controls or connect the iPod while
driving.
CAUTION
ODo not leave your portable player in the car. In particular, high
temperatures inside the vehicle may damage the portable
player.
O Do not push down on or apply unnecessary pressure to the
portable player while it is connected as this may damage the
portable player or its terminal.
O Do not insert foreign objects into the port as this may damage
the portable player or its terminal.
NOTE
O When an iPod is connected using a genuine iPod cable, the iPod
starts charging its battery.
O If playing iPod music, perform operation at the system. Certain
functions may not be available if played directly from the
iPod. Furthermore, depending on the connected iPod, certain
functions may not be available.
O Depending on the iPod and the songs in the iPod, iPod cover
art may be displayed. This function can be changed to on/
RII
:3 ,W PD\ WDNH WLPH WR GLVSOD\ L3RG FRYHU DUW DQG
the iPod may not be operated while the cover art display is in
process.
O When an iPod is connected and the audio source is changed to
iPod mode, the iPod will resume playing from the same point it
was last used.
O Tracks selected by operating a connected iPod may not be
recognized or displayed properly.

MEDIA OPERATION
87
AUDIO
3

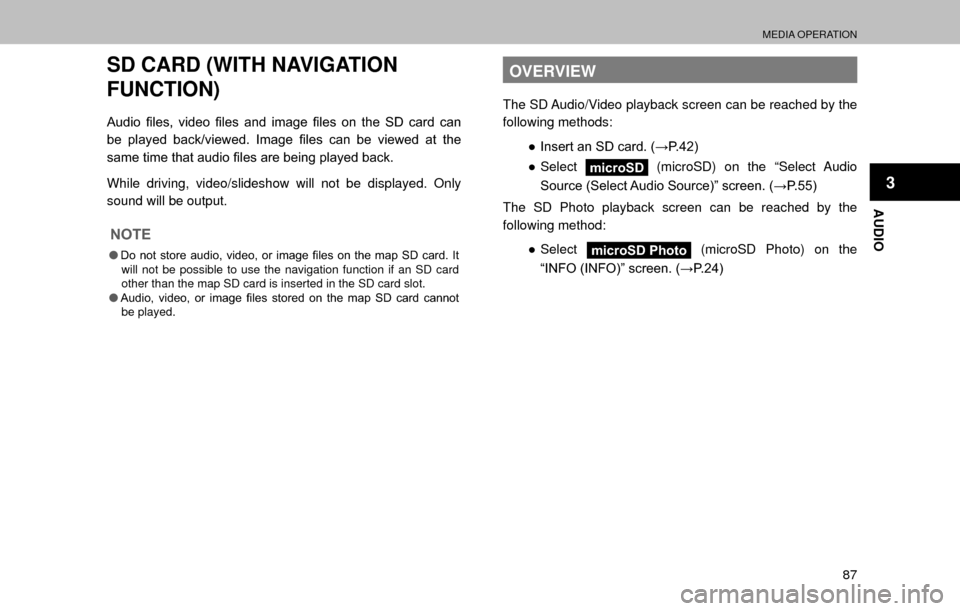

SD CARD (WITH NAVIGATION
FUNCTION)
$XGLR

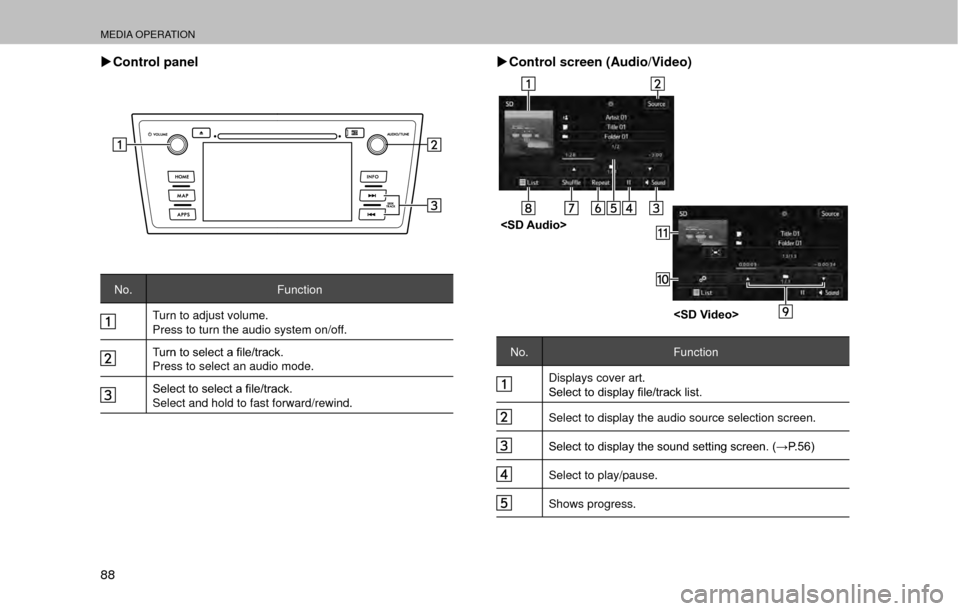

MEDIA OPERATION
88 XControl panel
No. Function
Turn to adjust volume.
Press to turn the audio system on/off.
7XUQWRVHOHFWD
