ECU SUBARU OUTBACK 2017 6.G Quick Reference Guide

3
Ignition switch must be in ACC or ON position.
1
Select side to adjust
2
To adjust the mirror, move the switch in the
direction of your desired position.
a djust each component
1
Forward and backward adjustment
2
Seat cushion angle adjustment
3
Seat height adjustment
4
Seatback angle (reclining) adjustment
5
Lumber support adjustment (if equipped)
1
Forward and backward adjustment
2
Seat cushion height adjustment
(Driver's seat only)
3
Seatback reclining adjustment
Power seat (Driver’s seat-if equipped):
Manual seat (if equipped):

Front seat
Tilt/telescopic steering wheel
Remote control mirror switch
1
Adjust the seat position and pull the tilt/
telescopic lock lever down.
2
Move the steering wheel to the desired level.
3
Pull the lever up to lock the steering wheel in
place.
Make sure that the steering wheel is securely
locked by moving it up and down, and forward and
backward.
1
2
3
2
1
2
3
2
12
1
2
4
3
5

19

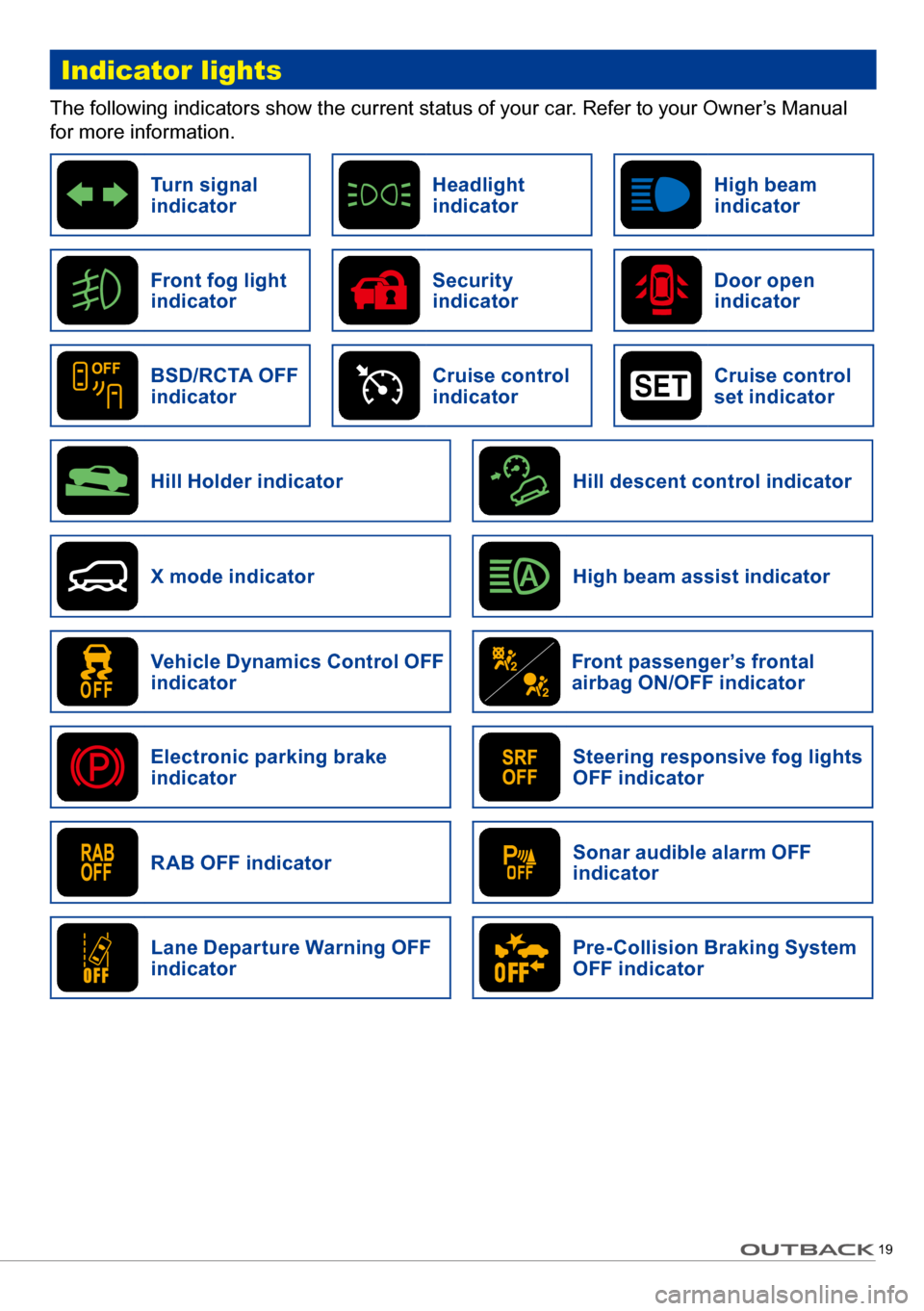

indicator lights
The following indicators show the current status of your car. Refer to your Owner’s Manual
for more information.
Turn signal
indicatorHeadlight
indicatorHigh beam
indicator
Front fog light
indicatorSecurity
indicatorDoor open
indicator
BSD/RCTA OFF
indicatorCruise control
indicatorCruise control
set indicator
Electronic parking brake
indicatorSteering responsive fog lights
OFF indicator
Vehicle Dynamics Control OFF
indicatorFront passenger’s frontal
airbag ON/OFF indicator
Hill Holder indicatorHill descent control indicator
X mode indicatorHigh beam assist indicator
RAB OFF indicatorSonar audible alarm OFF
indicator
Lane Departure Warning OFF
indicatorPre-Collision Braking System
OFF indicator
