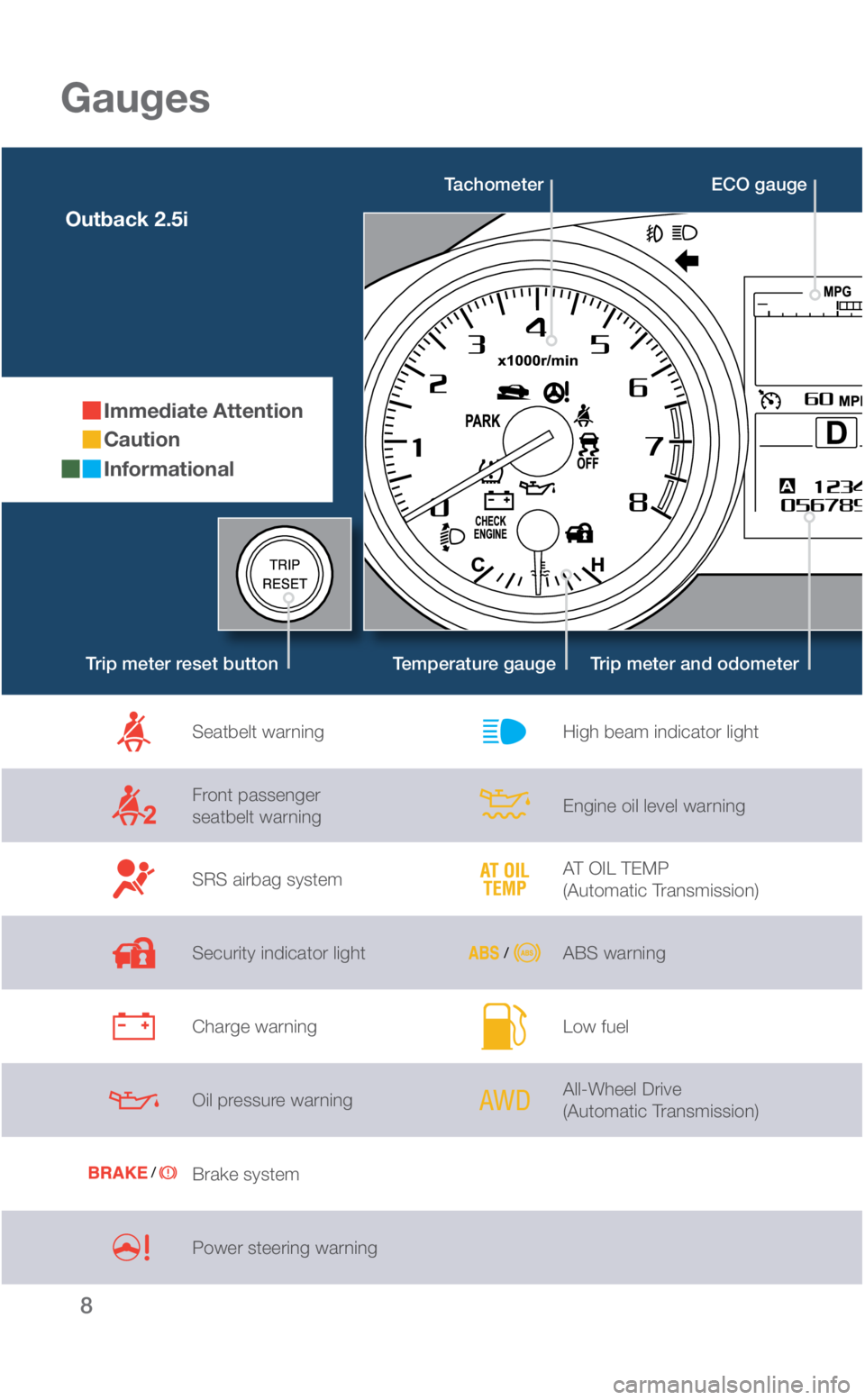

8
Gauges
Outback 2.5i
Immediate Attention
Caution
Informational
Tachometer
Temperature gaugeTrip meter and odometerTrip meter reset button
Seatbelt warning
Front passenger
seatbelt warning
SRS airbag system
Security indicator light
Charge warning
Oil pressure warning
Brake system
Power steering warning
High beam indicator light
Engine oil level warning
AT OIL TEMP
(Automatic Transmission)
ABS warning
Low fuel
All-Wheel Drive
(Automatic Transmission)ECO gauge
2926966_18a_Subaru_Outback_QRG_050417.indd 85/4/17 3:34 PM

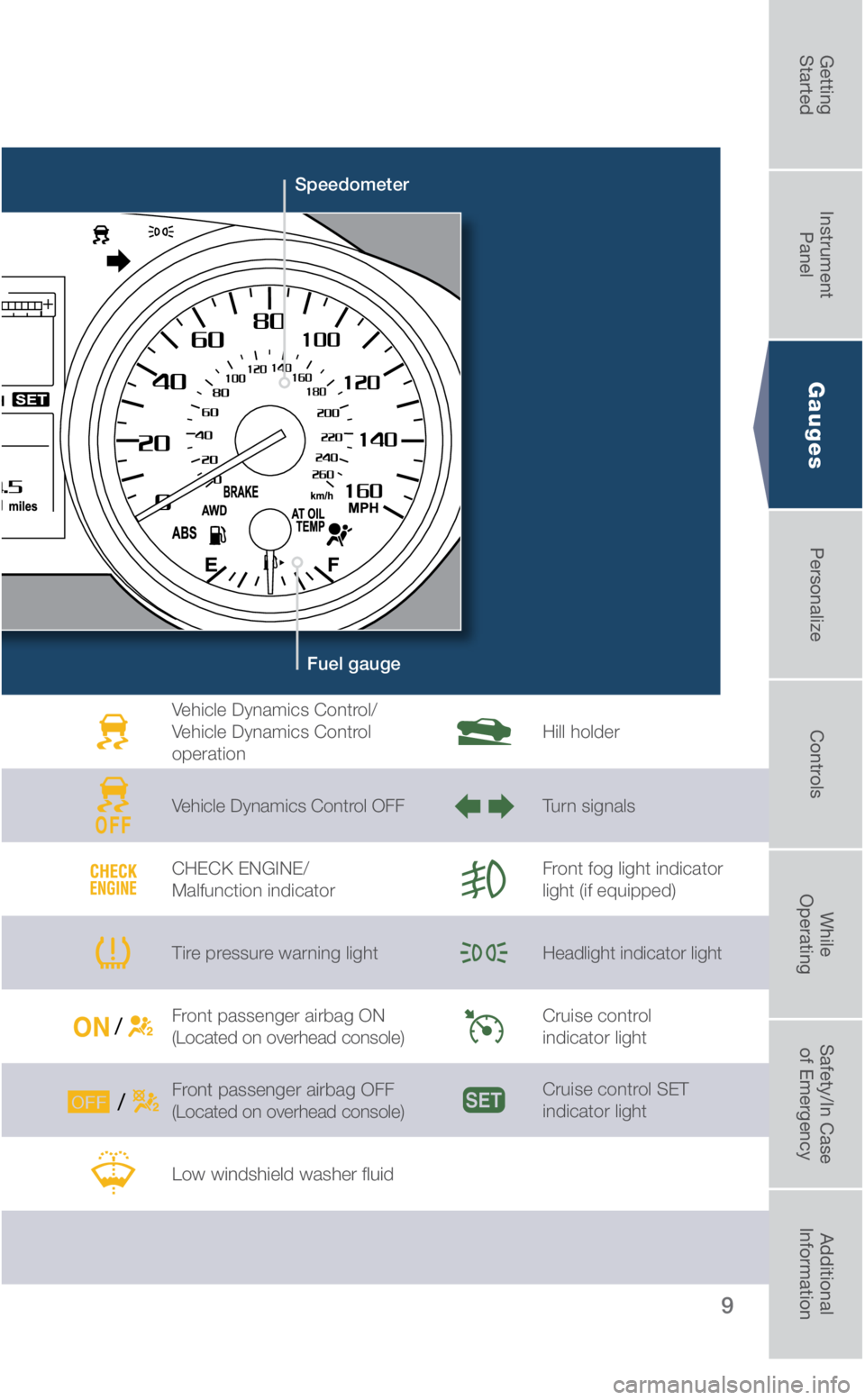

9
Speedometer
Fuel gauge
Gauges
Vehicle Dynamics Control/
Vehicle Dynamics Control
operation
Vehicle Dynamics Control OFF
CHECK ENGINE/
Malfunction indicator
Tire pressure warning light
Front passenger airbag ON
(Located on overhead console)
Front passenger airbag OFF (Located on overhead console)
Low windshield washer fluid
Hill holder
Turn signals
Front fog light indicator
light (if equipped)
Headlight indicator light
Cruise control
indicator light
Cruise control SET
indicator light
2926966_18a_Subaru_Outback_QRG_050417.indd 95/4/17 3:35 PM
Getting
StartedInstrument
Panel Gauges
Personalize ControlsWhile
Operating Safety/In Case
of Emergency Additional
Information

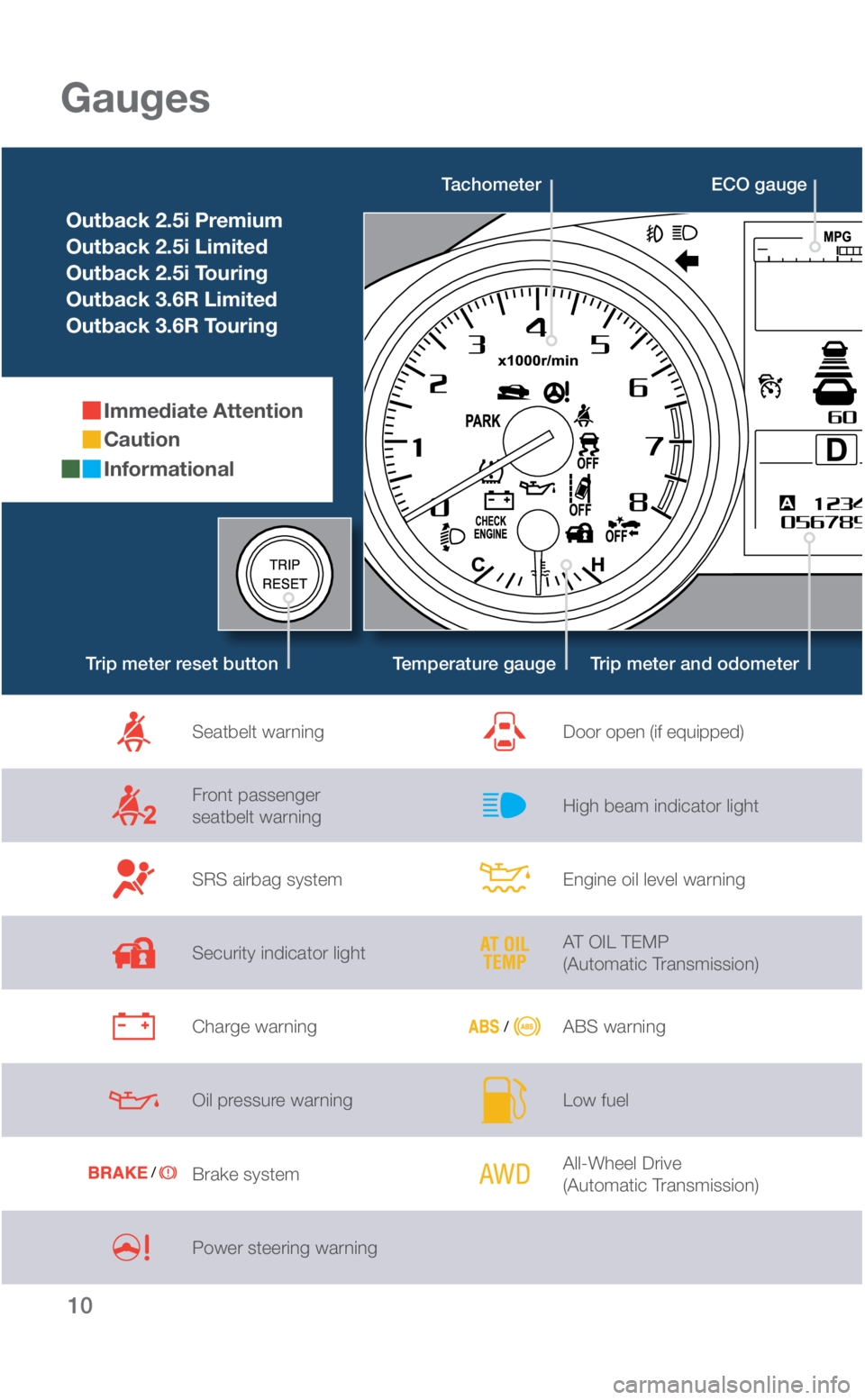

10
Tachometer
Temperature gauge Trip meter and odometer
Gauges
Outback 2.5i Premium
Outback 2.5i Limited
Outback 2.5i Touring
Outback 3.6R Limited
Outback 3.6R Touring
Immediate Attention
Caution
Informational
Trip meter reset button
ECO gauge
Seatbelt warning
Front passenger
seatbelt warning
SRS airbag system
Security indicator light
Charge warning
Oil pressure warning
Brake system
Power steering warning
Door open (if equipped)
High beam indicator light
Engine oil level warning
AT OIL TEMP
(Automatic Transmission)
ABS warning
Low fuel
All-Wheel Drive
(Automatic Transmission)
2926966_18a_Subaru_Outback_QRG_050417.indd 105/4/17 3:35 PM

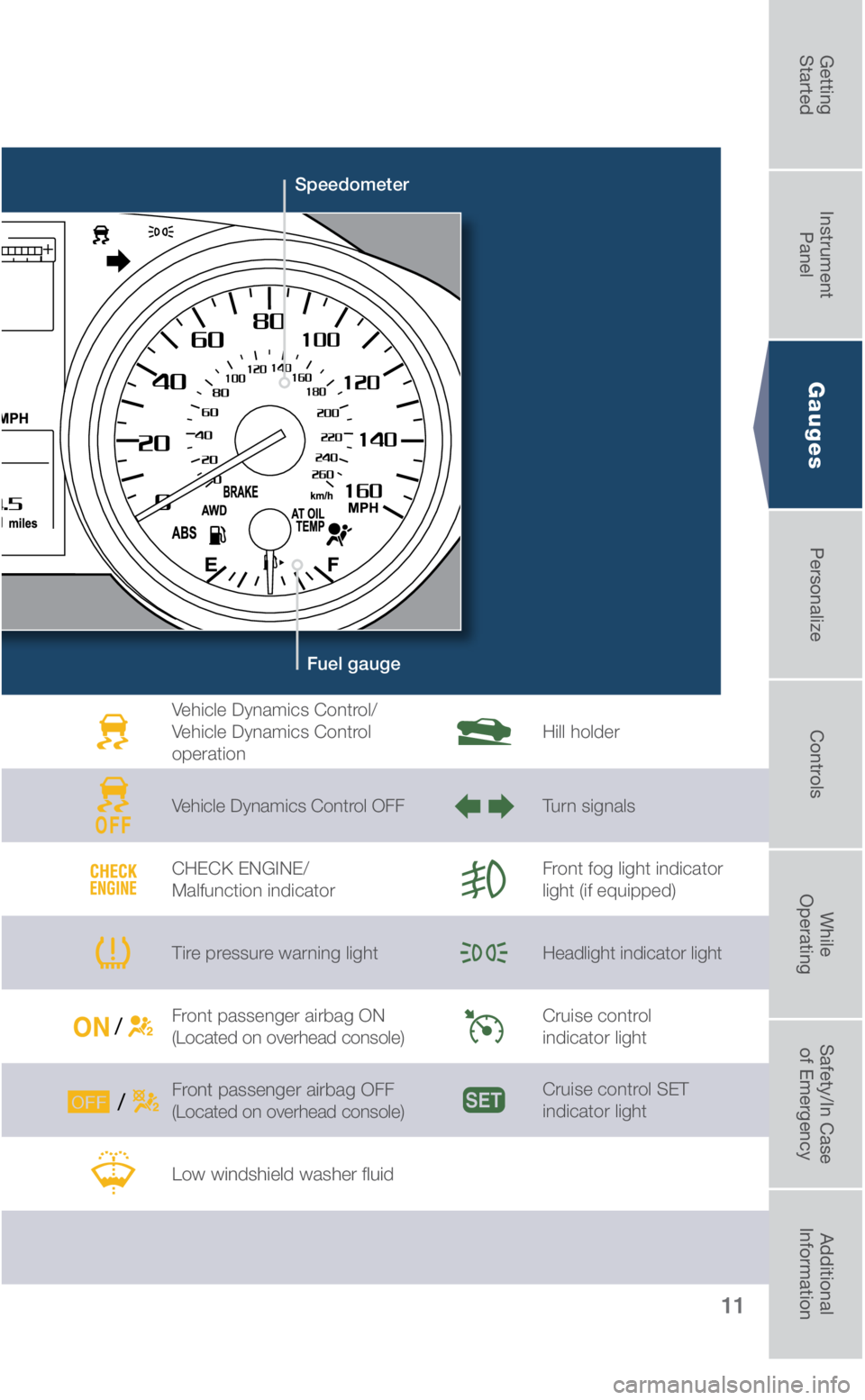

11
SpeedometerFuel gauge
Gauges
Vehicle Dynamics Control/
Vehicle Dynamics Control
operation
Vehicle Dynamics Control OFF
CHECK ENGINE/
Malfunction indicator
Tire pressure warning light
Front passenger airbag ON
(Located on overhead console)
Front passenger airbag OFF (Located on overhead console)
Low windshield washer fluid
Hill holder
Turn signals
Front fog light indicator
light (if equipped)
Headlight indicator light
Cruise control
indicator light
Cruise control SET
indicator light
2926966_18a_Subaru_Outback_QRG_050417.indd 115/4/17 3:35 PM
