warning SUBARU OUTBACK 2020 Getting Started Guide

2PURPOSE OF THIS GUIDE
4 ENTRY AND EXIT
8 INSTRUMENT PANEL
10 GETTING COMFORTABLE
24 CONTROLS
29 GAUGES AND WARNING LIGHTS
30 OPERATING THE VEHICLE
38 REFUELING
39 PASSENGER/CARGO AREAS
46 ENGINE COMPARTMENT
49 ADDITIONAL SPECIFICATIONS
52 STARLINK OVERVIEW
58 STARLINK HOME
62 CREATING A DRIVER PROFILE
66 MULTIMEDIA
69 PHONE
73 APPS
78 SUBARU STARLINK™ SAFETY AND SECURITY
81 MAPS(IF EQUIPPED)
100 SETTINGS AND UPDATES
110 APPENDIX: HOW TO
124 INDEX
TABLE OF CONTENTS

KEYLESS ENTRY
1Lock/Arm
• Pressing this button will lock all doors, rear gate and fuel door and activate the security alarm.
• If any of the doors or the rear gate are not fully closed, five rapid chirps will sound and the hazard warning flashers will
flash.
• Pressing this button three times (within five seconds) will activate the vehicle finder function. If you are within 30 feet
of your Subaru, the horn will sound once, and the hazard
warning flashers will flash three times.
2 Unlock/Disarm
• Pressing this button once will unlock the driver’s door and fuel door if set to do so in the Touchscreen.
• Pressing this button twice (within five seconds) will unlock all doors and rear gate.
• When you press this button, the interior lights will illuminate, if set to the “DOOR” position on the overhead console
switch.
3 Rear Gate
• Pressing this button will unlock the rear gate.
• If equipped with a power rear gate, pressing and holding this button will open or close the rear gate.
4 Panic Alarm
• Pressing this button will sound the horn and flash the hazard warning lights.
• Press any button on the access key fob or transmitter to deactivate.
Access Key Fob
Transmitter
ENTRY AND EXIT
4

Automatic Door Locking/Unlocking
With this function, all doors and the fuel lid will automatically lock or unlock when certain
conditions are met based on your preference. You can set the doors to lock when your
Subaru reaches 12 mph or you shift the select lever out of the “P” position. You can set the
doors to unlock when you shift the select lever into the “P” position, turn the ignition “OFF”
or open the driver’s door. You can change the setting in the Combination Meter Display
(CMD) or the touchscreen.
Automatic
LockingVehicle Speed
(12 mph) Shift Out of
ParkOff
Automatic
Unlocking Shift into Park Ignition Off Drive Door
OpenOff
KEYLESS ACCESS WITH PUSH BUTTON START
(if
equipped)
Your Subaru allows for customizing of the door unlock settings. The default setting is when
you unlock the vehicle, only the driver’s door and fuel lid unlock. If preferred, you can set
the vehicle to unlock all doors, the rear gate and the fuel lid. This adjustment can be
performed through the SUBARU STARLINK™ Multimedia Touchscreen under “Settings”,
then “Vehicle”.
Unlock Using Door Handles
Grip the driver’s door handle to unlock the
driver’s door (or all doors depending on the
setting). Grip the front passenger’s handle to
unlock all doors and the rear gate. Two chirps
will sound and the hazard warning flashers will
flash twice.
Locking Using Door Handles
Close all doors and the rear gate and touch
the door lock sensor (two lines) on either front
door handle. All doors and the rear gate will
lock. One chirp will sound and the hazard
warning flashers will flash once.
ENTRY AND EXIT
5

Opening the Rear Gate
Press the rear gate opener button to unlock
and open the rear gate (or also unlock all
doors depending on the setting). Two chirps
will sound and the hazard warning flashers will
flash twice.
Hands-free Power Rear Gate
The Hands-free Power Rear Gate function
uses the Subaru emblem to open the rear gate
when you have your hands full.
To open the rear gate using the hands-free
method, perform the following steps:
1. When the ignition switch is in the OFFposition, carry the access key fob with you.
2. Hold your hand over the Subaru emblem without touching it until a chirp sounds.
3. Immediately after the chirp sounds, move your hand away.
4. The rear gate will open automatically.
This function can be turned ON/OFF by
pressing the Hands-free Power Rear Gate
ON/OFF switch on the instrument panel.
ENTRY AND EXIT
6

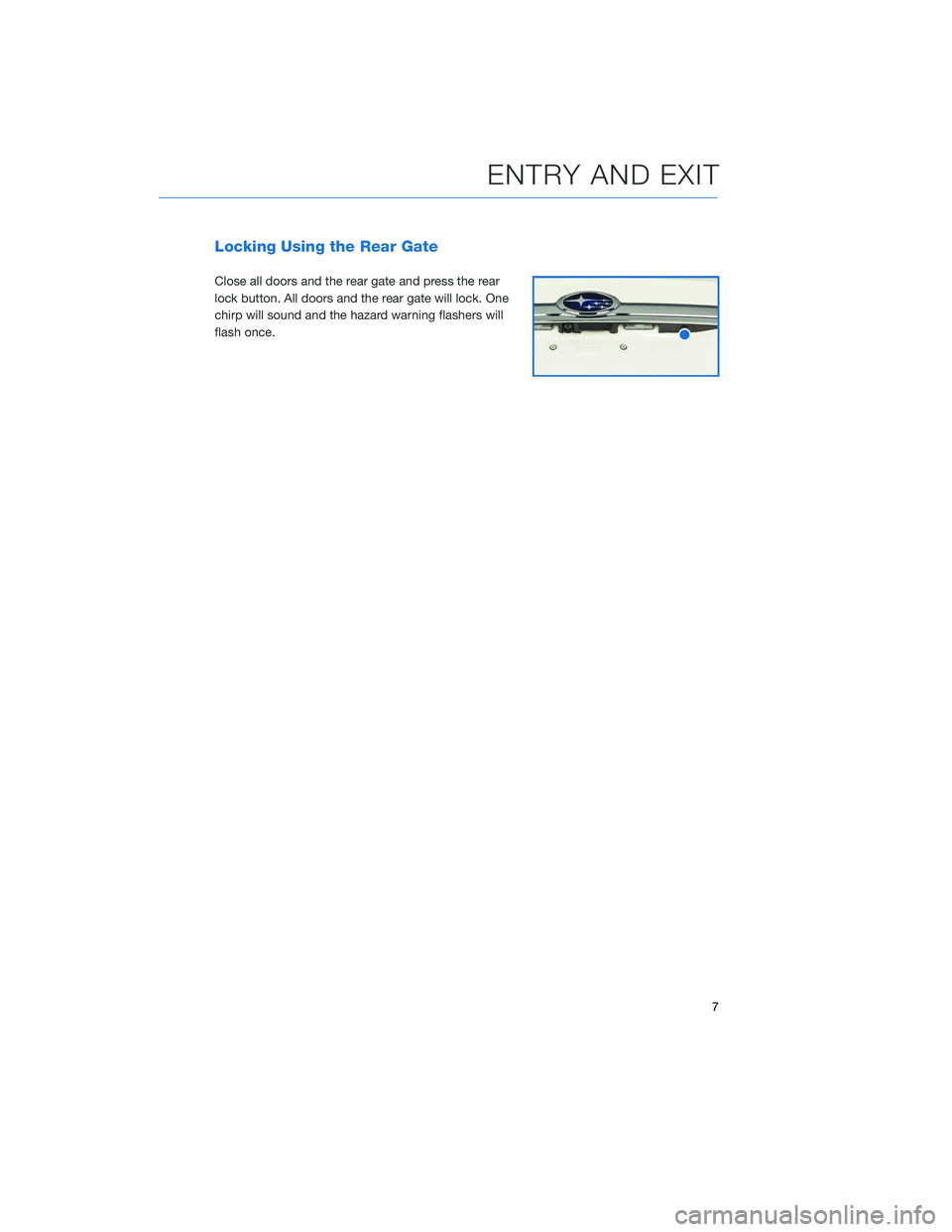

Locking Using the Rear Gate
Close all doors and the rear gate and press the rear
lock button. All doors and the rear gate will lock. One
chirp will sound and the hazard warning flashers will
flash once.
ENTRY AND EXIT
7

GAUGES
1Tachometer
2 Combination Meter Display (CMD)
3 Speedometer
4 Fuel gauge 5
Trip meter and odometer
6 Select lever/gear position indicator
7 Engine coolant temperature gauge
WARNING AND INDICATOR LIGHTS
Red lights indicate immediate attention is required. Some examples are:
Seatbelt
warningDoor
openBrake system
Yellow lights indicate caution. Some examples are:
Low fuelEngine oil
level warning lightTire pressurewarning light
Green and blue lights are for information. Some examples are:
Headlight indicator lightAuto VehicleHold ONHigh beamindicator light
GAUGES AND WARNING LIGHTS
29

How To Turn ON/OFF The Auto Start-Stop
System
The Auto Start-Stop system can be turned on
and off in the Center Information Display (CID)
under Car Settings .
NOTE: The system will default to ON after the
vehicle has been shut off.
When the Auto Start-Stop system is turned OFF, the Auto Start-Stop OFF
indicator light in the combination meter display will illuminate. This is a solid
yellow indicator.
Auto Start-Stop Warning Light
The Auto Start-Stop warning light will illuminate in yellow when initially turning
the ignition switch to the “ON” position. The light will turn off after the engine
has started.
NOTE: If the Auto Start-Stop warning light does not turn off or is flashing
yellow after the engine has started, the Auto Start-Stop system may be malfunctioning. We
recommend that you contact your authorized SUBARU Retailer for an inspection.
INDICATOR PATTERN CONDITION
Solid green This indicator light illuminates when the enginehas been temporarily stopped by the Auto
Start-Stop system. It will turn off when the engine
is restarted.
Solid White Operational conditions have not been met, theengine will not stop and this light will illuminate.
The light goes out once the brake pedal is
released.
Solid Yellow This light indicates that the system has beenturned off. The light will turn off once the system is
turned back on.
Flashing Yellow A fault has been detected with the Start-Stopsystem. Please contact your authorized Subaru
Retailer.
OPERATING THE VEHICLE
36

FUEL FILLER LID
The fuel filler lid is located toward the rear of the
passenger side. To open the lid:
1. Make sure your vehicle is stopped and the selectorplaced in PARK. Then turn the ignition to the
"LOCK"/ "OFF" position.
2. Unlock the lid by pressing the unlock/disarm button on the access key fob or transmitter, pressing the
unlock side of the power door locking switch, or
putting the vehicle in “LOCK”/“OFF”.
3. Push the rear side of the lid.
4. When the lid opens slightly, open it further by hand.
While refueling, place the fuel filler cap on the cap
holder inside the lid.
To close the lid, press it until you hear it latch.
FUEL
Use regular unleaded gasoline with an octane rating of 87 AKI or higher. Do not use fuels
with more than 10% ethanol. See the Owner’s Manual for more information.
FUEL CAPACITY
18.5 US gallons
The low fuel warning light illuminates when the tank is nearly empty,
at approximately 2.6 US gallons.
REFUELING
38

POWER REAR GATE (PRG)(if equipped)
Power Rear Gate Button
Briefly press and release the button on the
instrument panel to automatically open or
close the rear gate. Two chirps will sound and
the hazard warning flashers will flash twice. If
you briefly press the button while it is closing,
it will open. If you briefly press the button while
it is opening, it will pause. Press the button
again to close the rear gate. If you attempt to
open the power rear gate with the doors locked, three rapid beeps will sound.
The operation is the same using the power rear gate button on the access key fob or
transmitter.
From the Rear of the Vehicle
To open the rear gate, unlock your Subaru or have
your access key fob with you. Then, briefly press the
button on the underside trim near the license plate.
The rear gate will automatically open. If you briefly
press the button while the gate is opening, it will
pause. Press the button again to close the rear gate.
To close the rear gate, briefly press the power rear
gate button on the inside edge of the rear gate. If you
press the button again, the rear gate will open.
Power Rear Gate Lock
With the rear gate open, press the lock button on the
inside edge of the rear gate. All doors, the rear gate
and the fuel lid will lock, and the rear gate will close.
PASSENGER/CARGO AREAS
42

MAPS/NAVIGATION
There are many settings that can be customized to your preference. These settings are
under the “Setting” menu and then “Navigation”. Below are some of the common settings
you may want to change:
SETTINGFUNCTION
Show Along Route Turn the display for parking lots, gas
stations and rest areas on or off for the
route being traveled during route guidance.
Arrival Distance/Time Sets the display for the estimated
remaining distance and estimated
remaining time to the destination.
Freeway Exit Preview Sets the freeway exit preview to on or off.
Automatic Zoom Sets whether to automatically enlarge the
map when approaching intersections or
turning points during route guidance on or
off.
Auto-Hide Route Bar Sets the route bar auto-hide function to on
or off.
Route Preference Sets the preferred route type when
searching for a new route.
Avoid Sets avoidance criteria for the route
calculation.
Traffic Warning Tone Sets the traffic alert sound to on or off.
Map Update Sets the updating of the map data.
Checking for Updates
You can update the maps to the latest information. For the best possible navigation
experience, regularly update maps for all frequented regions, including nearby states.
The maps can be updated over the air or with a USB memory device. When updating over
the air, you are limited to updating eight regions (states) at a time. This allows you to
update your home state without having to download the entire map program for the United
States. This option is great if you normally stay in your home state and/or surrounding
states.
SETTINGS AND UPDATES
104
