SUBARU TRIBECA 2006 1.G User Guide

8

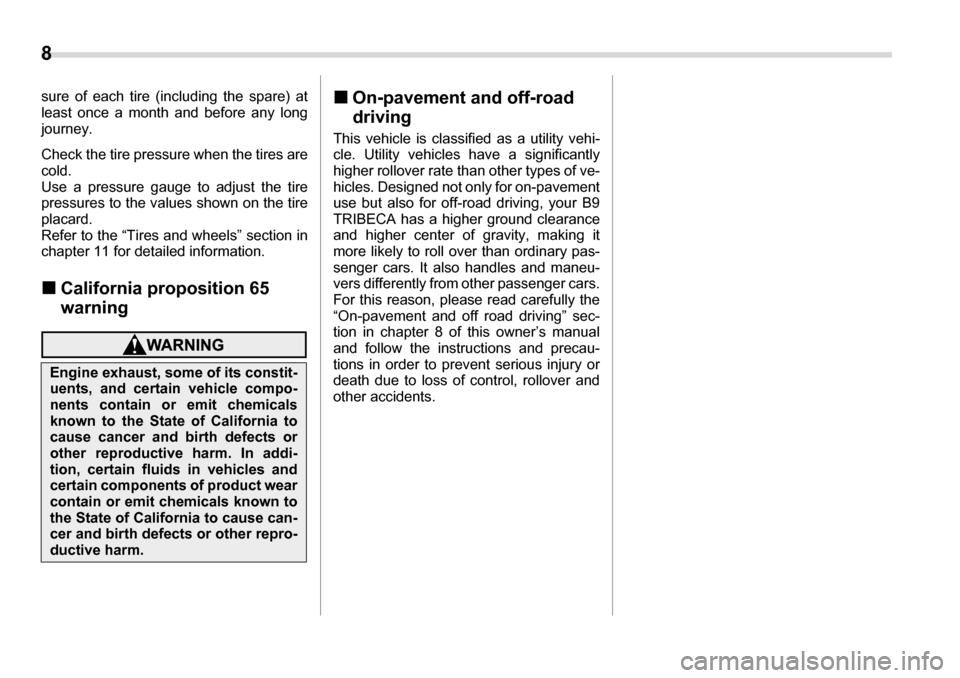

sure of each tire (including the spare) at
least once a month and before any long
journey.
Check the tire pressure when the tires are cold.
Use a pressure gauge to adjust the tire
pressures to the values shown on the tire
placard.
Refer to the “Tires and wheels” section in
chapter 11 for detailed information. „ California proposition 65 warning„On-pavement and off-road
driving
This vehicle is classified as a utility vehi-
cle. Utility vehicles have a significantly
higher rollover rate than other types of ve-
hicles. Designed not only for on-pavement
use but also for off-road driving, your B9
TRIBECA has a higher ground clearance
and higher center of gravity, making it
more likely to roll over than ordinary pas-
senger cars. It also handles and maneu-
vers differently from other passenger cars.
For this reason, please read carefully the
“On-pavement and off road driving” sec-
tion in chapter 8 of this owner’s manual
and follow the instructions and precau-
tions in order to prevent serious injury or
death due to loss of control, rollover and
other accidents.
Engine exhaust, some of its constit-
uents, and certain vehicle compo-
nents contain or emit chemicals
known to the State of California to
cause cancer and birth defects or
other reproductive harm. In addi-
tion, certain fluids in vehicles and
certain components of product wear
contain or emit chemicals known to
the State of California to cause can-
cer and birth defects or other repro-
ductive harm.

1
2
3
4
5
6
7
8
9
10
11
12
13
14

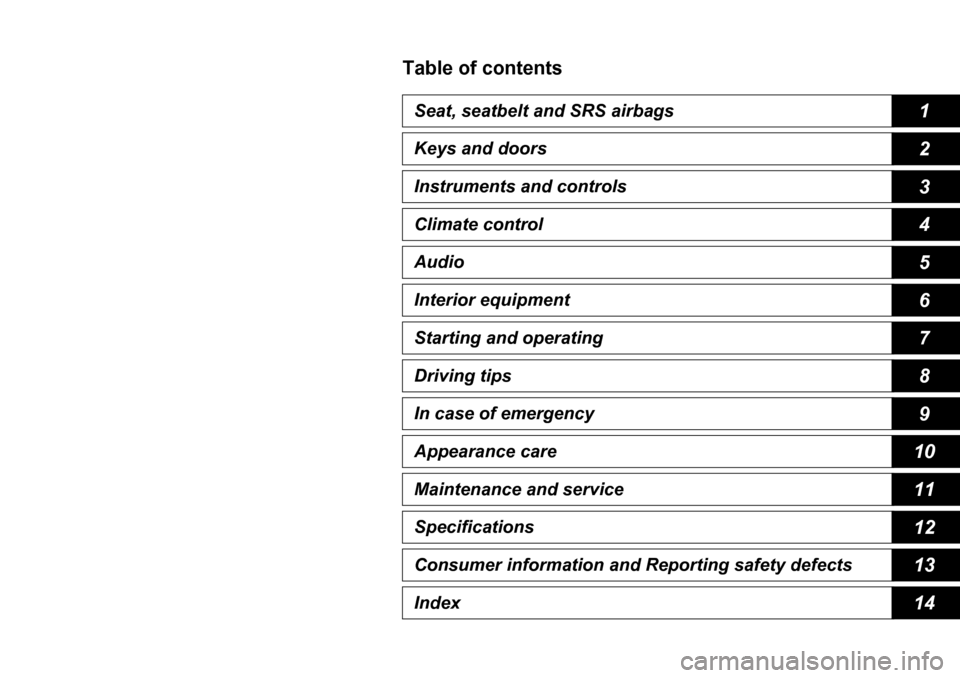

Table of contentsSeat, seatbelt and SRS airbags
Keys and doors
Instruments and controls
Climate control Audio
Interior equipment
Starting and operating
Driving tips
In case of emergency
Appearance care
Maintenance and service
Specifications
Consumer information and Reporting safety defects
Index

10

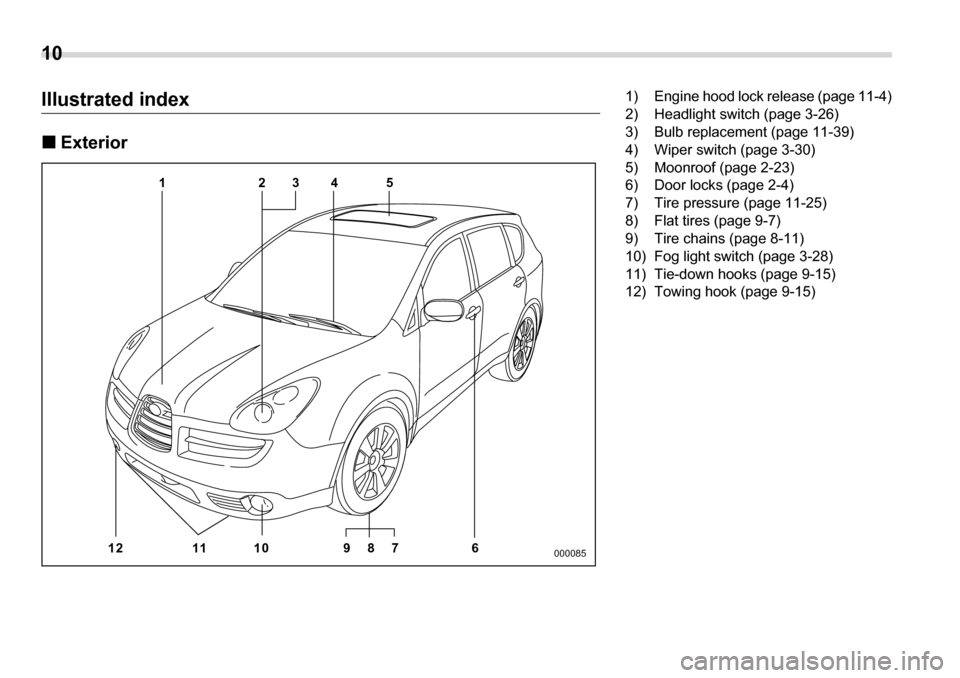

Illustrated index „Exterior
45
23
1
12 11 10 9 8 7 6
000085
1) Engine hood lock release (page 11-4)
2) Headlight switch (page 3-26)
3) Bulb replacement (page 11-39)
4) Wiper switch (page 3-30)
5) Moonroof (page 2-23)
6) Door locks (page 2-4)
7) Tire pressure (page 11-25)
8) Flat tires (page 9-7)
9) Tire chains (page 8-11)
10) Fog light switch (page 3-28)
11) Tie-down hooks (page 9-15)
12) Towing hook (page 9-15)

11
– CONTINUED –
4
7
86 5
23
1
000105
1) Rear gate (page 2-22)
2) Rear wiper blade assembly and rub-
ber replacement (page 3-32)
3) Rear window defogger button (page 3-33)
4) Fuel filler lid and cap (page 7-3)
5) Child safety locks (page 2-19)
6) Tie-down hooks (page 9-15)
7) Bulb replacement (page 11-39)
8) Towing hook (page 9-15)

12

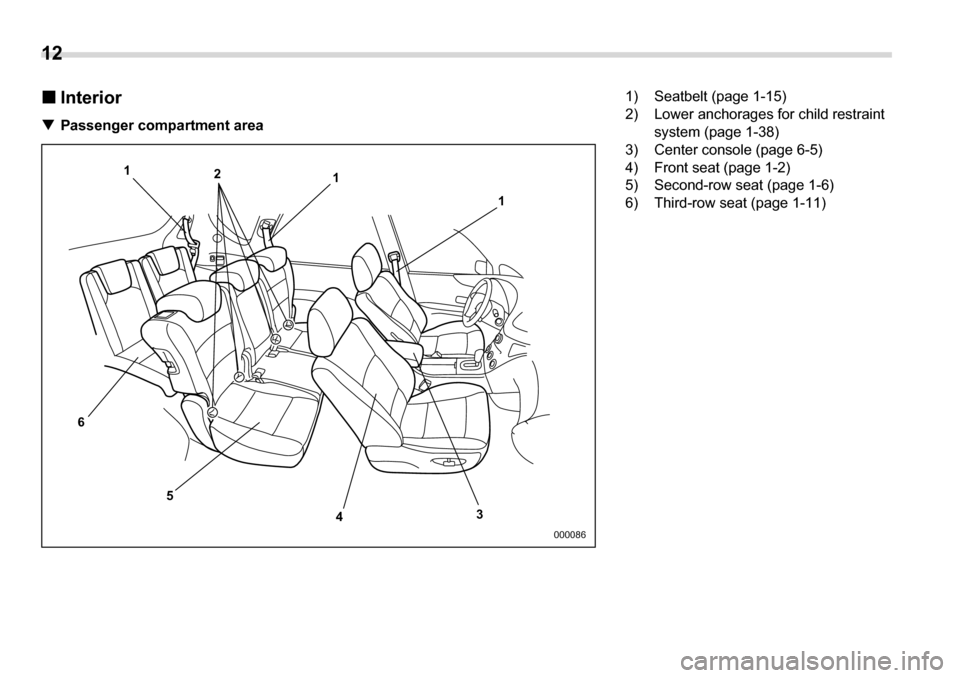

„ Interior
T Passenger compartment area
1
2
6 5 43
1
1
000086
1) Seatbelt (page 1-15)
2) Lower anchorages for child restraint system (page 1-38)
3) Center console (page 6-5)
4) Front seat (page 1-2)
5) Second-row seat (page 1-6)
6) Third-row seat (page 1-11)

13
– CONTINUED –
12
454 6
7
3
000087

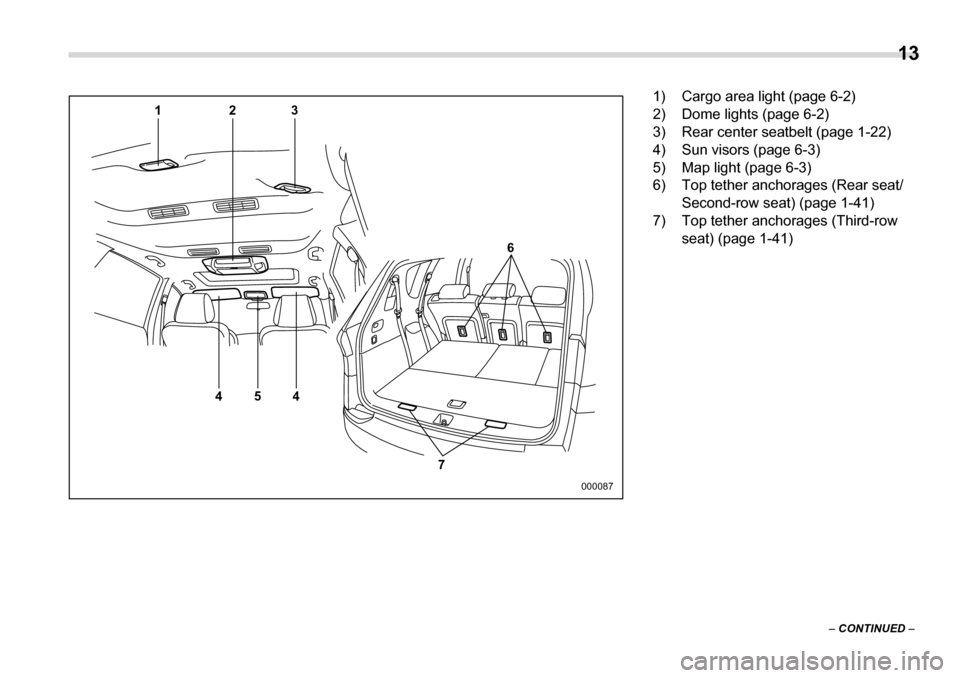

1) Cargo area light (page 6-2)
2) Dome lights (page 6-2)
3) Rear center seatbelt (page 1-22)
4) Sun visors (page 6-3)
5) Map light (page 6-3)
6) Top tether anchorages (Rear seat/
Second-row seat) (page 1-41)
7) Top tether anchorages (Third-row
seat) (page 1-41)

14
123
4
5
76
000088
1) Select lever (page 7-9)
2) Hazard warning flasher switch (page
3-5)
3) Multi function display (page 3-23)
4) Glove box (page 6-4)
5) Audio (page 5-1)
6) Climate control (page 4-1)
7) Cup holder (page 6-7/page 6-8)

15
– CONTINUED –
„

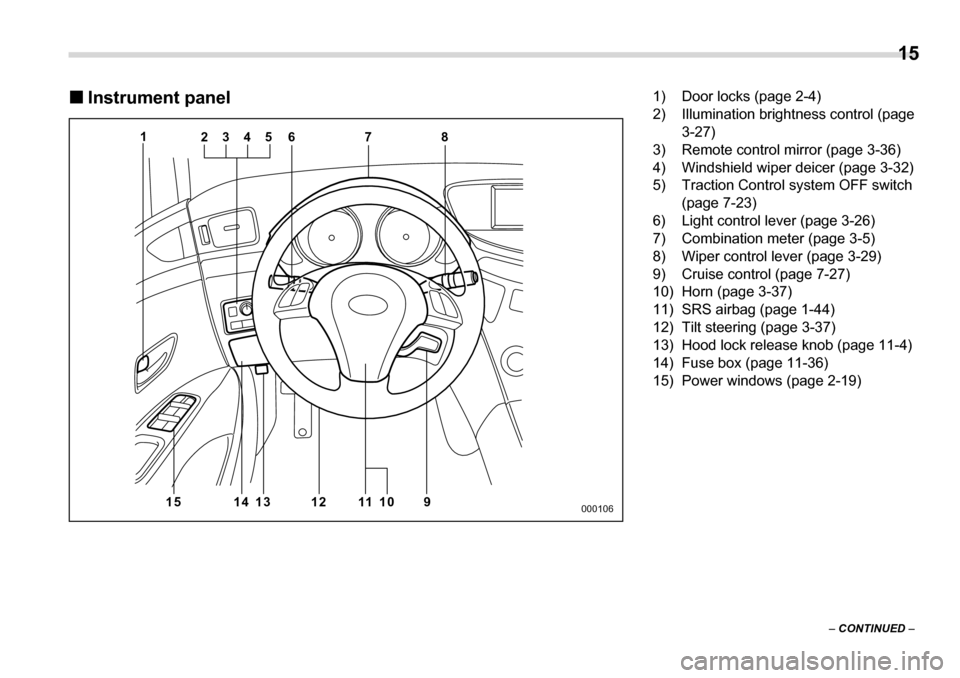

Instrument panel
1
2345 6 7 8
11
12
13
15 14 10 9
000106
1) Door locks (page 2-4)
2) Illumination brightness control (page
3-27)
3) Remote control mirror (page 3-36)
4) Windshield wiper deicer (page 3-32)
5) Traction Control system OFF switch
(page 7-23)
6) Light control lever (page 3-26)
7) Combination meter (page 3-5)
8) Wiper control lever (page 3-29)
9) Cruise control (page 7-27)
10) Horn (page 3-37)
11) SRS airbag (page 1-44)
12) Tilt steering (page 3-37)
13) Hood lock release knob (page 11-4)
14) Fuse box (page 11-36)
15) Power windows (page 2-19)

16

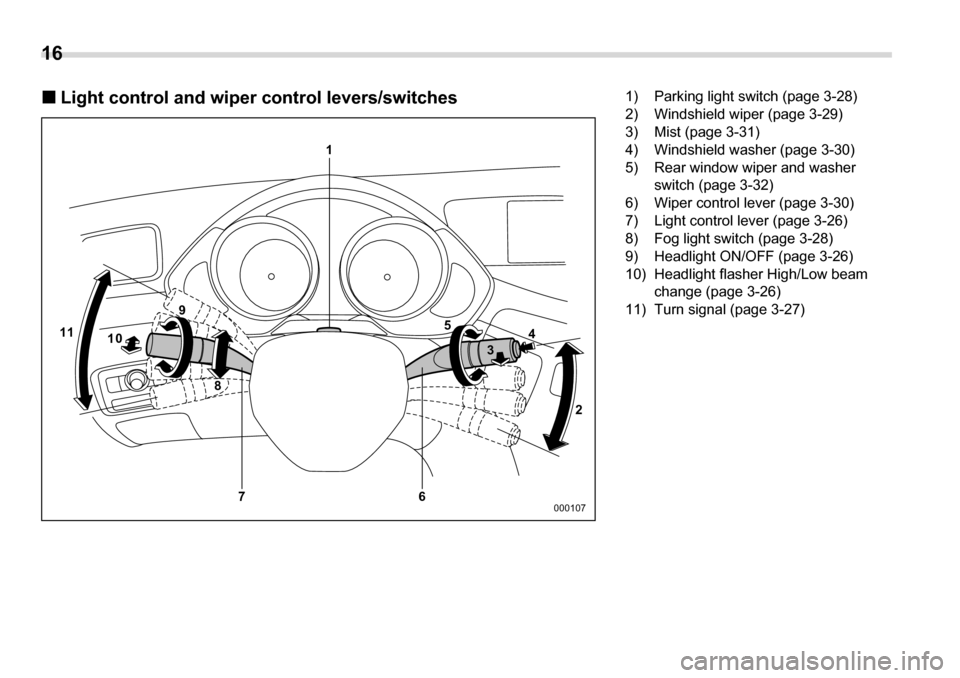

„ Light control and wiper control levers/switches
1
65
4
3
2
7
8
9
11 10
000107
1) Parking light switch (page 3-28)
2) Windshield wiper (page 3-29)
3) Mist (page 3-31)
4) Windshield washer (page 3-30)
5) Rear window wiper and washer
switch (page 3-32)
6) Wiper control lever (page 3-30)
7) Light control lever (page 3-26)
8) Fog light switch (page 3-28)
9) Headlight ON/OFF (page 3-26)
10) Headlight flasher High/Low beam change (page 3-26)
11) Turn signal (page 3-27)

17
– CONTINUED –
„

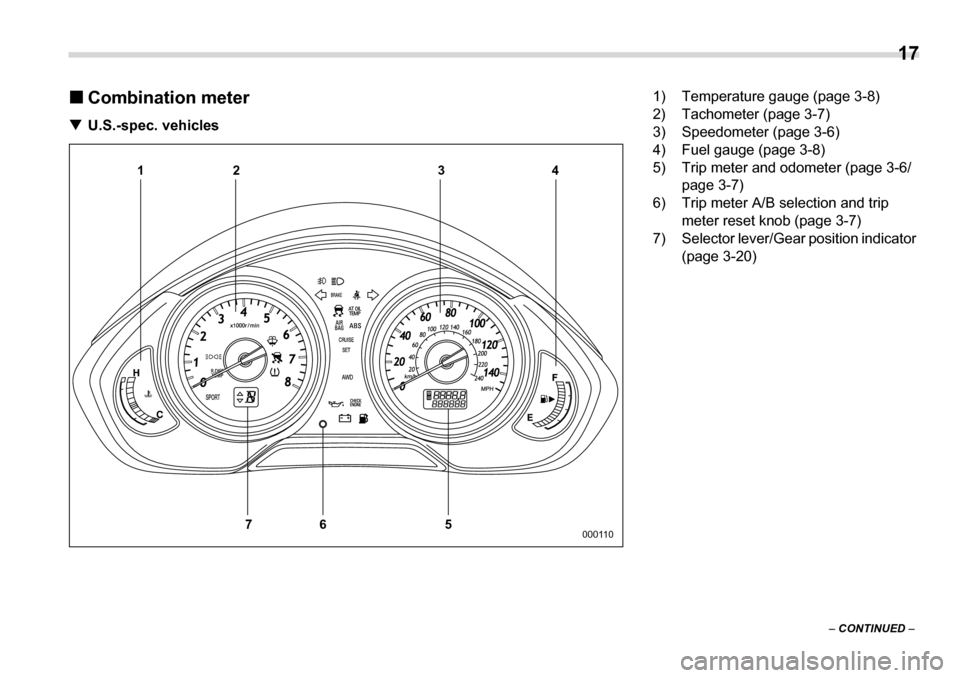

Combination meter
T U.S.-spec. vehicles
34
2
1
76 5
000110
1) Temperature gauge (page 3-8)
2) Tachometer (page 3-7)
3) Speedometer (page 3-6)
4) Fuel gauge (page 3-8)
5) Trip meter and odometer (page 3-6/page 3-7)
6) Trip meter A/B selection and trip meter reset knob (page 3-7)
7) Selector lever/Gear position indicator
(page 3-20)
