SUBARU TRIBECA 2007 1.G Owners Manual

6-4 Interior equipment

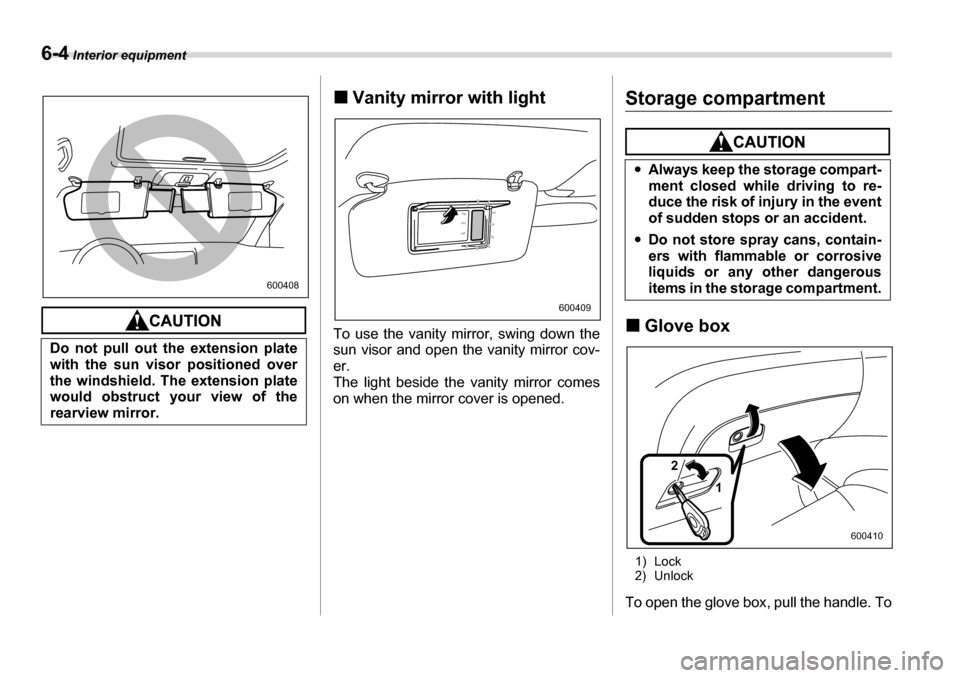

„Vanity mirror with light
To use the vanity mirror, swing down the
sun visor and open the vanity mirror cov- er.
The light beside the vanity mirror comes
on when the mirror cover is opened.Storage compartment
„ Glove box
1) Lock
2) Unlock
To open the glove box, pull the handle. To
Do not pull out the extension plate
with the sun visor positioned over
the windshield. The extension plate
would obstruct your view of the
rearview mirror.
600408
600409
y
Always keep the storage compart-
ment closed while driving to re-
duce the risk of injury in the event
of sudden stops or an accident.
y Do not store spray cans, contain-
ers with flammable or corrosive
liquids or any other dangerous
items in the storage compartment.
1
2
600410

Interior equipment 6-5
– CONTINUED –

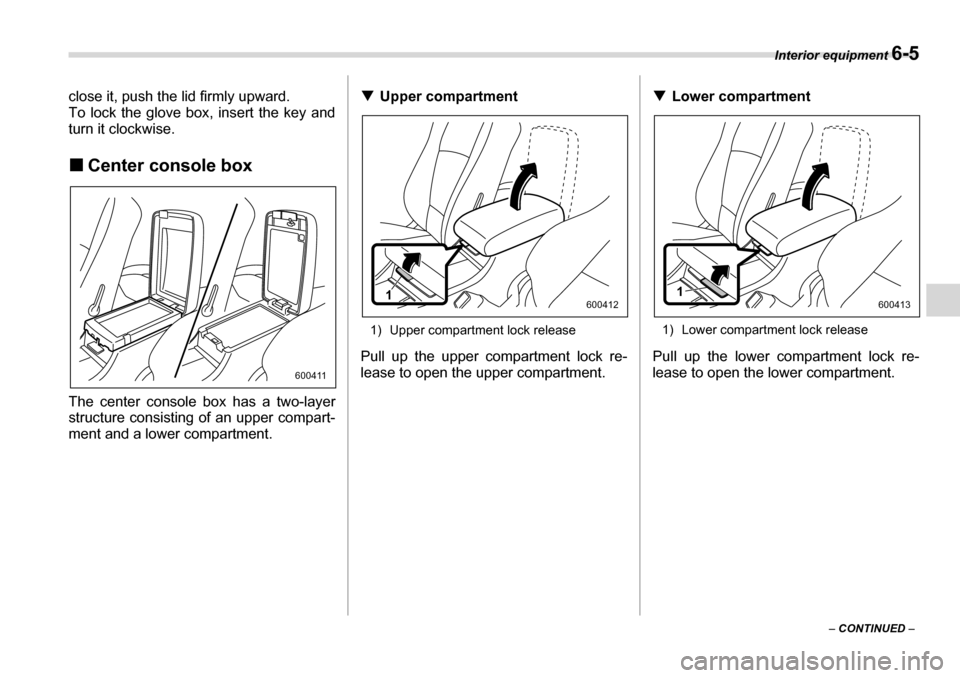

close it, push the lid firmly upward.
To lock the glove box, insert the key and
turn it clockwise. „
Center console box
The center console box has a two-layer
structure consisting of an upper compart-
ment and a lower compartment. T
Upper compartment
1) Upper compartment lock release
Pull up the upper compartment lock re-
lease to open the upper compartment. T
Lower compartment
1) Lower compartment lock release
Pull up the lower compartment lock re-
lease to open the lower compartment.
600411
16004121600413

6-6 Interior equipment

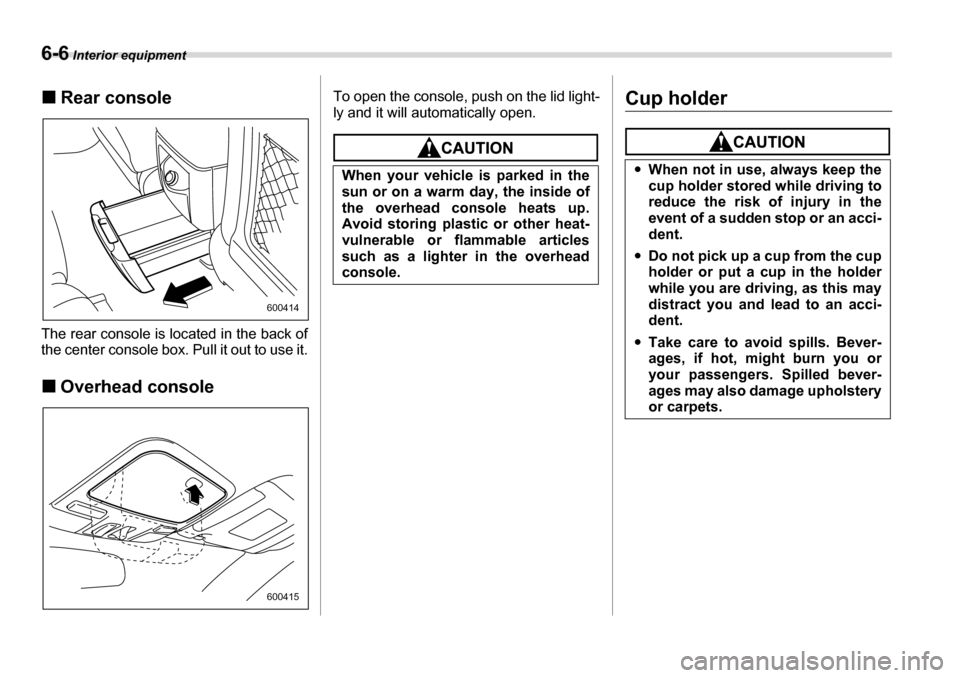

„Rear console
The rear console is located in the back of
the center console box. Pull it out to use it. „ Overhead console To open the console, push on the lid light-
ly and it will automatically open.Cup holder
600414
600415
When your vehicle is parked in the
sun or on a warm day, the inside of
the overhead console heats up.
Avoid storing plastic or other heat-
vulnerable or flammable articles
such as a lighter in the overhead
console.y
When not in use, always keep the
cup holder stored while driving to
reduce the risk of injury in the
event of a sudden stop or an acci-
dent.
y Do not pick up a cup from the cup
holder or put a cup in the holder
while you are driving, as this may
distract you and lead to an acci-
dent.
y Take care to avoid spills. Bever-
ages, if hot, might burn you or
your passengers. Spilled bever-
ages may also damage upholstery
or carpets.

Interior equipment 6-7
– CONTINUED –
„

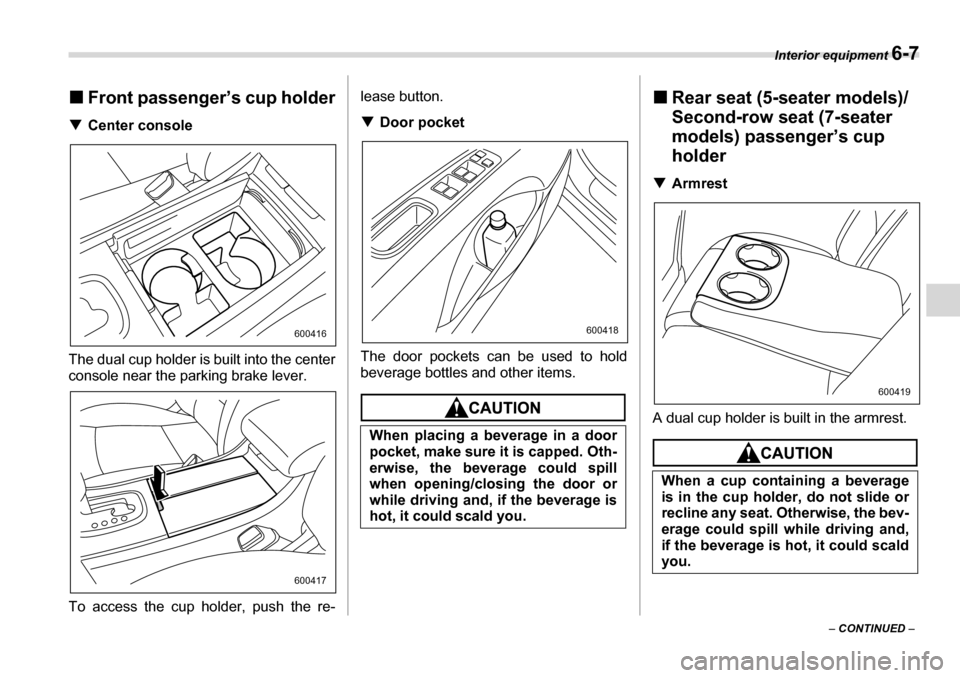

Front passenger’s cup holder
T Center console
The dual cup holder is built into the center
console near the parking brake lever.
To access the cup holder, push the re- lease button. T
Door pocket
The door pockets can be used to hold
beverage bottles and other items.
„ Rear seat (5-seater models)/
Second-row seat (7-seater
models) passenger’s cup holder
T Armrest
A dual cup holder is built in the armrest.
600416
600417
When placing a beverage in a door
pocket, make sure it is capped. Oth-
erwise, the beverage could spill
when opening/closing the door or
while driving and, if the beverage is
hot, it could scald you.
600418
When a cup containing a beverage
is in the cup holder, do not slide or
recline any seat. Otherwise, the bev-
erage could spill while driving and,
if the beverage is hot, it could scald
you.
600419

6-8 Interior equipment

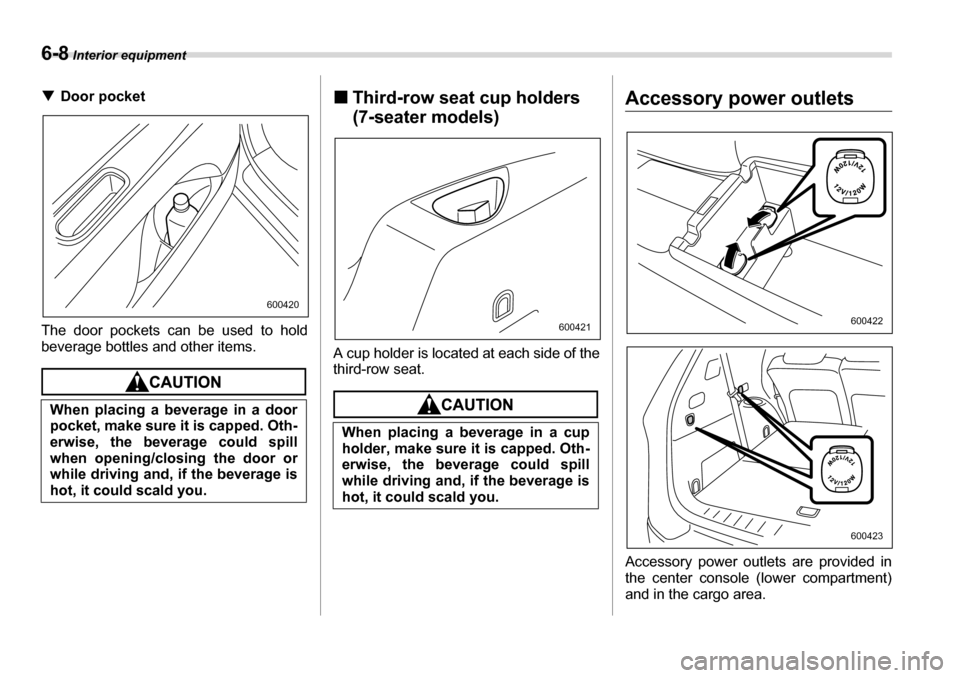

TDoor pocket
The door pockets can be used to hold
beverage bottles and other items.„ Third-row seat cup holders
(7-seater models)
A cup holder is located at each side of the
third-row seat.Accessory power outlets
Accessory power outlets are provided in
the center console (lower compartment)
and in the cargo area.
When placing a beverage in a door
pocket, make sure it is capped. Oth-
erwise, the beverage could spill
when opening/closing the door or
while driving and, if the beverage is
hot, it could scald you.
600420
When placing a beverage in a cup
holder, make sure it is capped. Oth-
erwise, the beverage could spill
while driving and, if the beverage is
hot, it could scald you.
600421600422
600423

Interior equipment 6-9
– CONTINUED –

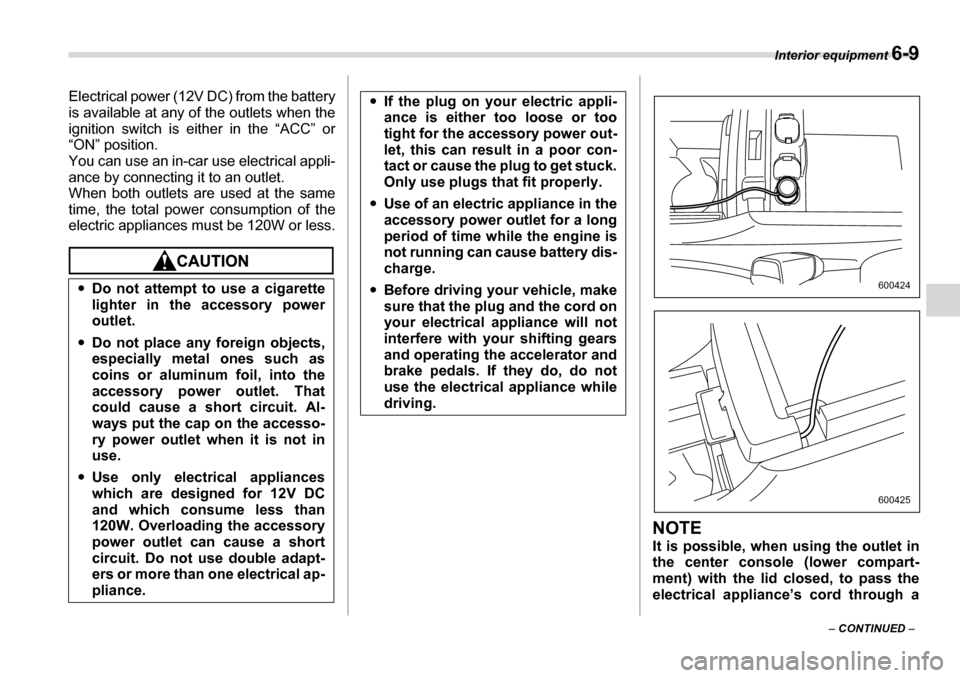

Electrical power (12V DC) from the battery
is available at any of the outlets when the
ignition switch is either in the “ACC” or
“ON” position.
You can use an in-car use electrical appli-
ance by connecting it to an outlet.
When both outlets are used at the same
time, the total power consumption of the
electric appliances must be 120W or less.
NOTE
It is possible, when using the outlet in
the center console (lower compart-
ment) with the lid closed, to pass the
electrical appliance’s cord through a
y
Do not attempt to use a cigarette
lighter in the accessory power
outlet.
y Do not place any foreign objects,
especially metal ones such as
coins or aluminum foil, into the
accessory power outlet. That
could cause a short circuit. Al-
ways put the cap on the accesso-
ry power outlet when it is not in
use.
y Use only electrical appliances
which are designed for 12V DC
and which consume less than
120W. Overloading the accessory
power outlet can cause a short
circuit. Do not use double adapt-
ers or more than one electrical ap-
pliance.
yIf the plug on your electric appli-
ance is either too loose or too
tight for the accessory power out-
let, this can result in a poor con-
tact or cause the plug to get stuck.
Only use plugs that fit properly.
y Use of an electric appliance in the
accessory power outlet for a long
period of time while the engine is
not running can cause battery dis-
charge.
y Before driving your vehicle, make
sure that the plug and the cord on
your electrical appliance will not
interfere with your shifting gears
and operating the accelerator and
brake pedals. If they do, do not
use the electrical appliance while
driving.
600424
600425

6-10 Interior equipment
gap between the center console (lower
compartment) and the lid. It is also
possible to pass the cord through a
groove in the lid and up to the center
console (upper compartment).Coat hook „Rear (5-seater models)/Sec- ond-row (7-seater models)
passenger area
600516
Do not hang coat hangers or other
hard or pointed objects on the coat
hooks. If such items were hanging
on the coat hooks during deploy-
ment of the SRS curtain airbags,
they could cause serious injuries by
coming off the coat hooks and being
thrown through the cabin or by pre-
venting correct airbag deployment.
Before hanging clothing on the coat
hooks, make sure there are no
pointed objects in the pockets.
Hang clothing directly on the coat
hooks without using hangers.
Never hang anything on the coat
hook that might obstruct the driv-
er’s view or that could cause injury
in sudden stops or in a collision.
And do not hang items on the coat
hook that weigh 11 lbs (5 kg) or
more.

Interior equipment 6-11
– CONTINUED –

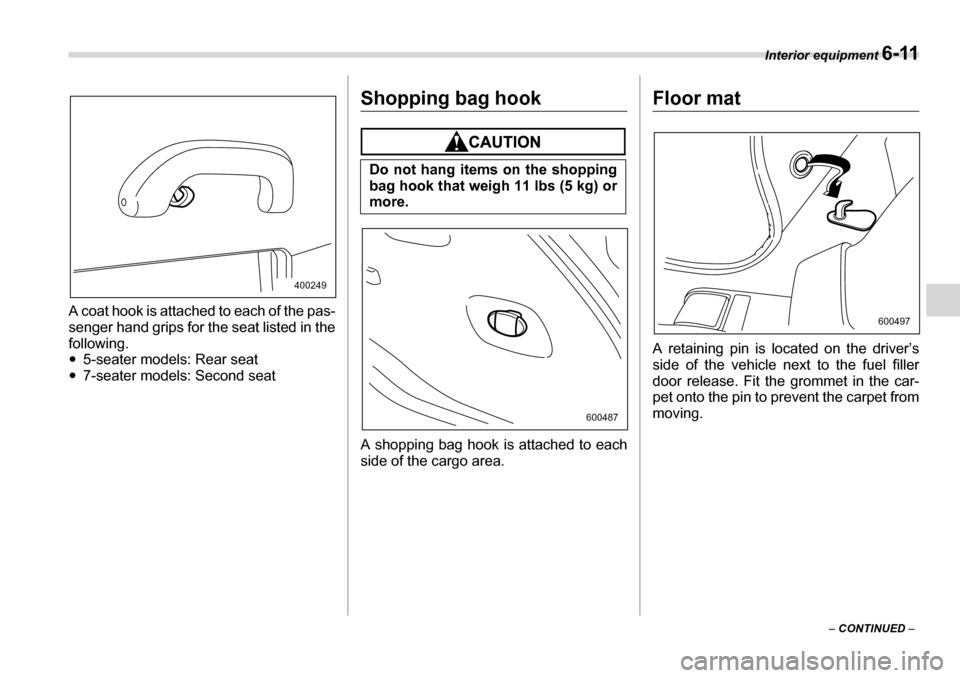

A coat hook is attached to each of the pas-
senger hand grips for the seat listed in the
following.y
5-seater models: Rear seat
y 7-seater models: Second seat
Shopping bag hook
A shopping bag hook is attached to each
side of the cargo area.
Floor mat
A retaining pin is located on the driver’s
side of the vehicle next to the fuel filler
door release. Fit the grommet in the car-
pet onto the pin to prevent the carpet from moving.
400249
Do not hang items on the shopping
bag hook that weigh 11 lbs (5 kg) ormore.
600487
600497

6-12 Interior equipment

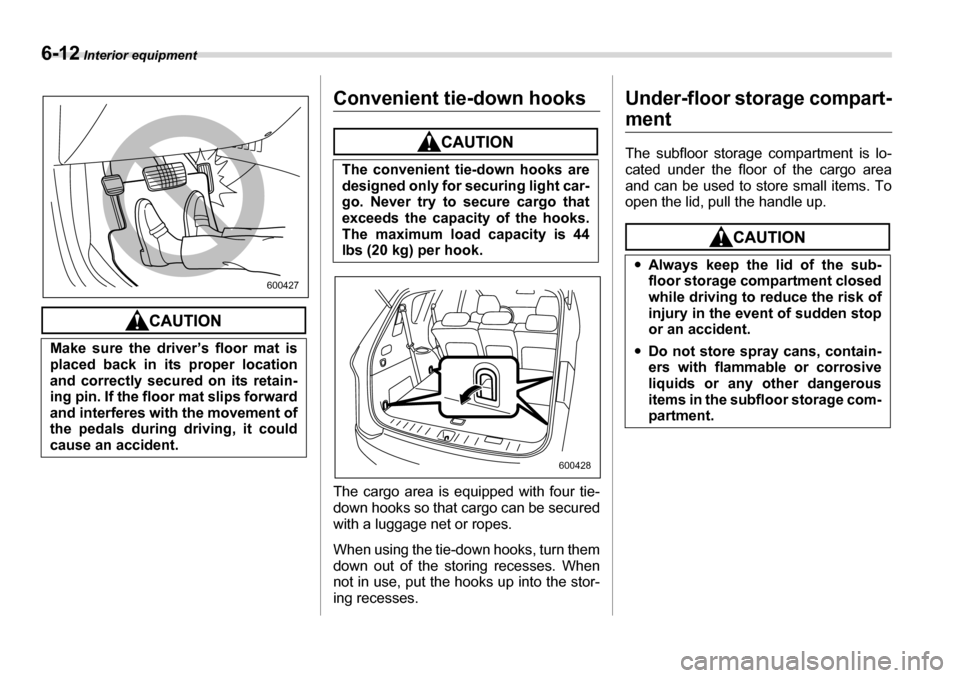

Convenient tie-down hooks
The cargo area is equipped with four tie-
down hooks so that cargo can be secured
with a luggage net or ropes.
When using the tie-down hooks, turn them
down out of the storing recesses. When
not in use, put the hooks up into the stor-
ing recesses. Under-floor storage compart-
ment
The subfloor storage compartment is lo-
cated under the floor of the cargo area
and can be used to store small items. To
open the lid, pull the handle up.
Make sure the driver’s floor mat is
placed back in its proper location
and correctly secured on its retain-
ing pin. If the floor mat slips forward
and interferes with the movement of
the pedals during driving, it could
cause an accident.
600427
The convenient tie-down hooks are
designed only for securing light car-
go. Never try to secure cargo that
exceeds the capacity of the hooks.
The maximum load capacity is 44
lbs (20 kg) per hook.
600428
y
Always keep the lid of the sub-
floor storage compartment closed
while driving to reduce the risk of
injury in the event of sudden stop
or an accident.
y Do not store spray cans, contain-
ers with flammable or corrosive
liquids or any other dangerous
items in the subfloor storage com-
partment.

Interior equipment 6-13
– CONTINUED –
T
5-seater models
Hang the hook provided on the underside
of the rear half lid on the rear edge of the
roof to keep the lid open. T
7-seater models
Hang the hook provided on the underside
of the lid on the rear edge of the roof to
keep the lid open. HomeLink® Wireless Control
System (if equipped)
1) HomeLink® buttons
2) Indicator light
3) Hand-held transmitter* * Not part of your vehicle’s keyless entry
system but of a HomeLink®-compatible device.
The HomeLink® Wireless Control Sys-
tem, located on the driver’s sun visor, is a
handy way to operate, from inside of your
vehicle, up to three remote-controlled in-
door and outdoor devices, such as garage
door openers, entrance gates, door locks, home lighting, and security systems.
There are three HomeLink® buttons on
the sun visor, each of which you can pro-
600488
600436
600518
1
2
3
600429
