SUBARU TRIBECA 2007 1.G Owner's Manual

18
T Canada-spec. vehicles
34
2
1
76 5
000111

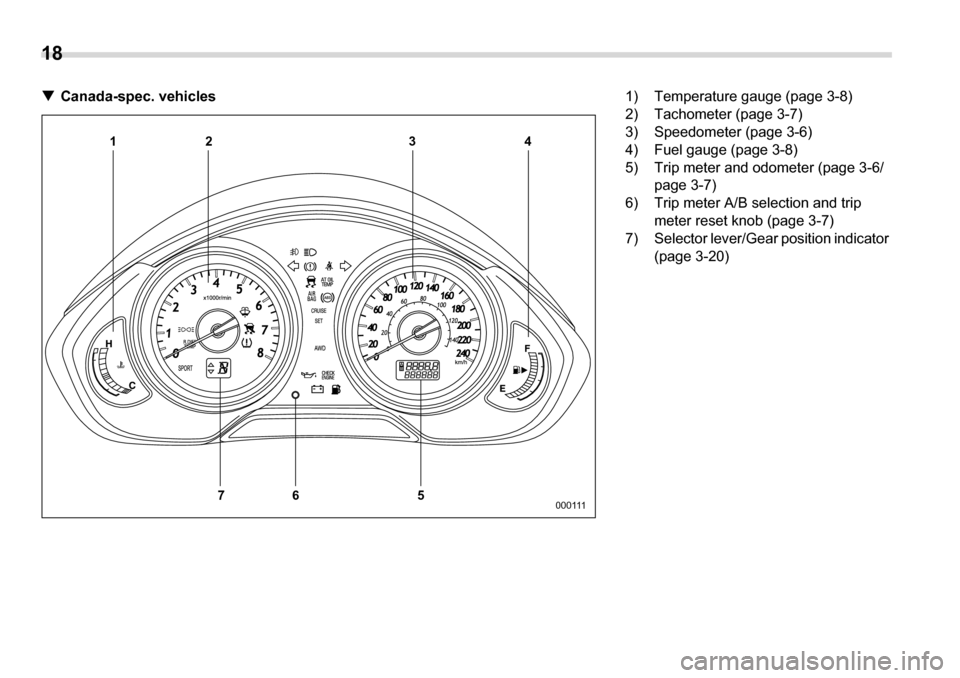

1) Temperature gauge (page 3-8)
2) Tachometer (page 3-7)
3) Speedometer (page 3-6)
4) Fuel gauge (page 3-8)
5) Trip meter and odometer (page 3-6/page 3-7)
6) Trip meter A/B selection and trip meter reset knob (page 3-7)
7) Selector lever/Gear position indicator
(page 3-20)

19
– CONTINUED –
„
Warning and indicator light
Mark Name Page Driver’s seatbelt warn-
ing light 3-10
Front passenger’s
seatbelt warning light 3-10
SRS airbag system
warning light 3-11
CHECK ENGINE
warning light/Malfunc-
tion indicator lamp 3-12
Charge warning light 3-13
Oil pressure warning light 3-13
AT OIL temperature
warning light 3-13
or ABS warning light 3-15
or Brake system warning light 3-16
Door open warning light 3-17
Low fuel warning light 3-17
All-Wheel Drive warn- ing light3-17
Vehicle Dynamics
Control operation indi-
cator light 3-18
Vehicle Dynamics
Control warning light /
Traction Control sys-
tem OFF indicator light 3-18
Security indicator light 3-19
Turn signal indicator lights 3-20
High beam indicator light 3-20
Front fog light indicator light 3-20
Cruise control indica-
tor light 3-20
Cruise control set indi-
cator light 3-20
Headlight indicator light 3-20
Mark Name PageLow tire pressure warning light
3-14
Passenger airbag ON
indicator light 3-12
Passenger airbag OFF
indicator light 3-12
SPORT mode indica-tor light 3-19
Windshield washer flu-
id warning light 3-17
Rear differential oil
temperature warning light 3-14
Mark Name Page

20

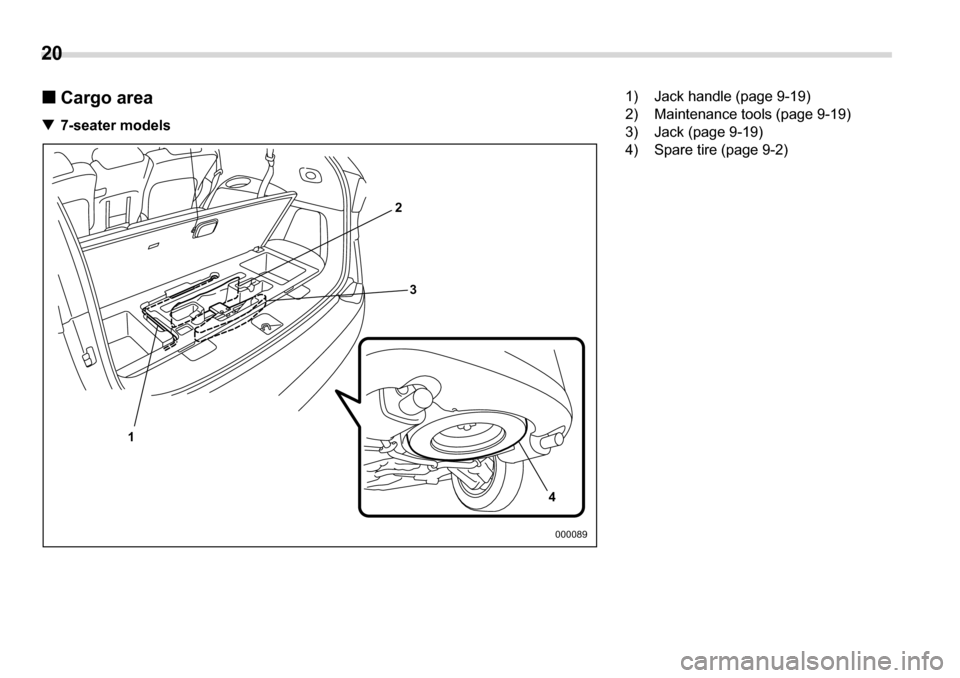

„ Cargo area
T 7-seater models
1 3
4
2
000089
1) Jack handle (page 9-19)
2) Maintenance tools (page 9-19)
3) Jack (page 9-19)
4) Spare tire (page 9-2)

21
– CONTINUED –
T
5-seater models
1 3
4
2
000148

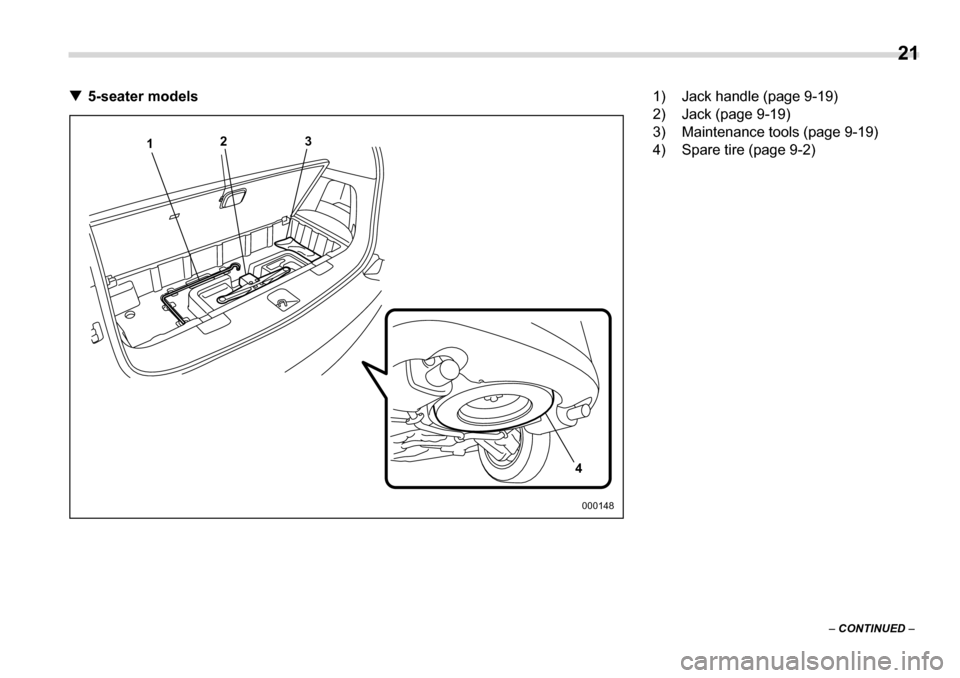

1) Jack handle (page 9-19)
2) Jack (page 9-19)
3) Maintenance tools (page 9-19)
4) Spare tire (page 9-2)

22

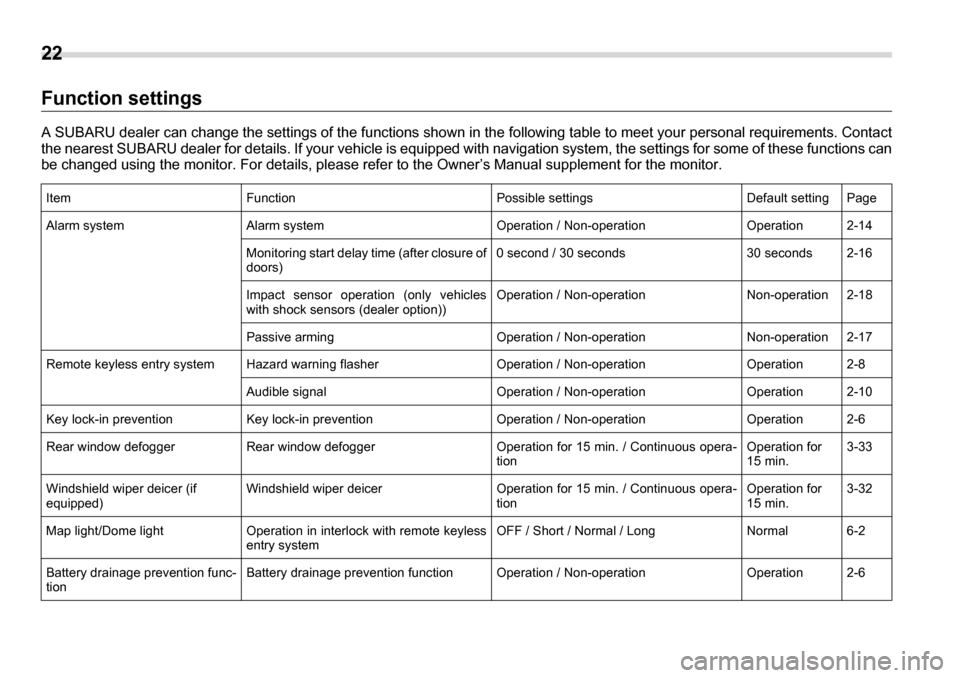

Function settings
A SUBARU dealer can change the settings of the functions shown in the following table to meet your personal requirements. Conta ct
the nearest SUBARU dealer for details. If your vehicle is equipped with navigation system, the settings for some of these funct ions can
be changed using the monitor. For details, please refer to the Owner’s Manual supplement for the monitor.
ItemFunctionPossible settingsDefault settingPage
Alarm systemAlarm systemOperation / Non-operationOperation2-14
Monitoring start delay time (after closure of doors)0 second / 30 seconds30 seconds2-16
Impact sensor operation (only vehicles
with shock sensors (dealer option))Operation / Non-operationNon-operation2-18
Passive armingOperation / Non-operationNon-operation2-17
Remote keyless entry systemHazard warning flasherOperation / Non-operationOperation2-8
Audible signalOperation / Non-operationOperation2-10
Key lock-in preventionKey lock-in preventionOperation / Non-operationOperation2-6
Rear window defoggerRear window defoggerOperation for 15 min. / Continuous opera- tionOperation for 15 min.3-33
Windshield wiper deicer (if equipped)Windshield wiper deicerOperation for 15 min. / Continuous opera- tionOperation for 15 min.3-32
Map light/Dome lightOperation in interlock with remote keyless entry systemOFF / Short / Normal / LongNormal6-2
Battery drainage prevention func- tionBattery drainage prevention functionOperation / Non-operationOperation2-6

1

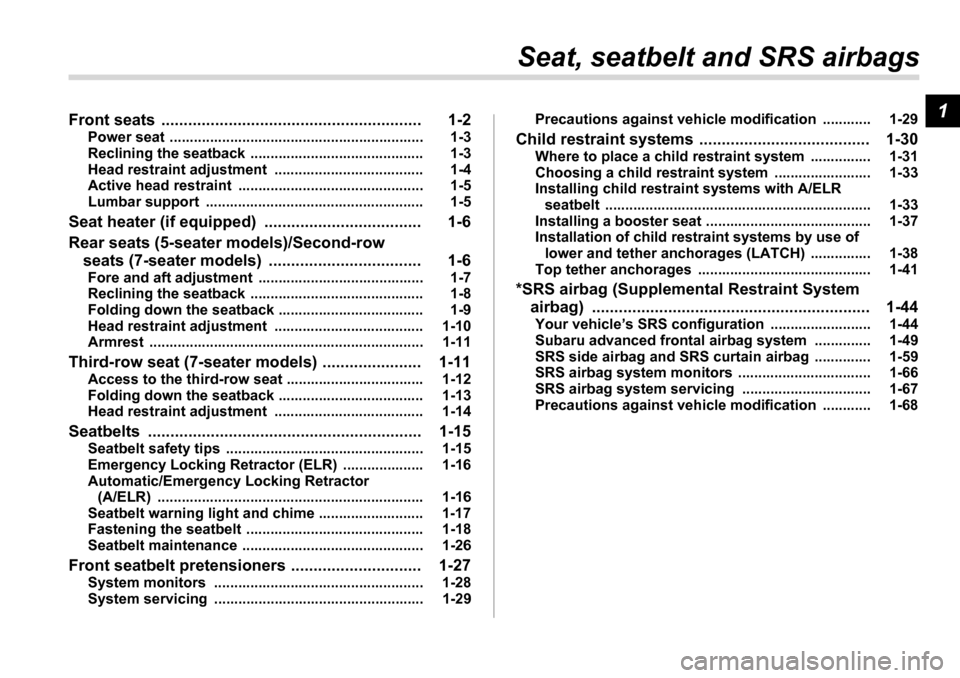

Seat, seatbelt and SRS airbags
Front seats .......................................................... 1-2 Power seat ............................................................... 1-3
Reclining the seatback ........................................... 1-3
Head restraint adjustment ..................................... 1-4
Active head restraint .............................................. 1-5
Lumbar support ...................................................... 1-5
Seat heater (if equipped) ................................... 1-6
Rear seats (5-seater models)/Second-row seats (7-seater models) .................................. 1-6Fore and aft adjustment ......................................... 1-7
Reclining the seatback ........................................... 1-8
Folding down the seatback .................................... 1-9
Head restraint adjustment ..................................... 1-10
Armrest .................................................................... 1-11
Third-row seat (7-seater models) ...................... 1-11 Access to the third-row seat .................................. 1-12
Folding down the seatback .................................... 1-13
Head restraint adjustment ..................................... 1-14
Seatbelts ............................................................. 1-15 Seatbelt safety tips ................................................. 1-15
Emergency Locking Retractor (ELR) .................... 1-16
Automatic/Emergency Locking Retractor (A/ELR) .................................................................. 1-16
Seatbelt warning light and chime .......................... 1-17
Fastening the seatbelt ............................................ 1-18
Seatbelt maintenance ............................................. 1-26
Front seatbelt pretensioners ............................. 1-27 System monitors .................................................... 1-28
System servicing .................................................... 1-29 Precautions against vehicle modification ............ 1-29
Child restraint systems ...................................... 1-30 Where to place a child restraint system ............... 1-31
Choosing a child restraint system ........................ 1-33
Installing child restraint systems with A/ELR seatbelt .................................................................. 1-33
Installing a booster seat ......................................... 1-37
Installation of child restraint systems by use of lower and tether anchorages (LATCH) ............... 1-38
Top tether anchorages ........................................... 1-41
*SRS airbag (Supplemental Restraint System airbag) .............................................................. 1-44Your vehicle’s SRS configuration ......................... 1-44
Subaru advanced frontal airbag system .............. 1-49
SRS side airbag and SRS curtain airbag .............. 1-59
SRS airbag system monitors ................................. 1-66
SRS airbag system servicing ................................ 1-67
Precautions against vehicle modification ............ 1-68

1-2 Seat, seatbelt and SRS airbags

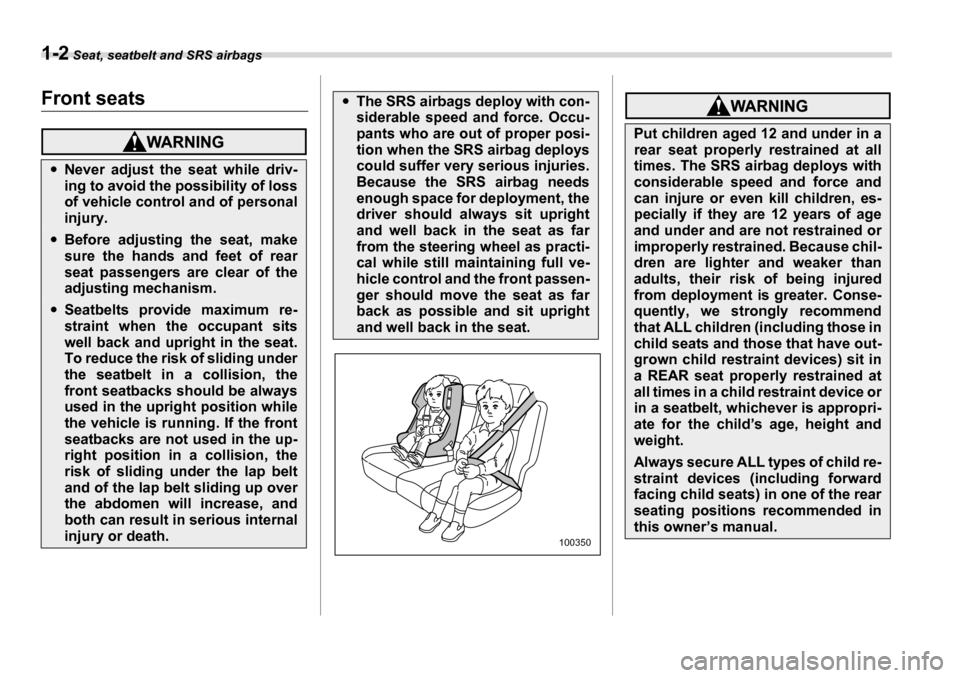

Seat, seatbelt and SRS airbagsFront seats
yNever adjust the seat while driv-
ing to avoid the possibility of loss
of vehicle control and of personal
injury.
yBefore adjusting the seat, make
sure the hands and feet of rear
seat passengers are clear of the
adjusting mechanism.
ySeatbelts provide maximum re-
straint when the occupant sits
well back and upright in the seat.
To reduce the risk of sliding under
the seatbelt in a collision, the
front seatbacks should be always used in the upright position while
the vehicle is running. If the front
seatbacks are not used in the up-
right position in a collision, the
risk of sliding under the lap belt
and of the lap belt sliding up over
the abdomen will increase, and
both can result in serious internal
injury or death.
yThe SRS airbags deploy with con-
siderable speed and force. Occu-
pants who are out of proper posi-
tion when the SRS airbag deploys
could suffer very serious injuries.
Because the SRS airbag needs
enough space for deployment, the
driver should always sit upright
and well back in the seat as far
from the steering wheel as practi-
cal while still maintaining full ve-
hicle control and the front passen-
ger should move the seat as far
back as possible and sit upright
and well back in the seat.
100350
Put children aged 12 and under in a
rear seat properly restrained at all
times. The SRS airbag deploys with
considerable speed and force and
can injure or even kill children, es-
pecially if they are 12 years of age
and under and are not restrained or
improperly restrained. Because chil-
dren are lighter and weaker than
adults, their risk of being injured
from deployment is greater. Conse-
quently, we strongly recommend
that ALL children (including those in
child seats and those that have out-
grown child restraint devices) sit in
a REAR seat properly restrained at
all times in a child restraint device or
in a seatbelt, whichever is appropri-
ate for the child’s age, height and
weight.
Always secure ALL types of child re-
straint devices (including forward
facing child seats) in one of the rear
seating positions recommended in
this owner’s manual.

Seat, seatbelt and SRS airbags 1-3
– CONTINUED –
„

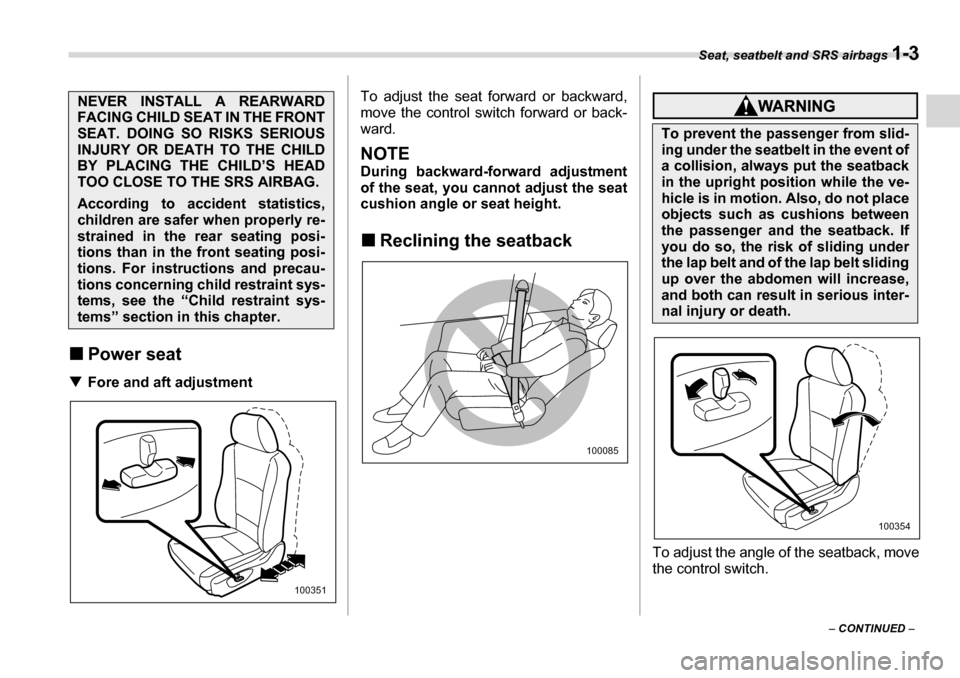

Power seat
T Fore and aft adjustment To adjust the seat forward or backward,
move the control switch forward or back-
ward.
NOTE
During backward-forward adjustment
of the seat, you cannot adjust the seat
cushion angle or seat height. „
Reclining the seatback
To adjust the angle of the seatback, move
the control switch.
NEVER INSTALL A REARWARD
FACING CHILD SEAT IN THE FRONT
SEAT. DOING SO RISKS SERIOUSINJURY OR DEATH TO THE CHILD
BY PLACING THE CHILD’S HEAD
TOO CLOSE TO THE SRS AIRBAG.
According to accident statistics,
children are safer when properly re-
strained in the rear seating posi-
tions than in the front seating posi-
tions. For instructions and precau-
tions concerning child restraint sys-
tems, see the “Child restraint sys-
tems” section in this chapter.
100351
100085
To prevent the passenger from slid-
ing under the seatbelt in the event of
a collision, always put the seatback
in the upright position while the ve-
hicle is in motion. Also, do not place
objects such as cushions between
the passenger and the seatback. If
you do so, the risk of sliding under
the lap belt and of the lap belt sliding
up over the abdomen will increase,
and both can result in serious inter-
nal injury or death.
100354

1-4 Seat, seatbelt and SRS airbags

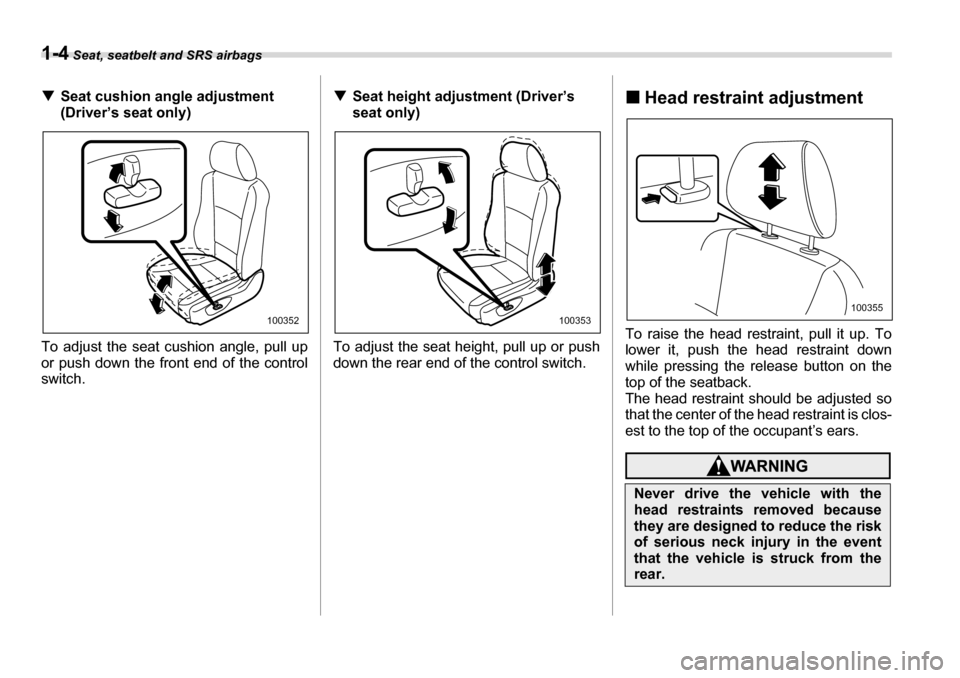

TSeat cushion angle adjustment
(Driver’s seat only)
To adjust the seat cushion angle, pull up
or push down the front end of the controlswitch. T
Seat height adjustment (Driver’s
seat only)
To adjust the seat height, pull up or push
down the rear end of the control switch. „
Head restraint adjustment
To raise the head restraint, pull it up. To
lower it, push the head restraint down
while pressing the release button on the
top of the seatback.
The head restraint should be adjusted so
that the center of the head restraint is clos-
est to the top of the occupant’s ears.
100352100353
Never drive the vehicle with the
head restraints removed because
they are designed to reduce the risk
of serious neck injury in the event
that the vehicle is struck from the
rear.
100355

Seat, seatbelt and SRS airbags 1-5

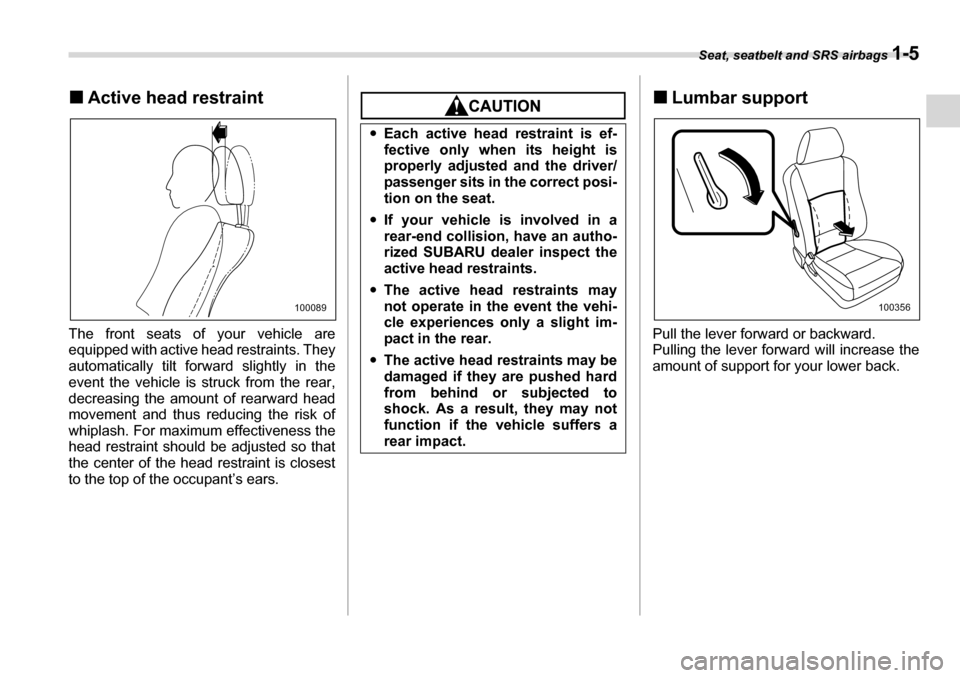

„Active head restraint
The front seats of your vehicle are
equipped with active head restraints. They
automatically tilt forward slightly in the
event the vehicle is struck from the rear,
decreasing the amount of rearward head
movement and thus reducing the risk of
whiplash. For maximum effectiveness the
head restraint should be adjusted so that
the center of the head restraint is closest
to the top of the occupant’s ears.„ Lumbar support
Pull the lever forward or backward.
Pulling the lever forward will increase the
amount of support for your lower back.
100089
y Each active head restraint is ef-
fective only when its height is
properly adjusted and the driver/
passenger sits in the correct posi-
tion on the seat.
y If your vehicle is involved in a
rear-end collision, have an autho-
rized SUBARU dealer inspect the
active head restraints.
y The active head restraints may
not operate in the event the vehi-
cle experiences only a slight im-
pact in the rear.
y The active head restraints may be
damaged if they are pushed hard
from behind or subjected to
shock. As a result, they may not
function if the vehicle suffers a
rear impact.
