11-40Maintenance and service/Replacing bulbs
the rear combination light assembly rear-
ward and remove it from the vehicle.
1) Stop light/Tail light
2) Rear turn signal light
3. Remove the bulb holder from the rear
combination light assembly by turning itcounterclockwise.
4. Remove the bulb from the socket by
pushing it and turning counterclockwise.
5. Install a new bulb.
6. Set the bulb holder into the rear
combination light assembly and turn it
clockwise until it locks.
7. Reinstall the rear combination light
assembly by sliding the two-pronged part
of the combination light assembly securely
to each holder of the vehicle side.
8. Tighten the two mounting screws, and
then close the covers. &
Backup light/Tail light
1. Use a flat-head screwdriver to remove
the light cover from the rear gate trim.
1) Tail light
2) Backup light

2. Turn the bulb socket counterclockwise
and remove it.
3. Pull the bulb out of the bulb socket and
replace it with a new one.
4. Install the bulb socket by turning it clockwise.
5. Install the light cover on the rear gate. &Rear gate light
1. Use a flat-head screwdriver to remove
the rear gate light assembly from the rear
gate trim.
2. Pull the bulb out of the bulb socket and
replace it with a new one.
3. Install the rear gate light assembly on
the rear gate. &License plate light
1. Wrap a flat-head screwdriver in vinyl
tape or cloth, insert it into the gap between
the license plate light assembly and the
rear gate.
2. Carefully pry the light assembly to
remove it.
3. Remove the bulb socket from the
license plate light assembly by turning itcounterclockwise.
Maintenance and service/Replacing bulbs11-41
– CONTINUED –

11-42Maintenance and service/Replacing bulbs
4. Pull the bulb out of the socket. Install a
new bulb.
5. Set the bulb socket into the license
plate light assembly and turn it clockwise
until it locks.
6. Reinstall the license plate light assem-
bly to the rear gate.&
Dome lightModels with Rear Seat Entertainment
Models without Rear Seat Entertainment
1. Remove the lens by prying the edge of
the lens with a flat-head screwdriver.
2. Turn the bulb until the flat surfaces at
its ends are aligned vertically. Pull the bulb
straight downward to remove it.
3. Install a new bulb.
4. Reinstall the lens.

&Map light
1. Remove the lens by prying the edge of
the lens with a flat-head screwdriver.
2. Turn the bulb until the flat surfaces at
its ends are aligned vertically. Pull the bulb straight downward to remove it.
3. Install a new bulb.
4. Reinstall the lens.
& Vanity mirror light
1. Remove the lens by prying the edge of
the lens with a flat-head screwdriver.
2. Pull the bulb out of the socket.
3. Install a new bulb.
4. Reinstall the lens. &Door step light
It may be difficult to replace the bulbs.
Have the bulbs replaced by your SUBARU
dealer if necessary.
Maintenance and service/Replacing bulbs11-43
– CONTINUED –

11-44Maintenance and service/Replacing bulbs
&Cargo area light
1. Remove the cargo area light assembly
by prying the edge of the light with a flat-
head screwdriver.
2. Remove the lens from the cargo area
light assembly.
3. Pull the bulb out of the socket.
4. Install a new bulb.
5. Reinstall the lens to the cargo area
light assembly.
6. Reinstall the cargo area light assembly
to the roof trim.

Specifications........................................................ 12-2
Dimensions ........................................................... 12-2
Engine .................................................................. 12-2
Fuel ...................................................................... 12-3
Engine oil ............................................................. 12-4
Front differential and rear differential gear oil ......... 12-6
Fluids ................................................................... 12-7
Engine coolant ...................................................... 12-7
Electrical system ................................................... 12-7 Tires
..................................................................... 12-8
Fuses and circuits .................................................12-9
Fuse panel located in the passenger compartment ...................................................... 12-9
Fuse panel located in the engine compartment ..................................................... 12-11
Bulb chart .............................................................12-12
Vehicle identification ...........................................12-15Specifications
12

12-2Specifications/Specifications
Specifications
These specifications are subject to change without notice. &Dimensions
in (mm)
Overall length 191.5 (4,865)
Overall width 73.9 (1,878)
Overall height Without roof rail 66.7 (1,695)
With roof rail 68.1 (1,730)
Wheel base 108.1 (2,745)
Tread Front 62.0 (1,575)
Rear 62.0 (1,575)
Ground clearance 8.3 (211)
& Engine
Engine model EZ36D
(3.6 L, DOHC, non-turbo)
Engine type Horizontally opposed, liquid cooled 6 cylinder, 4 stroke gasoline engine
Displacement cc (cu-in) 3,630 (221.5)
Bore 6Stroke in (mm) 3.6263.58 (92.0 691.0)
Compression ratio 10.5 : 1
Firing order 1
–6 –3–2 –5– 4

&Fuel
Fuel requirement Fuel tank capacity
Unleaded gasoline with 87 AKI (90 RON) or higher 16.9 US gal (64 liters, 14.1 Imp gal)
For more details, refer to “Fuel ”F 7-2.
Specifications/Specifications12-3
– CONTINUED –

12-4Specifications/Specifications
&Engine oil
For the checking, adding and replacing procedure or other details, refer to “Engine oil ”F 11-7.
NOTE
The procedure for changing the engine oil and oil filter should be performed by a properly-trained expert. It is recommended
that you have this service performed by your SUBARU dealer. ! Approved engine oil
Always use the SUBARU approved engine oil. For further details, please contact your SUBARU dealer.
If the approved engine oil is unavailable, use the alternative engine oil described on the next page. ! Alternative engine oil
If the SUBARU approved oil is unavailable, the following alternative oil can be used. NOTE . Each quantity indicated is only a guideline. The necessary quantity for replacement may differ slightly depending on the
temperature and other factors. . In choosing an oil, you want the proper quality and viscosity, as well as one that will enhance fuel economy. Oils of lower
viscosity provide better fuel economy. However, in hot weather, oil of higher viscosity is required to properly lubricate the
engine. The following table lists the recommended viscosities and applicable temperatures.. When adding oil, different brands may be used together as long as they are the same API classification and SAE viscosity
as those recommended by SUBARU.

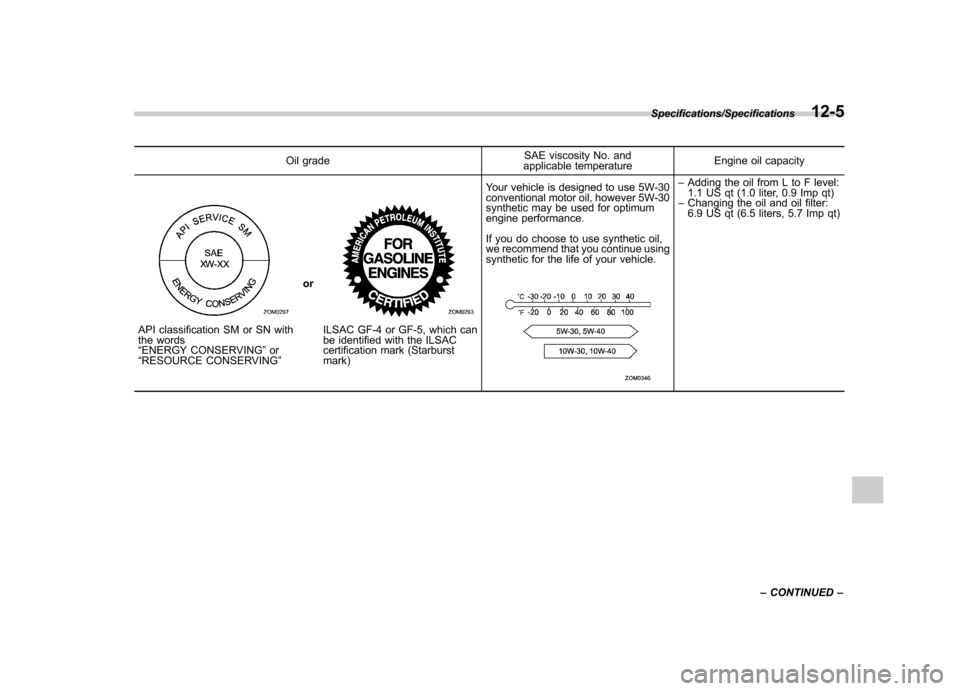

Oil gradeSAE viscosity No. and
applicable temperature Engine oil capacity
API classification SM or SN with
the words “
ENERGY CONSERVING ”or
“ RESOURCE CONSERVING ”orILSAC GF-4 or GF-5, which can
be identified with the ILSAC
certification mark (Starburst mark) Your vehicle is designed to use 5W-30
conventional motor oil, however 5W-30
synthetic may be used for optimum
engine performance.
If you do choose to use synthetic oil,
we recommend that you continue using
synthetic for the life of your vehicle.
–
Adding the oil from L to F level:
1.1 US qt (1.0 liter, 0.9 Imp qt)
– Changing the oil and oil filter:
6.9 US qt (6.5 liters, 5.7 Imp qt)
Specifications/Specifications12-5
