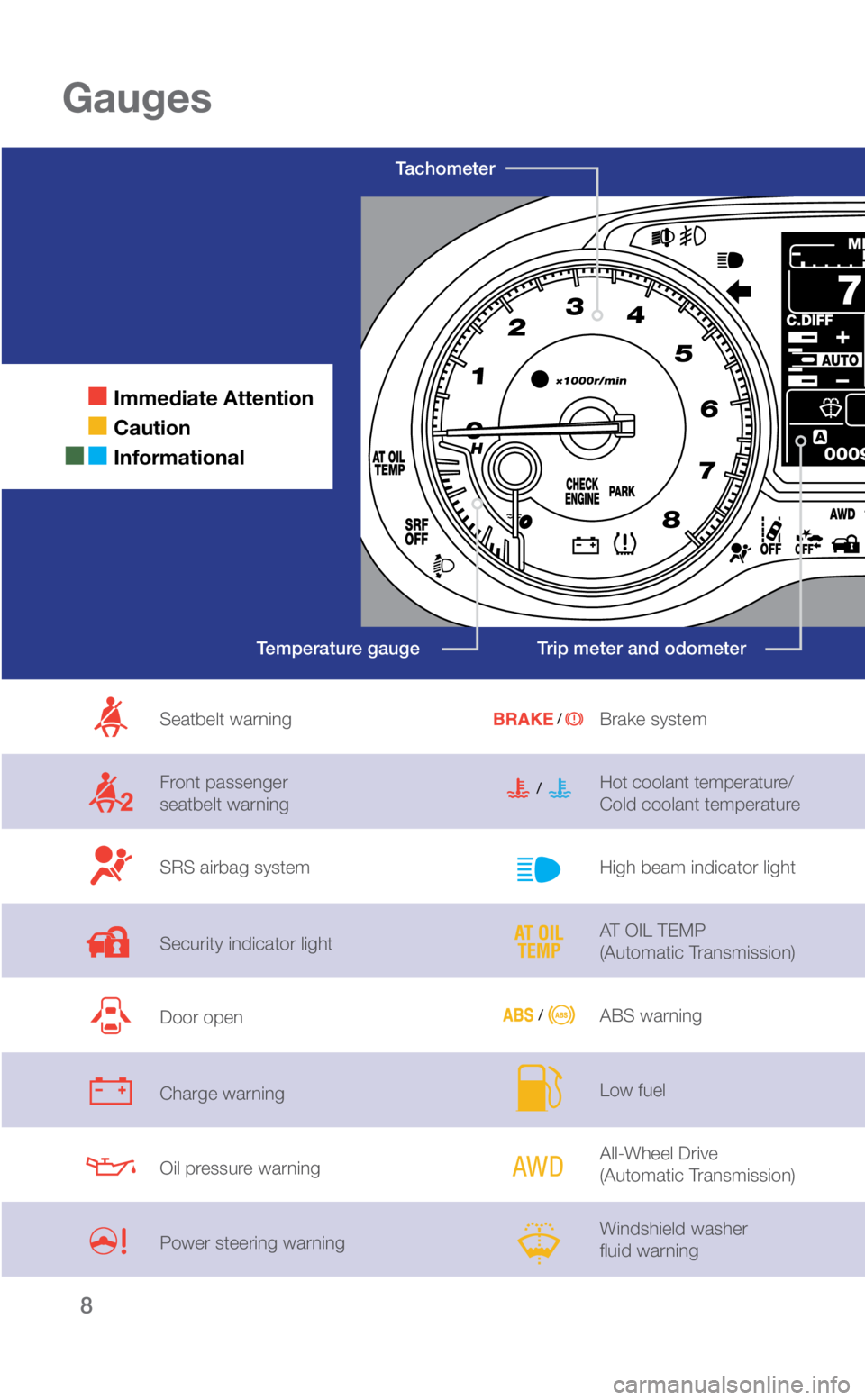

Gauges
Immediate Attention

Caution
Informational
Seatbelt warning
Front passenger
seatbelt warning
SRS airbag system
Security indicator light
Door open
Charge warning
Oil pressure warning
Power steering warning Brake system
Hot coolant temperature/

Cold coolant temperature
High beam indicator light
AT OIL TEMP
(Automatic Transmission)
ABS warning
Low fuel
All-Wheel Drive
(Automatic Transmission)
Windshield washer
fluid warning
Trip meter and odometer
Temperature gauge Tachometer
3033672_18b_WRX_WRX_STI_QG_051617.indd 85/16/17 2:29 PM

10

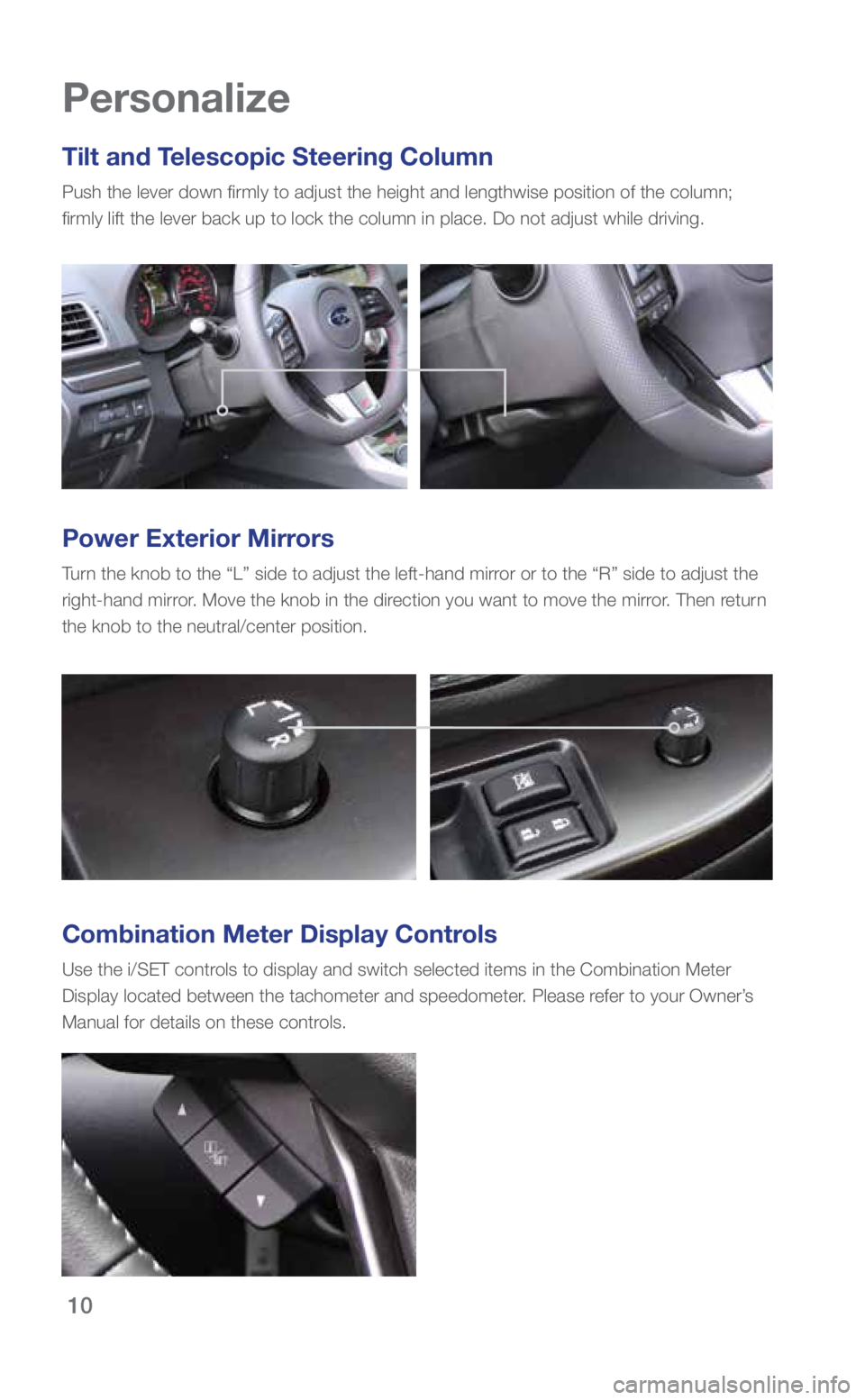

Tilt and Telescopic Steering Column
Push the lever down firmly to adjust the height and lengthwise positio\
n of the column;
firmly lift the lever back up to lock the column in place. Do not adju\
st while driving.
Power Exterior Mirrors
Turn the knob to the “L” side to adjust the left-hand mirror or to the “R” side to adjust the
right-hand mirror. Move the knob in the direction you want to move the mirror. Then return
the knob to the neutral/center position.
Personalize
Combination Meter Display Controls
Use the i/SET controls to display and switch selected items in the Combination Meter
Display located between the tachometer and speedometer. Please refer to your Owner’s
Manual for details on these controls.
3033672_18b_WRX_WRX_STI_QG_051617.indd 105/16/17 2:29 PM

28
102
3
7
1
8
5
4
9
6
Engine Compartment
Additional
Information
Please refer to your Owner’s Manual for more information.
WRX Engine

Note: Callouts apply to both engines.
1. Brake Fluid Reservoir
2. Main Fuse Box
3. Battery
4. Windshield Washer Tank
5. Engine Oil Filler Cap 6.
Engine Coolant Reservoir
7. Radiator Cap
8. Engine Oil Dipstick
9. Air Cleaner Element
10. Power Steering Fluid Reservoir
(WRX STI only)
WRX STI Engine
1
2
2
7
3
5
4
6
1
9
8
3033672_18b_WRX_WRX_STI_QG_051617.indd 285/16/17 2:31 PM

Steering Wheel & Instrument Panel
Master and Valet Keys, Keyless Access System* operation, Push Button Start* and Remote Start*
Tilt/Telescopic Steering Column Adjustments and Paddle Shift operation*
Steering Wheel Controls
Headlights, DRL, Parking Lights, Hazard Lights, Interior Lights,
Fog Lights*, Autolights* and Welcome/Goodbye Lighting*
Front & Rear* Wiper and Washer Controls
Gauges, Warning Lights, Multi Function Display*, Information Display settings
and Parking Brake operation
Safety, Comfort & Convenience
All Wheel Drive System, Emergency towing of AWD, VDC, X-MODE®*,
Hill Holder™*, Incline Start Assist*, and Auto Vehicle Hold* operation
Rear Vision Camera
All Weather Package operation – Heated Seats,
Exterior Mirrors & Windshield Wiper De-icer
Review operation of climate control system
Power windows, locks, exterior mirrors, seat including Memory Function*
and Power Moonroof* operation
Hood Release and fluid reservoir locations
Fuel Filler Door, Trunk Release, Rear Gate operation
and location of Spare Tire*, Jack & Tools
STARLINK Audio System, Bluetooth & Safety/Security
Bluetooth – Pair owner’s phone(s) & show operation
(Download SUBARU STARLINK and MySubaru Apps*)
STARLINK Audio and Navigation* system controls
Driver Assist Technologies
EyeSight™ System*
Reverse Automatic Braking System*
Blind Spot Detection*, Lane Change Assist* and Rear Cross Traffic Alert*
High Beam Assist*, Steering Responsive Foglights* and
Steering Responsive Headlights*
*If Applicable
Owner Signature(s) ________________________________________________________________
Subaru Sales Consultant ___________________________________________________________
Subaru Sales Manager _____________________________________________________________
3033672_18b_WRX_WRX_STI_QG_051617.indd 305/16/17 2:31 PM
