engine SUBARU WRX 2019 Quick Guide

9

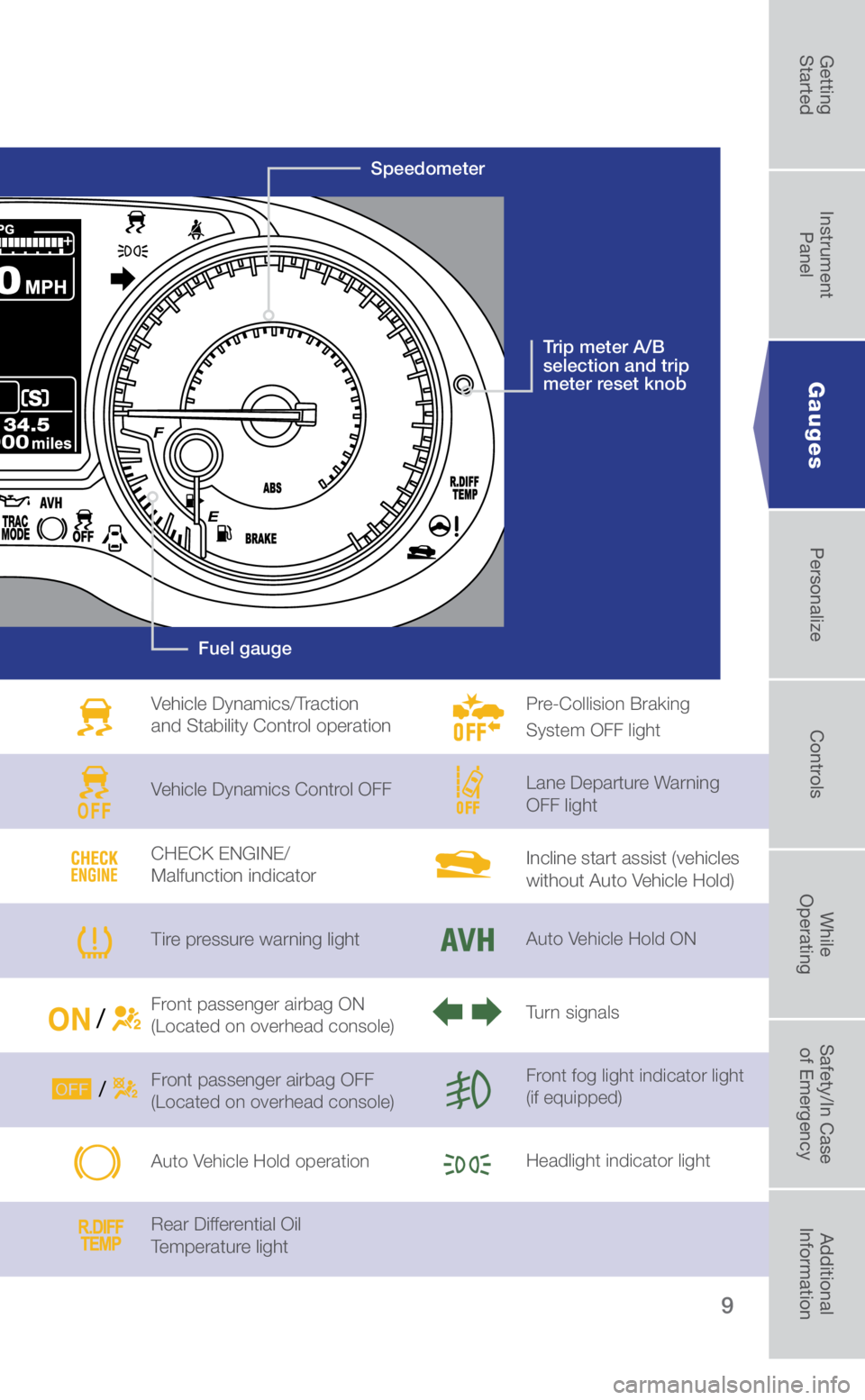

Vehicle Dynamics/Traction and Stability Control operation
Vehicle Dynamics Control OFF
CHECK ENGINE/
Malfunction indicator
Tire pressure warning light
Front passenger airbag ON
(Located on overhead console)
Front passenger airbag OFF (Located on overhead console)
Auto Vehicle Hold operation
Rear Differential Oil Temperature light
Pre-Collision Braking
System OFF light
Lane Departure Warning OFF light
Incline start assist (vehicles
without Auto Vehicle Hold)
Auto Vehicle Hold ON
Turn signals
Front fog light indicator light
(if equipped)
Headlight indicator light
Fuel gauge
Speedometer
Trip meter A/B
selection and trip
meter reset knob
Gauges
3572136_19b_WRX_WRX_STI_QG_061118.indd 96/11/18 5:06 PM
Getting
Started Instrument
Panel Gauges
Personalize ControlsWhile
Operating Safety/In Case
of Emergency Additional
Information

13

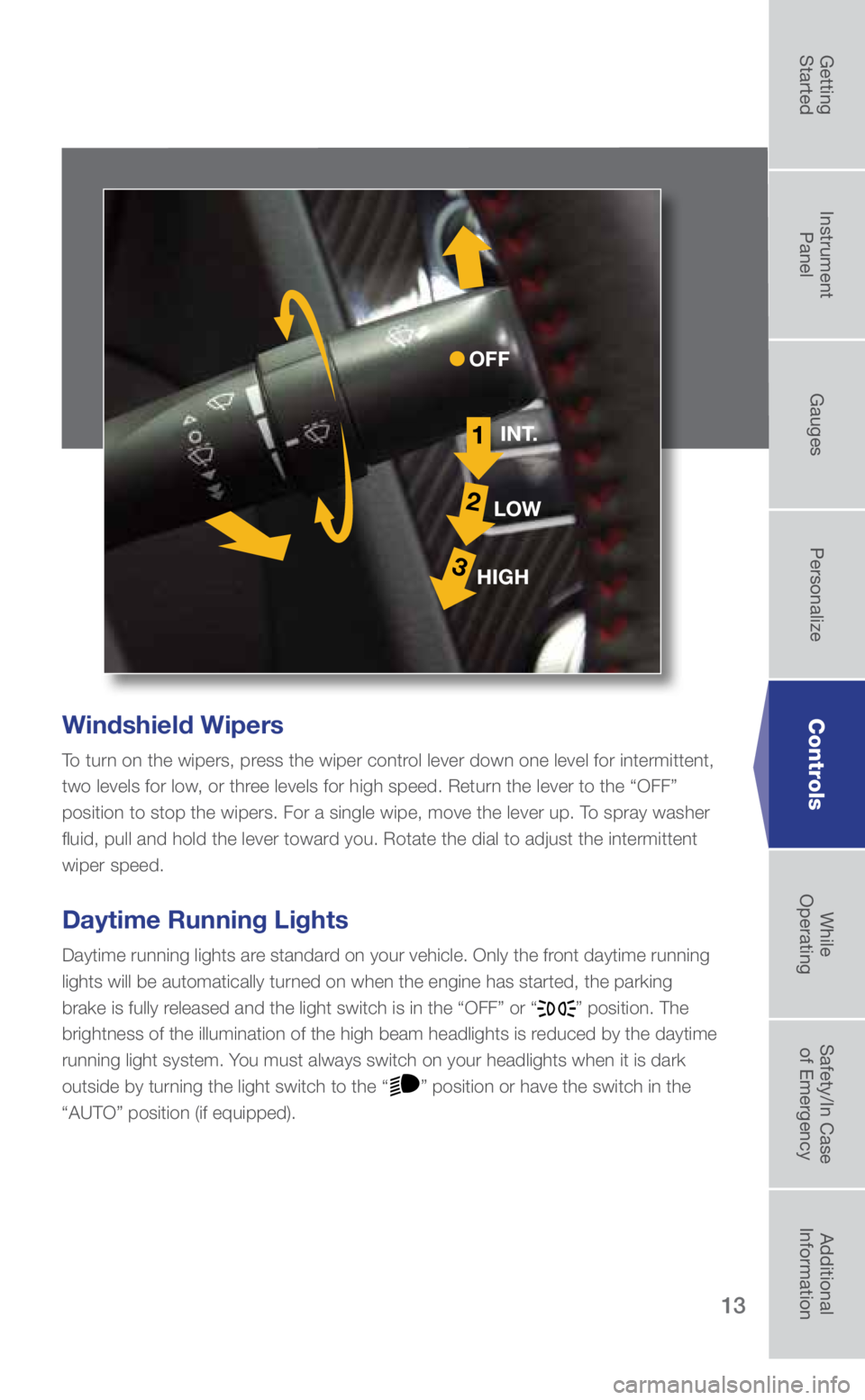

Windshield Wipers
To turn on the wipers, press the wiper control lever down one level for intermittent,
two levels for low, or three levels for high speed. Return the lever to the “OFF”
position to stop the wipers. For a single wipe, move the lever up. To spray washer
fluid, pull and hold the lever toward you. Rotate the dial to adjust the intermittent
wiper speed.
Daytime Running Lights
Daytime running lights are standard on your vehicle. Only the front daytime running
lights will be automatically turned on when the engine has started, the parking
brake is fully released and the light switch is in the “OFF” or “
” position. The
brightness of the illumination of the high beam headlights is reduced by the daytime
running light system. You must always switch on your headlights when it is dark
outside by turning the light switch to the “
” position or have the switch in the
“AUTO” position (if equipped).
1
2
3
INT.
LOW
HIGH
OFF
Controls
3572136_19b_WRX_WRX_STI_QG_061118.indd 136/11/18 5:07 PM
Getting
Started Instrument
Panel Gauges
Personalize ControlsWhile
Operating Safety/In Case
of Emergency Additional
Information

19
1

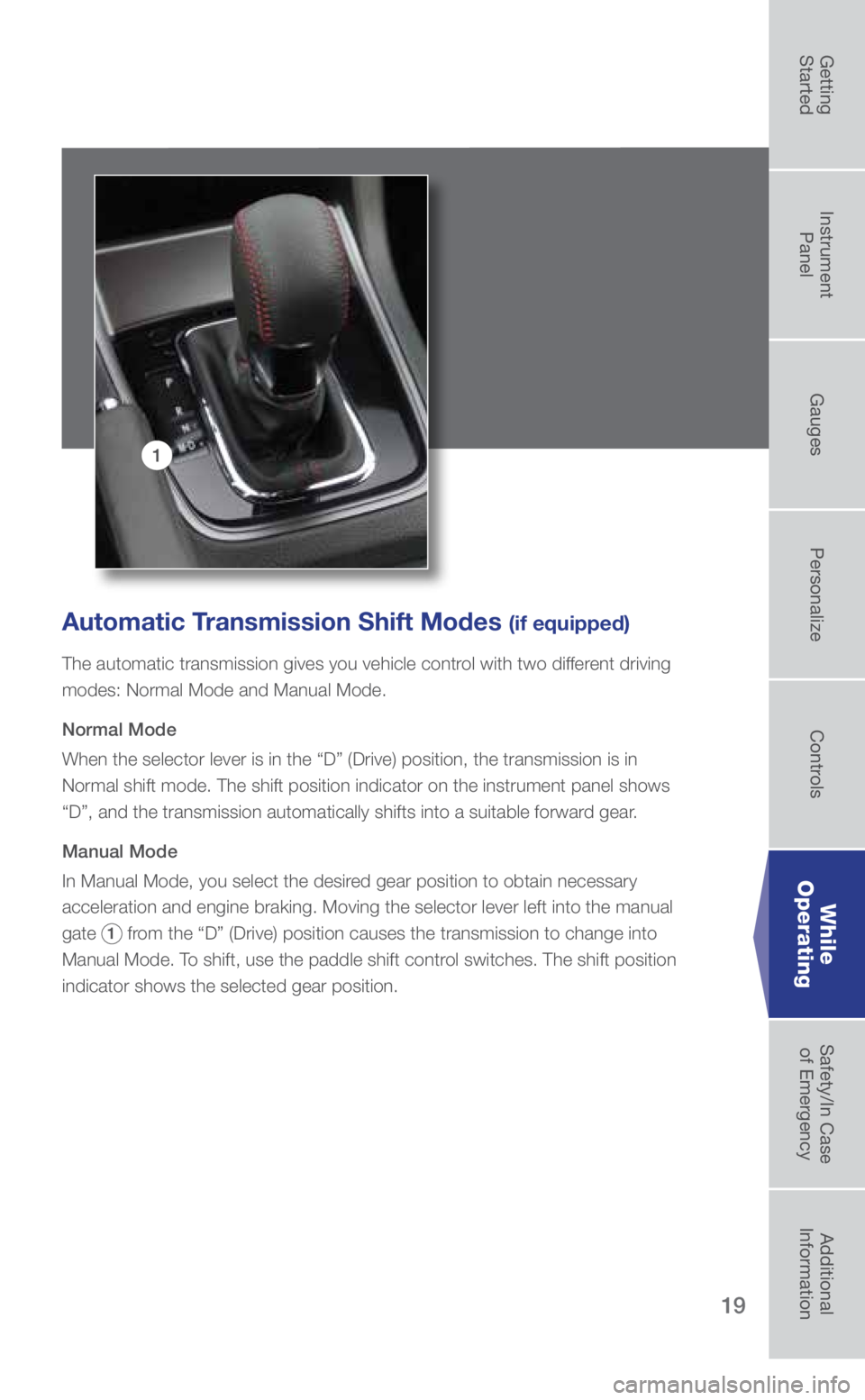

Automatic Transmission Shift Modes (if equipped)
The automatic transmission gives you vehicle control with two different driving
modes: Normal Mode and Manual Mode.
Normal Mode
When the selector lever is in the “D” (Drive) position, the tran\
smission is in
Normal shift mode. The shift position indicator on the instrument panel \
shows
“D”, and the transmission automatically shifts into a suitable for\
ward gear.
Manual Mode
In Manual Mode, you select the desired gear position to obtain necessary
acceleration and engine braking. Moving the selector lever left into the\
manual
gate
1 from the “D” (Drive) position causes the transmission to change in\
to
Manual Mode. To shift, use the paddle shift control switches. The shift position
indicator shows the selected gear position.
While
Operating
3572136_19b_WRX_WRX_STI_QG_061118.indd 196/11/18 5:07 PM
Getting
Started Instrument
Panel Gauges
Personalize ControlsWhile
Operating Safety/In Case
of Emergency Additional
Information

21

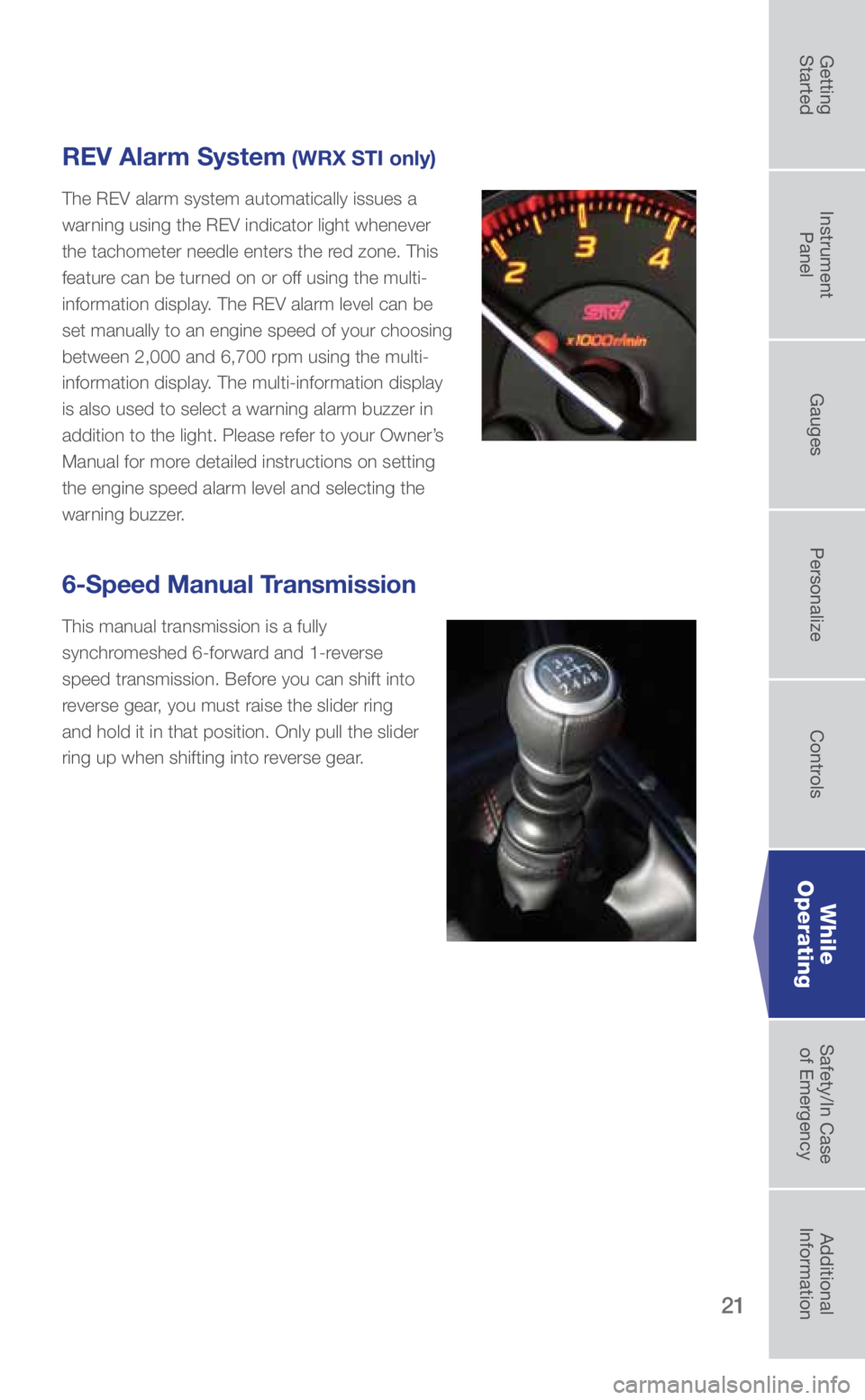

6-Speed Manual Transmission
This manual transmission is a fully
synchromeshed 6-forward and 1-reverse
speed transmission. Before you can shift into
reverse gear, you must raise the slider ring
and hold it in that position. Only pull the slider
ring up when shifting into reverse gear.
REV Alarm System (WRX STI only)
The REV alarm system automatically issues a
warning using the REV indicator light whenever
the tachometer needle enters the red zone. This
feature can be turned on or off using the multi-
information display. The REV alarm level can be
set manually to an engine speed of your choosing
between 2,000 and 6,700 rpm using the multi-
information display. The multi-information display
is also used to select a warning alarm buzzer in
addition to the light. Please refer to your Owner’s
Manual for more detailed instructions on setting
the engine speed alarm level and selecting the
warning buzzer.
While
Operating
3572136_19b_WRX_WRX_STI_QG_061118.indd 216/11/18 5:07 PM
Getting
Started Instrument
Panel Gauges
Personalize ControlsWhile
Operating Safety/In Case
of Emergency Additional
Information

25

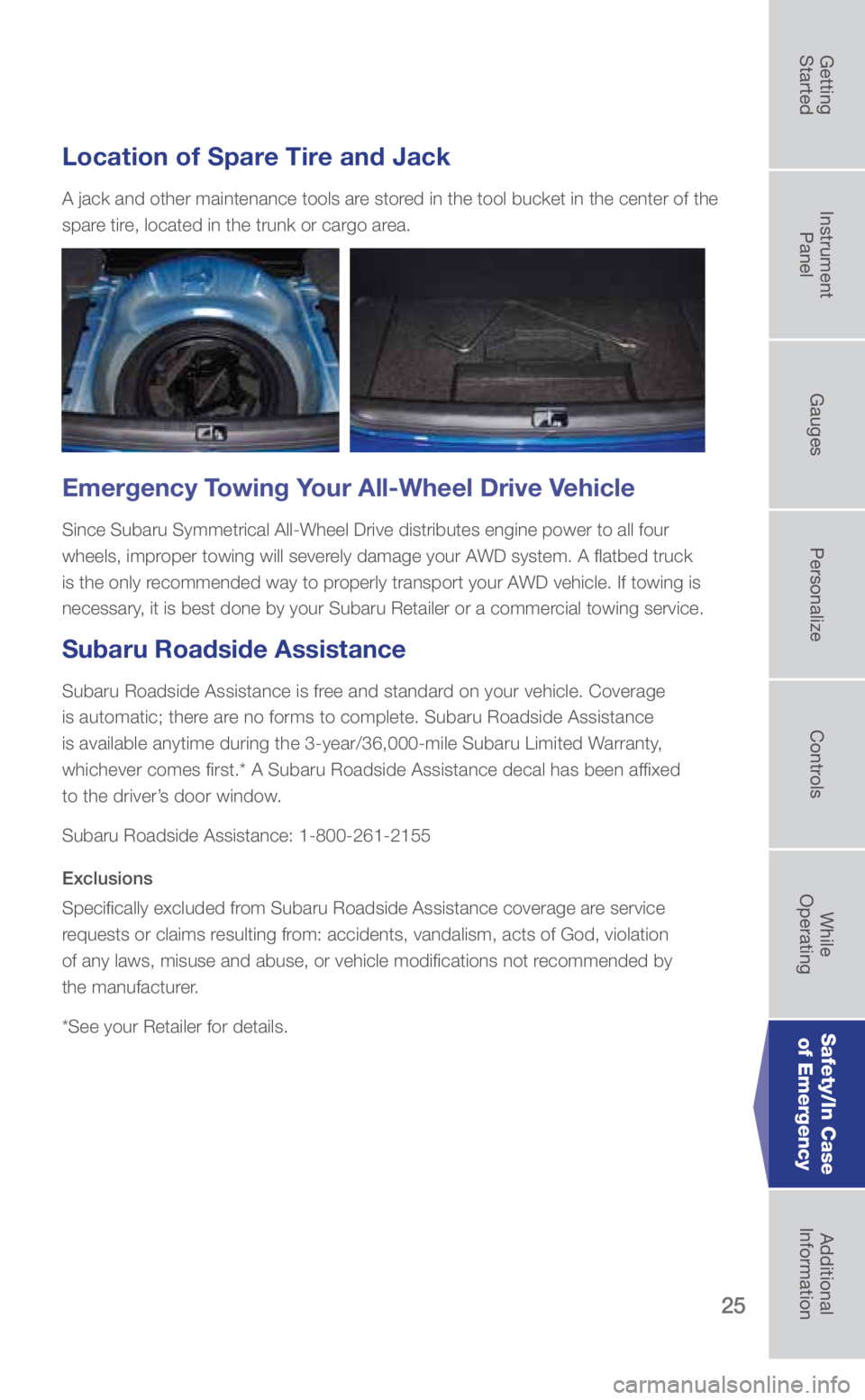

Location of Spare Tire and Jack
A jack and other maintenance tools are stored in the tool bucket in the center of the
spare tire, located in the trunk or cargo area.
Emergency Towing Your All-Wheel Drive Vehicle
Since Subaru Symmetrical All-Wheel Drive distributes engine power to all\
four
wheels, improper towing will severely damage your AWD system. A flatbed truck
is the only recommended way to properly transport your AWD vehicle. If towing is
necessary, it is best done by your Subaru Retailer or a commercial towing service.
Subaru Roadside Assistance
Subaru Roadside Assistance is free and standard on your vehicle. Coverage
is automatic; there are no forms to complete. Subaru Roadside Assistance
is available anytime during the 3-year/36,000-mile Subaru Limited Warranty,
whichever comes first.* A Subaru Roadside Assistance decal has been af\
fixed
to the driver’s door window.
Subaru Roadside Assistance: 1-800-261-2155
Exclusions
Specifically excluded from Subaru Roadside Assistance coverage are service
requests or claims resulting from: accidents, vandalism, acts of God, violation
of any laws, misuse and abuse, or vehicle modifications not recommended by
the manufacturer.
*See your Retailer for details.
Safety/In Case of Emergency
3572136_19b_WRX_WRX_STI_QG_061118.indd 256/11/18 5:08 PM
Getting
Started Instrument
Panel Gauges
Personalize ControlsWhile
Operating Safety/In Case
of Emergency Additional
Information

26
Additional Information

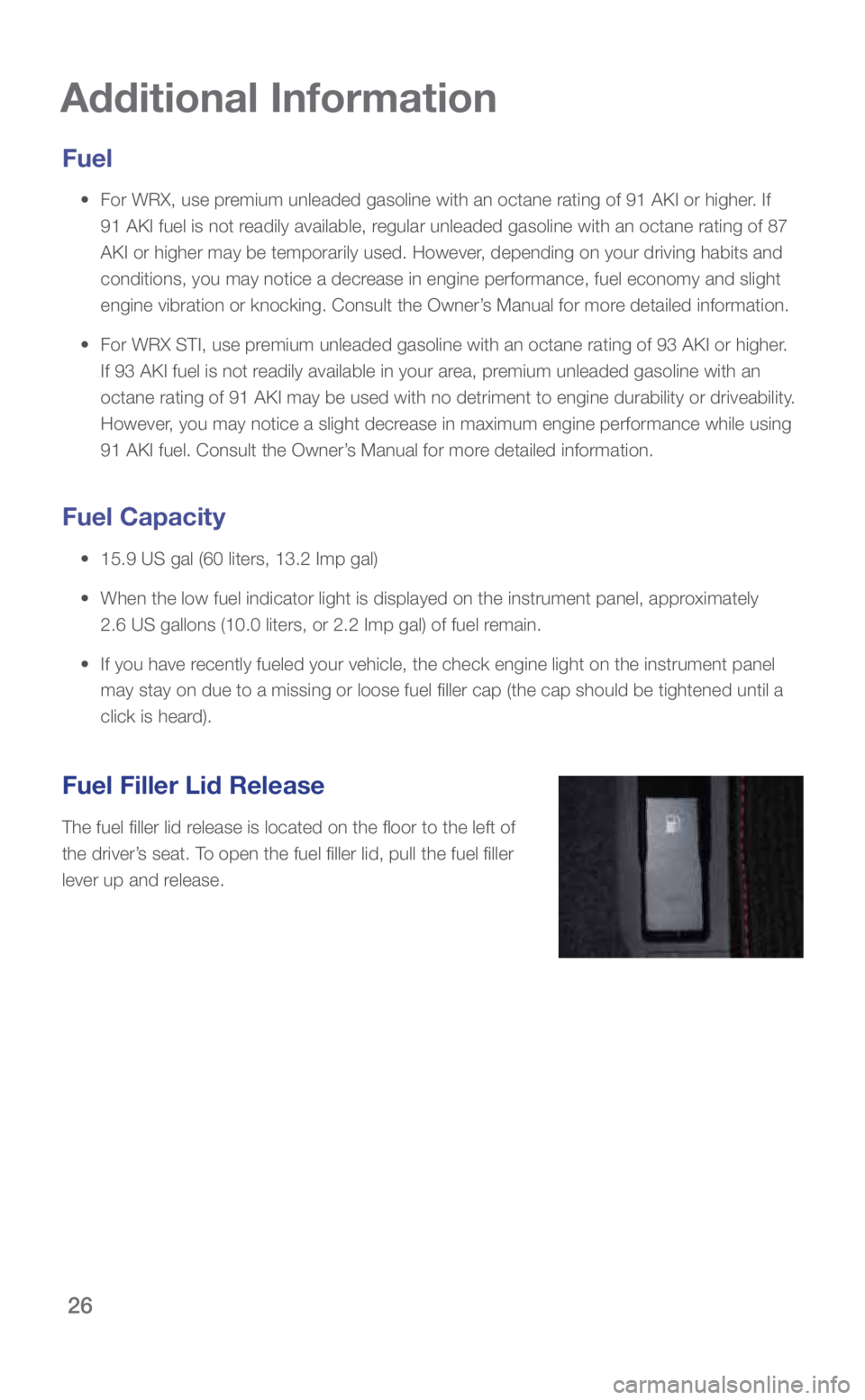

Fuel
• For WRX, use premium unleaded gasoline with an octane rating of 91 AKI or higher. If
91 AKI fuel is not readily available, regular unleaded gasoline with an octane rating of 87
AKI or higher may be temporarily used. However, depending on your driving habits and
conditions, you may notice a decrease in engine performance, fuel economy and slight
engine vibration or knocking. Consult the Owner’s Manual for more detailed information.
• For WRX STI, use premium unleaded gasoline with an octane rating of 93 AKI or higher.
If 93 AKI fuel is not readily available in your area, premium unleaded gasoline with an
octane rating of 91 AKI may be used with no detriment to engine durabili\
ty or driveability.
However, you may notice a slight decrease in maximum engine performance while using
91 AKI fuel. Consult the Owner’s Manual for more detailed information.
Fuel Capacity
• 15.9 US gal (60 liters, 13.2 Imp gal)
• When the low fuel indicator light is displayed on the instrument panel, \
approximately
2.6 US gallons (10.0 liters, or 2.2 Imp gal) of fuel remain.
• If you have recently fueled your vehicle, the check engine light on the instrument pa\
nel
may stay on due to a missing or loose fuel filler cap (the cap should\
be tightened until a
click is heard).
Fuel Filler Lid Release
The fuel filler lid release is located on the floor to the left of
the driver’s seat. To open the fuel filler lid, pull the fuel filler
lever up and release.
3572136_19b_WRX_WRX_STI_QG_061118.indd 266/11/18 5:08 PM

27

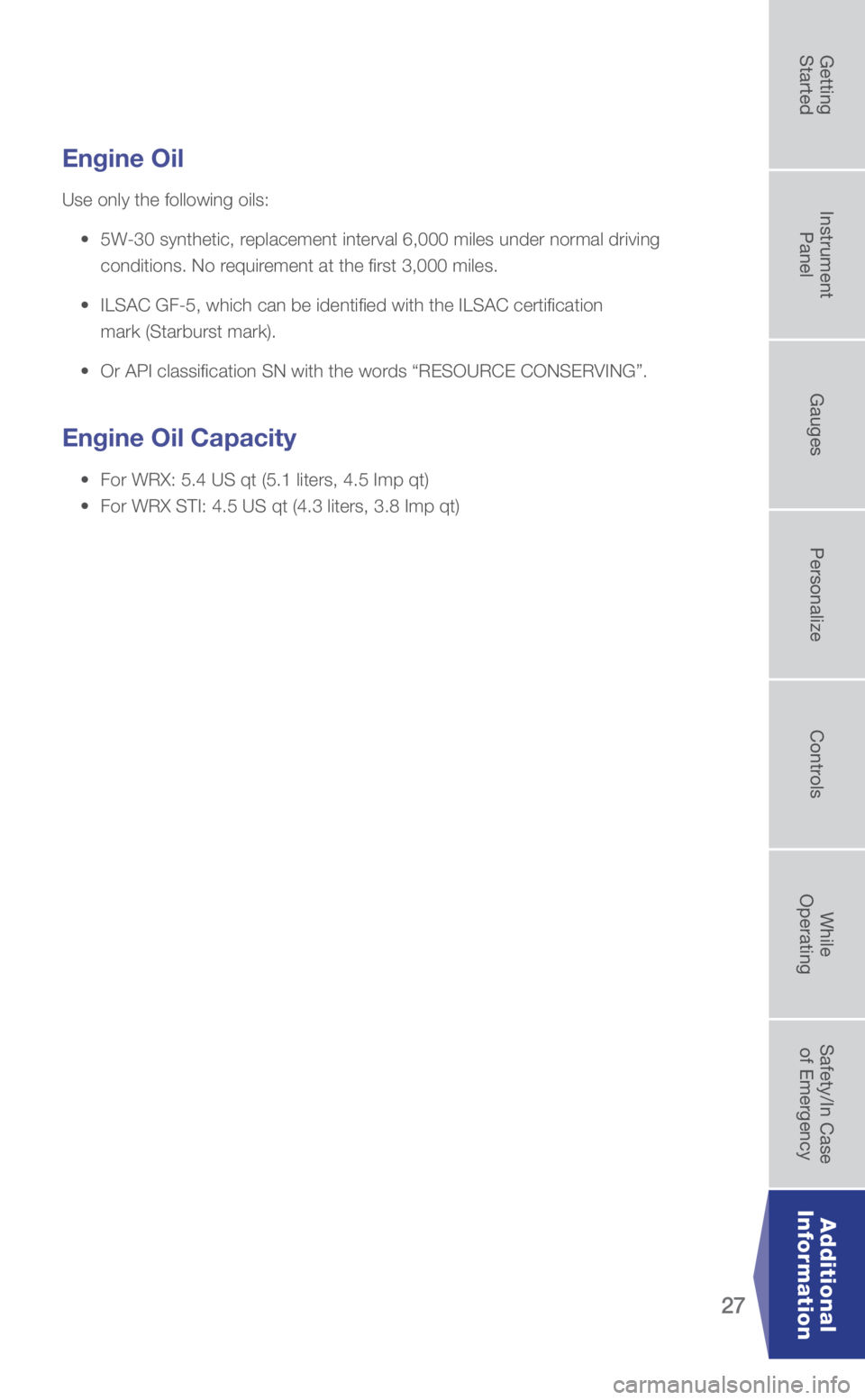

Engine Oil
Use only the following oils:
• 5W-30 synthetic, replacement interval 6,000 miles under normal driving
conditions. No requirement at the first 3,000 miles.
• ILSAC GF-5, which can be identified with the ILSAC certification
mark (Starburst mark).
• Or API classification SN with the words “RESOURCE CONSERVING”.
Engine Oil Capacity
• For WRX: 5.4 US qt (5.1 liters, 4.5 Imp qt)
• For WRX STI: 4.5 US qt (4.3 liters, 3.8 Imp qt)
Additional
Information
3572136_19b_WRX_WRX_STI_QG_061118.indd 276/11/18 5:08 PM
Getting
Started Instrument
Panel Gauges
Personalize ControlsWhile
Operating Safety/In Case
of Emergency Additional
Information

28
102
3
7
1
8
5
4
9
6

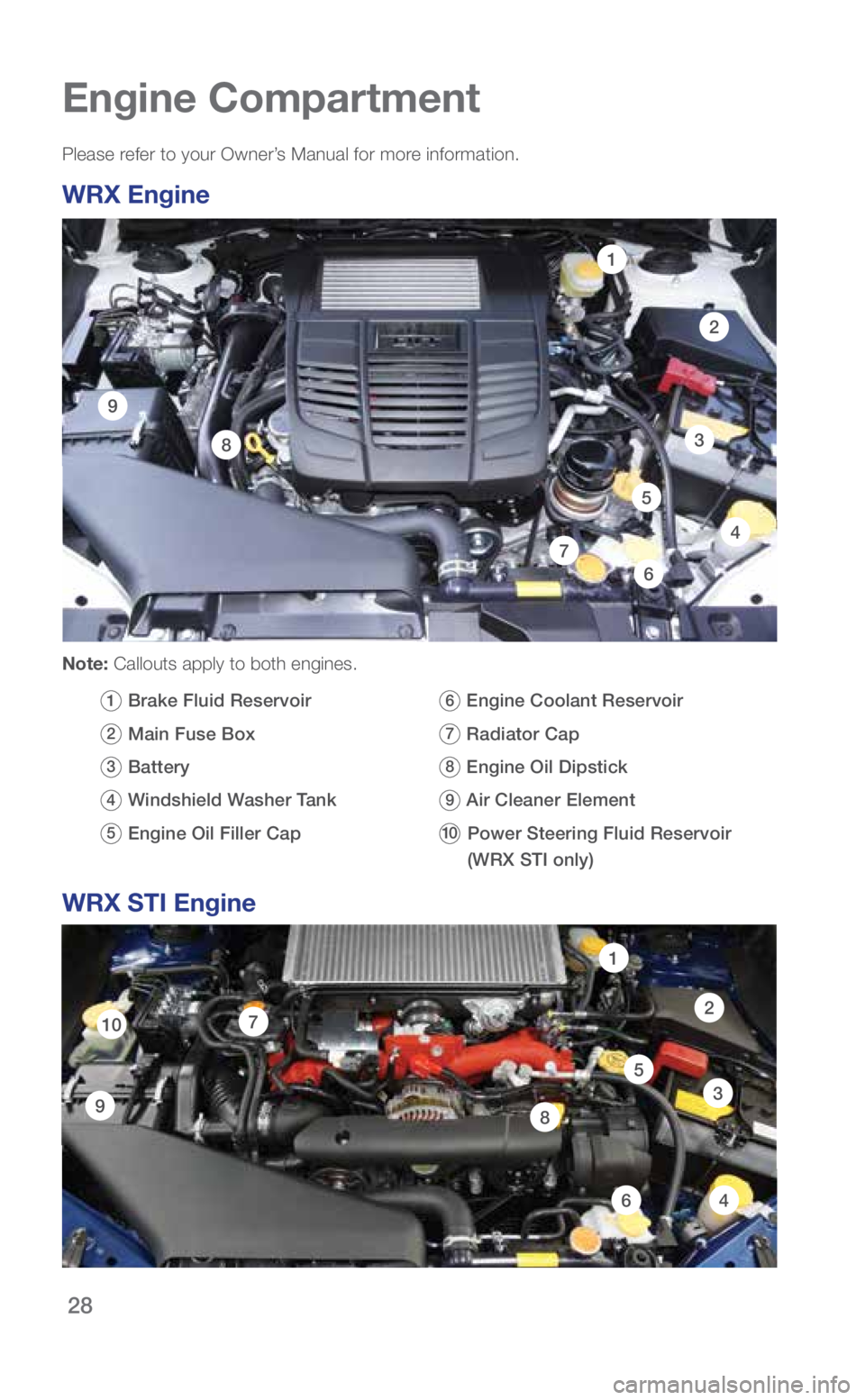

Engine Compartment
Additional
Information
Please refer to your Owner’s Manual for more information.
WRX Engine

Note: Callouts apply to both engines.
1 Brake Fluid Reservoir
2 Main Fuse Box
3 Battery
4 Windshield Washer Tank
5 Engine Oil Filler Cap
6 Engine Coolant Reservoir
7 Radiator Cap
8 Engine Oil Dipstick
9 Air Cleaner Element
10 Power Steering Fluid Reservoir
(WRX STI only)
WRX STI Engine
1
2
2
7
3
5
4
6
1
9
8
3572136_19b_WRX_WRX_STI_QG_061118.indd 286/11/18 5:08 PM
