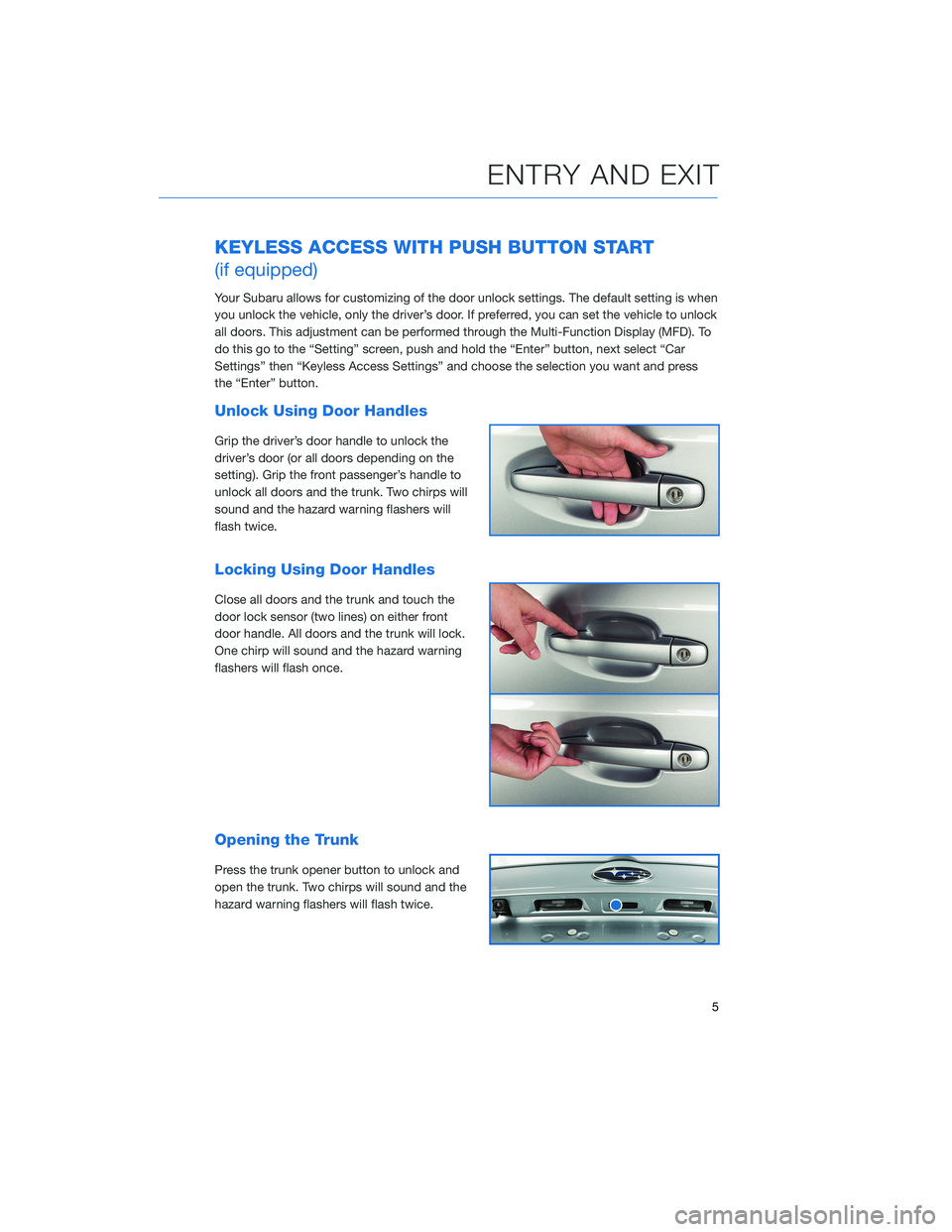

KEYLESS ACCESS WITH PUSH BUTTON START
(if equipped)
Your Subaru allows for customizing of the door unlock settings. The default setting is when
you unlock the vehicle, only the driver’s door. If preferred, you can set the vehicle to unlock
all doors. This adjustment can be performed through the Multi-Function Display (MFD). To
do this go to the “Setting” screen, push and hold the “Enter” button, next select “Car
Settings” then “Keyless Access Settings” and choose the selection you want and press
the “Enter” button.
Unlock Using Door Handles
Grip the driver’s door handle to unlock the
driver’s door (or all doors depending on the
setting). Grip the front passenger’s handle to
unlock all doors and the trunk. Two chirps will
sound and the hazard warning flashers will
flash twice.
Locking Using Door Handles
Close all doors and the trunk and touch the
door lock sensor (two lines) on either front
door handle. All doors and the trunk will lock.
One chirp will sound and the hazard warning
flashers will flash once.
Opening the Trunk
Press the trunk opener button to unlock and
open the trunk. Two chirps will sound and the
hazard warning flashers will flash twice.
ENTRY AND EXIT
5

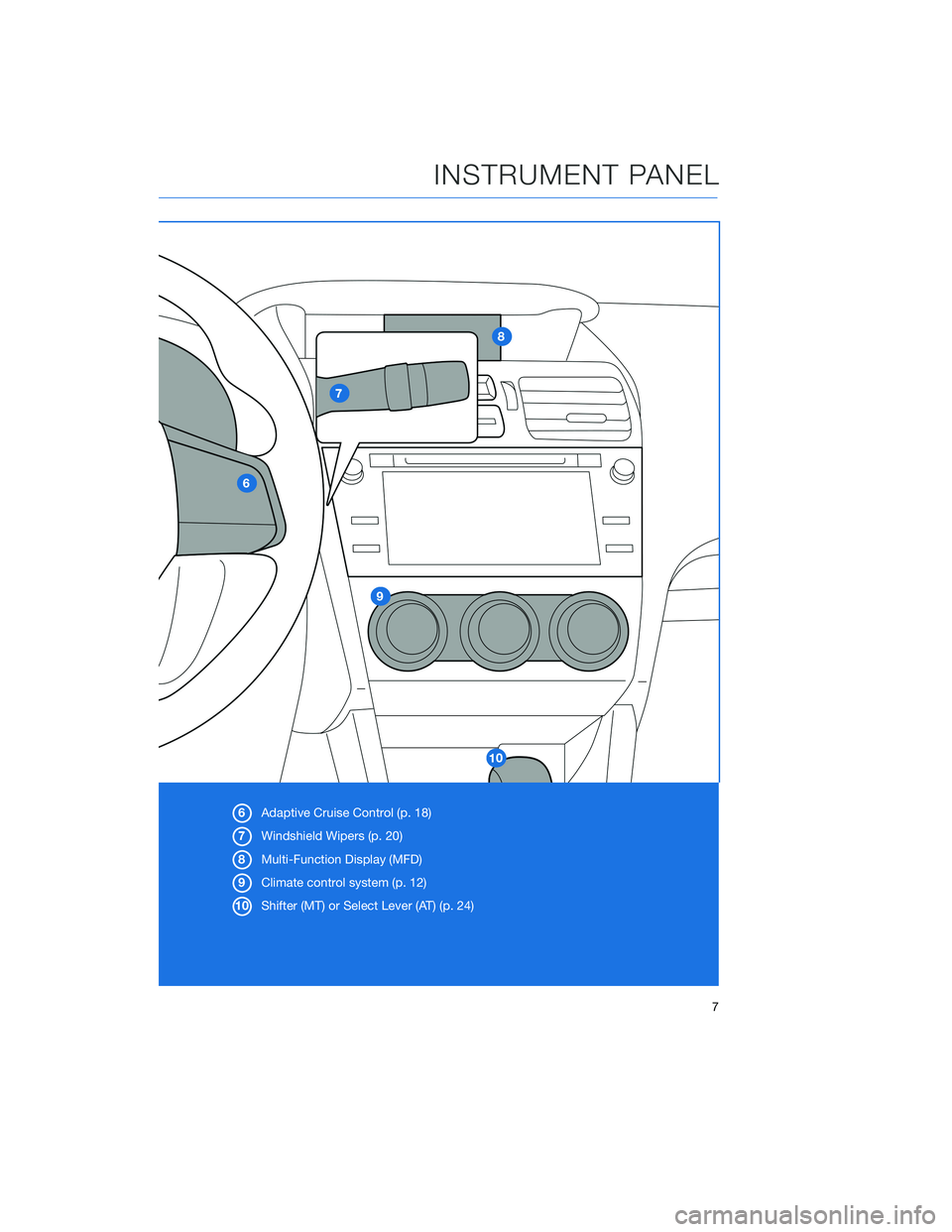

6Adaptive Cruise Control (p. 18)
7Windshield Wipers (p. 20)
8Multi-Function Display (MFD)
9Climate control system (p. 12)
10Shifter (MT) or Select Lever (AT) (p. 24)
INSTRUMENT PANEL
7

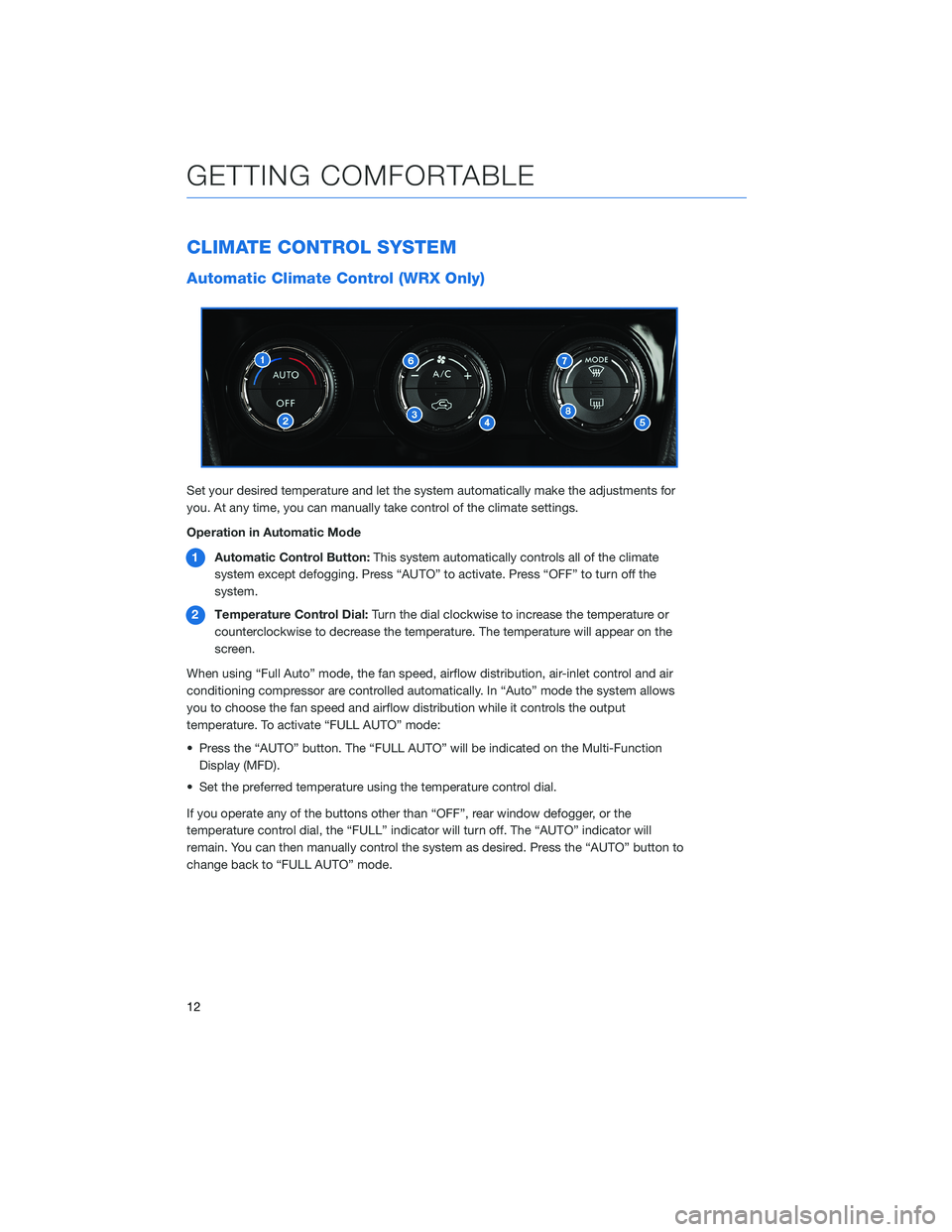

CLIMATE CONTROL SYSTEM
Automatic Climate Control (WRX Only)
Set your desired temperature and let the system automatically make the adjustments for
you. At any time, you can manually take control of the climate settings.
Operation in Automatic Mode
1Automatic Control Button:This system automatically controls all of the climate
system except defogging. Press “AUTO” to activate. Press “OFF” to turn off the
system.
2Temperature Control Dial:Turn the dial clockwise to increase the temperature or
counterclockwise to decrease the temperature. The temperature will appear on the
screen.
When using “Full Auto” mode, the fan speed, airflow distribution, air-inlet control and air
conditioning compressor are controlled automatically. In “Auto” mode the system allows
you to choose the fan speed and airflow distribution while it controls the output
temperature. To activate “FULL AUTO” mode:
• Press the “AUTO” button. The “FULL AUTO” will be indicated on the Multi-Function
Display (MFD).
• Set the preferred temperature using the temperature control dial.
If you operate any of the buttons other than “OFF”, rear window defogger, or the
temperature control dial, the “FULL” indicator will turn off. The “AUTO” indicator will
remain. You can then manually control the system as desired. Press the “AUTO” button to
change back to “FULL AUTO” mode.
GETTING COMFORTABLE
12

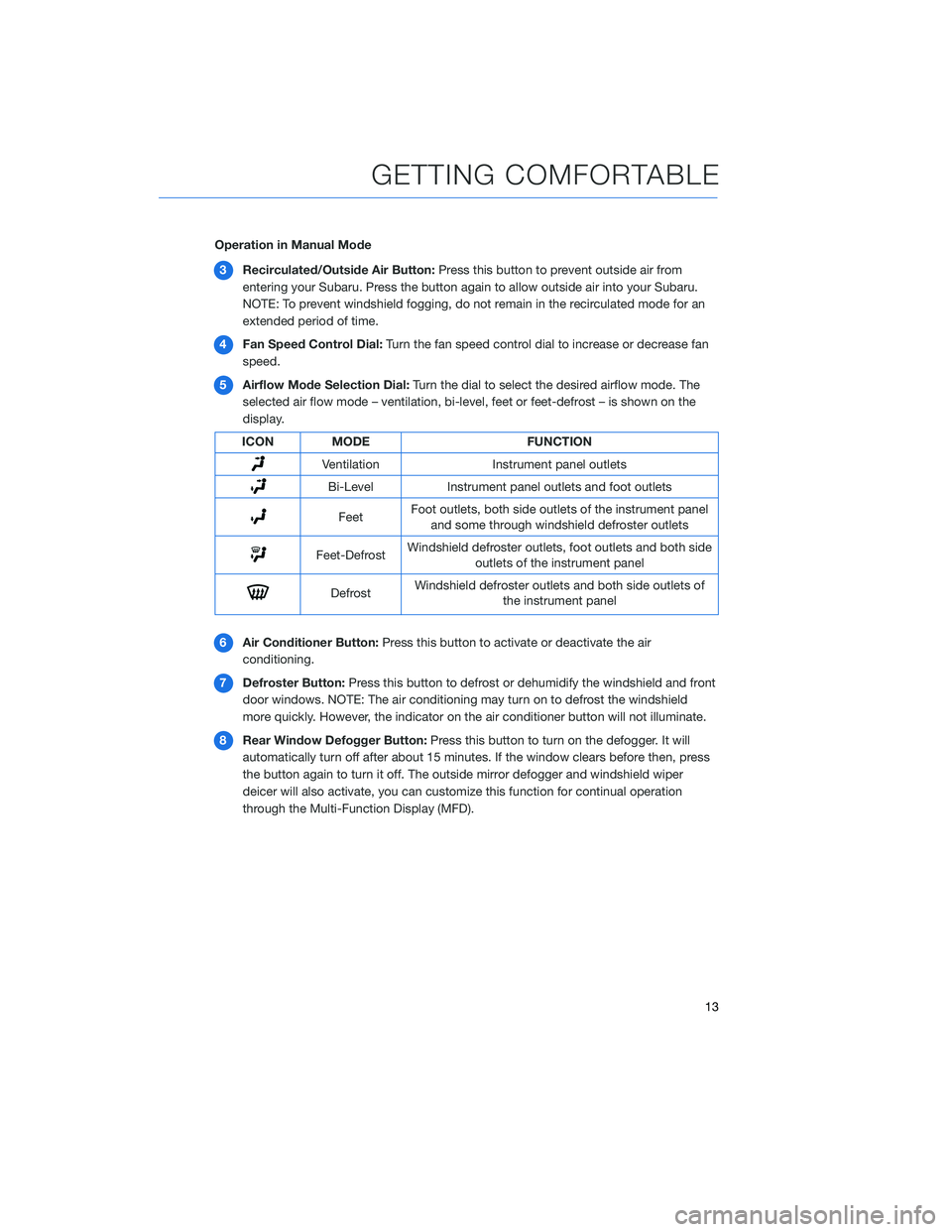

Operation in Manual Mode
3Recirculated/Outside Air Button:Press this button to prevent outside air from
entering your Subaru. Press the button again to allow outside air into your Subaru.
NOTE: To prevent windshield fogging, do not remain in the recirculated mode for an
extended period of time.
4Fan Speed Control Dial:Turn the fan speed control dial to increase or decrease fan
speed.
5Airflow Mode Selection Dial:Turn the dial to select the desired airflow mode. The
selected air flow mode – ventilation, bi-level, feet or feet-defrost – is shown on the
display.
ICON MODE FUNCTION
Ventilation Instrument panel outlets
Bi-Level Instrument panel outlets and foot outlets
FeetFoot outlets, both side outlets of the instrument panel
and some through windshield defroster outlets
Feet-DefrostWindshield defroster outlets, foot outlets and both side
outlets of the instrument panel
DefrostWindshield defroster outlets and both side outlets of
the instrument panel
6Air Conditioner Button:Press this button to activate or deactivate the air
conditioning.
7Defroster Button:Press this button to defrost or dehumidify the windshield and front
door windows. NOTE: The air conditioning may turn on to defrost the windshield
more quickly. However, the indicator on the air conditioner button will not illuminate.
8Rear Window Defogger Button:Press this button to turn on the defogger. It will
automatically turn off after about 15 minutes. If the window clears before then, press
the button again to turn it off. The outside mirror defogger and windshield wiper
deicer will also activate, you can customize this function for continual operation
through the Multi-Function Display (MFD).
GETTING COMFORTABLE
13

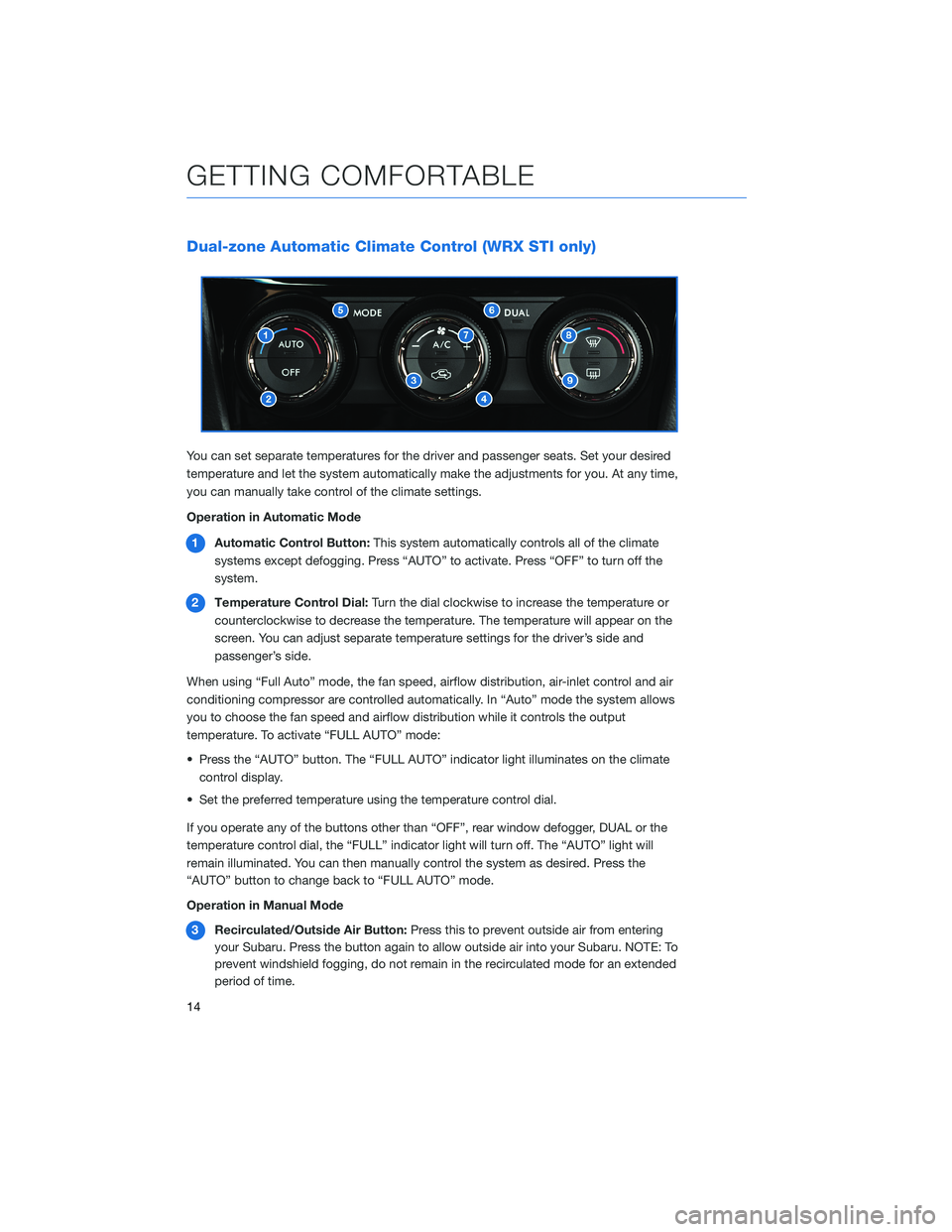

Dual-zone Automatic Climate Control (WRX STI only)
You can set separate temperatures for the driver and passenger seats. Set your desired
temperature and let the system automatically make the adjustments for you. At any time,
you can manually take control of the climate settings.
Operation in Automatic Mode
1Automatic Control Button:This system automatically controls all of the climate
systems except defogging. Press “AUTO” to activate. Press “OFF” to turn off the
system.
2Temperature Control Dial:Turn the dial clockwise to increase the temperature or
counterclockwise to decrease the temperature. The temperature will appear on the
screen. You can adjust separate temperature settings for the driver’s side and
passenger’s side.
When using “Full Auto” mode, the fan speed, airflow distribution, air-inlet control and air
conditioning compressor are controlled automatically. In “Auto” mode the system allows
you to choose the fan speed and airflow distribution while it controls the output
temperature. To activate “FULL AUTO” mode:
• Press the “AUTO” button. The “FULL AUTO” indicator light illuminates on the climate
control display.
• Set the preferred temperature using the temperature control dial.
If you operate any of the buttons other than “OFF”, rear window defogger, DUAL or the
temperature control dial, the “FULL” indicator light will turn off. The “AUTO” light will
remain illuminated. You can then manually control the system as desired. Press the
“AUTO” button to change back to “FULL AUTO” mode.
Operation in Manual Mode
3Recirculated/Outside Air Button:Press this to prevent outside air from entering
your Subaru. Press the button again to allow outside air into your Subaru. NOTE: To
prevent windshield fogging, do not remain in the recirculated mode for an extended
period of time.
GETTING COMFORTABLE
14

4Fan Speed Control Dial:Turn the fan speed control dial to increase or decrease fan
speed.

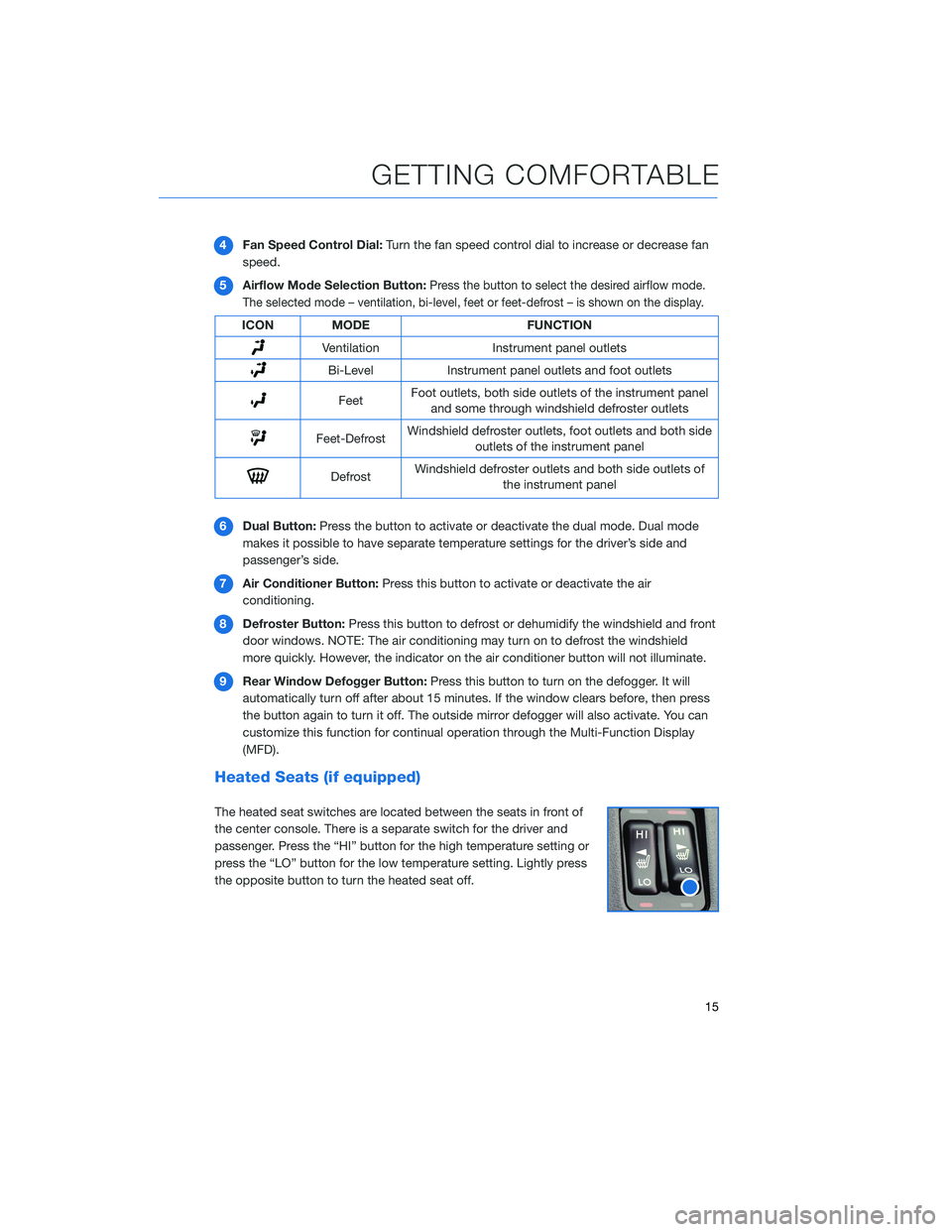

5Airflow Mode Selection Button:
Press the button to select the desired airflow mode.
The selected mode – ventilation, bi-level, feet or feet-defrost – is shown on the display.
ICON MODE FUNCTION
Ventilation Instrument panel outlets
Bi-Level Instrument panel outlets and foot outlets
FeetFoot outlets, both side outlets of the instrument panel
and some through windshield defroster outlets
Feet-DefrostWindshield defroster outlets, foot outlets and both side
outlets of the instrument panel
DefrostWindshield defroster outlets and both side outlets of
the instrument panel
6Dual Button:Press the button to activate or deactivate the dual mode. Dual mode
makes it possible to have separate temperature settings for the driver’s side and
passenger’s side.
7Air Conditioner Button:Press this button to activate or deactivate the air
conditioning.
8Defroster Button:Press this button to defrost or dehumidify the windshield and front
door windows. NOTE: The air conditioning may turn on to defrost the windshield
more quickly. However, the indicator on the air conditioner button will not illuminate.
9Rear Window Defogger Button:Press this button to turn on the defogger. It will
automatically turn off after about 15 minutes. If the window clears before, then press
the button again to turn it off. The outside mirror defogger will also activate. You can
customize this function for continual operation through the Multi-Function Display
(MFD).
Heated Seats (if equipped)
The heated seat switches are located between the seats in front of
the center console. There is a separate switch for the driver and
passenger. Press the “HI” button for the high temperature setting or
press the “LO” button for the low temperature setting. Lightly press
the opposite button to turn the heated seat off.
GETTING COMFORTABLE
15

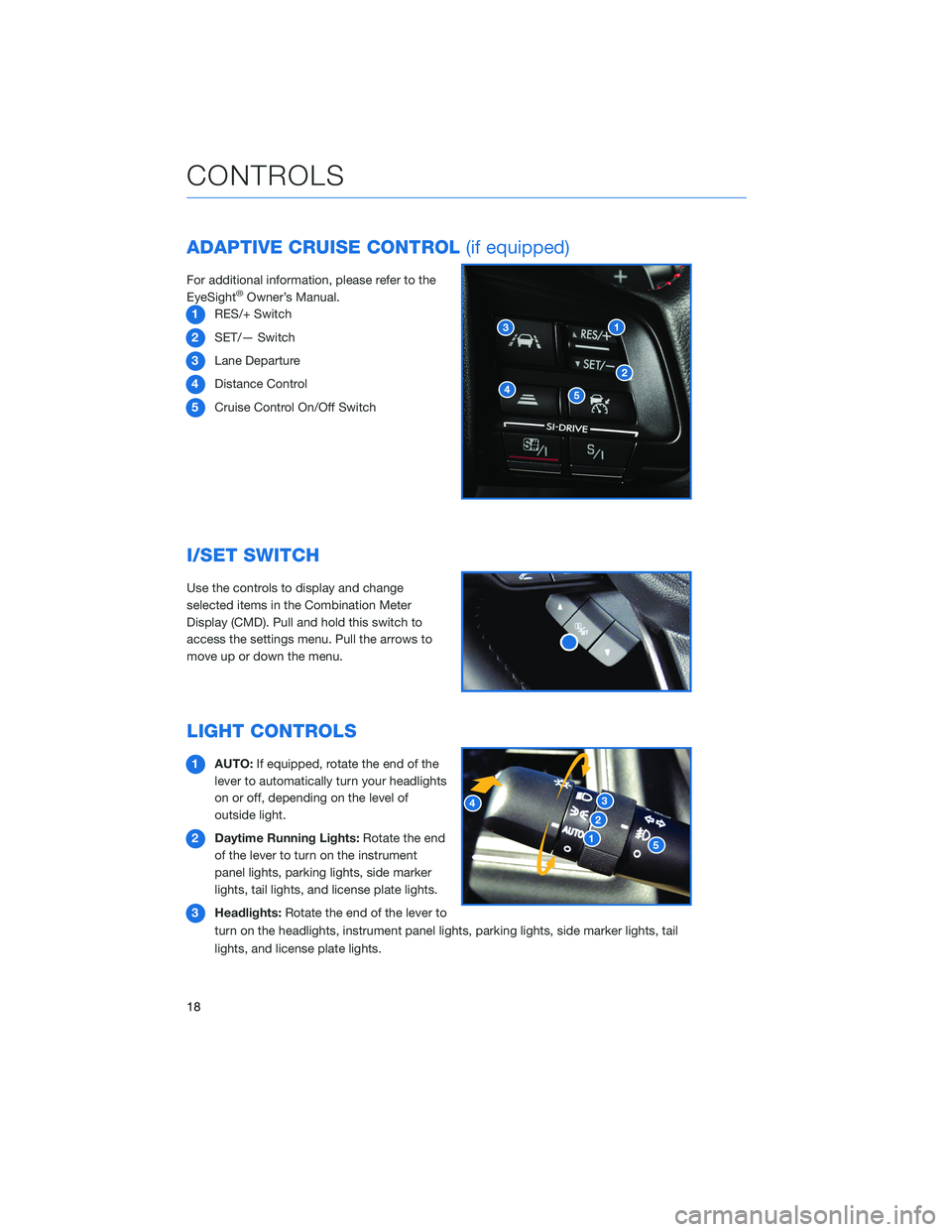

ADAPTIVE CRUISE CONTROL(if equipped)
For additional information, please refer to the
EyeSight®Owner’s Manual.
1RES/+ Switch
2SET/— Switch
3Lane Departure
4Distance Control
5Cruise Control On/Off Switch
I/SET SWITCH
Use the controls to display and change
selected items in the Combination Meter
Display (CMD). Pull and hold this switch to
access the settings menu. Pull the arrows to
move up or down the menu.
LIGHT CONTROLS
1AUTO:If equipped, rotate the end of the
lever to automatically turn your headlights
on or off, depending on the level of
outside light.
2Daytime Running Lights:Rotate the end
of the lever to turn on the instrument
panel lights, parking lights, side marker
lights, tail lights, and license plate lights.
3Headlights:Rotate the end of the lever to
turn on the headlights, instrument panel lights, parking lights, side marker lights, tail
lights, and license plate lights.
CONTROLS
18

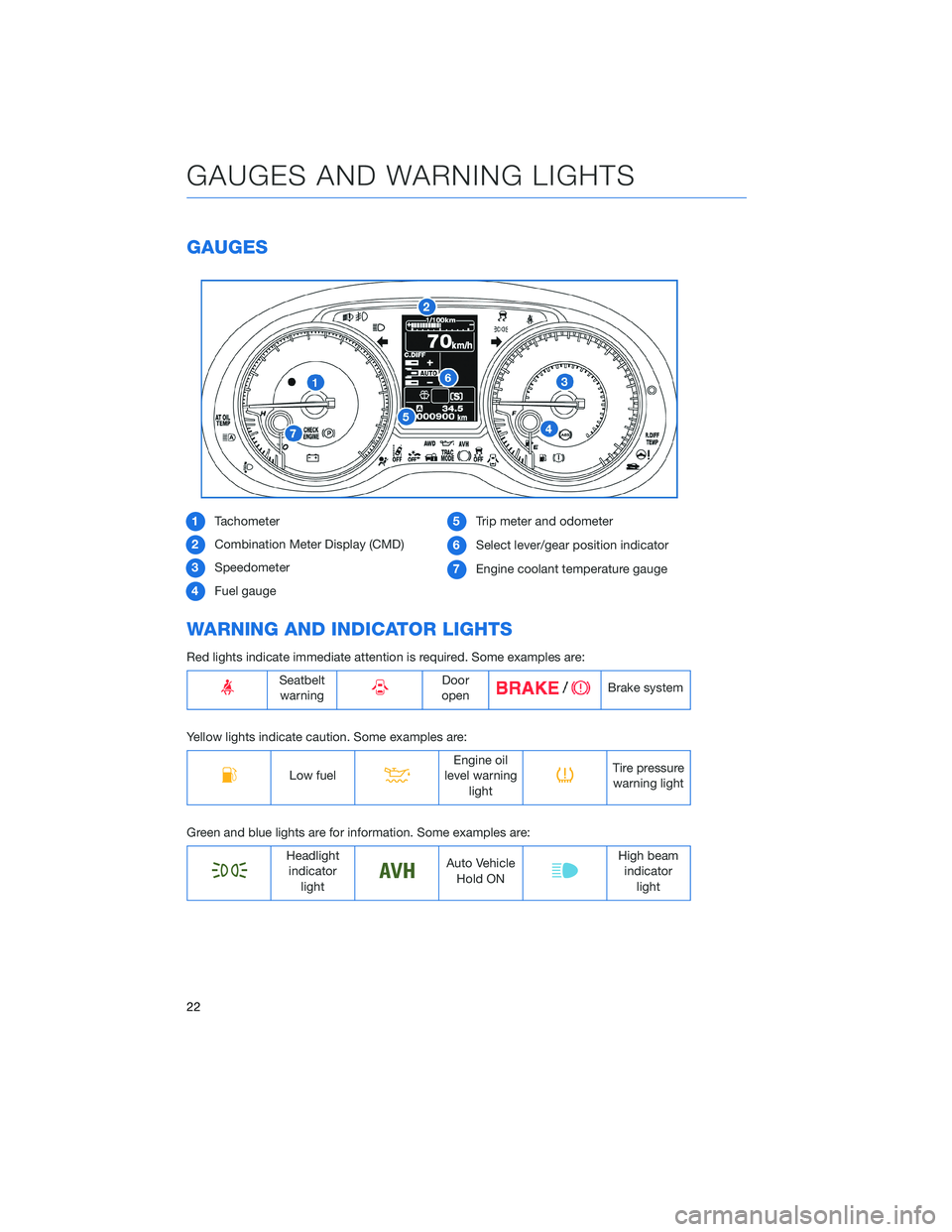

GAUGES
1Tachometer
2Combination Meter Display (CMD)
3Speedometer
4Fuel gauge5Trip meter and odometer
6Select lever/gear position indicator
7Engine coolant temperature gauge
WARNING AND INDICATOR LIGHTS
Red lights indicate immediate attention is required. Some examples are:
Seatbelt
warningDoor
openBrake system
Yellow lights indicate caution. Some examples are:
Low fuelEngine oil
level warning
lightTire pressure
warning light
Green and blue lights are for information. Some examples are:
Headlight
indicator
lightAuto Vehicle
Hold ONHigh beam
indicator
light
GAUGES AND WARNING LIGHTS
22

DRIVING THE VEHICLE

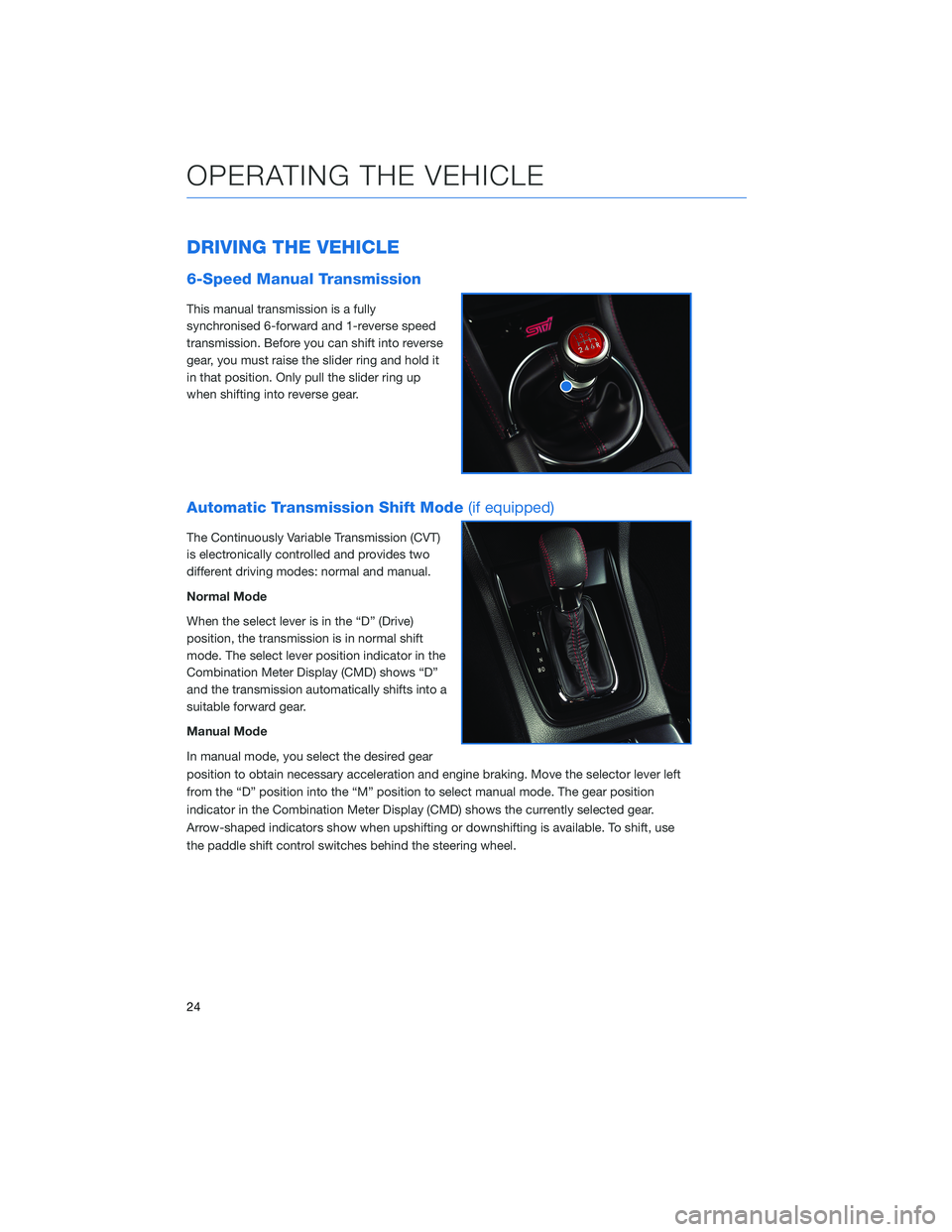

6-Speed Manual Transmission
This manual transmission is a fully
synchronised 6-forward and 1-reverse speed
transmission. Before you can shift into reverse
gear, you must raise the slider ring and hold it
in that position. Only pull the slider ring up
when shifting into reverse gear.
Automatic Transmission Shift Mode(if equipped)
The Continuously Variable Transmission (CVT)
is electronically controlled and provides two
different driving modes: normal and manual.
Normal Mode
When the select lever is in the “D” (Drive)
position, the transmission is in normal shift
mode. The select lever position indicator in the
Combination Meter Display (CMD) shows “D”
and the transmission automatically shifts into a
suitable forward gear.
Manual Mode
In manual mode, you select the desired gear
position to obtain necessary acceleration and engine braking. Move the selector lever left
from the “D” position into the “M” position to select manual mode. The gear position
indicator in the Combination Meter Display (CMD) shows the currently selected gear.
Arrow-shaped indicators show when upshifting or downshifting is available. To shift, use
the paddle shift control switches behind the steering wheel.
OPERATING THE VEHICLE
24

Paddle Shift Control Switches (if equipped)

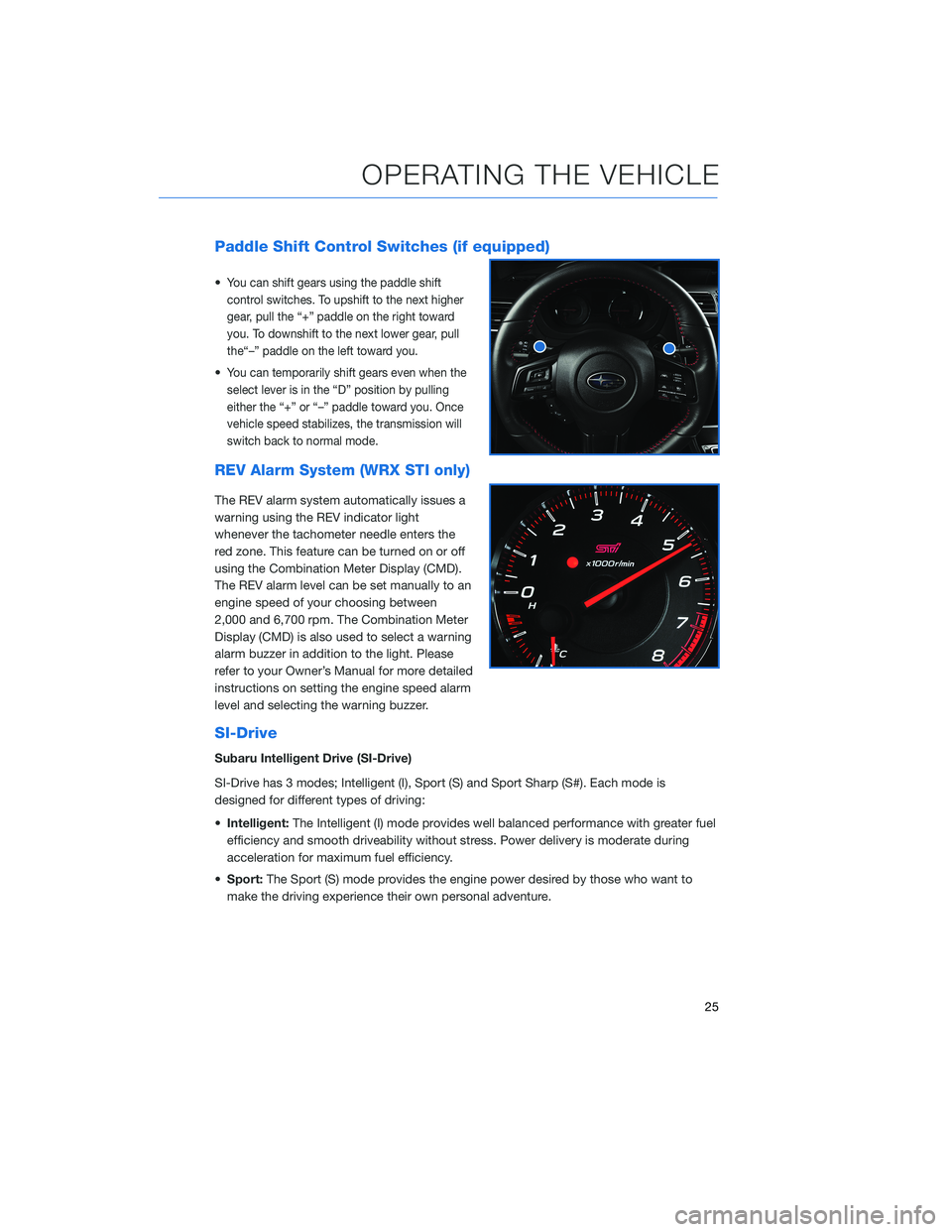

•You can shift gears using the paddle shift
control switches. To upshift to the next higher
gear, pull the “+” paddle on the right toward
you. To downshift to the next lower gear, pull
the“–” paddle on the left toward you.
•You can temporarily shift gears even when the
select lever is in the “D” position by pulling
either the “+” or “–” paddle toward you. Once
vehicle speed stabilizes, the transmission will
switch back to normal mode.
REV Alarm System (WRX STI only)
The REV alarm system automatically issues a
warning using the REV indicator light
whenever the tachometer needle enters the
red zone. This feature can be turned on or off
using the Combination Meter Display (CMD).
The REV alarm level can be set manually to an
engine speed of your choosing between
2,000 and 6,700 rpm. The Combination Meter
Display (CMD) is also used to select a warning
alarm buzzer in addition to the light. Please
refer to your Owner’s Manual for more detailed
instructions on setting the engine speed alarm
level and selecting the warning buzzer.
SI-Drive
Subaru Intelligent Drive (SI-Drive)
SI-Drive has 3 modes; Intelligent (I), Sport (S) and Sport Sharp (S#). Each mode is
designed for different types of driving:
•Intelligent:The Intelligent (I) mode provides well balanced performance with greater fuel
efficiency and smooth driveability without stress. Power delivery is moderate during
acceleration for maximum fuel efficiency.
•Sport:The Sport (S) mode provides the engine power desired by those who want to
make the driving experience their own personal adventure.
OPERATING THE VEHICLE
25
