SUZUKI CELERIO 2015 Owners Manual

9-2
APPEARANCE CARE
76MH1-74E
76MH1-74E
Vehicle Cleaning
76G044S
Cleaning the Interior
Vinyl upholstery Prepare a solution of soap or mild deter-gent mixed with warm water. Apply the solution to the vinyl with a sponge or soft cloth and let it soak for a few minutes toloosen dirt. Rub the surface with a clean, damp cloth to remove dirt and the soap solution. If somedirt still remains on the surface, repeat this procedure.
Fabric upholstery Remove loose dirt with a vacuum cleaner. Using a mild soap solution, rub stainedareas with a clean damp cloth. To remove soap, rub the areas again with a cloth dampened with water. Repeat this until thestain is removed, or use a commercial fab- ric cleaner for tougher stains. If you use a fabric cleaner, carefully follow the manu-facturer’s instructions and precautions.
Seat belts Clean seat belts with a mild soap and water. Do not use bleach or dye on the belts. They may weaken the fabric in thebelts.
Vinyl floor mats Ordinary dirt can be removed from vinyl with water or mild soap. Use a brush to help loosen dirt. After the dirt is loosened,rinse the mat thoroughly with water and dry it in the shade.
Carpets Remove dirt and soil as much as possible with a vacuum cleaner. Using a mild soapsolution, rub stained areas with a clean damp cloth. To remove soap, rub the areas again with a cloth dampened with water.Repeat this until the stain is removed, or use a commercial carpet cleaner for tougher stains. If you use a carpet cleaner,carefully follow the manufacturer’s instruc- tions and precautions.
Instrument panel and console Remove loose dirt with a vacuum cleaner. Gently wipe dirt off with a tightly squeezed damp clean cloth. Repeat this until the dirt is removed.
Cleaning the Exterior
WA R N I N G
Do not apply additional undercoating or rust preventive coating on oraround exhaust system components such as the catalytic converter, exhaust pipes, etc. A fire could bestarted if the undercoating substance becomes overheated.
WA R N I N G
When cleaning the interior or exterior of the vehicle, NEVER USE flammablesolvents such as lacquer thinners, petrol, benzene or cleaning materials such as bleaches or strong householddetergents. The materials could cause personal injury or damage to the vehi- cle.
NOTICE
Do not use chemical products that contain silicon to wipe electrical components such as the air condi-tioning system, audio, navigation system, or other switches. These will cause damage to the components.
NOTICE
It is important that your vehicle bekept clean and free from dirt. Failureto keep your vehicle clean may result in fading of the pa int or corrosion to various parts of the vehicle body.
180

9-3
APPEARANCE CARE
76MH1-74E
76MH1-74E
Caring for Aluminum Wheels
NOTE: • Do not use an acidic or alkaline deter- gent to wash aluminum wheels. These types of detergent will cause permanentspots, discoloration and cracks on fin- ished surfaces. • Do not use a bristle brush and soap con-taining an abrasive material. These will damage finished surfaces.
Washing
60B212S
When washing the vehicle, park it wheredirect sunlight does not fall on it and follow the instructions below:1) Flush the underside of body and wheel housings with pressurized water to remove mud and debris. Use plenty ofwater.
2) Rinse the body to loosen the dirt. Remove dirt and mud from the body
exterior with running water. You may use a soft sponge or brush. Do not use hard materials which can scratch thepaint or plastic. Remember that the headlight covers or lenses are made of plastic in many cases.
3) Wash the entire exterior with a mild detergent or car wash soap using a sponge or soft cloth. The sponge or cloth should be frequently soaked in thesoap solution.
4) Once the dirt has been completely removed, rinse off the detergent with running water. 5) After rinsing, wipe off the vehicle bodywith a wet chamois or cloth and allow it to dry in the shade. 6) Check carefully for damage to paintedsurfaces. If there is any damage, “touch-up” the damage following the procedure below:
WA R N I N G
• Never attempt to wash and waxyour vehicle with the engine run-ning. • When cleaning the underside of the body and fender, where there maybe sharp-edged parts, you should wear gloves and a long-sleeved shirt to protect your hands andarms from being cut. • After washing your vehicle, care- fully test the brakes before drivingto make sure they have maintained their normal effectiveness.
NOTICE
When washing the vehicle: • Avoid directing steam or hot water of more than 80

9-4
APPEARANCE CARE
76MH1-74E
76MH1-74E
1. Clean all damaged spots and allow them to dry. 2. Stir the paint and “touch-up” thedamaged spots lightly using a small brush. 3. Allow the paint to dry completely.
Waxing
60B211S
After washing the vehicle, waxing and pol-ishing are recommended to further protect and beautify the paint.
Only use waxes and polishes of good quality. When using waxes and polishes,observe the precautions specified by the manufacturers.
NOTICE
If you use an automatic car wash, make sure that your vehicle’s bodyparts, such as spoilers, cannot be damaged. If you are in doubt, consult the car wash operator for advice.
182

10-1
GENERAL INFORMATION
76MH1-74E
76MH1-74E
GENERAL INFORMATION
Vehicle Identification
Chassis Serial Number
68KH096
The chassis and/or engine serial numbers are used to register the vehicle. They arealso used to assist your dealer when order- ing or referring to special service informa- tion. Whenever you have occasion toconsult your MARUTI SUZUKI dealer, remember to identify your vehicle with this number. Should you find the number diffi-cult to read, you will also find it on the iden- tification plate.
Engine Serial Number
54G082
The engine serial number is stamped on the cylinder block as shown in the illustra- tion.
EXAMPLE
183

10-2
GENERAL INFORMATION
76MH1-74E
76MH1-74E

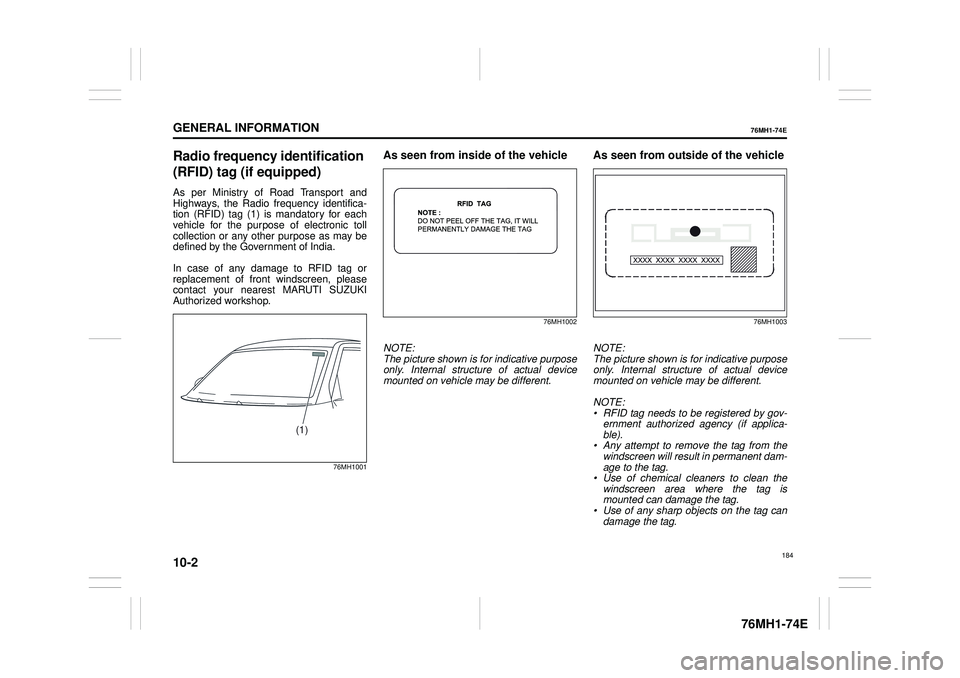

Radio frequency identification
(RFID) tag (if equipped)
As per Ministry of Road Transport and Highways, the Radio frequency identifica- tion (RFID) tag (1) is mandatory for eachvehicle for the purpose of electronic toll collection or any other purpose as may be defined by the Government of India.
In case of any damage to RFID tag or replacement of front windscreen, pleasecontact your nearest MARUTI SUZUKI Authorized workshop.
76MH1001
As seen from inside of the vehicle
76MH1002
NOTE:The picture shown is for indicative purpose only. Internal structure of actual devicemounted on vehicle may be different.
As seen from outside of the vehicle
76MH1003
NOTE: The picture shown is for indicative purpose only. Internal structure of actual devicemounted on vehicle may be different.
NOTE: • RFID tag needs to be registered by gov- ernment authorized agency (if applica- ble).• Any attempt to remove the tag from the windscreen will result in permanent dam- age to the tag.• Use of chemical cleaners to clean the windscreen area where the tag is mounted can damage the tag.• Use of any sharp objects on the tag can damage the tag.
(1)
184

11-1
SPECIFICATIONS
76MH1-74E
76MH1-74E
SPECIFICATIONS
NOTE: Specifications are s ubject to change with- out notice. M/T: Manual transaxle Petrol: Petrol engine model Diesel: Diesel engine model
ITEM: Dimensions UNIT: mm
Overall length 3600
Overall width 1600
Overall height 1560
Wheelbase 2425
Track Front 1420
Rear 1410
Ground clearance 165
ITEM: Mass (weigh t) UNIT: kg PETROL ENGINE MODEL DIESEL ENGINE MODEL
Curb mass (weight) M/T 810 - 830 880 - 900
Auto Gear Shift 815 - 830 –
Gross vehicle mass (weight) rating 1250 1310
Permissible maximum Axle Weight Front 680 720
Rear 640 640
185

11-2
SPECIFICATIONS
76MH1-74E
76MH1-74E
ITEM: Engine
Type K10B (DOHC) E08A
Number of cylinders 3 2
Bore 73.0 mm 77.0 mm
Stroke 79.5 mm 85.1 mm
Piston displacement 998 cm3793 cm3
Compression ratio 11.0 ± 0.4: 1 15.1 ± 0.4: 1
ITEM: Electrical
Standard spark plug Petrol NGK KR6A-10
Battery Petrol 12V 34B19L
Diesel 12V 55B24L
Fuses See “INSPECTION AND MAINTENANCE” section.
186

11-3
SPECIFICATIONS
76MH1-74E
76MH1-74E
ITEM: Lights WATTAGE BULB No.
Headlight 12V 60/55W H4
Front fog light (if equipped) 12V 35W H8
Position light 12V 5W W5W
Turn signal light Front 12V 21W PY21W
Rear 12V 21W PY21W
Side turn signal light 12V 5W WY5W
LED –
Brake/tail light 12V 21/5W P21/5W
High mount stop light 12V 5W W5W
Reversing light 12V 21W P21W
License plate light 12V 5W W5W
Interior light 12V 10W –

11-4
SPECIFICATIONS
76MH1-74E
76MH1-74E
*1: When tire replacement is necessary and if the specified load index and speed rated tire is not available, then use a tire of higher load index and speed rating.
*2: The spare wheel provided with alloy wheel variant is steel wheel rim, hence follow 4 tire rotation only. (Refer: under section

This Owner’s manual & service booklet applies to CELERIO models
produced by MARUTI SUZUKI INDIA LIMITED.
c
COPYRIGHT MARUTI SUZUKI INDIA LIMITED 2015 Note : The illustrated model is one of the CELERIO series
Accessories shown in the picture are not part of standard equipment Prepared by
MARUTI SUZUKI INDIA LIMITED
Service Division March, 2015
Part No. 9901 1M76M02-74E
Printed in India #
For roun d-th e-clock o n-road ass istance, call Ma ruti On -road Service at 1800 102 1800
#No STD code to be prefixed. This Owner’s manual & service booklet applies to CELERIO models
produced by MARUTI SUZUKI INDIA LIMITED.
c
COPYRIGHT MARUTI SUZUKI INDIA LIMITED 2015 Note : The illustrated model is one of the CELERIO series
Accessories shown in the picture are not part of standard equipment Prepared by
MARUTI SUZUKI INDIA LIMITED
Service Division March, 2015
Part No. 9901 1M76M03-74E
Printed in India #
For roun d-th e-clock o n-road ass istance, call Ma ruti On -road Service at 1800 102 1800
#No STD code to be prefixed.
