To remove a fuse, use the fuse puller pro- vided in the fuse box. The amperage of each fuse is shown in the back of the fuse box cover.
60G111
NOTE:Make sure that the fuse box always carriesspare fuses.
Fuses under the Dash Board
68KH078
76MH0A111
WA R N I N G
If the main fuse or a primary fuse blows, be sure to have your vehicleinspected by an authorized MARUTI SUZUKI dealer. Always use a Maruti genuine replacement. Never use asubstitute such as a wire even for a temporary repair, or extensive electri- cal damage and a fire can result.
EXAMPLE
BLOWN
OK
EXAMPLE
(7) (8) (9) (10) (11) (12)
(19) (14)(13) (15) (16) (17) (18) (20)
(23)
(24)
(21)
(22)
(1) (2) (3) (4) (5) (6)
160

7-23
INSPECTION AND MAINTENANCE
76MH1-74E
76MH1-74E
The fuse box is located under the driver’s side of the dashboard. Remove the fuse box cover by pushing inat both ends and pulling off the cover.
81A283
Bulb ReplacementMAIN FUSE/PRIMARY FUSE
(1) 10A Stop light
(2) 30A Blower motor
(3) 10A ST SIG
(4) 15A Accessory
(5) 10A Rear fog light
(6) 10A Tail light
(7) 10A Back-up light
(8) 10A ABS
(9) 10A Meter
(10) 15A Ignition coil
(11) 20A Wiper/Washer
(12) 10A IG2 SIG
(13) 10A IG1 SIG
(14) 10A Air bag
(15) 20A Power window timer
(16) 20A Door lock
(17) 15A Horn/Hazard
(18) 20A Rear defogger
(19) 15A Dome
(20) 30A Power window
(21) 7.5A ACC 2
(22) 15A Radio 2
(23) – Blank
(24) – Blank
WA R N I N G
Always be sure to replace a blown fuse with a fuse of the correct amper- age. Never use a substitute such as aluminum foil or wire to replace ablown fuse. If you replace a fuse and the new one blows in a short period of time, you may have a major electri-cal problem. Have your vehicle inspected immediately by your MAR- UTI SUZUKI dealer.
BLOWN OK
CAUTION
• Light bulbs can be hot enough toburn your finger right after being turned off. This is true especially for halogen headlight bulbs.Replace the bulbs after they become cool enough. • The headlight bulbs are filled withpressurized halogen gas. They can burst and injure you if they are hit or dropped. Handle them carefully.
NOTICE
The oils from your skin may cause ahalogen bulb to overheat and burst when the lights are on. Grasp a new bulb with a clean cloth.
NOTICE
Frequent replacement of a bulb indi-cates the need for an inspection of the electrical system. This should be carried out by your MARUTI SUZUKIdealer.
161

7-24
INSPECTION AND MAINTENANCE
76MH1-74E
76MH1-74E
Headlights
Halogen headlights (1)
76MH0A112
76MH0A113
1) Open the engine hood. Disconnect the coupler (2). Remove the sealing rubber(3).
76MH0A114
2) Push the retaining spring (4) forward and unhook it. Then remove the bulb(5). Install a new bulb in the reverse order of removal.
76MH0A115
NOTE: You can see the position of retaining springfrom the hole of headlight.
Side Turn Signal Light (if equipped)
76MH0A006
1) Remove the light housing (1) by sliding to left with your finger.
76MH0A007
2) Turn the bulb holder (2) clockwise and pull it out from the light housing.
(1)
(3)
(2)
EXAMPLE
(4)
(5)
EXAMPLE
(1)
(2)
162

7-25
INSPECTION AND MAINTENANCE
76MH1-74E
76MH1-74E
76MH0A008
(4) Removal (5) Install
3) To remove and install the bulb of the turn signal light (3), simply pull out orpush in the bulb.
Front Turn Signal Light (1)
Front Position Light (2)
76MH0A116
76MH0A117
1) Open the engine hood. To remove the bulb holder of the front turn signal light (1) or the front position light (2) from thelight housing, turn the holder counter- clockwise and pull it out.
61MM0B078
(3) Removal(4) Install
2) To remove the bulb of the front turn sig- nal light (1) from the bulb holder, push in the bulb and turn it counterclockwise.To install a new bulb, push it in and turn it clockwise. To remove and install the bulb of thefront position light (2), simply pull out or push in the bulb.
Front Fog Light (if equipped)
1) Start the engine. Turn the steeringwheel to the opposite side of the replac- ing fog light to replace the bulb easily.Then turn off the engine.
76MH0A119
2) Remove the clips (1) by prying it off witha flat blade screwdriver as shown in theillustration.
(3)
(4)
(5)
(1)
(2)
(2)
(1)
(2)
(1)
(3)
(4)
EXAMPLE
(1)
EXAMPLE
163

7-26
INSPECTION AND MAINTENANCE
76MH1-74E
76MH1-74E
76MH0A120
3) Open the end of the cover inside the fender.
80JM071
4) Disconnect the coupler by pushing the lock release. Turn the bulb holder coun- terclockwise and remove it.
Rear Combination Light
76MH0A121
1) Remove the bolts (1) and pull the light housing (2) straight.
76MH0A122
2) To remove the bulb holder of the tail/brake light (3), the turn signal light (4) or
the reversing light (5) from the light housing, turn the holder counterclock- wise and pull it out.
76MH0A123
(6) Removal (7) Install
3) To remove the bulb of the tail/brake light (3), the turn signal light (4) or the reversing light (5) from bulb holder,push in the the bulb and turn it counter- clockwise. To install a new bulb, push it in and turn it clockwise.
EXAMPLE
EXAMPLE
(2)
(1)
(3)
(4)
(5)
(3) / (4) / (5) (6)
(7)
EXAMPLE
164

7-27
INSPECTION AND MAINTENANCE
76MH1-74E
76MH1-74E
76MH0A124
NOTE: When reinstalling the light housing, makesure the clips are properly attached.
License Plate Light
76MH0A125
1) Turn the cover (1) counterclockwise toremove it.
76MH0A126
2) To remove and install the bulb of thelicense plate light (2), simply pull out orpush in the bulb.
High-mount Stop Light
80J100
1) Open the tailgate, and remove the nuts(1) as shown in the illustration.
76MH0A127
2) Close the tailgate. Remove the high- mount stop light housing (2) from the tailgate.
68KS063
3) Remove the bulb holder as shown in the illustration.
(1)
(2)
(1)EXAMPLE
(2)
EXAMPLE
EXAMPLE
165

7-28
INSPECTION AND MAINTENANCE
76MH1-74E
76MH1-74E
76MH0A128
(4) Removal (5) Install
4) To remove and install the bulb of the high-mount stop light (3), simply pull out or push in the bulb.
Interior LightRemove the lens by using a flat blade screwdriver covered with a soft cloth asshown. To install it, simply push it back in.
Ty p e A
60G115
Ty p e B
76MH0A139
Wiper Blades
54G129
If the wiper blades become brittle or dam- aged, or make streaks when wiping,replace the wiper blades.
To install new wiper blades, follow the pro- cedures below.
(3)
(4)
(5)
EXAMPLE
NOTICE
To avoid scratching or breaking the window, do not let the wiper arm strike the window while replacing the wiper blade.
166

7-29
INSPECTION AND MAINTENANCE
76MH1-74E
76MH1-74E
NOTE: Some wiper blades may be different from the ones described here depending onvehicle specifications. If so, consult your MARUTI SUZUKI dealer for proper replacement method.
For windshield wipers:
70G119
1) Hold the wiper arm away from the win- dow.
54G130
2) Squeeze lock (1) towards wiper arm (2) and remove the wiper frame from the arm as shown.3) Unlock the lock end of the wiper blade and slide the blade out as shown.
Removal
60A260
Installation
54G132
(1) Locked end
EXAMPLE
EXAMPLE
167

7-30
INSPECTION AND MAINTENANCE
76MH1-74E
76MH1-74E
54G135

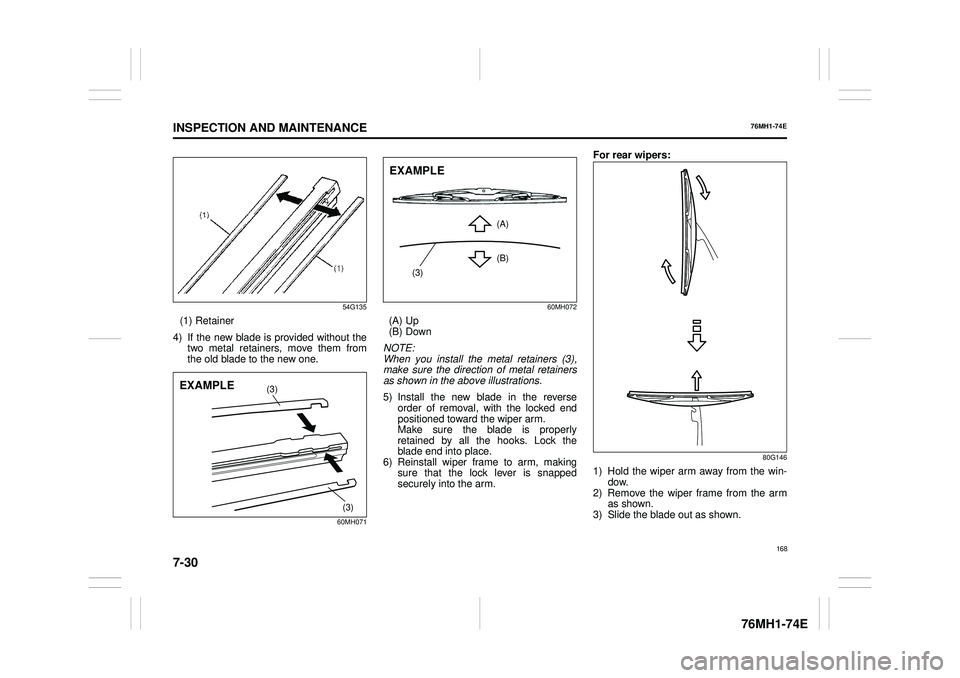

(1) Retainer
4) If the new blade is provided without the two metal retainers, move them from the old blade to the new one.
60MH071
60MH072
(A) Up (B) Down
NOTE: When you install the metal retainers (3), make sure the direction of metal retainersas shown in the above illustrations.
5) Install the new blade in the reverse order of removal, with the locked end positioned toward the wiper arm. Make sure the blade is properlyretained by all the hooks. Lock the blade end into place. 6) Reinstall wiper frame to arm, makingsure that the lock lever is snapped securely into the arm.
For rear wipers:
80G146
1) Hold the wiper arm away from the win- dow. 2) Remove the wiper frame from the armas shown. 3) Slide the blade out as shown.
(3)
(3)
EXAMPLE
(3)
(A)
(B)
EXAMPLE
168

7-31
INSPECTION AND MAINTENANCE
76MH1-74E
76MH1-74E
65D151
NOTE: Do not flex the wiper blade frame end more than necessary. If you do, it canbreak off.
54G135
(1) Retainer
4) If the new blade is provided without the two metal retainers, move them from the old blade to the new one.5) Install the new blade in the reverse order of removal. Make sure the blade is properlyretained by all the hooks. 6) Reinstall wiper frame to arm in the reverse order of removal.
Windshield Washer Fluid
Front
80JM078
Check that there is washer fluid in the tank.Refill it if necessary. Use a good quality windshield washer fluid, diluted with water as necessary.
Air Conditioning System
If you do not use the air conditioner for along period, such as during winter, it maynot give the best performance when you start using it again. To help maintain opti- mum performance and durability of your airconditioner, it needs to be run periodically. Operate the air condit ioner at least once a month for one minute with the engineidling. This circulates the refrigerant and oil and helps protect the internal components.
EXAMPLE
WA R N I N G
Do not use “antifreeze” solution in the windshield washer reservoir. Thiscan severely impair visibility when sprayed on the windshield, and can also damage your vehicle’s paint.
NOTICE
Damage may result if the washermotor is operated with no fluid in the washer tank.
