0-5
76MH1-74E

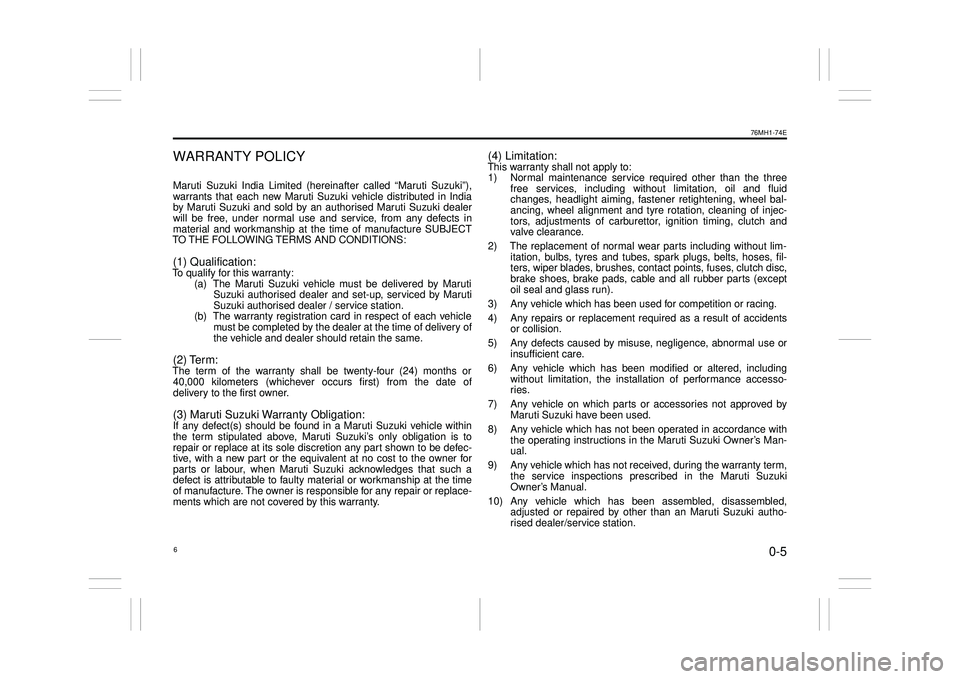

WARRANTY POLICY
Maruti Suzuki India Limited (hereinafter called “Maruti Suzuki”), warrants that each new Maruti Suzuki vehicle distributed in Indiaby Maruti Suzuki and sold by an authorised Maruti Suzuki dealerwill be free, under normal use and service, from any defects inmaterial and workmanship at the time of manufacture SUBJECTTO THE FOLLOWING TERMS AND CONDITIONS:
(1) Qualification:To qualify for this warranty:(a) The Maruti Suzuki vehicle must be delivered by MarutiSuzuki authorised dealer and set-up, serviced by MarutiSuzuki authorised dealer / service station.(b) The warranty registration card in respect of each vehiclemust be completed by the dealer at the time of delivery ofthe vehicle and dealer should retain the same.
(2) Term:The term of the warranty shall be twenty-four (24) months or40,000 kilometers (whichever occurs first) from the date ofdelivery to the first owner.
(3) Maruti Suzuki Warranty Obligation:If any defect(s) should be found in a Maruti Suzuki vehicle withinthe term stipulated above, Maruti Suzuki’s only obligation is torepair or replace at its sole discretion any part shown to be defec-tive, with a new part or the equivalent at no cost to the owner forparts or labour, when Maruti Suzuki acknowledges that such adefect is attributable to faulty material or workmanship at the timeof manufacture. The owner is responsible for any repair or replace-ments which are not covered by this warranty.
(4) Limitation:This warranty shall not apply to:1) Normal maintenance service required other than the threefree services, including without limitation, oil and fluidchanges, headlight aiming, fastener retightening, wheel bal-ancing, wheel alignment and tyre rotation, cleaning of injec-tors, adjustments of carburettor, ignition timing, clutch andvalve clearance.
2) The replacement of normal wear parts including without lim-itation, bulbs, tyres and tubes, spark plugs, belts, hoses, fil-ters, wiper blades, brushes, contact points, fuses, clutch disc,brake shoes, brake pads, cable and all rubber parts (exceptoil seal and glass run).
3) Any vehicle which has been used for competition or racing.
4) Any repairs or replacement required as a result of accidentsor collision.
5) Any defects caused by misuse, negligence, abnormal use orinsufficient care.
6) Any vehicle which has been modified or altered, includingwithout limitation, the installation of performance accesso- ries.
7) Any vehicle on which parts or accessories not approved byMaruti Suzuki have been used.
8) Any vehicle which has not been operated in accordance withthe operating instructions in the Maruti Suzuki Owner’s Man-ual.
9) Any vehicle which has not received, during the warranty term,the service inspections prescribed in the Maruti SuzukiOwner’s Manual.
10) Any vehicle which has been assembled, disassembled,adjusted or repaired by other than an Maruti Suzuki autho-rised dealer/service station.
6

INSPECTION AND MAINTENANCE
76MH1-74E
76MH1-74E
138
INSPECTION AND MAINTENANCEMaintenance Schedule ....................................................... 7-2
Periodic Maintenance Schedule . ....................................... 7-2
Drive Belt ............................................................................. 7-6
Engine Oil and Filter ........................................................... 7-6
Engine Coolant .................................................................... 7-10
Air Cleaner ........................................................................... 7-12
Spark Plugs ......................................................................... 7-12
Gear Oil ................................................................................ 7-14
Clutch Pedal ........................................................................ 7-14
Fuel Filter (Diesel engine) .................................................. 7-15
Brakes .......... ........................................................................ 7-15
Steering ................................................................................ 7-17
Tires ...................................................................................... 7-18
Battery .................................................................................. 7-19
Fuses .................................................................................... 7-20
Bulb Replacement ............................................................... 7-23
Wiper Blades ....................................................................... 7-28
Windshield Washer Fluid ................................................... 7-31
Air Conditioning System .................................................... 7-31

7-12
INSPECTION AND MAINTENANCE
76MH1-74E
76MH1-74E
Coolant ReplacementSince special procedures are required, we recommend you take your vehicle to your MARUTI SUZUKI dealer for coolant replacement.
Air Cleaner
If the air cleaner is clogged with dust, therewill be greater intake resistance, resulting in decreased power output and increased fuel consumption.
(For Petrol Engine Model)
76MH0A109
Unclamp the upper clamps, and remove the element from the air cleaner case. If itappears to be dirty, replace it with a new one.
(For Diesel Engine Model)
76MH033
Unclamp the side clamps, and remove the element from the air cleaner case. If it appears to be dirty, replace it with a newone.
Spark Plugs
76MH0A109
68KH072
For nickel spark plugs (traditional type): You should inspect spark plugs periodically for carbon deposits. When carbon accu-mulates on a spark plug, a strong spark may not be produced. Remove carbon deposits with a wire or pin and adjust thespark plug gap.
To access the spark plugs: 1) Unclamp and remove the bolt, then remove the air cleaner case. 2) If necessary, disconnect the coupler (1)while pushing the release lever. 3) Remove the bolts. 4) Pull the ignition coils out.
NOTE: When installation, make sure the wires,couplers, sealing rubber of top cover and washers, are correctly returned in place.
EXAMPLE
EXAMPLE
EXAMPLE
(1)
EXAMPLE
