warning light SUZUKI GRAND VITARA 2008 3.G Inspection And Maintenance Manual

Downloaded from www.Manualslib.com manuals search engine INSPECTION AND MAINTENANCE

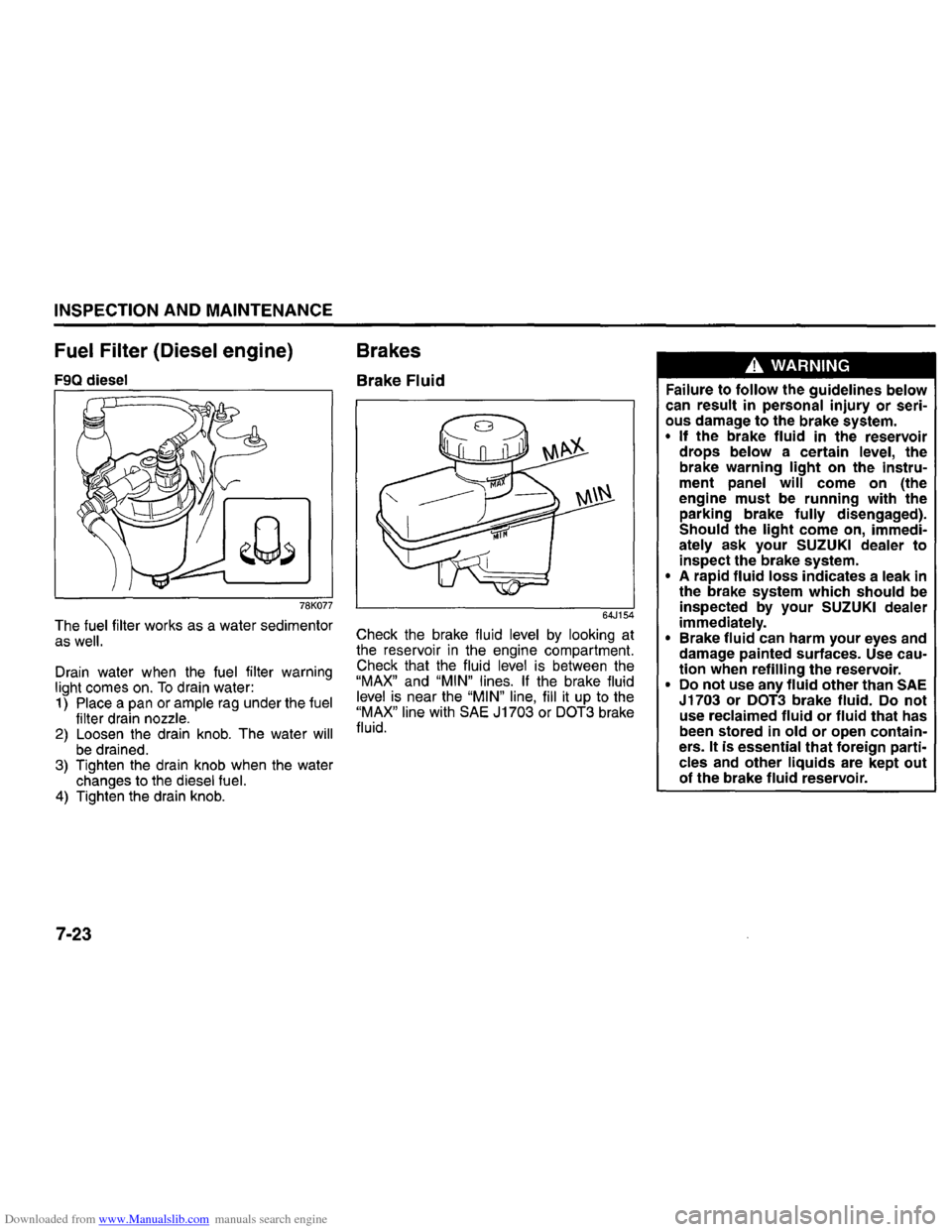

Fuel Filter (Diesel engine)
F9Q diesel
78K077
The fuel filter works as a water sedimentor
as well.
Drain water when the fuel filter warning
light comes on. To drain water: 1) Place a pan or ample rag under the fuel filter drain nozzle. 2) Loosen the drain knob. The water will be drained. 3) Tighten the drain knob when the water
changes to the diesel fuel. 4) Tighten the drain knob.
7-23
Brakes
Brake Fluid
64J154
Check the brake fluid level by looking at
the reservoir in the engine compartment.
Check that the fluid level is between the "MAX" and "MIN" lines. If the brake fluid level is near the "MIN" line, fill it up to the "MAX" line with SAE J1703 or DOT3 brake
fluid.
A WARNING
Failure to follow the guidelines below can result in personal injury or seri­
ous damage to the brake system. . • If the brake fluid in the reservoir drops below a certain level, the
brake warning light on the instru­
ment panel will come on (the
engine must be running with the
parking brake fully disengaged).
Should the light come on, immedi­
ately ask your SUZUKI dealer to inspect the brake system. . • A rapid fluid loss indicates a leak In the brake system which should be
inspected by your SUZUKI dealer
immediately.
• Brake fluid can harm your eyes and
damage painted surfaces. Use cau­
tion when refilling the reservoir. • Do not use any fluid other than SAE
J1703 or DOT3 brake fluid. Do not use reclaimed fluid or fluid that has
been stored in old or open contain­
ers. It is essential that foreign parti­cles and other liquids are kept out of the brake fluid reservoir.

Downloaded from www.Manualslib.com manuals search engine INSPECTION AND MAINTENANCE

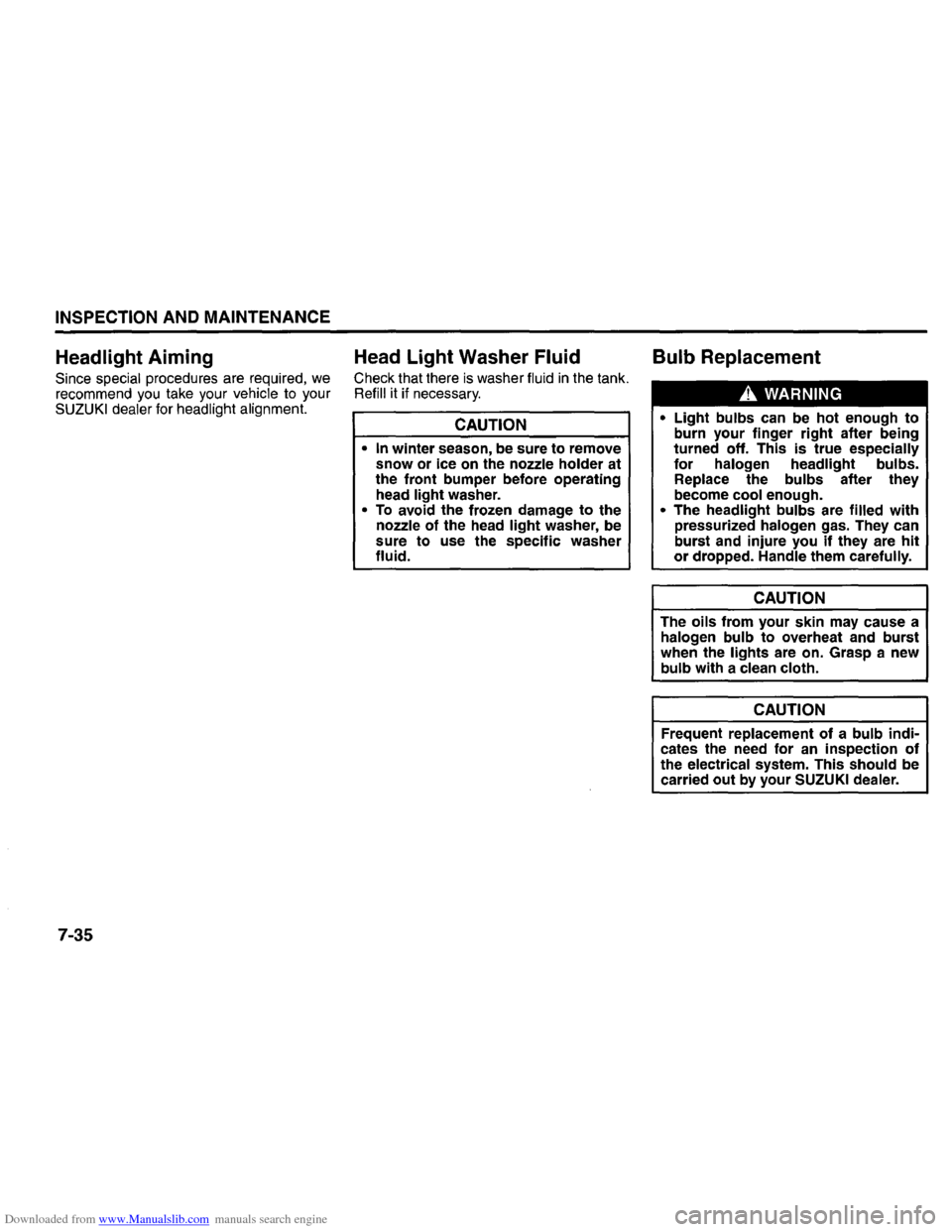

Headlight Aiming
Since special procedures are required, we
recommend you take your vehicle to your SUZUKI dealer for headlight alignment.
7-35
Head Light Washer Fluid
Check that there is washer fluid in the tank. Refill it if necessary.
CAUTION
• In winter season, be sure to remove snow or ice on the nozzle holder at
the front bumper before operating
head light washer. • To avoid the frozen damage to the nozzle of the head light washer, be sure to use the specific washer fluid.
Bulb Replacement
A WARNING
• Light bulbs can be hot enough to burn your finger right after being
turned off. This is true especially for halogen headlight bulbs.
Replace the bulbs after they
become cool enough. • The headlight bulbs are filled with pressurized halogen gas. They can
burst and injure you if they are hit or dropped. Handle them carefully.
CAUTION
The oils from your skin may cause a halogen bulb to overheat and burst when the lights are on. Grasp a new bulb with a clean cloth.
CAUTION
Frequent replacement of a bulb indi­cates the need for an inspection of the electrical system. This should be
carried out by your SUZUKI dealer.
