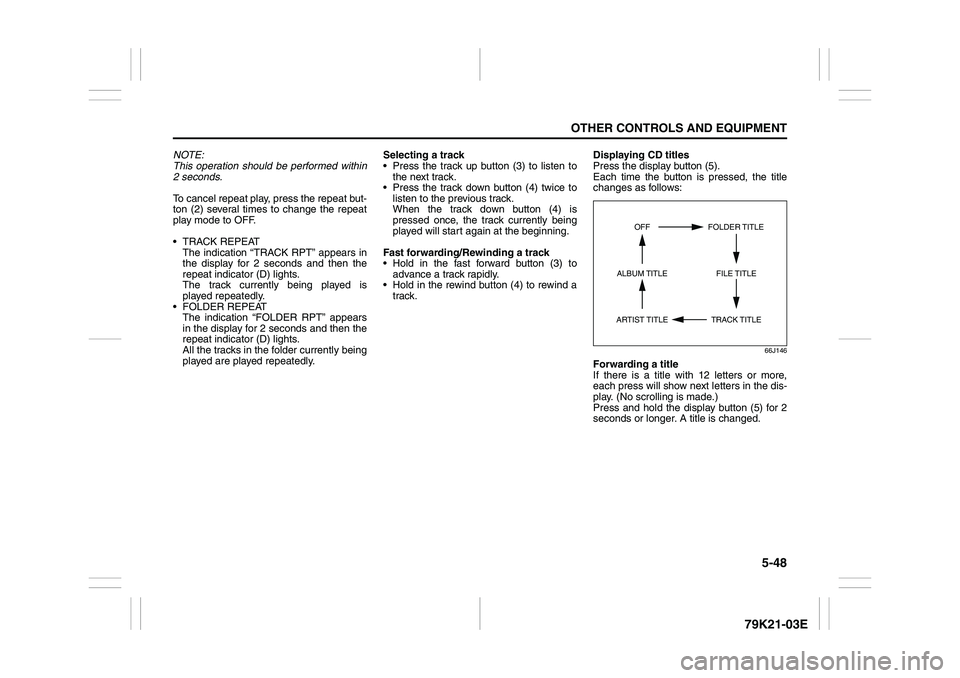

5-48
OTHER CONTROLS AND EQUIPMENT
79K21-03E
NOTE:
This operation should be performed within
2 seconds.
To cancel repeat play, press the repeat but-
ton (2) several times to change the repeat
play mode to OFF.
 TRACK REPEAT
The indication “TRACK RPT” appears in
the display for 2 seconds and then the
repeat indicator (D) lights.
The track currently being played is
played repeatedly.
 FOLDER REPEAT
The indication “FOLDER RPT” appears
in the display for 2 seconds and then the
repeat indicator (D) lights.
All the tracks in the folder currently being
played are played repeatedly.Selecting a track
 Press the track up button (3) to listen to
the next track.
 Press the track down button (4) twice to
listen to the previous track.
When the track down button (4) is
pressed once, the track currently being
played will start again at the beginning.
Fast forwarding/Rewinding a track
 Hold in the fast forward button (3) to
advance a track rapidly.
 Hold in the rewind button (4) to rewind a
track.Displaying CD titles
Press the display button (5).
Each time the button is pressed, the title
changes as follows:
66J146
Forwarding a title
If there is a title with 12 letters or more,
each press will show next letters in the dis-
play. (No scrolling is made.)
Press and hold the display button (5) for 2
seconds or longer. A title is changed.
TRACK TITLE FOLDER TITLE
ARTIST TITLEOFF
FILE TITLE ALBUM TITLE

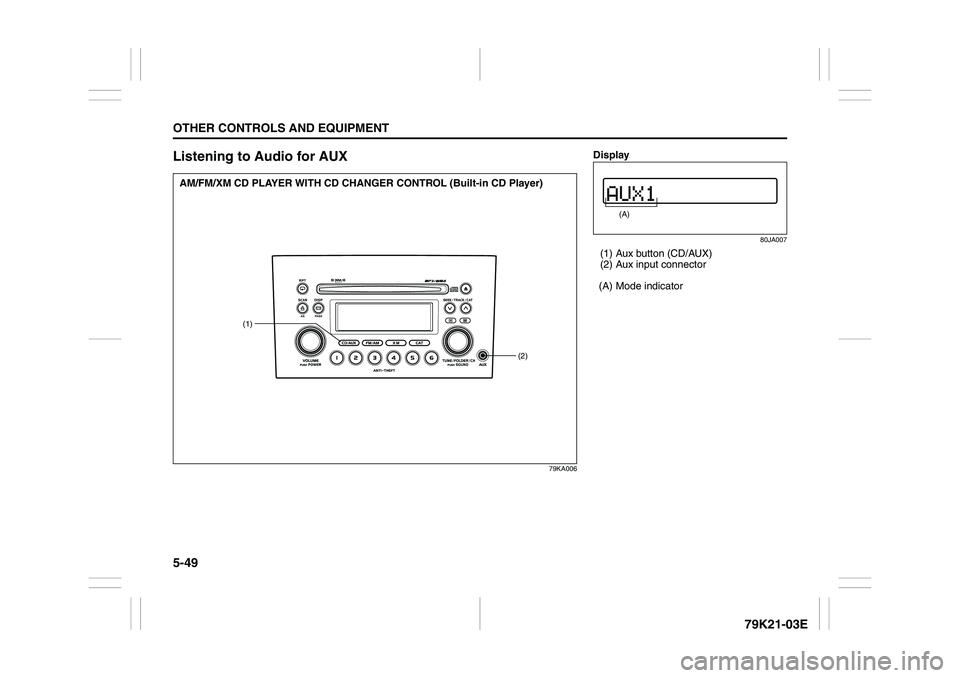

5-49OTHER CONTROLS AND EQUIPMENT
79K21-03E
Listening to Audio for AUX
79KA006
(1)
(2)
AM/FM/XM CD PLAYER WITH CD CHANGER CONTROL (Built-in CD Player)
Display
80JA007
(1) Aux button (CD/AUX)
(2) Aux input connector
(A) Mode indicator
(A)

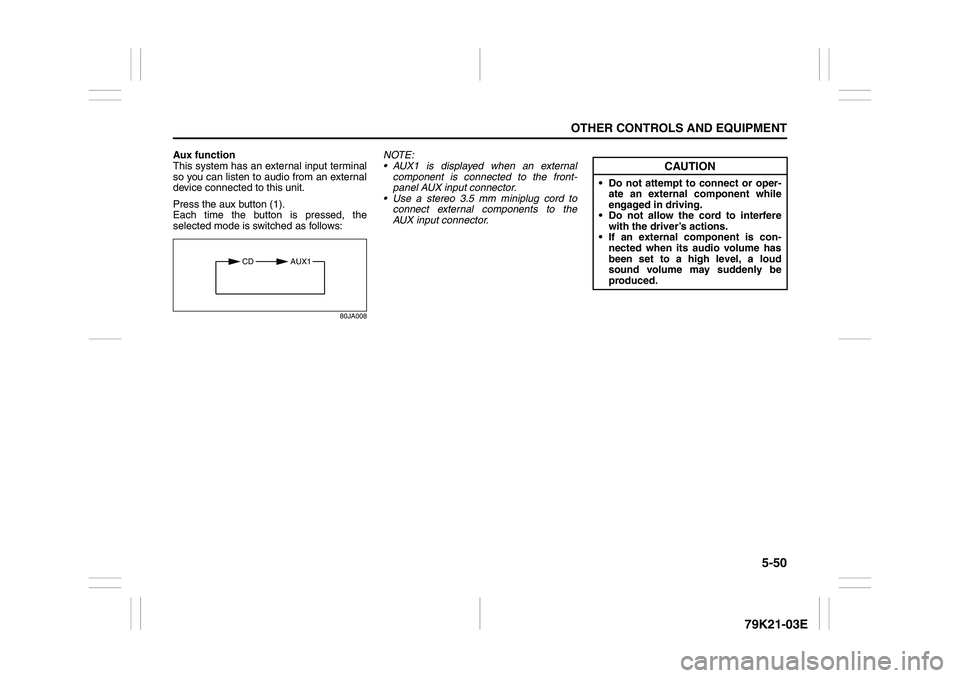

5-50
OTHER CONTROLS AND EQUIPMENT
79K21-03E
Aux function
This system has an external input terminal
so you can listen to audio from an external
device connected to this unit.
Press the aux button (1).
Each time the button is pressed, the
selected mode is switched as follows:
80JA008
NOTE:
 AUX1 is displayed when an external
component is connected to the front-
panel AUX input connector.
 Use a stereo 3.5 mm miniplug cord to
connect external components to the
AUX input connector.
CD AUX1
CAUTION
 Do not attempt to connect or oper-
ate an external component while
engaged in driving.
 Do not allow the cord to interfere
with the driver’s actions.
 If an external component is con-
nected when its audio volume has
been set to a high level, a loud
sound volume may suddenly be
produced.

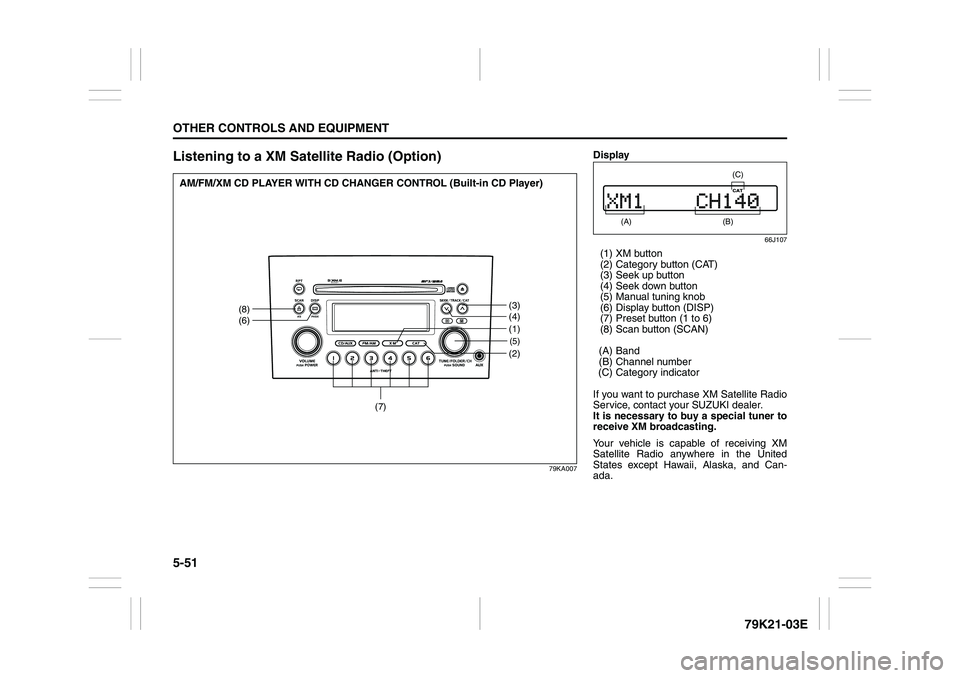

5-51OTHER CONTROLS AND EQUIPMENT
79K21-03E
Listening to a XM Satellite Radio (Option)
79KA007
(5)(2)
(8)
(6)
(3)
(4)
(7)
(1)
AM/FM/XM CD PLAYER WITH CD CHANGER CONTROL (Built-in CD Player)
Display
66J107
(1) XM button
(2) Category button (CAT)
(3) Seek up button
(4) Seek down button
(5) Manual tuning knob
(6) Display button (DISP)
(7) Preset button (1 to 6)
(8) Scan button (SCAN)
(A) Band
(B) Channel number
(C) Category indicator
If you want to purchase XM Satellite Radio
Service, contact your SUZUKI dealer.
It is necessary to buy a special tuner to
receive XM broadcasting.
Your vehicle is capable of receiving XM
Satellite Radio anywhere in the United
States except Hawaii, Alaska, and Can-
ada.
(A)
(B) (C)

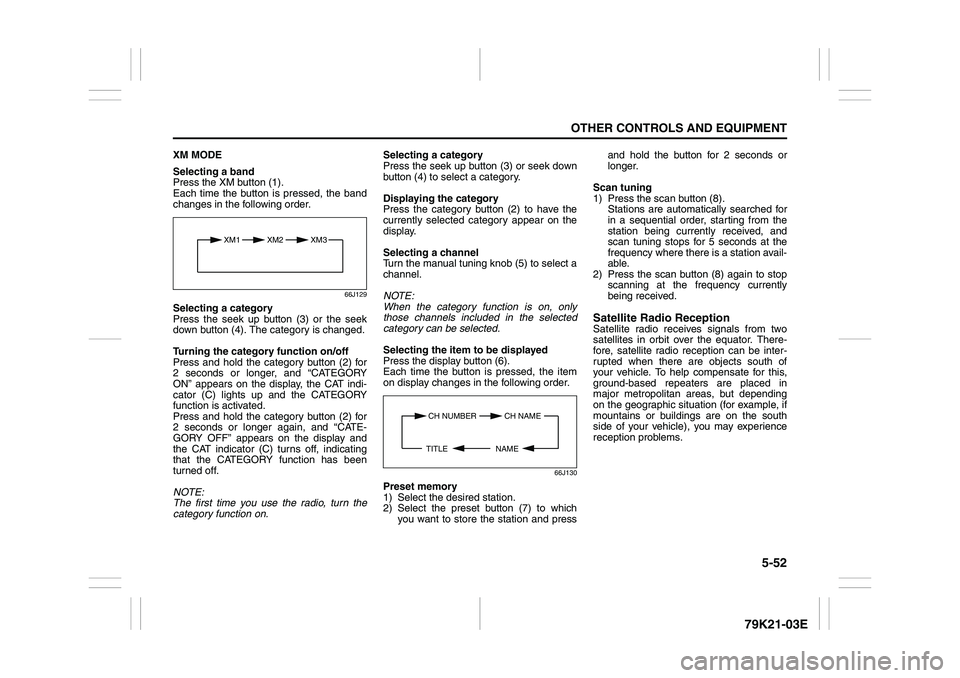

5-52
OTHER CONTROLS AND EQUIPMENT
79K21-03E
XM MODE
Selecting a band
Press the XM button (1).
Each time the button is pressed, the band
changes in the following order.
66J129
Selecting a category
Press the seek up button (3) or the seek
down button (4). The category is changed.
Turning the category function on/off
Press and hold the category button (2) for
2 seconds or longer, and “CATEGORY
ON” appears on the display, the CAT indi-
cator (C) lights up and the CATEGORY
function is activated.
Press and hold the category button (2) for
2 seconds or longer again, and “CATE-
GORY OFF” appears on the display and
the CAT indicator (C) turns off, indicating
that the CATEGORY function has been
turned off.
NOTE:
The first time you use the radio, turn the
category function on.Selecting a category
Press the seek up button (3) or seek down
button (4) to select a category.
Displaying the category
Press the category button (2) to have the
currently selected category appear on the
display.
Selecting a channel
Turn the manual tuning knob (5) to select a
channel.
NOTE:
When the category function is on, only
those channels included in the selected
category can be selected.
Selecting the item to be displayed
Press the display button (6).
Each time the button is pressed, the item
on display changes in the following order.
66J130
Preset memory
1) Select the desired station.
2) Select the preset button (7) to which
you want to store the station and pressand hold the button for 2 seconds or
longer.
Scan tuning
1) Press the scan button (8).
Stations are automatically searched for
in a sequential order, starting from the
station being currently received, and
scan tuning stops for 5 seconds at the
frequency where there is a station avail-
able.
2) Press the scan button (8) again to stop
scanning at the frequency currently
being received.
Satellite Radio ReceptionSatellite radio receives signals from two
satellites in orbit over the equator. There-
fore, satellite radio reception can be inter-
rupted when there are objects south of
your vehicle. To help compensate for this,
ground-based repeaters are placed in
major metropolitan areas, but depending
on the geographic situation (for example, if
mountains or buildings are on the south
side of your vehicle), you may experience
reception problems.
XM1 XM2
XM3
CH NUMBER CH NAME
NAME TITLE

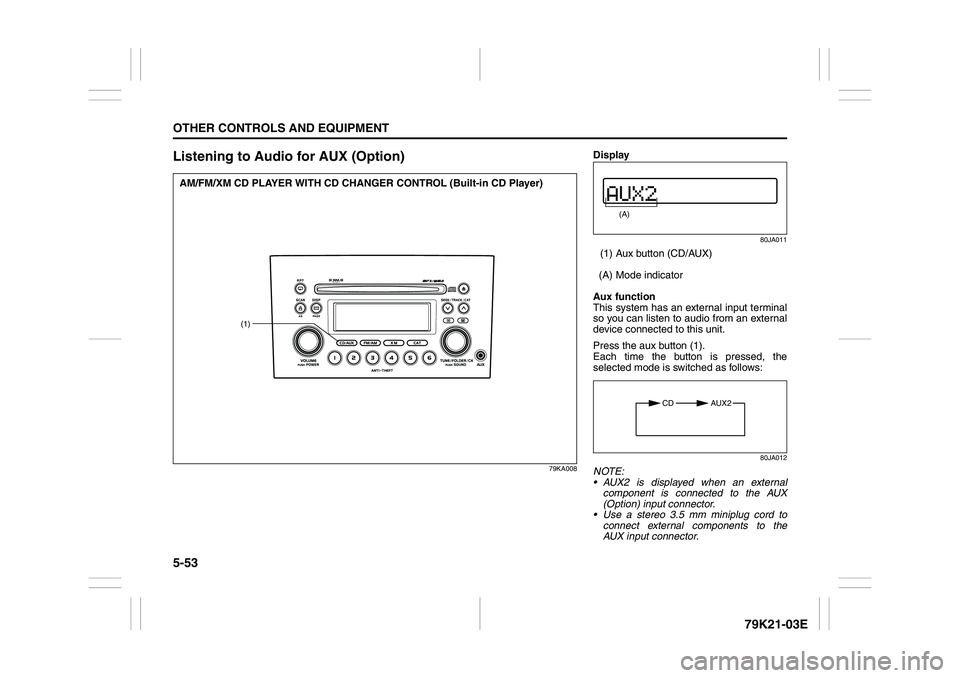

5-53OTHER CONTROLS AND EQUIPMENT
79K21-03E
Listening to Audio for AUX (Option)
79KA008
(1)
AM/FM/XM CD PLAYER WITH CD CHANGER CONTROL (Built-in CD Player)
Display
80JA011
(1) Aux button (CD/AUX)
(A) Mode indicator
Aux function
This system has an external input terminal
so you can listen to audio from an external
device connected to this unit.
Press the aux button (1).
Each time the button is pressed, the
selected mode is switched as follows:
80JA012
NOTE:
 AUX2 is displayed when an external
component is connected to the AUX
(Option) input connector.
 Use a stereo 3.5 mm miniplug cord to
connect external components to the
AUX input connector.
(A)
CD AUX2

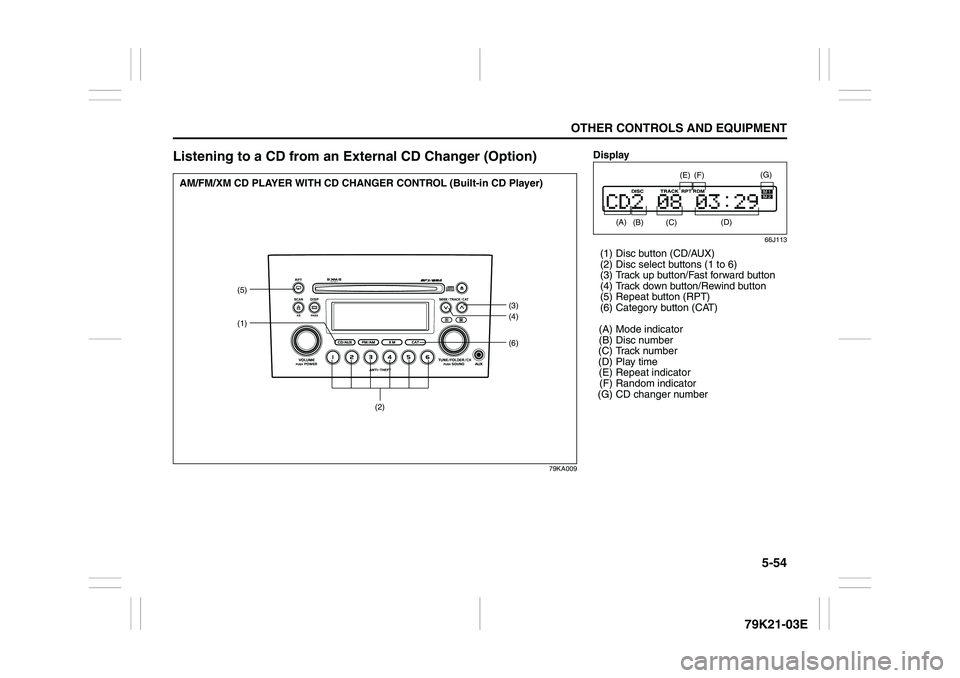

5-54
OTHER CONTROLS AND EQUIPMENT
79K21-03E
Listening to a CD from an External CD Changer (Option)
79KA009
(6)
(5)
(1)
(3)
(4)
(2)
AM/FM/XM CD PLAYER WITH CD CHANGER CONTROL (Built-in CD Player)
Display
66J113
(1) Disc button (CD/AUX)
(2) Disc select buttons (1 to 6)
(3) Track up button/Fast forward button
(4) Track down button/Rewind button
(5) Repeat button (RPT)
(6) Category button (CAT)
(A) Mode indicator
(B) Disc number
(C) Track number
(D) Play time
(E) Repeat indicator
(F) Random indicator
(G) CD changer number
(A)
(B)
(E)
(D)
(F)
(C)
(G)

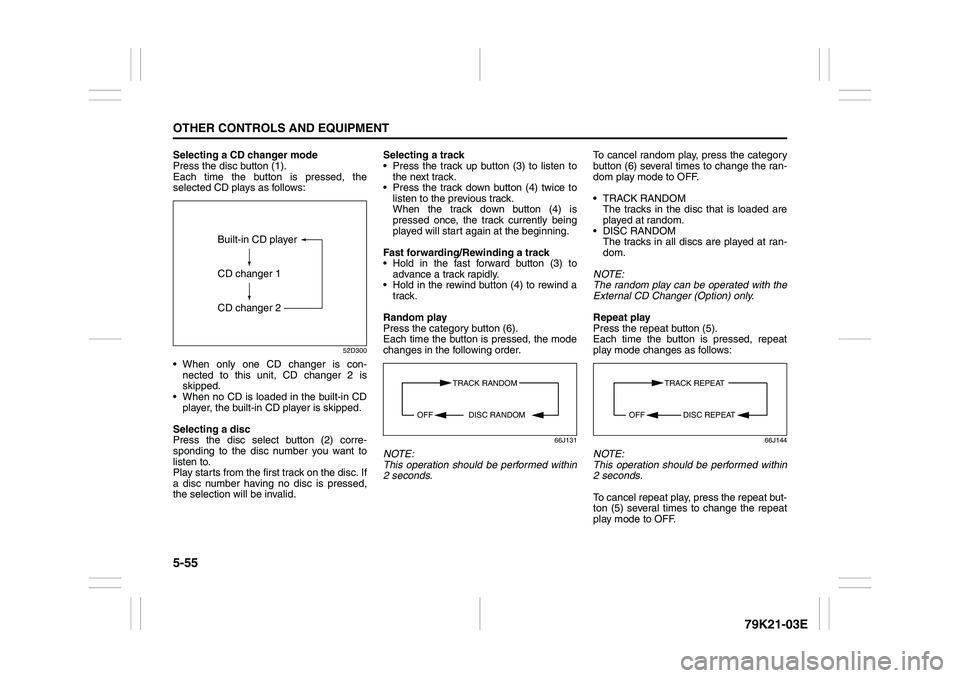

5-55OTHER CONTROLS AND EQUIPMENT
79K21-03E
Selecting a CD changer mode
Press the disc button (1).
Each time the button is pressed, the
selected CD plays as follows:
52D300
 When only one CD changer is con-
nected to this unit, CD changer 2 is
skipped.
 When no CD is loaded in the built-in CD
player, the built-in CD player is skipped.
Selecting a disc
Press the disc select button (2) corre-
sponding to the disc number you want to
listen to.
Play starts from the first track on the disc. If
a disc number having no disc is pressed,
the selection will be invalid.Selecting a track
 Press the track up button (3) to listen to
the next track.
 Press the track down button (4) twice to
listen to the previous track.
When the track down button (4) is
pressed once, the track currently being
played will start again at the beginning.
Fast forwarding/Rewinding a track
 Hold in the fast forward button (3) to
advance a track rapidly.
 Hold in the rewind button (4) to rewind a
track.
Random play
Press the category button (6).
Each time the button is pressed, the mode
changes in the following order.
66J131
NOTE:
This operation should be performed within
2 seconds.To cancel random play, press the category
button (6) several times to change the ran-
dom play mode to OFF.
 TRACK RANDOM
The tracks in the disc that is loaded are
played at random.
 DISC RANDOM
The tracks in all discs are played at ran-
dom.
NOTE:
The random play can be operated with the
External CD Changer (Option) only.
Repeat play
Press the repeat button (5).
Each time the button is pressed, repeat
play mode changes as follows:
66J144
NOTE:
This operation should be performed within
2 seconds.
To cancel repeat play, press the repeat but-
ton (5) several times to change the repeat
play mode to OFF.
Built-in CD player
CD changer 1
CD changer 2
TRACK RANDOM
DISC RANDOM OFF
TRACK REPEAT
DISC REPEAT OFF

5-56
OTHER CONTROLS AND EQUIPMENT
79K21-03E
 TRACK REPEAT
The indication “TRACK RPT” appears in
the display for 2 seconds and then the
repeat indicator (E) lights.
The track being currently played is
played repeatedly.
 DISC REPEAT
The indication “DISC RPT” appears in
the display for 2 seconds and then the
repeat indicator (E) lights.
When all the tracks on a disc being cur-
rently played finish playing, play starts
again at the beginning of the disc.
Remote Audio Controls
(if equipped)
79K052
You can control basic functions of the
audio system with the switches on the
steering wheel.To control the volume:
 To increase the volume, push the upper
part of the switch (1). The volume contin-
ues to increase until you release the
switch.
 To decrease the volume, push the lower
part of the switch (1). The volume contin-
ues to decrease until you release the
switch.
 To mute, push the switch (2).
To select the mode (AM1, AM2, FM1, FM2,
XM (option), CD, AUX1, External CD-
changer (option), AUX2 (option)), push the
switch (3).
You can also turn on the audio system by
pushing the switch (3).
To change the radio station:
 To advance to the next preset station,
push the upper part of the switch (4)
briefly.
 To select the previous preset station,
push the lower part of the switch (4)
briefly.
 To scan to a higher frequency radio sta-
tion, push and hold the upper part of the
switch (4).
 To scan to a lower frequency radio sta-
tion, push and hold the lower part of the
switch (4).
(1)(2)
(4)(3)

5-57OTHER CONTROLS AND EQUIPMENT
79K21-03E

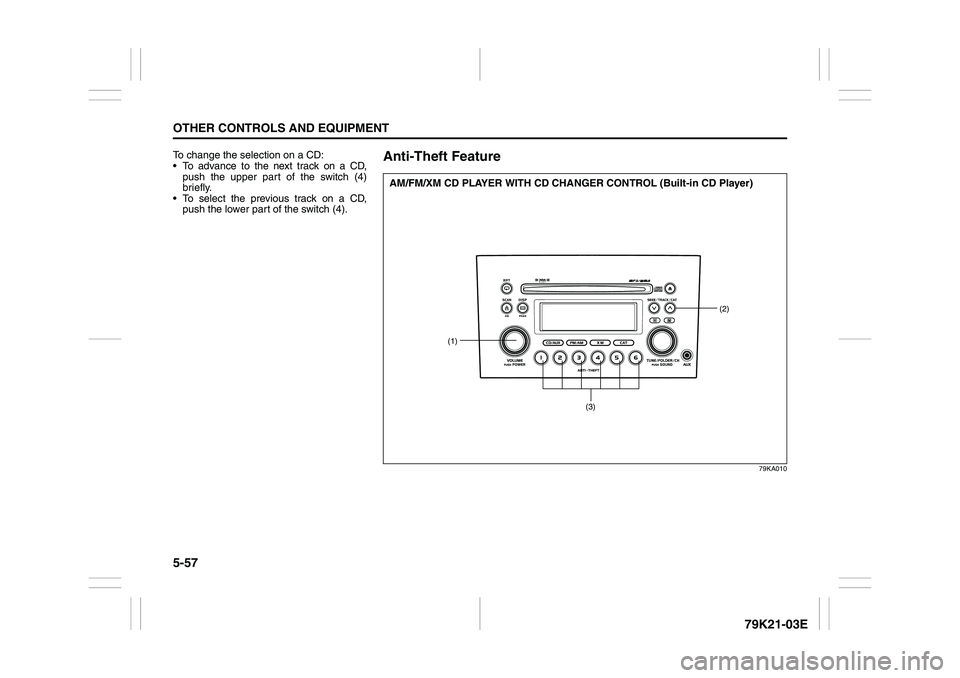

To change the selection on a CD:
 To advance to the next track on a CD,
push the upper part of the switch (4)
briefly.
 To select the previous track on a CD,
push the lower part of the switch (4).
Anti-Theft Feature
79KA010
(1)
(2)
(3)
AM/FM/XM CD PLAYER WITH CD CHANGER CONTROL (Built-in CD Player)
