10-4
GENERAL INFORMATION
79K21-03E

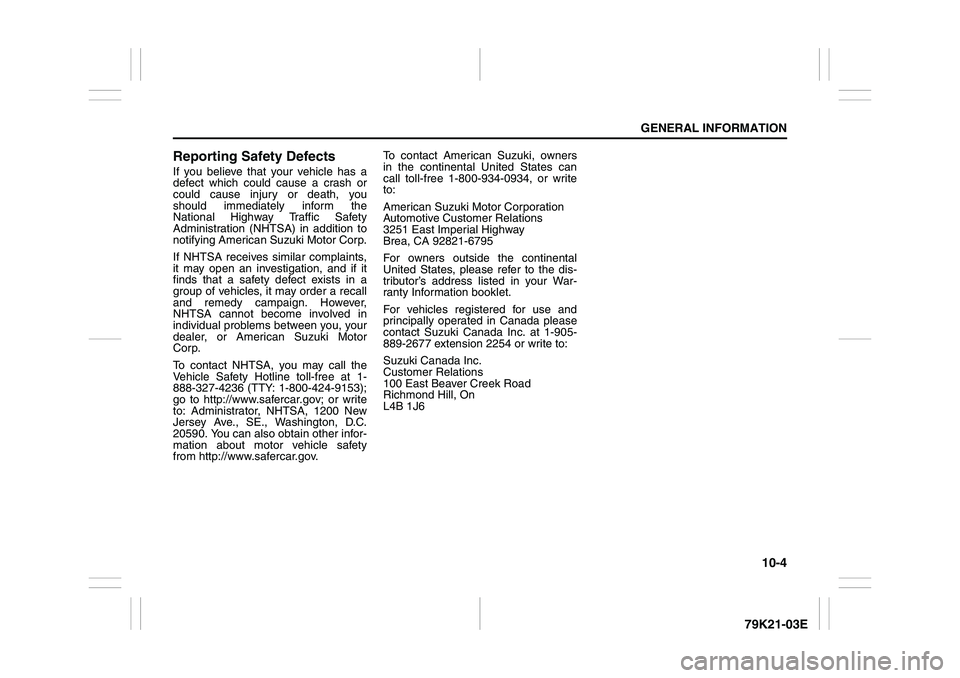

Reporting Safety DefectsIf you believe that your vehicle has a
defect which could cause a crash or
could cause injury or death, you
should immediately inform the
National Highway Traffic Safety
Administration (NHTSA) in addition to
notifying American Suzuki Motor Corp.
If NHTSA receives similar complaints,
it may open an investigation, and if it
finds that a safety defect exists in a
group of vehicles, it may order a recall
and remedy campaign. However,
NHTSA cannot become involved in
individual problems between you, your
dealer, or American Suzuki Motor
Corp.
To contact NHTSA, you may call the
Vehicle Safety Hotline toll-free at 1-
888-327-4236 (TTY: 1-800-424-9153);
go to http://www.safercar.gov; or write
to: Administrator, NHTSA, 1200 New
Jersey Ave., SE., Washington, D.C.
20590. You can also obtain other infor-
mation about motor vehicle safety
from http://www.safercar.gov.To contact American Suzuki, owners
in the continental United States can
call toll-free 1-800-934-0934, or write
to:
American Suzuki Motor Corporation
Automotive Customer Relations
3251 East Imperial Highway
Brea, CA 92821-6795
For owners outside the continental
United States, please refer to the dis-
tributor’s address listed in your War-
ranty Information booklet.
For vehicles registered for use and
principally operated in Canada please
contact Suzuki Canada Inc. at 1-905-
889-2677 extension 2254 or write to:
Suzuki Canada Inc.
Customer Relations
100 East Beaver Creek Road
Richmond Hill, On
L4B 1J6

10-5GENERAL INFORMATION
79K21-03E
MEMO

11-1
FUSES AND PROTECTED CIRCUITS
79K21-03E
11
FUSES AND PROTECTED CIRCUITS
64J157
FUSES
MAIN
FUSE BOXNo. COLOR (AMPS) PROTECTED CIRCUIT
In engine
compartment (1) BLUE (15) CPRSR A/C compressor fuse
(2) YELLOW (20) O2 HTR O2 sensor heater fuse
(3) BLUE (15) THR MOT Throttle motor fuse
(4) YELLOW (20) AT Automatic transmission fuse
(5) CLEAR (25) RR DEF Rear defogger fuse
(6) BLUE (15) HORN Horn fuse
(7) YELLOW (20) FR FOG Front fog light fuse
(8) YELLOW (20) MRR HTR Mirror heater fuse
(9) GREEN (40) FR BLW Front blower motor fuse
(10) PINK (30) ABS 2ABS actuator fuse
Fuses and Protected Circuits: 7

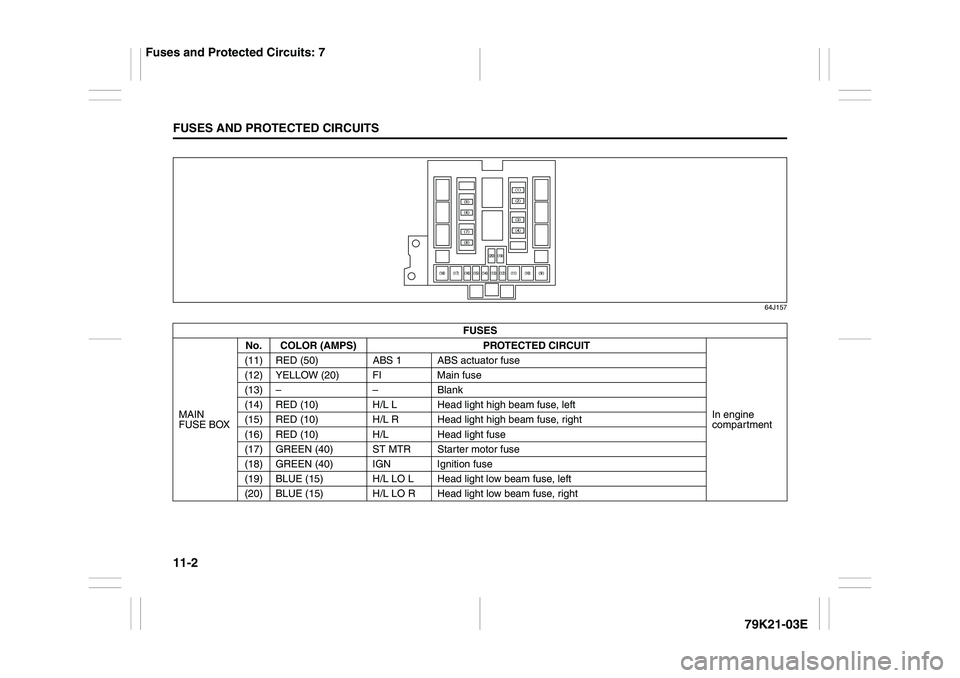

11-2FUSES AND PROTECTED CIRCUITS
79K21-03E
64J157
FUSES
MAIN
FUSE BOXNo. COLOR (AMPS) PROTECTED CIRCUIT
In engine
compartment (11) RED (50) ABS 1 ABS actuator fuse
(12) YELLOW (20) FI Main fuse
(13) – – Blank
(14) RED (10) H/L L Head light high beam fuse, left
(15) RED (10) H/L R Head light high beam fuse, right
(16) RED (10) H/L Head light fuse
(17) GREEN (40) ST MTR Starter motor fuse
(18) GREEN (40) IGN Ignition fuse
(19) BLUE (15) H/L LO L Head light low beam fuse, left
(20) BLUE (15) H/L LO R Head light low beam fuse, right
Fuses and Protected Circuits: 7

11-3
FUSES AND PROTECTED CIRCUITS
79K21-03E
79K057
FUSES IN FUSE BOX FUSES IN FUSE BOX
(A) RED (10) DOME Dome lamp fuse (M) BLUE (15) HAZ Hazard light fuse
(B) RED (10) STOP Stop lamp fuse (N) BROWN (7.5) ST SIG Starter signal fuse
(C) – – Blank (O) RED (10) ECM Engine control module fuse
(D) BLUE (15) ACC 3 Accessory socket fuse(P) CLEAR (25) S/R Sun roof motor fuse
(E) RED (10) CRUISE Cruise control fuse (Q) CLEAR (25) B/U Buck up fuse
(F) BLUE (15) ACC 2Cigar or Accessory socket
fuse(R) RED (10) TAIL Tail light fuse
(G) YELLOW (20) WIP Wiper fuse (S) YELLOW (20) D/L Door lock actuator fuse
(H) BLUE (15) IG2 SIGIgnition signal & Seat
heater fuse(T) BLUE (15) ACCRadio, Remote door mirror
fuse
(I) RED (10) BACK Back lamp fuse (U) RED (10) METER Meter fuse
(J) RED (10) ABS/ESP ABS or ESP controller fuse (V) BLUE (15) IG COIL Ignition coil fuse
(K) RED (10) A/B Air bag fuse (W) – – Blank
(L) BLUE (15) RADIO Radio fuse (X) PINK (30) P/W Power window fuse
SPARESPARE
SPARE
SPARE
USE THE DESIGNATED
FUSES AND RELAYS ONLYSPARE SPARE
(A)
(B)
(C)
(D)
(E)
(F)
(G)
(H)(I)
(J)
(L)
(M)
(N)
(O)
(P)
(Q)
(R)
(S)
(T)
(U)
(V)(K)
(W)
(X)

11-4FUSES AND PROTECTED CIRCUITS
79K21-03E
MEMO

12-1
SPECIFICATIONS
79K21-03E
12

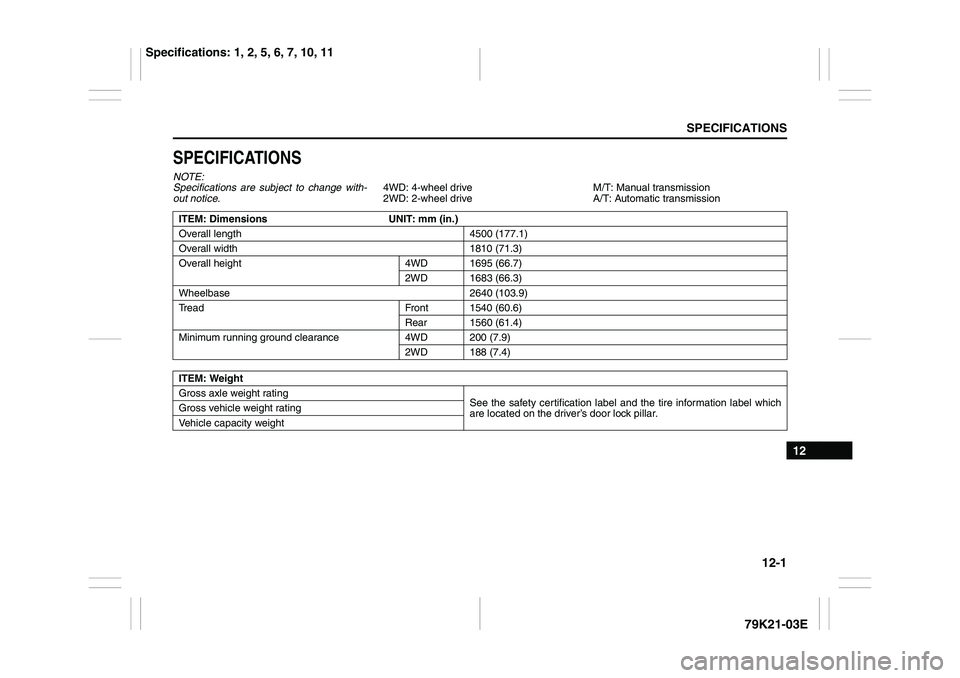

SPECIFICATIONSNOTE:
Specifications are subject to change with-
out notice.4WD: 4-wheel drive
2WD: 2-wheel driveM/T: Manual transmission
A/T: Automatic transmission
ITEM: Dimensions UNIT: mm (in.)
Overall length 4500 (177.1)
Overall width 1810 (71.3)
Overall height 4WD 1695 (66.7)
2WD 1683 (66.3)
Wheelbase 2640 (103.9)
Tread Front 1540 (60.6)
Rear 1560 (61.4)
Minimum running ground clearance 4WD 200 (7.9)
2WD 188 (7.4)
ITEM: Weight
Gross axle weight rating
See the safety certification label and the tire information label which
are located on the driver’s door lock pillar. Gross vehicle weight rating
Vehicle capacity weight
Specifications: 1, 2, 5, 6, 7, 10, 11

12-2SPECIFICATIONS
79K21-03E

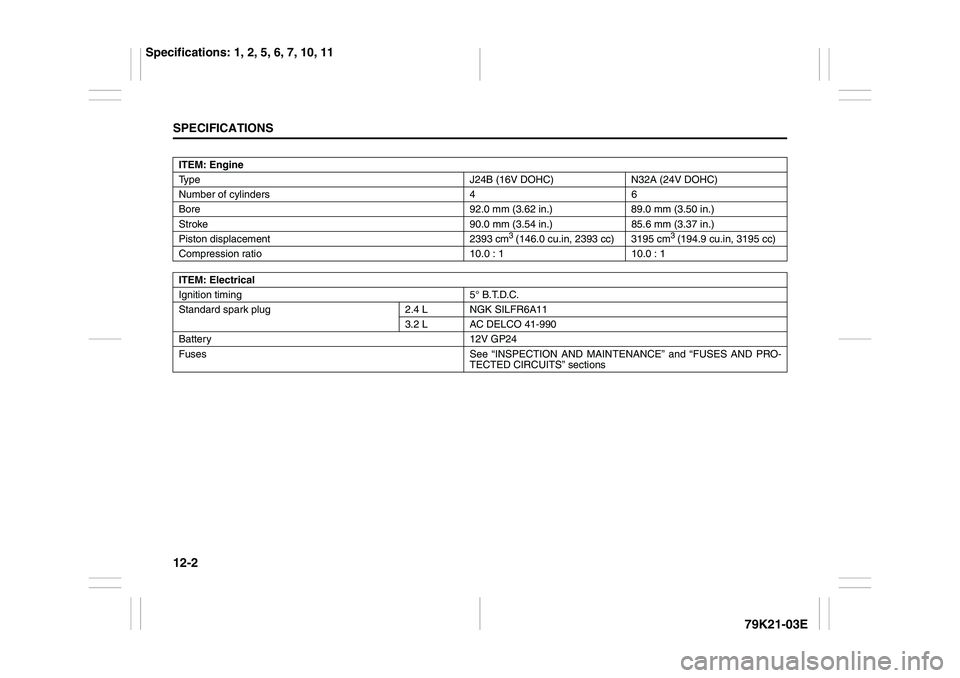

ITEM: Engine
Type J24B (16V DOHC) N32A (24V DOHC)
Number of cylinders 4 6
Bore 92.0 mm (3.62 in.) 89.0 mm (3.50 in.)
Stroke 90.0 mm (3.54 in.) 85.6 mm (3.37 in.)
Piston displacement 2393 cm
3 (146.0 cu.in, 2393 cc) 3195 cm
3 (194.9 cu.in, 3195 cc)
Compression ratio 10.0 : 1 10.0 : 1
ITEM: Electrical
Ignition timing 5° B.T.D.C.
Standard spark plug 2.4 L NGK SILFR6A11
3.2 L AC DELCO 41-990
Battery 12V GP24
Fuses See “INSPECTION AND MAINTENANCE” and “FUSES AND PRO-
TECTED CIRCUITS” sections
Specifications: 1, 2, 5, 6, 7, 10, 11

12-3
SPECIFICATIONS
79K21-03E
ITEM: Lights WATTAGE BULB No.
Headlight Low beam Halogen 12V 55W H7
High beam 12V 60W HB3
Front fog light 12V 55W H11
Turn signal light Front 12V 21W WY21W
Rear 12V 21W WY21W
Position light 12V 5W WY5W
Brake/tail light 12V 21/5W 7443
License plate light 12V 5W W5W
Reversing light 12V 21W 7440
High mount stop light 12V 5W W5W
Door illumination light 12V 5W –
Dome light Spot light 12V 8W –
Center light 12V 10W –
Rear light 12V 10W –
Luggage compartment light 12V 5W W5W
ITEM: Wheel
Tire size, front and rear P225/70R16, P225/65R17, P225/60R18
Tire pressure For the specified tire pressure, see the Tire Information Label located
on the driver’s door lock pillar.
Specifications: 1, 2, 5, 6, 7, 10, 11

12-4SPECIFICATIONS
79K21-03E

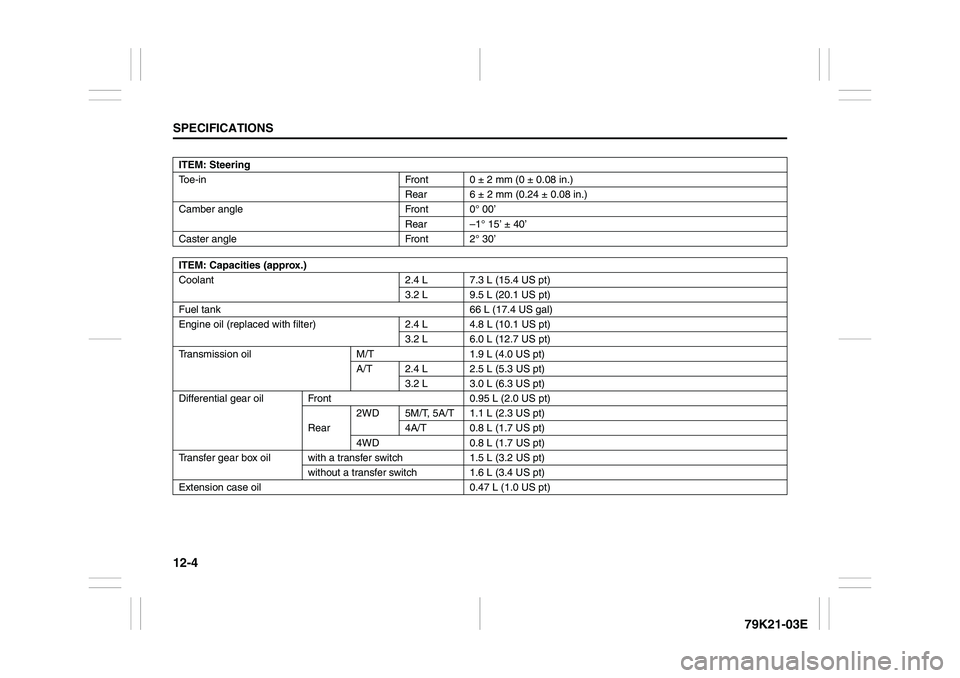

ITEM: Steering
Toe-in Front 0 ± 2 mm (0 ± 0.08 in.)
Rear 6 ± 2 mm (0.24 ± 0.08 in.)
Camber angle Front 0° 00’
Rear –1° 15’ ± 40’
Caster angle Front 2° 30’
ITEM: Capacities (approx.)
Coolant 2.4 L 7.3 L (15.4 US pt)
3.2 L 9.5 L (20.1 US pt)
Fuel tank 66 L (17.4 US gal)
Engine oil (replaced with filter) 2.4 L 4.8 L (10.1 US pt)
3.2 L 6.0 L (12.7 US pt)
Transmission oil M/T 1.9 L (4.0 US pt)
A/T 2.4 L 2.5 L (5.3 US pt)
3.2 L 3.0 L (6.3 US pt)
Differential gear oil Front 0.95 L (2.0 US pt)
Rear2WD 5M/T, 5A/T 1.1 L (2.3 US pt)
4A/T 0.8 L (1.7 US pt)
4WD 0.8 L (1.7 US pt)
Transfer gear box oil with a transfer switch 1.5 L (3.2 US pt)
without a transfer switch 1.6 L (3.4 US pt)
Extension case oil 0.47 L (1.0 US pt)
