SUZUKI GRAND VITARA 2020 Workshop Manual

2-29
BEFORE DRIVING
54P00-01E
65D199
WA R N I N G
(Continued)
• Pregnant women should use seat
belts, although specific recommen-
dations about driving should be
made by the woman’s medical advi-
sor. Remember that the lap portion
of the belt should be worn as low
as possible across the hips, as
shown in the illustration.
• Do not fasten your seat belt over
hard or breakable objects in your
pockets or on your clothing. If an
accident occurs, objects such as
glasses, pens, etc. under the seat
belt can cause injury.
(Continued)
as low as possible
across the hips
WA R N I N G
(Continued)
• Never use the same seat belt for
more than one occupant and never
attach a seat belt over an infant or
child being held on an occupant’s
lap. Such seat belt use could cause
serious injury in the event of an
accident.
• Periodically inspect seat belt
assemblies for excessive wear and
damage. Seat belts should be
replaced if webbing becomes
frayed, contaminated or damaged
in any way. It is essential to replace
the entire seat belt assembly after it
has been worn in a severe impact,
even if damage to the assembly is
not obvious.
• Children aged 12 and under should
ride properly restrained in the rear
seat.
• Infants and small children should
never be transported unless they
are properly restrained. Restraint
systems for infants and small chil-
dren can be purchased locally and
should be used. Check that the
system you purchase meets appli-
cable safety standards. Read and
follow all the directions provided
by the manufacturer.
(Continued)
WA R N I N G
(Continued)
• For children, if the shoulder belt
irritates the neck or face, move the
child closer to the center of the
vehicle.
• Avoid contamination of seat belt
webbing by polishes, oils, chemi-
cals, and particularly battery acid.
Cleaning may safely be carried out
using mild soap and water.
• Do not insert any items such as
coins and clips into the seat belt
buckles, and be careful not to spill
liquids into these parts. If foreign
materials get into a seat belt
buckle, the seat belt may not work
properly.
• All seatbacks should always be in
an upright position when driving,
or seat belt effectiveness may be
reduced. Seat belts are designed to
offer maximum protection when
seatbacks are in the upright posi-
tion.

2-30
BEFORE DRIVING
54P00-01E

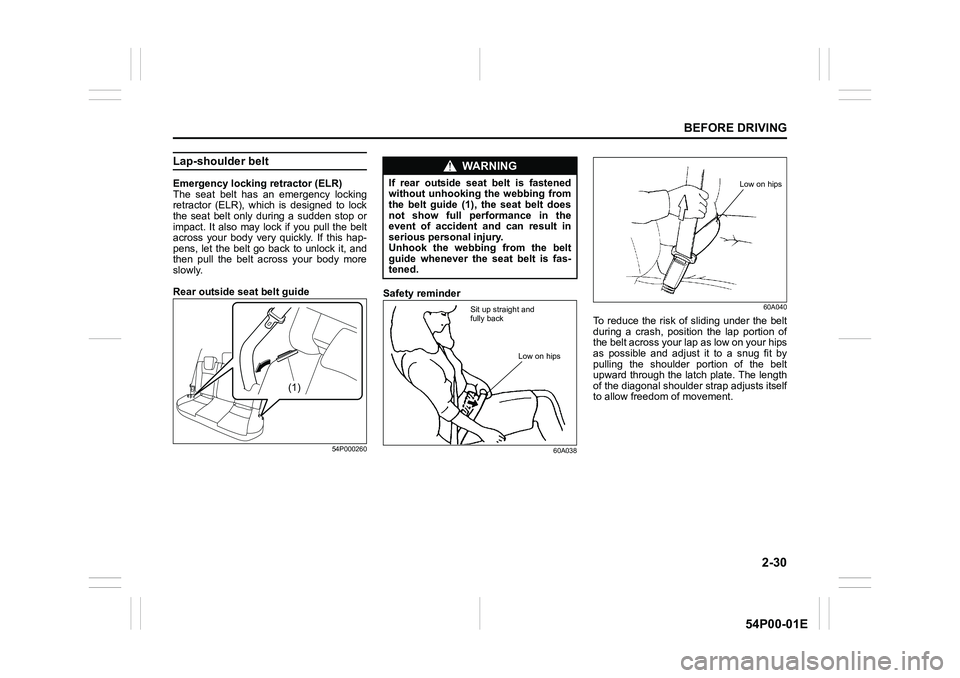

Lap-shoulder belt
Emergency locking retractor (ELR)
The seat belt has an emergency locking
retractor (ELR), which is designed to lock
the seat belt only during a sudden stop or
impact. It also may lock if you pull the belt
across your body very quickly. If this hap-
pens, let the belt go back to unlock it, and
then pull the belt across your body more
slowly.
Rear outside seat belt guide
54P000260
Safety reminder
60A03860A040
To reduce the risk of sliding under the belt
during a crash, position the lap portion of
the belt across your lap as low on your hips
as possible and adjust it to a snug fit by
pulling the shoulder portion of the belt
upward through the latch plate. The length
of the diagonal shoulder strap adjusts itself
to allow freedom of movement.
(1)
WA R N I N G
If rear outside seat belt is fastened
without unhooking the webbing from
the belt guide (1), the seat belt does
not show full performance in the
event of accident and can result in
serious personal injury.
Unhook the webbing from the belt
guide whenever the seat belt is fas-
tened.
Sit up straight and
fully back
Low on hips
Low on hips

2-31
BEFORE DRIVING
54P00-01E
60A036

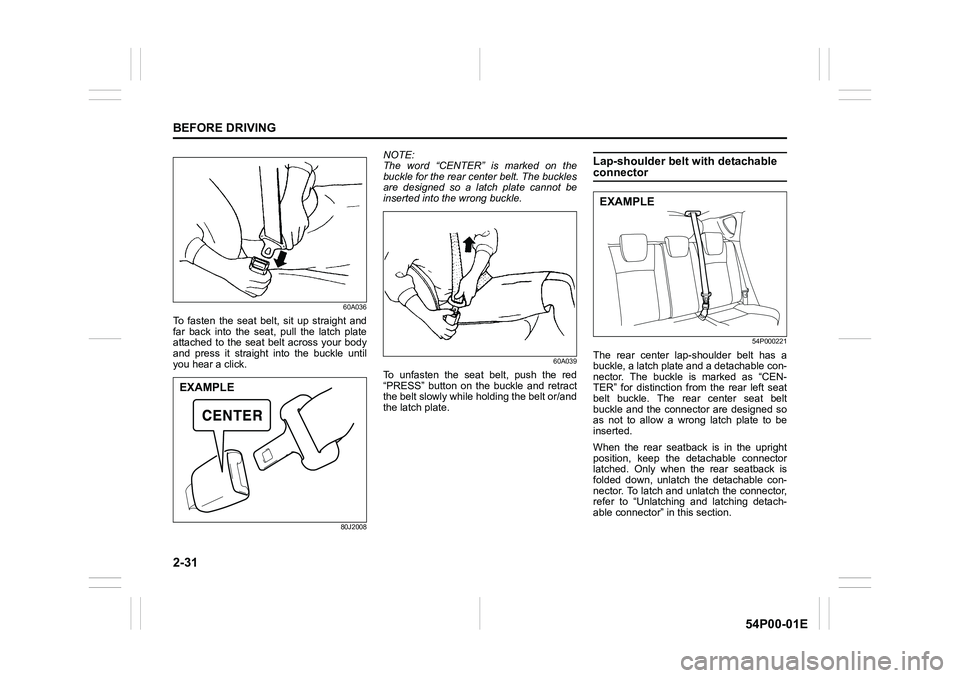

To fasten the seat belt, sit up straight and
far back into the seat, pull the latch plate
attached to the seat belt across your body
and press it straight into the buckle until
you hear a click.
80J2008
NOTE:
The word “CENTER” is marked on the
buckle for the rear center belt. The buckles
are designed so a latch plate cannot be
inserted into the wrong buckle.
60A039
To unfasten the seat belt, push the red
“PRESS” button on the buckle and retract
the belt slowly while holding the belt or/and
the latch plate.
Lap-shoulder belt with detachable connector
54P000221
The rear center lap-shoulder belt has a
buckle, a latch plate and a detachable con-
nector. The buckle is marked as “CEN-
TER” for distinction from the rear left seat
belt buckle. The rear center seat belt
buckle and the connector are designed so
as not to allow a wrong latch plate to be
inserted.
When the rear seatback is in the upright
position, keep the detachable connector
latched. Only when the rear seatback is
folded down, unlatch the detachable con-
nector. To latch and unlatch the connector,
refer to “Unlatching and latching detach-
able connector” in this section.
EXAMPLE
EXAMPLE

2-32
BEFORE DRIVING
54P00-01E
61MM0A060

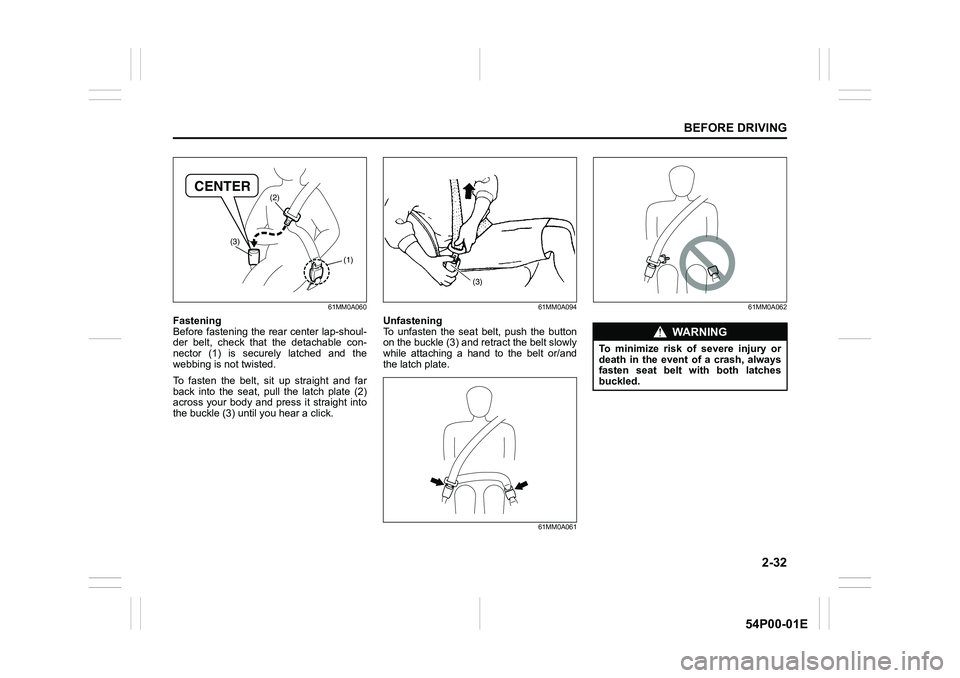

Fastening
Before fastening the rear center lap-shoul-
der belt, check that the detachable con-
nector (1) is securely latched and the
webbing is not twisted.
To fasten the belt, sit up straight and far
back into the seat, pull the latch plate (2)
across your body and press it straight into
the buckle (3) until you hear a click.
61MM0A094
Unfastening
To unfasten the seat belt, push the button
on the buckle (3) and retract the belt slowly
while attaching a hand to the belt or/and
the latch plate.
61MM0A06161MM0A062
(1) (2)
(3)
CENTER
(3)
WA R N I N G
To minimize risk of severe injury or
death in the event of a crash, always
fasten seat belt with both latches
buckled.

2-33
BEFORE DRIVING
54P00-01E
Unlatching and latching detachable
connector
61MM0A063
Unlatching
To unlatch the connector:
1) Insert a key or a latch plate into the slot
(1) on the connector and allow the belt
to retract.
2) Once the belt has completely retracted,
stow the belt in the holder. Refer to
“Stowing rear center lap-shoulder belt”
for details in this section.Latching
To latch the connector:
1) Pull the belt out from the holder.61MM0A064
2) Insert the connector latch plate (2) into
the connector (3) to align the triangle
marks until you hear a click.Stowing rear center lap-shoulder belt
Stow the belt after it is retracted com-
pletely.
61MM0A065
To stow the belt, insert the latch plate into
the slit (1). Then insert the connector latch
plate (2) into the roof holder slot (3).
NOTE:
For Australia:
For additional information, refer to “SUP-
PLEMENT” section in the end of this book.
NOTICE
When the rear seatback is folded for-
ward, unlatch the connector of rear
center lap-shoulder belt. Otherwise,
the seat belt webbing can be dam-
aged.
(1)
EXAMPLE
WA R N I N G
Check that the detachable connector
is securely latched and the webbing
is not twisted.
(2)
(3)(3)
(2)

(1)

2-34
BEFORE DRIVING
54P00-01E

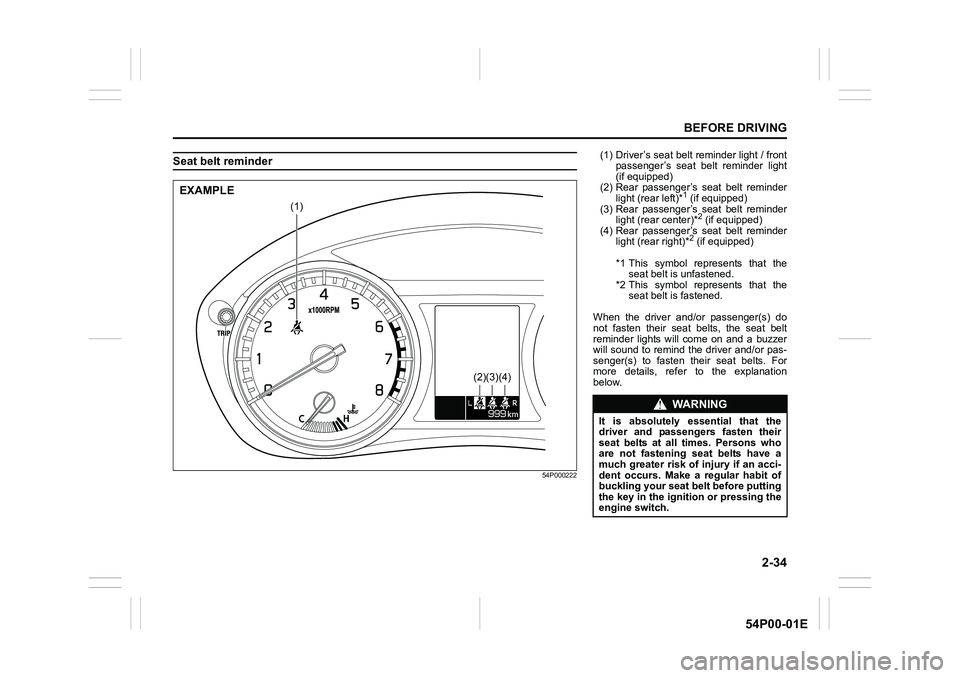

Seat belt reminder
54P000222
(1)
(2)(3)(4)
EXAMPLE
(1) Driver’s seat belt reminder light / front
passenger’s seat belt reminder light
(if equipped)
(2) Rear passenger’s seat belt reminder
light (rear left)*
1 (if equipped)
(3) Rear passenger’s seat belt reminder
light (rear center)*
2 (if equipped)
(4) Rear passenger’s seat belt reminder
light (rear right)*
2 (if equipped)
*1 This symbol represents that the
seat belt is unfastened.
*2 This symbol represents that the
seat belt is fastened.
When the driver and/or passenger(s) do
not fasten their seat belts, the seat belt
reminder lights will come on and a buzzer
will sound to remind the driver and/or pas-
senger(s) to fasten their seat belts. For
more details, refer to the explanation
below.
WA R N I N G
It is absolutely essential that the
driver and passengers fasten their
seat belts at all times. Persons who
are not fastening seat belts have a
much greater risk of injury if an acci-
dent occurs. Make a regular habit of
buckling your seat belt before putting
the key in the ignition or pressing the
engine switch.

2-35
BEFORE DRIVING
54P00-01E

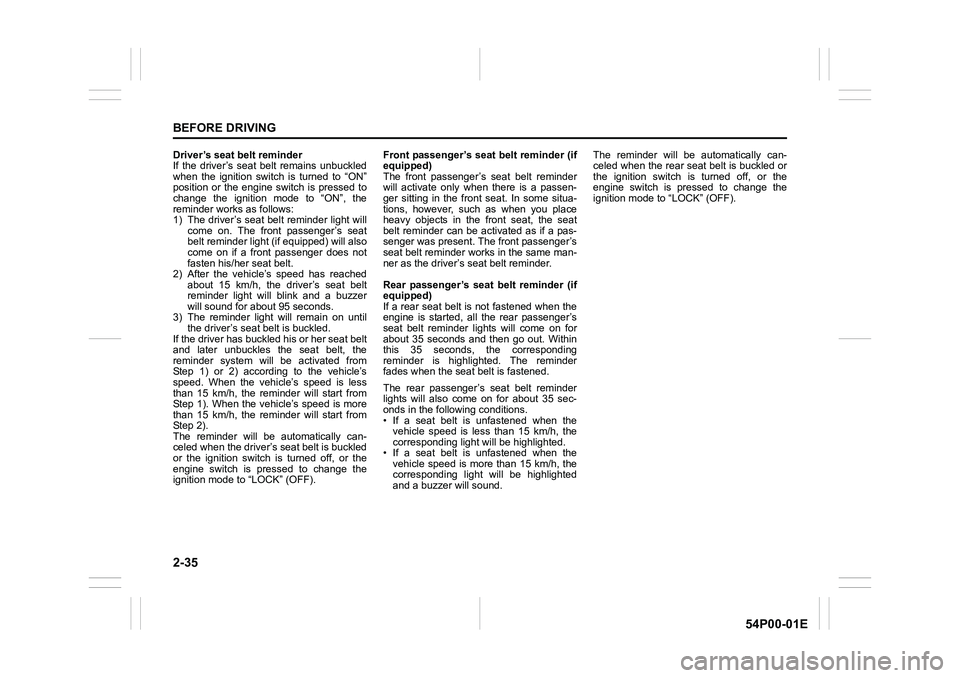

Driver’s seat belt reminder
If the driver’s seat belt remains unbuckled
when the ignition switch is turned to “ON”
position or the engine switch is pressed to
change the ignition mode to “ON”, the
reminder works as follows:
1) The driver’s seat belt reminder light will
come on. The front passenger’s seat
belt reminder light (if equipped) will also
come on if a front passenger does not
fasten his/her seat belt.
2) After the vehicle’s speed has reached
about 15 km/h, the driver’s seat belt
reminder light will blink and a buzzer
will sound for about 95 seconds.
3) The reminder light will remain on until
the driver’s seat belt is buckled.
If the driver has buckled his or her seat belt
and later unbuckles the seat belt, the
reminder system will be activated from
Step 1) or 2) according to the vehicle’s
speed. When the vehicle’s speed is less
than 15 km/h, the reminder will start from
Step 1). When the vehicle’s speed is more
than 15 km/h, the reminder will start from
Step 2).
The reminder will be automatically can-
celed when the driver’s seat belt is buckled
or the ignition switch is turned off, or the
engine switch is pressed to change the
ignition mode to “LOCK” (OFF).Front passenger’s seat belt reminder (if
equipped)
The front passenger’s seat belt reminder
will activate only when there is a passen-
ger sitting in the front seat. In some situa-
tions, however, such as when you place
heavy objects in the front seat, the seat
belt reminder can be activated as if a pas-
senger was present. The front passenger’s
seat belt reminder works in the same man-
ner as the driver’s seat belt reminder.
Rear passenger’s seat belt reminder (if
equipped)
If a rear seat belt is not fastened when the
engine is started, all the rear passenger’s
seat belt reminder lights will come on for
about 35 seconds and then go out. Within
this 35 seconds, the corresponding
reminder is highlighted. The reminder
fades when the seat belt is fastened.
The rear passenger’s seat belt reminder
lights will also come on for about 35 sec-
onds in the following conditions.
• If a seat belt is unfastened when the
vehicle speed is less than 15 km/h, the
corresponding light will be highlighted.
• If a seat belt is unfastened when the
vehicle speed is more than 15 km/h, the
corresponding light will be highlighted
and a buzzer will sound.The reminder will be automatically can-
celed when the rear seat belt is buckled or
the ignition switch is turned off, or the
engine switch is pressed to change the
ignition mode to “LOCK” (OFF).

2-36
BEFORE DRIVING
54P00-01E

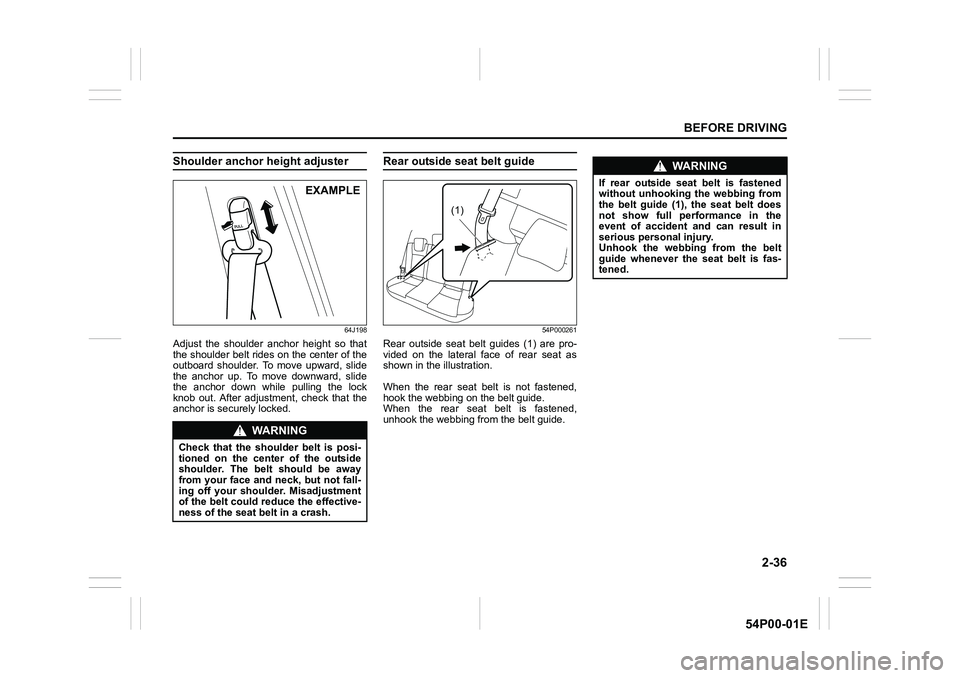

Shoulder anchor height adjuster
64J198
Adjust the shoulder anchor height so that
the shoulder belt rides on the center of the
outboard shoulder. To move upward, slide
the anchor up. To move downward, slide
the anchor down while pulling the lock
knob out. After adjustment, check that the
anchor is securely locked.
Rear outside seat belt guide
54P000261
Rear outside seat belt guides (1) are pro-
vided on the lateral face of rear seat as
shown in the illustration.
When the rear seat belt is not fastened,
hook the webbing on the belt guide.
When the rear seat belt is fastened,
unhook the webbing from the belt guide.
WA R N I N G
Check that the shoulder belt is posi-
tioned on the center of the outside
shoulder. The belt should be away
from your face and neck, but not fall-
ing off your shoulder. Misadjustment
of the belt could reduce the effective-
ness of the seat belt in a crash.
EXAMPLE
(1)
WA R N I N G
If rear outside seat belt is fastened
without unhooking the webbing from
the belt guide (1), the seat belt does
not show full performance in the
event of accident and can result in
serious personal injury.
Unhook the webbing from the belt
guide whenever the seat belt is fas-
tened.

2-37
BEFORE DRIVING
54P00-01E

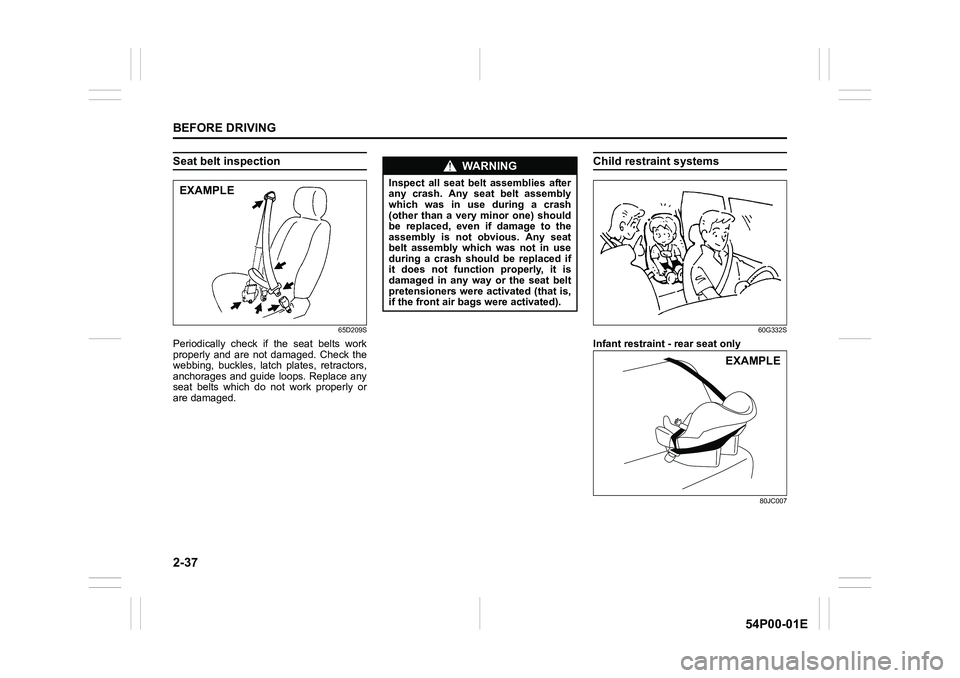

Seat belt inspection
65D209S
Periodically check if the seat belts work
properly and are not damaged. Check the
webbing, buckles, latch plates, retractors,
anchorages and guide loops. Replace any
seat belts which do not work properly or
are damaged.
Child restraint systems
60G332S
Infant restraint - rear seat only
80JC007
EXAMPLE
WA R N I N G
Inspect all seat belt assemblies after
any crash. Any seat belt assembly
which was in use during a crash
(other than a very minor one) should
be replaced, even if damage to the
assembly is not obvious. Any seat
belt assembly which was not in use
during a crash should be replaced if
it does not function properly, it is
damaged in any way or the seat belt
pretensioners were activated (that is,
if the front air bags were activated).
EXAMPLE

2-38
BEFORE DRIVING
54P00-01E

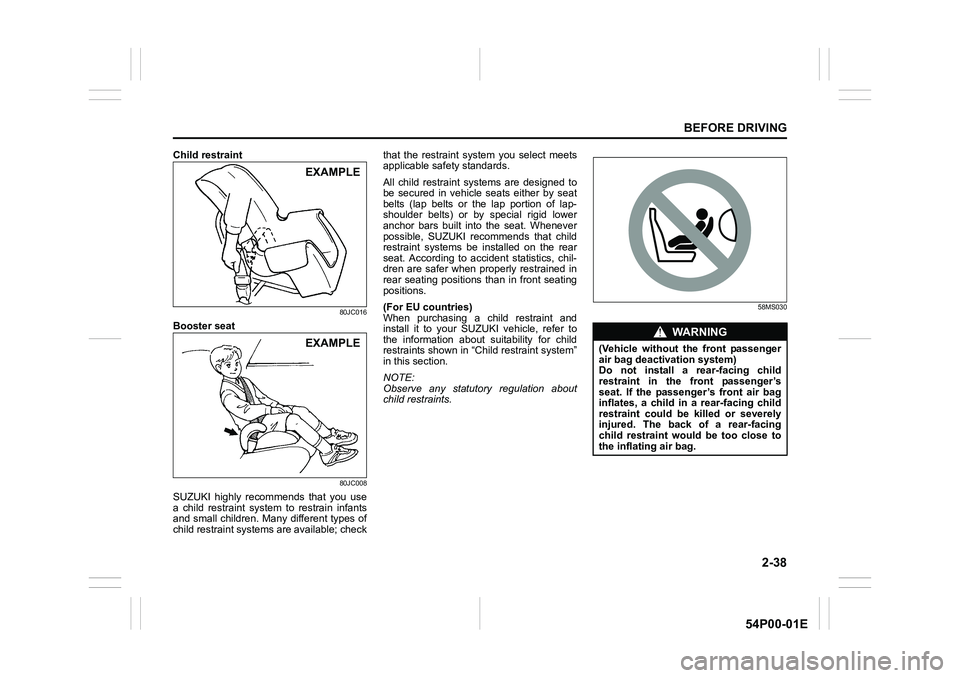

Child restraint
80JC016
Booster seat
80JC008
SUZUKI highly recommends that you use
a child restraint system to restrain infants
and small children. Many different types of
child restraint systems are available; checkthat the restraint system you select meets
applicable safety standards.
All child restraint systems are designed to
be secured in vehicle seats either by seat
belts (lap belts or the lap portion of lap-
shoulder belts) or by special rigid lower
anchor bars built into the seat. Whenever
possible, SUZUKI recommends that child
restraint systems be installed on the rear
seat. According to accident statistics, chil-
dren are safer when properly restrained in
rear seating positions than in front seating
positions.
(For EU countries)
When purchasing a child restraint and
install it to your SUZUKI vehicle, refer to
the information about suitability for child
restraints shown in “Child restraint system”
in this section.
NOTE:
Observe any statutory regulation about
child restraints.
58MS030
EXAMPLE
EXAMPLEWA R N I N G
(Vehicle without the front passenger
air bag deactivation system)
Do not install a rear-facing child
restraint in the front passenger’s
seat. If the passenger’s front air bag
inflates, a child in a rear-facing child
restraint could be killed or severely
injured. The back of a rear-facing
child restraint would be too close to
the inflating air bag.
