service SUZUKI IGNIS 2021 Owners Manual

Classification: API SG, SH, SJ, SL, SM or SN
Viscosity: SAE 0W-20, 5W-30, 10W-30, 10W-40,
15W-40, 20W-40
(K12M engine models)
(K12C engine models)
22.0 mmENGLISH
SERVICE STATION INFORMATION
Printed in Japan
Suzuki Red: Magenta 100%, Yellow 100%
Suzuki Blue: Cyan 100%, Magenta 70%
Takumi Blue: Cyan 100%, Black 85%
Black
IGNIS
99011-75RM4-01E
OWNER’S MANUAL
Keep With Vehicle At All Times.
Contains Important Information
On Safety, Operation & Maintenance.
See page 1-1
Fuel recommendation:
Engine oil recommendation:
Classification: ACEA A1/B1, A3/B3, A3/B4, A5/B5
API SL, SM or SN
ILSAC GF-3, GF-4 or GF-5
Viscosity: SAE 0W-16, 0W-20, 5W-30, 10W-30, 10W-40
For further details, see “Engine oil and filter” in the
“INSPECTION AND MAINTENANCE” section.
Part No. 99011-75RM4-01E May, 2018
Brake fluid: DOT3 or SAE J1703
Tire cold pressure: See the Tire Information Label located on the
driver’s door lock pillar.
CVT fluid:
SUZUKI CVT FLUID GREEN-2

75RM4-01E
IMPORTANT
WARNING/CAUTION /NOTICE /
NOTE
Please read this manual and follow its
instructions carefully. To emphasize spe-
cial information, the symbol and the
words WARNING , CAUTION , NOTICE
and NOTE have special meanings. Pay
particular attention to messages high-
lighted by these signal words:
NOTE:
Indicates special information to make
maintenance easier or instructions clearer.
75F135
The circle with a slash in this manual
means “Do not do this” or “Do not let this
happen”.
MODIFICATION WARNING
WA R N I N G
Indicates a potential hazard that
could result in death or serious
injury.
CAUTION
Indicates a potential hazard that
could result in minor or moderate
injury.
NOTICE
Indicates a potential hazard that
could result in vehicle damage.
WA R N I N G
Do not modify this vehicle. Modifica-
tion could adversely affect safety,
handling, performance, or durability
and may violate governmental regula-
tions. In addition, damage or perfor-
mance problems resulting from
modification may not be covered
under warranty.
NOTICE
Improper installation of mobile com-
munication equipment such as cellu-
lar telephones, CB (Citizen’s Band)
radios or any other wireless transmit-
ters may cause electronic interference
with your vehicle’s ignition system,
resulting in vehicle performance prob-
lems. Consult your SUZUKI dealer or
qualified service technician for advice.
NOTICE
The diagnostic connector of your
vehicle is prepared only for the spe-
cific diagnostic tool for inspection
and service purpose.
Connecting any other tool or device
may interfere with electronic parts
operations and cause running out of
batteries.

75RM4-01E
INTRODUCTIONThank you for choosing SUZUKI and welcome to our growing family. Your choice was a wise one; SUZUKI products have great value
that will give you driving pleasure for years.
This owner’s manual was prepared to give you a safe, enjoyable, and trouble-free experience with your SUZUKI vehicle. In this manual,
you will learn about the vehicle’s operation, its safety features and maintenance requirements . Please read the manual carefully before
operating your vehicle. Afterwar ds, keep this manual in the glove box for future reference.
Should you resell the vehicle, please leave this manual with it for the next owner.
In addition to the owner’s manual, the other booklets provided with your SUZUKI vehicle explain the vehicle’s warranties. We r ecom-
mend you read them as well to familiarize yourself with this important information.
When planning the regular scheduled maintenance of your SUZUKI vehicle, we recommend you visit your local SUZUKI dealer. Their
factory-trained technicians wi ll provide the best possible serv ice and use only genuine SUZUKI parts and accessories.
NOTE:
“SUZUKI dealer” means Authorized Suzuki Service Workshop (in Europe).

75RM4-01E

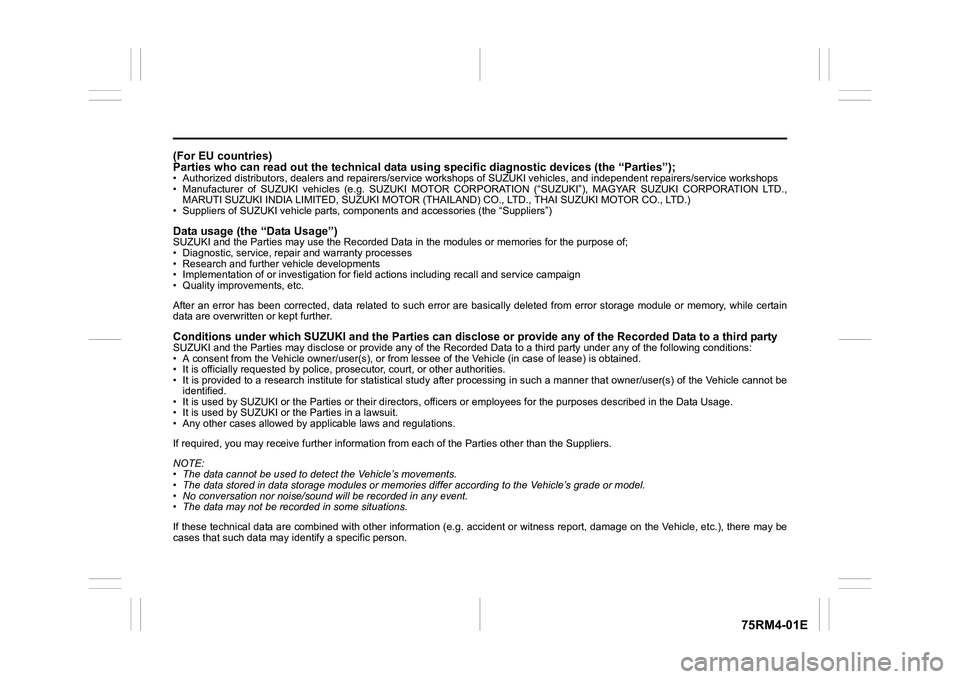

(For EU countries)
Parties who can read out the technical data using specific diag nostic devices (the “Parties”);• Authorized distributors, dealers and repairers/service worksho ps of SUZUKI vehicles, and independent repairers/service workshops
• Manufacturer of SUZUKI vehicles ( e.g. SUZUKI MOTOR CORPORATION (“SUZUKI”), MAGYAR SUZUKI CORPORATION LTD.,
MARUTI SUZUKI INDIA LIMITED, SUZ UKI MOTOR (THAILAND) CO., LTD., THAI SUZUKI MOTOR CO., LTD.)
• Suppliers of SUZUKI vehicle part s, components and accessories (the “Suppliers”)Data usage (the “Data Usage”)SUZUKI and the Parties may use t he Recorded Data in the modules or memories for the purpose of;
• Diagnostic, service, repair and warranty processes
• Research and further vehicle developments
• Implementation of or investigat ion for field actions including recall and service campaign
• Quality improvements, etc.
After an error has been corrected, data related to such error a re basically deleted from error storage module or memory, while certain
data are overwritten or kept further.Conditions under which SUZUKI and the Parties can disclose or p rovide any of the Recorded Data to a third partySUZUKI and the Parties may disclose or provide any of the Recorded Data to a third party under any of the following conditions:
• A consent from the Vehicle owner/ user(s), or from lessee of the Vehicle (in case of lease) is obtained.
• It is officially requested by police, prosecutor, court, or other authorities.
• It is provided to a research in stitute for statistical study after processing in such a manner that owner/user(s) of the Vehi cle cannot be
identified.
• It is used by SUZUKI or the Part ies or their directors, officers or employees for the purpose s described in the Data Usage.
• It is used by SUZUKI or t he Parties in a lawsuit.
• Any other cases allowed by ap plicable laws and regulations.
If required, you may receive fur ther information from each of the Parties other than the Suppliers.
NOTE:
• The data cannot be used to detect the Vehicle’s movements.
• The data stored in data storage modules or memories differ according to the Vehicle’s grade or model.
• No conversation nor noise/sound will be recorded in any event.
• The data may not be recorded in some situations.
If these technical data are combined with other information (e. g. accident or witness report, damage on the Vehicle, etc.), there may be
cases that such data may i dentify a specific person.

75RM4-01E
RECOMMENDATION OF GENUINE SUZUKI PARTS AND ACCESSORIES USESUZUKI strongly recommends the use of genuine SUZUKI parts* and accessories. Genuine SUZUKI parts and accessories are built to
the highest standards of quality and performance, and are desig ned to fit your vehicle’s exact specifications.
A wide variety of non-genuine replacement parts and accessories for SUZUKI vehicles are currently available in the market. Using these
parts and accessories can affect the vehicle performance and sh orten its useful life. Therefore, installation of non-genuine SUZUKI parts
and accessories is not covered under warranty.Non-genuine SUZUKI parts and accessoriesSome parts and accessories may be approved by certain authorities in your country.
Some parts and accessories are sold as SUZUKI-authorized replac ement parts and accessories. Some genuine SUZUKI parts and
accessories are sold as re-use parts and accessories. These par ts and accessories are non-genuine SUZUKI parts and accessories and
use of these parts is not covered under warranty.Re-use of genuine SUZUKI parts and accessoriesThe resale or re-use of the following items which could cause h azards for users is expressly forbidden:
• Air bag components and all other pyrotechn ic items, including their components (e.g. cushion , control devices and sensors)
• Seat belt system, inclu ding their components (e.g. webbing, buckles and retractors)
The air bag and seat belt pretensioner components contain explo sive chemicals. These components should be removed and disposed
of properly by SUZUKI-authorized service shop or scrap yard to avoid unintended explosion before scrapping.
*The parts remanufactured under SUZUKI’s approval can be used a s genuine SUZUKI parts in Europe.

75RM4-01E
SERVICE STATION GUIDE1. Fuel (see section 1)
2. Engine hood (see section 5)
3. Tire changing tools (see section 8)
4. Engine oil dipstick (see section 7)
5. CVT fluid dipstick (see section 7)
6. Engine coolant (see section 7)
7. Windshield washer fluid (see section 7)
8. Lead-acid battery (see section 7)
9. Tire pressure (see tire information label on driver’s door lock pillar)
10. Spare tire (see section 7) / Flat tire repair kit (see section 8)
75RM001
LHD: Left Hand Drive
RHD: Right Hand Drive
2
457
6
(LHD) 1(RHD)
3
1
(RHD)
2
1
(LHD)
2
8 9
9
10

75RM4-01E

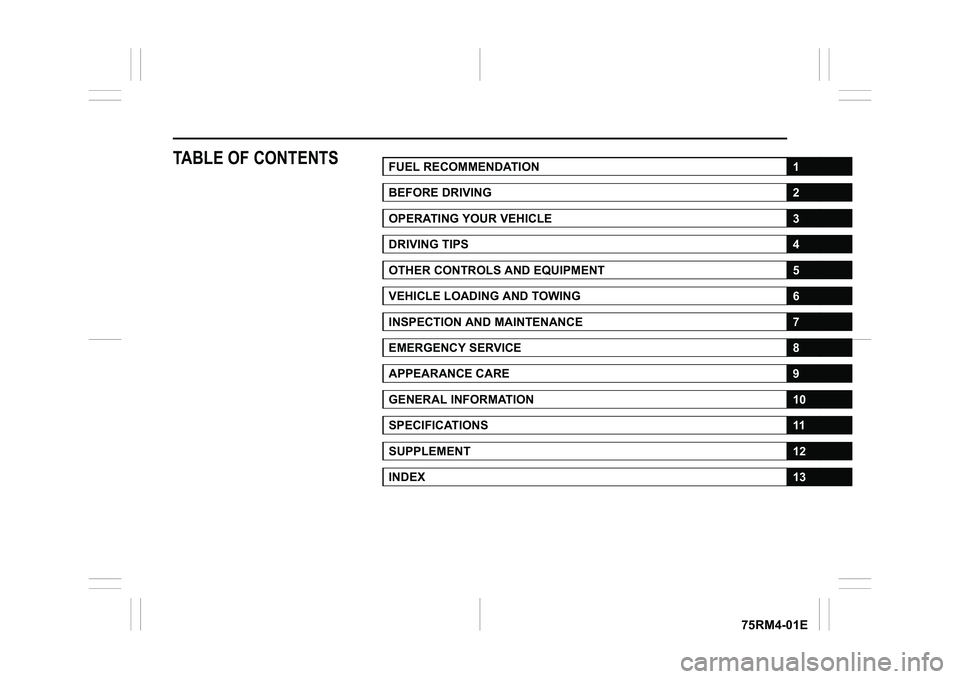

TABLE OF CONTENTS
FUEL RECOMMENDATION
1
BEFORE DRIVING
2
OPERATING YOUR VEHICLE
3
DRIVING TIPS
4
OTHER CONTROLS AND EQUIPMENT
5
VEHICLE LOADING AND TOWING
6
INSPECTION AND MAINTENANCE
7
EMERGENCY SERVICE
8
APPEARANCE CARE
9
GENERAL INFORMATION
10
SPECIFICATIONS
11
SUPPLEMENT
12
INDEX
13

2-52
BEFORE DRIVING
75RM4-01E
Seat belt pretensioner system
63J269
To determine if your vehicle is equipped
with a seat belt pretensioner system at the
front or rear seating positions, check the
label on the seat belt at the bottom part. If
the letters “p” and/or “PRE” appear as illus-
trated, your vehicle is equipped with the
seat belt pretensioner system. You can use
the pretensioner seat belts in the same
manner as ordinary seat belts.
Read this section and “Supplemental
restraint system (air bags)” section to learn
more about the pretensioner system.
The seat belt pretensioner system works
with the supplemental r estraint system (air
bags). The crash sensors and the elec-
tronic controller of t he air bag system also
control the seat belt pretensioners. The
pretensioners are triggered only when
there is a frontal or side crash severe
enough to trigger the air bags and the seat
belts are fastened. For precautions and
general information including servicing the
pretensioner system, refer to “Supplemen-
tal restraint system (air bags)” section in
addition to this “Seat belt pretensioner sys-
tem” section, and follow all those precau-
tions.
The pretensioner is located in each front
seat belt retractor and both side of the rear
seat belt retractor (if equipped). The pre-
tensioner tightens the seat belt so the belt
fits the occupant’s body more snugly in the
event of a frontal or side crash. The retrac-
tors will remain locked after the pretension-
ers are activated. Upon activation, some noise will occur and some smoke may be
released. These conditions are not harmful
and do not indicate a fire in the vehicle.
The driver and all passengers must be
properly restrained by fastening seat belts
at all times, whether or not a pretensioner
is equipped at their seating position, to
minimize the risk of severe injury or death
in the event o
f a crash.
Sit fully back in the seat; sit up straight; do
not lean forward or sideways. Adjust the
belt so the lap portion of the belt is worn
low across the pelvis , not across the waist.
Please refer to “Seat adjustment” section
and the instructions and precautions about
the seat belts in this “Seat belts and child
restraint systems” section for details on
proper seat and seat belt adjustments.
Please note that the pretensioners along
with the air bags will activate in severe
frontal or side crashes. They are not
designed to activate in rear impacts, roll-
overs, or minor frontal side crashes. The
pretensioners can be activated only once.
If the pretensioners are activated (that is, if
the air bags are activated), have the pre-
tensioner system serviced by an autho-
rized SUZUKI dealer as soon as possible.
If AIR BAG light on the instrument cluster
does not blink or come on briefly when the
ignition switch is turned to “ON” position or
the engine switch is pressed to change the
WA R N I N G
This section describes your SUZUKI
vehicle’s seat belt pretensioner sys-
tem. Read and follow all these
instructions carefully to minimize
your risk of severe injury or death.
and/or
Label
EXAMPLE

2-53BEFORE DRIVING
75RM4-01E
ignition mode to ON, stays on for more
than 10 seconds, or comes on while driv-
ing, the pretensioner system or the air bag
system may not work properly. Have both
systems inspected by an authorized
SUZUKI dealer as soon as possible.
Service on or around the pretensioner sys-
tem components or wiring must be per-
formed only by an authorized SUZUKI
dealer who is specially trained. Improper
service could result in unintended activa-
tion of pretensioners or could render the
pretensioner inoperative. Either of these
two conditions may result in personal
injury.
To prevent damage or unintended activa-
tion of the pretensioners, check that the
lead-acid battery is disconnected and the
ignition switch has been in “LOCK” position
or the ignition mode has been LOCK
(OFF) for at least 90 seconds before per-
forming any electrical service work on your
SUZUKI vehicle.
Do not touch preten sioner system compo-
nents or wiring. The wires are wrapped
with yellow tape or yellow tubing, and the
couplers are yellow. When scrapping your
SUZUKI vehicle, ask your SUZUKI dealer,
body repair shop, or scrap yard for assis-
tance.

2-65BEFORE DRIVING
75RM4-01E
Your vehicle is equipped with a diagnostic
module which records information about
the air bag system if the air bags deploy in
a crash. The module records information
about overall system status, and which
sensors activated the deployment.
Servicing the air bag system
If the air bags inflate, have the air bags
and related components replaced by an
authorized SUZUKI dealer as soon as pos-
sible.
If your vehicle ever gets in deep water and
the driver’s floor is submerged, the air bag
controller could be damaged. If this hap-
pens, ask your SUZUKI dealer to check
the air bag system as soon as possible.
Special procedures are required for servic-
ing or replacing an air bag. For that rea-
son, only an authorized SUZUKI dealer
should be allowed to service or replace
your air bags. Remind anyone who ser-
vices your SUZUKI vehicle that it has air
bags.
Service on or around air bag components
or wiring must be performed only by an
authorized SUZUKI dealer. Improper ser-
vice could result in unintended air bag
deployment or could render the air bag
inoperative. Either of these two conditions
may result in severe injury. To prevent damage or unintended inflation
of the air bag system, check that the lead-
acid battery is disconnected and the igni-
tion switch has been in “LOCK” position or
the ignition mode has been LOCK (OFF)
for at least 90 seconds before performing
any electrical service work on your
SUZUKI vehicle. Do not touch air bag sys-
tem components or wires. The wires are
wrapped with yellow tape or yellow tubing,
and the couplers are yellow for easy identi-
fication.
Scrapping a vehicle that has an uninflated
air bag can be hazardous. Ask your dealer,
body repair shop or scrap yard for help
with disposal.
Front passenger air bag deactiva-tion system (if equipped)
75RM189
The front passenger’s front air bag must
be deactivated if a child restraint system is
to be installed on the front passenger’s
seat.
When the ignition switch is turned to “ON”
position or the engine switch is pressed to
change the ignition mode to ON, “PAS-
SENGER AIRBAG ON” indicator (1) or
“PASSENGER AIRBAG OFF” indicator (2)
shows whether the front passenger’s air
bag is activated or deactivated.
(1)
(2)EXAMPLE
