SUZUKI IGNIS 2022 Owners Manual

5-36
OTHER CONTROLS AND EQUIPMENT
75RM4-01E

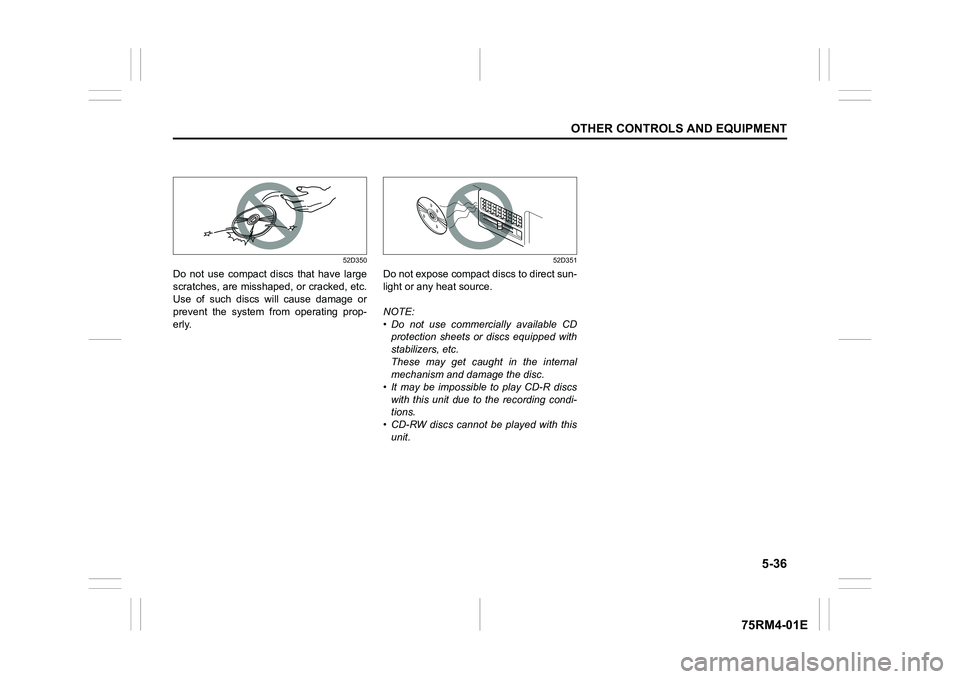

52D350
Do not use compact discs that have large
scratches, are misshaped, or cracked, etc.
Use of such discs will cause damage or
prevent the system from operating prop-
erly.
52D351
Do not expose compact discs to direct sun-
light or any heat source.
NOTE:
• Do not use commercially available CDprotection sheets or discs equipped with
stabilizers, etc.
These may get caught in the internal
mechanism and damage the disc.
• It may be impossible to play CD-R discs with this unit due to the recording condi-
tions.
• CD-RW discs cannot be played with this unit.

5-37OTHER CONTROLS AND EQUIPMENT
75RM4-01E
The Bluetooth
® word mark and logo are
registered trademarks and are owned by
the Bluetooth SIG, Ink.
Stop using this unit and a Bluetooth
®
ready device whenever requested.
This unit shares the communication fre-
quency with other priv ate or public wireless
communication equipment such as a wire-
less LAN and other wireless communica-
tion radios.
You should stop using this unit whenever
you are notified that your unit disturbs
other wireless communi cation immediately.Access to http://www.ptc.panasonic.eu/
,
enter the below
Model No. into the keyword search box,
you can download the latest “DECLARA-
TION of CONFORMITY” (DoC).
Set No. AZ1601
WA R N I N G
This is a class I laser product. Use
of controls or adjustments or perfor-
mance of procedures other than
those specified herein may result in
hazardous radiation exposure.
Do not open covers and do not
attempt to repair this unit by your-
self.
Ask an authorized dealer for the
repair.

5-38
OTHER CONTROLS AND EQUIPMENT
75RM4-01E

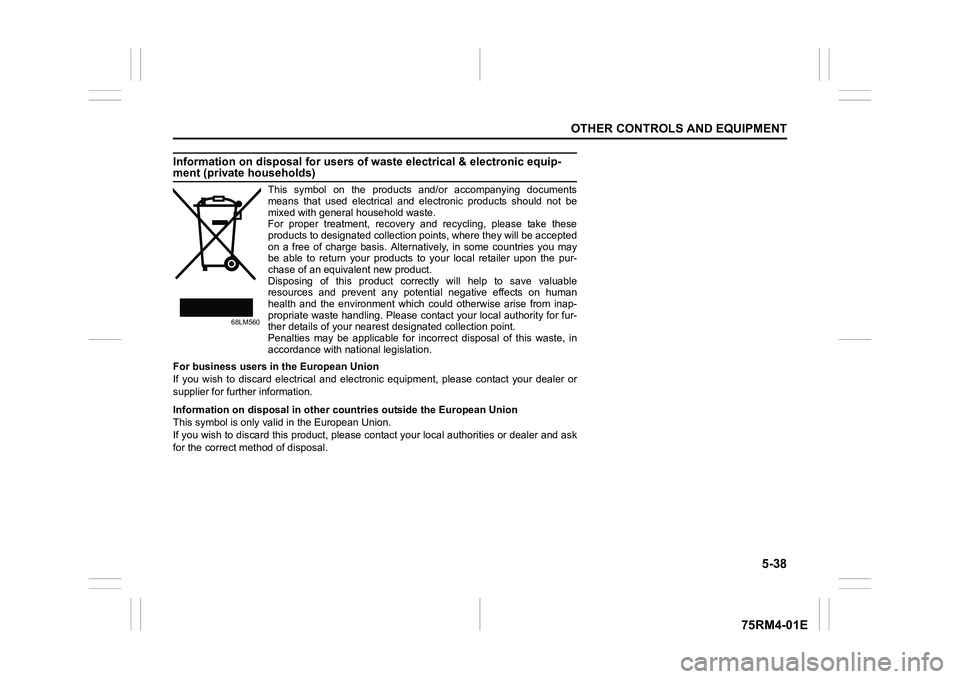

Information on disposal for users of waste electrical & electronic equip-ment (private households)
This symbol on the products and/or accompanying documents
means that used electrical and el ectronic products should not be
mixed with general household waste.
For proper treatment, recovery and recycling, please take these
products to designated collection points, where they will be ac cepted
on a free of charge basis. Alter natively, in some countries you may
be able to return your products to your local retailer upon the pur-
chase of an equivalent new product.
Disposing of this product correctly will help to save valuable
resources and prevent any potent ial negative effects on human
health and the environment which could otherwise arise from inap-
propriate waste handling. Please contact your local authority for fur-
ther details of your nearest d esignated collection point.
Penalties may be applicable for incorrect disposal of this wast e, in
accordance with national legislation.
For business users in the European Union
If you wish to discard electrical and electronic equipment, ple ase contact your dealer or
supplier for furt her information.
Information on disposal in other countries outside the European Union
This symbol is only vali d in the European Union.
If you wish to discard this product, please contact your local authorities or dealer and ask
for the correct met hod of disposal.
68LM560

5-39OTHER CONTROLS AND EQUIPMENT
75RM4-01E
Part 15 of the FCC Rules
FCC ID: ACJ932AZ1601
NOTE:
Properly shielded and grounded cables
and connectors must be used for connec-
tion to host computers and/or peripherals
in order to meet FCC emission limits.The Bluetooth
® word mark and logo are
registered trademarks and are owned by
the Bluetooth SIG, Ink.
NOTE:
This equipment complies with FCC radia-
tion exposure limits set forth for uncon-
trolled equipment and meets the FCC
radio frequency (RF) Exposure Guidelines
in Supplement C to OET65. This equip-
ment has very low level of RF energy
which does not comply with maximum per-
missive exposure (MPE) evaluation. But it
is desirable that it should be installed and
operated with at least 20cm and more
between the radiator and person’s body
(excluding extremities: hands, wrists, feet
and ankles).
WA R N I N G
RF Exposure
This equipment complies with FCC
radiation exposure limits set forth for
an uncontrolled environment and
meets the FCC radio frequency (RF)
Exposure Guidelines. This equipment
has very low levels of RF energy that
it deemed to comply without maxi-
mum permissive exposure evaluation
(MPE). [But it is desirable that it
should be installed and operated
keeping the radiator at least 20 cm or
more away from person’s body.]
CAUTION
Changes or modifications not
expressly approved by the party
responsible for compliance could
void the user’s authority to operate
the equipment.
WA R N I N G
This is a class I laser product. Use of
controls or adjustments or perfor-
mance of procedures other than
those specified herein may result in
hazardous radiation exposure.
Do not open covers and do not
attempt to repair this unit by yourself.
Ask an authorized dealer for the
repair.

5-40
OTHER CONTROLS AND EQUIPMENT
75RM4-01E
Stop using this unit and a Bluetooth
®
ready device whenever requested.
This unit shares the communication fre-
quency with other private or public wireless
communication equipment such as a wire-
less LAN and other wireless communica-
tion radios.
You should stop using this unit whenever
you are notified that your unit disturbs
other wireless communi cation immediately.NOTE:
These limits are designed to provide rea-
sonable protection against harmful interfer-
ence in a residential installation. This
equipment generates,
uses and can radi-
ate radio frequency energy and, if not
installed and used in accordance with the
instructions, may cause harmful interfer-
ence to radio communications. However,
there is no guarantee that interference will
not occur in a particular installation. If this
equipment does cause harmful interfer-
ence to radio or television reception, which
can be determined by turning the equip-
ment off and on, the user is encouraged to
try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving anten- na.
• Increase the separation between the
equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
• This transmitter must not be co-located or operated in conjunction with any other
antenna or transmitter.

5-41OTHER CONTROLS AND EQUIPMENT
75RM4-01E
Basic operations
75RM081
(1) “VOL PUSH PWR” knob
(2) “TUNE/FLD PUSH SOUND” knob
(3) MUTE button
(2)
(1)(2)
(1)
(2)(3)
(1)
7śSHаΝ
7śSHаΠ
EXAMPLE
Type C
Turning on/off power
Press “VOL PUSH PWR” knob (1) to turn
on the power. The unit starts to operate in
the previous setting that the power was
turned off.
Adjusting the volume
Turn “VOL PUSH PWR” knob (1).
Turning it clockwise increases the volume;
turning it counterclockwise decreases the
volume.
NOTE:
For the purposes of safe driving, adjust the
audio volume to a level that allows you to
hear sounds outside of the vehicle includ-
ing car horns and particularly emergency
vehicle sirens.
Mute
Press MUTE button (3) to mute the sound.
To cancel the mute, press MUTE button (3)
again.

5-42
OTHER CONTROLS AND EQUIPMENT
75RM4-01E

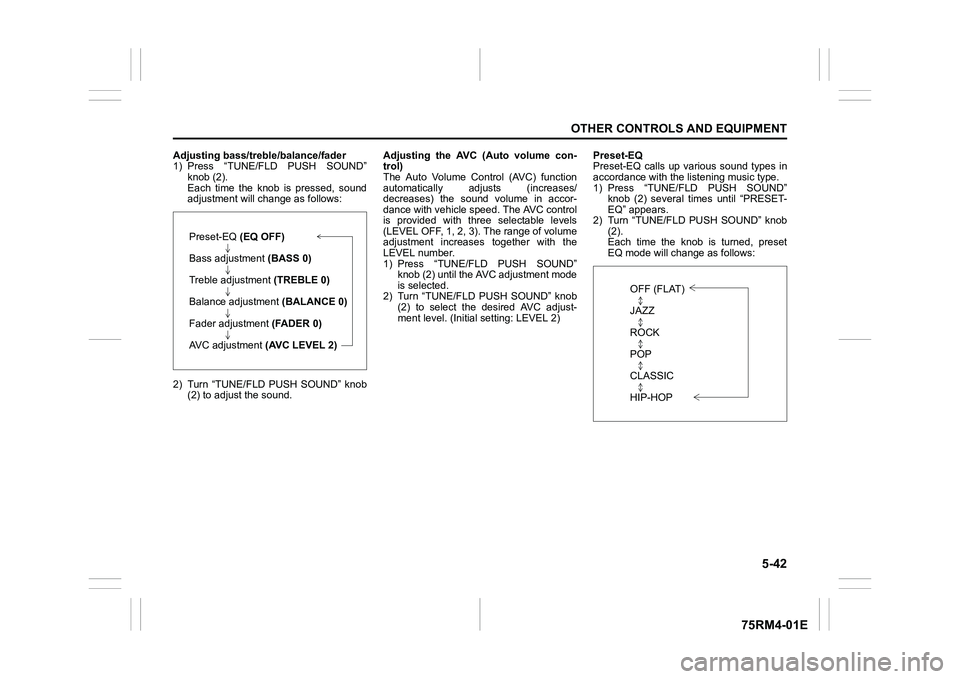

Adjusting bass/treble/balance/fader
1) Press “TUNE/FLD PUSH SOUND”knob (2).
Each time the knob is pressed, sound
adjustment will c hange as follows:
2) Turn “TUNE/FLD PUSH SOUND” knob (2) to adjust the sound. Adjusting the AVC (Auto volume con-
trol)
The Auto Volume Control (AVC) function
automatically adjusts (increases/
decreases) the sound volume in accor-
dance with vehicle speed. The AVC control
is provided with three selectable levels
(LEVEL OFF, 1, 2, 3). The range of volume
adjustment increases
together with the
LEVEL number.
1) Press “TUNE/FLD PUSH SOUND” knob (2) until the AV C adjustment mode
is selected.
2) Turn “TUNE/FLD PUSH SOUND” knob (2) to select the desired AVC adjust-
ment level. (Initi al setting: LEVEL 2) Preset-EQ
Preset-EQ calls up various sound types in
accordance with the listening music type.
1) Press “TUNE/FLD PUSH SOUND”
knob (2) several times until “PRESET-
EQ” appears.
2) Turn “TUNE/FLD PUSH SOUND” knob (2).
Each time the knob is turned, preset
EQ mode will change as follows:
Preset-EQ (EQ OFF)
Bass adjustment (BASS 0)
Treble adjustment (TREBLE 0)
Balance adjustment (BALANCE 0)
Fader adjustment (FADER 0)
AVC adjustment (AVC LEVEL 2)
OFF (FLAT)
JAZZ
ROCK
POP
CLASSIC
HIP-HOP

5-43OTHER CONTROLS AND EQUIPMENT
75RM4-01E
Listening to the radio (Type A)
75RM082
(2)(3)
(6)(4)
(5)
(1)EXAMPLE
Display
68LM561
(1) “RADIO” button
(2) UP button
(3) DOWN button
(4) “TUNE/FLD PUSH SOUND” knob
(5) PRESET buttons ([1] to [6])
(6) “AS” button
(A) Band
(B) Frequency
(A)
(B)

5-44
OTHER CONTROLS AND EQUIPMENT
75RM4-01E
Selecting the reception band
Press the “RADIO” button (1).
Each time the button is pressed, the recep-
tion band will change as follows:
Seek tuning
Press UP button (2) or DOWN button (3).
The unit stops searching for a station at a
frequency where a broadcast station is
available.
NOTE:
If AF is on, the unit searches for RDS sta-
tions only.
Manual tuning
Turn “TUNE/FLD PUSH SOUND” knob (4).
The frequency being received is displayed. Preset memory
1) Select the desired station.
2) Hold down a desired button ([1] to [6])
of PRESET buttons (5) to which you
want to store the station for 2 seconds
or longer.
Auto store
Hold down “AS” button (6) for 2 seconds or
longer.
6 stations in good re ception will automati-
cally be stored to PRESET buttons (5) in
order, starting from a station whose fre-
quency is the lowest.
NOTE:
• Auto store can be released by pressing
“AS” button (6) while auto store is under
way.
• When the auto store is performed, the
station previously stored in the memory
at the position is overwritten.
• When there are fewer than 6 stations that
can be stored even if 1 round of auto
store operation is performed, no station
will be stored at the remaining PRESET
buttons (5).
• 6 stations can be preset for FM1 and FM2 in common, and 6 stations for AM in
auto store mode.
• If AF is on, the unit searches for RDS stations only. Auto store mode on/off
Press “AS” button (6).
Each time the button is pressed, the mode
is switched as follows:
Radio reception
Radio reception can be affected by envi-
ronment, atmospheric conditions, or radio
signal’s power and distance from the sta-
tion. Nearby mountains and buildings may
interfere or deflect r
adio reception, causing
poor reception. Poor reception or radio
static can also be caused by electric cur-
rent from overhead wires or high voltage
power lines.
FM1 FM2 DAB1 (if equipped)AM DAB2 (if equipped)
AS mode on AS mode off

5-45OTHER CONTROLS AND EQUIPMENT
75RM4-01E
Listening to the radio (Type B / Type C)
75RM083
(5)(3)(4)
(1)
(2)
(6) (7)
(5)(3)(4)
(1)
(2)
(6) (7)
7śSHаΠ
7śSHаΑ
EXAMPLE
Display
(1) “FM” button
(2) “AM” button
(3) UP button
(4) DOWN button
(5) “TUNE/FLD PUSH SOUND” knob
(6) PRESET buttons ([1] to [6])
(7) “AS” button
(A) Band
(B) Frequency
(A)
(B)
