Page 16 of 421
![SUZUKI JIMNY 2020 Owners Manual ILLUSTRATED TABLE OF CONTENTS
1. Fuses (P.6-42) 2. Lighting control lever (P.2-55)/ Turn signal control lever (P.2-66)/ Front fog light switch (if equipped) (P.2-60)/Rear fog light switch (if equippe SUZUKI JIMNY 2020 Owners Manual ILLUSTRATED TABLE OF CONTENTS
1. Fuses (P.6-42) 2. Lighting control lever (P.2-55)/ Turn signal control lever (P.2-66)/ Front fog light switch (if equipped) (P.2-60)/Rear fog light switch (if equippe](/img/20/43483/w960_43483-15.png)
ILLUSTRATED TABLE OF CONTENTS
1. Fuses (P.6-42) 2. Lighting control lever (P.2-55)/ Turn signal control lever (P.2-66)/ Front fog light switch (if equipped) (P.2-60)/Rear fog light switch (if equipped) (P.2-60) 3. Remote audio controls (if equipped) (P.5-74) 4. Driver's front airbag (P.1-37) 5. Cruise control switches (if equipped) (P.3-22)/ Speed limiter switches (if equipped) (P.3-25) 6. Dual sensor brake support OFF switch (if equipped) (P.3-37) 7. Lane departure warning OFF switch (if equipped) (P.3-38) 8. Headlight washer switch (if equipped) (P.2-65) 9. Headlight leveling switch (if equipped) (P.2-65) 10. Engine hood release handle (P.5-2) 11. Fuel lid release lever (P.5-1) 12. Tilt steering column lock lever (P.2-70) 13. Hands-free switches (if equipped) (P.5-62) 14. Electric mirror control switch (if equipped) (P.2-14)
VIEW B 2 3 4 5
1
-----18·'"' 0til G ... : -\¥-' OFF OFF
' _____ )
9 8 7 6
78RB01006
Page 83 of 421
![SUZUKI JIMNY 2020 Owners Manual Pinching prevention function
(if equipped)
The drivers window is equipped with a pinching prevention function. This function detects a foreign object that is caught in the window as it is being clo SUZUKI JIMNY 2020 Owners Manual Pinching prevention function
(if equipped)
The drivers window is equipped with a pinching prevention function. This function detects a foreign object that is caught in the window as it is being clo](/img/20/43483/w960_43483-82.png)
Pinching prevention function
(if equipped)
The driver's window is equipped with a pinching prevention function. This function detects a foreign object that is caught in the window as it is being closed by AUTOUP feature, which allows you to close the window without holding the window switch in UP position, and stops the window from closing to prevent damage.
A. WARNING
To avoid injuring an occupant by window entrapment, check that no part of the occupant's body such as hands or head is in the path of the electric window when closing it. This function may not detect an object due to the size, hardness, or position of the object being caught in the closing window.
A.CAUTION
The pinching prevention function does not operate while you are holding the window switch in UP position. The pinching prevention function may not detect an object caught in the window just before the window is fully closed.
NOTE: Even if you cannot close the window by the AUTO-UP feature because there may be something wrong with the pinching prevention function, you can close the window by holding the window switch in UP position. If you drive in extreme off-road condition, the pinching prevention function may operate accidentally because the window reacts to vehicle jolting.
Pinching prevention function initialization When you disconnect and reconnect the lead-acid battery or replace the fuse, the function will be deactivated. In this condition, the AUTO-DOWN feature will be deactivated, while the AUTO-UP feature may remain activated. The pinching prevention function needs to be initialized.
BEFORE DRIVING
To initialize the pinching prevention function, use the following procedure: 1) Turn the ignition switch to "ON" posi
tion. 2) Open the driver's window fully by holding the window switch in DOWN position. 3) Close the driver's window by holding the switch in UP position, and keep holding the switch for 2 seconds after the window is fully closed. 4) Check the driver's window to see if the AUTO-DOWN/UP feature works.
A. WARNING
Whenever you disconnect and reconnect the lead-acid battery or replace the fuse, the pinching prevention function needs to be initialized. The pinching prevention function will not be activated until the initialization is completed.
If the AUTO-DOWN/UP feature will not work after initialization, there might be something wrong with the pinching prevention function. Have your vehicle inspected by a SUZUKI dealer.
2-12
Page 242 of 421
![SUZUKI JIMNY 2020 Owners Manual OTHER CONTROLS AND EQUIPMENT
The accessory socket will work when the ignition switch is in "ACC" or "ON" position. This socket can be used to provide 12 volt/ 120 watt/1 O ampere power for electrical SUZUKI JIMNY 2020 Owners Manual OTHER CONTROLS AND EQUIPMENT
The accessory socket will work when the ignition switch is in "ACC" or "ON" position. This socket can be used to provide 12 volt/ 120 watt/1 O ampere power for electrical](/img/20/43483/w960_43483-241.png)
OTHER CONTROLS AND EQUIPMENT
The accessory socket will work when the ignition switch is in "ACC" or "ON" position. This socket can be used to provide 12 volt/ 120 watt/1 O ampere power for electrical accessories. Check that the rubber cap remains on the socket when the socket is not in use.
5-7
NOTICE
To prevent the fuse from being blown, when using sockets at the same time, do not exceed the total combined power capacity of 12 volt/120 waW10 ampere. • Use of inappropriate electrical accessories can cause damage to your vehicle's electrical system. Check that any electrical accessories you use are designed to plug into this type of socket. • Check that the cap remains on the socket when the socket is not in use. When the ignition switch is in 11LOCK11 position during using the accessory socket, the following accidents may occur; -the audio or navigation system does not turn off. -the keyless entry system does not work, etc. If they occur, disconnect the item from the accessory socket and check whether the electrical equipments work properly. If the problem persists, ask a SUZUKI dealer to have the system inspected.
USB socket (if equipped)
78RB05014
Connect your portable digital music player, etc. to this socket to enjoy music through the vehicle's audio system. Refer to "Audio system (Type A I Type 8) (if equipped)" in this section.
NOTICE
Always close the cover when not in use, since entry of foreign material, dust, water, conductive liquids may damage the audio system or USS device.
Page 313 of 421
![SUZUKI JIMNY 2020 Owners Manual OTHER CONTROLS AND EQUIPMENT
Troubleshooting
When encountering a problem, check and follow the instructions below.
If the described suggestions do not solve the problem, it is recommended to take t SUZUKI JIMNY 2020 Owners Manual OTHER CONTROLS AND EQUIPMENT
Troubleshooting
When encountering a problem, check and follow the instructions below.
If the described suggestions do not solve the problem, it is recommended to take t](/img/20/43483/w960_43483-312.png)
OTHER CONTROLS AND EQUIPMENT
Troubleshooting
When encountering a problem, check and follow the instructions below.
If the described suggestions do not solve the problem, it is recommended to take the unit to your SUZUKI dealer.
Problem Possible cause Possible solution
Common
When "SECURITY" is displayed, enter
Unable to operate The security function is on. the PIN.
When "HELP" is displayed, contact your
SUZUKI dealer.
Unable to turn on the power Fuse is blown. Contact your SUZUKI dealer. (No sound is produced)
Radio
Much noise It may not be exactly tuned in to the sta-Tune it in exactly to the station. tion.
There rnay be no station emitting signals Pick up a station by manual tuning. powerful enough. Unable to receive by auto tuning If AF is on, the unit searches for RDS sta-
!ions only. Turn off AF.
CD
The disc is dirty. Wipe the disc with a soft cloth.
Sound skips or noise produced The disc has a major scratch or is Replace the disc with the one which has
warped. no scratch and warp.
5-78
Page 317 of 421
![SUZUKI JIMNY 2020 Owners Manual INSPECTION AND MAINTENANCE
INSPECTION AND MAINTENANCE
Maintenance schedule ........................................................ 6-2
Periodic maintenance schedule
(except for EU countries and I SUZUKI JIMNY 2020 Owners Manual INSPECTION AND MAINTENANCE
INSPECTION AND MAINTENANCE
Maintenance schedule ........................................................ 6-2
Periodic maintenance schedule
(except for EU countries and I](/img/20/43483/w960_43483-316.png)
INSPECTION AND MAINTENANCE
INSPECTION AND MAINTENANCE
Maintenance schedule ........................................................ 6-2
Periodic maintenance schedule
(except for EU countries and Israel) .................................. 6-3
Maintenance recommended under severe driving
conditions (except for EU countries and Israel) .............. 6-8
Periodic maintenance schedule
(for EU countries and Israel) .............................................. 6-13
Maintenance recommended under severe driving
conditions (for EU countries and Israel) ........................... 6-18
Drive belt .............................................................................. 6-23 -
Engine oil and filter ............................................................. 6-23
Engine coolant .................................................................... 6-28
Air cleaner ............................................................................ 6-30
Spark plugs .......................................................................... 6-30
Gear oil ................................................................................. 6-31
60G410 Clutch pedal ......................................................................... 6-33
Brakes .................................................................................. 6-33
Steering wheel ..................................................................... 6-36
Tyres ..................................................................................... 6-36
Battery .................................................................................. 6-41
Fuses .................................................................................... 6-42
Headlight aiming ................................................................. 6-46
Headlight Washer Fluid ...................................................... 6-46
Bulb replacement ................................................................ 6-47
Wiper blades ........................................................................ 6-54
Windshield washer fluid ..................................................... 6-57
Air conditioning system ..................................................... 6-58
Page 359 of 421
![SUZUKI JIMNY 2020 Owners Manual NOTE: (Battery label) When the battery is disconnected, some i::::-==-=="---------
of the vehicles functions will be initialized and/or deactivated. These functions must be required to reset afte SUZUKI JIMNY 2020 Owners Manual NOTE: (Battery label) When the battery is disconnected, some i::::-==-=="---------
of the vehicles functions will be initialized and/or deactivated. These functions must be required to reset afte](/img/20/43483/w960_43483-358.png)
NOTE: (Battery label) When the battery is disconnected, some i::::-==-=="---------
of the vehicle's functions will be initialized and/or deactivated. These functions must be required to reset after the battery is reconnected. Do not disconnect the battery terminals for at least one minute after the ignition switch is turned off.
A WARNING
Batteries contain toxic substances including sulfuric acid and lead. They could have potential negative consequences for the environment and human health. Used batteries must be disposed of or recycled according to applicable rules or regulations and must not be disposed of with ordinary household trash. Make sure not to tip over the battery when you remove it from the vehicle. Otherwise, sulfuric acid could run out and you might get injury.
NOTICE
After stopping the engine, controller and system are operated for a while. Therefore, before removing the battery, wait for more than one minute after turning the ignition switch to 110FF".
Pb>----(5)
51KM042
(5) Crossed-out wheeled bin symbol (6) Chemical symbol of "Pb"
The crossed-out wheeled bin symbol (5) located on the battery label indicates that the used battery should be collected separately from ordinary household trash. The chemical symbol of "Pb" (6) indicates the battery contains more than 0.004% lead.
By ensuring the used battery is disposed of or recycled correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate trash handling of the battery. The recycling of materials will help to conserve natural resources. For more detailed information about disposing of or recycling the used battery, consult a SUZUKI dealer.
INSPECTION AND MAINTENANCE
Fuses
Your vehicle has three types of fuses, as described below:
Main fuse The main fuse takes current directly from the lead-acid battery.
Primary fuses These fuses are between the main fuse and individual fuses, and are for electrical load groups.
Individual fuses These fuses are for individual electrical cir
cuits.
To remove a fuse, use the fuse puller provided in the fuse box cover.
78R807020
6-42
Page 360 of 421
![SUZUKI JIMNY 2020 Owners Manual INSPECTION AND MAINTENANCE
Fuses in engine compartment
(1) Main fuse box (2) Relay box
Main fuse box
~I----,
6-43
§]
§]
§]
0
[N]
78RB07021
78RB07022
Relay box
00illJ[@[]~ [£C][@[]~( SUZUKI JIMNY 2020 Owners Manual INSPECTION AND MAINTENANCE
Fuses in engine compartment
(1) Main fuse box (2) Relay box
Main fuse box
~I----,
6-43
§]
§]
§]
0
[N]
78RB07021
78RB07022
Relay box
00illJ[@[]~ [£C][@[]~(](/img/20/43483/w960_43483-359.png)
INSPECTION AND MAINTENANCE
Fuses in engine compartment
(1) Main fuse box (2) Relay box
Main fuse box
~I'----,
6-43
§]
§]
§]
0
[N]
78RB07021
78RB07022
Relay box
00illJ[@[]~ [£C][@[]~(30) [@[]Dill]
0~'12217a ~ ~(31} ~[@[]Dill]
~[@[]~ !Jill] Dill]
~ ~ [@[] [illiJ 8 ;~ ~(32) cc
!ril @DB ~z v (33) :~ ~ ~ FRONT ~
78RB07023
MAIN FUSE / PRIMARY FUSE
(1) 120A FL 1
(2) 100A FL2
(3) BOA FL3
(4) 100A FL4
(5) 50A FL5
(6) 50A Ignition switch
(7) 40A ABS motor
(8) -Blank
(9) 30A Blower fan
(10) 30A Starter motor
(11) 30A Headlight cleaner
(12) 15A Headlight (Right)
(13) 15A Headlight (Left)
(14) 25A ABS/ESP® control mod-ule
(15) -Blank
(16) 15A Ignition coil
(17) 25A Headlight high
(18) 30A Back up
(19) -Blank
(20) 15A Fuel injection
Page 361 of 421
![SUZUKI JIMNY 2020 Owners Manual (21) 15A Transmission
(22) 50A Ignition sw2
(23) 10 A A/C compressor
(24) 10A 4WD
(25) 20A Front fog light
(26) -Blank
(27) 40A Power steering
(28) -Blank
(29) 40A Radiator fan
(30) -Blank
( SUZUKI JIMNY 2020 Owners Manual (21) 15A Transmission
(22) 50A Ignition sw2
(23) 10 A A/C compressor
(24) 10A 4WD
(25) 20A Front fog light
(26) -Blank
(27) 40A Power steering
(28) -Blank
(29) 40A Radiator fan
(30) -Blank
(](/img/20/43483/w960_43483-360.png)
(21) 15A Transmission
(22) 50A Ignition sw2
(23) 10 A A/C compressor
(24) 10A 4WD
(25) 20A Front fog light
(26) -Blank
(27) 40A Power steering
(28) -Blank
(29) 40A Radiator fan
(30) -Blank
(31) 5A Starter motor
(32) 15A Headlight high (Left)
(33) 15A Headlight high (Right)
The main fuse, primary fuses and some of the individual fuses are located in the engine compartment. If the main fuse blows, no electrical component will function. If a primary fuse blows, no electrical component in the corresponding load group will function. When replacing the main fuse, a primary fuse or an individual fuse, use a genuine SUZUKI replacement parts or equivalent for individual fuses. To remove a fuse, use the fuse puller provided in the fuse box. The amperage of each fuse is shown in the back of the fuse box cover.
INSPECTION AND MAINTENANCE
IX! OK
BLOWN
60G111
A. WARNING
If the main fuse or a primary fuse blows, have your vehicle inspected by a SUZUKI dealer. Always use a genuine SUZUKI replacement. Never use a substitute such as a wire even for a temporary repair, or extensive electrical damage and a fire can result.
NOTE: Check that the fuse box always carries spare fuses.
6-44
Page 362 of 421
![SUZUKI JIMNY 2020 Owners Manual INSPECTION AND MAINTENANCE
Fuses under dashboard
6-45
78RB07024
1 2 3 4 5 6 7 8 9 10 11 12
71819202122232425
80P0185
PRIMARY FUSE
(1) 30A Power window
(2) 10A Meter
(3) 15A Engine Control Mo SUZUKI JIMNY 2020 Owners Manual INSPECTION AND MAINTENANCE
Fuses under dashboard
6-45
78RB07024
1 2 3 4 5 6 7 8 9 10 11 12
71819202122232425
80P0185
PRIMARY FUSE
(1) 30A Power window
(2) 10A Meter
(3) 15A Engine Control Mo](/img/20/43483/w960_43483-361.png)
INSPECTION AND MAINTENANCE
Fuses under dashboard
6-45
78RB07024
1 2 3 4 5 6 7 8 9 10 11 12
71819202122232425
80P0185
PRIMARY FUSE
(1) 30A Power window
(2) 10A Meter
(3) 15A Engine Control Module
(4) 5A lgnition-1 signal 2
(5) 20A Blank
(6) -Blank
(7) -Blank
(8) 20A Door lock
(9) 15A Steering lock
(10) 10A Hazard
(11) -Blank
(12) 10A Rear fog lamp
(13) 5A ABS/Esp® control mod-ule
(14) 15A Seat heater
(15) 5A lgnition-1 signal 3
(16) 10A Dome light-2
(17) 5A Dome light
(18) 15A Radio
(19) 5A CONT
(20) 5A Key2
(21) 20A Power window timer
(22) 5A Key
(23) 15A Horn
(24) 5A Tail light (Left)
(25) 10A Tail light
(26) 10A Airbag
(27) 10A lgnition-1 signal
(28) 10A Back-up light
(29) 5A ACC-3
(30) 20A Rear defogger
(31) 10A Heated mirror
(32) 15A ACC-2
(33) 5A ACC
(34) 10A Rear wiper
(35) 5A lgnition-2 signal
(36) 15A Washer
(37) 25A Front wiper
(38) 10A Stop light
Page 363 of 421

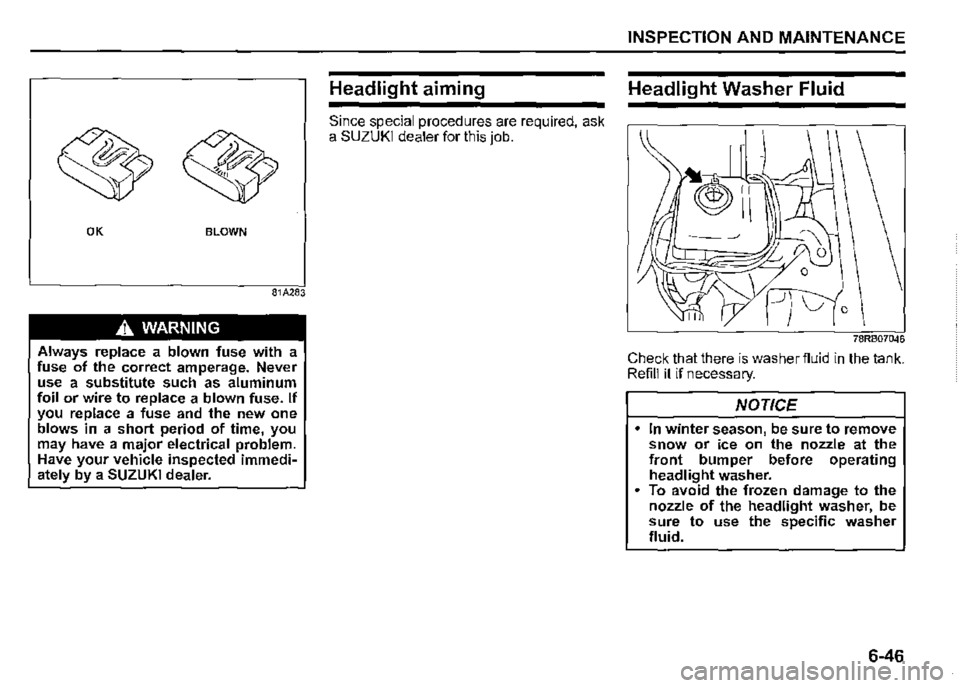

![SUZUKI JIMNY 2020 Owners Manual OK BLOWN
81A283
A WARNING
Always replace a blown fuse with a fuse of the correct amperage. Never use a substitute such as aluminum foil or wire to replace a blown fuse. If you replace a fuse and th SUZUKI JIMNY 2020 Owners Manual OK BLOWN
81A283
A WARNING
Always replace a blown fuse with a fuse of the correct amperage. Never use a substitute such as aluminum foil or wire to replace a blown fuse. If you replace a fuse and th](/img/20/43483/w960_43483-362.png)
OK BLOWN
81A283
A WARNING
Always replace a blown fuse with a fuse of the correct amperage. Never use a substitute such as aluminum foil or wire to replace a blown fuse. If you replace a fuse and the new one blows in a short period of time, you may have a major electrical problem. Have your vehicle inspected immediately by a SUZUKI dealer.
Headlight aiming
Since special procedures are required, ask a SUZUKI dealer for this job.
INSPECTION AND MAINTENANCE
Headlight Washer Fluid
78RB07046
Check that there is washer fluid in the tank. Refill it if necessary.
NOTICE
In winter season, be sure to remove snow or ice on the nozzle at the front bumper before operating headlight washer. To avoid the frozen damage to the nozzle of the headlight washer, be sure to use the specific washer fluid.
6-46
