OTHER CONTROLS AND EQUIPMENT
Listening to the radio (Type A)
" (1) =•
" MEDIA
" =
-"" """
' I ' I ' I "
(5)
5-41
• A (2)
(3)
(6)
~
•
I
(4)
78RB05058
Display
(A)
I FM!
68LM561
(1) "RADIO" button
(2) UP button
(3) DOWN button
(4) "TUNE/FLO PUSH SOUND" knob
(5) PRESET buttons ([1] to [6])
(6) "AS" button
(A) Band
(B) Frequency

Selecting the reception band
Press the "RADIO" button (1 ).
Each time the button is pressed, the recep­
tion band will change as follows:
Ff 1 ➔ FM2 ➔ DAB1 (if eq,uipped) l
AM <-DAB2 (if equipped)
Seek tuning
Press UP button (2) or DOWN button (3).
The unit stops searching for a station at a
frequency where a broadcast station is
available.
NOTE:
If AF is on, the unit searches for RDS sta­
tions only.
Manual tuning
Turn "TUNE/FLO PUSH SOUND" knob (4).
The frequency being received is displayed.
OTHER CONTROLS AND EQUIPMENT
Preset memory
1) Select the desired station.
2) Hold down a desired button ([1] to [6])
of PRESET buttons (5) to which you
want to store the station for 2 seconds
or longer.
Auto store
Hold down "AS" button (6) for 2 seconds or
longer.
6 stations in good reception will automati­
cally be stored to PRESET buttons (5) in
order, starting from a station whose fre­
quency is the lowest.
NOTE:
• Auto store can be released by pressing
"AS" button (6) while auto store is under
way.
• When the auto store is performed, the
station previously stored in the memory
at the position is overwritten.
• When there are fewer than 6 stations
that can be stored even if 1 round of auto
store operation is performed, no station
will be stored at the remaining PRESET
buttons (5).
• 6 stations can be preset for FM1 and
FM2 in common, and 6 stations for AM in
auto store mode.
• ff AF is on, the unit searches for RDS
stations only.
Auto store mode on/off
Press "AS" button (6).
Each time the button is pressed, the mode
is switched as follows:
Radio reception
Radio reception can be affected by envi­
ronment, atmospheric conditions, or radio
signal's power and distance from the sta­
tion. Nearby mountains and buildings may
interfere or deflect radio reception, causing
poor reception. Poor reception or radio
static can also be caused by electric cur­
rent from overhead wires or high voltage
power lines.
5-42

OTHER CONTROLS AND EQUIPMENT
Listening to the radio (Type B / Type C)
Type B
TypeC
5-43
(1) (2)
(1) (2)
(6)
(3) (4)
~~~n~'M~(?)
I ' I ".' I 7 I ".' I : I ..,_ .P J (5)
(6)
78RB05059
Display
(A)
I FM1
(1) "FM" button (2) "AM" button (3) UP button
(B)
(4) DOWN button (5) "TUNE/FLO PUSH SOUND" knob (6) PRESET buttons ([1] to [61) (7) "AS" button
(A) Band (B) Frequency

Selecting the FM band Press "FM" button (1 ). Each time the button is pressed, the recep­tion band will change as follows:
FM1 ➔ FM2
1 I
Selecting the AM band Press "AM" button (2).
Seek tuning Press UP button (3) or DOWN button (4). The unit stops searching for a station at a frequency where a broadcast station is available.
Manual tuning Turn "TUNE/FLO PUSH SOUND" knob (5). The frequency being received is displayed.
Preset memory 1) Select the desired station. 2) Hold down a desired button ([1] to [6]) of the PRESET buttons (6) to which you want to store the station for 2 seconds or longer.
OTHER CONTROLS AND EQUIPMENT
Auto store Hold down "AS" button (7) for 2 seconds or longer. 6 stations in good reception will automati­cally be stored to PRESET buttons (6) in order, starting from a station whose fre­quency is the lowest.
NOTE: Auto store can be released by pressing •~s" button (7) while auto store is under way. When the auto store is performed, the station previously stored in the memory at the position is overwritten. When there are fewer than 6 stations that can be stored even if 1 round of auto store operation is performed, no station will be stored at the remaining PRESET buttons (6). 6 stations can be preset for FM1 and FM2 in common, and 6 stations for AM in auto store mode.
Auto store mode on/off Press "AS" button (7). Each time the button is pressed, the mode is switched as follows:
AS mode on ➔ AS mode off
t I
Radio reception Radio reception can be affected by envi­ronment, atmospheric conditions, or radio signal's power and distance from the sta­tion. Nearby mountains and buildings may interfere or deflect radio reception, causing poor reception. Poor reception or radio static can also be caused by electric cur­rent from overhead wires or high voltage power lines.
5-44

OTHER CONTROLS AND EQUIPMENT
Using the RDS functions (Type A)
(1) MEDIA
(6) (3) (2)
5-45
•
V (4)
(5)
78RB05060
Display
(A)
I FM-l=IS
(1) "TA" button
(2) "RDM/PTY" button
(3) "RPT/AF" button
(4) UP button
(5) DOWN button
(6) "DISP" button
(A) Band
(B) Channel number
(B)
I Cl-16 881 f;:4
(C)
(C) Program service (PS) name
68LM562

TA (Traffic Announcement) on/off
Press "TA" button (1 ).
Each time it is pressed, TA adjustment is
changed as follows:
NOTE:
• For listening to only traffic information,
activate TA. Once traffic information
starts, the volume changes automati­
cally.
• "TP" indicator lights up when TP (Traffic
Program) is on. It blinks when no TP data
is received.
• "TA" indicator lights while TA is activated.
On the other hand, "TA" indicator blinks if
the TP data cannot be received.
• If UP button (4) or DOWN button (5) is
pressed while TA or TP is set to on, the
unit searches for a TP station.
• If no TP station is received, the unit dis­
plays "TP NOTHING".
OTHER CONTROLS AND EQUIPMENT
PTY (Program Type) search
1) Press "RDM/PTY" button (2) to select
PTY mode.
2) Press "RDM/PTY" button (2) while PTY
is displayed.
Each time it is pressed, PTY adjust­
ment is changed as follows:
NEWS~-------­
,!,
SPORTS
,I,
TALK
,I,
POP
,I,
CLASSICS-------'
3) Press UP button (4) or DOWN button
(5) while PTY is displayed.
Search begins.
NOTE:
If no PTY information is received, the unit
displays "NOPTY".
AF (Alternative Frequency) on/off
Press "RPT/AF" button (3).
Each time it is pressed, AF adjustment is
changed as follows:
AF-ON/REG-OFF , ··~ ,I,
AF-ONIREG-ON
AF-OtFIREG-OFF
AF: If the reception condition becomes
poor, the frequency of the same program
with good reception is automatically
searched.
REG: With regard to the automatically
searched frequency with AF activated, the
alternative frequency of the same program
is searched within the present region when
REG is activated.
NOTE:
''AF" indicator lights up when AF is on. In
addition, "REG" indicator lights up when
REG ison.
5-46

OTHER CONTROLS AND EQUIPMENT

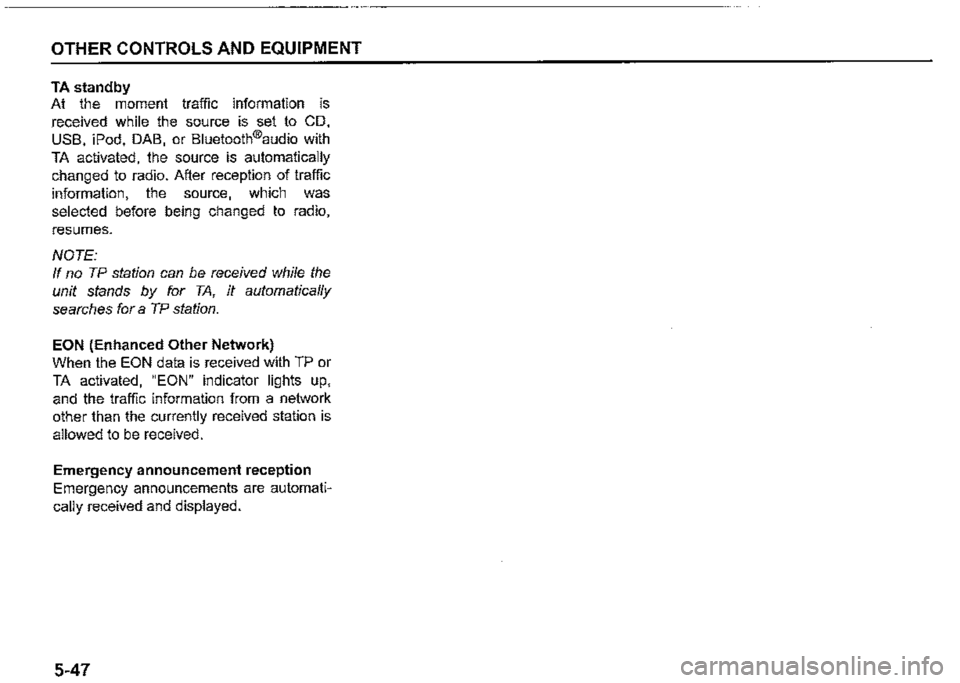

TA standby
At the moment traffic information is
received while the source is set to CD,
USB, iPod, DAB, or Bluetooth®audio with
TA activated, the source is automatically
changed to radio. After reception of traffic
information, the source, which was
selected before being changed to radio,
resumes.
NOTE:
If no TP station can be received while the
unit stands by for TA, it automatically
searches for a TP station.
EON (Enhanced Other Network)
When the EON data is received with TP or
TA activated, "EON" indicator lights up,
and the traffic information from a network
other than the currently received station is
allowed to be received.
Emergency announcement reception
Emergency announcements are automati­
cally received and displayed.
5-47

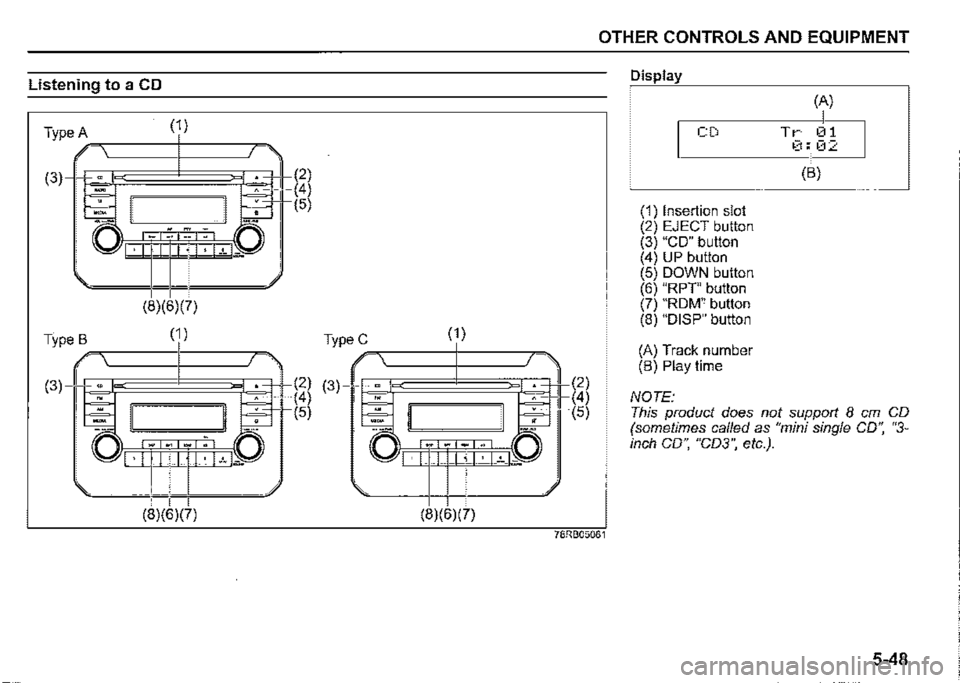

Listening to a CD
(1) Type A ,,,_.,---------j----r=,_
(3)
(8)(6)(7)
(1) Type B ,r=,:----t---7"'>.
(3)
(8)(6)(7)
(1) TypeC ;=,-------+---,-,
(2) (3) (4) (5)
(8)(6)(7)
OTHER CONTROLS AND EQUIPMENT
78RB05061
Display
(A)
I CD Tr 01
(1) Insertion slot (2) EJECT button (3) "CD" button (4) UP button (5) DOWN button (6) "RPT" button (7) "ROM" button (8) "DISP" button
(A) Track number (B) Play time
NOTE:
~3: 02 I (B)
This product does not support 8 cm CD (sometimes called as "mini single CD", "3-inch CD", "CD3", etc.).
5-48

Random playback Press "ROM" button (7). Each time the button is pressed, the mode will change as follows:
OFF ➔ TRACK RANDOM
t I
TRACK RANDOM The random indicator "ROM" will light. The tracks in the loaded disc will be played in random order.
Repeat playback Press "RPT" button (6). Each time the button is pressed, the mode will change as follows:
OFF ➔ TRACK REPEAT
t I
• TRACK REPEAT The repeat indicator "RPT" will light. The track currently being played will be played repeatedly.
OTHER CONTROLS AND EQUIPMENT
Display change Press "DISP" button (8). Each time the button is pressed, display will change as follows:
Play time --------­,!, Disc title .J, Track title --------~
NOTE: "NO TITLE" will be displayed when there is no text information in the disc currently being played. If text data contains more than 16 char­acters, ">" mark will appear at the right end. Holding down "DISP" button /8) for 1 second or longer can display the next
page.
5-50

OTHER CONTROLS AND EQUIPMENT
Listening to an MP3/WMA/AAC disc
(6)(4 )(5)
Type B ,r,c-------""r",
(6)(4)(5)
5-51
(2) (3)
(1)
(2) (3)
(1)
~~~~~~UL(2)
C:::,:::=Hl----(3)
(1)
(6)(4)(5)
78RB05062
Display
(A) (B)
C[> F003-001 MP3 0:02
(D) (C)
(1) "TUNE/FLD PUSH SOUND" knob (2) UP button (3) DOWN button (4) "RPT" button (5) "RDM" button (6) "DISP" button
(A) Folder number (B) Track number (C) Play time (D) File type
