Page 43 of 388
2-24
BEFORE DRIVING
57L20-03E
57L21110

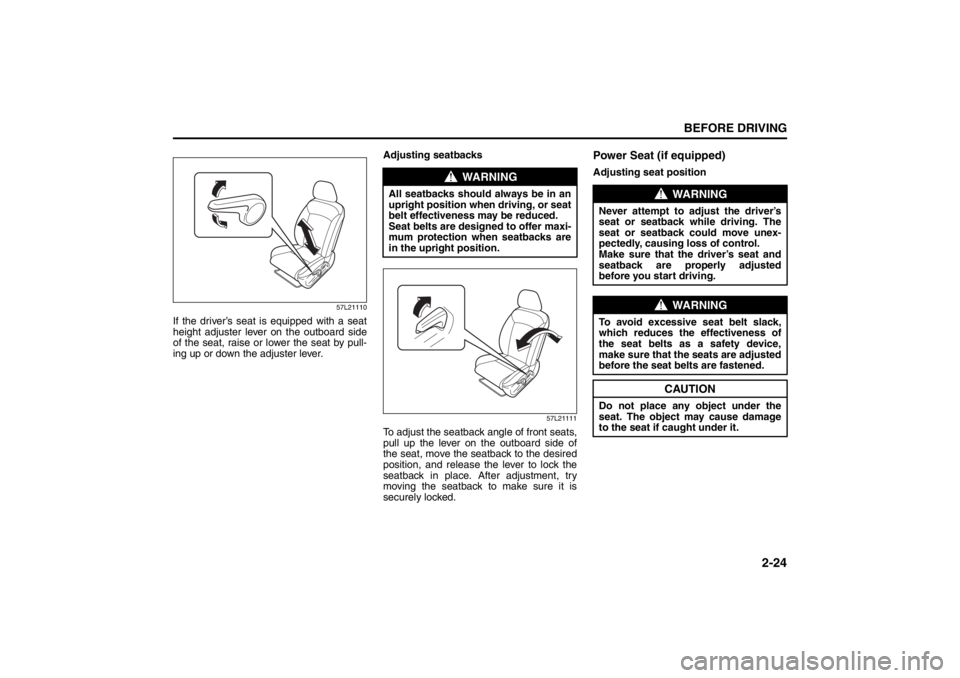

If the driver’s seat is equipped with a seat
height adjuster lever on the outboard side
of the seat, raise or lower the seat by pull-
ing up or down the adjuster lever.Adjusting seatbacks
57L21111
To adjust the seatback angle of front seats,
pull up the lever on the outboard side of
the seat, move the seatback to the desired
position, and release the lever to lock the
seatback in place. After adjustment, try
moving the seatback to make sure it is
securely locked.
Power Seat (if equipped)Adjusting seat position
WARNING
All seatbacks should always be in an
upright position when driving, or seat
belt effectiveness may be reduced.
Seat belts are designed to offer maxi-
mum protection when seatbacks are
in the upright position.
WARNING
Never attempt to adjust the driver’s
seat or seatback while driving. The
seat or seatback could move unex-
pectedly, causing loss of control.
Make sure that the driver’s seat and
seatback are properly adjusted
before you start driving.
WARNING
To avoid excessive seat belt slack,
which reduces the effectiveness of
the seat belts as a safety device,
make sure that the seats are adjusted
before the seat belts are fastened.
CAUTION
Do not place any object under the
seat. The object may cause damage
to the seat if caught under it.
Seat Belts and Child Restraint Systems: 3
Page 50 of 388
2-31BEFORE DRIVING
57L20-03E
To reinstall the head restraints, do the fol-
lowing:
For the left and right seating places, insert
the head restraint while still in its forward-
tipped position (do not face the backside
forward) into the seatback until it locks.
Then tilt it back to the normal position. The
height of the reinstalled head restraints
must be adjusted properly before use.
NOTE:
It is recommended to tilt the head
restraints forward to have a better rearward
view.Central seating place
57L30061

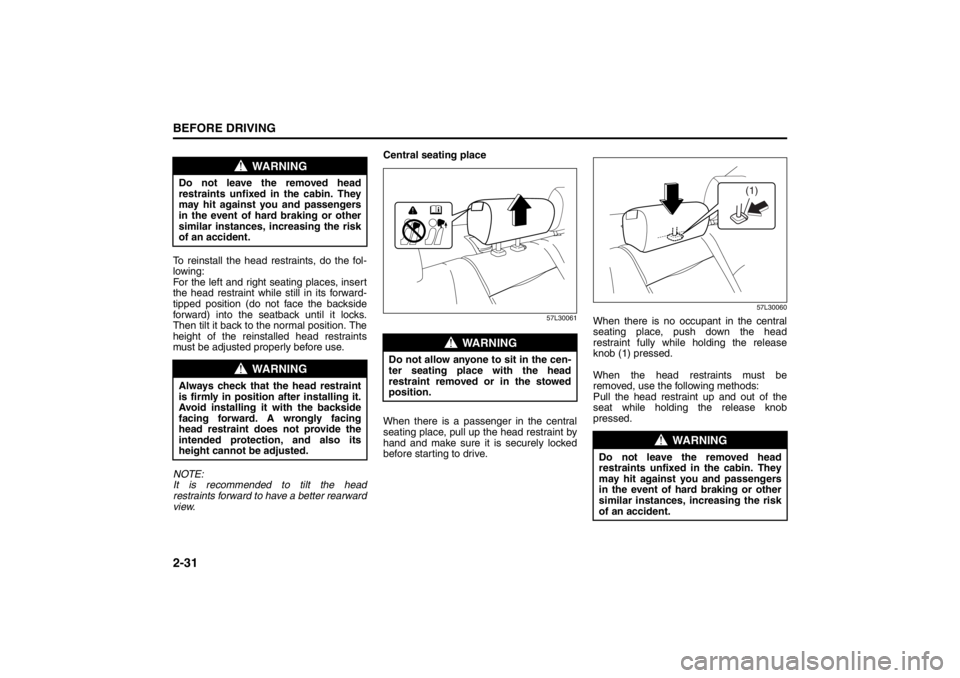

When there is a passenger in the central
seating place, pull up the head restraint by
hand and make sure it is securely locked
before starting to drive.
57L30060
When there is no occupant in the central
seating place, push down the head
restraint fully while holding the release
knob (1) pressed.
When the head restraints must be
removed, use the following methods:
Pull the head restraint up and out of the
seat while holding the release knob
pressed.
WARNING
Do not leave the removed head
restraints unfixed in the cabin. They
may hit against you and passengers
in the event of hard braking or other
similar instances, increasing the risk
of an accident.
WARNING
Always check that the head restraint
is firmly in position after installing it.
Avoid installing it with the backside
facing forward. A wrongly facing
head restraint does not provide the
intended protection, and also its
height cannot be adjusted.
WARNING
Do not allow anyone to sit in the cen-
ter seating place with the head
restraint removed or in the stowed
position.
WARNING
Do not leave the removed head
restraints unfixed in the cabin. They
may hit against you and passengers
in the event of hard braking or other
similar instances, increasing the risk
of an accident.
(1)
Seat Belts and Child Restraint Systems: 3
Page 51 of 388
2-32
BEFORE DRIVING
57L20-03E
To reinstall the head restraints, do the fol-
lowing:
With the correct side facing forward, insert
the head restraint into the seat until it is
locked at a height. Then adjust the height
as desired.
Folding Rear SeatsThe rear seats of your vehicle can be folded
forward to provide additional cargo space.
To fold the rear seats forward:
57L30037
1) Stow the seatbelt for the rear center
seat in the retractor behind the head
restraint and retain its end in the holder
so that the seatback for the left seating
place can be folded.
2) Adjust all the head restraints to the low-
est positions. In addition, tip forward the
head restraints for the right and left
seats.
3) Detach the seat belts for the right and
left seats from the seatbacks as shown
in the illustration so the belts are not
caught when the seatbacks are moved.
57L30038
4) Pull the release lever (1) on the top of
each split seat, and fold the seatbacks
forward.
WARNING
Always check that the head restraint
is firmly in position after installing it.
Avoid installing it with the backside
facing forward. A wrongly facing
head restraint does not provide the
intended protection, and also its
height cannot be adjusted.
CAUTION
After folding the rear seatback for-
ward, do not allow any foreign mate-
rial to enter the lock opening. This
may cause damage to the inside of
the lock and prevent the seatback
from being locked securely.
(1)
Seat Belts and Child Restraint Systems: 3
Page 62 of 388
2-43BEFORE DRIVING
57L20-03E
changed to “LOCK” (OFF) by pressing the
engine switch.
Front passenger’s seat belt reminder (if
equipped)
The front passenger’s seat belt reminder
will activate only when there is a passen-
ger sitting in the front seat. In some situa-
tions, however, such as when you place
heavy objects in the front seat, the seat
belt reminder can be activated as if there
were a passenger present. The front pas-
senger’s seat belt reminder works in the
same manner as the driver’s seat belt
reminder, except that it is not activated
until 10 seconds after the ignition mode is
changed to “ON” by pressing the engine
switch.
Shoulder Anchor Height Adjuster
57L21045
Adjust the shoulder anchor height so that
the shoulder belt rides on the center of the
outside shoulder. To upward, slide the
anchor up. To downward, slide the anchor
down while down the lock lever. After
adjustment, make sure that the anchor is
securely locked.
Seat Belt Inspection
65D209S
Periodically inspect the seat belts to make
sure they work properly and are not dam-
aged. Check the webbing, buckles, latch
plates, retractors, anchorages and guide
loops. Replace any seat belts which do not
work properly or are damaged.
WARNING
Be sure that the shoulder belt is posi-
tioned on the center of the outside
shoulder. The belt should be away
from your face and neck, but not fall-
ing off your shoulder. Misadjustment
of the belt could reduce the effective-
ness of the safety belt in a crash.
EXAMPLE
EXAMPLE
Page 129 of 388
2-110
BEFORE DRIVING
57L20-03E
Tilt/Telescoping/Steering
Lock Lever (if equipped)
57L21074
(1) LOCK
(2) UNLOCK
The lock lever is located under the steering
column. To adjust the steering wheel
height and fore-aft position:
1) Push down the lock lever to unlock the
steering column.
2) Adjust the steering wheel to the desired
height and fore-aft position and lock the
steering column by pulling up the lock
lever.
3) Try moving the steering wheel up and
down and back and forth to make sure
it is securely locked in position.
CAUTION
To help prevent damage to the wind-
shield wiper and washer system
components, you should take the fol-
lowing precautions:
Do not continue to hold in the lever
when there is no windshield
washer fluid being sprayed or the
washer motor can be damaged.
Do not attempt to remove dirt from
a dry windshield with the wipers or
you can damage the windshield
and the wiper blades. Always wet
the windshield with washer fluid
before operating the wipers.
Clear ice or packed snow from the
wiper blades before using the wip-
ers.
Check the washer fluid level regu-
larly. Check it often when the
weather is bad.
Only fill the washer fluid reservoir
3/4 full during cold weather to allow
room for expansion if the tempera-
ture falls low enough to freeze the
solution.
(1)
(2)
EXAMPLE
WARNING
Never attempt to adjust the steering
wheel while the vehicle is moving or
you could lose control of the vehicle.
Page 156 of 388
3-25OPERATING YOUR VEHICLE
57L20-03E
NOTE:
Thin poles or obstacles lower than the
sensors may become undetectable as
the vehicle moves closer to them even if
they have been detected from longer dis-
tances. The system may calculate the distance
to a road sign or similar obstacle to be
shorter than the actual distance.
Certification (Canada only)
This ISM device complies with Canadian
ICES*-001
* Interference-Causing Equipment Stan-
dards
CAUTION
Under the following conditions, the
parking sensor system may not
work normally because the sensors
cannot detect obstacles correctly.
– Sensors are covered with mud,
ice or other materials. (Such
materials must be removed for
normal operation.)
– Sensors are wet from water
splashes or heavy rain.
– Sensors are covered by a hand,
sticker, accessory, etc.
– There is an accessory or other
object attached within the sen-
sor’s sensing area.
– Items such as tow hooks, a back-
lit license plate, commercially
available corner poles, radio
antenna, etc. are installed on the
bumper.
– The height of the bumper is
changed due to alteration to the
suspension or other causes.
– The sensor areas are extremely
hot from direct sunlight or cold
due to freezing weather.
– The vehicle is on a rough sur-
face, slope, gravel road or grass
field.
– The vehicle is at a steep angle.
(Continued)
CAUTION
(Continued)
– Sensors have intercepted ultra-
sonic noise from another vehi-
cle’s horn, engine, air braking
system (large vehicles), or park-
ing sensor.
– Obstacles are too close to the
sensors.
– Sensors are at an angle to a
highly reflective object such as
glass. (Ultrasonic waves are not
reflected back from the obstacle.)
Sensors may not be able to cor-
rectly detect the following types of
obstacles:
– Objects made of a thin material
like wire netting and ropes
– Square-shaped curbstones or
other objects with sharp edges
– Tall objects with a large upper
part like a road sign
– Low-profile objects such as curb-
stones
– Sound-absorbing objects such
as cotton and snow
Page 313 of 388
7-28
INSPECTION AND MAINTENANCE
57L20-03E
TiresFor safe operation of your vehicle, it is
important that the tires be the correct
type and size, in good condition, and
properly inflated. Be sure to follow the
requirements and recommendations in
this section.
Tire Sidewall Labeling
Useful information about a tire is
molded into its sidewall. The example
below shows a typical passenger car
tire.
Typical Passenger Car Tire Sidewall
67D027
A. Tire Manufacturer
The name of the tire manufacturer
is shown here.B. Tire Name/Model
The tire name or model is shown
here.
C. Tire Size
The tire size code is a combina-
tion of letters and numbers used
to define a particular tire’s width,
height, aspect ratio, construction
type, and service description. See
the “Tire Size” explanation later in
this section for more details.
D. U.S. DOT Tire Identification Num-
ber
The Department of Transportation
(DOT) marking indicates that the
tire is in compliance with the U.S.
Department of Transportation
Motor Vehicle Safety Standards.
The letters and numbers following
the DOT marking is the Tire Iden-
tification Number (TIN). The TIN
identifies the tire manufacturer
and plant, tire size, and date the
tire was manufactured.
E. Uniform Tire Quality Grading
(UTQG)
Tire manufacturers are required to
grade tires based on three perfor-
mance factors: treadwear, traction
and temperature resistance.
Refer to the “Uniform Tire Quality
Grading” section for more details.F. Load Rating
Load rating is the maximum
weight a tire is designed to sup-
port in normal service.
G. Max Inflation Pressure
Max inflation pressure is the max-
imum inflation pressure a tire is
designed for.
H. Tire Ply Material
These tire markings describe the
type of cord and number of plies
in the sidewall and under the
tread.
I. Load Index and Speed Rating
The two- or three-digit number is
the tire’s load index, the maximum
load a tire can carry at the speed
indicated by its speed symbol at
the maximum inflation pressure.
The higher the number is, the
greater the load carrying capacity.
The letter symbol denotes the
speed at which a tire is designed
to be driven for extended periods
of time. (Ratings are listed below.)
AH B
G
E
FD
J I
C
Letter Rating Speed Rating
Q99 mph
R 106 mph
S 112 mph
T 118 mph
Page 314 of 388
7-29INSPECTION AND MAINTENANCE
57L20-03E
*The letters ZR may be used on tires
with a maximum speed capability over
149 mph and will always be used on
tires with a maximum speed capability
over 186 mph.
J. M+S Marking
This marking indicates the tire
has some mud and snow capabili-
ties and is designed for all-season
use.Tire Size
The following illustration shows an
example of a typical passenger car tire
size.
67D028
A. Tire Type
This letter code indicates the pri-
mary intended use of the tire. The
letter “P” identifies a tire primarily
intended for use on a passenger
vehicle.
B. Tire Width
This three-digit number indicates
the tire section width in millime-
ters from sidewall to sidewall.
C. Aspect Ratio
This two-digit number represents
the tire section height divided by
the tire section width.D. Construction Code
This letter code is used to indicate
the type of ply construction in the
tire. The letter “R” means radial
ply tire construction, the letter “D”
means diagonal or bias ply con-
struction, and the letter “B” means
belted-bias ply construction.
E. Rim Diameter
This two-digit number is the wheel
or rim diameter in inches. U 124 mph
H 130 mph
V 149 mph
W 168 mph*
Y 186 mph*
A
B
C
D
E
WARNING
Your SUZUKI is equipped with
tires which are all the same type
and size. This is important to
ensure proper steering and han-
dling of the vehicle. Never mix
tires of different size or type on
the four wheels of your vehicle.
Mixing tires could cause you to
lose control while driving which
may lead to an accident. The size
and type of tires used should be
only those approved by SUZUKI
Motor Corporation as standard or
optional equipment for your vehi-
cle.
Page 377 of 388
12-1
SPECIFICATIONS
57L20-03E
12
SPECIFICATIONSNOTE:
Specifications are subject to change with-
out notice.M/T: Manual transaxle
CVT: Continuously variable transaxle2WD: 2-wheel drive
i-AWD: intelligent All Wheel Drive
ITEM: DimensionsUNIT: mm (in.)
Overall length4650 (183.1)
Overall width1820 (71.7)
Overall height1480 (58.3)
Wheelbase2700 (106.3)
Tread Front 1565 (61.6)
Rear 1565 (61.6)
Minimum running ground clearance 145 (5.7)
ITEM: Weight
Gross axle weight rating
See the safety certification label and the tire information label which
are located on the driver’s door lock pillar. Gross vehicle weight rating
Vehicle capacity weight
Specifications: 1, 2, 5, 6, 7, 10, 11
Page 384 of 388
13-4INDEX
57L20-03E
NNet/Rope Hooks ................................................................... 5-92OOdometer .............................................................................. 2-84
Oil Level Check .................................................................... 7-15
Oil Pressure Light ................................................................ 2-72
On-Board Vehicle Computers and Event Data
Recorders ............................................................................. 10-3
Open Door Warning Light ................................................... 2-75
Outside Rearview Mirrors ................................................... 2-22
Overhead Console ............................................................... 5-86PParking Brake Lever ................................................... 3-10, 7-27
Parking Sensors .................................................................. 3-23
Pedals ................................................................................... 3-11
Periodic Maintenance Schedule ........................................... 7-3
Power Door Locking System ................................................ 2-4
Power Mirror Control ........................................................... 2-22
Power Window Controls ..................................................... 2-17
Power-Assisted Brakes ....................................................... 3-28RRadio Antenna ....................................................................... 5-9
Rain-sensing Wipers ......................................................... 2-108
Rain-sensing Wipers and Washer Lever ......................... 2-107
Rear Center Seat Belt .......................................................... 2-38
Rear Seats ............................................................................ 2-29
Refill with Oil and Check for Leaks .................................... 7-18
Refilling................................................................................. 7-16
Replace the Oil Filter ........................................................... 7-17
Replacing Tires and/or Wheels .......................................... 3-38
Reporting Safety Defects .................................................... 10-4 Roof Rack Anchors .............................................................. 5-92
SSafety Certification Label .................................................... 10-2
Seat Belt Extender ............................................................... 2-53
Seat Belt Inspection ............................................................. 2-43
Seat Belt Pretensioner System ........................................... 2-54
Seat Belt Reminder .............................................................. 2-40
Seat Belts and Child Restraint Systems ............................ 2-34
Seat Position Memory System ............................................ 2-26
Selection of Coolant ............................................................ 7-18
Selection of Power Supply Modes........................................ 3-4
Setting Mode......................................................................... 2-85
Shoulder Anchor Height Adjuster ...................................... 2-43
Side Air Bags and Side Curtain Air Bags .......................... 2-59
Side Door Locks ..................................................................... 2-3
Snow Tires ............................................................................ 7-35
Spark Plugs .......................................................................... 7-20
SPECIFICATIONS .......
.......................................................... 12-1
Specified Fluid...................................................................... 7-24
Specified Gear Oil ................................................................ 7-22
Specified Oil ......................................................................... 7-15
Speedometer ........................................................................ 2-78
Spot Light ............................................................................. 5-80
Stability Control System...................................................... 3-31
Starting the Engine ................................................................ 3-7
Steering Wheel ..................................................................... 7-27
Sun Visor .............................................................................. 5-77
Sunroof ................................................................................. 5-83
Supplemental Restraint System (a ir bags) ........................ 2-55TTachometer ........................................................................... 2-78
