% ( ) 2 5 ( ' 5 , 9 , 1 *
0 6 (
. H \ O H V V 3 X V K 6 W D U W 6 \ V W H P 5 H P R W H
& R Q W U R O O H U 7 \ S H $ The remote controller enables the follow-
ing operations:
• You can lock or unlock the doors by
operating the LOCK/UNLOCK buttons
on the remote controller. Refer to the
explanation in this section.
• You can lock or unlock the doors by
pushing the request switch. For details,
refer to the explanation in this section.
• You can start the engine without using
an ignition key. For details, refer to
“Engine Switch” in the
Page 26 of 288
Downloaded from www.Manualslib.com manuals search engine % ( ) 2 5 ( ' 5 , 9 , 1 *
0 6 (
NOTE:
• If you lock the doors using the remote
controller when the engine hood is open,
the siren will sound 3 times to remind
you.• If the security system was triggered due
to an unauthorized entry into the vehicle
and then you unlock the doors using the
remote controller, the siren will sound 4
times to remind you. If this happens,
check whether your vehicle has been
broken into while you were away from it.
• Once you push both of the “LOCK” but-
ton (1) and “UNLOCK” button (2), then
you push one of the buttons within 5 sec-
onds, the siren will not sound. However,
If you push one of the buttons twice
within 5 seconds, or push one of the but-
tons 5 seconds later, the siren will sound.
• You can set whether the siren sounds
when locking or unlocking the door(s) via
the setting mode of the information dis-
play. For details on how to use the infor-
mation display, refer to “Information
Display” in this section.NOTE:
• The maximum operating distance of the
remote controller is about 5 m (16 ft.),
but this can vary depending on the sur-
roundings, especially near other trans-
mitting devices such as radio towers or
CB (Citizen’s Band) radios.
• The door locks cannot be operated with
the remote controller if the ignition mode
is other than the LOCK (OFF).
• When any door is open, if you push the
“LOCK” button on the remote controller,the exterior buzzer will sound and doors
cannot be locked.
•
If you lose one of the remote controllers,
ask your D X W K R U L V H G 0 D U X W L 6 X ] X N L
Z R U N V K R S as soon as possible for a
replacement. Be sure to have your
dealer program the new remote
controller code in your vehi-cle’s
memory so that the old code is
erased. 3 D Q L F D O D U P I X Q F W L R Q
This function is to get the attention of oth-
ers.
Push both of the “LOCK” button (1) and
“UNLOCK” button (2) for more than 3 sec-
onds. The turn signal lights will blink for
about 27.5 seconds. Also, the siren will
sound for about 27.5 seconds at the same
time.
To cancel the panic alarm, press any but-
ton (LOCK OR UNLOCK). You can also
change the ignition mode to ON to cancel
the panic alarm.
NOTE:
The panic alarm function will not activate
when the ignition mode is “ACC” or “ON”.
Page 32 of 288
Downloaded from www.Manualslib.com manuals search engine % ( ) 2 5 ( ' 5 , 9 , 1 *
0 6 (
NOTE:
If no door is opened within about 30 sec-
onds after the unlock button (2) is oper-
ated, the doors will automatically lock
again.
NOTE:
(For models with security system)
• If you lock the doors using the transmit-
ter when the engine hood is open, the
siren will sound 3 times to remind you.
• If the security system was triggered due
to an unauthorized entry into the vehicle
and then you unlock the doors using the
transmitter, the siren will sound 4 times
to remind you. If this happens, check
whether your vehicle has been broken
into while you were away from it.
• Once you push both of the “LOCK” but-
ton (1) and “UNLOCK” button (2), then
you push one of the buttons within 5 sec-
onds, the siren will not sound. However,
If you push one of the buttons twice
within 5 seconds, or push one of the but-
tons 5 seconds later, the siren will
sound.
• You can set whether the siren sounds
when locking or unlocking the door(s) via
the setting mode of the information dis-
play. For details on how to use the infor-
mation display, refer to “Information
Display” in this section.NOTE:
• The maximum operating distance of the
keyless entry system transmitter is about
5 m (16 ft.), but this can vary depending
on the surroundings, especially near
other transmitting devices such as radio
towers or CB (Citizen’s Band) radios.
• The door locks cannot be operated with
the transmitter, if the ignition key is
inserted in the ignition switch.
• When any door is open, the door locks
can be operated only by unlocking with
the transmitter. With this unlocking oper-
ation, the turn signal lights will flash
twice and the siren (if your vehicle is
equipped with the security system) will
sound twice.
• If you lose one of the transmitters, ask
your D X W K R U L V H G 0 D U X W L 6 X ] X N L Z R U N V K R S
as soon as possible for a replacement.
Be sure to have your dealer program
the new transmitter code in your
vehicle’s memory so that the old code is
erased. 3 D Q L F D O D U P I X Q F W L R Q L I H T X L S S H G
This function is to get the attention of oth-
ers.
Push both of the “LOCK” button (1) and
“UNLOCK” button (2) for more than 3 sec-
onds. The turn signal lights will blink for
about 27.5 seconds. Also, the siren will
sound for about 27.5 seconds at the same
time.
To cancel the panic alarm, press any but-
ton (LOCK or UNLOCK). You can also turn
the ignition switch to the “ON” position to
cancel the panic alarm.
NOTE:
The panic alarm function will not activate
when the key is in the ignition switch.
NOTICE
7 K H W U D Q V P L W W H U L V D V H Q V L W L Y H H O H F
W U R Q L F L Q V W U X P H Q W 7 R D Y R L G G D P D J L Q J
W K H W U D Q V P L W W H U
Page 177 of 288
Downloaded from www.Manualslib.com manuals search engine
2 7 + ( 5 & 2 1 7 5 2 / 6 $ 1 ' ( 4 8 , 3 0 ( 1 7
0 6 (

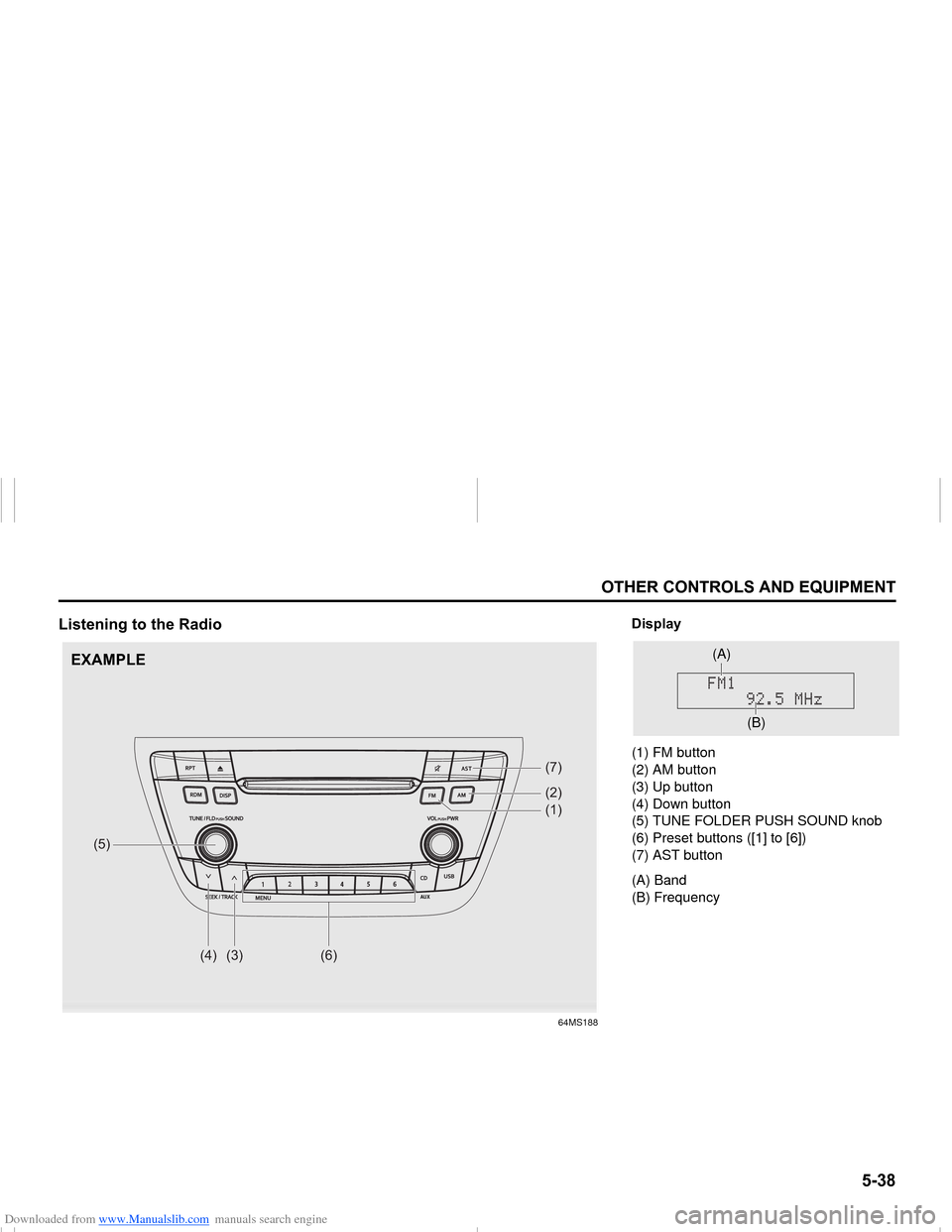

/ L V W H Q L Q J W R W K H 5 D G L R
64MS188
$ 8 ;
(5)
(4)
(3)
(6)
(7)(2)(1)
' L V S O D \
(1) FM button
(2) AM button
(3) Up button
(4) Down button
(5) TUNE FOLDER PUSH SOUND knob
(6) Preset buttons ([1] to [6])
(7) AST button
(A) Band
(B) Frequency
(A)
(B)
( ; $ 0 3 / (
Page 178 of 288
Downloaded from www.Manualslib.com manuals search engine 2 7 + ( 5 & 2 1 7 5 2 / 6 $ 1 ' ( 4 8 , 3 0 ( 1 7
0 6 (

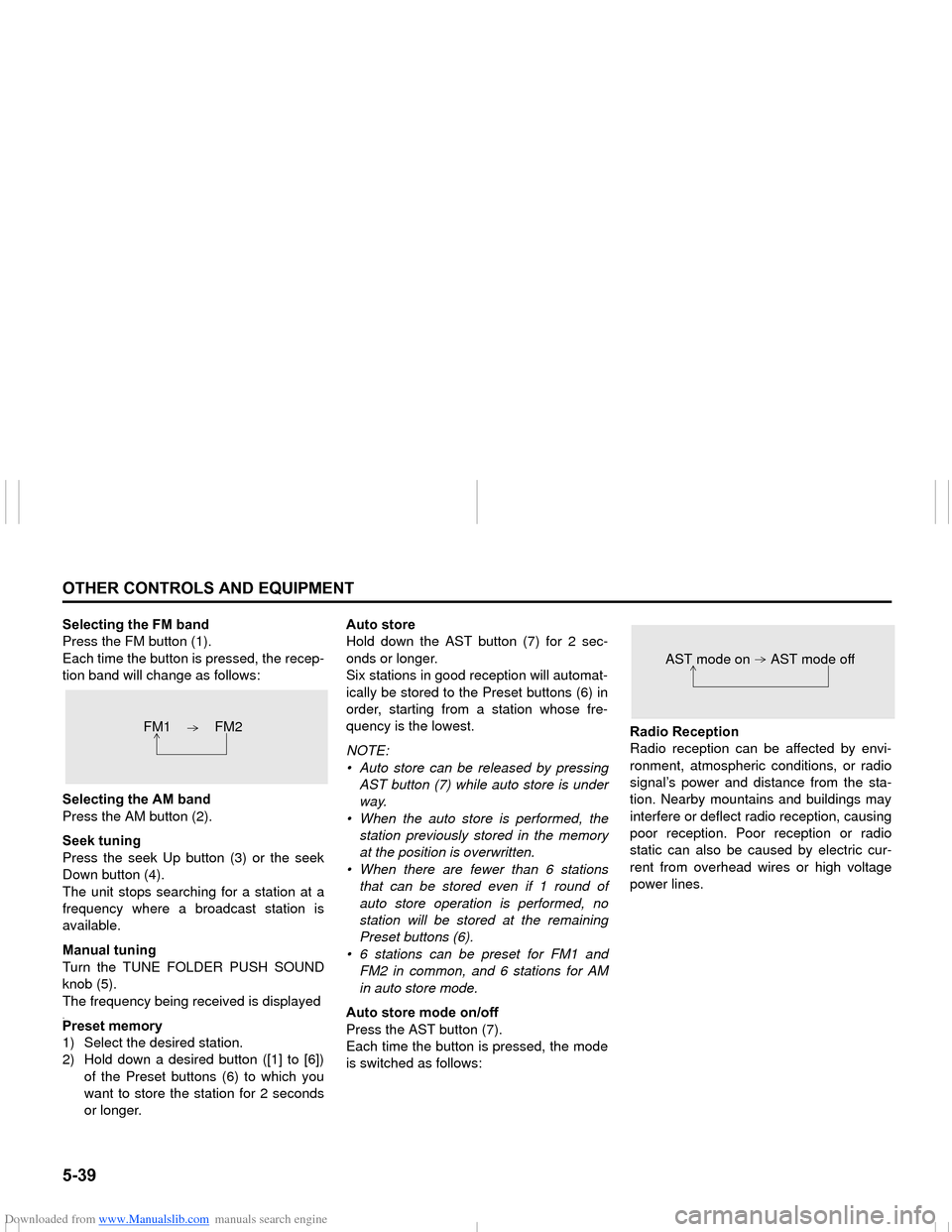

6 H O H F W L Q J W K H ) 0 E D Q G
Press the FM button (1).
Each time the button is pressed, the recep-
tion band will change as follows:
6 H O H F W L Q J W K H $ 0 E D Q G
Press the AM button (2).
6 H H N W X Q L Q J
Press the seek Up button (3) or the seek
Down button (4).
The unit stops searching for a station at a
frequency where a broadcast station is
available.
0 D Q X D O W X Q L Q J
Turn the TUNE FOLDER PUSH SOUND
knob (5).
The frequency being received is displayed. 3 U H V H W P H P R U \
1) Select the desired station.
2) Hold down a desired button ([1] to [6])
of the Preset buttons (6) to which you
want to store the station for 2 seconds
or longer. $ X W R V W R U H
Hold down the AST button (7) for 2 sec-
onds or longer.
Six stations in good reception will automat-
ically be stored to the Preset buttons (6) in
order, starting from a station whose fre-
quency is the lowest.
NOTE:
• Auto store can be released by pressing
AST button (7) while auto store is under
way.
• When the auto store is performed, the
station previously stored in the memory
at the position is overwritten.
• When there are fewer than 6 stations
that can be stored even if 1 round of
auto store operation is performed, no
station will be stored at the remaining
Preset buttons (6).
• 6 stations can be preset for FM1 and
FM2 in common, and 6 stations for AM
in auto store mode.
$ X W R V W R U H P R G H R Q R I I
Press the AST button (7).
Each time the button is pressed, the mode
is switched as follows: 5 D G L R 5 H F H S W L R Q
Radio reception can be affected by envi-
ronment, atmospheric conditions, or radio
signal’s power and distance from the sta-
tion. Nearby mountains and buildings may
interfere or deflect radio reception, causing
poor reception. Poor reception or radio
static can also be caused by electric cur-
rent from overhead wires or high voltage
power lines. FM1 FM2
AST mode on AST mode off
Page 189 of 288
Downloaded from www.Manualslib.com manuals search engine
2 7 + ( 5 & 2 1 7 5 2 / 6 $ 1 ' ( 4 8 , 3 0 ( 1 7
0 6 (
/ L V W H Q L Q J W R D Q L 3 R G
Š L I H T X L S S H G
64MS192
$ 8 ;
(4)
(3)
(1)
(5)(2)(6)(7)
(8)
' L V S O D \
(1) USB button
(2) TUNE FOLDER PUSH SOUND knob
(3) Up button
(4) Down button
(5) RPT button
(6) RDM button
(7) DISP button
(8) Preset buttons ([1] to [6])
(A) Track title
(B) Track number
(C) Play time
(C)(A)
(B)
( ; $ 0 3 / (
Page 191 of 288
Downloaded from www.Manualslib.com manuals search engine
2 7 + ( 5 & 2 1 7 5 2 / 6 $ 1 ' ( 4 8 , 3 0 ( 1 7
0 6 (
NOTE:
If text data contains more than 12 charac-
ters, the “>” mark will appear at the right
end. Holding down the DISP button (7) for
1 second or longer can display the next
page.
3 O D \ L Q J 0 R G H V H O H F W L R Q
1) Press the button numbered [6] of the
Preset buttons (8) for 1 second or lon-
ger.
2) Turn the TUNE FOLDER PUSH
SOUND knob (2).
Each time the knob is turned, the mode
will change as follows:
3) Press the TUNE FOLDER PUSH
SOUND knob (2) to select the desired
mode.
NOTE:
• When the button numbered [6] of the
Preset buttons (8) is pressed, the previ-
ous mode will be displayed.
1 R W H V R Q L 3 R G
Š
6 X S S R U W H G L 3 R G
Š
•iPod
® touch (5th generation)
•iPod® touch (4th generation)
•iPod® touch (3rd generation)
•iPod® touch (2nd generation)
•iPod® touch (1st generation)
•iPod® classic
•iPod® nano (7th generation)
•iPod® nano (6th generation)
•iPod® nano (5th generation)
•iPod® nano (4th generation)
•iPod® nano (3rd generation)
•iPod® nano (2nd generation)
•iPod® nano (1st generation)
•iPod® (5th generation)
•iPod® (6th generation)
•iPod®(6thPlus generation)
•iPhone® 6 / 6 plus
• iPhone® 5
• iPhone® 4S
• iPhone® 4
• iPhone® 3GS
• iPhone® 3G
• iPhone®
* Some functions may not be available
depending on the model of iPod
®.
*iPod
® is a trademark of Apple Inc., regis-
tered in the U.S. and other countries.
*iPhone® is a trademark of Apple Inc.,
registered in the U.S. and other coun-
tries.
* Apple is not responsible for the opera-
tion of this device or its compliance with
safety and regulatory standards. L 3 R G
Š F R Q Q H F W L R Q
• Make sure to detach the iPod
® after
pressing the engine switch to change the
ignition mode to “LOCK” (OFF) or the
ignition switch is turned to the “LOCK”
position. The iPod
® may not be shut
down when it is being connected and
may result in battery depletion.
• Please do not connect iPod
® accesso-
ries such as an iPod
® remote control or
headphones while connecting the iPod
®
with the unit. The unit may not operate
correctly.
PLAYLIST
ARTIST
ALBUM
SONGS
GENRE
Page 194 of 288
Downloaded from www.Manualslib.com manuals search engine 2 7 + ( 5 & 2 1 7 5 2 / 6 $ 1 ' ( 4 8 , 3 0 ( 1 7
0 6 (
% O X H W R R W K
Š + D Q G V ) U H H L I H T X L S S H G
64MS194
(1) TUNE FOLDER PUSH SOUND knob
(2) VOL PUSH POWER knob
(3) Preset buttons
(1)
(2)
AUX
(3)
6 W H H U L Q J V Z L W F K
(4) Bluetooth
® setup button
(5) Off Hook button
(6) On Hook button
(7) VOL switch
(4)(5)
(6)
(7)
( ; $ 0 3 / (
( ; $ 0 3 / ( ( ; $ 0 3 / (
Page 198 of 288
Downloaded from www.Manualslib.com manuals search engine 2 7 + ( 5 & 2 1 7 5 2 / 6 $ 1 ' ( 4 8 , 3 0 ( 1 7
0 6 (
1) Press the Bluetooth
® setup button (4).
The Bluetooth
® setup menu will be dis-
played.
2) Turn the TUNE FOLDER PUSH
SOUND knob (1) to select “Setup Tele-
phone”, and press the knob (1) to deter-
mine the selection.
3) Turn the TUNE FOLDER PUSH
SOUND knob (1) to select “Setup
Phonebook”, and press the knob (1) to
determine the selection.
4) Turn the TUNE FOLDER PUSH
SOUND knob (1) to select “Delete Con-
tacts”, and press the knob (1) to deter-
mine the selection.
5) Turn the TUNE FOLDER PUSH
SOUND knob (1) to select a number to
be deleted, and press the knob (1) to
determine the selection.
6) Turn the TUNE FOLDER PUSH
SOUND knob (1) to select “Delete?”,
and press the knob (1) to determine the
selection.
7) Turn the TUNE FOLDER PUSH
SOUND knob (1) to select “Confirm”,
and press the knob (1) to complete the
deletion.
NOTE:
When selecting “Go Back”, the previous
menu will be displayed.
5 H J L V W U D W L R Q L Q V S H H G G L D O
Follow the instructions below to assign a
number to one of the Preset buttons to use
as the speed dial.1) Press the Bluetooth
® setup button (4).
The Bluetooth
® setup menu will be dis-
played.
2) Turn the TUNE FOLDER PUSH
SOUND knob (1) to select “Setup Tele-
phone”, and press the knob (1) to deter-
mine the selection.
3) Turn the TUNE FOLDER PUSH
SOUND knob (1) to select “Setup
Phonebook”, and press the knob (1) to
determine the selection.
4) Turn the TUNE FOLDER PUSH
SOUND knob (1) to select “Add Speed
Dial”, and press the knob (1) to deter-
mine the selection.
5) Turn the TUNE FOLDER PUSH
SOUND knob (1) to select a number to
be assigned, and press the knob (1) to
determine the selection.
6) Turn the TUNE FOLDER PUSH
SOUND knob (1) to select “Choose
Preset”, and press the knob (1) to
determine the selection.
7) Press one of the Preset buttons (3) to
which the selected number is to be
assigned. If a number is already
assigned to the selected button, a con-
firmation message will be displayed.
Turn the TUNE FOLDER PUSH
SOUND knob (1) to select “Confirm”,
and press the knob (1) to complete the
assignment.
When the assignment is completed, the
“Setup Phonebook” will be displayed.NOTE:
When selecting “Go Back”, the previous
menu will be displayed.
2 Q H W R X F K F D O O 6 S H H G G L D O
Follow the instructions below to dial the
number assigned to each of the Preset
buttons (3).
1) Press the Off Hook button (5).
The Bluetooth
® phonebook menu will
be displayed.
2) Turn the TUNE FOLDER PUSH
SOUND knob (1) to select “Speed
Dials”, and press the knob (1) to deter-
mine the selection.
3) Press one of the Preset buttons (3).
When no number is assigned, “No
Entry” is displayed.
4) Press the Off Hook button (5).
The selected number will be dialed.
' H O H W L R Q R I V S H H G G L D O ' H O 6 S H H G ' L D O
To delete a number assigned for the speed
dial, follow the instructions below.
1) Press the Off Hook button (5).
The Bluetooth® phonebook menu will
be displayed.
2) Turn the TUNE FOLDER PUSH
SOUND knob (1) to select “Speed
Dials”, and press the knob (1) to deter-
mine the selection.
3) Press one of the Preset buttons (3) to
which the number to be deleted is
assigned.
“No Entry” appears if the number is not
registered.
Page 207 of 288
Downloaded from www.Manualslib.com manuals search engine
2 7 + ( 5 & 2 1 7 5 2 / 6 $ 1 ' ( 4 8 , 3 0 ( 1 7
0 6 (
$ Q W L 7 K H I W ) H D W X U H
64MS196
$ 8 ;
(4)
(2)
(1)
(3)
(1) VOL PUSH POWER knob
(2) Preset buttons ([1] to [6])
(3) Up button
(4) TUNE FOLDER PUSH SOUND knob
( ; $ 0 3 / (
