Page 66 of 288
Downloaded from www.Manualslib.com manuals search engine % ( ) 2 5 ( ' 5 , 9 , 1 *
0 6 (
7 H P S H U D W X U H * D X J H
64MS046
When the ignition switch is in the “ON”
position or the ignition mode is “ON”, this
gauge indicates the engine coolant tem-
perature. Under normal driving conditions,
the indicator should stay within the normal,
acceptable temperature range between
“H” and “C”. If the indicator approaches
“H”, overheating is indicated. Follow the
instructions for engine overheating in the
³ ( 0 ( 5 * ( 1 & < 6 ( 5 9 , & ( ´ section.
% U L J K W Q H V V & R Q W U R O
61MM0A156
When the ignition switch is turned to the
“ON” position or the engine switch is
pressed to change the ignition mode to
“ON”, the instrument cluster lights come
on.
Your vehicle has a system to automatically
dim the brightness of the instrument panel
lights when the position lights or headlights
are on.
You can change the brightness of the
instrument panel lights regardless of
whether the position lights or headlights
are off or on.
To increase the brightness of the instru-
ment panel lights, turn the indicator selec-
tor knob (1) clockwise.
To reduce the brightness of the instrument
panel lights, turn the indicator selector
knob (1) counterclockwise.NOTE:
•If you do no
t turn the knob for more than
5 seconds while activating the bright-
ness control, the brightness control dis-
play will be canceled automatically.
• When you reconnect the battery, the
brightness of the instrument panel lights
will be reinitialized. Readjust the bright-
ness according to your preference.
NOTE:
If you select the high brightness level when
the position lights or headlights are on, the
instrument panel lights are not dimmed.
NOTICE
& R Q W L Q X L Q J W R G U L Y H W K H Y H K L F O H Z K H Q
H Q J L Q H R Y H U K H D W L Q J L V L Q G L F D W H G F D Q
U H V X O W L Q V H Y H U H H Q J L Q H G D P D J H ( ; $ 0 3 / (
( ; $ 0 3 / (
: $ 5 1 , 1 *
, I \ R X D W W H P S W W R D G M X V W W K H E U L J K W
Q H V V R I W K H L Q V W U X P H Q W S D Q H O O L J K W V
Z K L O H G U L Y L Q J \ R X F R X O G O R V H F R Q W U R O
R I W K H Y H K L F O H
' R Q R W D W W H P S W W R D G M X V W W K H E U L J K W
Q H V V R I W K H L Q V W U X P H Q W S D Q H O O L J K W V
Z K L O H G U L Y L Q J
(1)
Page 67 of 288
Downloaded from www.Manualslib.com manuals search engine
% ( ) 2 5 ( ' 5 , 9 , 1 *
0 6 (
, Q I R U P D W L R Q ' L V S O D \The information display is shown when the
ignition switch is in the “ON” position or the
ignition mode is ON.
64MS183
(1) Information display
64MS184
(2) Indicator selector knob
(3) Trip meter selector knob
The information display shows the follow-
ing information. ' L V S O D \ $
Clock
' L V S O D \ %
Thermometer
' L V S O D \ &
Warning and indicator messages /
Fuel consumption / Driving range /
Average speed
' L V S O D \ '
Trip meter
' L V S O D \ (
Odometer
64MS181
When the ignition switch is turned to the
“ON” position or the engine switch is
pressed to change the ignition mode to
ON, the message shown in the above illus-
tration will appear on the display for sev-
eral seconds.
Some warning and indicator messages
may appear on the display when the igni-
tion switch is in the “ACC” or “LOCK” posi-
tion, or the ignition mode is ACC or LOCK
(OFF).
& O R F NThe display (A) shows the time.
To set the clock, follow the “Setting mode”
instructions in this section. 7 K H U P R P H W H UThe display (B) shows the thermometer.
The thermometer indicates the outside
temperature.
61MM0A160
If the outside temperature nears freezing,
the message shown in the above illustra-
tion will appear on the display.
NOTE:
The outside temperature indication is not
the actual outside temperature when driv-
ing at low speed, or when stopped.
(1)(B)
(C) (A)
(D)
(E)
(3)
(2)
( ; $ 0 3 / (
Page 103 of 288
Downloaded from www.Manualslib.com manuals search engine
2 3 ( 5 $ 7 , 1 * < 2 8 5 9 ( + , & / (
0 6 (
You must push in the key to turn it to the
“LOCK” position. It locks the ignition, and
prevents normal use of the steering wheel
after the key is removed.
To release the steering lock, insert the key
and turn it clockwise to one of the other
positions. If you have trouble turning the
key to unlock the steering, try turning the
steering wheel slightly to the right or left
while turning the key.
$ & &
Accessories such as the radio can oper-
ate, but the engine is off.
2 1
This is the normal operating position. All
electrical systems are on.
6 7 $ 5 7
This is the position for starting the engine
using the starter motor. The key should be
released from this position as soon as the
engine starts.
, J Q L W L R Q N H \ U H P L Q G H U L I H T X L S S H G
A buzzer sounds intermittently to remind
you to remove the ignition key if it is in the
ignition switch when the driver’s door is
opened.
81A297S
: $ 5 1 , 1 *
Page 140 of 288
Downloaded from www.Manualslib.com manuals search engine 2 7 + ( 5 & 2 1 7 5 2 / 6 $ 1 ' ( 4 8 , 3 0 ( 1 7
0 6 (
) X H O ) L O O H U ' R R U & D S
64MS137
64MS070
The fuel filler cap is located on the left rear
side of the vehicle. The fuel filler lid can be
unlocked by pulling up the opener lever
located on the outboard side of the driver’s
seat and locked by simply closing the door.
57L51093
To remove the fuel filler cap:
1) Open the fuel filler lid.
2) Remove the cap by turning it counter-
clockwise.
61MM0B104
NOTE:
The cap holder (1) holds the fuel filler cap
(2) by hooking the cap to the groove (3)
when refueling.
To reinstall the fuel filler cap:
1) Turn the cap clockwise until you hear
several clicks.
2) Close the fuel filler lid.
( ; $ 0 3 / ( ( ; $ 0 3 / (
& $ 8 7 , 2 1
5 H P R Y H W K H I X H O I L O O H U F D S V O R Z O \ 7 K H
I X H O P D \ E H X Q G H U S U H V V X U H D Q G P D \
V S U D \ R X W F D X V L Q J L Q M X U \ OpenClose ( ; $ 0 3 / (
: $ 5 1 , 1 *
) X H O L V H [ W U H P H O \ I O D P P D E O H ' R Q R W
V P R N H Z K H Q U H I X H O L Q J D Q G P D N H
V X U H W K H U H D U H Q R R S H Q I O D P H V R U
V S D U N V L Q W K H D U H D (1)
(2)(3)(1)
(1) ( ; $ 0 3 / (
Page 158 of 288
Downloaded from www.Manualslib.com manuals search engine 2 7 + ( 5 & 2 1 7 5 2 / 6 $ 1 ' ( 4 8 , 3 0 ( 1 7
0 6 (
4) To tighten the towing hook (1), turn it
clockwise by using a wheel brace (B)
until the hook (1) is securely installed.
To remove the towing hook (1), reverse the
procedure used to install the towing hook.
5 H D U
64MS140
The frame hook (2) is provided on the rear
of the vehicle for use in emergency situa-
tions and sea shipping purposes only. 2 W K H U + R R N V
64MS174
The hooks (3) are provided for trailer/train
shipping purposes only. The hooks (4) are
provided for sea shipping purpose only.
(2)
( ; $ 0 3 / (
(3)
(4)
( ; $ 0 3 / (
: $ 5 1 , 1 *
' R Q R W X V H W K H K R R N V D Q G I R U
W R Z L Q J S X U S R V H 7 K H V H K R R N V P D \
E U H D N D Q G F D X V H V H U L R X V L Q M X U \ R U
G D P D J H
NOTICE
7 R S U H Y H Q W G D P D J H W R W K H Y H K L F O H
Q H Y H U X V H W K H W R Z L Q J K R R N I R U
W U D L O H U W U D L Q V K L S S L Q J D Q G V H D V K L S
S L Q J S X U S R V H V
Page 170 of 288
Downloaded from www.Manualslib.com manuals search engine 2 7 + ( 5 & 2 1 7 5 2 / 6 $ 1 ' ( 4 8 , 3 0 ( 1 7
0 6 (
5 D G L R $ Q W H Q Q D
63J055
The radio antenna on the roof is remov-
able. To remove the antenna, turn it coun-
terclockwise. To reinstall the antenna, turn
it clockwise firmly by hand.
, Q V W D O O D W L R Q R I 5 D G L R
) U H T X H Q F \ 7 U D Q V P L W W H U VWe recommend that you always ask a
D X W K R U L V H G 0 D U X W L 6 X ] X N L Z R U N V K R S about
frequency band, max output power,
antenna position at vehicle and specific
conditions for installation and/or use
before installing a radio transmitter in
your vehicle. Such equipments may
cause the electronic con-trol system to
malfunction if they are incor-rectly installed
or they are not suited for the vehicle.
NOTICE
7 R D Y R L G G D P D J H W R W K H U D G L R
D Q W H Q Q D
Page 175 of 288
Downloaded from www.Manualslib.com manuals search engine
2 7 + ( 5 & 2 1 7 5 2 / 6 $ 1 ' ( 4 8 , 3 0 ( 1 7
0 6 (
% D V L F 2 S H U D W L R Q V

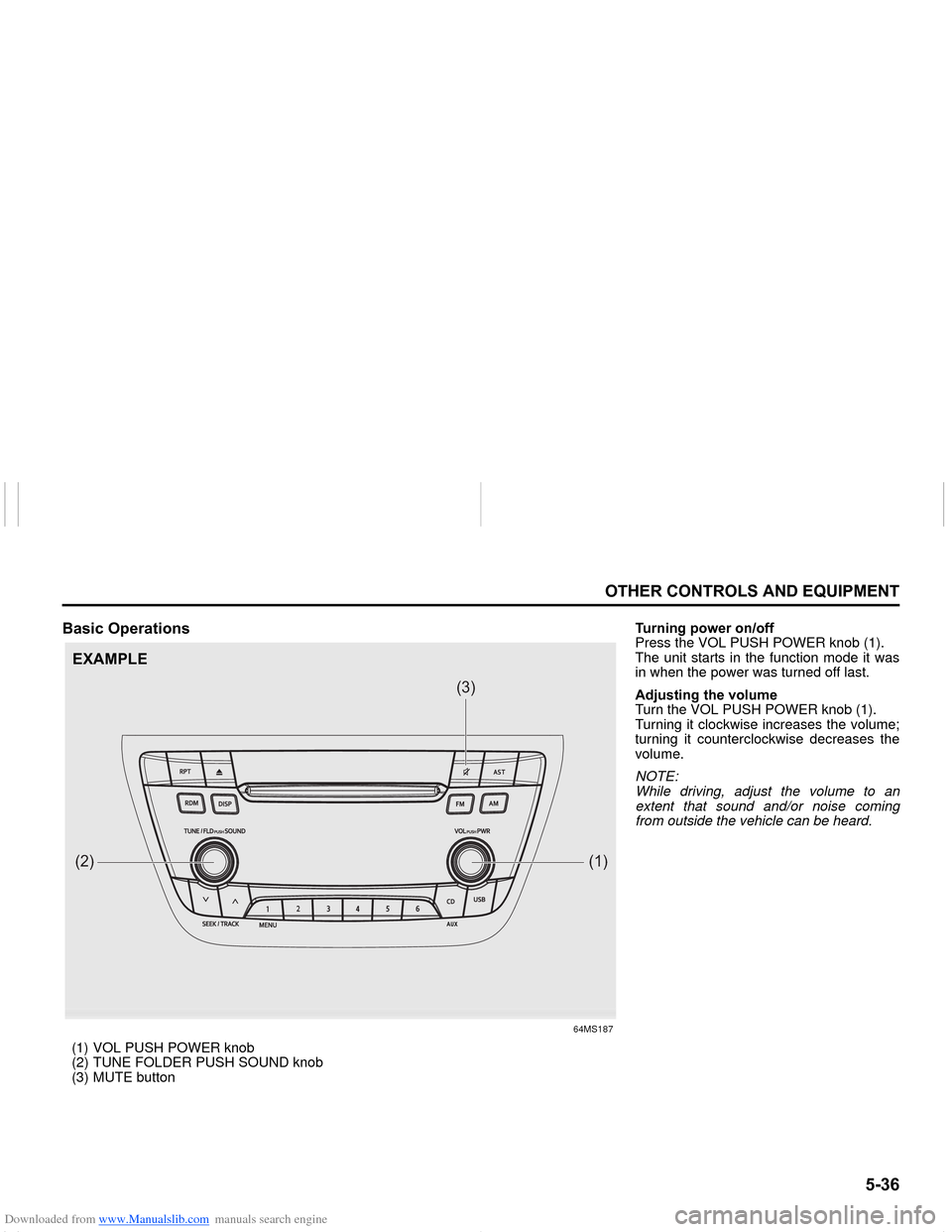

64MS187

(1) VOL PUSH POWER knob
(2) TUNE FOLDER PUSH SOUND knob
(3) MUTE button
$ 8 ;
(2)
(1)
(3)
7 X U Q L Q J S R Z H U R Q R I I
Press the VOL PUSH POWER knob (1).
The unit starts in the function mode it was
in when the power was turned off last.
$ G M X V W L Q J W K H Y R O X P H
Turn the VOL PUSH POWER knob (1).
Turning it clockwise increases the volume;
turning it counterclockwise decreases the
volume.
NOTE:
While driving, adjust the volume to an
extent that sound and/or noise coming
from outside the vehicle can be heard.
( ; $ 0 3 / (
Page 195 of 288
Downloaded from www.Manualslib.com manuals search engine
2 7 + ( 5 & 2 1 7 5 2 / 6 $ 1 ' ( 4 8 , 3 0 ( 1 7
0 6 (
3 K R Q H U H J L V W U D W L R Q
NOTE:
• Up to 5 phones can be registered.
• To set up a new phone, disconnect the
audio player from the unit. Connect the
audio player again after phone setup is
completed if necessary.
• When failed to establish the pairing
within 120 seconds, the connecting
operation will be canceled. Please try
again or refer to the manual of the phone
in use for how to establish the pairing
with the phone.1) Press the Bluetooth
® setup button (4).
The Bluetooth
® setup menu will be dis-
played.
2) Turn the TUNE FOLDER PUSH SOUND
knob (1) to select “Setup Bluetooth”, and
press the knob (1) to determine the
selection.
3) Turn the TUNE FOLDER PUSH SOUND
knob (1) to select “Pairing”, and press
the knob (1) to determine the selection.
4) Select “CAR AUDIO” from the Blue-
tooth
® menu of the phone and establish
the pairing.
Refer to the manual of the phone in use
for further information.
5) Enter the Passkey displayed on the unit
to the phone. (For phones with Blue-
tooth
® version 2.1 or above passkey
input is not required.)6) Press the On Hook button (6).
NOTE:
• When selecting “Go Back”, the previous
menu will be displayed.
• When additionally registering a phone,
operate the same step from 1).
5 H F H L Y L Q J D F D O O
Press the Off Hook button (5) to receive a
call.
( Q G L Q J D F D O O
Press the On Hook button (6) to end a call.
5 H M H F W L Q J D F D O O R Q O \ I R U V X S S R U W H G
P R G H O V
Press the On Hook button (6) to reject a
incoming call. $ G M X V W L Q J W K H O L V W H Q L Q J Y R O X P H
• Turn the VOL PUSH POWER knob (2)
during a call.
Turning it clockwise increases the vol-
ume; turning it counterclockwise
decreases the volume.
• Press the VOL switch (7) during a call.
Pressing “+” of the switch increases the
volume, pressing “-” of the switch
decreases the volume.
$ G M X V W L Q J W K H U L Q J Y R O X P H
• Turn the VOL PUSH POWER knob (2)
while a call coming in.
Turning it clockwise increases the vol-
ume; turning it counterclockwise
decreases the volume.
• Press the VOL switch (7) during a call.
Pressing “+” of the switch increases the
volume, pressing “-” of the switch
decreases the volume.
$ G M X V W L Q J W K H F D O O R U U L Q J W R Q H Y R O X P H
Follow the instructions below to adjust the
call or ringtone volume.
1) Press the Bluetooth
® setup button (4).
The Bluetooth
® setup menu will be dis-
played.
2) Turn the TUNE FOLDER PUSH
SOUND knob (1) to select “Setup Tele-
phone”, and press the knob (1) to deter-
mine the selection.
3) Turn the TUNE FOLDER PUSH
SOUND knob (1) to select “Sound Set-
ting”, and press the knob (1) to deter-
mine the selection.
To use the hands-free function with this
unit, it is required to register the phone
in advance.
Page 234 of 288
Downloaded from www.Manualslib.com manuals search engine , 1 6 3 ( & 7 , 2 1 $ 1 ' 0 $ , 1 7 ( 1 $ 1 & (
0 6 (
If the coolant level is below the “LOW”
mark, more coolant should be added.
When the engine is cool, remove the
degassing tank cap by turning it anticlock-
wise slowly to release any pressure. And
add coolant until the degassing tank level
reaches the “FULL” mark. Never fill the
degassing tank above the “FULL” mark. & R R O D Q W 5 H S O D F H P H Q WSince special procedures are required, we
recommend you take your vehicle to your
D X W K R U L V H G 0 D U X W L 6 X ] X N L Z R U N V K R S for
coolant replacement.
$ L U & O H D Q H UIf the air cleaner is clogged with dust, there
will be greater intake resistance, resulting
in decreased power output and increased
fuel consumption.
61MM0A126
Unclamp the side clamps and remove the
element from the air cleaner case. If it
appears to be dirty, replace it with a new
one.
Clamp the side clamps securely.
* H D U 2 L O 0 D Q X D O 7 U D Q V D [ O H 2 L OWhen adding gear oil, use gear oil with the
appropriate viscosity and grade as shown
in the chart below.
We highly recommend you use:
“MARUTI * ( 1 8 , 1 ( GEAR OIL : ”
for manual transaxle gear oil.
0 D Q X D O W U D Q V D [ O H R L O
68LM728
* H D U 2 L O / H Y H O & K H F N V S H H G P D Q X D O W U D Q V D [ O H
52LM021
: $ 5 1 , 1 *
, W L V K D ] D U G R X V W R U H P R Y H W K H U H V H U
Y R L U W D Q N F D S G H J D V V L Q J W D Q N F D S I R U
D G L H V H O H Q J L Q H Z K H Q W K H Z D W H U W H P
S H U D W X U H L V K L J K E H F D X V H V F D O G L Q J
I O X L G D Q G V W H D P P D \ E H E O R Z Q R X W
X Q G H U S U H V V X U H : D L W X Q W L O W K H F R R O D Q W
W H P S H U D W X U H K D V O R Z H U H G E H I R U H
U H P R Y L Q J W K H F D S
( ; $ 0 3 / (
C
Fo o-30
-22-20
-4-10
14 32 50 68 86 104010203040
75W-80
(1) ( ; $ 0 3 / (
Page 249 of 288
Downloaded from www.Manualslib.com manuals search engine
, 1 6 3 ( & 7 , 2 1 $ 1 ' 0 $ , 1 7 ( 1 $ 1 & (
0 6 (
6 L G H 7 X U Q 6 L J Q D O / L J K W L I H T X L S S H G
76MH0A006
1) Remove the light housing (1) by sliding
to left with your finger.
76MH0A007
2) Turn the bulb holder (2) clockwise and
pull it out from the light housing.
76MH0A008
(4) Removal
(5) Install
3) To remove and install the bulb of the
turn signal light (3), simply pull out or
push in the bulb.
) U R Q W 7 X U Q 6 L J Q D O / L J K W
) U R Q W 3 R V L W L R Q / L J K W (Vehicle with the halogen headlights)
61MM0A030
(1)
(2)
(3)
(4)
(5)
(2)
(1)
