SUZUKI SWIFT 2017 5.G User Guide

0-3
WARRANTY POLICYMaruti Suzuki India Limited (hereinafter called “Maruti Suzuki”),
warrants that each new Maruti Suzuki vehicle distributed in India
by Maruti Suzuki and sold by an authorised Maruti Suzuki dealer
will be free, under normal use and service, from any defects in
material and workmanship at the time of manufacture SUBJECT
TO THE FOLLOWING TERMS AND CONDITIONS:(1) Qualification:To qualify for this warranty the vehicle must be delivered by a
Maruti Suzuki authorised dealer and set-up, and serviced by a
Maruti Suzuki authorised dealer / service station.(2) Term:The term of the warranty shall be twenty-four (24) months or
40,000 kilometers (whichever occurs first) from the date of
Invoice to the first owner.(3) Maruti Suzuki Warranty Obligation:If any defect(s) should be found in a Maruti Suzuki vehicle within
the term stipulated above, Maruti Suzuki’s only obligation is to
repair or replace at its sole discretion any part shown to be defec-
tive, with a new part or the equivalent at no cost to the owner for
parts or labour, when Maruti Suzuki acknowledges that such a
defect is attributable to faulty material or workmanship at the time
of manufacture. The owner is responsible for any repair or replace-
ments which are not covered by this warranty.
(4) Limitation:This warranty shall not apply to:
(a) Normal maintenance service required other than the three free services, including without limitation, oil and fluid
changes, headlight aiming, fastener retightening, wheel bal-
ancing, wheel alignment and tyre rotation, cleaning of injec-
tors, adjustments of clutch and valve clearance.
(b) The replacement of normal wear parts including without lim- itation, bulbs, tyres and tubes, spark plugs, belts, hoses, fil-
ters, wiper blades, brushes, contact points, fuses, clutch
disc, brake shoes, brake pads, cable and all rubber parts
(except oil seal and glass run).
(c) Any vehicle which has been used for competition or racing.
(d) Any repairs or replacement required as a result of accidents or collision.
(e) Any defects caused by misuse, negligence, abnormal use or insufficient care.
(f) Any vehicle which has been modified or altered, including
without limitation, the installation of performance accesso-
ries.
(g) Any vehicle on which parts or accessories not approved by
Maruti Suzuki have been used.
(h) Any vehicle which has not been operated in accordance with the operating instructions in this Owner’s Manual and Ser-
vice Booklet.
(i) Any vehicle which has not received, during the warranty term, the service inspections prescribed in this Owner’s Manual
and Service Booklet.
(j) Any vehicle which has been assembled, disassembled, adjusted or repaired by other than an Maruti Suzuki autho-
rised dealer/service station.
(k) Any vehicle which has been used for purposes other than what it was designed for.
(l) Any damage or deterioration caused by industrial pollution and bird droppings.

0-4
55KS0-74E
(m) Insignificant defects which do not affect the function of thevehicle including without limitation, sound, vibration and fluid
seep.
(n) Any natural wear and tear including without limitation, aging
etc.
(o) Installation and usage of domestic LPG gas/LPG Cylinder.
(p) V-belts, hoses and gas leaks.
(q) Any vehicle retrofitted with LPG/CNG kits.(5) Extent of Warranty:This warranty is the entire written warranty given by Maruti Suzuki
for Maruti Suzuki vehicles and no dealer or its or his agent or
employee is authorised to extend or enlarge this warranty and no
dealer or its or his agent or employee is authorised to make any
oral warranty on Maruti Suzuki’s behalf.
Maruti Suzuki reserves the right to add any improvements or
change the design of any model at any time with no obligation to
make the same changes on units previously sold.(6) Warranty Service:To obtain warranty service, th e complete vehicle must be pre-
sented at the owner’s expenses to any authorised Maruti Suzuki
dealer.(7) Owner’s Warranty Responsibilities:It is responsibility of each owner to: – Make certain that the PDl card was completed at the time ofdelivery of the vehicle;
–

Have performed, at his own expenses, by an Maruti Suzuki
authorised dealer/service station all the service inspections
specified in the Maruti Suzuki “Owner’s Manual and Service
Booklet and maintain adequate proof that such service
inspections have been performed.
–
Make certain that the Maruti Suzuki authorised dealer/ser-
vice station performing the service inspection has certified
the work on the “Maintenance Service Record” page in the
“Owner’s Manual and Service Booklet and
–
Present the Maruti Suzuki “Owner’s Manual and Service
Booklet to the authorised Maruti Suzuki dealer whenever
requesting service inspections or warranty service.
If the “Owner’s Manual and Service Booklet should be lost or
destroyed the owner should consult the authorised Maruti Suzuki
dealer from whom the vehicle was purchased for instructions con-
cerning replacement of the “Owner’s Manual and Service Booklet.
(8) Disclaimer of Consequential Damage:Maruti Suzuki assumes no responsibility for loss of vehicle, loss of
time, inconvenience or any other indirect incidental or consequen-
tial damage resulting from the vehicle not being available to the
owner because of any defect covered by this warranty.(9) Change of OwnerEven if ownership of the vehicle changes, the remaining warranty
period is effective for the new owner.

0-5
EMISSION WARRANTY POLICYMaruti Suzuki offers the Emission Warranty on all Maruti Suzuki
vehicles (apart from the Regular Warranty and will run parallel to
the regular product warranty) only in four metropolitan cities (New
Delhi, Kolkata, Mumbai and Chennai) with effect from July 1st,
2001.Terms:The Emission Warranty will be applicable for 80,000 kms or 3
years (Whichever comes earlier) from the date of delivery to the
first owner. The remaining warranty terms will be valid in case of
any change in ownership provided the production of all valid docu-
ments.Conditions:1. Under Emission Warranty, Warranty claims will be admitted for a prima facie examination, in case vehicle fails to meet the
Emission Standard as specified in sub rule (2) of rule no. 115
of Central Motor Vehicles Rules (CMVR), 1989.
2. The warranty claims will only be accepted after examination carried out by Maruti Suzuki or it’s dealer which leads to firm
conclusions that the
a) Original settings have not been tempered in any case .
b) Part (as given in Annexure - A) has a manufacturing defect.
c) Vehicle is unable to meet the Emission Standards (as given in 1.), inspite of the vehicle having been maintained and
used in accordance with the instructions as specified in
Owner’s Manual and Service Booklet and the used fuel and
different oils (Engine oil, Transmission oil, Brake oil etc.) are
also as per spe cification. 3.
The method of examination for deciding the warranty of the
parts will be at the sole discretion of Maruti Suzuki and it’s
dealer and results of the examination will be final and binding.
If after examination, the warrantable condition is not estab-
lished, Maruti Suzuki and it’s dealer has the right to charge all,
or part of the cost of such examination.
4. Under Emission Warranty, the parts (as given in Annexure - A) will be changed free of cost, but the consumables will be
charged as per actual.
5. If the part covered under Emission Warranty or the associated parts, are not independently replaceable, on account of these
being integral parts of a complete assembly, Maruti Suzuki and
it’s dealer will have the sole discretion to replace either the
entire assembly or by using some of the parts of the system
through suitable repairs or modifications.
6. Any consequential repairs or replacement of parts which may be found necessary to establish compliance of Emission War-
ranty, will not be considered under warranty, unless the same is
under product warranty. The consumable will be charged as
per actual under such repair or replacement.
7. Maruti Suzuki will not be responsible for the cost of transporta- tion of the vehicle to the nearest Maruti Suzuki dealer work-
shop or any loss due to non-availability of the vehicle during
the period of lodging of a warranty claim and examination and/
or repair by Maruti Suzuki dealer.
8. Maruti Suzuki will not be responsible for any penalty that may be charged by statutory authorities on account of failure to
comply with the EMISSION STANDARDS.
Emission Warranty will not be affected on the change of owner, provided all the documents are available.

0-6
55KS0-74E
9. All maintenance actions (as specified in the Owner’s Manualand Service Booklet) need to be followed and recorded in the
manual for emission warranty.
10.The customer needs to produce the PUC (Pollution Under Control) certificate valid for the period preceding the test during
which the failure is discovered. The receipts (for the mainte-
nance of the vehicle as per specification in Owner’s Manual
and Service Booklet from the date of original purchase of the
vehicle) will also be required.Conditions under which the Emission Warranty is not
APPLICABLE1. In the absence of valid PUC certificate.
2. Vehicle not serviced from Maruti Suzuki authorised workshop as per the schedule specified in this Owner’s Manual and Ser-
vice Booklet.
3. Vehicle subjected to abnormal use (accident, motor race, ral- lies or for the purpose of establishing the records etc).
4. Use of non MGP (Maruti Genuine Part).
5. Vehicle that has been tempered with.
6. Tampering with odometer so that the actual kilometer reading can not be determined.
7. Use of adulterated fuel and/or unspecified oils (Engine oil, Transmission oil and Brake oil etc).
Annexure - AList of parts covered under Emission Warranty
1. Fuel Injection Assembly, Pressure Regulator, Throttle Body Assembly
2. Electronic Control Module (ECM).
3. Intake Manifold.
4. EGR valve.
5. Ignition Coil.
6. Canister Assembly.
7. Vapour Liquid Seperator.
8. Fuel Tank and Filler Cap.
9. PCV (Positive Crankcase Ventilation) Valve.
10. Oil Filler Cap.
11. Catalytic Convertor.
12. Exhaust Manifold.
13. All Fuel Injection System related SENSORS.
14. High Pressure Fuel Pump.
15. Glow Plug.
16. Glow Plug Controller.

TABLE OF CONTENTS
FUEL RECOMMENDATION
TABLE OF CONTENTS TABLE OF CONTENTS
TABLE OF CONTENTS
TABLE OF CONTENTS
1
BEFORE DRIVING
2
OPERATING YOUR VEHICLE
3
DRIVING TIPS
4
OTHER CONTROL AND EQUIPMENT
5
VEHICLE LOADING AND TOWING
6
INSPECTION AND MAINTENANCE
INSPECTION AND
7
EMERGENCY SERVICE
8
APPEARANCE CARE
9
GENERAL INFORMATION
10
SPECIFICATIONS
11
12
SERVICE NETWORK
74LH0-74E

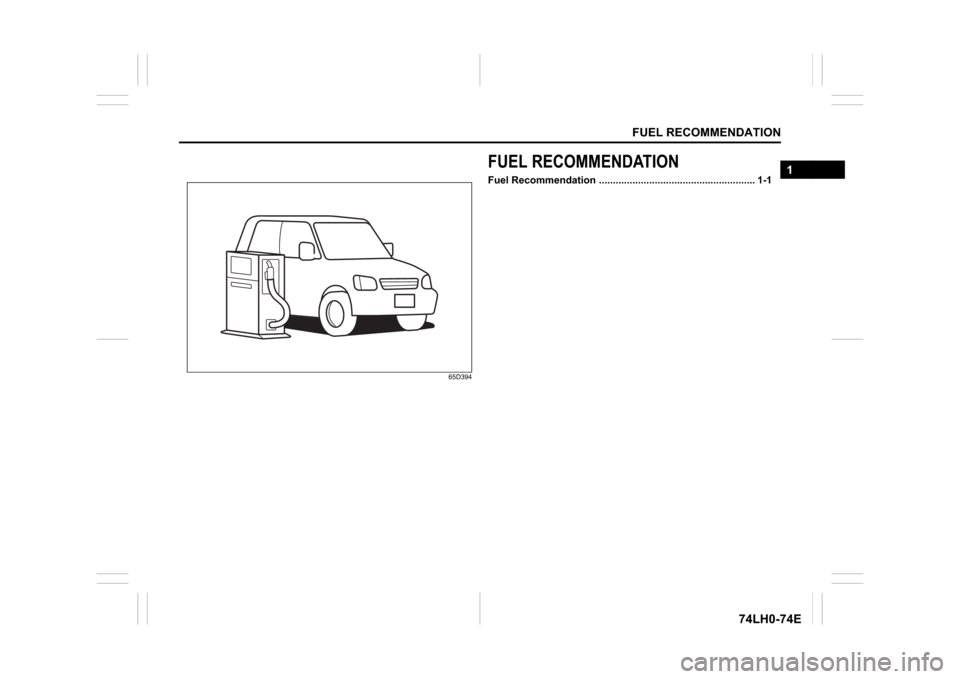

FUEL RECOMMENDATION
1
74LH0-74E
65D394
FUEL RECOMMENDATIONFuel Recommendation ........................................................ 1-1

3/3
HWGN"TGEQOOGPFCVKQP
96NJ2/96G
HWGN"TGEQOOGPFCVKQPRgvtqn"GpikpgYou must use unleaded petrol with an
octane number (RON) of 91 or higher.
Rgvtqn1Gvjcpqn"dngpfu
Blends of unleaded petrol and ethanol
(grain alcohol), also known as gasohol, are
commercially available in some areas.
Blends of this type may be used in your
vehicle if they are no more than 10% etha-
nol. Make sure this petrol-ethanol blend
has octane ratings no lower than those
recommended for petrol.
Rgvtqn1Ogvjcpqn"dngpfu
Blends of unleaded Petrol and methanol
(wood alcohol) are also commercially
available in some areas. DO NOT USE
fuels containing more than 5% methanol
under any circumstances. Fuel system
damage or vehicle performance problems
resulting from the use of such fuels are not
the responsibility of MARUTI SUZUKI and
may not be covered under the New Vehicle
Warranty. Fuels containing 5% or less
methanol may be suitable for use in your
vehicle if they contain cosolvents and cor-
rosion inhibitors. NOTE:
If you are not satisfied with the driveability
or fuel economy of your vehicle when you
are using a Petrol/alcohol blend, you
should switch back to unleaded Petrol con-
taining no alcohol.
Fkgugn"Gpikpg
The diesel fuel should be with Cetane
Number (CN) higher than 51 and sulfur
content less than 50 ppm (parts per mil-
lion). MARUTI SUZUKI recommends to
use the diesel fuel conformable to EN590.
Do not use marine diesel fuel, heating oils
and so forth.
NOTICE
Vjg" hwgn" vcpm" jcu" cp" ckt" urceg" vq
cnnqy" hqt" hwgn" gzrcpukqp" kp" jqv
ygcvjgt0" Kh" {qw" eqpvkpwg" vq" cff" hwgn
chvgt" vjg" hknngt" pq||ng" jcu" cwvqocvk/
ecnn{" ujwv" qhh" qt" cp" kpkvkcn" dnqydcem
qeewtu." vjg" ckt" ejcodgt" yknn" dgeqog
hwnn0" Gzrquwtg" vq" jgcv" yjgp" hwnn{
hwgngf" kp" vjku" ocppgt" yknn" tguwnv" kp
ngcmcig" fwg" vq" hwgn" gzrcpukqp0" Vq
rtgxgpv"uwej"hwgn"ngcmcig."uvqr"hknnkpi
chvgt" vjg" hknngt" pq||ng" jcu" cwvqocvk/
ecnn{"ujwv"qhh."qt"yjgp"wukpi"cp"cnvgt/
pcvkxg" pqp/cwvqocvke" u{uvgo." kpkvkcn
xgpv"dnqydcem"qeewtu0
NOTICE
Dg"ectghwn"pqv"vq"urknn"hwgn"eqpvckpkpi
cneqjqn" yjkng" tghwgnkpi0" Kh" hwgn" ku
urknngf"qp"vjg"xgjkeng"dqf{."ykrg"kv"wr
koogfkcvgn{0" Hwgnu" eqpvckpkpi" cneq/
jqn"ecp"ecwug"rckp
v"fcocig."yjkej"ku
pqv" eqxgtgf" wpfgt" vjg" Pgy" Xgjkeng
Nkokvgf"Ycttcpv{0"
NOTICE
Vjg" hwgn" vcpm" jcu" cp" ckt" urceg" vq
cnnqy" hqt" hwgn" gzrcpukqp" kp" jqv
ygcvjgt0" Kh" {qw" eqpvkpwg" vq" cff" hwgn
chvgt" vjg" hknngt" pq||ng" jcu" cwvqocvk/
ecnn{" ujwv" qhh" qt" cp" kpkvkcn" dnqydcem
qeewtu." vjg" ckt" ejcodgt" yknn" dgeqog
hwnn0" Gzrquwtg" vq" jgcv" yjgp" hwnn{
hwgnngf" kp" vjku" ocppgt" yknn" tguwnv" kp
ngcmcig" fwg" vq" hwgn" gzrcpukqp0" Vq
rtgxgpv"uwej"hwgn"ngcmcig."uvqr"hknnkpi
chvgt" vjg" hknngt" pq||ng" jcu" cwvqocvk/
ecnn{"ujwv"qhh."qt"yjgp"wukpi"cp"cnvgt/
pcvkxg" pqp/cwvqocvke" u{uvgo." kpkvkcn
xgpv"dnqydcem"qeewtu0
NOTICE
Dg"ectghwn"pqv"vq"urknn"hwgn"eqpvckpkpi
cneqjqn" yjkng" tghwgnkpi0" Kh" hwgn" ku
urknngf"qp"vjg"xgjkeng"dqf{."ykrg"kv"wr
koogfkcvgn{0" Hwgnu" eqpvckpkpi" cneq/
jqn"ecp"ecwug"rckp v"fcocig."yjkej"ku
pqv" eqxgtgf" wpfgt" vjg" Pgy" Xgjkeng
Nkokvgf"Ycttcpv{0"
Hwgn"Tgeqoogpfcvkqp<"3."4

BEFORE DRIVING
74LH0-74E
BEFORE DRIVINGKeys ......................................................................................... 2-1
Door Locks .............................................................................. 2-2
Central Door Locking System (if equipped) ........................ 2-2
Keyless Push Start System Remote Controller/Keyless
Entry System Transmitter ..................................................... 2-6
Security System (Vehicle With Keyless Entry System) ....... 2-12
Security System
(Vehicle With Keyless Push Start System) ........................... 2-20
Windows .................................................................................. 2-22
Mirrors ..................................................................................... 2-23
Heated Rear Window Switch (if equipped) .......................... 2-24
Front Seats .............................................................................. 2-25
Rear Seats ............................................................................... 2-26
Folding Rear Seat (if equipped) ............................................. 2-27
Seat Belts and Child Restraint Systems .............................. 2-28
Driver’s Seat Belt Reminder (if equipped) ........................... 2-32
Supplemental Restraint System (air bags)
(if equipped) ............................................................................ 2-38
Instrument Cluster ................................................................. 2-44
Warning and Indicator Lights ................................................ 2-46
Speedometer ........................................................................... 2-51
Tachometer (if equipped) ...................................................... 2-51
Fuel Gauge .............................................................................. 2-51
Temperature Gauge ............................................................... 2-52
Brightness Control ................................................................. 2-52
Information Display ................................................................ 2-53
Lighting Control Lever ........................................................... 2-60
Headlight Leveling Switch ..................................................... 2-61
Turn Signal Control Lever ..................................................... 2-61
Hazard Warning Switch ......................................................... 2-62
Windshield Wiper and Washer Lever ................................... 2-62
Tilt Steering Lock Lever ......................................................... 2-64
Horn ........................................................................................ 2-64
2

2-1
BEFORE DRIVING
74LH0-74E
Keys
54G489
Your vehicle comes with a pair of keys.
The key(s) may or may not be equipped
with a transmitter depending on model
variant. Keep the spare key in a safe place.
One key can open all of the locks on the
vehicle.
The key identification number is stamped
on a metal tag provided with the keys or on
the keys. Keep the tag (if equipped) in a
safe place. If you lose your keys, you will
need this number to have new keys made.
Write the number below for your future ref-
erence.
Immobilizer System
This system is designed to help prevent
vehicle theft by electronically disabling the
engine starting system.
The engine can be started only with your
vehicle’s original immobilizer ignition key or
keyless push start system remote control-
ler which has an electronic identificationcode programmed into it. The key or
remote controller communicates the identi-
fication code to the vehicle when the igni-
tion switch is turned to the “ON” position or
the engine switch is pressed to change the
ignition mode to “ON”. If you need to make
spare keys or remote controllers, see your
MARUTI SUZUKI dealer. The vehicle must
be programmed with the correct identifica-
tion code for the spare. A key made by an
ordinary locksmith will not work.
80JM122
If the immobilizer/keyless push start sys-
tem warning light blinks when the ignition
switch is in the “ON” position or the ignition
mode is “ON”, the engine will not start.
For vehicles without keyless push start
system
If this light blinks, turn the ignition switch to
the “LOCK” position, then turn it back to
the “ON” position.
If the light still blinks after the ignition
switch is turned back to the “ON” position,
there may be something wrong with your
key or with the immobilizer system. Ask
your MARUTI SUZUKI dealer to have the
system inspected.For vehicles with keyless push start
system
If this light blinks, change the ignition mode
to “LOCK” (OFF), then change back to “ON”.
Also refer to “If the master warning indicator
light blinks and the engine cannot
be started” in “Starting the Engine (Vehicle
with Keyless Push Start System)” in the
“OPERATING YOUR VEHICLE” section.
If the light still blinks after the ignition mode
is changed back to “ON”, there may be
something wrong with your key or with the
immobilizer system. Ask your MARUTI
SUZUKI dealer to have the system
inspected.
The immobilizer/keyless push start system
warning light may also blinks if the remote
controller is not in the vehicle when you
close the door or attempt to start the engine.
NOTE:
• If you lose your immobilizer ignition key or
remote controller, see your MARUTI
SUZUKI dealer as soon as possible to
have the lost one deactivated, then have
the new key or remote controller made by
them.
• If you own other vehicles with immobilizer
keys, keep those keys away from the igni-
tion switch or the engine switch when
using your Vehicle, or the engine may not
be started because they may interfere
with your Vehicle immobilizer system.
• If you attach any metal objects to the
immobilizer key or remote controller, it
may not start the engine.
KEY NUMBER:
EXAMPLE
Fuel Recommendation: 1, 2
