7) Remove oil strainer assembly (3).
8) Remove transmission fluid temperature sensor (1)
from sensor clamp.
9) Disconnect solenoid connectors (2).
10) Remove shift solenoid valve-A (No.1) (1), shift
solenoid valve-B (No.2) (2) and timing solenoid valve
(3) by removing bolts.Installation
1) Install shift solenoid valve-A (No.1) (1), shift solenoid
valve-B (No.2) (2) and timing solenoid valve (3).
Tightening torque
Shift solenoid bolt (a): 11 N·m (1.1 kgf-m, 8.0 lb-
ft)
2) Connect solenoid connectors identifying their
installing positions by wire color.
3) Install transmission fluid sensor (6) and sensor wire
to clamp.
I2RH0B510054-01
2
1
I5RW0C510038-02
12
3
I4RS0A510028-01
Solenoid coupler Wire color
Shift solenoid valve-A (No.1) (2) White
Shift solenoid valve-B (No.2) (3) Black
Timing solenoid valve (1) Yellow
TCC pressure control solenoid
valve (4)Light green / Brown
Pressure control solenoid valve
(5)Green / Gray
12
3 (a)
I4RS0A510029-01
2 4
6
1
3
5
I5RW0C510039-02

Downloaded from www.Manualslib.com manuals search engine 5A-94 Automatic Transmission/Transaxle:
4) Install oil strainer assembly (1).
Tightening torque
Oil strainer bolt (a): 10 N·m (1.0 kgf-m, 7.5 lb-ft)
5) Install new oil pan gasket (1) and oil pan (2).
6) Tighten oil pan bolts to specified torque diagonally
and little by little.
Tightening torque
Oil pan bolt (b): 7.0 N·m (0.7 kgf-m, 5.0 lb-ft)
7) Install left side engine under cover.
8) Lower vehicle.
9) Connect negative cable at battery.
Solenoid Valves (Shift Solenoid Valves and
Timing Solenoid Valve) Inspection
S6RW0D5106062
Resistance Check
Check shift solenoid valves and timing solenoid valve.
Shift solenoid valves and timing solenoid valve
resistance
Standard: 11 – 15 Ω at 20 °C (68 °F)Operation Check
Shift solenoid valve-A (No.1) and -B (No.2)
CAUTION!
• Do not insert air gun against strainer
installed on inlet of solenoid valve too
deeply, when blowing air into solenoid
valve. If not, the strainer will be damaged.
• Be very careful as dust etc. does not enter
when solenoid valves are inspected.

• Check that solenoid valve (1) actuate with click sound
when battery voltage is conducted.
• When solenoid valve (1) is connected to battery (2),
confirm that solenoid valve is close condition by
blowing air (50 – 200 kPa, 0.5 – 2.0 kg/cm
2, 7 – 28.5
psi) into solenoid valve as shown in figure.
• When solenoid valve (1) is not connected to battery
(2), confirm that solenoid valve is open condition by
blowing air (50 – 200 kPa, 0.5 – 2.0 kg/cm
2, 7 – 28.5
psi) into solenoid valve as shown in figure.
NOTE
Do not fail to inspect with air to prevent
mistaken checking because return spring for
valve is not installed into solenoid valve.

I2RH0B510059-01
I2RH0B510060-01
I2RH0B510061-01
I2RH0B510062-01

Downloaded from www.Manualslib.com manuals search engine Automatic Transmission/Transaxle: 5A-95
Timing solenoid valve
CAUTION!
• Do not insert air gun against strainer
installed on inlet of solenoid valve too
deeply, when blowing air into solenoid
valve. If not, the strainer will be damaged.
• Be very careful as dust etc. does not enter
when solenoid valves are inspected.

• Check that solenoid valve (1) actuate with click sound
when battery voltage is conducted.
• When timing solenoid valve (1) is connected to battery
(2), confirm that timing solenoid valve is open
condition by blowing air (50 – 200 kPa, 0.5 – 2.0 kg/
cm
2, 7 – 28.5 psi) into solenoid valve as shown in
figure.
• When timing solenoid valve (1) is not connected to
battery (2), confirm that timing solenoid valve is close
condition by blowing air (50 – 200 kPa, 0.5 – 2.0 kg/
cm
2, 7 – 28.5 psi) into solenoid valve as shown in
figure.
NOTE
Do not fail to inspect with air to prevent
mistaken checking because return spring for
valve is not installed into solenoid valve.

Pressure Control Solenoid Valves (Pressure
Control Solenoid and TCC Solenoid) Removal
and Installation
S6RW0D5106063
Removal
1) Disconnect negative cable at battery.
2) Lift up vehicle.
3) Remove left side engine under cover.
4) Remove drain plug and drain A/T fluid.
5) Install drain plug.
Tightening torque
A/T fluid drain plug: 17 N·m (1.7 kgf-m, 12.5 lb-ft)
6) Remove A/T oil pan (1) and oil pan gasket (2).
7) Remove oil strainer assembly (3).
8) Remove transmission fluid temperature sensor (1)
from sensor clamp.
9) Disconnect solenoid connectors (2).
I2RH0B510063-01
I2RH0B510054-01
2
1
I5RW0C510038-02

Downloaded from www.Manualslib.com manuals search engine 5A-96 Automatic Transmission/Transaxle:
10) Remove valve body assembly referring to
“Automatic Transaxle Unit Disassembly”.
11) Remove pressure control solenoid valve and TCC
pressure control solenoid valve referring to “Valve
Body Assembly Disassembly and Reassembly”.
Installation
Reverse removal procedure to install pressure control
solenoid valve and valve body assembly noting the
following points.
• For detail of pressure control solenoid valve and TCC
pressure control solenoid valve installation, refer to
“Valve Body Assembly Disassembly and
Reassembly”.
• For detail of valve body assembly installation, refer to
“Automatic Transaxle Unit Assembly”.
• For detail of installing wire harness for solenoid valves
and sensor, refer to “Automatic Transaxle Unit
Assembly”. Use new O-rings.
• For detail of A/T oil pan and oil strainer assembly
installation, refer to “Automatic Transaxle Unit
Assembly”. Use new oil pan gasket.
• Pour A/T fluid and check fluid level according to
procedure described in “A/T Fluid Change”.
• Check for fluid leakage after warming up A/T.
Pressure Control Solenoid Valves InspectionS6RW0D5106020
CAUTION!
• Be very careful as dust etc. does enter
when pressure control solenoid valves are
inspected.

Resistance Check
Measure resistance between pressure control solenoid
valves (Pressure control solenoid and TCC pressure
control solenoid) (1) terminals.
Pressure control solenoid valve and TCC pressure
control solenoid valve resistance
Standard: 5.0 – 5.6 Ω at 20 °C (68 °F)Operation Check
Check pressure control solenoid valves (Pressure
control solenoid and TCC pressure control solenoid)
operation in the either manner of the following.
Using regulated DC power supply
1) Connect pressure control solenoid valve (1) with
regulated DC power supply (2) as shown in figure.
2) Turn regulated DC power supply switch ON and
increase voltage of power supply keeping current
within 1.0 A.
3) Check for gradual movement of valve (3) in the
direction of arrow “A” as voltage is increased.
4) Check movement of valve (3) in the direction of
arrow “B” as voltage is decreased.
5) Turn power supply switch OFF.
CAUTION!
Do not pass current 1.0 A or more, or
pressure control solenoid is burned out.

Not using regulated DC power supply
1) Connect pressure control solenoid valve (1) to
battery (2) setting 21 W bulb (4) on the way as
shown in figure.
2) Check for movement of valve (3) in the direction of
arrow “A”.
3) Disconnect pressure control solenoid valve (1) from
battery (2) and check movement of valve (3) in the
direction of arrow “B” as shown in figure.
CAUTION!
Set 21 W bulb on the way, or pressure control
solenoid valve is burned out.

1
I2RH01510071-01
I2RH0B510064-01

Downloaded from www.Manualslib.com manuals search engine Automatic Transmission/Transaxle: 5A-97
Transmission Control Module (TCM) Removal
and Installation
S6RW0D5106021
CAUTION!
• TCM and ECM consists of highly precise
parts, therefore when handling it, be
careful not to expose to excessive shock.
• When replacing TCM with used one, all
learned contents, which have been stored
in TCM memory by executing learning
control, should be initialized after
replacement.

Removal
1) Disconnect negative cable at battery.
2) If the vehicle is equipped with air bag system,
disable air bag system. Refer to “Disabling Air Bag
System in Section 8B”.
3) Disconnect connectors from TCM (1).
4) Remove TCM by removing its nuts.Installation
Reverse removal procedure noting the following.
• Connect TCM connectors securely.
• If the vehicle is equipped with air bag system, be sure
to enable air bag system after TCM is back in place.
Refer to “Enabling Air Bag System in Section 8B”.
A/T Relay InspectionS6RW0D5106022
1) Disconnect negative cable at battery.
2) Remove A/T relay (2) from fuse and relay box (1).
3) Check that there is no continuity between terminal
“C” and “D”.
If continuity is indicated, replace A/T relay.
4) Connect battery positive (+) terminal to terminal “A”
of A/T relay and battery negative (–) terminal to
terminal “B” of A/T relay.
Check continuity between terminal “C” and “D” of A/T
relay.
If continuity does not indicated, replace A/T relay.
I4RS0A510031-01
1
I5RW0C510040-01
“D” “B”“C”21
“A”
I5RW0C510041-02

Downloaded from www.Manualslib.com manuals search engine 5A-98 Automatic Transmission/Transaxle:
Differential Side Oil Seal ReplacementS6RW0D5106023
1) Lift up vehicle and drain automatic transaxle fluid.
2) Remove drive shaft assembly and center shaft
referring to “Front Drive Shaft Assembly Removal
and Installation in Section 3A”.
3) Remove differential side oil seal (1) by using special
tool.
Special tool
(A): 09913–50121
4) Apply grease to new differential side oil seal lips.
: Grease 99000–25030 (SUZUKI Super Grease C)
5) Install new differential side oil seals (1) by using
special tool.
Special tool
(A): 09913–75510
(B): 09913–75810
Differential side oil seal installing depth
Right side “a”: 13.2 – 14.2 mm (0.52 – 0.56 in.)
Left side “b”: 3.8 – 4.8 mm (0.15 – 0.19 in.)
6) Insert drive shaft assembly and center shaft referring
to “Front Drive Shaft Assembly Removal and
Installation in Section 3A”.
7) Pour A/T fluid referring to “A/T Fluid Change”.
A/T Fluid Cooler Hoses ReplacementS6RW0D5106027
The rubber hoses for the A/T fluid cooler should be
checked at specified interval. If replacing them, be sure
to note the following.
• to replace clamps at the same time
• to insert hose as far as its limit mark
• to clamp clamps securely
[A]: Right side [B]: Left side
(A)
1I5RW0A520006-02
“a” “b”
(B)[B] [A]
1
(A)
I5RW0C510042-01
1. Inlet hose (Outlet from A/T fluid cooler)
2. Outlet hose (Inlet to A/T fluid cooler)
2
1I5RW0C510049-01

Downloaded from www.Manualslib.com manuals search engine Automatic Transmission/Transaxle: 5A-99
Automatic Transaxle Unit ComponentsS6RW0D5106028
I5RW0C510050-01
1. Drive plate 6. Transaxle and engine fastening bolt : 19 N⋅m (1.9 kgf-m, 14.0 lb-ft)
2. Drive plate bolt 7. Transaxle and engine fastening nut : 69 N⋅m (6.9 kgf-m, 50.0 lb-ft)
3. Drive plate to torque converter bolt 8. Transaxle housing lower plate : 11 N⋅m (1.1 kgf-m, 8.0 lb-ft)
4. Torque converter 9. Transaxle housing lower plate bolt : 85 N⋅m (8.5 kgf-m, 61.5 lb-ft)
5. Engine oil pan bolt : 55 N⋅m (5.5 kgf-m, 40.0 lb-ft)

Downloaded from www.Manualslib.com manuals search engine 5A-100 Automatic Transmission/Transaxle:
Automatic Transaxle Unit Dismounting and
Remounting
S6RW0D5106029
Dismounting
1) Take down transaxle with engine. For its procedure,
refer to “Engine Assembly Removal and Installation
in Section 1D”.
2) Remove transaxle housing lower plate (1).
3) Remove drive plate to torque converter bolts (1)
engage flat head rod or the like (2) with drive plate
ring gear.4) Remove starting motor.
5) Remove bolts and nut fastening engine and
transaxle, then detach transaxle from engine.WARNING!
Be sure to keep transaxle with torque
converter horizontal or facing up throughout
the work. Should it be tilted with torque
converter down, converter may fall off and
cause personal injury.

NOTE
When detaching transaxle from engine, move
it in parallel with crankshaft and use care so
as not to apply excessive force to drive plate
and torque converter.

1
I5RW0C510051-01
1
2I5RW0C510052-01
I5RW0C510053-01

Downloaded from www.Manualslib.com manuals search engine Automatic Transmission/Transaxle: 5A-101

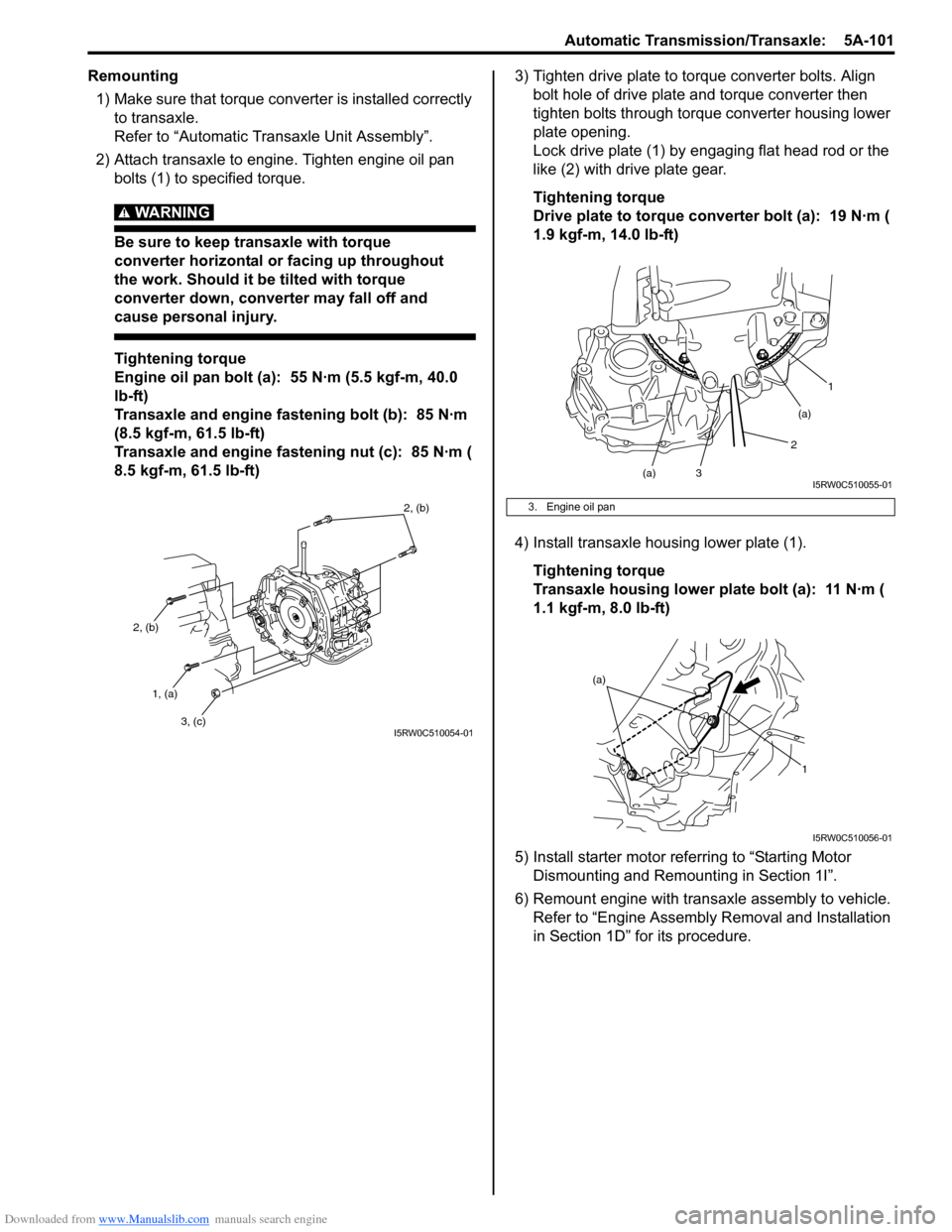

Remounting
1) Make sure that torque converter is installed correctly
to transaxle.
Refer to “Automatic Transaxle Unit Assembly”.
2) Attach transaxle to engine. Tighten engine oil pan
bolts (1) to specified torque.
WARNING!
Be sure to keep transaxle with torque
converter horizontal or facing up throughout
the work. Should it be tilted with torque
converter down, converter may fall off and
cause personal injury.

Tightening torque
Engine oil pan bolt (a): 55 N·m (5.5 kgf-m, 40.0
lb-ft)
Transaxle and engine fastening bolt (b): 85 N·m
(8.5 kgf-m, 61.5 lb-ft)
Transaxle and engine fastening nut (c): 85 N·m (
8.5 kgf-m, 61.5 lb-ft)3) Tighten drive plate to torque converter bolts. Align
bolt hole of drive plate and torque converter then
tighten bolts through torque converter housing lower
plate opening.
Lock drive plate (1) by engaging flat head rod or the
like (2) with drive plate gear.
Tightening torque
Drive plate to torque converter bolt (a): 19 N·m (
1.9 kgf-m, 14.0 lb-ft)
4) Install transaxle housing lower plate (1).
Tightening torque
Transaxle housing lower plate bolt (a): 11 N·m (
1.1 kgf-m, 8.0 lb-ft)
5) Install starter motor referring to “Starting Motor
Dismounting and Remounting in Section 1I”.
6) Remount engine with transaxle assembly to vehicle.
Refer to “Engine Assembly Removal and Installation
in Section 1D” for its procedure.
2, (b)
2, (b)
1, (a)
3, (c)I5RW0C510054-01
3. Engine oil pan
1
(a)
(a)3
2
I5RW0C510055-01
1 (a)
I5RW0C510056-01

Downloaded from www.Manualslib.com manuals search engine 5A-102 Automatic Transmission/Transaxle:
Automatic Transaxle Assembly ComponentsS6RW0D5106030
I5RW0C510057-01
