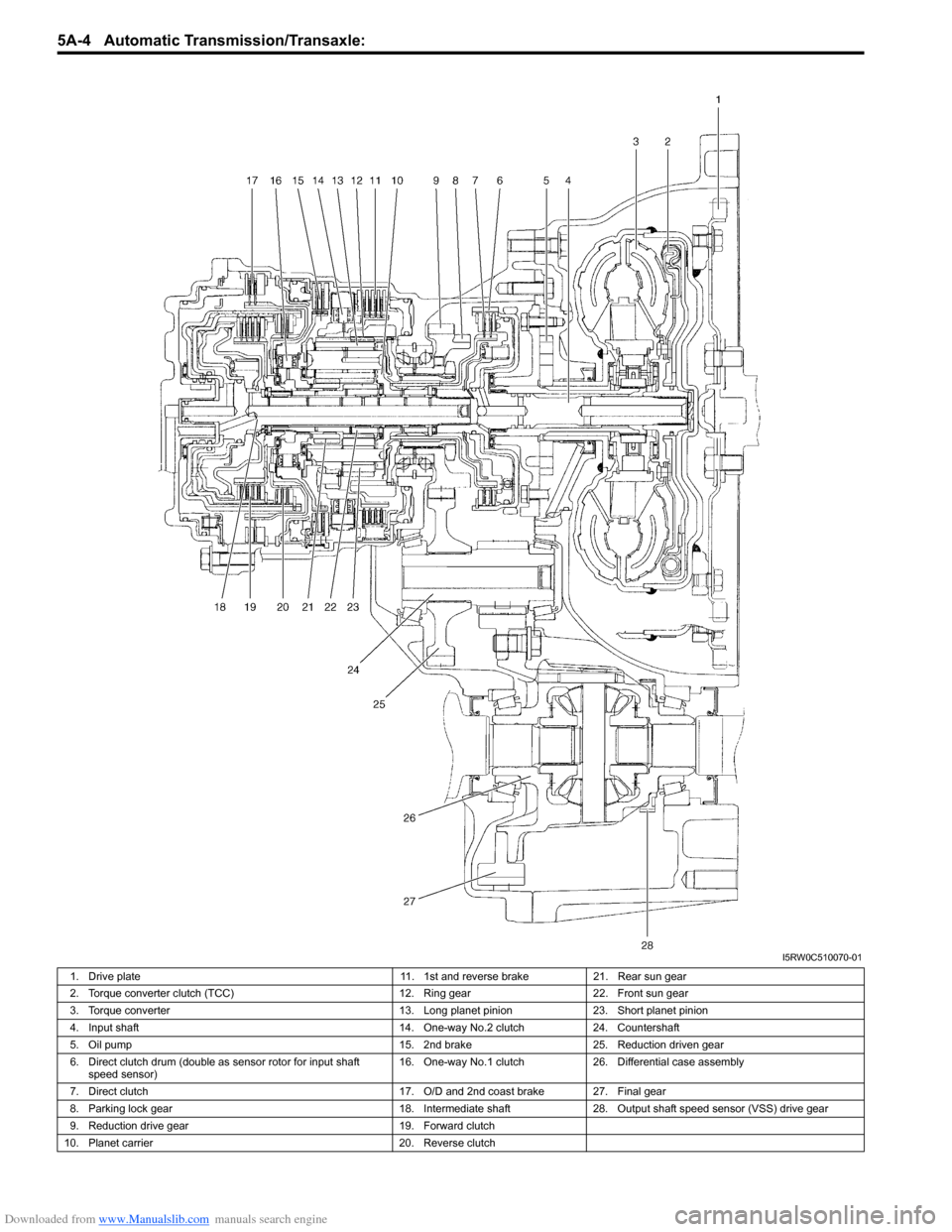

Downloaded from www.Manualslib.com manuals search engine 5A-4 Automatic Transmission/Transaxle:
I5RW0C510070-01
1. Drive plate 11. 1st and reverse brake 21. Rear sun gear
2. Torque converter clutch (TCC) 12. Ring gear 22. Front sun gear
3. Torque converter 13. Long planet pinion 23. Short planet pinion
4. Input shaft 14. One-way No.2 clutch 24. Countershaft
5. Oil pump 15. 2nd brake 25. Reduction driven gear
6. Direct clutch drum (double as sensor rotor for input shaft
speed sensor)16. One-way No.1 clutch 26. Differential case assembly
7. Direct clutch 17. O/D and 2nd coast brake 27. Final gear
8. Parking lock gear 18. Intermediate shaft 28. Output shaft speed sensor (VSS) drive gear
9. Reduction drive gear 19. Forward clutch
10. Planet carrier 20. Reverse clutch
