TESLA MODEL S 2016 Owner's Guide

Location of AirbagsAirbags are located in the approximate areas shown here. Airbag warning information is printed
on the sun visors.
Model S is equipped with an air bag and lap/shoulder belt at both front outboard seating
positions. The air bag is a supplemental restraint at those seating positions. All occupants,
including the driver, should always wear their seat belts whether or not an air bag is also provided at their seating position to minimize the risk of severe injury or death in the event of a crash.
1. Passenger knee airbag
2. Passenger front airbag
3. Side airbags
4. Curtain airbags 5. Driver

How the Airbags Work
Inflation of airbags depends on the rate at
which the vehicle

Passenger Front Airbag
Model S has an occupancy sensor in the front
passenger seat that controls the status of the
airbags based on the weight of the occupant.
Passenger airbag status displays in the top
right corner of the touchscreen to indicate
whether the airbag will
inflate (on) or notinflate (off) if a collision occurs.
Note: The occupancy sensor system meets the regulatory requirement of FMVSS 208 and
automatically detects when
inflating the
passenger front airbags would be unnecessary
or potentially harmful.
Front passenger seat
occupancy*Passenger airbag
statusEmptyOFFInfant in child safety
seat (up to 20 lbs/
9kg)OFFChild or small
occupant
(20-100 lbs/9-45 kg)ON or OFFHeavy object/
occupantON*Values are approximate. Occupants whose weight is close to the low weight threshold
can cause the status to occasionally turn on
and
off depending on seating position and
physique.
Note: It takes approximately six seconds after
you power on Model S for the occupancy
sensor to report accurate status of the front
passenger airbag. As a result, when you
firstpower on Model S, the status defaults to PASS
AIRBAG ON, even in situations when it should
be OFF because the seat is either empty or
carrying a weight of 20 lbs (9 kg) or less.
However, after the six second initialization, the status should display as PASS AIRBAG OFF. If
it fails to do so, contact Tesla service
immediately and seat passengers in the rear
seating positions only.
If the status shows the airbag as permanently
on, even when the seat is empty and the seat belt is unbuckled, contact Tesla immediately.
To make sure the sensing system can correctly detect occupancy status, eliminate the
following:

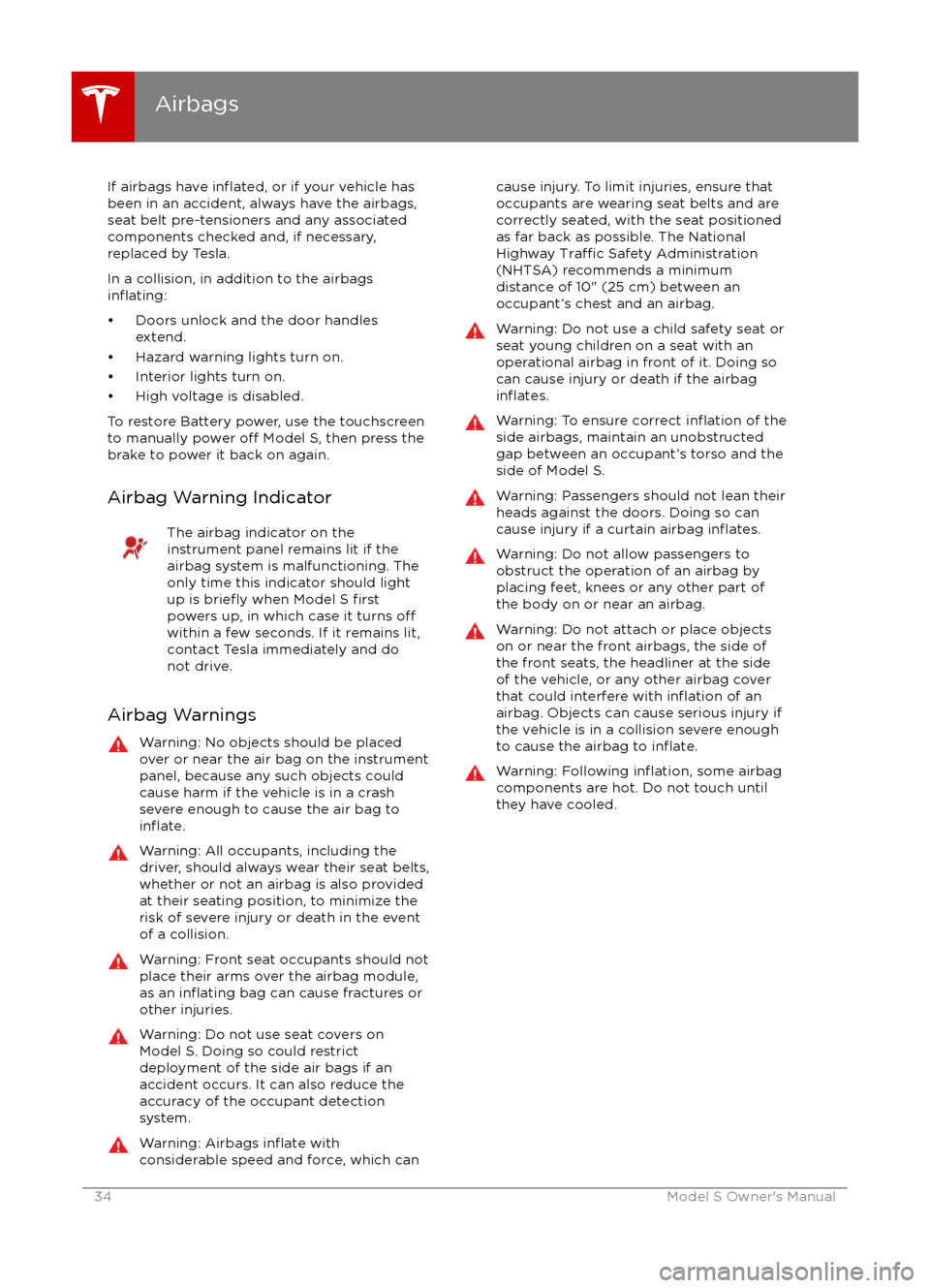

If airbags have inflated, or if your vehicle has
been in an accident, always have the airbags, seat belt pre-tensioners and any associated
components checked and, if necessary,
replaced by Tesla.
In a collision, in addition to the airbags
inflating:

Creating a Driver Profile
If equipped with the driver profile feature, you
only need to adjust Model S once. When you
first adjust the driver

Cancelling Valet Mode
With Model S in Park, touch the Valet Mode
driver icon on the touchscreen

Adjusting PositionAdjust the steering wheel to the desireddriving position by moving the control on the
left side of the steering column. Using this
control, you can move the steering wheel forward and backward and up and down.Warning: Do not make adjustments while
driving.
Adjusting Sensitivity
You can adjust the feel and sensitivity of the
steering system to suit your personal
preference:
1. On the touchscreen, touch Controls. 2. Choose a steering option:

automatically changes to display navigation
instructions (if applicable), or to let you know
if a door or trunk is open when Model S is in a driving gear.
Using Right Steering Wheel Buttons Use the buttons on the right side of thesteering wheel to access call options while on
a phone call, to browse the phonebook of a
Bluetooth-connected phone, to choose what
displays on the right side of the instrument
panel, to adjust Model S features, and to use
voice commands.
Note: Whenever you receive or make a phone call, the right side of the instrument panelautomatically displays call options to help you
easily handle phone calls on your Bluetooth-
connected phone.
1. Touch to browse the phonebook of a
Bluetooth-connected phone and touch
again to close it.
Press and hold to use voice commands to
call a contact, navigate, or listen to Internet music. When you hear the tone,
speak your command. Release the button
when you
finish speaking. For details, see
Using Voice Commands on page 39.
2. Scroll Wheel

Using Voice Commands
You can use voice commands to call a contact, navigate, or listen to Internet music. Press and
hold the voice button on the upper right side of the steering wheel. When you hear the
tone, speak your command while continuing
to hold down the voice button. Release the
button when you
finish speaking.

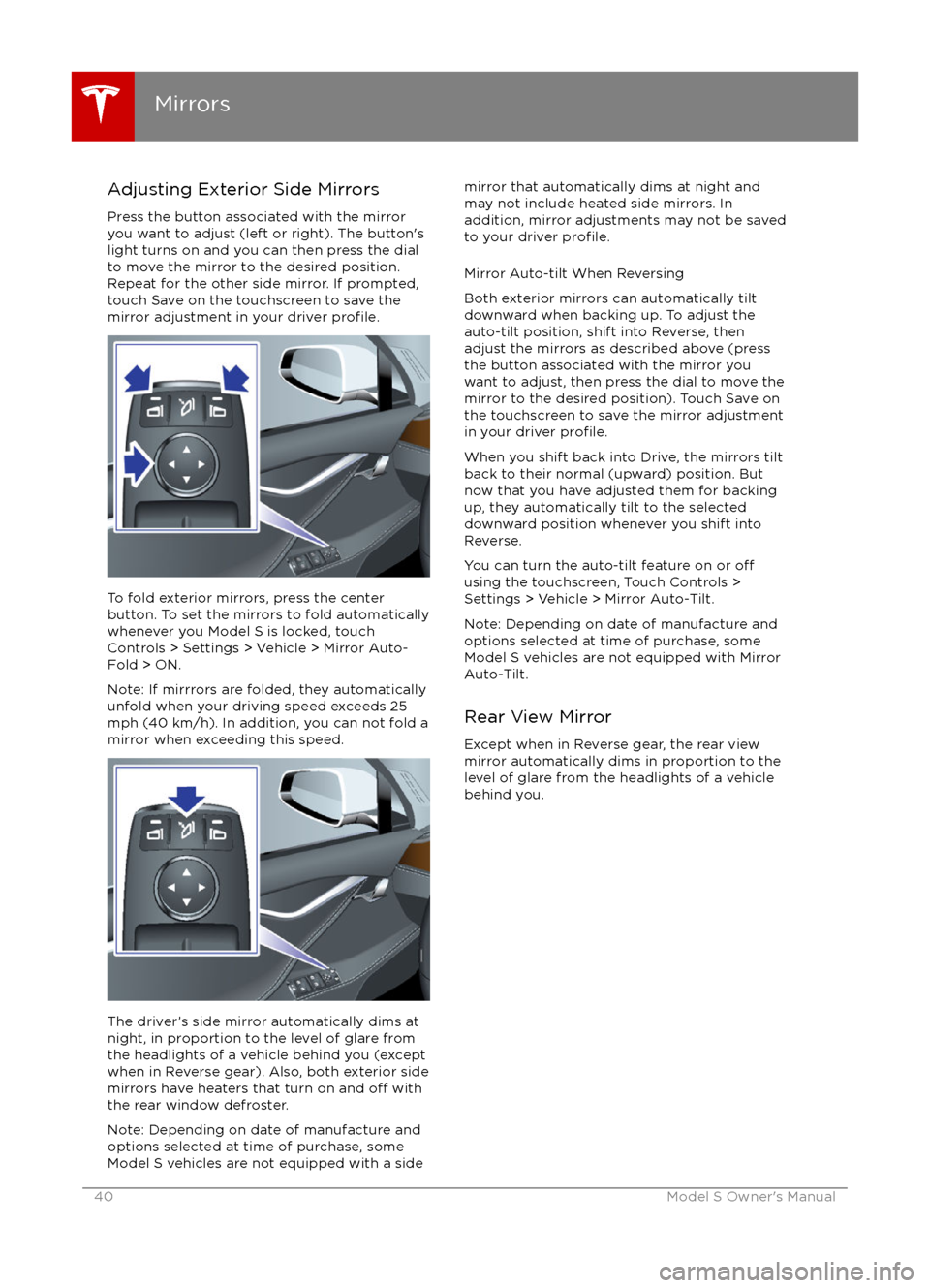

Adjusting Exterior Side Mirrors
Press the button associated with the mirror
you want to adjust (left or right). The button
