Page 31 of 218
Bench Seats (5-seat vehicles only):
Mass GroupSize ClassFixtureFront
PassengerRear
OutboardRear CenterGroup 0up to 10 kgER1XILX
Group 0+up to 13 kg
ER1XILXDR2XILXCR3XILX
Group I9 - 18 kg
DR2XILXCR3XILXBF2XIUFXB1F2XXIUFXAF3XIUFXIUF: Suitable for universal ISOFIX forward child restraint systems approved for use in this mass
group.
IL: Suitable for particular ISOFIX child restraint systems in the
"specific vehicle", "restricted", or
"semi-universal" categories.
X: Seating position does not support ISOFIX child restraint systems in this mass group/size
class.
*ISOFIX - The international standard for attachment points for child safety seats in passenger
vehicles.
Note: If the combined weight of the child and the child safety seat is over 29 kg, Tesla
recommends attaching the safety seat using the seat belt and upper tether strap. In addition to
safety, this has the added
benefit of ensuring the seat belt reminder does not stay lit. Always
follow the child safety seat manufacturer
Page 32 of 218

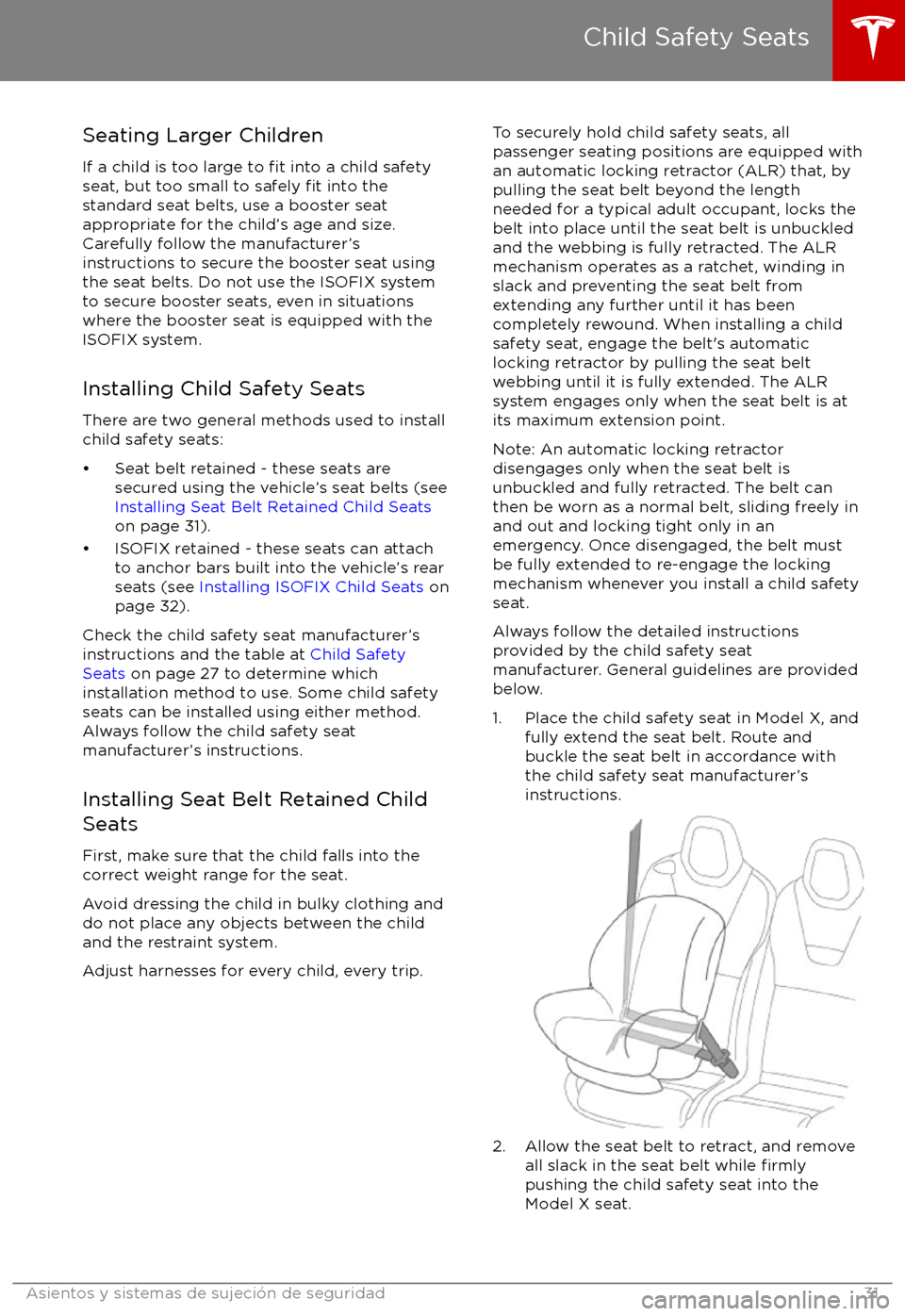

Seating Larger Children
If a child is too large to
fit into a child safety
seat, but too small to safely fit into the
standard seat belts, use a booster seat
appropriate for the child
Page 33 of 218

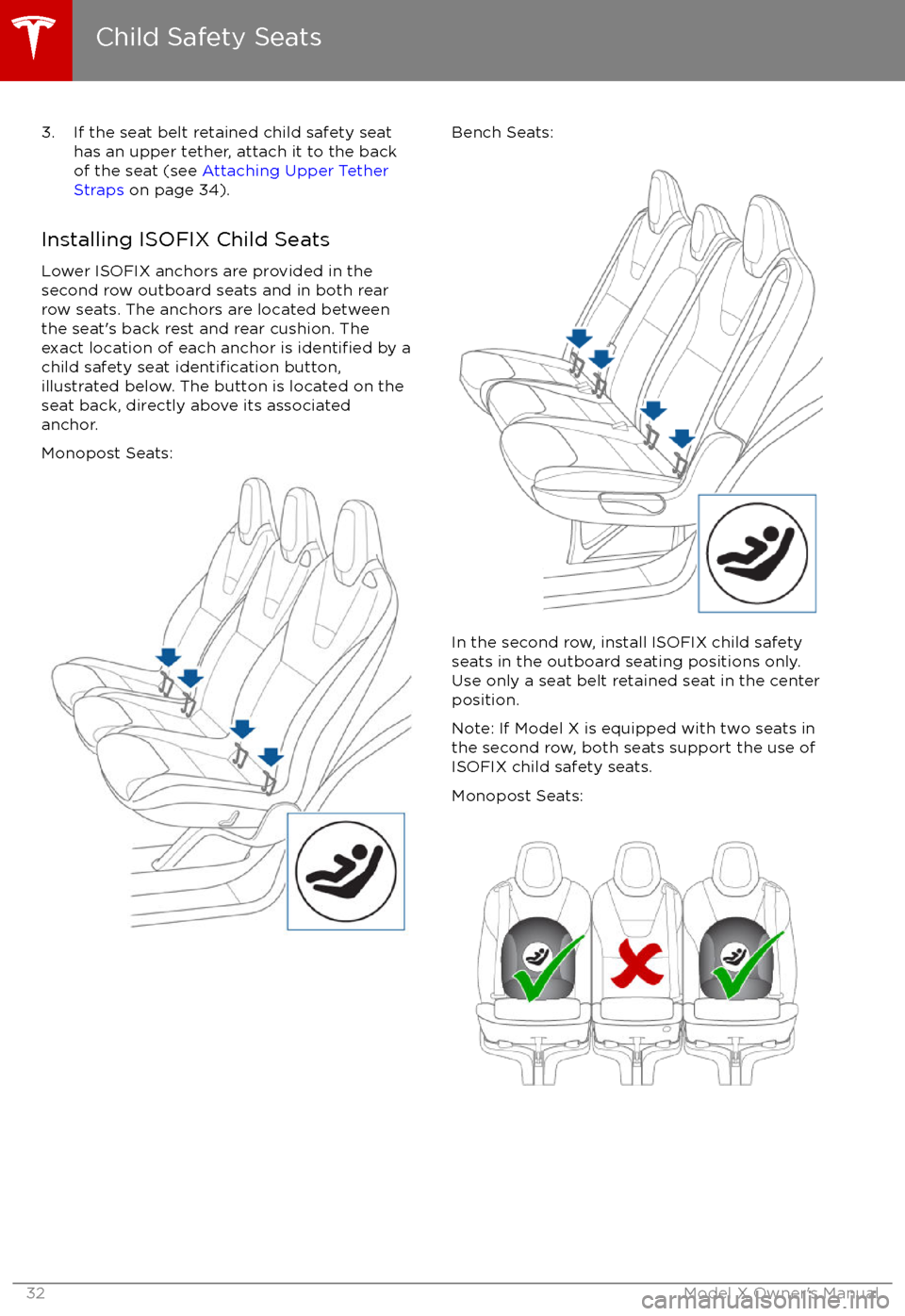

3. If the seat belt retained child safety seathas an upper tether, attach it to the back
of the seat (see Attaching Upper Tether
Straps on page 34).
Installing ISOFIX Child Seats
Lower ISOFIX anchors are provided in the
second row outboard seats and in both rear
row seats. The anchors are located between the seat
Page 34 of 218

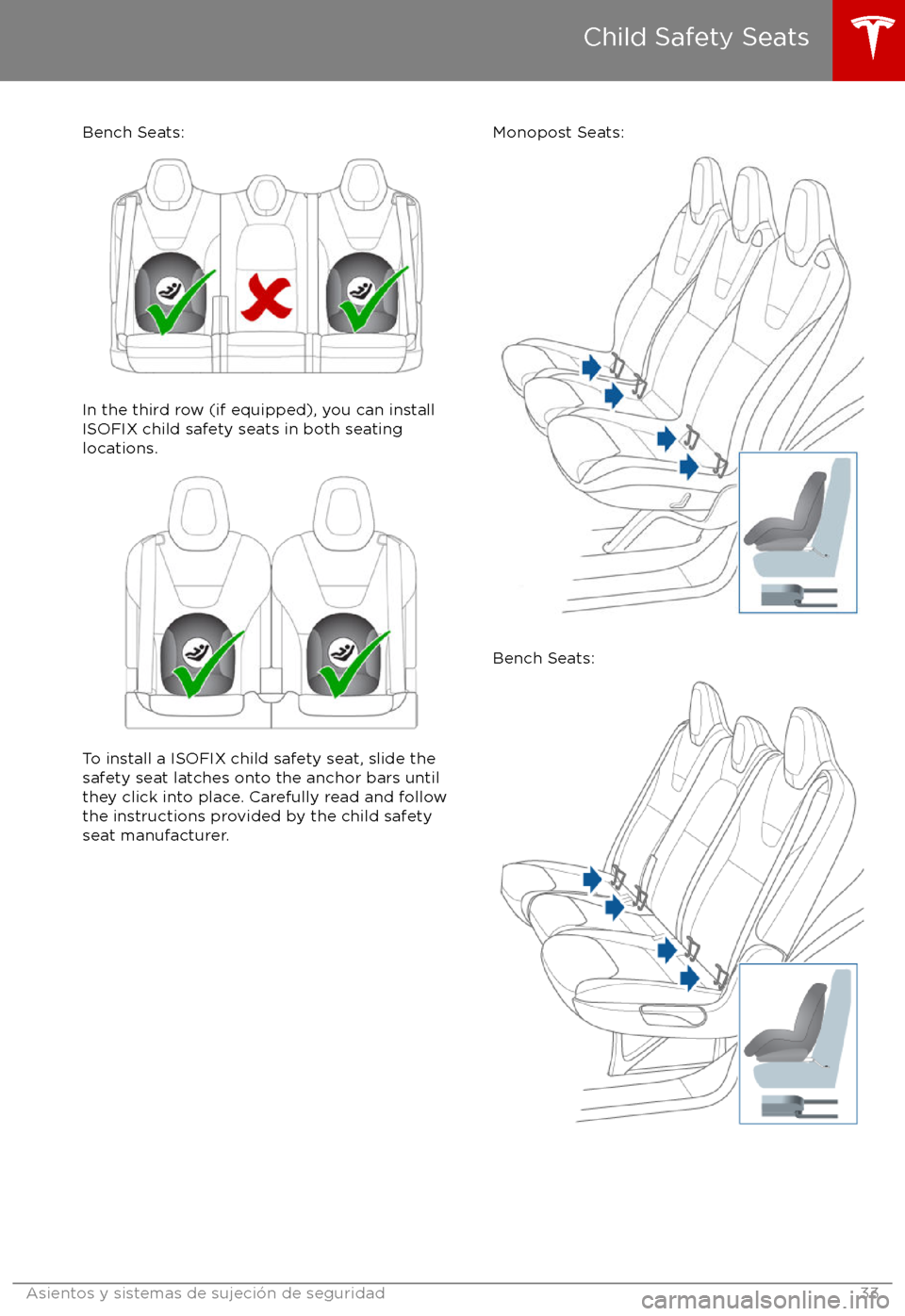

Bench Seats:
In the third row (if equipped), you can install
ISOFIX child safety seats in both seating
locations.
To install a ISOFIX child safety seat, slide the
safety seat latches onto the anchor bars until
they click into place. Carefully read and follow
the instructions provided by the child safety
seat manufacturer.
Monopost Seats:
Bench Seats:
Child Safety Seats
Asientos y sistemas de sujeci
Page 35 of 218

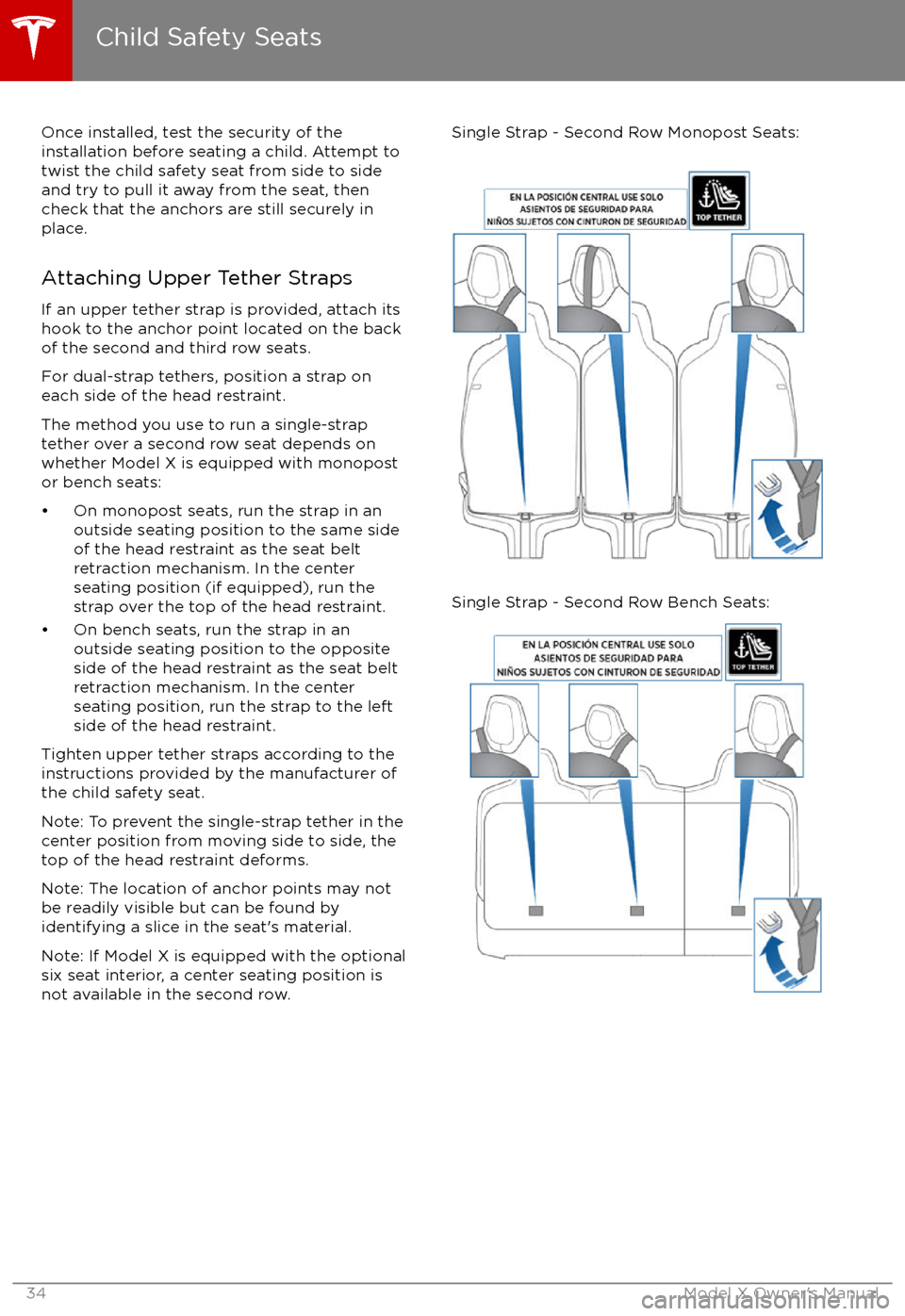

Once installed, test the security of theinstallation before seating a child. Attempt to twist the child safety seat from side to side
and try to pull it away from the seat, then
check that the anchors are still securely in
place.
Attaching Upper Tether Straps
If an upper tether strap is provided, attach its
hook to the anchor point located on the back
of the second and third row seats.
For dual-strap tethers, position a strap on each side of the head restraint.
The method you use to run a single-strap
tether over a second row seat depends on
whether Model X is equipped with monopost
or bench seats:
Page 36 of 218

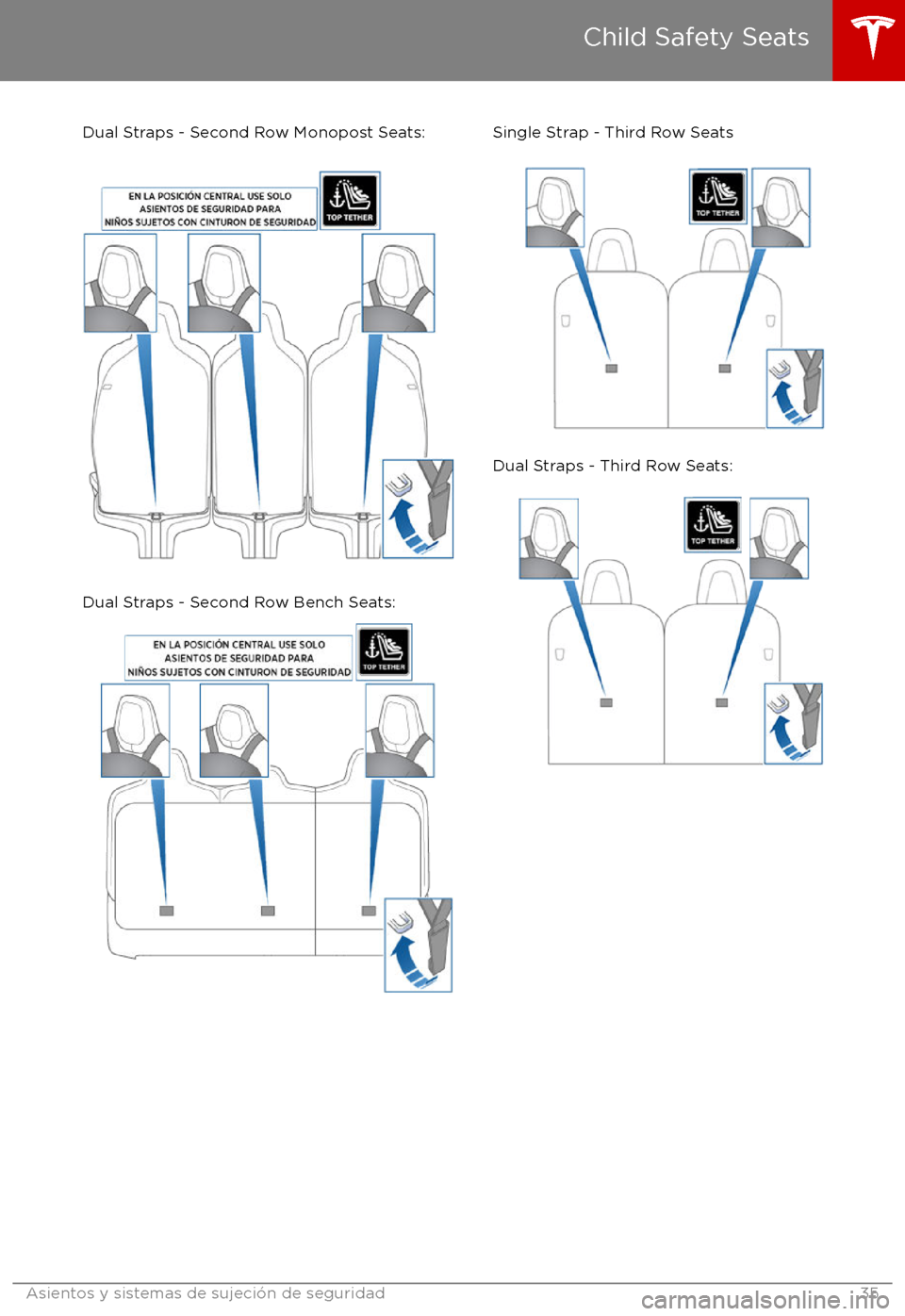

Dual Straps - Second Row Monopost Seats:
Dual Straps - Second Row Bench Seats:
Single Strap - Third Row Seats
Dual Straps - Third Row Seats:
Child Safety Seats
Asientos y sistemas de sujeci
Page 37 of 218

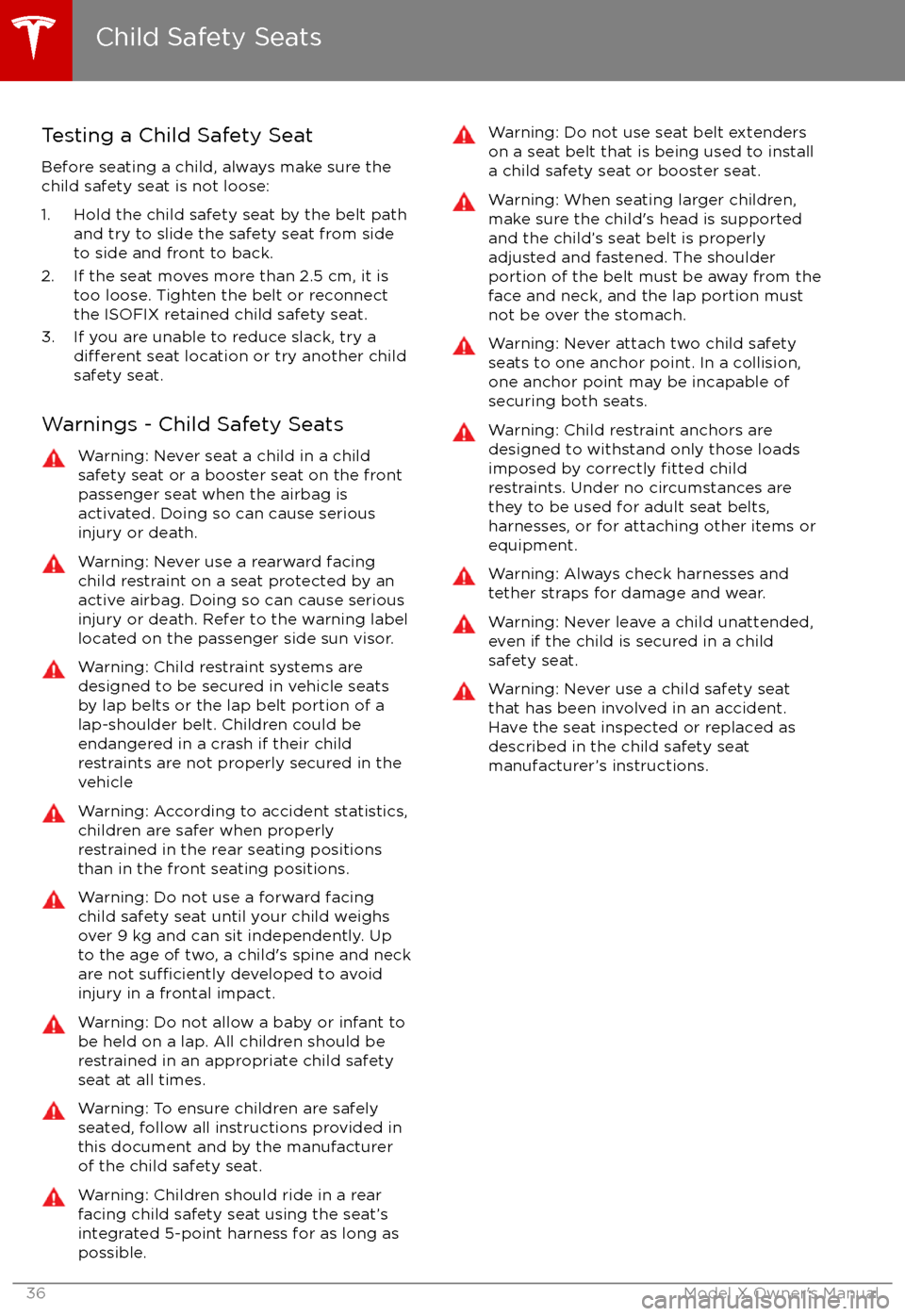

Testing a Child Safety Seat
Before seating a child, always make sure the
child safety seat is not loose:
1. Hold the child safety seat by the belt path and try to slide the safety seat from side
to side and front to back.
2. If the seat moves more than 2.5 cm, it is too loose. Tighten the belt or reconnect
the ISOFIX retained child safety seat.
3. If you are unable to reduce slack, try a
different seat location or try another child
safety seat.
Warnings - Child Safety Seats
Warning: Never seat a child in a child
safety seat or a booster seat on the front
passenger seat when the airbag is
activated. Doing so can cause serious injury or death.Warning: Never use a rearward facing
child restraint on a seat protected by an
active airbag. Doing so can cause serious
injury or death. Refer to the warning label
located on the passenger side sun visor.Warning: Child restraint systems are
designed to be secured in vehicle seats
by lap belts or the lap belt portion of a lap-shoulder belt. Children could be
endangered in a crash if their child restraints are not properly secured in the
vehicleWarning: According to accident statistics,
children are safer when properly
restrained in the rear seating positions
than in the front seating positions.Warning: Do not use a forward facing child safety seat until your child weighs
over 9 kg and can sit independently. Up
to the age of two, a child
Page 38 of 218

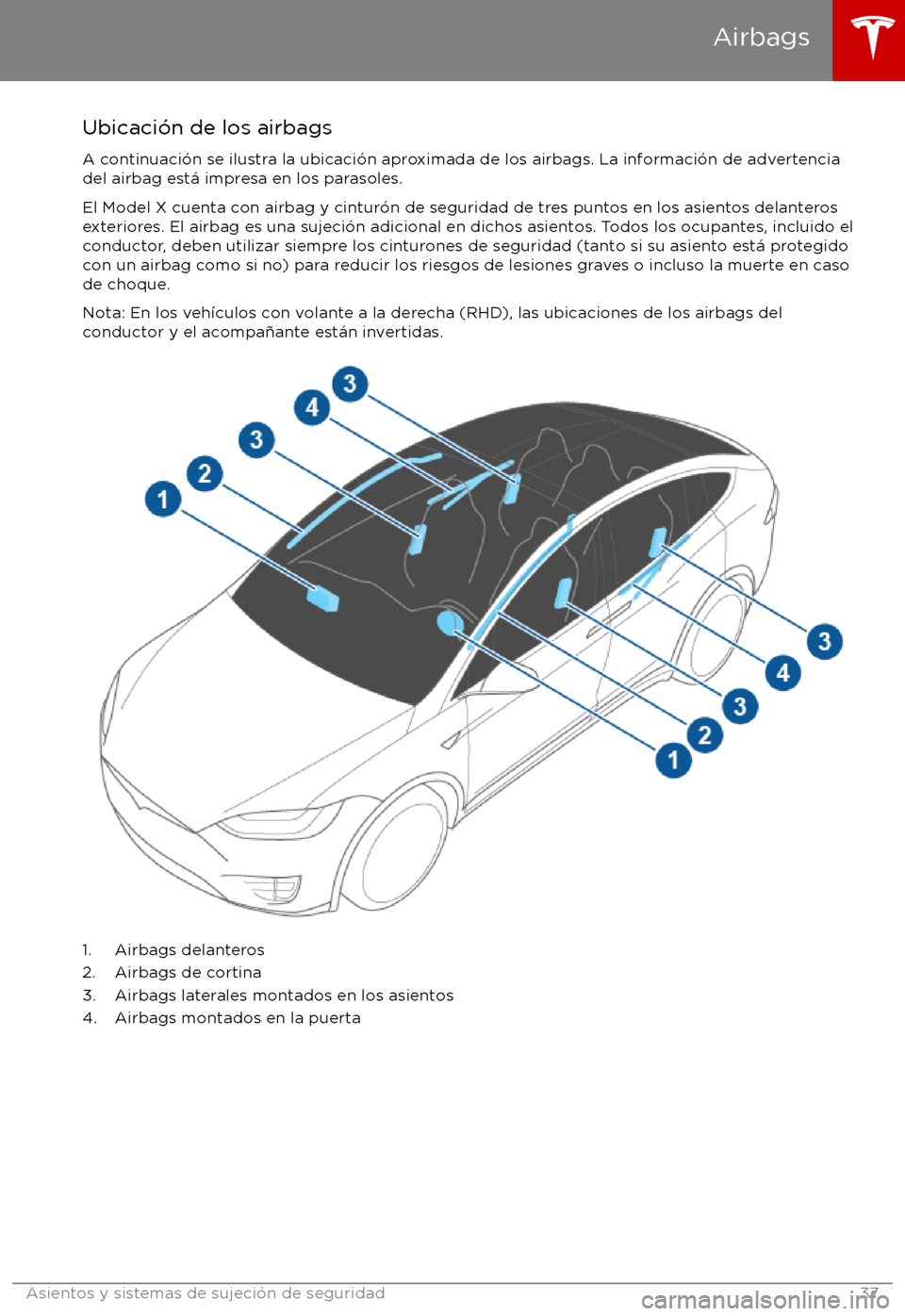

Ubicaci
Page 39 of 218
Funcionamiento de los airbags
El
inflado de los airbags depende del cambio
de velocidad que sufra el habit
Page 40 of 218

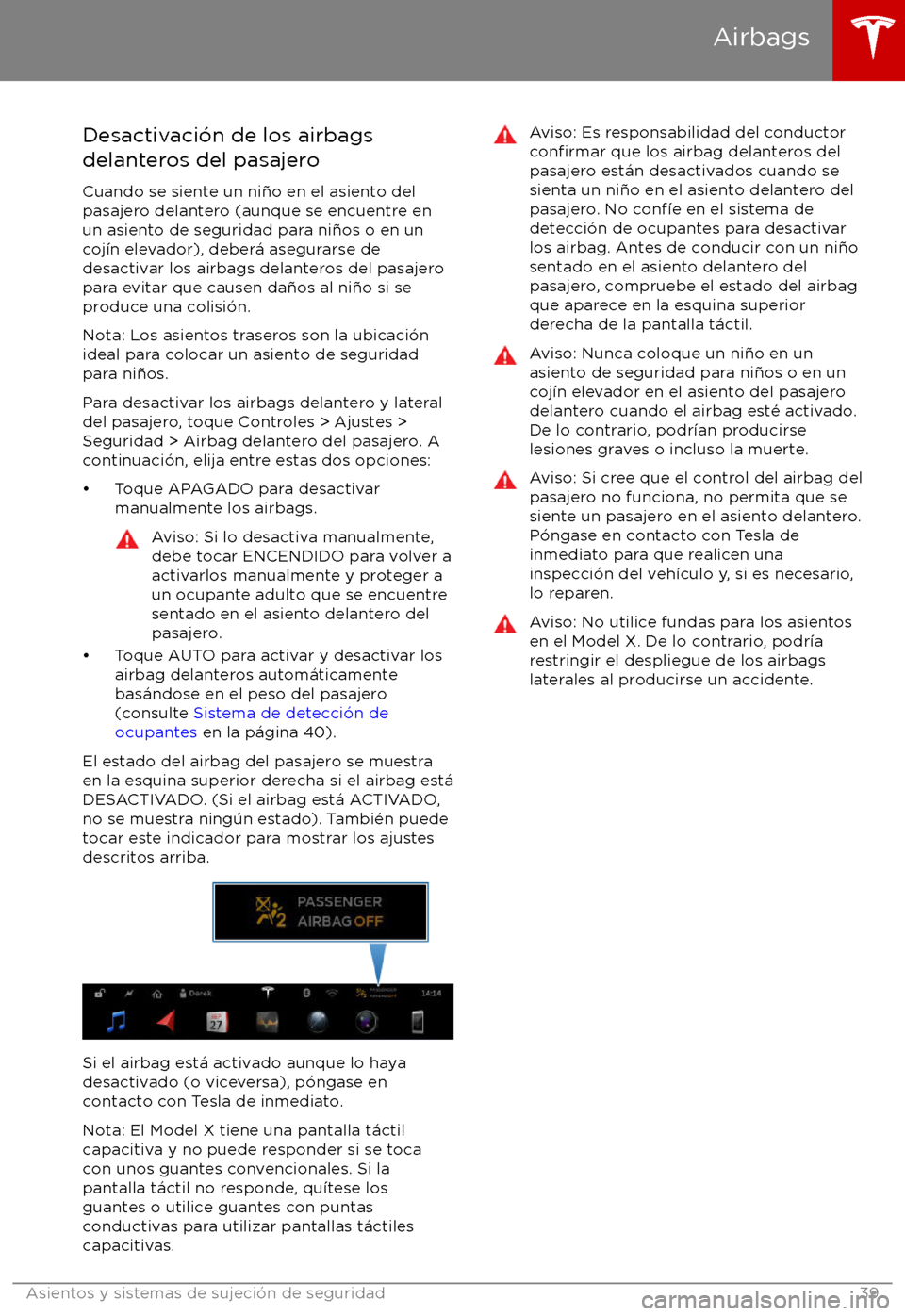

Desactivaci
