Doors4-4
Doors, locks, and security

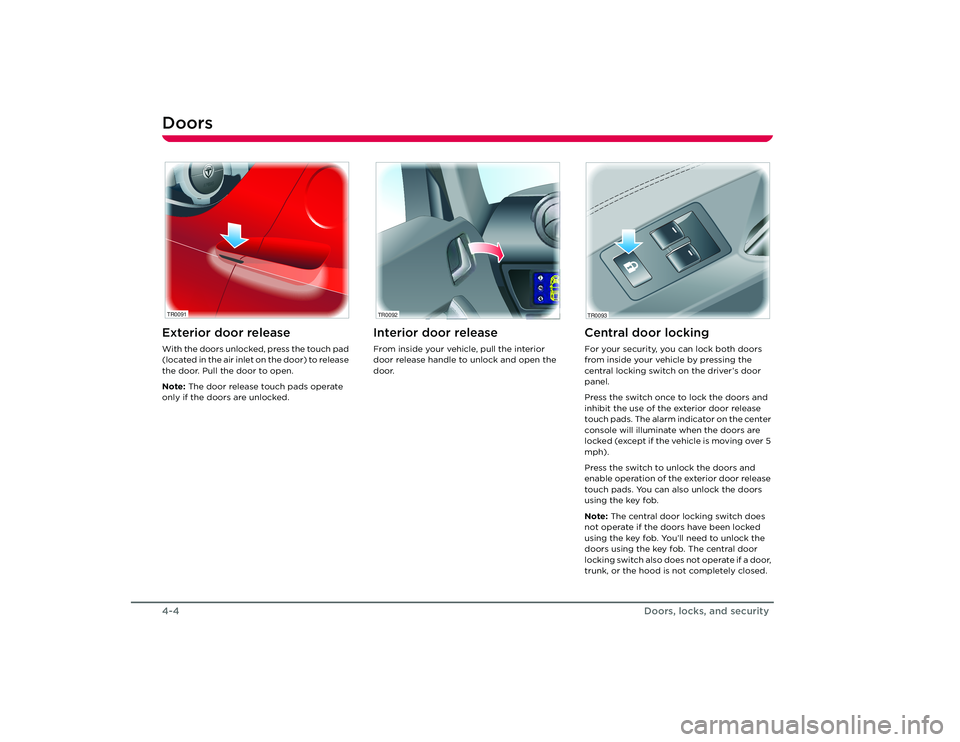

DoorsExterior door releaseWith the doors unlocked, press the touch pad
(located in the air inlet on the door) to release
the door. Pull the door to open.
Note: The door release touch pads operate
only if the doors are unlocked.
Interior door releaseFrom inside your vehicle, pull the interior
door release handle to unlock and open the
door.
Central door lockingFor your security, you can lock both doors
from inside your vehicle by pressing the
central locking switch on the driver’s door
panel.
Press the switch once to lock the doors and
inhibit the use of the exterior door release
touch pads. The alarm indicator on the center
console will illuminate when the doors are
locked (except if the vehicle is moving over 5
mph).
Press the switch to unlock the doors and
enable operation of the exterior door release
touch pads. You can also unlock the doors
using the key fob.
Note: The central door locking switch does
not operate if the doors have been locked
using the key fob. You’ll need to unlock the
doors using the key fob. The central door
locking switch also does not operate if a door,
trunk, or the hood is not completely closed.
TR0091
TR0092
TR0093
Roadster OHB.book Page 4 Th ursday, October 2, 2008 8:59 AM

Vehicle security
4-7
Doors, locks, and security

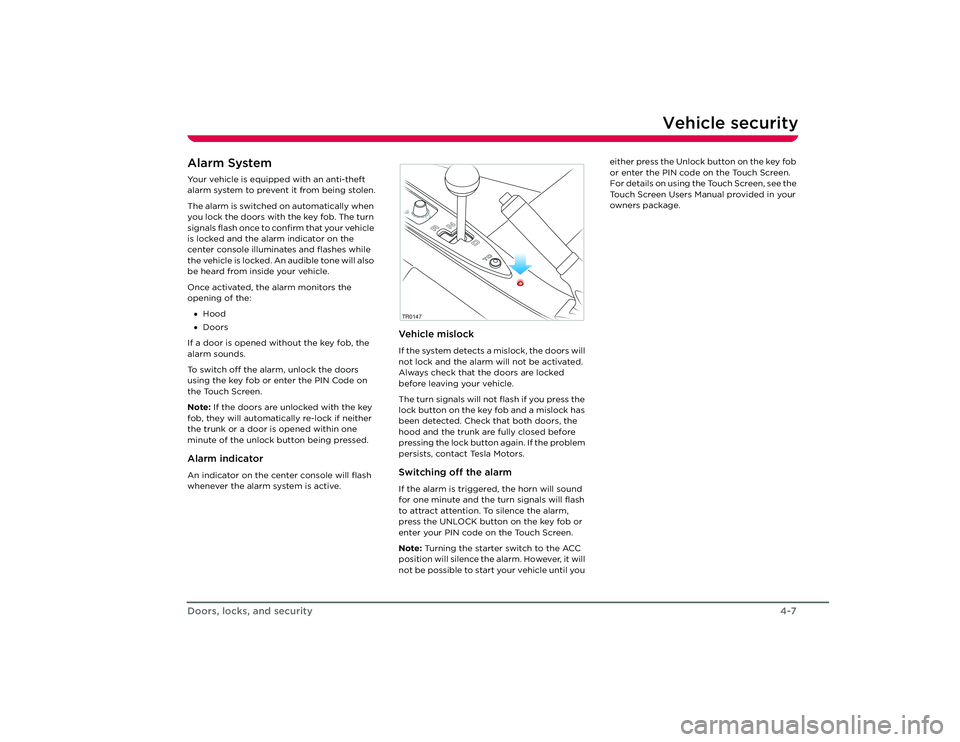

Vehicle securityAlarm SystemYour vehicle is equipped with an anti-theft
alarm system to prevent it from being stolen.
The alarm is switched on automatically when
you lock the doors with the key fob. The turn
signals flash once to confirm that your vehicle
is locked and the alarm indicator on the
center console illuminates and flashes while
the vehicle is locked. An audible tone will also
be heard from inside your vehicle.
Once activated, the alarm monitors the
opening of the:
• Hood
• Doors
If a door is opened without the key fob, the
alarm sounds.
To switch off the alarm, unlock the doors
using the key fob or enter the PIN Code on
the Touch Screen.
Note: If the doors are unlocked with the key
fob, they will automatically re-lock if neither
the trunk or a door is opened within one
minute of the unlock button being pressed.Alarm indicatorAn indicator on the center console will flash
whenever the alarm system is active.
Ve h i c l e m i s l o c kIf the system detects a mislock, the doors will
not lock and the alarm will not be activated.
Always check that the doors are locked
before leaving your vehicle.
The turn signals will not flash if you press the
lock button on the key fob and a mislock has
been detected. Check that both doors, the
hood and the trunk are fully closed before
pressing the lock button again. If the problem
persists, contact Tesla Motors.Switching off the alarmIf the alarm is triggered, the horn will sound
for one minute and the turn signals will flash
to attract attention. To silence the alarm,
press the UNLOCK button on the key fob or
enter your PIN code on the Touch Screen.
Note: Turning the starter switch to the ACC
position will silence the alarm. However, it will
not be possible to start your vehicle until you either press the Unlock button on the key fob
or enter the PIN code on the Touch Screen.
For details on using the Touch Screen, see the
Touch Screen Users Manual provided in your
owners package.TR0147
Roadster OHB.book Page 7 Th
ursday, October 2, 2008 8:59 AM

Driving basics6-6
Driving your vehicle
pressure is applied. This allows you to
maintain steering control during heavy
braking on most road conditions.
During emergency braking conditions, the
ABS constantly monitors the speed of each
wheel and varies the brake pressure
according to the grip available.
The alteration of brake pressure can be felt as
a pulsing sensation through the brake pedal.
This demonstrates that ABS is operating and
is not a cause for concern. Keep firm and
steady pressure on the brake pedal while
experiencing the pulsation.Emergency braking

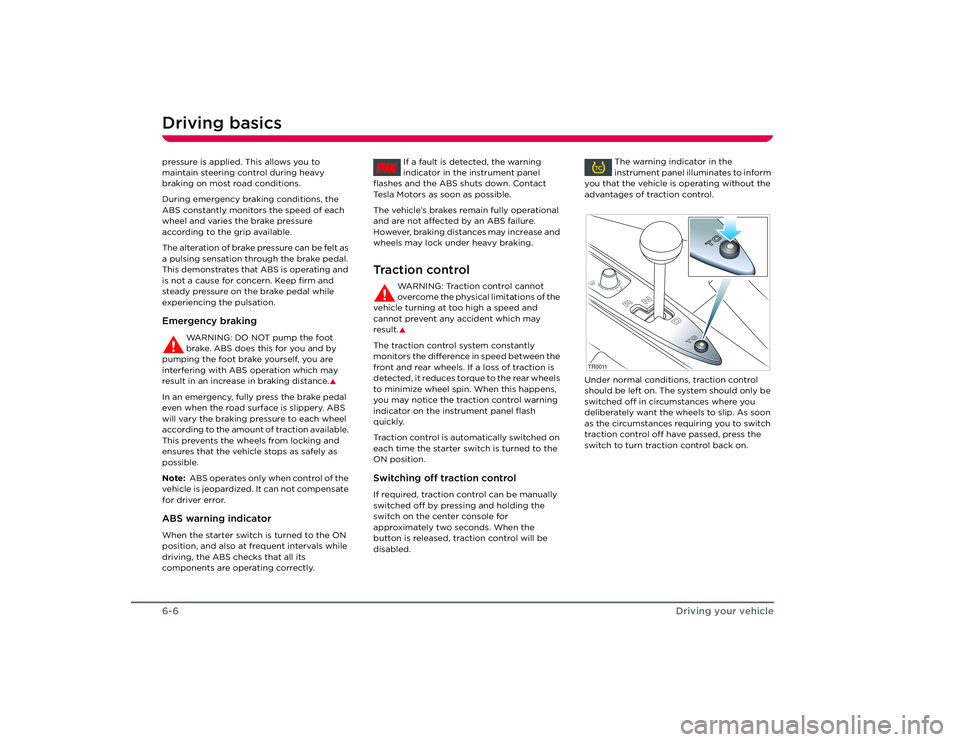

WARNING: DO NOT pump the foot
brake. ABS does this for you and by
pumping the foot brake yourself, you are
interfering with ABS operation which may
result in an increase in braking distance.
S
In an emergency, fully press the brake pedal
even when the road surface is slippery. ABS
will vary the braking pressure to each wheel
according to the amount of traction available.
This prevents the wheels from locking and
ensures that the vehicle stops as safely as
possible.
Note: ABS operates only when control of the
vehicle is jeopardized. It can not compensate
for driver error.ABS warning indicatorWhen the starter switch is turned to the ON
position, and also at frequent intervals while
driving, the ABS checks that all its
components are operating correctly. If a fault is detected, the warning
indicator in the instrument panel
flashes and the ABS shuts down. Contact
Tesla Motors as soon as possible.
The vehicle’s brakes remain fully operational
and are not affected by an ABS failure.
However, braking distances may increase and
wheels may lock under heavy braking.
Tra c t i o n c o n t ro l
WARNING: Traction control cannot
overcome the physical limitations of the
vehicle turning at too high a speed and
cannot prevent any accident which may
result.S
The traction control system constantly
monitors the difference in speed between the
front and rear wheels. If a loss of traction is
detected, it reduces torque to the rear wheels
to minimize wheel spin. When this happens,
you may notice the traction control warning
indicator on the instrument panel flash
quickly.
Traction control is automatically switched on
each time the starter switch is turned to the
ON position.Switching off traction controlIf required, traction control can be manually
switched off by pressing and holding the
switch on the center console for
approximately two seconds. When the
button is released, traction control will be
disabled. The warning indicator in the
instrument panel illuminates to inform
you that the vehicle is operating without the
advantages of traction control.
Under normal conditions, traction control
should be left on. The system should only be
switched off in circumstances where you
deliberately want the wheels to slip. As soon
as the circumstances requiring you to switch
traction control off have passed, press the
switch to turn traction control back on.BRAKE
TC
TC T CT C
T C
T C
D
R
N
TR0011
Roadster OHB.book Page 6 Th ursday, October 2, 2008 8:59 AM

Switches and controls6-10
Driving your vehicle

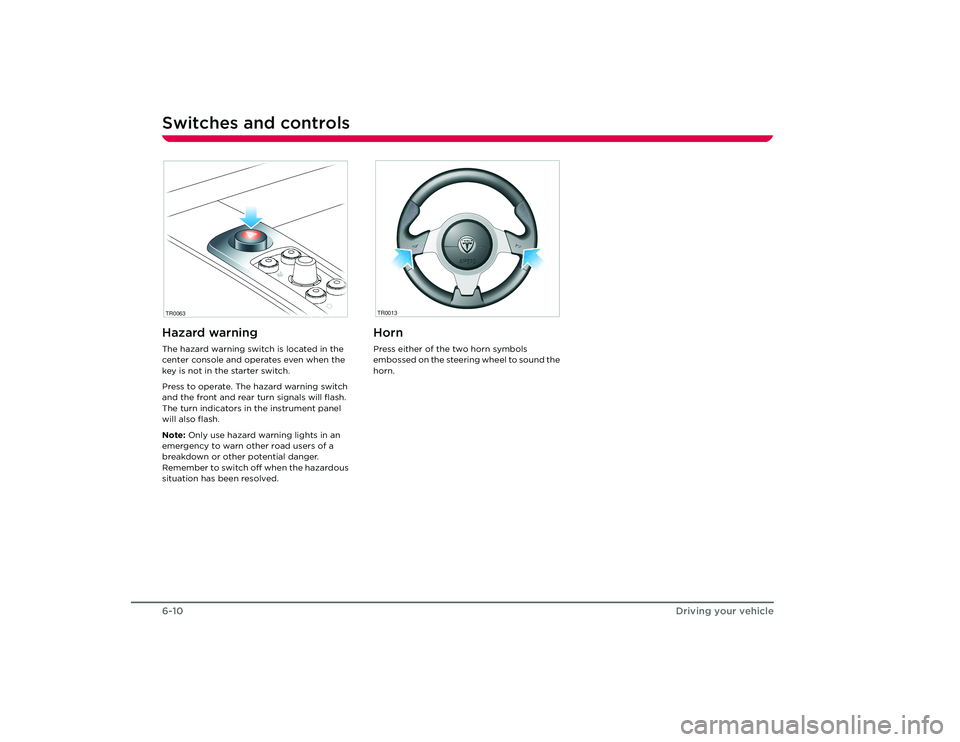

Hazard warningThe hazard warning switch is located in the
center console and operates even when the
key is not in the starter switch.
Press to operate. The hazard warning switch
and the front and rear turn signals will flash.
The turn indicators in the instrument panel
will also flash.
Note: Only use hazard warning lights in an
emergency to warn other road users of a
breakdown or other potential danger.
Remember to switch off when the hazardous
situation has been resolved.
HornPress either of the two horn symbols
embossed on the steering wheel to sound the
horn.
TR0063
TR0013
Roadster OHB.book Page 10 Thursday, October 2, 2008 8:59 AM

Instruments6-14
Driving your vehicle

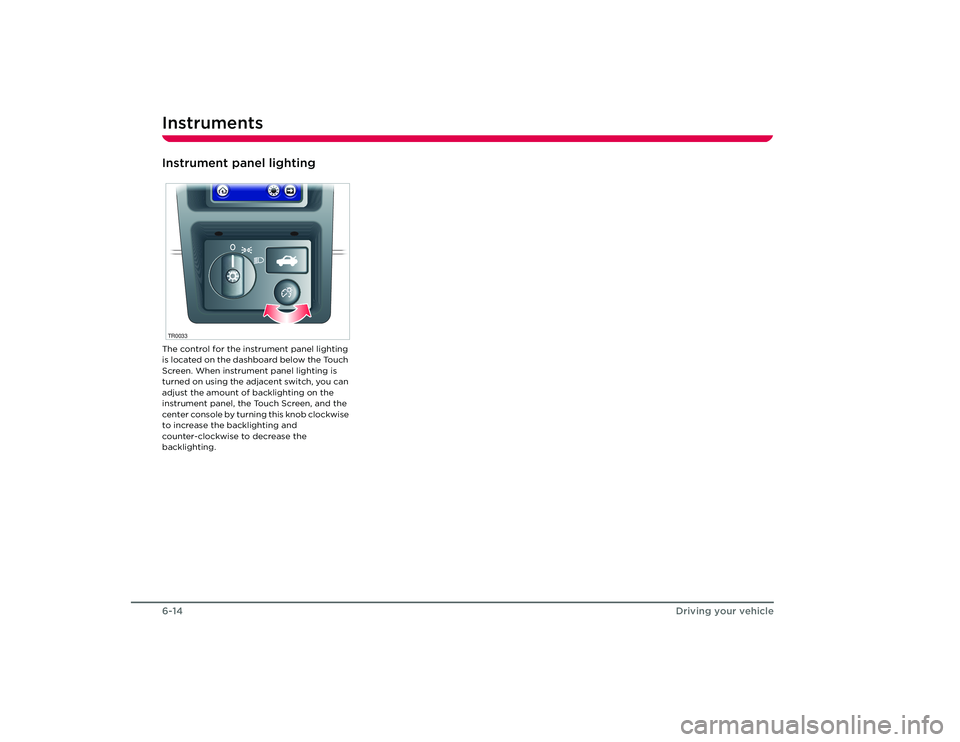

Instrument panel lightingThe control for the instrument panel lighting
is located on the dashboard below the Touch
Screen. When instrument panel lighting is
turned on using the adjacent switch, you can
adjust the amount of backlighting on the
instrument panel, the Touch Screen, and the
center console by turning this knob clockwise
to increase the backlighting and
counter-clockwise to decrease the
backlighting.TR0033Roadster OHB.book Page 14 Thursday, October 2, 2008 8:59 AM

Interior temperature control7-4
Comfort and convenience

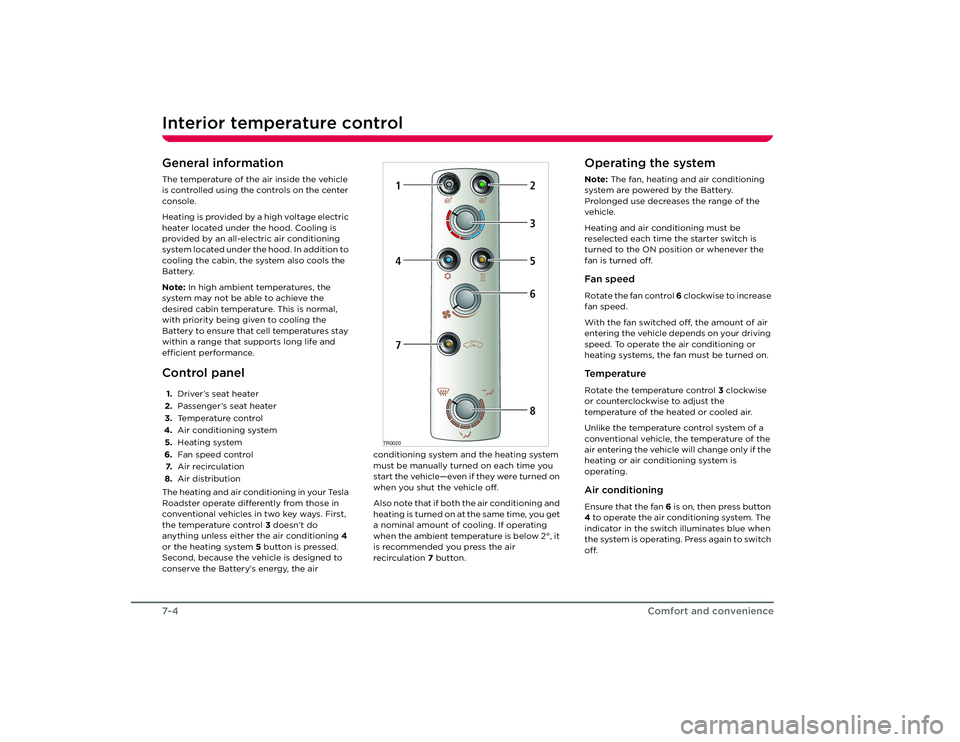

Interior temperature controlGeneral informationThe temperature of the air inside the vehicle
is controlled using the controls on the center
console.
Heating is provided by a high voltage electric
heater located under the hood. Cooling is
provided by an all-electric air conditioning
system located under the hood. In addition to
cooling the cabin, the system also cools the
Battery.
Note: In high ambient temperatures, the
system may not be able to achieve the
desired cabin temperature. This is normal,
with priority being given to cooling the
Battery to ensure that cell temperatures stay
within a range that supports long life and
efficient performance.Control panel1. Driver’s seat heater
2. Passenger’s seat heater
3. Temperature control
4. Air conditioning system
5. Heating system
6. Fan speed control
7. Air recirculation
8. Air distribution
The heating and air conditioning in your Tesla
Roadster operate differently from those in
conventional vehicles in two key ways. First,
the temperature control 3 doesn’t do
anything unless either the air conditioning 4
or the heating system 5 button is pressed.
Second, because the vehicle is designed to
conserve the Battery’s energy, the air conditioning system and the heating system
must be manually turned on each time you
start the vehicle—even if they were turned on
when you shut the vehicle off.
Also note that if both the air conditioning and
heating is turned on at the same time, you get
a nominal amount of cooling. If operating
when the ambient temperature is below 2°, it
is recommended you press the air
recirculation
7 button.
Operating the systemNote: The fan, heating and air conditioning
system are powered by the Battery.
Prolonged use decreases the range of the
vehicle.
Heating and air conditioning must be
reselected each time the starter switch is
turned to the ON position or whenever the
fan is turned off.Fan speedRotate the fan control 6 clockwise to increase
fan speed.
With the fan switched off, the amount of air
entering the vehicle depends on your driving
speed. To operate the air conditioning or
heating systems, the fan must be turned on.Te m p e r a t u r eRotate the temperature control 3 clockwise
or counterclockwise to adjust the
temperature of the heated or cooled air.
Unlike the temperature control system of a
conventional vehicle, the temperature of the
air entering the vehicle will change only if the
heating or air conditioning system is
operating.Air conditioningEnsure that the fan 6 is on, then press button
4 to operate the air conditioning system. The
indicator in the switch illuminates blue when
the system is operating. Press again to switch
off.
TR0020
1
2
47
5368
Roadster OHB.book Page 4 Th ursday, October 2, 2008 8:59 AM

Interior accessories7-8
Comfort and convenience
Cup holder

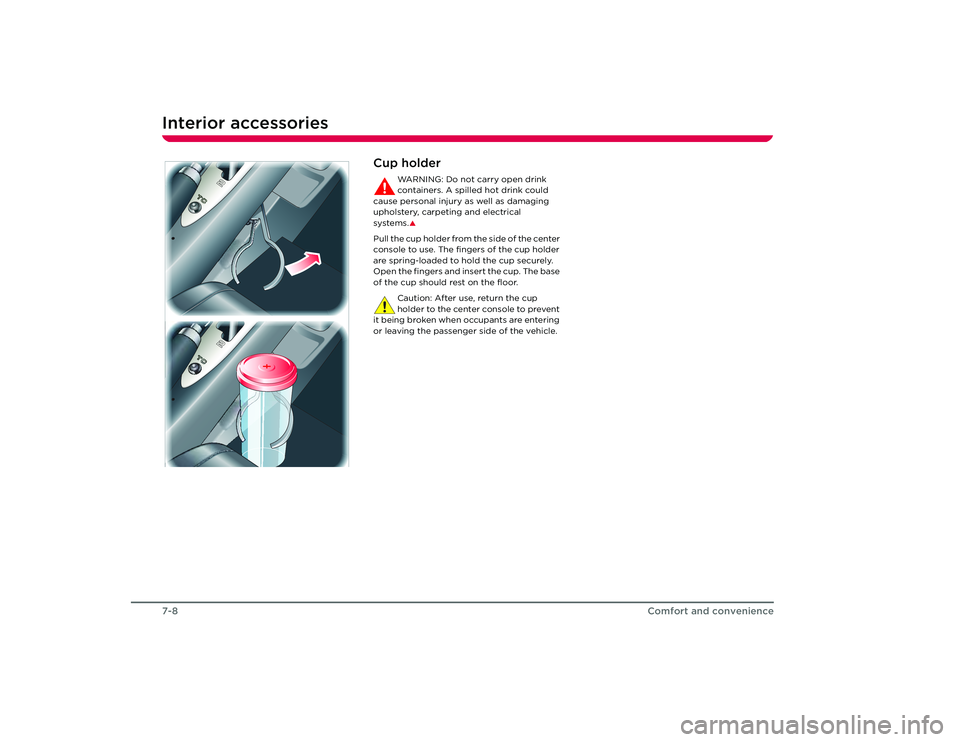

WARNING: Do not carry open drink
containers. A spilled hot drink could
cause personal injury as well as damaging
upholstery, carpeting and electrical
systems.S
Pull the cup holder from the side of the center
console to use. The fingers of the cup holder
are spring-loaded to hold the cup securely.
Open the fingers and insert the cup. The base
of the cup should rest on the floor.
Caution: After use, return the cup
holder to the center console to prevent
it being broken when occupants are entering
or leaving the passenger side of the vehicle.
Roadster OHB.book Page 8 Th ursday, October 2, 2008 8:59 AM
