4RUNNER ()251
Adding washer fluid
If any washer does not work, the wash-
er tank may be empty. Add washer
fluid.
You may use plain water as washer fluid.
However, in cold areas where tempera-
tures range below freezing point, use
washer fluid containing antifreeze. This
product is available at your Toyota dealer
and most auto parts stores. Follow the
manufacturer 's directions for how much to
mix with water.
NOTICE
Do not use engine antifreeze or any
other substitute because it may dam-age your vehicle's paint.
Replacing light bulbsÐ
The following illustrations show how to
gain access to the bulbs. When replacing
a bulb, make sure the ignition switch and
light switch are off. Use bulbs with the
wattage ratings given in the table.
CAUTION
Halogen bulbs have pressurized gas
inside and require special handling.
They can burst or shatter if scratched
or dropped. Hold a bulb only by its
plastic or metal case. Do not touch
the glass part of a bulb with barehands.
NOTICE
Only use a bulb of the listed type.
Light bulbsBulb
No.WTy p e
HeadlightsÐ60/55A
Front fog lightsÐ55B
Par k i ng and fr ont
side marker lightsÐ5C
Front turn signal
lightsÐ21C
Rear turn signal
lightsÐ21C
Stop and tail lightsÐ21/5C
Back- up lightsÐ21C
License plate lightÐ5C
High mounted
stop light92118C
Interior lightÐ8D
Personal lightsÐ8D
Glove box lightÐ1.4C
Luggage
compartment lightÐ8D
A: HB2 halogen bulbs
B: H3 halogen bulbs
C: Wedge base bulbs
D: Double end bulbs

4RUNNER ()
252
ÐHeadlights
1. Open the hood. Unplug the connec-
tor. Remove the rubber cover.
If the connector is tight, wiggle it.2. Release the bulb retaining spring and remove the bulb. Install a new
bulb and the bulb retaining spring.
To install a bulb, align the tabs of the
bulb with the cutouts of the mounting
hole.3. Install the rubber cover with the ºTOPº mark upward, and snuggle on
the boss. Insert the connector.
Make sure the rubber cover fits snugly on
the connector and the headlight body.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.

4RUNNER ()253

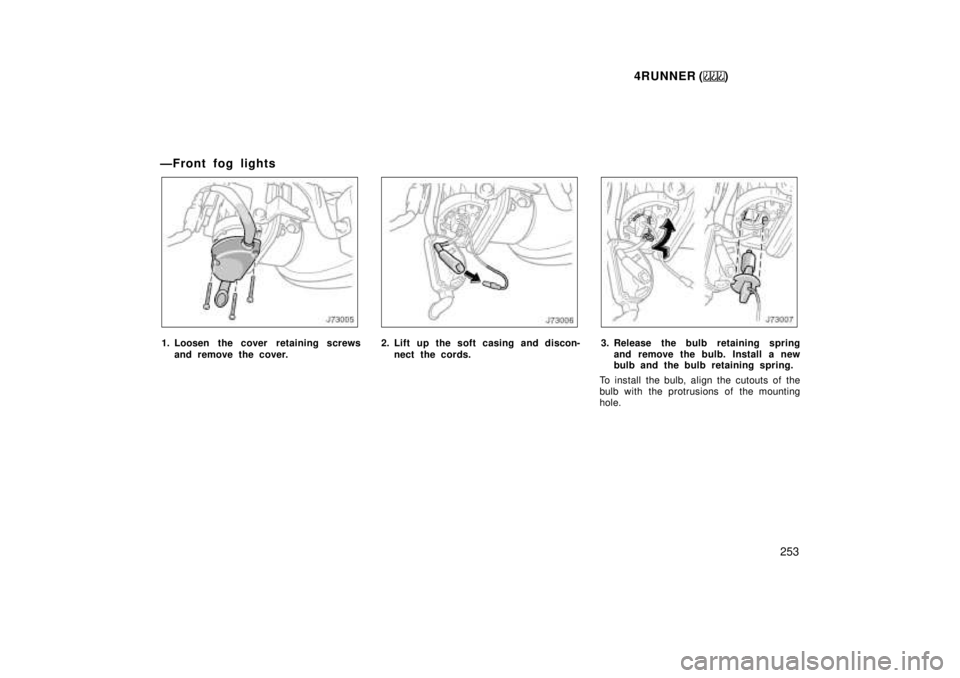

ÐFront fog lights
1. Loosen the cover retaining screws
and remove the cover.2. Lift up the soft casing and discon-nect the cords.3. Release the bulb retaining springand remove the bulb. Install a new
bulb and the bulb retaining spring.
To install the bulb, align the cutouts of the
bulb with the protrusions of the mounting
hole.

4RUNNER ()
254
4. Connect the cord and put the soft casing into the cover.5. Install the cover with the retaining
screws.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.Use a Phillips- head screwdriver.

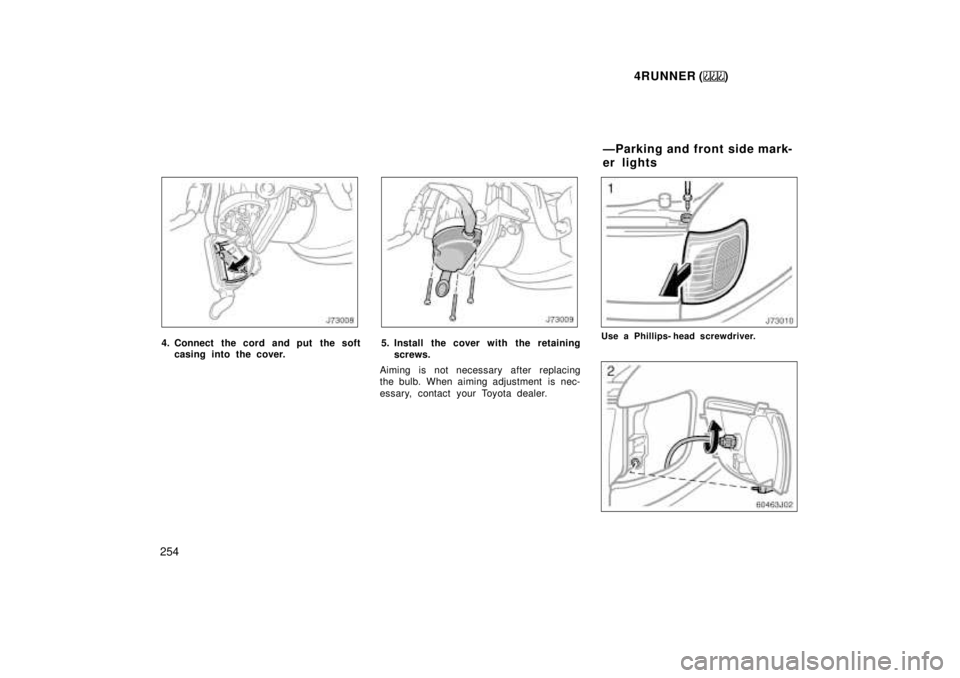

ÐParking and front side mark-
er lights

4RUNNER ()255

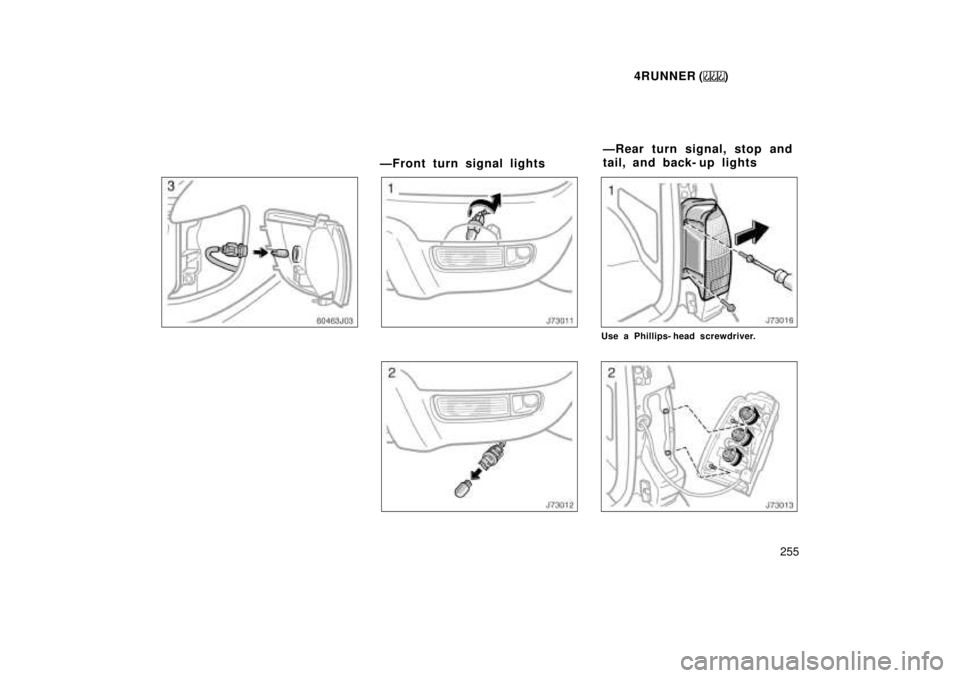

ÐFront turn signal lights
Use a Phillips- head screwdriver.
ÐRear turn signal, stop and
tail, and back- up lights

4RUNNER ()
256

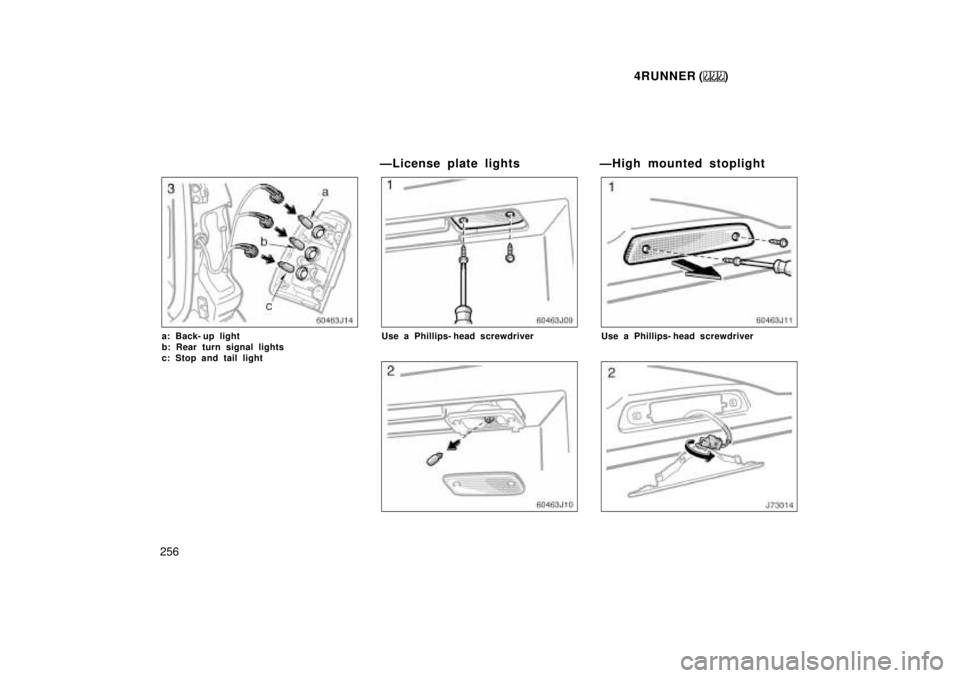

a: Back- up light
b: Rear turn signal lights
c: Stop and tail light ÐLicense plate lightsUse a Phillips- head screwdriver
ÐHigh mounted stoplight
Use a Phillips- head screwdriver

4RUNNER ()257

4RUNNER ()
258

4RUNNER ()259
Part 8
SPECIFICATIONS
Dimensions and weight
Engine
Fuel
Service specifications
Ti r es
Fuses
Dimensions and weight
mm (in.)
P265/70R 16 tire
Without wheel
opening extension With wheel
opening extension
P225/75R 15 tire
Overall length 4655 (183.3) 4655 (183.3) 4655 (183.3)
Overall width 1690 (66.5) 1730 (68.1) 1800 (70.9)
Overall height 1715 (67.5) *
1760 (69.3) *
1760 (69.3) *
Wheelbase 2675 (105.3) 2675 (105.3) 2675 (105.3)
Front tread 1505 (59.3) 1505 (59.3) 1505 (59.3)
Rear tread 1495 (58.9) 1510 (59.5) 1510 (59.5)
Cargo weight rating kg (lb.): 113 (250)
* : Unladen vehicle

4RUNNER ()
260
Engine
Model:
3RZ- FE and 5VZ- FE
Type: 3RZ- FE engine4 cylinder in line, 4 cycle, gasoline
5VZ- FE engine 6 cylinder V type 4 cycle, gasoline
Bore and stroke, mm (in.): 3RZ- FE engine95.0 95.0 (3.74 3.74)
5VZ- FE engine
93.5 82.0 (3.68 3.23)
Displacement, cm 3
(cu. in.):
3RZ- FE engine 2694 (164.3)
5VZ- FE engine
3378 (206.1) Fuel
Fuel type:
Unleaded gasoline, Octane Rating 87 (Re-
search Octane Number 91) or higher
Fuel tank capacity, L (gal., Imp. gal.): 70 (18.5, 15.4) Service specifications
ENGINE
Valve clearance (engine cold), mm (in.):
3RZ- FE engineIntake 0.15Ð0.25 (0.006Ð0.010)
Exhaust 0.25Ð0.35 (0.010Ð0.014)
5VZ- FE engine Intake 0.13Ð0.23 (0.006Ð0.009)
Exhaust 0.27Ð0.37 (0.011Ð0.014)
Spark plug type: 3RZ- FE engineDENSO K16R- U
NGK BKR5EYA
5VZ- FE engine DENSO K16TR11
NGK BKR5EKB- 11
Spark plug gap, mm (in.): 3RZ- FE engine 0.8 (0.031)
5VZ- FE engine 1.1 (0.043)
