TOYOTA 4RUNNER 1999 Owner's Manual

4RUNNER ()21
Power windows
Window
lock button
Driver's door switches
Front passenger's door switch
The windows can be operated with the
switch on each side door.
The power windows work when the ignition
switch is in the ºONº position.
Key off operation:
If both front side
doors are closed, they work for 43 se-
conds even after the ignition switch is
turned off. They stop working when either
front side door is opened.
OPERATING THE DRIVER'S AND FRONT
PASSENGER'S WINDOWS
Use the switches on the driver's door
and front passenger 's door.
Normal operation: The window moves as
long as you hold the switch.
To open: Lightly push down the switch.
To close: Lightly pull up the switch.
If you push in the window lock button on
the driver 's door, the front passengers'
window cannot be operated.
Driver's door switches
Front passenger's door switch

4RUNNER ()
22
Automatic operation:
Push the switch
completely down or pull it completely up,
and then release it. The window will fully
open or close. To stop the window part-
way, lightly move the switch in the oppo-
site direction and then release it.
If you push in the window lock button on
the driver 's door, the front passengers'
window cannot be operated.
Jam protection function: During automat-
ic closing operation, the window stops and
opens half way if something gets caught
between the window and window frame.
If an impact is given to the window, this
function may work without anything
caught.
CAUTION
Never try jamming any part of your
body to make the jam protection
function work intentionally.
The jam protection function may
not work when something gets
caught just before the window fully
closed.
Window
lock button
Driver's door switches
OPERATING THE REAR PASSENGERS'
WINDOWS
Use the switch on each rear passen-
gers' doors or the switches on the driv-
er 's door that control each rear passen-
gers' windows.
The window moves as long as you hold
the switch.
To open: Push down the switch.
To close: Pull up the switch.
If you push in the window lock button on
the driver 's door, the rear passengers'
windows cannot be operated.
Rear passengers' door switches

4RUNNER ()23
CAUTION
To avoid serious personal injury, you
must do the following. Always make sure the head, hands
and other parts of the body of all
occupants are kept completely in-
side the vehicle before you close
the power windows. If someone's
neck, head or hands gets caught in
a closing window, it could result in
a serious injury. When anyone
closes the power windows, be sure
that they operate the windows safe-
ly.
When small children are in the ve-
hicle, never let them use the power
window switches without supervi-
sion. Use the window lock button to
prevent them from making unex-
pected use of the switches.
Never leave small children alone in
the vehicle, especially with the igni-
tion key still inserted. They could
use the power window switches and
get trapped in a window. Unat-
tended children can become in-
volved in serious accidents.
Power back window
The back window can be operated with
the inner switch on the center console
or outer switch on the back door.
OPERATING FROM INSIDE
The ignition key must be in the ºONº posi-
tion.
The back window moves as long as you
hold the inner switch.
To open: Push the switch on the º
º
side.
To close: Push the switch on the º
º
side. You can also open the back window when
the back window wiper is working. At that
time, the wiper stops working until the
window is closed again.
If you push in the window lock button on
the driver 's door (with power windows) or
on the instrument panel (without power
windows), the back window cannot be op-
erated.

4RUNNER ()
24
With power windows (driver's door)
Without power windows
(instrument panel)
OPERATING FROM OUTSIDE
After turning and holding the key for a few
seconds, the back window will move as
far as holding the key.
To open: Turn the key counterclockwise.
To close: Turn the key clockwise.
You can also open the back window when
the back window wiper is working. At the
time, the wiper stops working until the
window is closed again.
CAUTION
To avoid serious personal injury, you
must do the following.
Always make sure the head, hands
and other parts of the body of all
occupants are kept completely in-
side the vehicle before you close
the power back window. If some-
one's neck, head or hands gets
caught in a closing window, it
could result in a serious injury.
When anyone closes the power
back window, be sure that they op-
erate the window safely.
When small children are in the ve-
hicle, never let them use the power
back window switch without super-
vision. Use the window lock button
to prevent them from making unex-
pected use of the switch.
Never leave small children alone in
the vehicle, especially with the igni-
tion key still inserted. They could
use the power back window switch
and get trapped in a window. Unat-
tended children can become in-
volved in serious accidents.
Keep the back window closed while
driving. This not only keeps the
luggage from being thrown out but
also prevents exhaust gases from
entering the vehicle.

4RUNNER ()25
Vehicles with wireless remote control sys-
temÐTo open the back window with the
wireless remote control transmitter, see
ºÐWireless remote controlº in this chap-
ter.
Back door
LOCKING AND UNLOCKING WITH KEY
Insert the key into the keyhole and turn it.
To lock: Turn the key clockwise.
To unlock: Turn the key counterclockwise.
The back door will be controlled by oper-
ating the power door lock switch.When closing the back door, use the
inside strap for easier reach to the
back door.
To close the back door, lower it and press
down on it. After closing the back door,
try pulling it up to make sure it is secure-
ly closed.
See ºLuggage stowage precautionsº in
Part 2 for precautions to observe in load-
ing luggage.

4RUNNER ()
26
CAUTION
Keep the back window and back door
closed while driving. This not only
keeps the luggage from being thrown
out but also prevents exhaust gases
from entering the vehicle.
NOTICE
To prevent damage to the back door dampers, do not apply any force,paint or let any other foreign matteron them.
Driver's side
Front passenger's side
Ty p e A
Front passenger's side Driver's side
Ty p e B

4RUNNER ()27
Ty p e C
LOCKING AND UNLOCKING WITH
POWER BACK DOOR LOCK SWITCH
Push the switch.
To lock: Push the switch on the ºLOCKº
side.
To unlock: Push the switch on the
ºUNLOCKº side.
Vehicles with a power door lock systemÐ
Operating the power door lock switch si-
multaneously locks or unlocks the back
door (see ºSide doorsº). Vehicles with wireless remote control sys-
temÐTo lock or unlock the back door, see
ºÐWireless remote controlº in this chap-
ter.
HoodTo open the hood:
1. Pull the hood lock release lever. The hood will spring up slightly.
CAUTION
Before driving, be sure that the hood
is closed and securely locked. Other-
wise, the hood may open unexpected-
ly while driving and an accident may
occur.

4RUNNER ()
28

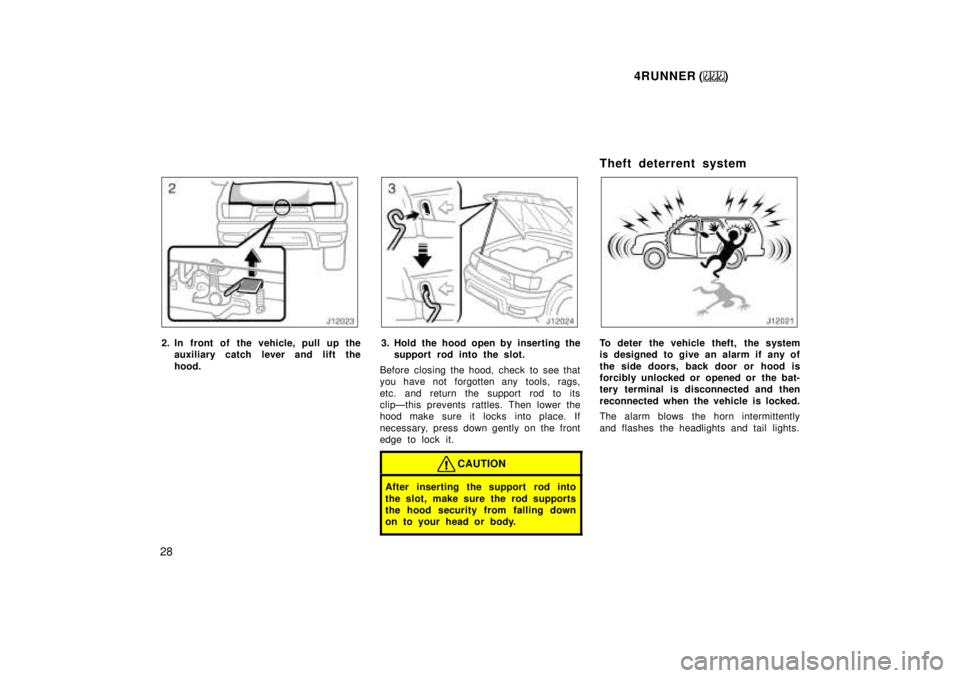

2. In front of the vehicle, pull up the auxiliary catch l ever and lift the
hood.3. Hold the hood open by inserting the support rod into the slot.
Before closing the hood, check to see that
you have not forgotten any tools, rags,
etc. and return the support rod to its
clipÐthis prevents rattles. Then lower the
hood make sure it locks into place. If
necessary, press down gently on the front
edge to lock it.
CAUTION
After inserting the support rod into
the slot, make sure the rod supports
the hood security from falling down
on to your head or body.
Theft deterrent system
To deter the vehicle theft, the system
is designed to give an alarm if any of
the side doors, back door or hood is
forcibly unlocked or opened or the bat-
tery terminal is disconnected and then
reconnected when the vehicle is locked.
The alarm blows the horn intermittently
and flashes the headlights and tail lights.

4RUNNER ()29
SETTING THE SYSTEM1. Turn the ignition key to the ºLOCKº position and remove it.
The indicator light will start flashing every
2 seconds when the key is removed from
the ignition switch. (See ºEngine
immobiliser systemº for details.)
2. Have all passengers get out of the vehicle.
3. Close and lock all the side doors, back door and hood.
The indicator light will come on when all
the side doors, back door and hood are
closed and locked. The system will automatically be set after
30 seconds. When the system is set, the
indicator light will start flashing again.
4. After making sure the indicator light starts flashing, you may leave the ve-
hicle.
Never leave anyone in the vehicle when
you set the system, because unlocking
from the inside will activate the system.
WHEN THE SYSTEM IS SET
Activating the system
The system will give the alarm under the
following conditions: If any of the side doors is unlocked or
opened without the key or wireless re-
mote control transmitter, or if the back
door or hood is forcibly opened
If the battery terminal is disconnected
and then reconnected
The indicator light will come on when the
system is activated. If the alarm has been activated and the
key is not in the ignition switch, all the
side doors and back door will re- lock au-
tomatically.
After one minute, the alarm will automati-
cally stop and the indicator light will starts
flashing again.
Reactivating the alarm
Once set, the system automatically resets
the alarm after the alarm stops.
The alarm will activate again under the
same circumstances described in
Activating the systemº.
Stopping the alarm
The alarm will be stopped by the following
three ways:
Turn the ignition key from the ºLOCKº
to ºONº position.
Unlock any of the side doors or back
door with the key or wireless remote
control transmitter.
These ways cancel the system at the
same time.

4RUNNER ()
30
TESTING THE SYSTEM
1. Open all the windows.
2. Set the system as described above. The side doors and back door should
be locked with the key or wireless re-
mote control transmitter. Be sure to
wait until the indicator light goes off or
starts flashing.
3. Unlock any side door from the inside. The system should activate the alarm.
4. Stopping the alarm as described above.
5. Repeat this operation for the other doors and hood. When testing on the
hood, also check that the system is
activated when the battery terminal is
disconnected and then reconnected.
If the system does not work properly,
have it checked by your Toyota dealer. Fuel tank cap
1. To open the fuel filler door, pull the
lever.
When refueling, turn off the engine.
CAUTION
Do not smoke, cause sparks or al-
low open flames when refueling.
The fumes are flammable.
When opening the cap, do not re-
move the cap quickly. In hot weath-
er, fuel under pressure could cause
injury by spraying out of the filler
neck if the cap is suddenly re-
moved.
2. To remove the fuel tank cap, turn
the cap slowly counterclockwise,
then pause slightly before removing
it. After removing the cap, hang it
on the cap hanger.
It is not unusual to hear a slight swoosh
when the cap is opened. When insta lling,
turn the cap clockwise till you hear aclick.
If the cap is not tightened securely, the
malfunction indicator lamp comes on.
Make sure the cap is tightened securely.
The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.
