TOYOTA 4RUNNER 2000 Manual PDF

2672000 4Runner (OM35762U)
REPORTING SAFETY DEFECTS FOR U.S.
OWNERS AND UNIFORM TIRE QUALITY
GRADING
Reporting safety defects for U.S. owners268 . . . . . . . . . . . . . . . . . . . . . .
Uniform tire quality grading268 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 9
ProCarManuals.com

2682000 4Runner (OM35762U)
If you believe that your vehicle
has a defect which could cause a
crash or could cause injury or
death, you should immediately in-
form the National Highway Traffic
Safety Administration (NHTSA) in
addition to notifying Toyota Motor
Sales, U.S.A., Inc.
(Toll- free: 1- 800- 331- 4331).
If NHTSA receives similar com-
plaints, it may open an investiga-
tion, and if it finds that a safety
defect exists in a group of ve-
hicles, it may order a recall and
remedy campaign. However,
NHTSA cannot become involved
in individual problems between
you, your dealer, or Toyota Motor
Sales, U.S.A., Inc.To contact NHTSA, you may either
call the Auto Safety Hotline toll-
free at 1- 800- 424- 9393 (or
366- 0123 in Washington, D.C.
area) or write to: NHTSA. U.S. De-
partment of Transportation. Wash-
ington, D.C. 20590. You can also
obtain other information about mo-
tor vehicle safety from the Hotline.
Uniform tire quality grading
This information has been prepared in ac-
cordance with regulations issued by the
National Highway Traffic Safety Adminis-
tration of the U.S. Department of Trans-
portation. It provides the purchasers and/
or prospective purchasers of Toyota
vehicles with information on uniform tire
quality grading.
Your Toyota dealer will help answer any
questions you may have as you read this
information.
DOT quality gradesÐAll passenger car
tires must conform to Federal Safety
Requirements in addition to these
grades. Quality grades can be found
where applicable on the tire sidewall
between tread shoulder and maximum
section width. For example: Treadwear
200 Traction AA Temperature A
Reporting safety defects
for U.S. owners
ProCarManuals.com

2692000 4Runner (OM35762U)
TreadwearÐThe treadwear grade is a
comparative rating based on the wear rate
of the tire when tested under controlled
conditions on a specified government test
course. For example, a tire graded 150
would wear one and a half (1- 1/2) times
as well on the government course as a
tire graded 100. The relative performance
of tires depends upon the actual condi-
tions of their use, however, and may de-
part significantly from the norm due to
variations in driving habits, service prac-
tices and differences in road characteris-
tics and climate.
Traction AA, A, B, CÐThe traction
grades, from highest to lowest, are AA, A,
B, and C, and they represent the tire's
ability to stop on wet pavement as mea-
sured under controlled conditions on spe-
cified government test surfaces of asphalt
and concrete. A tire marked C may have
poor traction performance.
Warning: The traction grade assigned to
this tire is based on braking (straight
ahead) traction tests and does not include
cornering (turning) traction.Temperature A, B, CÐThe temperature
grades are A (the highest), B, and C,
representing the tire's resistance to the
generation of heat and its ability to dissi-
pate heat when tested under controlled
conditions on a specified indoor laboratory
test wheel. Sustained high temperature
can cause the material of the tire to de-
generate and reduce tire life, and exces-
sive temperature can lead to sudden tire
failure. The grade C corresponds to a lev-
el of performance which all passenger car
tires must meet under the Federal Motor
Vehicle Safety Standard No.109. Grades B
and A represent higher levels of perfor-
mance on the laboratory test wheel than
the minimum required by law.
Warning: The temperature grades for this
tire are established for a tire that is prop-
erly inflated and not overloaded. Exces-
sive speed, underinflation, or excessive
loading, either separately or in combina-
tion, can cause heat buildup and possible
tire failure.
ProCarManuals.com

2702000 4Runner (OM35762U)
ProCarManuals.com

12000 4Runner (OM35762U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Overview of instruments and controls
Instrument panel overview2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Instrument cluster overview5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Indicator symbols on the instrument panel6 . . . . . . . . . . . . . . . . . . . . . . .
SECTION 1- 1
ProCarManuals.com

22000 4Runner (OM35762U)
Instrument panel overview
1. Side vents
2. Tilt steering lock release lever
3. Instrument cluster
4. Center vents
5. Garage door opener box or eyeglass
holder
6. Electric moon roof switch
7. Personal lights
8. Glove box
9. Power door lock switches
10. Power window switches
11. Automatic transmission selector lever
or manual transmission gear shift lever
12. Parking brake lever
13. Front drive control lever
14. Lower vent
15. Hood lock release lever
16. Fuel filler door opener
17. Window lock switch
18. Power rear view mirror control switch
(with power windows)
ProCarManuals.com

32000 4Runner (OM35762U)

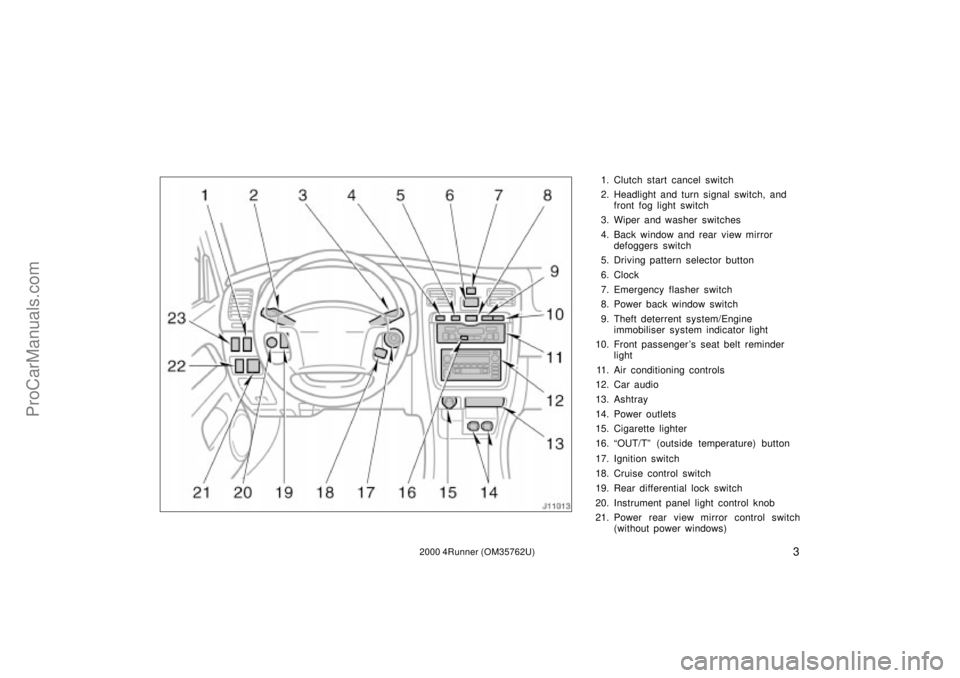

1. Clutch start cancel switch
2. Headlight and turn signal switch, and
front fog light switch
3. Wiper and washer switches
4. Back window and rear view mirror
defoggers switch
5. Driving pattern selector button
6. Clock
7. Emergency flasher switch
8. Power back window switch
9. Theft deterrent system/Engine
immobiliser system indicator light
10. Front passenger 's seat belt reminder
light
11. Air conditioning controls
12. Car audio
13. Ashtray
14. Power outlets
15. Cigarette lighter
16. OUT/Tº (outside temperature) button
17. Ignition switch
18. Cruise control switch
19. Rear differential lock switch
20. Instrument panel light control knob
21. Power rear view mirror control switch
(without power windows)
ProCarManuals.com

42000 4Runner (OM35762U)
22. Power back window lock switch
(without power windows)
23. Power back door lock switch
(without power door lock)
ProCarManuals.com

52000 4Runner (OM35762U)
Instrument cluster overview
1. Service reminder indicators and
indicator lights
2. Engine coolant temperature gauge
3. Tachometer4. Speedometer
5. Odometer and two trip meters
6. Fuel gauge7. Trip meter reset knob
ProCarManuals.com

62000 4Runner (OM35762U)
Indicator symbols on the instrument panel
(type A)
(type B)
Driver 's seat belt reminder light*
1
Low oil pressure warning light*
1
Low fuel level warning light*
1
Brake system warning light*
1
Malfunction indicator lamp*
1
Discharge warning light*
1
Anti- lock brake system warning light*
1
Automatic transmission fluid temperature
warning light*
1
SRS warning light*
1
Unengaged Parkº warning light*
1
Open door warning light*
1
Low windshield washer fluid level warning
light*
1
Headlight high beam indicator light
Overdrive- off indicator light Turn signal indicator lights
Automatic transmission indicator light Front passenger 's seat belt reminder light
*
1
ProCarManuals.com
