TOYOTA 4RUNNER 2001 Owners Manual
Manufacturer: TOYOTA, Model Year: 2001, Model line: 4RUNNER, Model: TOYOTA 4RUNNER 2001Pages: 301, PDF Size: 7.14 MB
Page 111 of 301
’01 4Runner_U (L/O 0008)
1052001 4RUNNER (OM35768U)
Vehicles with cruise control—When the
cruise control is being used, even if you
downshift the transmission by pushing and
releasing the overdrive switch, engine
braking will not be enabled because the
cruise control is not cancelled.
For ways to decrease the vehicle speed,
see “Cruise control” in this section.
CAUTION
Be careful when downshifting on a
slippery surface. Abrupt shifting
could cause the vehicle to spin or
skid.
(e) Using “2” and “L” positions
The “2” and “L” positions are used for
strong engine braking as described pre-
viously.
With the selector lever in “2” or “L”, you
can start the vehicle in motion as with the
lever in “D”.
With the selector lever in “2”, the vehicle
will start in first gear and automatically
shift to second gear.
With the selector lever in “L”, the trans-
mission is engaged in first gear.
NOTICE
Be careful not to over rev the en-
gine. Watch the tachometer to keep
engine rpm from going into the red
zone. The approximate maximum al-
lowable speed for each position is
given below for your reference:
“2” 120 km/h (74 mph). . . . . . . . . . . .
“L” 65 km/h (40 mph). . . . . . . . . . . .
Do not continue hill climbing or
hard towing for a long time in the
“2” or “L” position. This may cause
severe automatic transmission dam-
age from overheating. To prevent
such damage, “D” position should
be used in hill climbing or hard
towing.
(f) Backing up
1. Bring the vehicle to a complete stop.
2. With the brake pedal held down with
your foot, shift the selector lever to the
“R” position.
NOTICE
Never shift into reverse while the ve-
hicle is moving.
(g) Parking
1. Bring the vehicle to a complete stop.
2. Pull the parking brake lever up fully to
securely apply the parking brake.
3. With the brake pedal pressed down,
shift the selector lever to the “P” posi-
tion.
CAUTION
Never attempt to move the selector
lever into “P” position under any cir-
cumstances while the vehicle is mov-
ing. Serious mechanical damage and
loss of vehicle control may result.
(h) Good driving practice
If the transmission repeatedly shifts up
and down between third gear and over-
drive when climbing a gentle slope, the
overdrive should be turned off. Be sure
to turn the switch on immediately after-
ward.
When towing a trailer, in order to main-
tain engine braking efficiency, do not
use overdrive.
ProCarManuals.com
Page 112 of 301
’01 4Runner_U (L/O 0008)
1062001 4RUNNER (OM35768U)
CAUTION
Always keep your foot on the brake
pedal while stopped with the engine
running. This prevents the vehicle
from creeping.
NOTICE
Do not hold the vehicle on an up-
grade with the accelerator pedal. It
can cause the transmission to over-
heat. Always use the brake pedal or
parking brake.
(i) Rocking your vehicle if stuck
CAUTION
If your vehicle becomes stuck in
snow, mud, sand, etc., then you may
attempt to rock the vehicle free by
moving it forward and backward. Do
not attempt this procedure if people
or objects are anywhere near the ve-
hicle. During the rocking operation
the vehicle may suddenly move for-
ward or backward as it becomes un-
stuck, causing injury or damage to
nearby people or objects.
NOTICE
If you rock your vehicle, observe the
following precautions to prevent dam-
age to the transmission and other
parts.
Do not depress the accelerator ped-
al while shifting the selector lever
or before the transmission is com-
pletely shifted to forward or reverse
gear.
Do not race the engine and avoid
spinning the wheels.
If your vehicle remains stuck after
rocking the vehicle several times,
consider other ways such as tow-
ing.
ProCarManuals.com
Page 113 of 301
’01 4Runner_U (L/O 0008)
1072001 4RUNNER (OM35768U)
(j) Driving in “PWR” (Power) mode
In the “PWR” mode, the transmission is
shifted up and down at a higher vehicle
speed than in the “NORM” (Normal) mode
and a more powerful acceleration is
achieved. To set the “PWR” mode, push
in the driving pattern selector button. The
“PWR” mode indicator light comes on.
For ordinary driving, Toyota recommends
using the “NORM” mode to improve fuel
economy.(k) If you cannot shift the selector le-
ver out of “P” position
If you cannot shift the selector lever from
the “P” position even though the brake
pedal is depressed, use the shift lock
override button. For instructions, see “If
you cannot shift automatic transmission
selector lever” in Section 4.
ProCarManuals.com
Page 114 of 301
’01 4Runner_U (L/O 0008)
1082001 4RUNNER (OM35768U)
Your automatic transmission has a shift
lock system to minimize the possibility of
incorrect operation. This means you can
only shift out of “P” position when the
brake pedal is depressed (with the ignition
switch in “ON” position and the lock re-
lease button depressed).

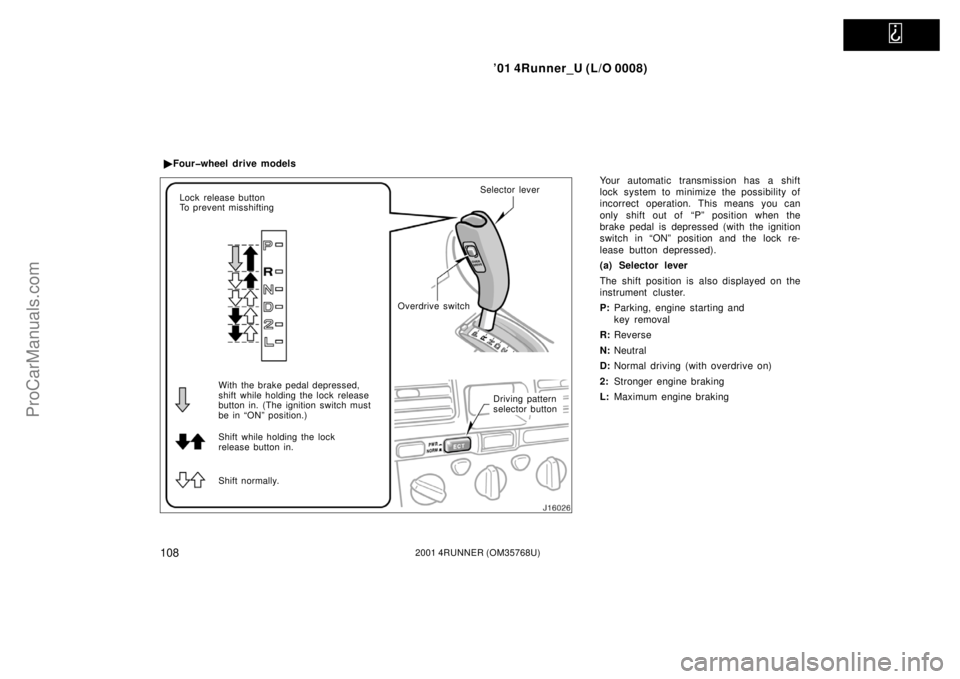

(a) Selector lever
The shift position is also displayed on the
instrument cluster.
P:Parking, engine starting and
key removal
R:Reverse
N:Neutral
D:Normal driving (with overdrive on)
2:Stronger engine braking
L:Maximum engine braking Four wheel drive models
Lock release button
To prevent misshifting
With the brake pedal depressed,
shift while holding the lock release
button in. (The ignition switch must
be in “ON” position.)
Shift while holding the lock
release button in.
Shift normally.Selector lever
Overdrive switch
Driving pattern
selector button
ProCarManuals.com
Page 115 of 301
’01 4Runner_U (L/O 0008)
1092001 4RUNNER (OM35768U)
(b) Overdrive switch
You can select either third gear (with
overdrive off) or fourth gear (with over-
drive on) by pushing this switch.
To turn the overdrive off, push the switch.
The “O/D OFF” indicator light should come
on. To turn the overdrive on again, push
the switch again. The “O/D OFF” indicator
light should go off.
Always drive your vehicle with the over-
drive on for better fuel economy and
quieter driving.
If the engine is turned off when the over-
drive is off and restarted, the overdrive
will be on automatically.Vehicles with cruise control—When the
cruise control is being used, even if you
downshift the transmission by pushing and
releasing the overdrive switch, engine
braking will not be enabled because the
cruise control is not cancelled.
For ways to decrease the vehicle speed,
see “Cruise control” in this section.
(c) Normal driving
1. Start the engine as instructed in “How
to start the engine” in Section 3. The
transmission must be in “P” or “N”.
When the front drive control lever is in
“L4” (low speed position, four wheel
drive), the driving pattern selector setting
has no effect on gear shift timing. (See
“Four wheel drive system” in this section
for information of the front drive control
lever.)
2. With your foot holding down the brake
pedal, shift the selector lever to “D”.
When the lever is in the “D” position, the
automatic transmission system will select
the most suitable gear for running condi-
tions such as normal cruising, hill climb-
ing, hard towing, etc.Always turn the overdrive on for better
fuel economy and quieter driving. If the
engine coolant temperature is low or when
the front drive control lever is in “L4”
(low speed position, four wheel drive), the
transmission will not shift into the over-
drive gear even with the overdrive on.
(See “Four wheel drive system” in this
section for information of the front drive
control lever.)
CAUTION
Never put your foot on the accelera-
tor pedal while shifting.
3. Release the parking brake and brake
pedal. Depress the accelerator pedal
slowly for smooth starting.
(d) Using engine braking
To use engine braking, you can downshift
the transmission as follows:
Push the overdrive switch. The “O/D
OFF” indicator light will come on and
the transmission will downshift to third
gear.
ProCarManuals.com
Page 116 of 301
’01 4Runner_U (L/O 0008)
11 02001 4RUNNER (OM35768U)
Shift into the “2” position. The trans-
mission will downshift to second gear
when the vehicle speed drops down to
or lower than the following speed, and
stronger engine braking will be en-
abled.
Front drive control lever in “H”
114 km/h (70 mph)
Front drive control lever in “L4”
41 km/h (25 mph)
Shift into the “L” position. The trans-
mission will downshift to first gear
when the vehicle speed drops down to
or lower than the following speed, and
maximum engine braking will be en-
abled.
Front drive control lever in “H”
55 km/h (34 mph)
Front drive control lever in “L4”
12 km/h (7 mph)Vehicles with cruise control—When the
cruise control is being used, even if you
downshift the transmission by pushing and
releasing the overdrive switch, engine
braking will not be enabled because the
cruise control is not cancelled.
For ways to decrease the vehicle speed,
see “Cruise control” in this section.
CAUTION
Be careful when downshifting on a
slippery surface. Abrupt shifting
could cause the vehicle to spin or
skid.
(e) Using the “2” and “L”, positions
The “2” and “L” positions are used for
strong engine braking as described pre-
viously.
With the selector lever in “2” or “L”, you
can start the vehicle in motion as with the
lever in “D”.
With the selector lever in “2”, the vehicle
will start in first gear and automatically
shift to second gear.
With the selector lever in “L”, the trans-
mission is engaged in first gear.
NOTICE
Be careful not to over rev the en-
gine. Watch the tachometer to keep
engine rpm from going into the red
zone. The approximate maximum al-
lowable speed for each position is
given above for your reference:
Front drive control lever in “H”
“2” 118km/h (73 mph). . . . . . . . . . . . .
“L” 64km/h (40 mph). . . . . . . . . . . . .
Front drive control lever in “L4”
“2” 46 km/h (28 mph). . . . . . . . . . . .
“L” 25 km/h (15 mph). . . . . . . . . . . .
ProCarManuals.com
Page 117 of 301
’01 4Runner_U (L/O 0008)
1112001 4RUNNER (OM35768U)
Do not continue hill climbing or
hard towing for a long time in the
“2” or “L” position. This may cause
severe automatic transmission dam-
age from overheating. To prevent
such damage, “D” position should
be used in hill climbing or hard
towing.
(f) Backing up
1. Bring the vehicle to a complete stop.
2. With the brake pedal held down with
your foot, shift the selector lever to the
“R” position.
NOTICE
Never shift into reverse while the ve-
hicle is moving.
(g) Parking
1. Bring the vehicle to a complete stop.
2. Pull the parking brake lever fully to
securely apply the parking brake.
3. With the brake pedal pressed down,
shift the selector lever to the “P” posi-
tion.
CAUTION
Never attempt to move the selector
lever into “P” position under any cir-
cumstances while the vehicle is mov-
ing. Serious mechanical damage and
loss of vehicle control may result.
(h) Good driving practice
If the transmission repeatedly shifts up
and down between third gear and over-
drive when climbing a gentle slope, the
overdrive should be turned off. Be sure
to turn the switch on immediately after-
ward.
When towing a trailer, in order to main-
tain engine braking efficiency, do not
use overdrive.
CAUTION
Always keep your foot on the brake
pedal while stopped with the engine
running. This prevents the vehicle
from creeping.
NOTICE
Do not hold the vehicle on an up-
grade with the accelerator pedal. It
can cause the transmission to over-
heat. Always use the brake pedal or
parking brake.
ProCarManuals.com
Page 118 of 301
’01 4Runner_U (L/O 0008)
11 22001 4RUNNER (OM35768U)
(i) Rocking your vehicle if stuck
CAUTION
If your vehicle becomes stuck in
snow, mud, sand, etc., then you may
attempt to rock the vehicle free by
moving it forward and backward. Do
not attempt this procedure if people
or objects are anywhere near the ve-
hicle. During the rocking operation
the vehicle may suddenly move for-
ward or backward as it becomes un-
stuck, causing injury or damage to
nearby people or objects.
NOTICE
If you rock your vehicle, observe the
following precautions to prevent dam-
age to the transmission and other
parts.
Do not depress the accelerator ped-
al while shifting the selector lever
or before the transmission is com-
pletely shifted to forward or reverse
gear.
Do not race the engine and avoid
spinning the wheels.
If your vehicle remains stuck after
rocking the vehicle several times,
consider other ways such as tow-
ing.
(j) Driving in “PWR” (Power) mode
In the “PWR” mode, the transmission is
shifted up and down at a higher vehicle
speed than in the “NORM”(Normal) mode
and a more powerful acceleration is
achieved. To set the “PWR” mode, push
in the driving pattern selector button. The
“PWR” mode indicator light comes on.
For ordinary driving, Toyota recommends
using the “NORM” mode to improve fuel
economy.
ProCarManuals.com
Page 119 of 301
’01 4Runner_U (L/O 0008)
11 32001 4RUNNER (OM35768U)
(k) If you cannot shift the selector le-
ver out of “P” position
If you cannot shift the selector lever from
the “P” position even though the brake
pedal is depressed, use the shift lock
override lever. For instructions, see “If you
cannot shift automatic transmission selec-
tor lever” in Section 4.
“H” (2WD) MODE
“H” (4WD) MODE (center
differential unlock), “L4”
MODE (center differential
unlock) or “N” MODE
“H” (4WD) MODE (center
differential lock), “L4”
MODE (center differential
lock) or “N” MODE
Use the front drive control lever, “4WD”
button and center differential lock
switch to select the transfer and center
differential modes.
The “H” and “L4” position of the front
drive control lever provide either lock or
unlock the mode of the center differential.
Use the center differential lock system if
your wheels get stuck in a ditch, or when
you are driving on a slippery or bumpy
surface. When the center differential is
locked, the vehicle skid control system is
automatically turned off and the center dif-
ferential lock and “VSC OFF” indicator
lights come on because the function that
controls engine performance interferes
with the process of freeing your wheels.
NOTICE
As soon as the center differential lock
switch is turned on, the “VSC OFF”
indicator light comes on. After the
wheels are out of the ditch or off the
slippery or bumpy surface, turn the
center differential lock switch off.
Make sure that the center differential
lock indicator light and “VSC OFF”
indicator light turn off.
Four wheel drive system—
(a) Front drive control
ProCarManuals.com
Page 120 of 301
’01 4Runner_U (L/O 0008)
11 42001 4RUNNER (OM35768U)
“H” mode (high speed position, two
wheel drive): Front drive control lever at
“H”, “4WD” button left out
Use this for normal driving on dry hard
surfaced roads. This position gives greater
economy, quietest ride and least wear and
better vehicle control.
“H” mode (high speed position, four
wheel drive, center differential un-
locked): Front drive control lever at “H”,
“4WD” button push in, center differential
lock switch left out
Use this for normal driving on all types of
roads, from dry hard surfaced roads to
wet, icy or snow covered roads. This
position provides greater traction than
two wheel drive.
“H” (high speed position, four wheel
drive, center differential locked): Lever
at “H”, “4WD” button pushed in center
differential lock switch pushed in
Use this for greater traction when you
experience a loss of power, such as
wheel slipping, in the center differential
unlock mode.“N” mode (neutral position): Front drive
control lever at “N”
No power is delivered to the wheels. The
vehicle must be stopped.
“L4” (low speed position, four wheel
drive, center differential unlocked):
Front drive control lever at “L4”, center
differential lock switch left out
Use this for maximum power and traction.
Use this for climbing steep hills, off road
driving, and hard pulling in sand or mud.
In this mode, the braking feeling that oc-
curs when the wheels are negotiating a
sharp corner is further reduced than in the
“L4” (low position, four wheel drive, center
differential locked) mode.
The transmission automatically shifts up
from second gear in this mode. This sys-
tem is effective when starting your vehicle
in sand, mud, ice or snow. (However, the
transmission system may shift up from
first gear when the vehicle starts too
quickly.)“L4” mode (low speed position, four
wheel drive, center differential locked):
Front drive control lever at “L4”, center
differential lock switch push in
Use this for maximum power and traction.
Use this for hard pulling in situations the
vehicle cannot negotiate even in the “L4”
(low speed position, four wheel drive, cen-
ter differential unlocked) mode. Also, using
this mode when driving down steep off
road inclines will help contribute to in-
creased vehicle stability.
Four wheel drive and center differential
lock indicator lights show which transfer
and center differential mode the vehicle is
in. Note that the differential is not still
locked as long as the indicator light re-
mains off.
When the shifting has not been completed
within 3 seconds after the shifting opera-
tion, the indicator flashes. If the indicator
light does not go off when you push out
the center differential lock button, drive
straight ahead while accelerating or decel-
erating, or drive in reverse. If the indicator
flashes even if doing so, contact your
Toyota dealer as soon as possible. There
may be a trouble in the center differential
lock system.
See “(c) Shifting procedure” for further in-
structions.
ProCarManuals.com
