OPERATION OF INSTRUMENTS AND
CONTROLS
Air conditioning system
Manual air conditioning system
Controls156 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Air flow selector settings159 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operating tips159 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Automatic air conditioning system
Controls162 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Air flow selector settings166 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operating tips166 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Instrument panel vents169 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear heater system171 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 1 8
ProCarManuals.com

’01 4Runner_U (L/O 0008)
1562001 4RUNNER (OM35768U)

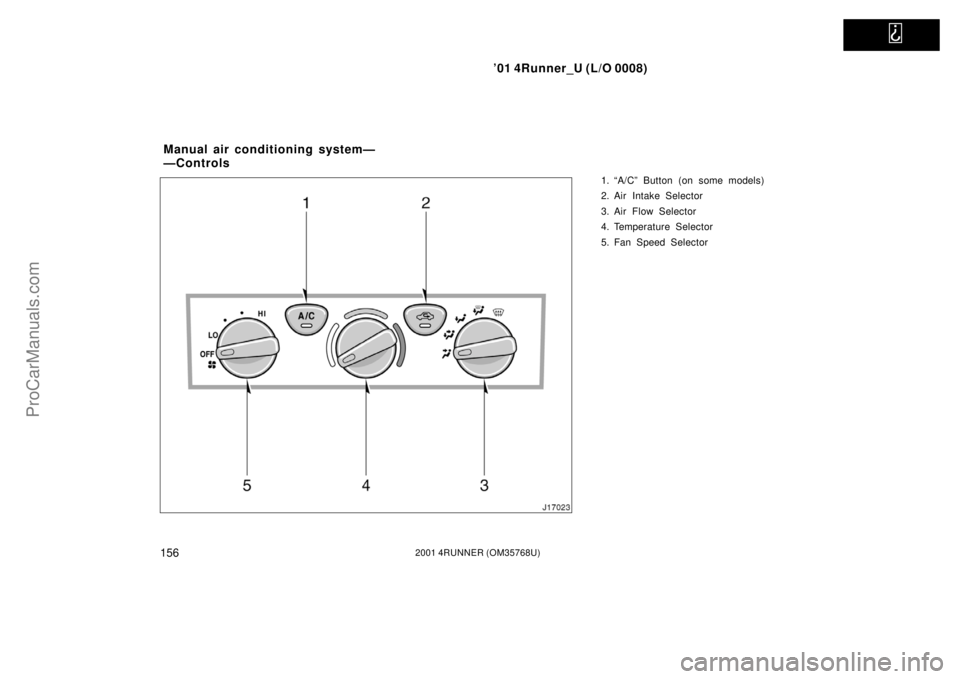

1. “A/C” Button (on some models)
2. Air Intake Selector
3. Air Flow Selector
4. Temperature Selector
5. Fan Speed Selector
Manual air conditioning system—
—Controls
ProCarManuals.com

’01 4Runner_U (L/O 0008)
1572001 4RUNNER (OM35768U)
Fan speed selector
Move the knob to adjust the fan speed—to
the right to increase, to the left to de-
crease.
Temperature selector
Move the knob to adjust the tempera-
ture—to the right to warm, to the left to
cool.
Air flow selector
Move the knob to select the vents used
for air flow.
1. Panel—Air flows mainly from the
instrument panel vents.
2. Bilevel—Air flows from both the floor
vents and the instrument panel vents.
3. Floor—Air flows mainly from the floor
vents.
It is recommended to close the lower
vent. For details about it, see “Instru-
ment panel vents” in this section.4. Floor/Windshield—Air flows mainly
from the floor vents and windshield
vents.
Turning the air flow selector to the
floor/windshield position turns on the
defogging function with the purpose of
clearing the front view.
This position allows the air intake to
select FRESH automatically. This is to
clean up the front view more quickly.
If you want to return the setting to
RECIRCULATE mode, press the air in-
take selector button once again.
Vehicle with “A/C” button—
Press the “A/C” button for dehumidified
heating or cooling. This setting clears
the front view more quickly.
It is recommended to close the lower
vent. For details about it, see “Instru-
ment panel vents” in this section.
5. Windshield—Air flows mainly from the
windshield vents.
Turning the air flow selector to the
windshield position turns on the defog-
ging function with the purpose of clear-
ing the front view.
This position allows the air intake to
select FRESH automatically. This is to
clean up the front view more quickly.
ProCarManuals.com

’01 4Runner_U (L/O 0008)
1582001 4RUNNER (OM35768U)
If you want to return the setting to
RECIRCULATE mode, press the air in-
take selector button once again.
Vehicle with “A/C” button—
Press the “A/C” button for dehumidified
heating or cooling. This setting clears
the front view more quickly.
It is recommended to close the lower
vent. For details about it, see “Instru-
ment panel vents” in this section.

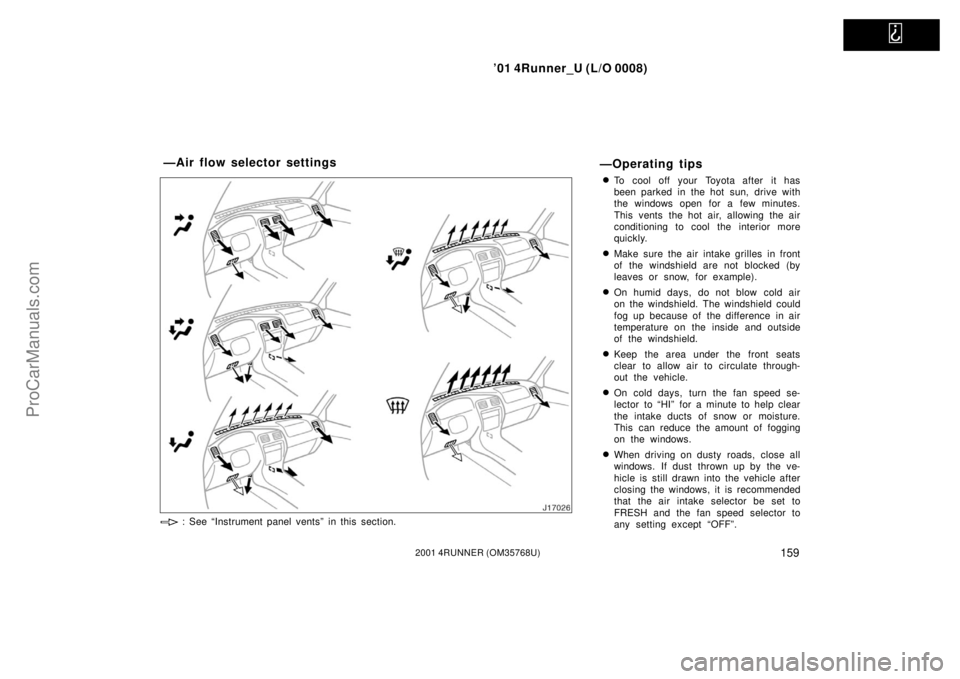

For details about air flow selector settings,
see the illustration after “A/C” button.

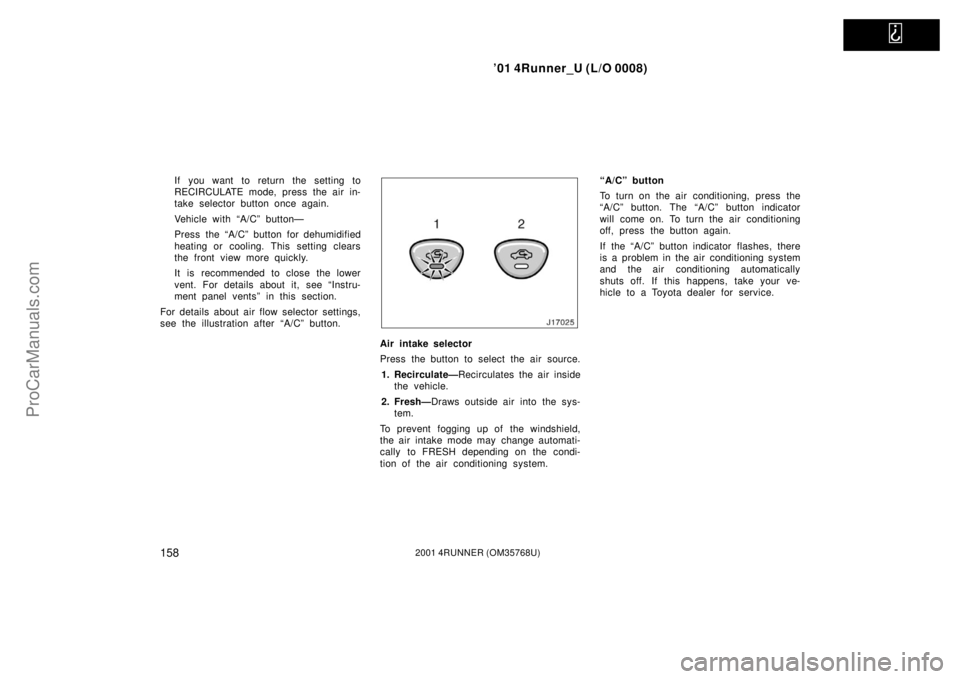

Air intake selector
Press the button to select the air source.
1. Recirculate—Recirculates the air inside
the vehicle.
2. Fresh—Draws outside air into the sys-
tem.
To prevent fogging up of the windshield,
the air intake mode may change automati-
cally to FRESH depending on the condi-
tion of the air conditioning system.“A/C” button
To turn on the air conditioning, press the
“A/C” button. The “A/C” button indicator
will come on. To turn the air conditioning
off, press the button again.
If the “A/C” button indicator flashes, there
is a problem in the air conditioning system
and the air conditioning automatically
shuts off. If this happens, take your ve-
hicle to a Toyota dealer for service.
ProCarManuals.com

’01 4Runner_U (L/O 0008)
1592001 4RUNNER (OM35768U)
—Operating tips
To cool off your Toyota after it has
been parked in the hot sun, drive with
the windows open for a few minutes.
This vents the hot air, allowing the air
conditioning to cool the interior more
quickly.
Make sure the air intake grilles in front
of the windshield are not blocked (by
leaves or snow, for example).
On humid days, do not blow cold air
on the windshield. The windshield could
fog up because of the difference in air
temperature on the inside and outside
of the windshield.
Keep the area under the front seats
clear to allow air to circulate through-
out the vehicle.
On cold days, turn the fan speed se-
lector to “HI” for a minute to help clear
the intake ducts of snow or moisture.
This can reduce the amount of fogging
on the windows.
When driving on dusty roads, close all
windows. If dust thrown up by the ve-
hicle is still drawn into the vehicle after
closing the windows, it is recommended
that the air intake selector be set to
FRESH and the fan speed selector to
any setting except “OFF”.
—Air flow selector settings
: See “Instrument panel vents” in this section.
ProCarManuals.com

’01 4Runner_U (L/O 0008)
1602001 4RUNNER (OM35768U)
If following another vehicle on a dusty
road, or driving in windy and dusty
conditions, it is recommended that the
air intake selector be temporarily set to
RECIRCULATE, which will close off the
outside passage and prevent outside
air and dust from entering the vehicle
interior.Heating
For best results, set controls to:
Fan speed—Any setting except “OFF”
Temperature—To w a r d s WARM
(red zone)
Air intake—FRESH (outside air)
Air flow—FLOOR
Lower vent—CLOSED
Air conditioning—OFF
For quick heating, select recirculated
air for a few minutes. To keep the
windows from fogging, select fresh af-
ter the vehicle interior has been
warmed.
Press the “A/C” button on for dehumidi-
fied heating.
Choose floor/windshield air flow to heat
the vehicle interior while defrosting or
defogging the windshield.Air conditioning
For best results, set controls to:
Fan speed—Any setting except “OFF”
Temperature—To w a r d s COLD
(blue zone)
Air intake—FRESH (outside air)
Air flow—PANEL
Air conditioning—ON
For quick cooling, move the air intake
selector to recirculate for a few min-
utes.
Ventilation
For best results, set controls to:
Fan speed—Any setting except “OFF”
Temperature—To w a r d s COLD
(blue zone)
Air intake—FRESH (outside air)
Air flow—PANEL
Air conditioning—OFF
ProCarManuals.com

’01 4Runner_U (L/O 0008)
1612001 4RUNNER (OM35768U)
Defogging
The inside of the windshield
For best results, set controls to:
Fan speed—Any setting except “OFF”
Temperature—To w a r d s WARM
(red zone) to heat;
COLD (blue zone)
to cool
Air intake—FRESH (outside air)
Air flow—WINDSHIELD
Lower vent—CLOSED
Turning the air flow selector to the wind-
shield or floor/windshield position turns on
the defogging function with the purpose of
clearing the front view.
When turning the air flow selector to wind-
shield or floor/windshield position, the air
intake selects FRESH automatically. This
is to clean up the front view more quickly.
If you want to return the setting to RE-
CIRCULATE mode, press the air intake
selector button once again.
Vehicles with “A/C” button—
Press the “A/C” button for dehumidified
heating or cooling. This setting clears the
front view more quickly.
On humid days, do not blow cold air
on the windshield—the difference be-
tween the outside and inside tempera-
tures could make the fogging worse.
Defrosting
The outside of the windshield
For best results, set controls to:
Fan speed—Any setting except “OFF”
Temperature—To w a r d s WARM
(red zone)
Air intake—FRESH (outside air)
Air flow—WINDSHIELD
Lower vent—CLOSED
Turning the air flow selector to the wind-
shield or floor/windshield position turns on
the defrosting function with the purpose of
clearing the front view.
When turning the air flow selector to wind-
shield or floor/windshield position, the air
intake selects FRESH automatically. This
is to clean up the front view more quickly.
If you want to return the setting to RE-
CIRCULATE mode, press the air intake
selector button once again.Vehicles with “A/C” button—
Press the “A/C” button for dehumidified
heating. This setting clears the front view
more quickly.
To heat the vehicle interior while de-
frosting the windshield, choose floor/
windshield air flow.
ProCarManuals.com

’01 4Runner_U (L/O 0008)
1622001 4RUNNER (OM35768U)
1. Air Intake Selector
2. Windshield Air Flow Button
3. “A/C” Button
4. Fan Speed Selector
5. “OFF” Button
6. “MODE” Button (air flow selector)
7. Temperature Selector
8. “AUTO” Button
Automatic air conditioning system—
—Controls
ProCarManuals.com

’01 4Runner_U (L/O 0008)
1632001 4RUNNER (OM35768U)
“AUTO” button
For automatic operation of the air condi-
tioning, press the “AUTO” button. An indi-
cator light will illuminate to show that the
automatic operation mode has been se-
lected.
In the automatic operation mode, the air
conditioning selects the most suitable fan
speed, air flow, air intake and onoff of
the air conditioning according to the tem-
perature.
When you adjust the temperature selector
button to maximum cooling, a “MAX
COLD” message will appear on the display
and the air intake mode will be automati-
cally changed to RECIRCULATE.
You may use manual controls if you want
to select your own settings.
To turn off the automatic operation, press
the “OFF” button.
Fan speed selector
Turn the knob to adjust the fan speed.
In automatic operation, you do not have
to adjust the fan speed unless you desire
another fan speed mode.Temperature selector
Turn the knob to adjust the temperatu-
re—to the right to warm, to the left to
cool.
“OFF” button
Push the button to turn off the air condi-
tioning system.
Air flow selector, “MODE” button
Press the button to select the vents used
for air flow.
In automatic operation, you do not have
to select the air flow unless you desire
another air flow mode.
1. Panel—Air flows mainly from the
instrument panel vents.
2. Bilevel—Air flows from both the floor
vents and the instrument panel vents.
3. Floor—Air flows mainly from the floor
vents.
It is recommended to close the lower
vent. For details about it, see “Instru-
ment panel vents” in this section.
ProCarManuals.com

’01 4Runner_U (L/O 0008)
1642001 4RUNNER (OM35768U)
4. Floor/Windshield—Air flows mainly
from the floor vents and windshield
vents.
It is recommended to close the lower
vent. For details about it, see “Instru-
ment panel vents” in this section.
For details about air flow selector settings,
see the illustration after “A/C” button.
Windshield air flow button
When this button is pressed, air flows
mainly from the windshield vents and the
FRESH mode is automatically set. This
setting clears the front view more quickly.
If you want to return the setting to RE-
CIRCULATE mode, press the air intake
selector button once again.
Pressing the button once again returns the
air flow mode to the last one used.
Pressing the windshield air flow button
turns on the defrosterlinked air condition-
ing. At this time, the “A/C” button indicator
comes on regardless of whether or not the
“A/C” button is pressed in. This is to
clean up the front view more quickly.To turn off the air conditioning alone,
press the “A/C” button once again.
When the “A/C” button is not pressed in,
pressing another air flow button turns off
the air conditioning.
For details about air flow selector settings,
see the illustration after “A/C” button.
For further information for removing frost
and fog, see “Instrument panel vents” in
this section.
ProCarManuals.com
