TOYOTA 4RUNNER 2002 N210 / 4.G Manual Online

’02 4Runner_U (L/O 0108)
752002 MY 4RUNNER_U (OM 35787U)

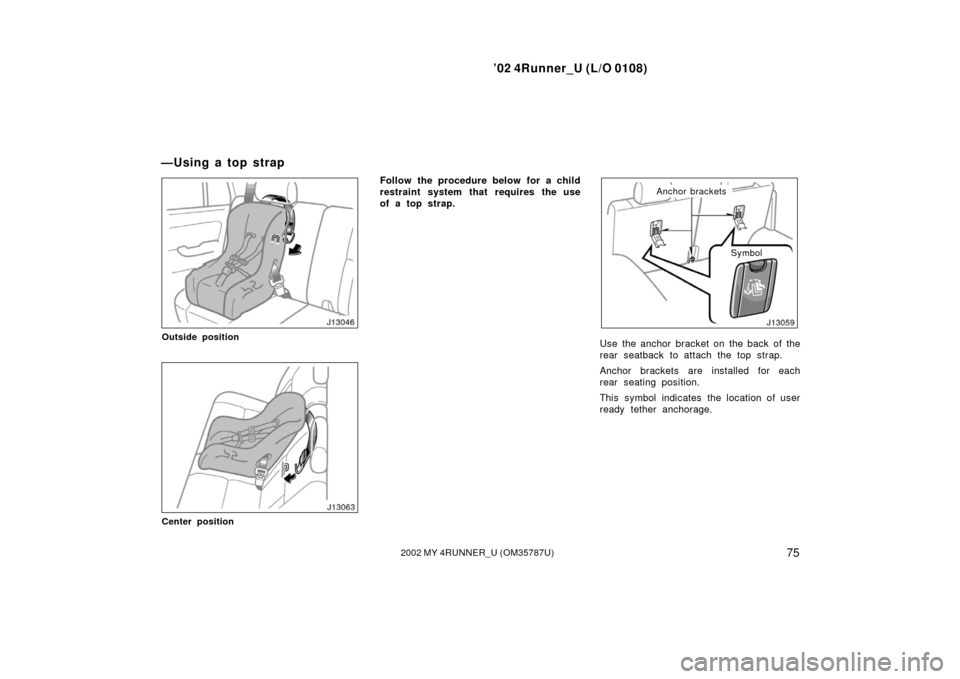

Outside position
Center position
Follow the procedure below for a child
restraint system that requires the use
of a top strap.Anchor brackets
Symbol
Use the anchor bracket on the back of the
rear seatback to attach the top strap.
Anchor brackets are installed for each
rear seating position.
This symbol indicates the location of user
ready tether anchorage.
— U sin g a to p st rap

’02 4Runner_U (L/O 0108)
762002 MY 4RUNNER_U (OM 35787U)

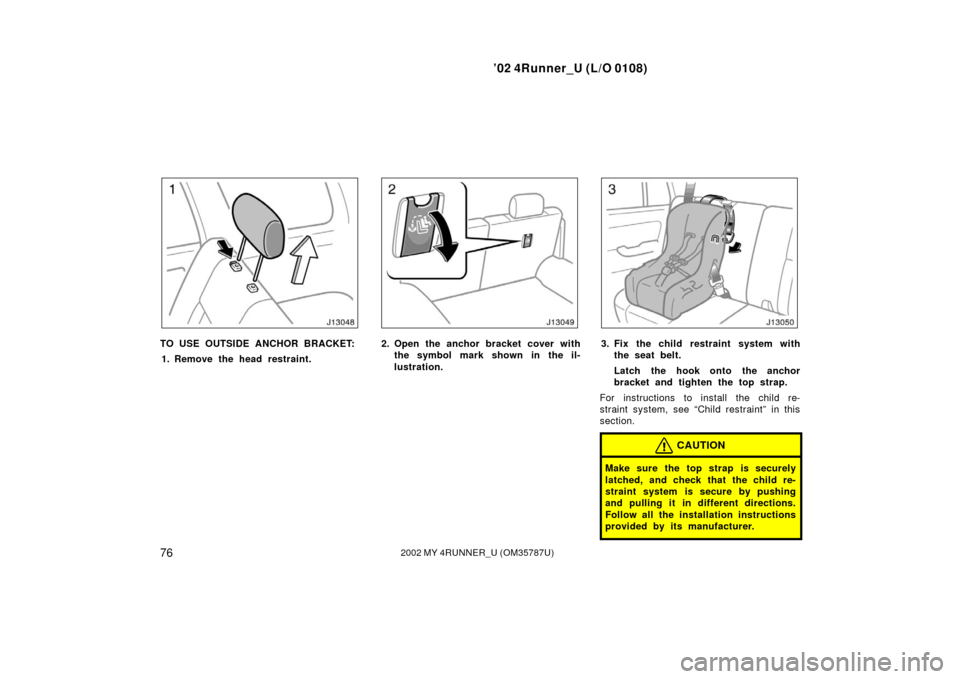

TO USE OUTSIDE ANCHOR BRACKET:
1. Remove the head restraint.2. Open the anchor bracket cover with the symbol mark shown in the il-
lustration.3. Fix the child restraint system withthe seat belt.
Latch the hook onto the anchor
bracket and tighten the top strap.
For instructions to install the child re-
straint system, see “Child restraint” in this
section.
CAUTION
Make sure the top strap is securely
latched, and check that the child re-
straint system is secure by pushing
and pulling it in different directions.
Follow all the installation instructions
provided by its manufacturer.

’02 4Runner_U (L/O 0108)
772002 MY 4RUNNER_U (OM 35787U)

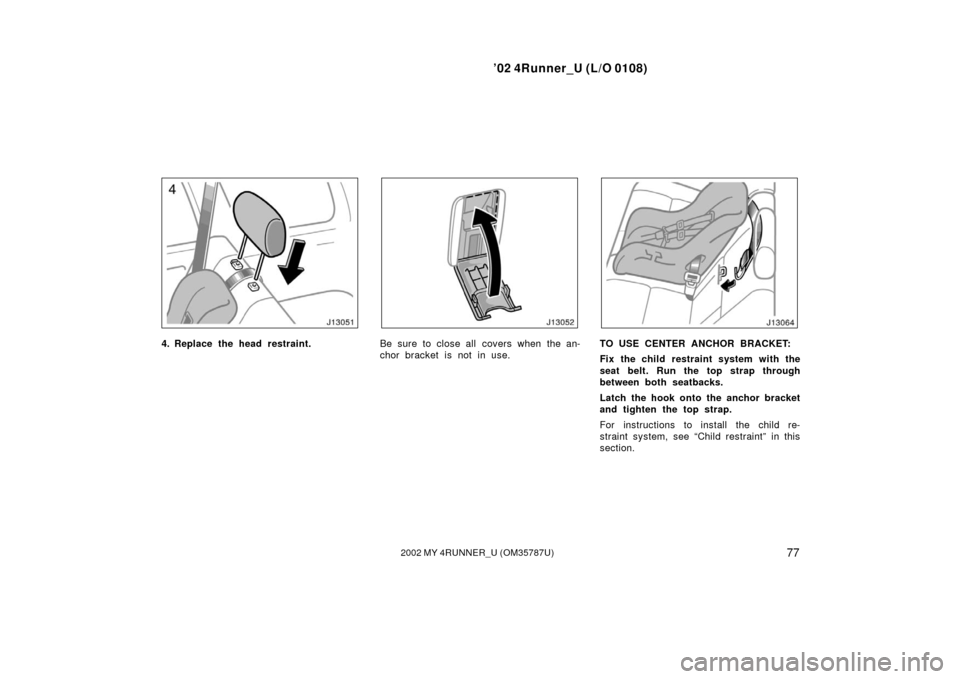

4. Replace the head restraint.Be sure to close all covers when the an-
chor bracket is not in use.TO USE CENTER ANCHOR BRACKET:
Fix the child restraint system with the
seat belt. Run the top strap through
between both seatbacks.
Latch the hook onto the anchor bracket
and tighten the top strap.
For instructions to install the child re-
straint system, see “Child restraint” in this
section.

’02 4Runner_U (L/O 0108)
782002 MY 4RUNNER_U (OM 35787U)
CAUTION
When you use the center anchor
bracket, make sure the top strap
runs through between both seat-
backs and tighten it. The top strap
on seatback could cause death or
serious injury due to abnormal
moving of the child restraint system
in case of sudden braking or a col-
lision.
Make sure the top strap is securely
latched, and check that the child
restraint system is secure by push-
ing and pulling it in different direc-
tions. Follow all the installation in-
structions provided by its manufac-
turer.

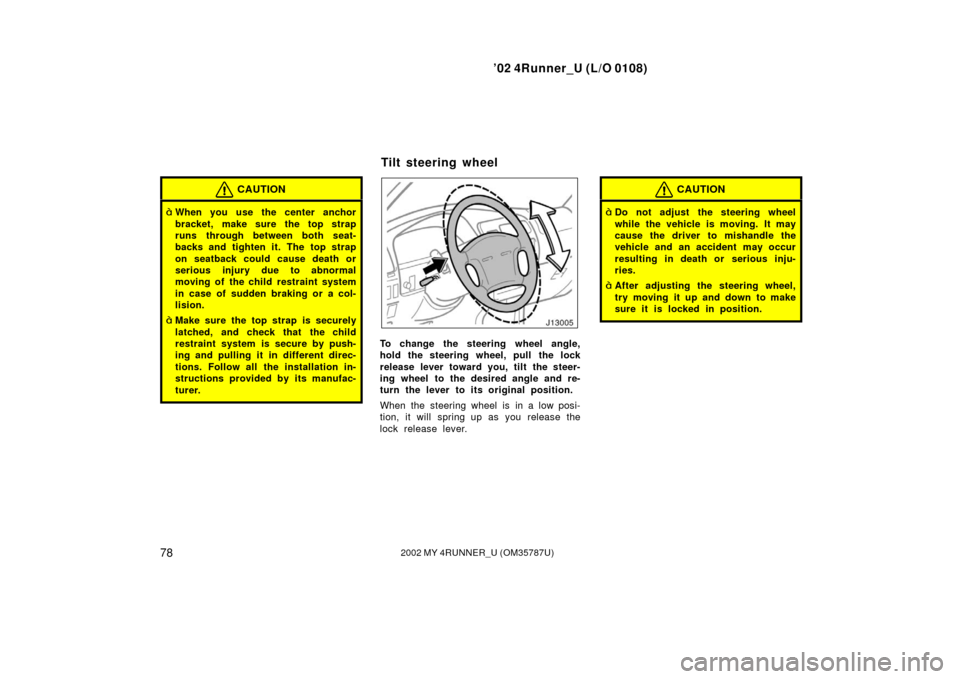

To change the steering wheel angle,
hold the steering wheel, pull the lock
release lever toward you, tilt the steer-
ing wheel to the desired angle and re-
turn the lever to its original position.
When the steering wheel is in a low posi-
tion, it will spring up as you release the
lock release lever.
CAUTION
Do not adjust the steering wheel
while the vehicle is moving. It may
cause the driver to mishandle the
vehicle and an accident may occur
resulting in death or serious inju-
ries.
After adjusting the steering wheel,
try moving it up and down to make
sure it is locked in position.
Tilt steering wheel

’02 4Runner_U (L/O 0108)
792002 MY 4RUNNER_U (OM 35787U)
Adjust the mirror so that you can see
the side of your vehicle in the mirror.
Be careful when judging the size or dis-
tance of any object seen in the outside
rear view mirror on the passenger ’s side.
It is a convex mirror with a curved sur-
face. Any object seen in a convex mirror
will look smaller and farther away than
when seen in a flat mirror.
On some models, when you push the
back window defogger switch, the heater
panels in the outside rear view mirrors will
quickly clear the surface. To turn on the
back window defogger, see “Back window
and outside rear view mirror defoggers” in
Section 14.
CAUTION
Do not adjust the mirror while the
vehicle is moving. It may cause the
driver to mishandle the vehicle and
an accident may occur resulting in
death or serious injuries.
On some models, since the mirror
surfaces can get hot, keep your
hands off them when the defogger
switch is on.
With power windows (door armrest)
Without power windows
(instrument panel)
Outside rear view mirrors— —Power Rear view mirror
control

’02 4Runner_U (L/O 0108)
802002 MY 4RUNNER_U (OM 35787U)
To adjust a mirror, use the switches.
1. Master switch—To select the mirror to be adjusted
Place the switch at “L” (left) or “R”
(right).
2. Control switch—To move the mir- ror
P ush the switch in the desired
direction.
Mirror can be adjusted when key is in the
“ACC” or “ON” position.
NOTICE
If ice should jam the mirror, do not
operate the control or scrape the mir-
ror face. Use a spray deicer to free
the mirror.The rear view mirrors can be folded
backward for parking in restricted
areas.
To fold the rear view mirror, push back-
ward.
CAUTION
Do not drive with the mirrors folded
backward. Both the driver and pas-
senger side rear view mirrors must
be extended and properly adjusted
before driving.
Adjust the mirror so that you can just
see the rear of your vehicle in the mir-
ror.
To reduce glare from the headlights of
the vehicle behind you during night
driving, operate the lever on the lower
edge of the mirror.
Daylight driving—Lever at position 1
The reflection in the mirror has greater
clarity at this position.
Night driving—Lever at position 2
Remember that by reducing glare you also
lose some rear view clarity.
—Folding rear view mirrors Antiglare inside rear view
mirror

’02 4Runner_U (L/O 0108)
812002 MY 4RUNNER_U (OM 35787U)
CAUTION
Do not adjust the mirror while the
vehicle is moving. It may cause the
driver to mishandle the vehicle and
an accident may occur resulting in
death or serious injuries.

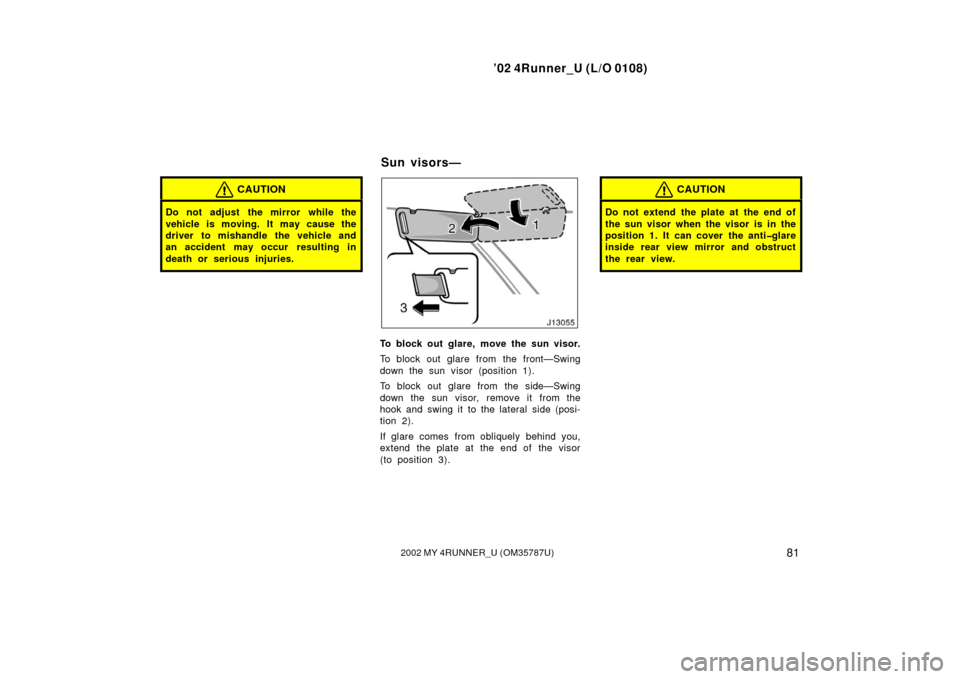

To block out glare, move the sun visor.
To block out glare from the front—Swing
down the sun visor (position 1).
To block out glare from the side—Swing
down the sun visor, remove it from the
hook and swing it to the lateral side (posi-
tion 2).
If glare comes from obliquely behind you,
extend the plate at the end of the visor
(to position 3).
CAUTION
Do not extend the plate at the end of
the sun visor when the visor is in the
position 1. It can cover the antiglare
inside rear view mirror and obstruct
the rear view.
Sun visors—

’02 4Runner_U (L/O 0108)
822002 MY 4RUNNER_U (OM 35787U)

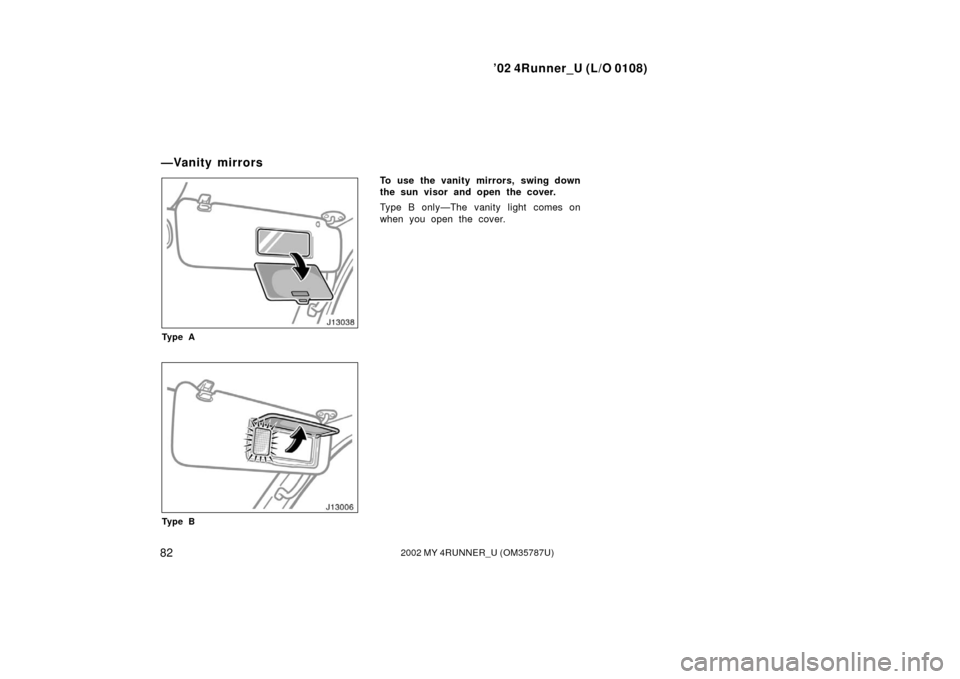

Ty p e A
Ty p e B
To use the vanity mirrors, swing down
the sun visor and open the cover.
Type B only—The vanity light comes on
when you open the cover.
—Vanity mirrors

’02 4Runner_U (L/O 0108)
832002 MY 4RUNNER_U (OM 35787U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Lights, Wipers and Defogger
Headlights and turn signals 84
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Emergency flashers 85
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . .
Instrument panel light control 86
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front fog lights 86
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Interior light 86
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . .
Personal lights 87
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Luggage compartment light 87
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ignition switch light 88
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . .
Windshield wipers and washer 88
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Back window wiper and washer 89
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Back window and outside rear view mirror defoggers 90
. . . . . . . . . . . .
SECTION 1 4

’02 4Runner_U (L/O 0108)
842002 MY 4RUNNER_U (OM 35787U)
HEADLIGHTS
To turn on the following lights: Twist
the headlight/turn signal lever knob.
Position 1—Parking, tail, license plate,
side marker and instrument panel lights
Position 2—Headlights and all of the
above
The lights automatically turn off when the
driver ’s door is opened with the ignition
switch turned off. To turn them on again,
turn the key to the “ON” position or actu-
ate the headlight switch. If you are going
to park for over one week, make sure the
headlight switch is off.
NOTICE
To prevent the battery from being dis-
charged, do not leave the lights on
for a long period when the engine is
not running.
Daytime running light system (on some
models)
The headlights turn on when the parking
brake is released with the engine started,
even with the light switch in the “OFF”
position. They will not go off until the
ignition switch is turned off.
To turn on the other exterior lights and
instrument panel lights, twist the knob to
the position 1.
Under the daytime running light system,
the headlights turn on at reduced intensity.
Twist the knob to the position 2 to turn
to full intensity for driving at night.
HighLow beams— For high beams, turn
the headlights on and push the lever away
from you (position 1). Pull the lever to-
ward you (position 2) for low beams.
The headlight high beam indicator light
(blue light) on the instrument panel will
tell you that the high beams are on.
Flashing the high beam headlights
(position 3)—Pull the lever all the way
back. The high beam headlights turn off
when you release the lever.
You can flash the high beam headlights
with the knob turned to “OFF”.
Headlights and turn signals
