odometer TOYOTA 4RUNNER 2002 N210 / 4.G Owners Manual

’02 4Runner_U (L/O 0108)
52002 MY 4RUNNER_U (OM 35787U)
1. Service reminder indicators and
indicator lights
2. Engine coolant temperature gauge
3. Tachometer 4. Speedometer
5. Odometer and two trip meters
6. Fuel gauge
7. Trip meter reset knob
Instrument cluster overview

’02 4Runner_U (L/O 0108)
912002 MY 4RUNNER_U (OM 35787U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Gauges, Meters and Service reminder indicators
Fuel gauge 92
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . .
Engine coolant temperature gauge 92
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tachometer 93
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . .
Odometer and two trip meters 93
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service reminder indicators and warning buzzers 94
. . . . . . . . . . . . . . .
SECTION 1 5

’02 4Runner_U (L/O 0108)
932002 MY 4RUNNER_U (OM 35787U)
Idling for a long period with the air
conditioning on in stopandgo traffic.
Towing a trailer.
NOTICE
Do not remove the thermostat in
the engine cooling system as this
may cause the engine to overheat.
The thermostat is designed to con-
trol the flow of coolant to keep the
temperature of the engine within
the specified operating range.
 Do not continue driving with an
overheated engine. See “If your ve-
hicle overheats” in Section 4.
The tachometer indicates engine speed
in thousands of rpm (revolutions per
minute). Use it while driving to select
correct shift points and to prevent en-
gine lugging and overrevving.
Driving with the engine running too fast
causes excessive engine wear and poor
fuel economy. Remember, in most cases
the slower the engine speed, the greater
the fuel economy.
NOTICE
Do not let the indicator needle get
into the red zone. This may cause
severe engine damage.
This meter displays the odometer and
two trip meters.
1. Odometer—Shows the total distance the vehicle has been driven.
2. Two trip meters—Show two different distances independently driven since
the last time each trip meter was set
to zero.
You can use one trip meter to calculate
the fuel economy and the other to
measure the distance on each trip. All
trip meter data is cancelled if the elec-
trical power source is disconnected.
3. Trip meter reset knob—Resets the two trip meters to zero, and also change
the meter display.
Tachometer Odometer and two trip meters

’02 4Runner_U (L/O 0108)
942002 MY 4RUNNER_U (OM 35787U)
To change the meter display, quickly
push and release the knob. The meter
display changes in the order from the
odometer to trip meter A to trip meter
B, then back to the odometer each
time you push.
To reset the trip meter A to zero, dis-
play the meter A reading, then push
and hold the knob until the meter is
set to zero. The same process can be
applied for resetting the trip meter B.If the indicator or
buzzer comes on...
(a) If parking brake is off, stop
immediately and
contact Toyota
dealer.
(b) Fasten driver ’s seat belt.
(d) Stop and check.
(e) Stop and check. (indicator and buzzer)Do this.
(c) Fasten front
passenger ’s seat
belt.
(h) Take vehicle to
Toyota dealer.
If brake system
warning light is
also on, stop
immediately and
contact Toyota
dealer.
Do this.
or
(g) Fill up tank.
(f)
Take vehicle to
Toyota dealer.
(i) Take vehicle to
Toyota dealer.
If the indicator or
buzzer comes on...
(j) Close all doors.
Service reminder indicators
an d warn in g bu zzers

’02 4Runner_U (L/O 0108)
2702002 MY 4RUNNER_U (OM 35787U)
Check the tires regularly for damage
such as cuts, splits and cracks. If any
damage is found, consult with a techni-
cian and have the tire repaired or re-
placed.
Even if the damage does not appear seri-
ous, a qualified technician should examine
the damage. Objects which have pene-
trated the tire may have caused internal
damage.
Any tires which are over 6 years old
must be checked by a qualified techni-
cian even if damage is not obvious.
Tires deteriorate with age even if they
have never or seldom been used.
This also applies to the spare tire and
tires stored for future use.
REPLACING YOUR TIRES
When replacing a tire, use only the
same size and construction as original-
ly installed and with the same or great-
er load capacity.
Using any other size or type of tire may
seriously affect handling, ride, speedome-
ter/odometer calibration, ground clearance,
and clearance between the body and tires

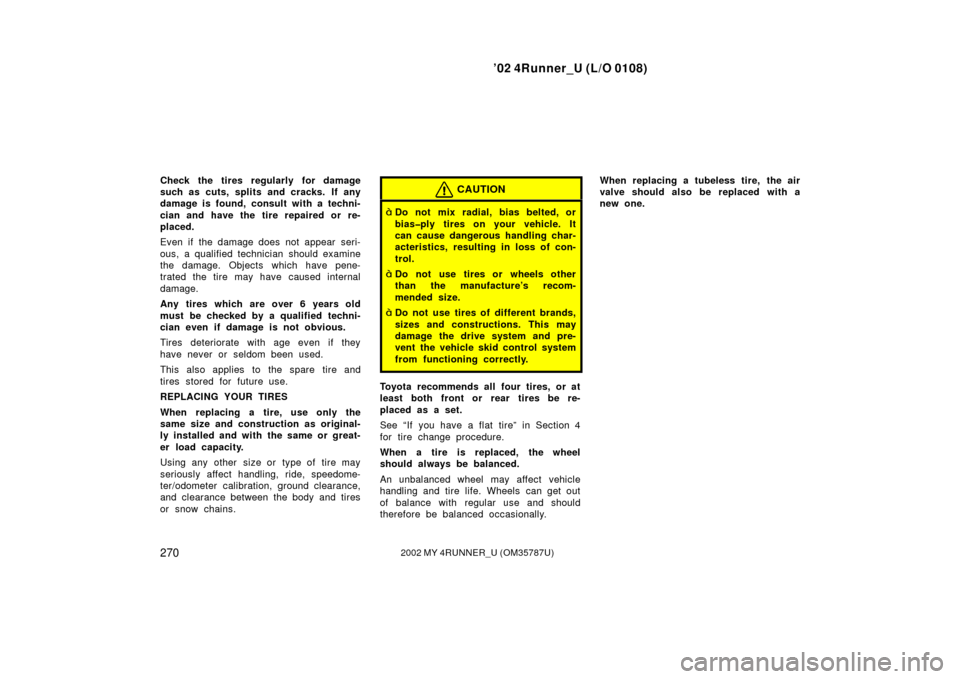

or snow chains.CAUTION
Do not mix radial, bias belted, or
biasply tires on your vehicle. It
can cause dangerous handling char-
acteristics, resulting in loss of con-
trol.
Do not use tires or wheels other
than the manufacture’s recom-
mended size.
Do not use tires of different brands,
sizes and constructions. This may
damage the drive system and pre-
vent the vehicle skid control system
from functioning correctly.
Toyota recommends all four tires, or at
least both front or rear tires be re-
placed as a set.
See “If you have a flat tire” in Section 4
for tire change procedure.
When a tire is replaced, the wheel
should always be balanced.
An unbalanced wheel may affect vehicle
handling and tire life. Wheels can get out
of balance with regular use and should
therefore be balanced occasionally. When replacing a tubeless tire, the air
valve should also be replaced with a
new one.
