remove seats TOYOTA 4RUNNER 2002 N210 / 4.G Owners Manual

’02 4Runner_U (L/O 0108)
392002 MY 4RUNNER_U (OM 35787U)
BEFORE FOLDDOWN REAR SEAT
Stow the rear seat belt and buckles as
shown in the illustration.
This prevents the belt and buckles from
falling out when you fold the seatback.
NOTICE
The seat belt and buckles must be
stowed before you fold the seatback.
1. Swing the bottom cushion up by
pulling the lock rel ease strap, and
remove the head restraint.
It is hinged at the front edge, so just lift
it up.
If desired, each bottom cushion may be
swung up separately.2. Store the head restraints in the head restraint retaining holes in the bot-
tom cushion.
Folddown rear seats

’02 4Runner_U (L/O 0108)
402002 MY 4RUNNER_U (OM 35787U)

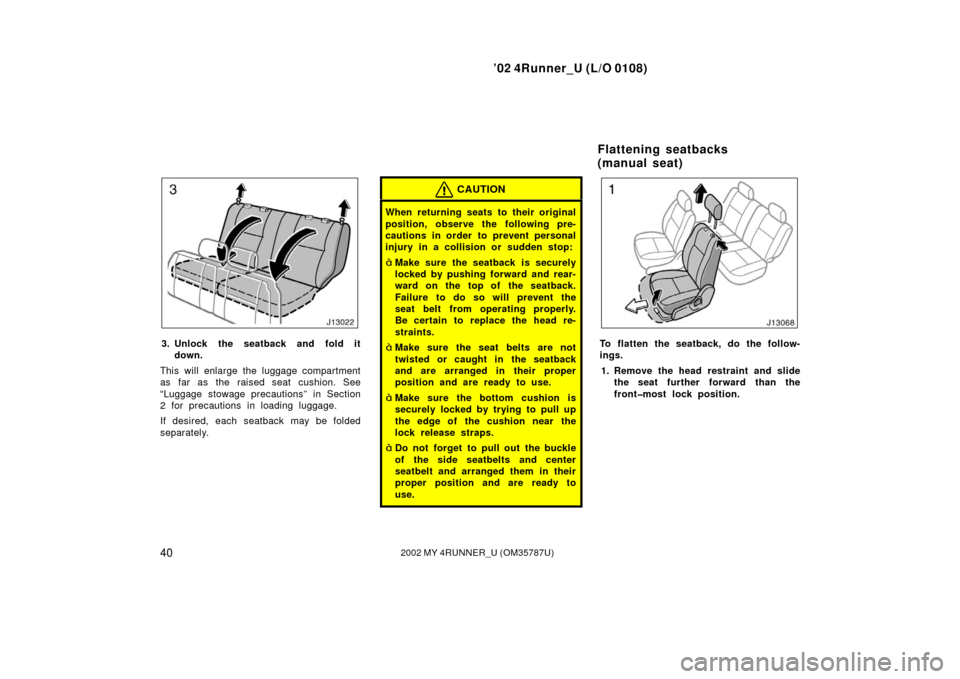

3. Unlock the seatback and fold it
down.
This will enlarge the luggage compartment
as far as the raised seat cushion. See
“Luggage stowage precautions” in Section
2 for precautions in loading luggage.
If desired, each seatback may be folded
separately.
CAUTION
When returning seats to their original
position, observe the following pre-
cautions in order to prevent personal
injury in a collision or sudden stop:
Make sure the seatback is securely
locked by pushing forward and rear-
ward on the top of the seatback.
Failure to do so will prevent the
seat belt from operating properly.
Be certain to replace the head re-
straints.
Make sure the seat belts are not
twisted or caught in the seatback
and are arranged in their proper
position and are ready to use.
Make sure the bottom cushion is
securely locked by trying to pull up
the edge of the cushion near the
lock release straps.
Do not forget to pull out the buckle
of the side seatbelts and center
seatbelt and arranged them in their
proper position and are ready to
use.
To flatten the seatback, do the follow-
ings. 1. Remove the head restraint and slide the seat further forward than the
frontmost lock position.
Flattening seatbacks
(manual seat)

’02 4Runner_U (L/O 0108)
422002 MY 4RUNNER_U (OM 35787U)
Persons who have delicate skin
Persons who are exhausted
Persons who have taken alcohol or
drugs which induce sleep (sleeping
drug, cold remedy, etc.)
To prevent the seat overheating, do
not use the seat heater with a blan-
ket, cushion, or other insulating ob-
jects which cover the seat.
NOTICE
 Do not put unevenly weighed ob-
jects on the seat and do not stick
sharp objects (needles, nails, etc.)
into the seat.
 When cleaning the seats, do not
use organic substances (paint thin-
ner, benzine, alcohol, gasoline,
etc.). They may damage the heater
and seat surface.
 To prevent the battery from being
discharged, turn the switch on
when the engine is running.Front
Rear

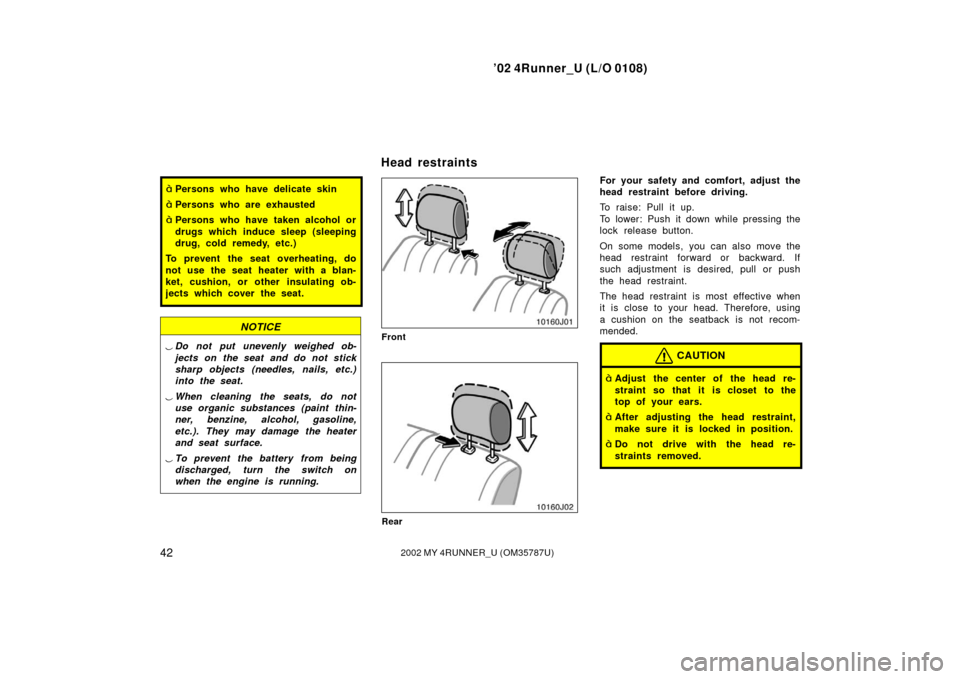

For your safety and comfort, adjust the
head restraint before driving.
To raise: Pull it up.
To lower: Push it down while pressing the
lock release button.
On some models, you can also move the
head restraint forward or backward. If
such adjustment is desired, pull or push
the head restraint.
The head restraint is most effective when
it is close to your head. Therefore, using
a cushion on the seatback is not recom-
mended.
CAUTION
Adjust the center of the head re-
straint so that it is closet to the
top of your ears.
After adjusting the head restraint,
make sure it is locked in position.
Do not drive with the head re-
straints removed.
Head restraints

’02 4Runner_U (L/O 0108)
642002 MY 4RUNNER_U (OM 35787U)

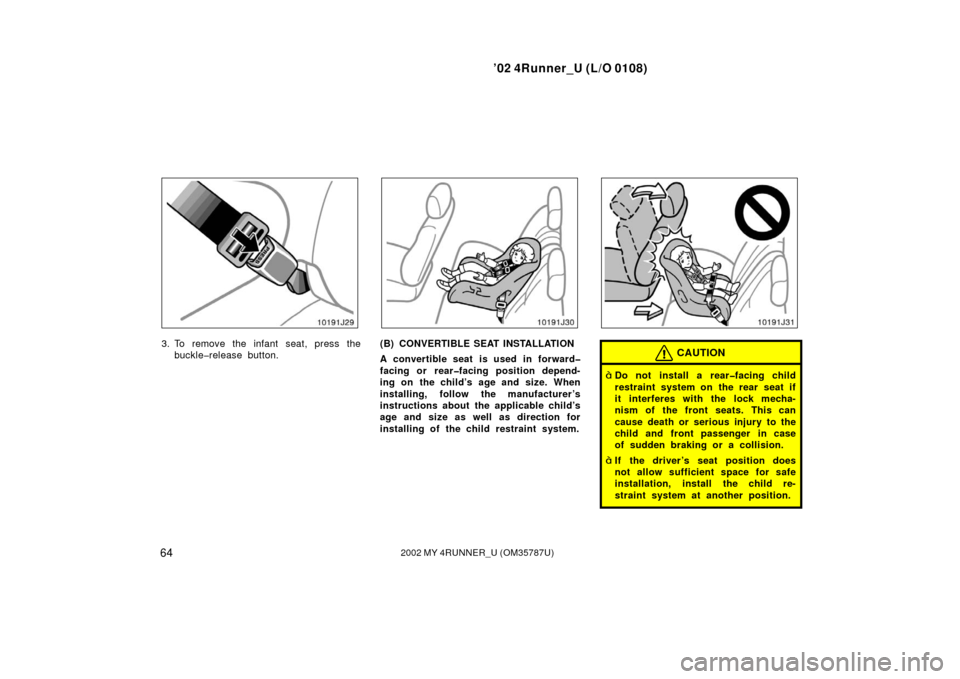

3. To remove the infant seat, press the
bucklerelease button.(B) CONVERTIBLE SEAT INSTALLATION
A convertible seat is used in forward
facing or rearfacing position depend-
ing on the child’s age and size. When
installing, follow the manufacturer’s
instructions about the applicable child’s
age and size as well as direction for
installing of the child restraint system.CAUTION
Do not install a rearfacing child
restraint system on the rear seat if
it interferes with the lock mecha-
nism of the front seats. This can
cause death or serious injury to the
child and front passenger in case
of sudden braking or a collision.
If the driver ’s seat position does
not allow sufficient space for safe
installation, install the child re-
straint system at another position.
