ESP TOYOTA 4RUNNER 2003 N210 / 4.G Navigation Manual

4Runner_Navi_U (L/O 0208)
iv
2003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)
Safety Instruction
L00002
To use your system as safely as pos-
sible, follow all the safety tips shown
below.
This system is intended to assist you in
reaching your destination and, if used
properly, can do so. You, as the driver,
are solely responsible for the safe op-
eration of your vehicle and the safety of
your passengers.
Do not use any feature of this system
to the extent it distracts you from safe
driving. Your first priority while you are
driving should always be the safe opera-
tion of your vehicle. While you are driv-
ing, be sure to observe all traffic regula-
tions.Before attempting to use this system
while you are driving, learn how to use
it and become thoroughly familiar with it.
Read the entire Navigation System
Manual to make sure you understand the
system. Do not allow others to use this
system until they have read and under-
stood these and other
instructions in this
manual.
For your safety, some functions may be-
come inoperable when you start driving.
Unavailable switches are dimmed. You
can input your destination and select
your route only when the vehicle is not
moving.
CAUTION
For safety, the driver should not
operate the navigation system
while he/she is dr iving. Inattention
to the road and traffic may cause
an accident.
While you are driving, be sure to
follow the traffic regulations and
keep the road condition in mind.
If a traffic sign on the road has
been changed, route guidance
may provide wrong information
such as the direction of a one
way street.

4Runner_Navi_U (L/O 0208)
vi
2003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)
Overview of Touch Screen and Switches
Switch operation
This system is operated mainly by the
switches on the screen. To prevent
damage to the screen, lightly touch
switches on the screen with your fin-
ger. When you touch a switch on the
screen or push a button, a beep
sounds.
INFORMATION
If the system does not respond to
a touch of a switch, move your fin-
ger away from the screen and then
touch it again.
 You cannot operate dimmed
switches.
 Wipe off fingerprints on the sur-
face of the display using a glass
cleaning cloth.
 The displayed image may become
darker and moving images may be
slightly distorted when the display
is cold.

4Runner_Navi_U (L/O 0208)
102003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)
11. By Map Selection: You can select a destination simply by touching the location on the displayed map. See page 24 for the
detailed steps.
INFORMATION
 When inputting the destination, the
response to the switch may be
slow.
 “Points of Interest” registration is
made based on the NAVTECH
“Standard POI Inclusion List” and
infoUSA POI data.
 If there is no point registered,
switches such as “Marked Point”,
“Previous Destination” and “Pre-
vious Starting Point” are dimmed
and not available.
 The route for returning may not be
the same as that for going.
 The route guidance to the destina-
tion may not be the shortest route
or a route without traffic conges-
tion.
 Route guidance may not be avail-
able if there is no road data for the
specified location.When setting the destination, you
should use the map on a scale of
one half mile or smaller.
 To select an “Address”, “Point of
Interest”, “Freeway Entrance/Exit”
or “Intersection” in a different area,
it is necessary to change the
search area.
CAUTION
While you are driving, be sure to
follow traffic regulations and keep
the road condition in mind. If a traf-
fic sign on the road has been
changed, the route guidance may
provide wrong information.
Touch the switch on the Destina-
tion input screen.
The screen changes and displays the
map location of your home.
Guidance starts from your current posi-
tion to your home immediately after you
touch the
switch during driving.
For the steps to register your home, see
“Registering your home” on page 41.
Destination input by HOME

4Runner_Navi_U (L/O 0208)
1302003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)

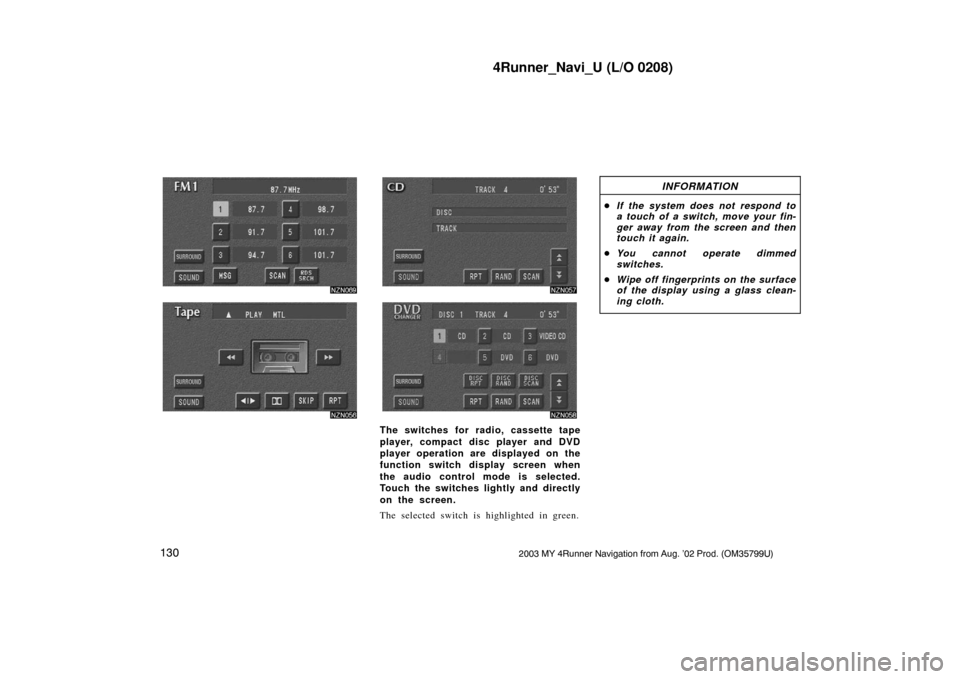

The switches for radio, cassette tape
player, compact disc player and DVD
player operation are displayed on the
function switch display screen when
the audio control mode is selected.
Touch the switches lightly and directly
on the screen.
The selected switch is highlighted in green.
INFORMATION
 If the system does not respond to
a touch of a switch, move your fin-
ger away from the screen and then
touch it again.
 You cannot operate dimmed
switches.
 Wipe off fingerprints on the surface
of the display using a glass clean-
ing cloth.

4Runner_Navi_U (L/O 0208)
1322003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)
(d) Your radio antenna
Your vehicle has an antenna printed on
the inside of the rear quarter windows.
NOTICE
Attaching the film (especially con-
ductive or metallic type) on the rear
quarter windows will noticeably re-
duce the sensitivity of the radio.
(e) Your cassette player
When you insert a cassette, insert it with
the exposed tape side to the right.
NOTICE
Do not oil any part of the cassette
player, and do not insert anything
except a cassette tape into the slot.

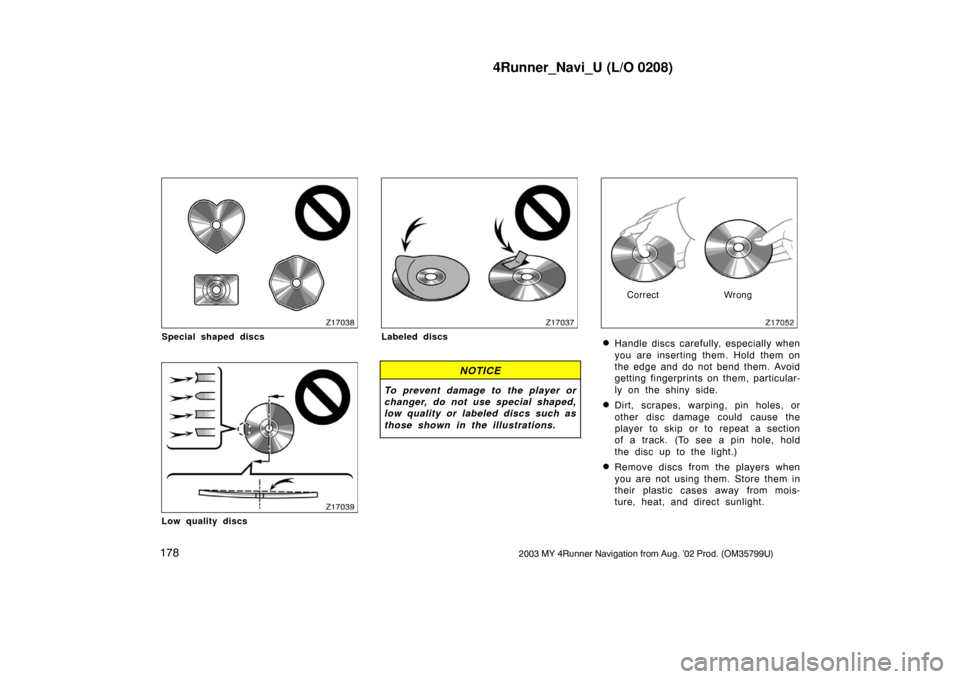

(f) Your compact disc player
When you insert a compact disc, insert
it with the label side up. The compact
disc player will play from track 1 through
the end of the disc. Then it will play from
track 1 again.
NOTICE
Never try to disassemble or oil any
part of the compact disc player. Do
not insert anything except a compact
disc into the slot.
The player is intended for use with 12
cm (4.7 in.) discs only.

4Runner_Navi_U (L/O 0208)
1402003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)
(c) Automatic program selection
“RPT” switch: The repeat feature auto-
matically replays the current program.
Touch the “RPT” switch while the pro-
gram is playing. When the program ends,
it will automatically be rewound and re-
played. Touch the switch again to turn off
the repeat feature.
There must be at least 3 seconds of
blank space between programs for the
repeat feature to work correctly.
“SKIP” switch: The skip feature allows
you to fast forward past long stretches of
blank tape. This is especially useful at
the end of cassettes.
Touch the “SKIP” switch. The player will
automatically skip any blank portions of 15
seconds or more and play the next program.
To cancel it, touch the switch once again.

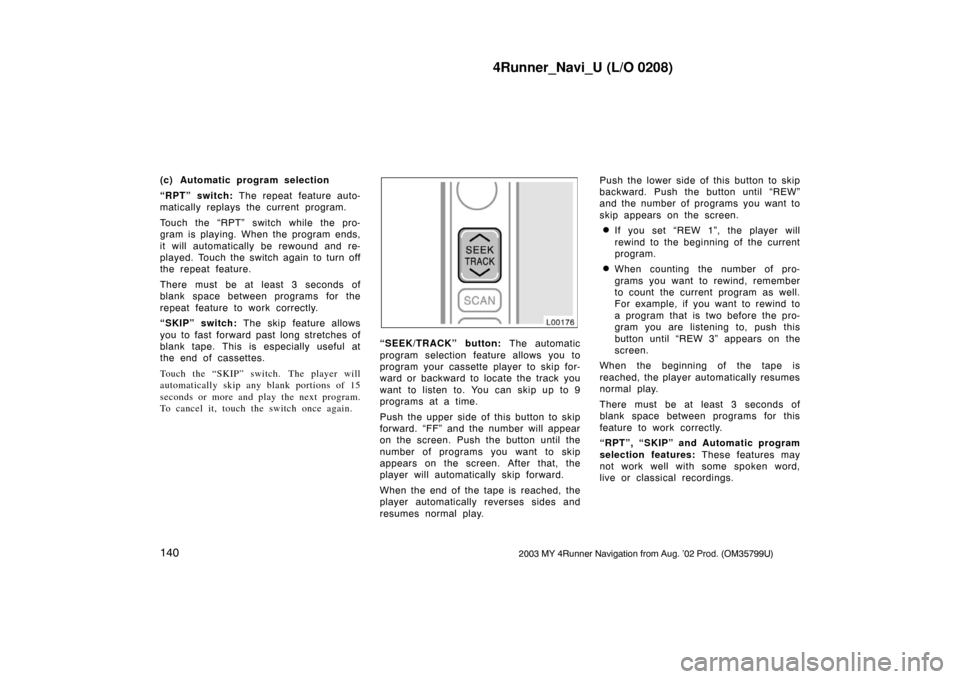

L00176
“SEEK/TRACK” button: The automatic
program selection feature allows you to
program your cassette player to skip for-
ward or backward to locate the track you
want to listen to. You can skip up to 9
programs at a time.
Push the upper side of this button to skip
forward. “FF” and the number will appear
on the screen. Push the button until the
number of programs you want to skip
appears on the screen. After that, the
player will automatically skip forward.
When the end of the tape is reached, the
player automatically reverses sides and
resumes normal play. Push the lower side of this button to skip
backward. Push the button until “REW”
and the number of programs you want to
skip appears on the screen.
If you set “REW 1”, the player will
rewind to the beginning of the current
program.
When counting the number of pro-
grams you want to rewind, remember
to count the current program as well.
For example, if you want to rewind to
a program that is two before the pro-
gram you are listening to, push this
button until “REW 3” appears on the
screen.
When the beginning of the tape is
reached, the player automatically resumes
normal play.
There must be at least 3 seconds of
blank space between programs for this
feature to work correctly.
“RPT”, “SKIP” and Automatic program
selection features: These features may
not work well with some spoken word,
live or classical recordings.

4Runner_Navi_U (L/O 0208)
1612003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)
CodeLanguage
1001Japanese
0514English
0618French
0405German
0920Italian
0519Spanish
2608Chinese
1412Dutch
1620Portuguese
1922Swedish
1821Russian
111 5Korean
0512Greek
0101Afar
0102Abkhazian
0106Afrikaans
0113Amharic
0118Arabic
0119Assamese
0125Aymara
0126Azerbaijani
0201Bashkir
0205Byelorussian
0207Bulgarian
0208Bihari
0209Bislama
0214Bengali
0215Tibetan
0218Breton
0301Catalan
0315Corsican
0319Czech
0325Welsh
0401Danish
0426Bhutani
0515Esperanto
0520Estonian
0521Basque
0601Persian
0609Finnish
0610Fiji
0615Faroese
0625Frisian
0701Irish
0704Scots−Gaelic
0712Galician
0714Guarani
0721Gujarati
0801Hausa
0809Hindi
0818Croatian
0821Hungarian
0825Armenian
0901Interlingua
0905Interlingue
0911Inupiak
0914Indonesian
0919Icelandic
0923Hebrew
1009Yiddish
1023Javanese
1101Georgian

4Runner_Navi_U (L/O 0208)
1762003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)
Static and fluttering—These occur when
signals are blocked by buildings, trees, or
other large objects. Increasing the bass
level may reduce static and fluttering.
Station swapping—If the FM signal you
are listening to is interrupted or weak-
ened, and there is another strong station
nearby on the FM band, your radio may
tune in the second station until the origi-
nal signal can be picked up again.
AM
Fading—AM broadcasts are reflected by
the upper atmosphere—especially at
night. These reflected signals can inter-
fere with those received directly from the
radio station, causin g the radio station to
sound alternately strong and weak.
Station interference—When a reflected
signal and a signal received directly from
a radio station are very nearly the same
frequency, they can interfere with each
other, making it difficult to hear the
broadcast.
Static—AM is easily affected by external
sources of electrical noise, such as high
tension power lines, lightening, or electri-
cal motors. This results in static. CARING FOR YOUR CASSETTE
PLAYER AND TAPES
For the best performance for your cas-
sette player and tapes:
Clean the tape head and other parts reg-
ularly.
A dirty tape head or tape path can
decrease sound quality and tangle
your cassette tapes. The easiest way
to clean them is by using a cleaning
tape. (A wet type is recommended.)
Use high− quality cassettes.
Low−quality cassette tapes can cause
many problems, including poor sound,
inconsistent playing speed, and
constant auto −reversing. They can
also get stuck or tangled in the cas-
sette player.
Do not use a cassette if it has been
damaged or tangled or if its label is
peeling off.
Do not leave a cassette in the player
if you are not listening to it, especially
if it is hot outside.
Store cassettes in their cases and out
of direct sunlight.
Avoid using cassettes with a total
playing time longer than 100 minutes
(50 minutes per side). The tape used
in these cassettes is thin and could
get stuck or tangled in the cassette
player.
CARING FOR YOUR COMPACT DISC
PLAYER, DVD PLAYER AND DISCS
Your compact disc player and DVD
player are intended for use with 12
cm (4.7 in.) discs only.
Extremely high temperatures can keep
your compact disc player and DVD
player from working. On hot days, use
the air conditioning to cool the vehicle
interior before you use the players.
Bumpy roads or other vibrations may
make your compact disc player and
DVD player skip.
If moisture gets into your compact
disc player and DVD player, the play-
ers may not play even though they
appear to be working. Remove the
disc from the player and wait until it
dries.

4Runner_Navi_U (L/O 0208)
1782003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)
Z17038
Special shaped discs
Z17039
Low quality discs
Z17037
Labeled discs
NOTICE
To prevent damage to the player or
changer, do not use special shaped,
low quality or labeled discs such as
those shown in the illustrations.
Z17052
CorrectWrong
Handle discs carefully, especially when
you are inserting them. Hold them on
the edge and do not bend them. Avoid
getting fingerprints on them, particular-
ly on the shiny side.
Dirt, scrapes, warping, pin holes, or
other disc damage could cause the
player to skip or to repeat a section
of a track. (To see a pin hole, hold
the disc up to the light.)
Remove discs from the players when
you are not using them. Store them in
their plastic cases away from mois-
ture, heat, and direct sunlight.
