2003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)
Important information about this manual
For safety reasons, this manual indicates
items requiring particular attention with
the following marks.
CAUTION
This is a warning against anything
which may cause injury to people if
the warning is ignored. You are in-
formed about what you must or
must not do in order to reduce the
risk of injury to yourself and others.
NOTICE
This is a warning against anything
which may cause damage to the ve-
hicle or its equipment if the warning
is ignored. You are informed about
what you must or must not do in
order to avoid or reduce the risk of
damage to your vehicle and its
equipment.
INFORMATION
This provides additional information.
Initial screen
UN001
When you start the engine or turn the
ignition switch to “ACC”, the initial
“TOYOTA” screen appears and the
system begins operating.
CAUTION
When the vehicle is stopped with
the engine running, always apply
the parking brake for safety.
After a few seconds, the “CAUTION”
screen appears.
L00002
Touch either “English” or “French” to
select a language. Read and follow
the instructions.

4Runner_Navi_U (L/O 0208)
11 02003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)
L00138
Date: Input the next maintenance date.
Distance: Input the driving distance until
the next maintenance check. You can in-
put up to five digits for the driving dis-
tance.
When you touch the
“!” switch on the
screen, the screen changes to display the
“Change name” screen. Touch the keys to
input your desired name and then input
the conditions.
After you input the information, touch the
“OK” switch. The screen returns to the
“Maintenance” screen. The icon color will
change to green after the date and driv-
ing distance are input. The icon color will
change to orange when your vehicle
needs to be serviced. The following
switches appear on the “Maintenance”
screen. Delete all:
Cancel all conditions which
have been input.
Reset all: Reset all items which satisfy
either condition.
Touch the
“Off” switch on the “Mainte-
nance” screen, and the “Information”
screen will no longer be displayed.
INFORMATION
 For scheduled ma intenance infor-
mation, please refer to the “Sched-
uled Maintenance Guide” or “Own-
er’s Manual Supplement”.
 Depending on your driving or the
road conditions, the system may
have a timelag between the data
which has been input and the actu-
al date and driving distance.
INFORMATION ITEMS
Oil change
Replace oil filter
Rotate tires
Replace tires
Replace battery
Replace brake linings
Replace wiper blades
Replace engine coolant

4Runner_Navi_U (L/O 0208)
1232003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)

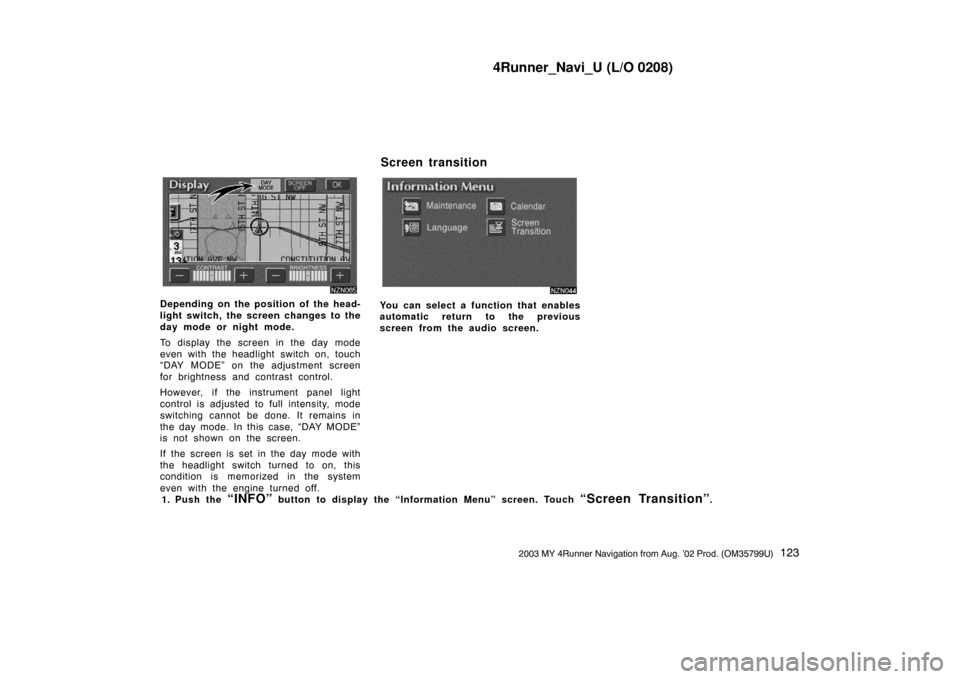

NZN065
Depending on the position of the head-
light switch, the screen changes to the
day mode or night mode.
To display the screen in the day mode
even with the headlight switch on, touch
“DAY MODE” on the adjustment screen
for brightness and contrast control.
However, if the instrument panel light
control is adjusted to full intensity, mode
switching cannot be done. It remains in
the day mode. In this case, “DAY MODE”
is not shown on the screen.
If the screen is set in the day mode with
the headlight switch turned to on, this
condition is memorized in the system
even with the engine turned off.
NZN044
You can select a function that enables
automatic return to the previous
screen from the audio screen.
1. Push the
“INFO” button to display the “Infor mation Menu” screen. Touch “Screen Transition”.
Screen transition

4Runner_Navi_U (L/O 0208)
1292003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)
This section describes some of the basic
features of the Toyota audio system.
Some information may not pertain to your
system.
Your audio system works when the igni-
tion switch is in the “ACC” or “ON” posi-
tion.
NOTICE
To prevent the battery from being
discharged, do not leave the car au-
dio on longer than necessary when
the engine is not running.
L00166
(a) Turning the system on and off
PWR·VOL: Push this knob to turn the
audio system on and off. Turn this knob
to adjust the volume. The system turns
on in the last mode used.
AUDIO: Push this button to display
switches for audio s ystem (audio control
mode).
You can select the function that enables
automatic return to the previous screen
from the audio screen. See page 123 for
details.Push “AM”, “FM”, “DISC” or “TAPE”
button to turn on the desired mode.
The selected mode turns on immedi-
ately.
Push these buttons if you want to switch
from one mode to another.
If the tape or disc is not set, the cassette
player or compact disc player does not
turn on.
You can turn off the cassette player or
compact disc player by ejecting the cas-
sette tape or compact disc. If the audio
system was previously off, then the entire
audio system will be turned off when you
eject the cassette tape. If another func-
tion was previously playing, it will come
on again.
Using your audio system—
—Some basics

4Runner_Navi_U (L/O 0208)
1702003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)
DVD video discs: Digital Versatile Disc
that holds video. DVD video discs have
adopted “MPEG2”, one of the world stan-
dards of digital compression technologies.
The picture data is compressed by 1/40
on average and stored. Variable rate en-
coded technology in which the volume of
data assigned to the picture is changed
depending on the picture format has also
been adopted. Audio data is stored using
PCM and Dolby digital, which enables
higher quality of sound. Furthermore, mul-
ti − angle and multi− language features will
also help you enjoy the more advanced
technology of DVD video.
Viewer restrictions: This feature limits
what can be viewed in conformity with
the level of restrictions of the country.
The level of restrictions varies depending
on the DVD video disc. Some DVD video
discs cannot be played at all, or violent
scenes are skipped or replaced with other
scenes.
Level 1: DVD video discs for children can
be played.
Level 2—7: DVD video discs for children
and G −rated movies can be played. Level 8: All types of DVD video discs can
be played.
Multiangle feature:
You can enjoy the
same scene at different angles.
Multilanguage feature: You can select
the language of the subtitles and audio.
Region codes: Region codes are pro-
vided on DVD players and DVD discs. If
the DVD video disc does not have the
same region code as the DVD player,
you cannot play the disc on the DVD
player. For region codes, see page 168.
Audio: This DVD player can play liner
PCM, Dolby digital and MPEG audio for-
mat DVD. Other decoded type cannot be
played.
Title and chapter: Video and audio pro-
grams stored on DVD video discs are
divided in parts by title and chapter.
Title: The largest unit of the video and
audio programs stored on DVD video
discs. Usually, one piece of a movie, one
album, or one audio program is assigned
as a title.
Chapter: A unit smaller than a title. A
title comprises plural chapters. Manufactured under license from Dolby
Laboratories. “Dolby”, “Pro Logic”,
and the doubleD symbol are trade-
marks of Dolby Laboratories. Confiden-
tial unpublished works.

19921997 Dolby Laboratories. All
rights reserved.
This product incorporates copyright
protection technology that is protected
by method claims of certain U.S. pat-
ents and other intellectual property
rights owned by Macrovision Corpora-
tion and other rights owners. Use of
this copyright protection technology
must be authorized by Macrovision
Corporation, and is intended for home
and other limited viewing uses only
unless otherwise authorized by Macro-
vision Corporation. Reverse engineer-
ing or disassembly is prohibited.
“DTS” is a trademark of Digital Theater
Systems, Inc.
