’03 4Runner_U (L/O 0305)
287
2003 4RUNNER from Apr. ’03 Prod. (OM 35820U)

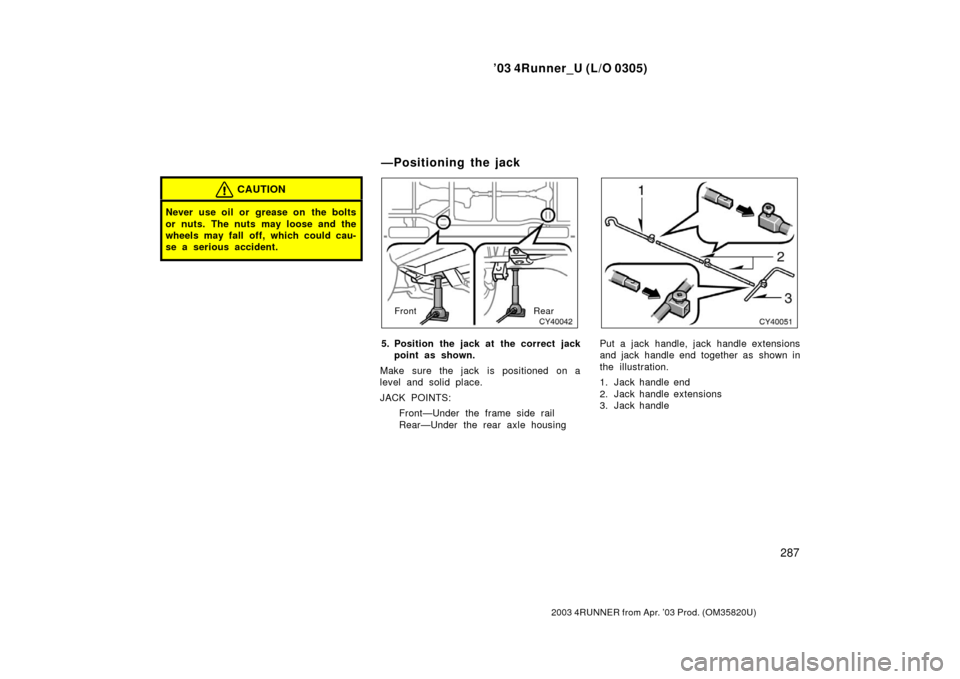

CAUTION
Never use oil or grease on the bolts
or nuts. The nuts may loose and the
wheels may fall off, which could cau-
se a serious accident.
FrontRear
5. Position the jack at the correct jack
point as shown.
Make sure the jack is positioned on a
level and solid place.
JACK POINTS: Front—Under the frame side rail
Rear—Under the rear axle housingPut a jack handle, jack handle extensions
and jack handle end together as shown in
the illustration.
1. Jack handle end
2. Jack handle extensions
3. Jack handle
—Positioning the jack
