Page 40 of 373
’03 4Runner_U (L/O 0305)
34
2003 4RUNNER from Apr. ’03 Prod. (OM 35820U)
2. To remove the fuel tank cap, turn
the cap counterclockwise by 90 de-
grees (to the pressure point 1), and
then turn it an additional 30 degrees
(to point 2). Pause slightly before
removing it.
Although a click will be heard as you turn
the cap to point 1, it does not indicate
that the cap can be removed.
It is not unusual to hear a slight swoosh
when the cap is opened.
3. The removed cap can be stored on the back side of the fuel filler door.
Position the cap so that the hooks point
to the left and right or up and down, and
set it in the receptacle on the back side
of the door.
When installing the cap, turn the cap
clockwise until you hear one click.
When you hear the click, the cap is
fully closed.
If the cap is not installed securely, the
malfunction indicator lamp comes on.
Make sure the cap is tightened securely.
The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.
CAUTION
Make sure the cap is installed se-
curely to prevent fuel sp illage in
the event of an accident.
Use only a genuine Toyota fuel tank
cap for replacement. It is designed
to regulate fuel tank pressure.
Page 218 of 373
’03 4Runner_U (L/O 0305)
212
2003 4RUNNER from Apr. ’03 Prod. (OM 35820U)

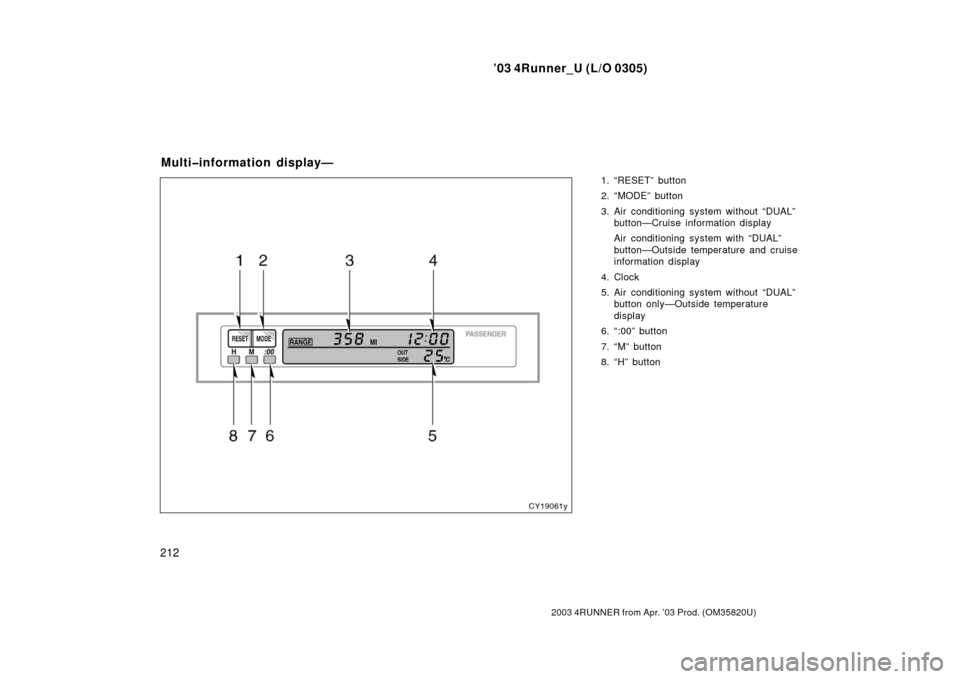

1. “RESET” button
2. “MODE” button
3. Air conditioning system without “DUAL”
button—Cruise information display
Air conditioning system with “DUAL”
button—Outside temperature and cruise
information display
4. Clock
5. Air conditioning system without “DUAL” button only—Outside temperature
display
6. “:00” button
7. “M” button
8. “H” button
Multi information display—
