Delete marked points TOYOTA 4RUNNER 2004 N210 / 4.G Navigation Manual

4Runner_Navi_U (L/O 0308)
20
2004 4RUNNER Navigation from Aug. ’03 Prod. (OM35813U)
There are 3 ways to list the marked
point by touching switches on bottom
of the screen.
Sort by Icon: Touch this switch to list
the marked points by the registered icon.
There are 46 different normal purpose
icons and 3 sound icons. (For details,
see page 78.)
Sort by Date: Touch this switch to list
the marked points in order of registered
date.
Sort by Name: Touch this switch to list
the marked points in alphabetical order.Touch the “Prev. dest” switch on
the “Destination” screen.
L00038
The screen lists up to 20 previously set
destinations.
Select your desired destination. The
screen changes and displays the map
location of the selected destination
and the route preference. (See “(a) En-
tering destination” on page 25.)You can delete the list of previous des-
tinations while you stop your car, if you
no longer need them.
L00078
Touch the “Menu” tab on the screen
to display the menu screen and touch
the
“Marked points” switch. Touch
the
“Del. prev. dest.” switch.
When you touch the switch for each
previous destination or the
“Delete
all”
switch, a message appears to
confirm your request. If you are sure,
touch the
“Yes” switch. If not, touch
the
“No” switch.
Destination input by
PREVIOUS DESTINATION

4Runner_Navi_U (L/O 0308)
35
2004 4RUNNER Navigation from Aug. ’03 Prod. (OM35813U)
Upon reception of signals
from the GPS (Global Posi-
tioning System), this mark
appears. (For details, see
page 59.)
Magnifies or reduces the map
scale. (For details, see page
57.)
Touch this switch, and sym-
bols of points of interest are
shown on the screen. (For
details, see page 51.)
Touch this switch for one−
touch registration of the
marked point. (For details,
see page 84.)
INFORMATION
The distance up to your destination
appears at the left of the screen.
The time to your destination can
also be displayed. (For the setting
steps, see page 98.)
The “Change route” screen
appears and the following
settings are available.
L00066
Search condition: To change the condi-
tion for reroute.
Detour: To change the condition for de-
tour. (For details, see page 49.)
Del. next dest.: To delete and skip the
next destination.
INFORMATION
If the calculated route includes a trip
by ferry, the route guidance shows a
sea route. After you travel by ferry,
the current vehicle position may be
incorrect. Upon reception of GPS sig-
nals, it is automatically corrected.

4Runner_Navi_U (L/O 0308)
43
2004 4RUNNER Navigation from Aug. ’03 Prod. (OM35813U)
If your home is already registered, the
“Delete home” switch will appear.

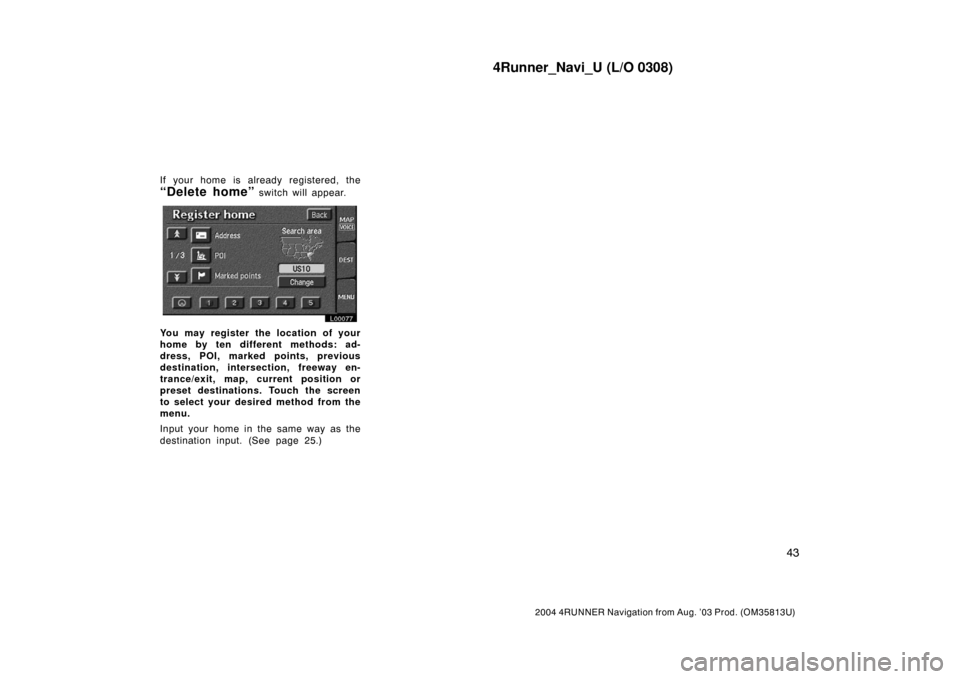

L00077
You may register the location of your
home by ten different methods: ad-
dress, POI, marked points, previous
destination, intersection, freeway en-
trance/exit, map, current position or
preset destinations. Touch the screen
to select your desired method from the
menu.
Input your home in the same way as the
destination input. (See page 25.)

4Runner_Navi_U (L/O 0308)
44
2004 4RUNNER Navigation from Aug. ’03 Prod. (OM35813U)
DELETING YOUR HOME

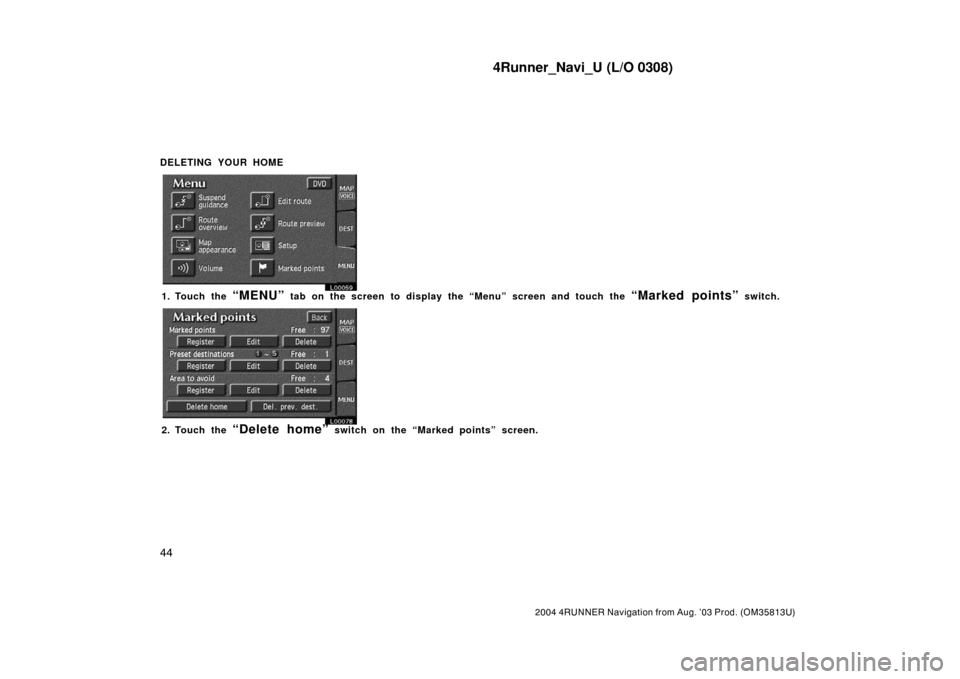

L00059
1. Touch the “MENU” tab on the screen to display the “Menu” screen and touch the “Marked points” switch.
L00078
2. Touch the “Delete home” switch on the “Marked points” screen.

4Runner_Navi_U (L/O 0308)
45
2004 4RUNNER Navigation from Aug. ’03 Prod. (OM35813U)

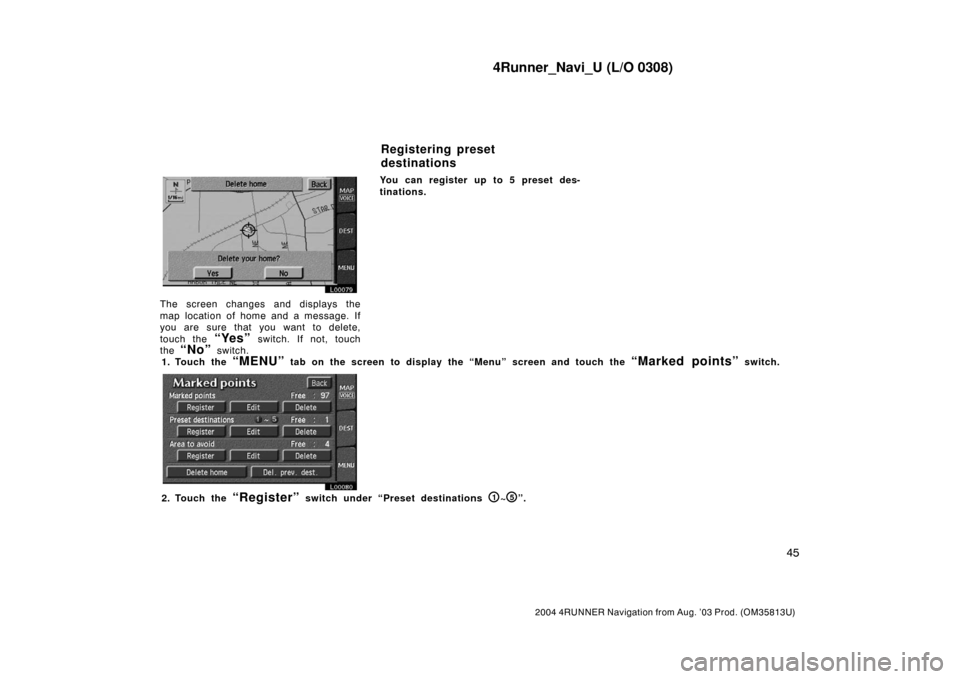

L00079
The screen changes and displays the
map location of home and a message. If
you are sure that you want to delete,
touch the
“Yes” switch. If not, touch
the
“No” switch.You can register up to 5 preset des-
tinations.
1. Touch the
“MENU” tab on the screen to display the “Menu” screen and touch the “Marked points” switch.
L00080
2. Touch the “Register” switch under “Preset destinations 1~5”.
Registering preset
destinations

4Runner_Navi_U (L/O 0308)
48
2004 4RUNNER Navigation from Aug. ’03 Prod. (OM35813U)

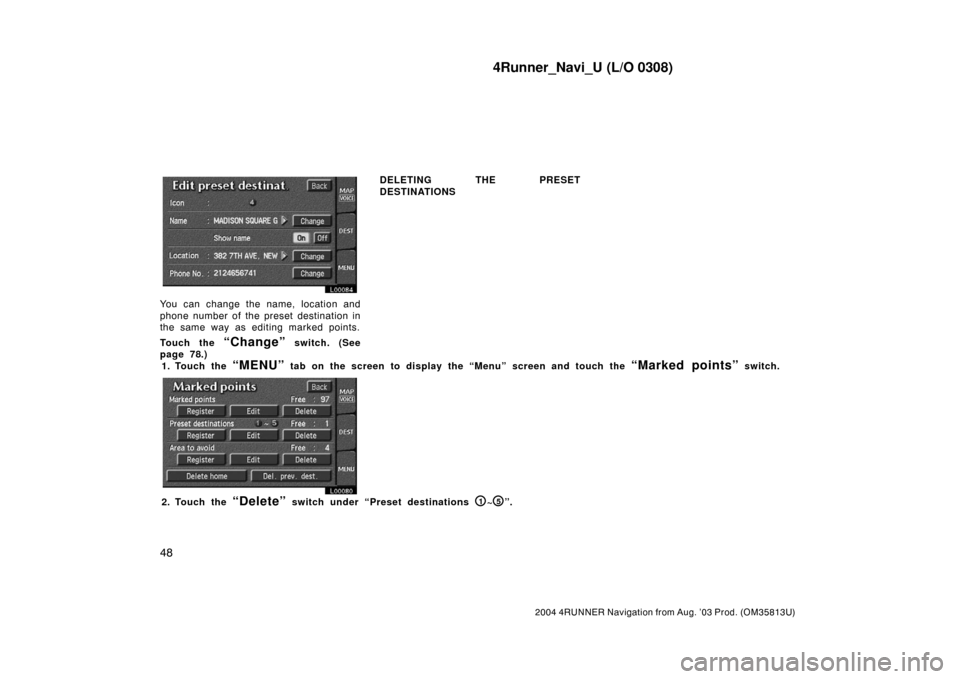

L00084
You can change the name, location and
phone number of the preset destination in
the same way as editing marked points.
Touch the
“Change” switch. (See
page 78.)DELETING THE PRESET
DESTINATIONS
1. Touch the
“MENU” tab on the screen to display the “Menu” screen and touch the “Marked points” switch.
L00080
2. Touch the “Delete” switch under “Preset destinations 1~5”.

4Runner_Navi_U (L/O 0308)
83
2004 4RUNNER Navigation from Aug. ’03 Prod. (OM35813U)
1. Touch the “MENU” tab on the screen to display the “Menu” screen and touch the “Marked points” switch.

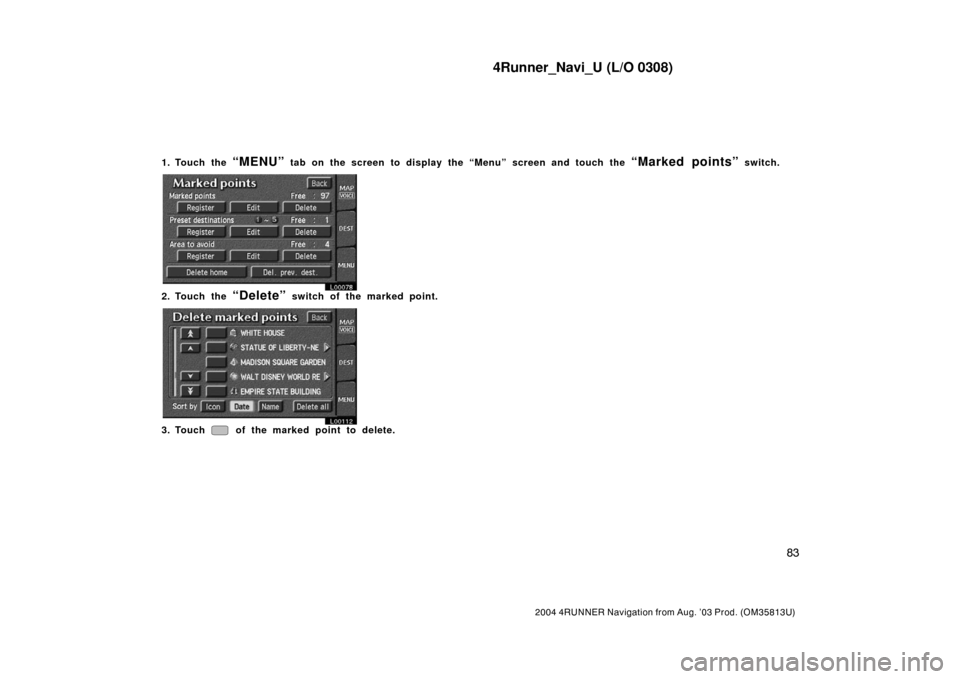

L00078
2. Touch the “Delete” switch of the marked point.
L00112
3. Touch of the marked point to delete.

4Runner_Navi_U (L/O 0308)
84
2004 4RUNNER Navigation from Aug. ’03 Prod. (OM35813U)
A screen for confirmation will appear
with the map of the marked point. If
you want to delete it, touch
“Yes”.
Touching
“No” or “Back” will re-
turn to the previous screen.
If you want to delete all of the marked
points, touch the
“Delete all”
switch. A screen for confirmation will
appear. Touching
“Yes” will delete all
of the marked points. Touching
“No”
or “Back” will return to the previous
screen.
To delete only specified marked points,
use the
“Icon”, “Date” or “Name”
switch to display the screen, so that you
can easily find the marked points.

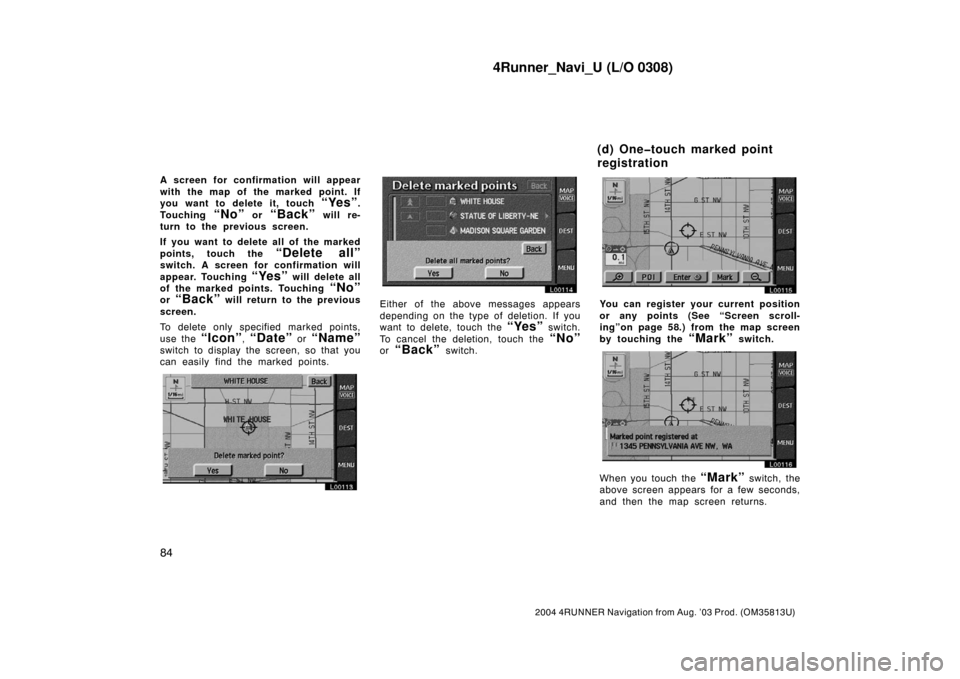

L00113
L00114
Either of the above messages appears
depending on the type of deletion. If you
want to delete, touch the
“Yes” switch.
To cancel the deletion, touch the
“No”
or “Back” switch.
L00115
You can register your current position
or any points (See “Screen scroll-
ing”on page 58.) from the map screen
by touching the
“Mark” switch.
L00116
When you touch the “Mark” switch, the
above screen appears for a few seconds,
and then the map screen returns.
(d) Onetouch marked point
registration
