2004 4RUNNER Navigation from Aug. ’03 Prod. (OM35813U)

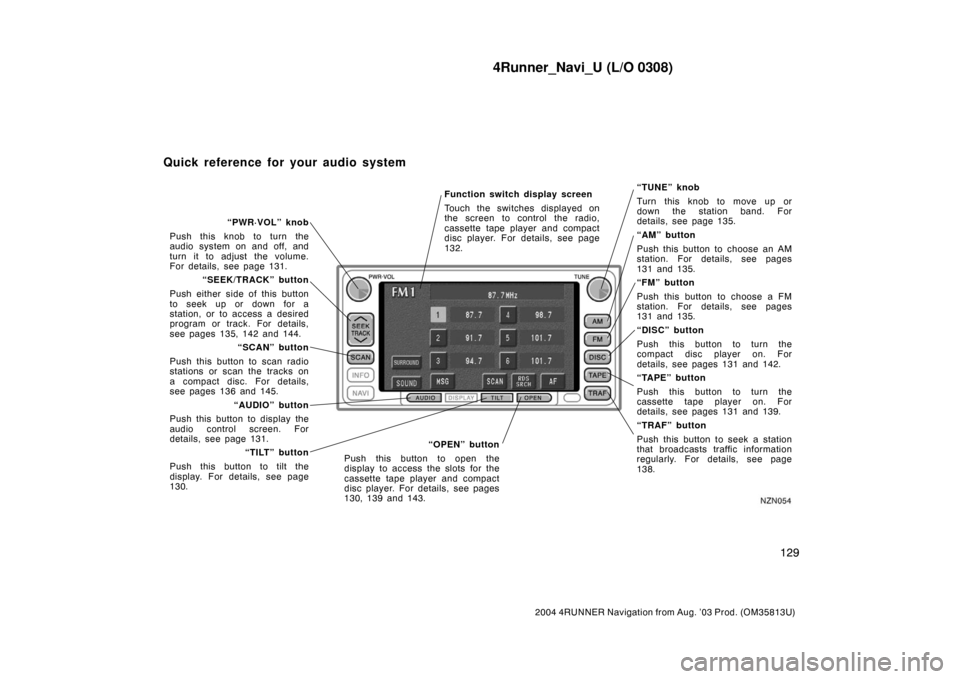

Function switch display screen
Touch the switches displayed on
the screen to control the radio,
cassette tape player and compact
disc player. For details, see page
132.“TUNE” knob
Turn this knob to move up or
down the station band. For
details, see page 135.
“AM” button
Push this button to choose an AM
station. For details, see pages
131 and 135.
“FM” button
Push this button to choose a FM
station. For details, see pages
131 and 135.
“DISC” button
Push this button to turn the
compact disc player on. For
details, see pages 131 and 142.
“TAPE” button
Push this button to turn the
cassette tape player on. For
details, see pages 131 and 139.
“TRAF” button
Push this button to seek a station
that broadcasts traffic information
regularly. For details, see page
138. “OPEN” button
Push this button to open the
display to access the slots for the
cassette tape player and compact
disc player. For details, see pages
130, 139 and 143.
“PWR·VOL” knob
Push this knob to turn the
audio system on and off, and
turn it to adjust the volume.
For details, see page 131.
“SEEK/TRACK” button
Push either side of this button
to seek up or down for a
station, or to access a desired
program or track. For details,
see pages 135, 142 and 144.
“SCAN” button
Push this button to scan radio
stations or scan the tracks on
a compact disc. For details,
see pages 136 and 145.
“AUDIO” button
Push this button to display the
audio control screen. For
details, see page 131.
“TILT” button
Push this button to tilt the
display. For details, see page
130.
Quick reference for your audio system

4Runner_Navi_U (L/O 0308)
132
2004 4RUNNER Navigation from Aug. ’03 Prod. (OM35813U)
The switches for radio, cassette tape
player, compact disc player operation
is displayed on the function switch
display screen when the audio control
mode is selected. Touch the switches
lightly and directly on the screen.
The selected switch is highlighted in
green.
INFORMATION
If the system does not respond to
a touch of a switch, move your fin-
ger away from the screen and then
touch it again.
You cannot operate dimmed
switches.
Wipe off fingerprints on the surface
of the display using a glass clean-
ing cloth.

4Runner_Navi_U (L/O 0308)
134
2004 4RUNNER Navigation from Aug. ’03 Prod. (OM35813U)
(d) Your radio antenna
Your vehicle has an antenna printed on
the inside of the rear quarter windows.
NOTICE
Attaching the film (especially con-
ductive or metallic type) on the rear
quarter windows will noticeably re-
duce the sensitivity of the radio.
(e) Your cassette player
When you insert a cassette, insert it with
the exposed tape side to the right.
NOTICE
Do not oil any part of the cassette
player, and do not insert anything
except a cassette tape into the slot.
(f) Your compact disc player
When you insert a compact disc, insert
it with the label side up. The compact
disc player will play from track 1 through
the end of the disc. Then it will play from
track 1 again.
NOTICE
Never try to disassemble or oil any
part of the compact disc player. Do
not insert anything other than com-
pact discs into the slot.
The player is intended for use with 12
cm (4.7 in.) discs only.

4Runner_Navi_U (L/O 0308)
135
2004 4RUNNER Navigation from Aug. ’03 Prod. (OM35813U)
L00171

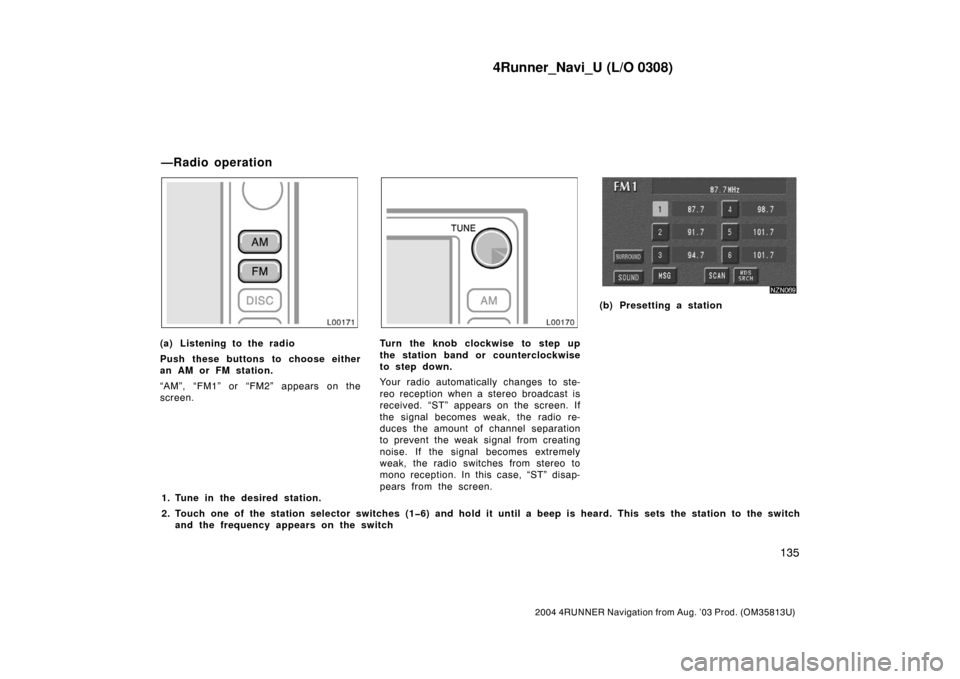

(a) Listening to the radio
Push these buttons to choose either
an AM or FM station.
“AM”, “FM1” or “FM2” appears on the
screen.
L00170
Turn the knob clockwise to step up
the station band or counterclockwise
to step down.
Your radio automatically changes to ste-
reo reception when a stereo broadcast is
received. “ST” appears on the screen. If
the signal becomes weak, the radio re-
duces the amount of channel separation
to prevent the weak signal from creating
noise. If the signal becomes extremely
weak, the radio switches from stereo to
mono reception. In this case, “ST” disap-
pears from the screen.
(b) Presetting a station
1. Tune in the desired station.
2. Touch one of the station selector switches (16) and hold it until a beep is heard. This sets the station to the switch
and the frequency appears on the switch
—Radio operation

4Runner_Navi_U (L/O 0308)
136
2004 4RUNNER Navigation from Aug. ’03 Prod. (OM35813U)
Each radio mode (AM, FM1 or FM2) can
store up to 6 stations. To change the
preset station to a different one, follow
the same procedure.
The preset station memory is cancelled
when the power source is interrupted by
battery disconnection or a blown fuse.(c) Selecting a station
Tune in the desired station using one of
the following methods.
Preset tuning: Touch the switch (1−6) for
the station you want. The switch is high-
lighted in green and the station frequency
appears on the screen.
Seek tuning: Push the “SEEK/TRACK”
button on either side. The radio will begin
seeking up or down for a station of the
nearest frequency and will stop on recep-
tion. Each time you push the button, the
stations will be searched automatically
one after another.
To scan all the frequencies: Touch the
“SCAN” switch on the screen or push the
“SCAN” button briefly. “SCAN” appears on
the screen. The radio will find the next
station and stay there for a few seconds,
and then scan again. To select a station,
touch the “SCAN” switch or push the
“SCAN” button again.To scan the preset stations: Touch the
“SCAN” switch on the screen or push the
“SCAN” button for longer than 2 seconds.
“P. SCAN” appears on the screen. The
radio will tune in the next preset station,
stay there for a few seconds, and then
move to the next preset station. To select
a station, touch the “SCAN” switch or
push the “SCAN” button again.

4Runner_Navi_U (L/O 0308)
137
2004 4RUNNER Navigation from Aug. ’03 Prod. (OM35813U)
(d) Radio Data System
Your audio system is equipped with Radio
Data Systems (RDS). RDS mode pro-
vides you to receive text messages from
radio stations that utilize RDS transmit-
ters.
When RDS is on, the radio can
—only select stations of a particular pro-
gram type,
—display messages from radio stations,
—search for a stronger signal station,
—search for local stations broadcasting
the same network as the vehicle travels,
—receive announcements concerning lo-
cal and national emergencies (even if
RDS function is turned off).
RDS features are available for the use
only on FM stations which broadcast RDS

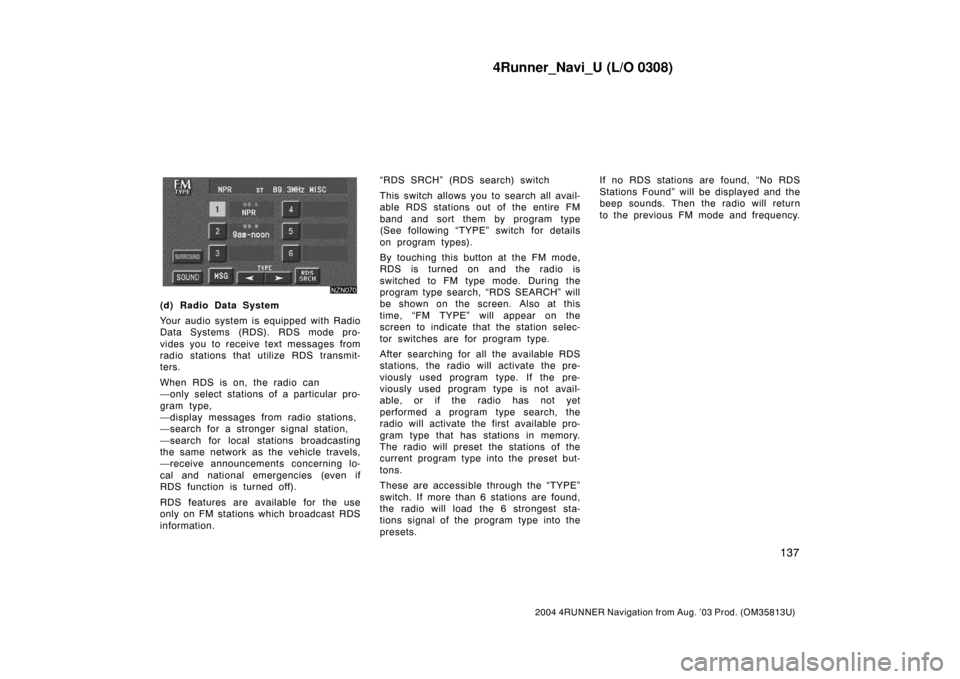

information.“RDS SRCH” (RDS search) switch
This switch allows you to search all avail-
able RDS stations out of the entire FM
band and sort them by program type
(See following “TYPE” switch for details
on program types).
By touching this button at the FM mode,
RDS is turned on and the radio is
switched to FM type mode. During the
program type search, “RDS SEARCH” will
be shown on the screen. Also at this
time, “FM TYPE” will appear on the
screen to indicate that the station selec-
tor switches are for program type.
After searching for all the available RDS
stations, the radio will activate the pre-
viously used program type. If the pre-
viously used program type is not avail-
able, or if the radio has not yet
performed a program type search, the
radio will activate the first available pro-
gram type that has stations in memory.
The radio will preset the stations of the
current program type into the preset but-
tons.
These are accessible through the “TYPE”
switch. If more than 6 stations are found,
the radio will load the 6 strongest sta-
tions signal of the program type into the
presets.If no RDS stations are found, “No RDS
Stations Found” will be displayed and the
beep sounds. Then the radio will return
to the previous FM mode and frequency.

4Runner_Navi_U (L/O 0308)
138
2004 4RUNNER Navigation from Aug. ’03 Prod. (OM35813U)
NZN071

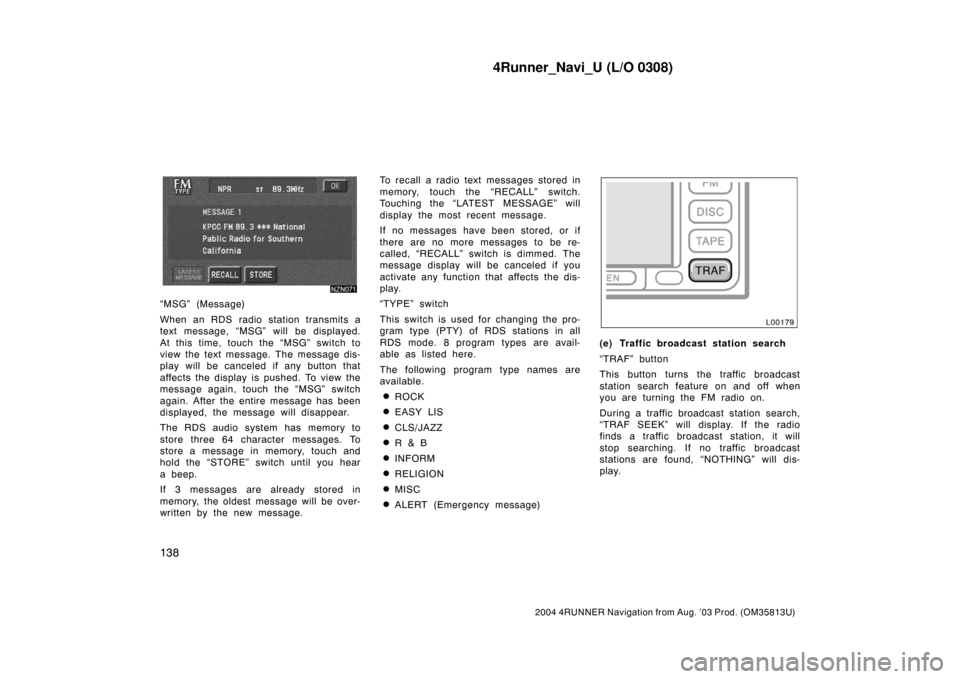

“MSG” (Message)
When an RDS radio station transmits a
text message, “MSG” will be displayed.
At this time, touch the “MSG” switch to
view the text message. The message dis-
play will be canceled if any button that
affects the display is pushed. To view the
message again, touch the “MSG” switch
again. After the entire message has been
displayed, the message will disappear.
The RDS audio system has memory to
store three 64 character messages. To
store a message in memory, touch and
hold the “STORE” switch until you hear
a beep.
If 3 messages are already stored in
memory, the oldest message will be over-
written by the new message.To recall a radio text messages stored in
memory, touch the “RECALL” switch.
Touching the “LATEST MESSAGE” will
display the most recent message.
If no messages have been stored, or if
there are no more messages to be re-
called, “RECALL” switch is dimmed. The
message display will be canceled if you
activate any function that affects the dis-
play.
“TYPE” switch
This switch is used for changing the pro-
gram type (PTY) of RDS stations in all
RDS mode. 8 program types are avail-
able as listed here.
The following program type names are
available.
ROCK
EASY LIS
CLS/JAZZ
R & B
INFORM
RELIGION
MISC
ALERT (Emergency message)
L00179
(e) Traffic broadcast station search
“TRAF” button
This button turns the traffic broadcast
station search feature on and off when
you are turning the FM radio on.
During a traffic broadcast station search,
“TRAF SEEK” will display. If the radio
finds a traffic broadcast station, it will
stop searching. If no traffic broadcast
stations are found, “NOTHING” will dis-
play.

4Runner_Navi_U (L/O 0308)
148
2004 4RUNNER Navigation from Aug. ’03 Prod. (OM35813U)
1. Volume control button
Push “+” to increase the volume. The
volume continues to increase while the
button is being pressed.Push “−” to decrease the volume. The
volume continues to decrease while the
button is being pressed.
2. “” button (Seek, search, track)
Radio
This switch has the following features—
To select a preset station:
Quickly push and release the “” or “”
side of the switch. Do this again to select
the next preset station.
To seek a station:
Push and hold the “” or “” side of the
switch until you hear a beep. Do this
again to find the next station. If you push
the switch on either side during the seek
mode, seeking will be cancelled.
Cassette tape player
This switch has the following features—
To skip to a different track in either direc-
tion:
Quickly push and release the “” or “”
side of the switch. “FF 1” or “REW 1” will
appear on the display.Next, push either side of the track switch
until the track you want to listen to is
set. If you push the switch ten times, the
skip function will turn off. (You can skip
up to nine tracks at a time.)
When counting the number of the tracks
you want to rewind, remember to count
the current track as well. For example, if
you want to rewind to a song that is two
before the song you are listening to,
push the “” side of the button three
times.
If you push the track button further than
you wanted to, push the other side of the
button. The track number will be in-
creased or reduced.
The track number you select is not valid
if it is higher than the number of the
tracks remaining on the current side of
the cassette.
When the tape reaches to the begin-
ning, the player will automatically start
playing that side.
After the tape reaches to the end, the
player will automatically reverse and
start playing the other side.

4Runner_Navi_U (L/O 0308)
150
2004 4RUNNER Navigation from Aug. ’03 Prod. (OM35813U)
3. “MODE” button
Push the “MODE” button to select an
audio mode. Each time you push this
button, the system changes between the
radio, cassette tape player and compact
disc player.
To turn the audio system on, push the
“MODE” button.
To turn the audio system off, push and
hold the “MODE” button until the system
turns off.
NOTICE
To ensure the correct audio system
operation:
Be careful not to spill beverages
over the system.
Do not put anything other than a
cassette tape or compact disc into
the slot.
The use of cellular phone inside or
near the vehicle may cause a noise
from the speakers of the system
which you are listening to. Howev-
er, this does not indicate a mal-
function.
RADIO RECEPTION
Usually, a problem with radio reception
does not mean there is a problem with
your radio—it is just the normal result of
conditions outside the vehicle.For example, nearby buildings and terrain
can interfere with FM reception. Power
lines or telephone wires can interfere with
AM signals. And of course, radio signals
have a limited range. The farther you are
from a station, the weaker its signal will
be. In addition, reception conditions
change constantly as your vehicle moves.
Here are some common reception prob-
lems that probably do not indicate a
problem with your radio:
FM
Fading and drifting stations—Generally,
the effective range of FM is about 40 km
(25 miles). Once outside this range, you
may notice fading and drifting, which in-
crease with the distance from the radio
transmitter. They are often accompanied
by distortion.
Multi−path—FM signals are reflective,
making it possible for two signals to
reach your antenna at the same time. If
this happens, the signals will cancel each
other out, causing a momentary flutter or
loss of reception.
Car audio system operating
hints

4Runner_Navi_U (L/O 0308)
151
2004 4RUNNER Navigation from Aug. ’03 Prod. (OM35813U)
Static and fluttering—These occur when
signals are blocked by buildings, trees, or
other large objects. Increasing the bass
level may reduce static and fluttering.
Station swapping—If the FM signal you
are listening to is interrupted or weak-
ened, and there is another strong station
nearby on the FM band, your radio may
tune in the second station until the origi-
nal signal can be picked up again.
AM
Fading—AM broadcasts are reflected by
the upper atmosphere—especially at
night. These reflected signals can inter-
fere with those received directly from the
radio station, causing the radio station to
sound alternately strong and weak.
Station interference—When a reflected
signal and a signal received directly from
a radio station are very nearly the same
frequency, they can interfere with each
other, making it difficult to hear the
broadcast.
Static—AM is easily affected by external
sources of electrical noise, such as high
tension power lines, lightening, or electri-
cal motors. This results in static.CARING FOR YOUR CASSETTE
PLAYER AND TAPES
For the best performance for your cas-
sette player and tapes:
Clean the tape head and other parts reg-
ularly.
A dirty tape head or tape path can
decrease sound quality and tangle
your cassette tapes. The easiest way
to clean them is by using a cleaning
tape. (A wet type is recommended.)
Use high−quality cassettes.
Low−quality cassette tapes can cause
many problems, including poor sound,
inconsistent playing speed, and
constant auto−reversing. They can
also get stuck or tangled in the cas-
sette player.
Do not use a cassette if it has been
damaged or tangled or if its label is
peeling off.
Do not leave a cassette in the player
if you are not listening to it, especially
if it is hot outside.
Store cassettes in their cases and out
of direct sunlight.
Avoid using cassettes with a total
playing time longer than 100 minutes
(50 minutes per side). The tape used
in these cassettes is thin and could
get stuck or tangled in the cassette
player.
CARING FOR YOUR COMPACT DISC
PLAYER AND DISCS
Your compact disc player is intended
for use with 12 cm (4.7 in.) discs only.
Extremely high temperatures can keep
your compact disc player from work-
ing. On hot days, use the air condi-
tioning to cool the vehicle interior be-
fore you use the players.
Bumpy roads or other vibrations may
make your compact disc player skip.
If moisture gets into your compact
disc player, the players may not play
even though they appear to be wor-
king. Remove the disc from the player
and wait until it dries.
