TOYOTA 4RUNNER 2004 N210 / 4.G Owners Manual

’04 4Runner_U (L/O 0308)
183
2004 4RUNNER from Aug. ’03 Prod. (OM35811U)
The height control “OFF” indicator light
does not come on when the ignition
switch is turned on.
The height control “OFF” indicator light
blinks.
(f) Parking and stopping tips
If you immediately stop the engine to park
the vehicle after off −road driving, the ve-
hicle height is lowered slightly as the ve-
hicle becomes cool. When parking, make
sure there is nothing that will be in con-
tact with the underbody of the vehicle.
When you start the engine, the vehicle
returns to the previous height.
If you park the vehicle for a long time,
the vehicle height may be gradually low-
ered. When parking for a long time, make
sure there is nothing that will be in con-
tact with the underbody of the vehicle.
When you start the engine, the vehicle
returns to the previous height.
If you stop the engine, the vehicle height
may change in accordance with the
change in the temperature. When you
start the engine, the vehicle returns to the
previous height. (g) Rear height control failure warning
If there is a problem somewhere in the
rear height control air suspension, the “N”
mode is automatically selected. If this oc-
curs, the height control “OFF” indicator
light blinks and the vehicle height control
cannot be activated until the malfunction
is corrected. If this is the case, bring your
vehicle to your Toyota dealer as soon as
possible and have it checked.
The tire pressure warning system is de-
signed to provide warning when tire
inflation pressure of one or more of
your tires (including the spare tire) is
low. The low tire pressure warning light
comes on to inform you that low tire
inflation pressure may hamper driving.
Tire pressure warning
system—

’04 4Runner_U (L/O 0308)
184
2004 4RUNNER from Aug. ’03 Prod. (OM35811U)
LOW TIRE PRESSURE WARNING LIGHT
This light comes on when the ignition key
is turned to the “ON” position. It goes off
after a few seconds. This indicates that
the tire pressure warning system is func-
tioning properly. If the low tire pressure warning light
comes on or blinks, do the following.
If the warning light comes on:
Stop your vehicle in a safe place as
soon as possible and check that the
inflation pressure of all tires (including
the spare tire) is as specified on the
tire and loading information label. (See
“Checking tire inflation pressure” on
page 368 in Section 72.) If the warning
light comes on even after tire inflation
pressure adjustment, you may have a
flat tire. If you have a flat tire, replace
it with the spare tire. For details, see
“If you have a flat tire” on page 321 in
Section 4.
The warning light goes off a few minutes
after air is put into the deflated tire.
This warning light may turn on due to
natural causes such as natural air leaks
or tire pressure changes caused by tem-
perature. In this case, adjusting the tire
pressure will turn off the warning light.
CAUTION
When the tire pressure warning light
comes on, observe the following in-
structions:
Depending on the conditions, re-
duce to an appropriate speed as
soon as possible.
Adjust the tire pressure to the spe-
cified level as soon as possible.
Avoid abrupt steering wheel maneu-
vering and braking. Tire deteriora-
tion may reduce steering wheel con-
trol and brake effectiveness. This
may lead to serious injury or death.
The tire pressure warning system
may not activate immediately if sud-
den bursts of air leakage occur.

’04 4Runner_U (L/O 0308)
185
2004 4RUNNER from Aug. ’03 Prod. (OM35811U)
NOTICE
Do not use liquid sealants for a flat
tire as air pressure sensors will be
damaged.
 When the tires must be repaired or
replaced, have them repaired or re-
placed by the nearest Toyota dealer
or authorized tire dealer. The tire
pressure sensors will be affected by
the installation or removal of tires.
 The tire pressure warning system is
not to be used as a substitute for
regular inspections. Be sure to
check the air pressure in the tires
on a regular basis.
 When the tires must be replaced,
replace the grommets for air pres-
sure sensors as well.
If the warning light blinks:
The tire pressure warning system may
be malfunctioning. Contact your Toyota
dealer.
SYSTEM MALFUNCTION
The tire pressure warning system does
not function properly under certain cir-
cumstances. In the following cases, the
low tire pressure warning light may not
come on even if the tire inflation pres-
sure is low, or it may come on when
the tire inflation pressure is actually
normal.
Electric devices or facilities using simi-
lar radio wave frequencies are nearby.
A radio set to similar frequencies is in
use.
A lot of snow or ice covers the ve-
hicle, in particular, around the wheels
or wheel housings.
The tires are not equipped with an air
pressure sensor.
Snow tires or tire chains are used.
Non −genuine Toyota wheels are used.
CAUTION
The use of nongenuine wheels will
cause the air pressure sensors to
transmit the electronic code in dif-
ferent manner, resulting in the sys-
tem failure.
The use of different type of tires
with genuine wheels may also
cause the malfunction of the sys-
tem.

’04 4Runner_U (L/O 0308)
186
2004 4RUNNER from Aug. ’03 Prod. (OM35811U)

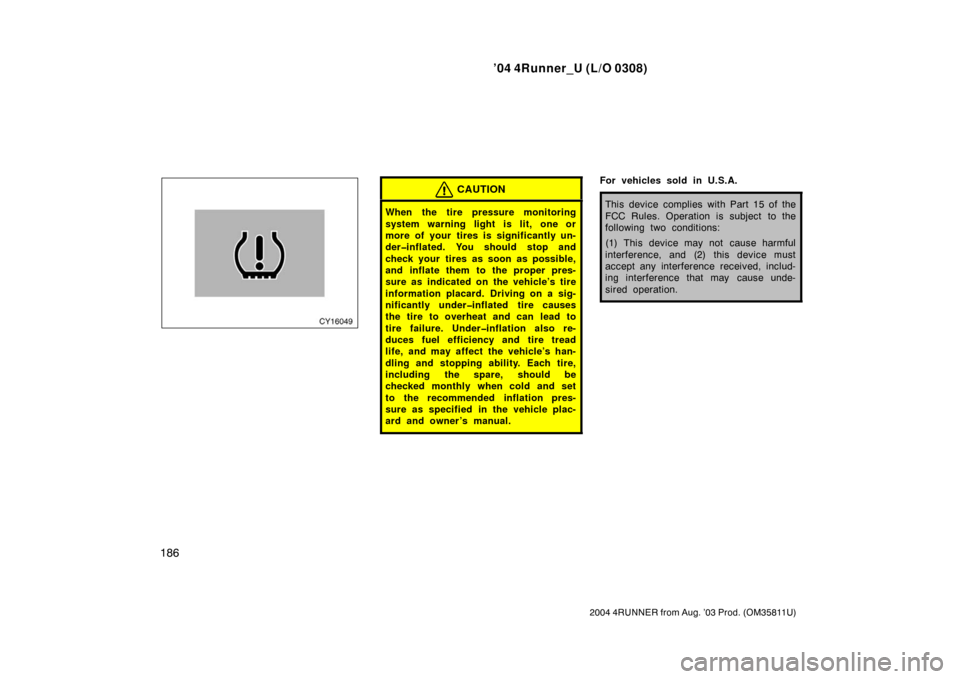

CAUTION
When the tire pressure monitoring
system warning light is lit, one or
more of your tires is significantly un-
derinflated. You should stop and
check your tires as soon as possible,
and inflate them to the proper pres-
sure as indicated on the vehicle’s tire
information placard. Driving on a sig-
nificantly underinflated tire causes
the tire to overheat and can lead to
tire failure. Underinflation also re-
duces fuel efficiency and tire tread
life, and may affect the vehicle’s han-
dling and stopping ability. Each tire,
including the spare, should be
checked monthly when cold and set
to the recommended inflation pres-
sure as specified in the vehicle plac-
ard and owner ’s manual.
For vehicles sold in U.S.A.
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.

’04 4Runner_U (L/O 0308)
187
2004 4RUNNER from Aug. ’03 Prod. (OM35811U)
NOTICE:
This equipment has been tested and
found to comply with the limits for a
Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are
designed to provide reasonable protec-
tion against harmful interference in a
residential installation. This equipment
generates, uses and can radiate radio
frequency energy and, if not installed
and used in accordance with the instruc-
tions, may cause harmful interference to
radio communications. However, there is
no guarantee that interference will not
occur in a particular installation. If this
equipment does cause harmful interfer-
ence to radio or television reception,
which can be determined by turning the
equipment off and on, the user is en-
couraged to try to correct the interfer-
ence by one or more of the following
measures:Reorient or relocate the receiving an-
tenna.
Increase the separation between the
equipment and receiver.
Connect the equipment into an outlet
on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced
radio/TV technician for help.
FCC WARNING:
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user’s authority to operate the equip-
ment.
For vehicles sold in Canada
Operation is subject to the following two
conditions:
(1) this device may not cause interfer-
ence, and (2) this device must accept
any interference, including interference
that may cause undesired operation of
the device.
When replacing the wheels, be sure to
install air pressure sensors on the
wheels.
There are 3 ways to set up the air pres-
sure sensors: a. Remove the sensor from the old wheel and install it to the new wheel.
b. Keep the same wheel with air pressure sensor and replace only the tire.
c. Use a new wheel and sensor. In this case, you have to register an ID code
for a new sensor.
CAUTION
Have the tires, wheels or sensors re-
placed and ID codes registered by a
Toyota dealer. If you need sensors,
purchase from a Toyota dealer.
—Replacing tires and wheels

’04 4Runner_U (L/O 0308)
188
2004 4RUNNER from Aug. ’03 Prod. (OM35811U)

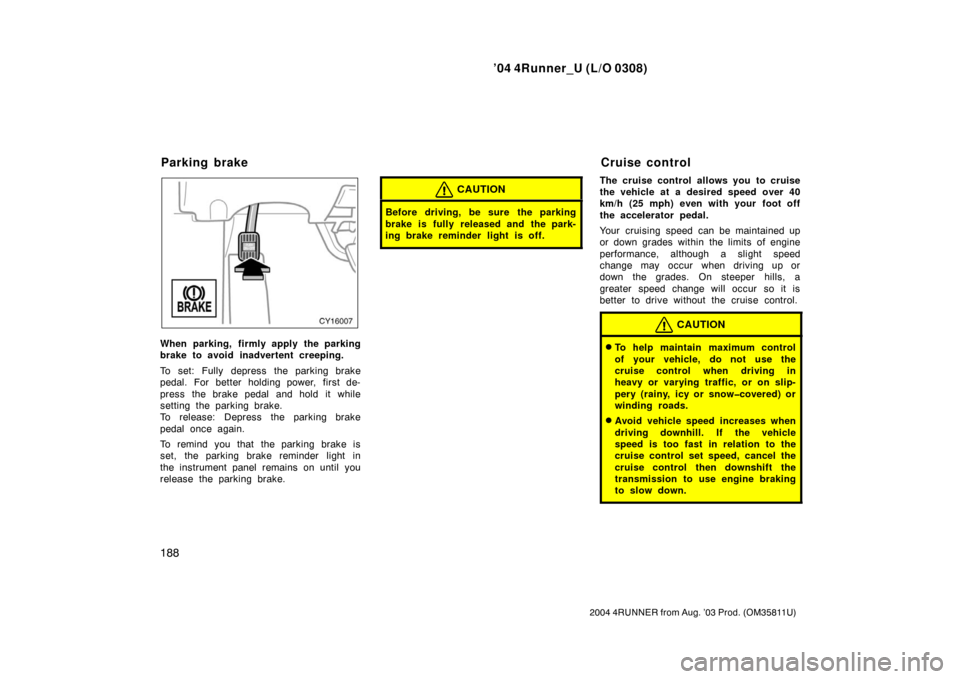

When parking, firmly apply the parking
brake to avoid inadvertent creeping.
To set: Fully depress the parking brake
pedal. For better holding power, first de-
press the brake pedal and hold it while
setting the parking brake.
To release: Depress the parking brake
pedal once again.
To remind you that the parking brake is
set, the parking brake reminder light in
the instrument panel remains on until you
release the parking brake.
CAUTION
Before driving, be sure the parking
brake is fully released and the park-
ing brake reminder light is off.
The cruise control allows you to cruise
the vehicle at a desired speed over 40
km/h (25 mph) even with your foot off
the accelerator pedal.
Your cruising speed can be maintained up
or down grades within the limits of engine
performance, although a slight speed
change may occur when driving up or
down the grades. On steeper hills, a
greater speed change will occur so it is
better to drive without the cruise control.
CAUTION
To help maintain maximum control
of your vehicle, do not use the
cruise control when driving in
heavy or varying traffic, or on slip-
pery (rainy, icy or snowcovered) or
winding roads.
Avoid vehicle speed increases when
driving downhill. If the vehicle
speed is too fast in relation to the
cruise control set speed, cancel the
cruise control then downshift the
transmission to use engine braking
to slow down.
Parking brake Cruise control

’04 4Runner_U (L/O 0308)
189
2004 4RUNNER from Aug. ’03 Prod. (OM35811U)

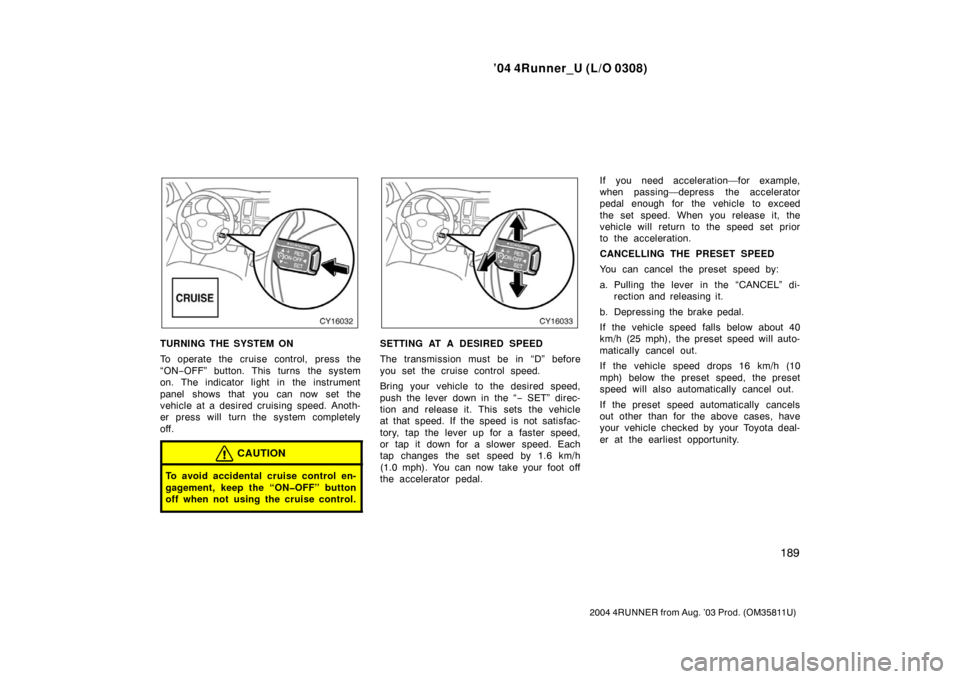

TURNING THE SYSTEM ON
To operate the cruise control, press the
“ON−OFF” button. This turns the system
on. The indicator light in the instrument
panel shows that you can now set the
vehicle at a desired cruising speed. Anoth-
er press will turn the system completely
off.
CAUTION
To avoid accidental cruise control en-
gagement, keep the “ONOFF” button
off when not using the cruise control.
SETTING AT A DESIRED SPEED
The transmission must be in “D” before
you set the cruise control speed.
Bring your vehicle to the desired speed,
push the lever down in the “ − SET” direc-
tion and release it. This sets the vehicle
at that speed. If the speed is not satisfac-
tory, tap the lever up for a faster speed,
or tap it down for a slower speed. Each
tap changes the set speed by 1.6 km/h
(1.0 mph). You can now take your foot off
the accelerator pedal. If you need acceleration—for example,
when passing—depress the accelerator
pedal enough for the vehicle to exceed
the set speed. When you release it, the
vehicle will return to the speed set prior
to the acceleration.
CANCELLING THE PRESET SPEED
You can cancel the preset speed by:
a. Pulling the lever in the “CANCEL” di-
rection and releasing it.
b. Depressing the brake pedal.
If the vehicle speed falls below about 40
km/h (25 mph), the preset speed will auto-
matically cancel out.
If the vehicle speed drops 16 km/h (10
mph) below the preset speed, the preset
speed will also automatically cancel out.
If the preset speed automatically cancels
out other than for the above cases, have
your vehicle checked by your Toyota deal-
er at the earliest opportunity.

’04 4Runner_U (L/O 0308)
190
2004 4RUNNER from Aug. ’03 Prod. (OM35811U)
RESETTING TO A FASTER SPEED
Push the lever up in the “+ RES” direction
and hold it. Release the lever when the
desired speed is attained. While the lever
is held up, the vehicle will gradually gain
speed.
However, a faster way to reset is to ac-
celerate the vehicle and then push the
lever down in the “− SET” direction.
RESETTING TO A SLOWER SPEED
Push the lever down in the “ − SET” direc-
tion and hold it. Release the lever when
the desired speed is attained. While the
lever is held down, the vehicle speed will
gradually decrease.
However, a faster way to reset is to de-
press the brake pedal and then push the
lever down in the “− SET” direction.
Even if you downshift from “D” to “4”
(5 −speed automatic transmission) or “3”
(4 −speed automatic transmission), with the
cruise control on, engine braking will not
be enabled because the cruise control is
not cancelled. To decrease the vehicle
speed, reset to a slower speed with the
cruise control lever or depress the brake
pedal. If you use the brake pedal, cruise
control is cancelled. RESUMING THE PRESET SPEED
If the preset speed is cancelled by pulling
the control lever or by depressing the
brake pedal, pushing the lever up in the
“+ RES” direction will restore the speed
set prior to cancellation.
However, once the vehicle speed falls be-
low about 40 km/h (25 mph), the preset
speed will not be resumed.
CRUISE CONTROL FAILURE WARNING
If the “CRUISE” indicator light in the
instrument cluster flashes when using the
cruise control, press the “ON
−OFF” button
to turn the system off and then press it
again to turn it on.
If any of the following conditions then oc-
curs, there is some trouble in the cruise
control system.
The indicator light does not come on.
The indicator light flashes again.
The indicator light goes out after it
comes on.
If this is the case, contact your Toyota
dealer and have your vehicle inspected.

’04 4Runner_U (L/O 0308)
191
2004 4RUNNER from Aug. ’03 Prod. (OM35811U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Car audio system
Reference 192
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . .
Using your audio system 192
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Audio remote controls 209
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Rear seat audio system 211
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
.
Car audio system operating hints 219
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
For vehicle equipped with Navigation system, please refer to the
separate “Navigation System Owner’s Manual”.
SECTION 1 8

’04 4Runner_U (L/O 0308)
192
2004 4RUNNER from Aug. ’03 Prod. (OM35811U)

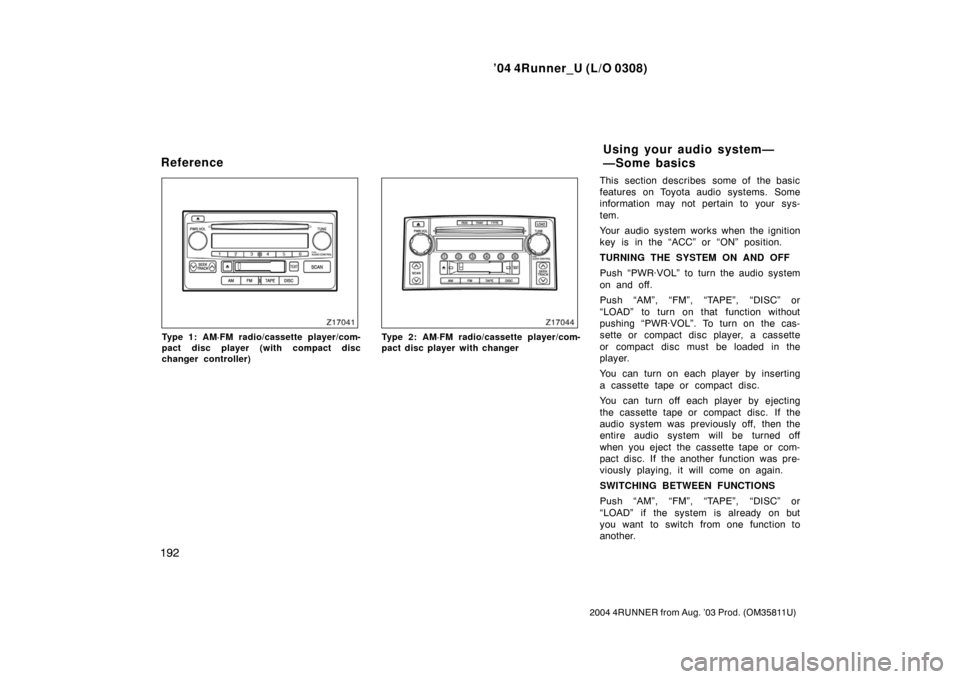

Type 1: AM·FM radio/cassette player/com-
pact disc player (with compact disc
changer controller)Type 2: AM·FM radio/cassette player/com-
pact disc player with changer
This section describes some of the basic
features on Toyota audio systems. Some
information may not pertain to your sys-
tem.
Your audio system works when the ignition
key is in the “ACC” or “ON” position.
TURNING THE SYSTEM ON AND OFF
Push “PWR·VOL” to turn the audio system
on and off.
Push “AM”, “FM”, “TAPE”, “DISC” or
“LOAD” to turn on that function without
pushing “PWR·VOL”. To turn on the cas-
sette or compact disc player, a cassette
or compact disc must be loaded in the
player.
You can turn on each player by inserting
a cassette tape or compact disc.
You can turn off each player by ejecting
the cassette tape or compact disc. If the
audio system was previously off, then the
entire audio system will be turned off
when you eject the cassette tape or com-
pact disc. If the another function was pre-
viously playing, it will come on again.
SWITCHING BETWEEN FUNCTIONS
Push “AM”, “FM”, “TAPE”, “DISC” or
“LOAD” if the system is already on but
you want to switch from one function to
another.
Reference Using your audio system—
—Some basics
