Page 41 of 412
’04 4Runner_U (L/O 0308)
33
2004 4RUNNER from Aug. ’03 Prod. (OM35811U)
2. In front of the vehicle, pull up the
auxiliary catch l ever and lift the
hood.
Before closing the hood, check to see that
you have not forgotten any tools, rags,
etc. Then lower the hood and make sure
it locks into place. If necessary, press
down gently on the front edge to lock it.To deter vehicle theft, the system is
designed to sound an alarm if any of
the side doors, back door or hood is
forcibly unlocked or opened or the bat-
tery terminal is disconnected and then
reconnected when the vehicle is locked.
The alarm blows the horn intermittently
and flashes the headlights, tail lights and
turn signal lights, and turns on the interior
and luggage compartment lights.SETTING THE SYSTEM 1. Turn the ignition key to the “LOCK” position and remove it.
The indicator light will start flashing when
the key is removed from the ignition
switch. (See “Engine immobilizer system”
on page 14 in this Section for details.)
2. Have all passengers get out of the vehicle.
3. Close and lock all the side doors, back door and hood.
The indicator light will remain on when all
the side doors, back door and hood are
closed and locked.
Theft deterrent system
Page 146 of 412
’04 4Runner_U (L/O 0308)
138
2004 4RUNNER from Aug. ’03 Prod. (OM35811U)
If the indicator or buzzer comes on...Do this.
(h)Replace engine oil.
(i)orTake vehicle to Toyota dealer. If brake system warning light is also on, stop
immediately and contact Toyota dealer.
(j)Take vehicle to Toyota dealer.
(k)Close all side doors and back door.
(l)Take vehicle to Toyota dealer immediately.
(m)Stop and check.
(n)Adjust tire pressure. If the light remains, contact Toyota dealer.
Page 148 of 412
’04 4Runner_U (L/O 0308)
140
2004 4RUNNER from Aug. ’03 Prod. (OM35811U)
(a) Brake System Warning Light and
Buzzer
This light comes on in the following cases
when the ignition key is in the “ON” posi-
tion.
When the parking brake is applied...
This light comes on for a few seconds
when the ignition key is turned to the
“ON” position on even after the parking
brake is released.
When the brake fluid level is low...

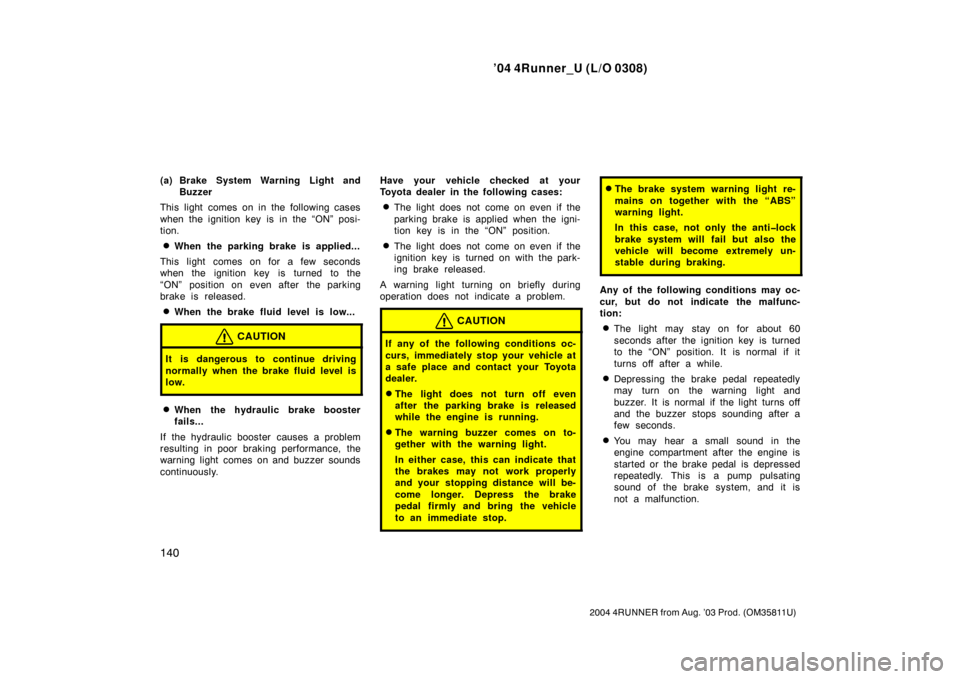

CAUTION
It is dangerous to continue driving
normally when the brake fluid level is
low.
When the hydraulic brake booster
fails...
If the hydraulic booster causes a problem
resulting in poor braking performance, the
warning light comes on and buzzer sounds
continuously. Have your vehicle checked at your
Toyota dealer in the following cases:
The light does not come on even if the
parking brake is applied when the igni-
tion key is in the “ON” position.
The light does not come on even if the
ignition key is turned on with the park-
ing brake released.
A warning light turning on briefly during
operation does not indicate a problem.
CAUTION
If any of the following conditions oc-
curs, immediately stop your vehicle at
a safe place and contact your Toyota
dealer.
The light does not turn off even
after the parking brake is released
while the engine is running.
The warning buzzer comes on to-
gether with the warning light.
In either case, this can indicate that
the brakes may not work properly
and your stopping distance will be-
come longer. Depress the brake
pedal firmly and bring the vehicle
to an immediate stop.
The brake system warning light re-
mains on together with the “ABS”
warning light.
In this case, not only the anti lock
brake system will fail but also the
vehicle will become extremely un-
stable during braking.
Any of the following conditions may oc-
cur, but do not indicate the malfunc-
tion:
The light may stay on for about 60
seconds after the ignition key is turned
to the “ON” position. It is normal if it
turns off after a while.
Depressing the brake pedal repeatedly
may turn on the warning light and
buzzer. It is normal if the light turns off
and the buzzer stops sounding after a
few seconds.
You may hear a small sound in the
engine compartment after the engine is
started or the brake pedal is depressed
repeatedly. This is a pump pulsating
sound of the brake system, and it is
not a malfunction.
Page 149 of 412
’04 4Runner_U (L/O 0308)
141
2004 4RUNNER from Aug. ’03 Prod. (OM35811U)
(b) Driver’s Seat Belt Reminder Light
and Buzzer
This light and buzzer remind you to
buckle up the driver’s seat belt.
Once the ignition key is turned to “ON” or
“START”, the reminder light flashes and
buzzer come on if the driver’s seat belt
is not fastened. Unless the driver fastens
the belt, the light keeps on flashing and
the buzzer sounds for about 4 to 8 se-
conds.
(c) Front Passenger ’s Seat Belt Reminder Light
This light reminds you to buckle up the
front passenger ’s seat belt.
Once the ignition key is turned to “ON” or
“START”, the reminder light flashes if a
passenger sits in the front passenger seat
and does not fasten the seat belt. Howev-
er, if a front passenger uses an additional
seat cushion, the light may not flash even
when the seat belt is not buckled up.
If luggage or other load is placed on the
front passenger seat, depending on its
weight and how it is placed on the seat,
built −in sensors in the seat cushion may
detect the pressure, causing the reminder
light to come on. (d) Discharge Warning Light
This light warns that the battery is being
discharged.
If it comes on while you are driving, there
is a problem somewhere in the charging
system.
The engine ignition will continue to oper-
ate, however, until the battery is dis-
charged. Turn off the air conditioning,
blower, radio, etc., and drive directly to
the nearest Toyota dealer or repair shop.
NOTICE
Do not continue driving if the engine
drive belt is broken or loose.
(e) Low Engine Oil Pressure Warning
Light
This light warns that the engine oil pres-
sure is too low.
If it flickers or stays on while you are
driving, pull off the road to a safe place
and stop the engine immediately. Call a
Toyota dealer or qualified repair shop for
assistance.
The light may occasionally flicker when
the engine is idling or it may come on
briefly after a hard stop. There is no
cause for concern if it then goes out when
the engine is accelerated slightly.
The light may come on when the oil level
is extremely low. It is not designed to
indicate low oil level, and the oil level
must be checked using the level dipstick.
NOTICE
Do not drive the vehicle with the
warning light on—even for one block.
It may ruin the engine.
Page 150 of 412
’04 4Runner_U (L/O 0308)
142
2004 4RUNNER from Aug. ’03 Prod. (OM35811U)
(f) Malfunction Indicator Lamp
This lamp comes on when the ignition
key is turned to the “ON” position and
goes off after the engine starts. This
means that the warning light system is
operating properly.
If the lamp remains on, or the lamp
comes on while driving, first check the
followings.
Empty fuel tank
If the fuel tank is empty, refuel immedi-
ately.
Loose fuel tank cap
If the fuel tank cap is loose, securely
tighten it.
These cases are temporary malfunctions.
The malfunction indicator lamp will go off
after taking several driving trips.
If the lamp will not go off even after the
several trips, contact your Toyota dealer
as soon as possible.
If the fuel tank is not empty or the fuel
tank cap is not loose...
There is a problem somewhere in the
engine, emission control system, elec-
tronic throttle control system, automatic
transmission electrical system or warn-
ing light system itself. Contact your Toyota dealer as soon as
possible to service the vehicle.
If the engine speed does not increase with
the accelerator pedal depressed down,
there may be a problem somewhere in
your electronic throttle control system.
At this time, vibration may occur. Howev-
er, if you depress the accelerator pedal
more firmly and slowly, you can drive your
vehicle at low speeds. Have your vehicle
checked by your Toyota dealer as soon as
possible.
Even if the abnormality of the electronic
throttle control system is corrected during
low speed driving, the system may not be
recovered until the engine is stopped and
the ignition key is turned to “ACC” or
“LOCK” position.

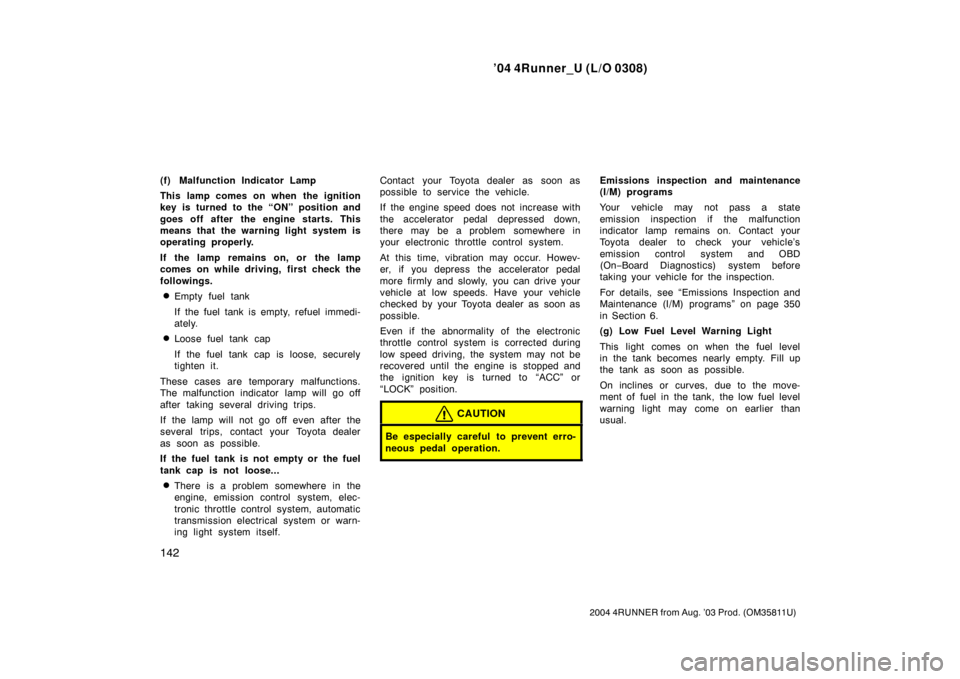

CAUTION
Be especially careful to prevent erro-
neous pedal operation.
Emissions inspection and maintenance
(I/M) programs
Your vehicle may not pass a state
emission inspection if the malfunction
indicator lamp remains on. Contact your
Toyota dealer to check your vehicle’s
emission control system and OBD
(On
−Board Diagnostics) system before
taking your vehicle for the inspection.
For details, see “Emissions Inspection and
Maintenance (I/M) programs” on page 350
in Section 6.
(g) Low Fuel Level Warning Light
This light comes on when the fuel level
in the tank becomes nearly empty. Fill up
the tank as soon as possible.
On inclines or curves, due to the move-
ment of fuel in the tank, the low fuel level
warning light may come on earlier than
usual.
Page 153 of 412
’04 4Runner_U (L/O 0308)
145
2004 4RUNNER from Aug. ’03 Prod. (OM35811U)
(l) SRS Warning Light
This light will come on when the igni-
tion key is turned to the “ON” position.
After about 6 seconds, the light will go
off. This means the system of the air-
bag and front seat belt pretensioner are
operating properly.
This warning light system monitors the
airbag sensor assembly, front airbag sen-
sors, side and curtain shield airbag sen-
sors, curtain shield airbag sensors, driv-
er ’s seat position sensor, driver ’s seat belt
buckle switch, front seat belt pretensioner
assemblies, inflators, warning light, “RSCA
OFF” indicator light, interconnecting wiring
and power sources.
If either of the following conditions occurs,
this indicates a malfunction somewhere in
the parts monitored by the warning light
system. Contact your Toyota dealer as
soon as possible to service the vehicle.
The light does not come on when the
ignition key is turned to the “ON” posi-
tion or remains on.
The light comes on or flashes while
driving. (m) Automatic Transmission Fluid
Temperature Warning Light
This light warns that the automatic trans-
mission fluid temperature is too high.
If this light comes on while you are driv-
ing, slow down and pull off the road. Stop
the vehicle at a safe place and put the
selector lever in “P”. With the engine id-
ling, wait until the light goes off. If the
light goes off, you may start the vehicle
again. If the light does not go off, call a
Toyota dealer or qualified repair shop for
assistance.
NOTICE
Continued driving with the warning
light on may damage the automatic
transmission.
(n) Low Tire Pressure Warning Light
This light warns that the tire pressure of
one or more of your tires (including the
spare tire) is low. The light comes on
when the ignition key is turned to the
“ON” position. It goes off after a few sec-
onds. This indicates that the tire pressure
warning system is functioning properly.
If the warning light comes on, stop your
vehicle in a safe place as soon as pos-
sible and check that the inflation pressure
of all tires (including the spare tire) is as
specified on the tire and loading informa-
tion label. (See “Checking tire inflation
pressure” on page 368 in Section 7− 2.)
The light should go off a few minutes after
the tire pressure is adjusted.
If the warning light blinks, the tire pres-
sure warning system may be malfunction-
ing. Contact your Toyota dealer.
For details, see “Tire pressure warning
system” on page 183 in Section 1 −7.
Page 154 of 412
’04 4Runner_U (L/O 0308)
146
2004 4RUNNER from Aug. ’03 Prod. (OM35811U)
(o) Low Windshield Washer Fluid Level
Warning Light (for vehicles sold in
Canada)
The light warns that the windshield washer
fluid level is too low. Add washer fluid at
your earliest opportunity. (For instructions,
see “Adding washer fluid” on page 381 in
Section 7 −3.)
(p) Key Reminder Buzzer
This buzzer reminds you to remove the
key when you open the driver ’s door with
the ignition key in the “ACC” or “LOCK”
position. CHECKING SERVICE REMINDER
INDICATORS (except the low fuel level
warning light and low windshield
washer fluid level warning light)
1. Apply the parking brake.
2. Open one of the side doors or back door.
The open door warning light should
come on.
3. Close the door. The open door warning light should go
off.
4. Turn the ignition key to “ON”, but do not start the engine.
All the service reminder indicators ex-
cept the open door warning light should
come on.
The following service reminder indica-
tors go off after a few seconds:
Engine oil replacement reminder light
“ABS” warning light
“VSC TRAC” warning light
Low tire pressure warning light
“RSCA OFF” indicator light
“TRAC OFF” indicator light
(two −wheel drive models)
“VSC OFF” indicator light
(four− wheel drive models)
Slip indicator light
Height control indicator lights
Height control “OFF” indicator light
Downhill assist control system indicator
light (four −wheel drive models)
The SRS warning light goes off after
about 6 seconds.
There may be the case that the “ABS”
warning light (brake assist system
warning light), “VSC TRAC” warning
light and “TRAC OFF” (two −wheel drive
models) or “VSC OFF” (four −wheel
drive models) indicator light stay on for
about 60 seconds after the ignition key
is turned to the “ON” position. It is
normal if they go out after a while.
If any service reminder indicator or warn-
ing buzzer does not function as described
above, have it checked by your Toyota
dealer as soon as possible.
Page 173 of 412
’04 4Runner_U (L/O 0308)
165
2004 4RUNNER from Aug. ’03 Prod. (OM35811U)
If the “4LO” (low speed four −wheel drive)
indicator light continues to blink when you
operate the multi −mode control switch
knob to the “H4” or “L4” position, drive
forward or backward in a short distance,
then stop the vehicle completely, shift the
automatic transmission selector lever se-
curely into “N” and operate the switch
knob again.
If the indicator continues to blink even if
doing so, contact your Toyota dealer as
soon as possible. There may be a trouble
in the four −wheel drive system.

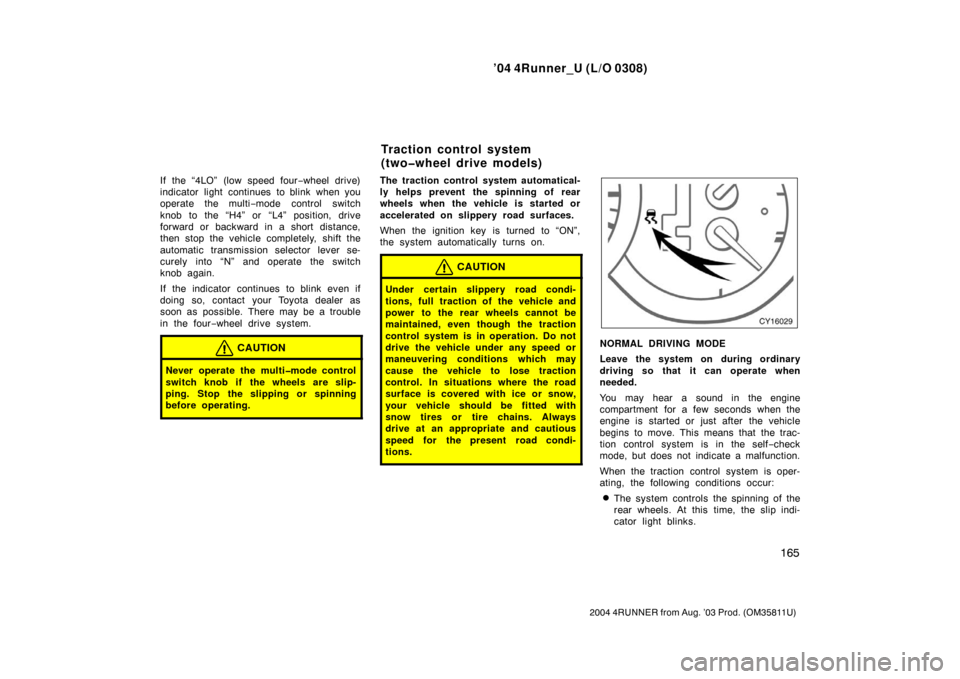

CAUTION
Never operate the multi mode control
switch knob if the wheels are slip-
ping. Stop the slipping or spinning
before operating.
The traction control system automatical-
ly helps prevent the spinning of rear
wheels when the vehicle is started or
accelerated on slippery road surfaces.
When the ignition key is turned to “ON”,
the system automatically turns on.

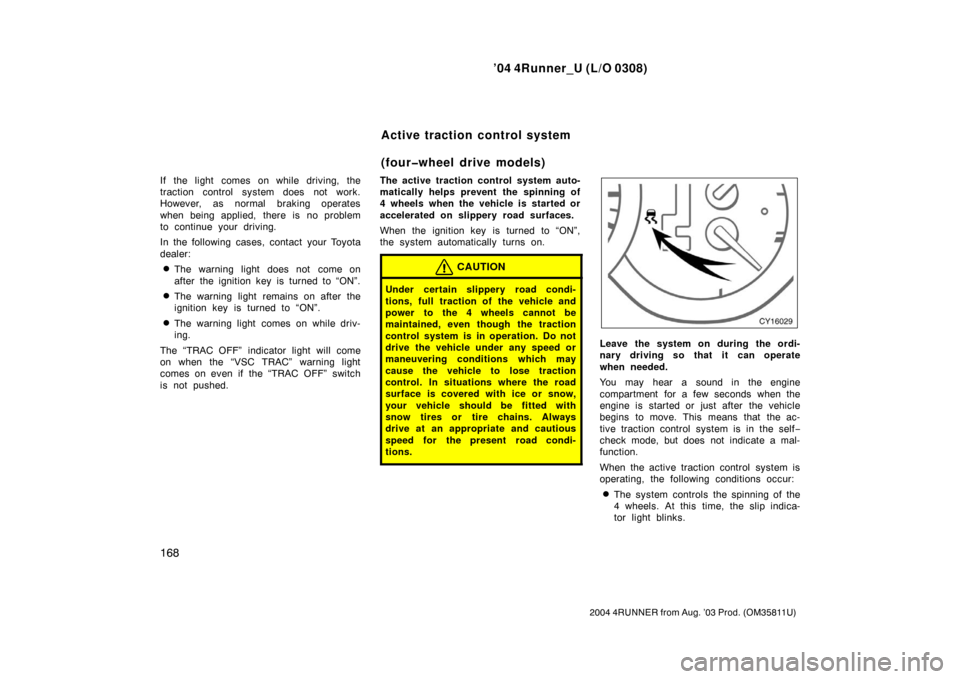

CAUTION
Under certain slippery road condi-
tions, full traction of the vehicle and
power to the rear wheels cannot be
maintained, even though the traction
control system is in operation. Do not
drive the vehicle under any speed or
maneuvering conditions which may
cause the vehicle to lose traction
control. In situations where the road
surface is covered with ice or snow,
your vehicle should be fitted with
snow tires or tire chains. Always
drive at an appropriate and cautious
speed for the present road condi-
tions.
NORMAL DRIVING MODE
Leave the system on during ordinary
driving so that it can operate when
needed.
You may hear a sound in the engine
compartment for a few seconds when the
engine is started or just after the vehicle
begins to move. This means that the trac-
tion control system is in the self −check
mode, but does not indicate a malfunction.
When the traction control system is oper-
ating, the following conditions occur:
The system controls the spinning of the
rear wheels. At this time, the slip indi-
cator light blinks.
Traction control system
(two wheel drive models)
Page 176 of 412
’04 4Runner_U (L/O 0308)
168
2004 4RUNNER from Aug. ’03 Prod. (OM35811U)
If the light comes on while driving, the
traction control system does not work.
However, as normal braking operates
when being applied, there is no problem
to continue your driving.
In the following cases, contact your Toyota
dealer:
The warning light does not come on
after the ignition key is turned to “ON”.
The warning light remains on after the
ignition key is turned to “ON”.
The warning light comes on while driv-
ing.
The “TRAC OFF” indicator light will come
on when the “VSC TRAC” warning light
comes on even if the “TRAC OFF” switch
is not pushed. The active traction control system auto-
matically helps prevent the spinning of
4 wheels when the vehicle is started or
accelerated on slippery road surfaces.
When the ignition key is turned to “ON”,
the system automatically turns on.
CAUTION
Under certain slippery road condi-
tions, full traction of the vehicle and
power to the 4 wheels cannot be
maintained, even though the traction
control system is in operation. Do not
drive the vehicle under any speed or
maneuvering conditions which may
cause the vehicle to lose traction
control. In situations where the road
surface is covered with ice or snow,
your vehicle should be fitted with
snow tires or tire chains. Always
drive at an appropriate and cautious
speed for the present road condi-
tions.
Leave the system on during the ordi-
nary driving so that it can operate
when needed.
You may hear a sound in the engine
compartment for a few seconds when the
engine is started or just after the vehicle
begins to move. This means that the ac-
tive traction control system is in the self
−
check mode, but does not indicate a mal-
function.
When the active traction control system is
operating, the following conditions occur:
The system controls the spinning of the
4 wheels. At this time, the slip indica-
tor light blinks.
Active traction control system
(four wheel drive models)
Page 178 of 412
’04 4Runner_U (L/O 0308)
170
2004 4RUNNER from Aug. ’03 Prod. (OM35811U)
If the light comes on while driving, the
active traction control system does not
work. However, as normal braking oper-
ates when being applied, there is no prob-
lem to continue your driving.
In the following cases, contact your Toyota
dealer:
The warning light does not come on
after the ignition key is turned to “ON”.
The warning light remains on after the
ignition key is turned to “ON”.
The warning light comes on while driv-
ing. The vehicle stability control system
helps provide integrated control of the
systems such as anti lock brake sys-
tem, traction control, engine control,
etc. This system automatically controls
the output of the brakes or engine to
help prevent the vehicle from skidding
when cornering on a slippery road sur-
face or operating steering wheel abrupt-
ly.
The vehicle stability control activates
when the vehicle speed is more than 15
km/h (9 mph).
You may hear a sound in the engine
compartment for a few seconds when the
engine is started or just after the vehicle
begins to move. This means that the sys-
tem is in the self
−check mode, but does
not indicate a malfunction.

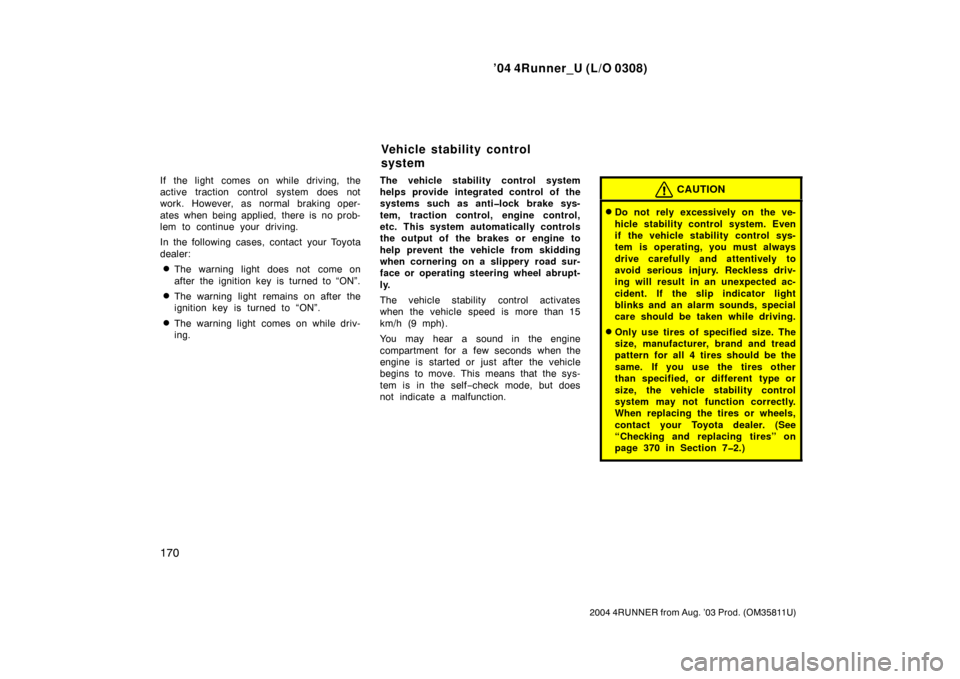

CAUTION
Do not rely excessively on the ve-
hicle stability control system. Even
if the vehicle stability control sys-
tem is operating, you must always
drive carefully and attentively to
avoid serious injury. Reckless driv-
ing will result in an unexpected ac-
cident. If the slip indicator light
blinks and an alarm sounds, special
care should be taken while driving.
Only use tires of specified size. The
size, manufacturer, brand and tread
pattern for all 4 tires should be the
same. If you use the tires other
than specified, or different type or
size, the vehicle stability control
system may not function correctly.
When replacing the tires or wheels,
contact your Toyota dealer. (See
“Checking and replacing tires” on
page 370 in Section 7 2.)
Vehicle stability control
system
