set clock TOYOTA 4RUNNER 2004 N210 / 4.G Owners Manual
[x] Cancel search | Manufacturer: TOYOTA, Model Year: 2004, Model line: 4RUNNER, Model: TOYOTA 4RUNNER 2004 N210 / 4.GPages: 412, PDF Size: 7.86 MB
Page 44 of 412
’04 4Runner_U (L/O 0308)
36
2004 4RUNNER from Aug. ’03 Prod. (OM35811U)
3. The removed cap can be stored on
the back side of the fuel filler door.
Position the cap so that the hooks point
to the left and right or up and down, and
set it in the receptacle on the back side
of the door.
When installing the cap, turn the cap
clockwise until you hear a click. When
you hear the click, the cap is fully
closed.
If the cap is not installed securely, the
malfunction indicator lamp comes on.
Make sure the cap is tightened securely.
The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.
CAUTION
Make sure the cap is installed se-
curely to prevent fuel sp illage in
the event of an accident.
Use only a genuine Toyota fuel tank
cap for replacement. It is designed
to regulate fuel tank pressure.
NOTICE
To prevent damage to the cap, apply
force only in the turning direction to
the cap. Do not pull or pry it.
Page 244 of 412
’04 4Runner_U (L/O 0308)
236
2004 4RUNNER from Aug. ’03 Prod. (OM35811U)

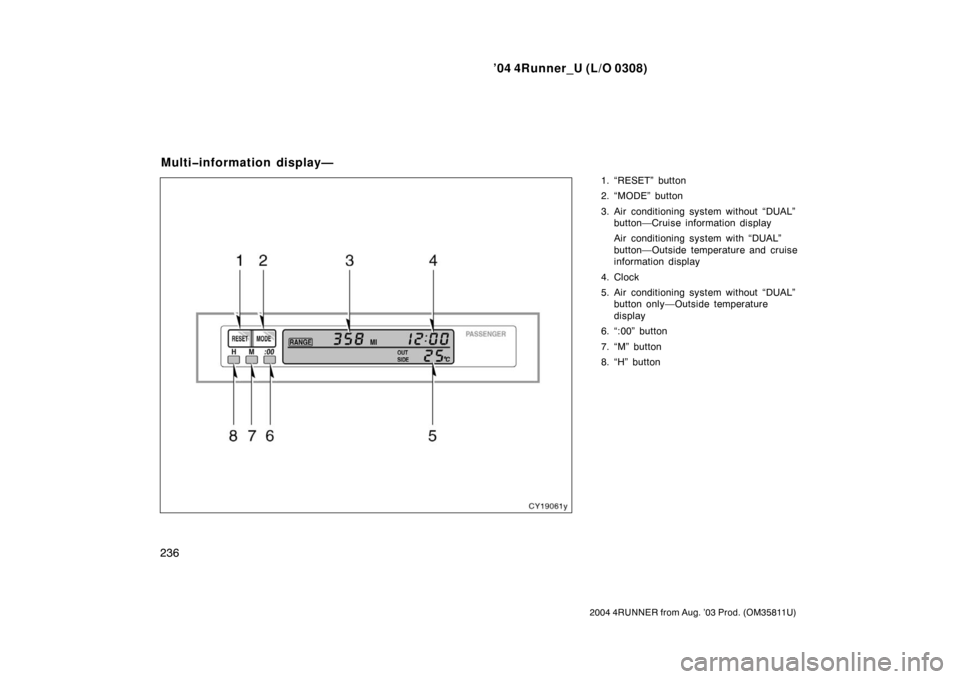

1. “RESET” button
2. “MODE” button
3. Air conditioning system without “DUAL”
button—Cruise information display
Air conditioning system with “DUAL”
button—Outside temperature and cruise
information display
4. Clock
5. Air conditioning system without “DUAL” button only—Outside temperature
display
6. “:00” button
7. “M” button
8. “H” button
Multi information display—
