’05 4Runner_U (L/O 0504)
216
1. Volume control switch
Push “+” to increase the volume. The vol-
ume continues to increase while the
switch is being pushed.
Push “ −” to decrease the volume. The
volume continues to decrease while the
switch is being pushed.
2. “ ” switch
Radio
This switch has the following features—
To select a preset station:
Quickly push and release the “ ” or “ ”
side of the switch. Do this again to select
the next preset station.
To seek a station:
Push and hold the “ ” or “” side of the
switch until you hear a beep. Do this
again to find the next station. If you push
the switch on either side during the seek
mode, seeking will be cancelled.
Cassette player
This switch has the following features—
To skip to a different track in either direc-
tion:
Quickly push and release the “ ” or “ ”
side of the switch. “FF 1” or “REW 1” will
appear on the display. Next, push either side of the track switch
until the track you want to listen to is set.
If you push the switch ten times, the skip
function will turn off. (You can skip up to
nine tracks at a time.)
When counting the number of the tracks
you want to rewind, remember to count
the current track as well. For example, if
you want to rewind to a song that is two
tracks before the song you are listening
to, push the “
” side of the switch three
times.
If you push the track switch further than
you wanted to, push the other side of the
switch. The track number will be in-
creased or reduced.
The track number you select is not valid
if it is higher than the number of the
tracks remaining on the current side of
the cassette.
When the tape reaches to the begin-
ning, the player will automatically start
playing that side.
After the tape reaches to the end, the
player will automatically reverse and
start playing the other side. There must be at least 3 seconds of blank
space between tracks for the track switch
to work correctly. In addition, the feature
may not work well with some spoken, live,
or classical recordings.
To fast forward or reverse:
Push and hold the “
” side of the switch
to fast forward a cassette tape. “FF” will
appear on the display. Push and hold the
“  ” side of the switch to rewind a tape.
“REW” will appear on the display.
To stop the tape while it is fast forward-
ing, push the “ ” side of the switch. To
stop the tape while it is rewinding, push
the “ ” side of the switch.
If a tape rewinds completely, the cassette
player will stop and then play that same
side. If a tape fast forwards completely,
the cassette will play the other side of the
tape using the auto −reverse feature.
Compact disc player
Use this switch to skip up or down to a
different track in either direction.
Quickly push and release the “ ” or “ ”
side of the switch until the track you want
to listen to is set. If you want to return
to the beginning of the current track, push
the “ ” side of the switch once, quickly.

’05 4Runner_U (L/O 0504)
222
Cassette tape player
To fast forward a cassette tape, push and
hold the “
” (TUNE/TRACK) button until
“FF” will appears on the display. Push and
hold the “
” (TUNE/TRACK) button until
“REW” appears on the display to rewind
a tape.
Use this button to skip up or down to
locate a song or recording.
You can select up to nine recordings (in-
cluding current one).
Push the “
” or “” (TUNE/TRACK) but-
ton. “FF 1” or “REW 1” will appear on the
display.
Next, push either side of the track button
until the number on the display reaches
the number of tracks you want to skip. If
you push the button 10 times, the skip
feature will be turned off.
For the skip feature to work correctly a
blank space of at least 3 seconds is con-
sidered to be a start of a recording.
When the beginning of a tape is reached,
the player automatically resumes play.
When the end of the tape is reached, the
player automatically reverses sides and
resumes normal play. In addition, the feature may not work well
with some spoken, live, or classical re-
cordings.
Compact disc player
Use this button to skip up or down to a
different track.
Push the “
” or “” (TUNE/TRACK) but-
ton until the number of the track you want
to listen to appears on the display. If you
want to return to the beginning of the
current track, quickly push the “
”
(TUNE/TRACK) button one time.
Push and hold the “
” or “” (TUNE/
TRACK) button to fast forward or reverse
within a disc. When you release the but-
ton, the compact disc player will resume
playing.
With compact disc changer only—
You can either scan the tracks on a spe-
cific disc or scan the first tracks of all the
discs in the changer.
Scanning the tracks on a disc:
Quickly push and release the “
” or “”
(TUNE/TRACK) button. “LOAD” will appear
on the display and the player will scan all
the tracks on the disc you are listening to.
To stop scanning, push this button again.
If the player scanned all the tracks on the
disc, it will stop scanning. Scanning the first tracks of all the discs
in the changer:
Push and hold the “
” or “” (TUNE/
TRACK) button. The player will scan the
first track of the next disc. To stop scan-
ning, release the button. If the player has
scanned all the di scs, it will stop scan-
ning.
3. “ON/SOURCE” button
Push the “ON/SOURCE” button to turn on
the rear seat audio system.
Use the “ON/SOURCE” button to select an
audio mode when the rear seat audio sys-
tem is on. Each time you push this but-
ton, the system changes between the ra-
dio, cassette player, compact disc player
and compact disc changer.
When you change the mode, the display
indicates which mode is selected.
When a cassette tape and discs are not
loaded in the front audio system, only a
radio mode can be selected in the rear
seat audio system.

’05 4Runner_U (L/O 0504)
278
CAUTION
When you load cargo on the roof lug-
gage carrier, observe the following:
Place the cargo so that its weight
is distributed evenly between the
front and rear axles.
If loading long or wide cargo, never
exceed the vehicle overall length or
width. (See “Dimensions and
weights” on page 402 in Section 8
for information on your vehicle
overall length and width.)
Before driving, make sure the cargo
is securely fastened on the roof
luggage carrier.
Loading cargo on the roof luggage
carrier will make the center of the
vehicle gravity higher. Avoid high
speeds, sudden starts, sharp turns,
sudden braking or abrupt maneu-
vers, otherwise it may result in loss
of control or vehicle rollover due to
failure to operate this vehicle cor-
rectly.
If driving for a long distance, on
rough roads, or at high speeds,
stop the vehicle now and then dur-
ing the trip to make sure the cargo
remains in its place.
Do not exceed 54 kg (120 lb.) cargo
weight on the roof luggage carrier.
NOTICE
When loading the luggages, be careful
not to scratch the surface of the
moon roof.
Use a floor mat of the correct size.
If the floor carpet and floor mat have 2
holes, then they are designed for use with
locking clips. Fix the floor mat with lock-
ing clips into the holes in the floor carpet.
Floor mat

’05 4Runner_U (L/O 0504)
283
Always slow down in gusty cross-
winds. Because of its profile and
higher center of gravity, your ve-
hicle is more sensitive to side
winds than an ordinary passenger
car. Slowing down will allow you to
have better control.
When driving offroad or in rugged
terrain, do not drive at excessive
speeds, jump, make sharp turns,
strike objects, etc. This may cause
loss of control or vehicle rollover
causing death or serious injury. You
are also risking expensive damage
to your vehicle’s suspension and
chassis.
Do not drive horizontally across
steep slopes. Driving straight up or
straight down is preferred. Your ve-
hicle (or any similar offroad ve-
hicle) can tip over sideways much
more easily than forward or back-
ward.
Drive gently and avoid high speeds.
Your vehicle does not need an elaborate
break−in. But following a few simple tips
for the first 1600 km (1000 miles) can add
to the future economy and long life of
your vehicle:
Avoid full throttle acceleration when
starting and driving.
Avoid racing the engine.
Try to avoid hard stops during the first
300 km (200 miles).
Do not drive for a long time at any
single speed, either fast or slow.
Do not tow a trailer during the first 800
km (500 miles). FUEL TYPE
Your new vehicle must use only un-
leaded gasoline.
To help prevent gas station mix
−ups, your
Toyota has a smaller fuel tank opening.
The special nozzle on pumps with un-
leaded fuel will fit it, but the larger stan-
dard nozzle on pumps with leaded gas will
not.
At a minimum, the gasoline you use
should meet the specifications of ASTM
D4814 in the U.S.A. and CGSB 3.5 −M93
in Canada.NOTICE
Do not use leaded gasoline. Use of
leaded gasoline will cause the three
way catalytic converter to lose its ef-
fectiveness and the emission control
system to function improperly. Also,
this can increase maintenance costs.
Breakin period Fuel

’05 4Runner_U (L/O 0504)
285
NOTICE
Do not use gasohol other than
stated above. It will cause fuel sys-
tem damage or vehicle performance
problems.
 If driveab ility problems occur (poor
hot starting, vaporizing, engine
knock, etc.), discontinue the use.
 Take care not to spill gasohol dur-
ing refueling. Gasohol may cause
paint damage.
FUEL TANK CAPACITY
87 L (23.0 gal., 19.1 Imp. gal.) The fuel pump shut off system stops sup-
plying fuel to the engine to minimize the
risk of fuel leakage when the engine stalls
or an airbag inflates upon collision. To
restart the engine after the fuel pump shut
off system activates, turn the ignition
switch to “ACC” or “LOCK” once and start
it.
CAUTION
Inspect the ground under the vehicle
before restarting the engine. If you
find that liquid has leaked onto the
ground, it is the fuel system has
been damaged and it is in need of
repair. In this case, do not restart the
engine.
If you plan to drive your Toyota in
another country...
First,
comply with the vehicle registration
laws.
Second, confirm the availability of the cor-
rect fuel (unleaded and minimum octane
number).
Fuel pump shut off system Operation in foreign countries

’05 4Runner_U (L/O 0504)
289
This brake system has 2 independent hy-
draulic circuits. If either circuit should fail,
the other will still work. However, the ped-
al will be harder to press, and your stop-
ping distance will increase. Also, the
brake system warning light may come on.

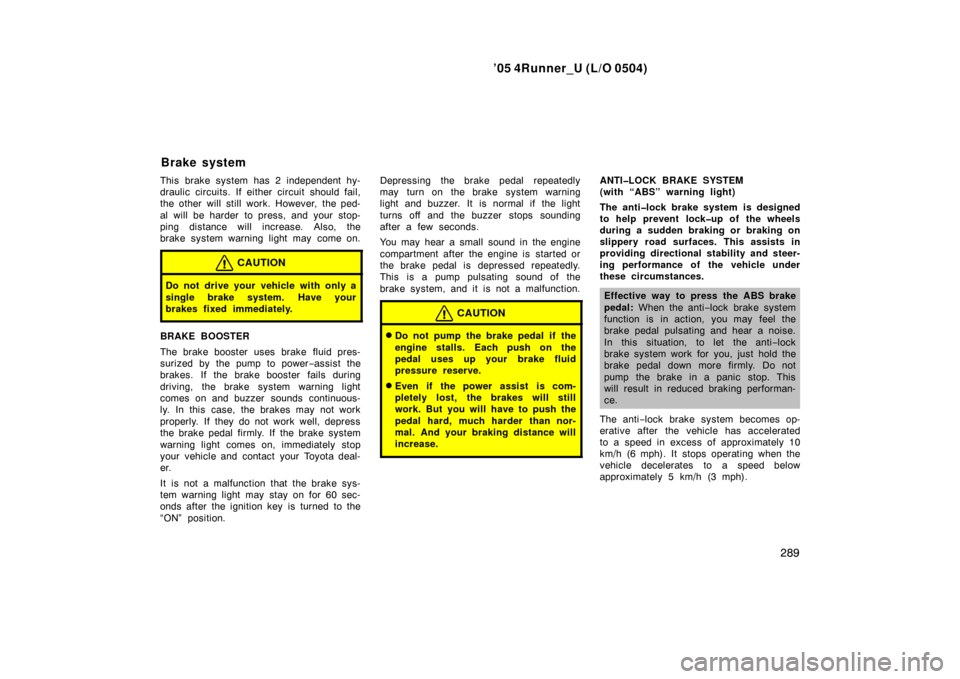

CAUTION
Do not drive your vehicle with only a
single brake system. Have your
brakes fixed immediately.
BRAKE BOOSTER
The brake booster uses brake fluid pres-
surized by the pump to power −assist the
brakes. If the brake booster fails during
driving, the brake system warning light
comes on and buzzer sounds continuous-
ly. In this case, the brakes may not work
properly. If they do not work well, depress
the brake pedal firmly. If the brake system
warning light comes on, immediately stop
your vehicle and contact your Toyota deal-
er.
It is not a malfunction that the brake sys-
tem warning light may stay on for 60 sec-
onds after the ignition key is turned to the
“ON” position. Depressing the brake pedal repeatedly
may turn on the brake system warning
light and buzzer. It is normal if the light
turns off and the buzzer stops sounding
after a few seconds.
You may hear a small sound in the engine
compartment after the engine is started or
the brake pedal is depressed repeatedly.
This is a pump pulsating sound of the
brake system, and it is not a malfunction.
CAUTION
Do not pump the brake pedal if the
engine stalls. Each push on the
pedal uses up your brake fluid
pressure reserve.
Even if the power assist is com-
pletely lost, the brakes will still
work. But you will have to push the
pedal hard, much harder than nor-
mal. And your braking distance will
increase.
ANTILOCK BRAKE SYSTEM
(with “ABS” warning light)
The antilock brake system is designed
to help prevent lockup of the wheels
during a sudden braking or braking on
slippery road surfaces. This assists in
providing directional stability and steer-
ing performance of the vehicle under
these circumstances.
Effective way to press the ABS brake
pedal:
When the anti −lock brake system
function is in action, you may feel the
brake pedal pulsating and hear a noise.
In this situation, to let the anti −lock
brake system work for you, just hold the
brake pedal down more firmly. Do not
pump the brake in a panic stop. This
will result in reduced braking performan-
ce.
The anti −lock brake system becomes op-
erative after the vehicle has accelerated
to a speed in excess of approximately 10
km/h (6 mph). It stops operating when the
vehicle decelerates to a speed below
approximately 5 km/h (3 mph).
Brake system

’05 4Runner_U (L/O 0504)
290
Depressing the brake pedal on slippery
road surfaces such as on a manhole cov-
er, a steel plate at a construction site,
joints in a bridge, etc. on a rainy day
tends to activate the anti −lock brake sys-
tem.
You may hear a click or motor sound in
the engine compartment for a few seconds
when the engine is started or just after
the vehicle begins to move. This means
that the anti −lock brake system is in the
self −check mode, and does not indicate a
malfunction.
When the antilock brake system is ac-
tivated, the following conditions may
occur. They do not indicate a malfunc-
tion of the system:
You may hear the anti −lock brake sys-
tem operating and feel the brake pedal
pulsating and the vibrations of the ve-
hicle body and steering wheel. You
may also hear the motor sound in the
engine compartment even after the ve-
hicle is stopped.
At the end of the anti −lock brake sys-
tem activation, the brake pedal may
move a little forward.
CAUTION
Do not overestimate the antilock
brake system: Although the antilock
brake system assists in providing ve-
hicle control, it is still important to
drive with all due care and maintain
a moderate speed and safe distance
from the vehicle in front of you, be-
cause there are limits to the vehicle
stability and effectiveness of steering
wheel operation even with the anti
lock brake system on.
If tire grip performance exceeds its
capability, or if hydroplaning occurs
during high speed driving in the rain,
the antilock brake system does not
provide vehicle control.
Antilock brake system is not de-
signed to shorten the stopping dis-
tance: Always drive at a moderate
speed and maintain a safe distance
from the vehicle in front of you.
Compared with vehicles without an
antilock brake system, your vehicle
may require a longer stopping dis-
tance in the following cases:
Driving on rough, gravel or snow
covered roads.
Driving with tire chains installed.
Driving over the steps such as the
joints on the road.
Driving on roads where the road
surface is pitted or has other differ-
ences in surface height.
Install all 4 tires of specified size at
appropriate pressure: The antilock
brake system detects vehicle speeds
using the speed sensors for respec-
tive wheels’ turning speeds. The use
of tires other than specified may fail
to detect the accurate turning speed
resulting in a longer stopping dis-
tance.

’05 4Runner_U (L/O 0504)
310
1. Check the area around the vehicle be-
fore entering it.
2. Adjust seat position, seatback angle, seat cushion angle, head restraint
height and steering wheel angle.
3. Adjust the inside and outside rear view mirrors.
4. Lock all doors.
5. Fasten seat belts. Once you turn the ignition key to “START”
position and release it, the cranking hold
function continues to crank the engine in
“ON” position until it starts.
The function stops cranking the engine
after about 25 seconds maximum if the
engine has not started yet. When you
crank the engine again, wait a few sec-
onds and restart it.
If you hold the key in “START” position,
the function will keep cranking for about
30 seconds maximum. 1. Apply the parking brake firmly.
2. Turn off unnecessary lights and acces-
sories.
3. Put the selector lever in “P”. If you need to restart the engine while the
vehicle is moving, put the selector le-
ver in “N”. A starter safety device will
prevent the starter from operating if the
selector lever is in any drive position.
4. Depress the brake pedal and hold it to the floor until driving off.
Before starting the engine How to start the engine—
—Cranking hold function
(a) Before cranking

’05 4Runner_U (L/O 0504)
315
Check the condition of the battery and
cables.
Cold temperatures reduce the capacity of
any battery, so it must be in top shape to
provide enough power for winter starting.
Section 7−3 tells you how to visually in-
spect the battery. Your Toyota dealer and
most service stations will be pleased to
check the level of charge.
Make sure the engine oil viscosity is
suitable for the cold weather.
See page 376 in Section 7 −2 for recom-
mended viscosity. Leaving a heavy sum-
mer oil in your vehicle during winter
months may cause harder starting. If you
are not sure about which oil to use, call
your Toyota dealer—they will be pleased
to help.
Keep the door locks from freezing.
Squirt lock de −icer or glycerine into the
locks to keep them from freezing.
Use a washer fluid containing an anti-
freeze solution.
This product is available at your Toyota
dealer and most auto parts stores. Follow
the manufacturer ’s directions for how
much to mix with water.NOTICE
Do not use engine antifreeze or any
other substitute because it may dam-
age your vehicle’s paint.
Do not use your parking brake when
there is a possibility it could freeze.
When parking, put the transmission into
“P” and block the front wheels. Do not
use the parking brake, or snow or water
accumulated in and around the parking
brake mechanism may freeze, making it
hard to release.
Keep ice and snow from accumulating
under the fenders.
Ice and snow built up under your fenders
can make steering difficult. During bad
winter driving, stop and check under the
fenders occasionally.
Depending on where you are driving,
we recommend you carry some emer-
gency equipment.
Some of the things you might put in the
vehicle are tire chains, window scraper,
bag of sand or salt, flares, small shovel,
jumper cables, etc.
Your vehicle is not designed to be
dinghy towed (with four wheels on the
ground) behind a motorhome.
NOTICE
Do not tow your vehicle with four
wheels on the ground. This may
cause serious damage to your vehicle.
Dinghy towing

’05 4Runner_U (L/O 0504)
324
TRAILER TOWING TIPS
When towing a trailer, your vehicle will
handle differently than when not tow-
ing. The three main causes of vehicle
trailer accidents are driver error, exces-
sive speed and improper trailer loading.
Keep these in mind when towing:
Before starting out, check operation of
the lights and all vehicle −trailer connec-
tions. After driving a short distance,
stop and recheck the lights and con-
nections. Before actually towing a trail-
er, practice turning, stopping and back-
ing with a trailer in an area away from
traffic until you learn the feel.
Backing with a trailer is difficult and
requires practice. Grip the bottom of
the steering wheel and move your hand
to the left to move the trailer to the
left. Move your hand to the right to
move the trailer to the right. (This pro-
cedure is generally opposite to that
when backing without a trailer.) Also,
just turn the steering wheel a little at
a time, avoiding sharp or prolonged
turning. Have someone guide you when
backing to reduce the risk of an acci-
dent.
Because stopping distance may be in-
creased, vehicle −to −vehicle distance
should be increased when towing a
trailer. For each 16 km/h (10 mph) of
speed, allow at least one vehicle and
trailer length between you and the ve-
hicle ahead. Avoid sudden braking as
you may skid, resulting in jackknifing
and loss of control. This is especially
true on wet or slippery surfaces.
Avoid jerky starts or sudden accelera-
tion.
Avoid jerky steering and sharp turns.
The trailer could hit your vehicle in a
tight turn. Slow down before making a
turn to avoid the necessity of sudden
braking.
Remember that when making a turn,
the trailer wheels will be closer than
the vehicle wheels to the inside of the
turn. Therefore, compensate for this by
making a larger than normal turning
radius with your vehicle.
Crosswinds and rough roads will ad-
versely affect handling of your vehicle
and trailer, causing sway. Pay attention
to the rear from time to time to pre-
pare yourself for being passed by large
trucks or buses, which may cause your
vehicle and trailer to sway. If swaying
happens, firmly grip the steering wheel
and reduce speed immediately but
gradually. Never increase speed. Steer
straight ahead. If you make no extreme
correction with the steering or brakes,
the vehicle and trailer will stabilize.
Be careful when passing other ve-
hicles. Passing requires considerable
distance. After passing a vehicle, do
not forget the length of your trailer and
be sure you have plenty of room befo-
re changing lanes.
In order to maintain engine braking effi-
ciency, do not put the transmission in
“D”.
